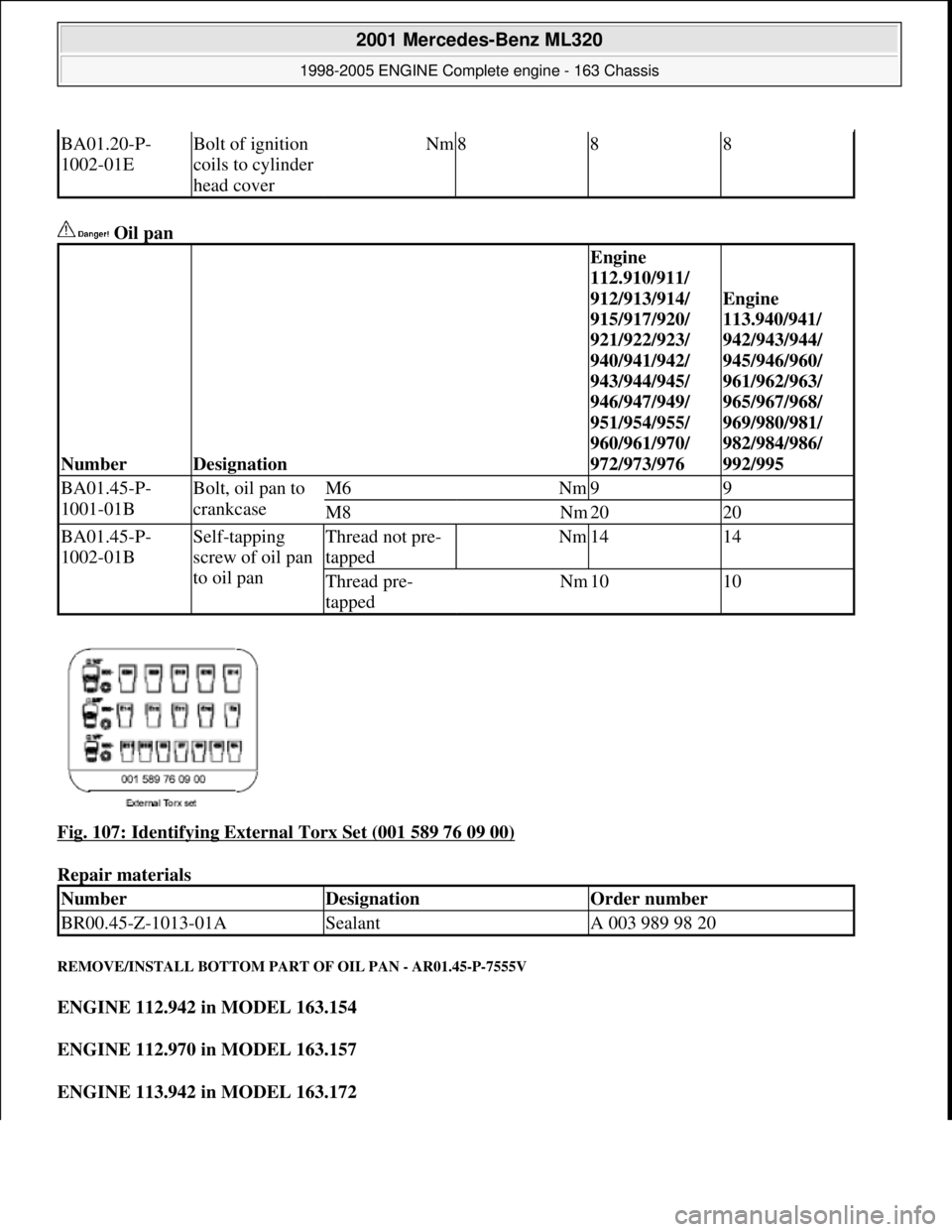

Page 2489 of 4133

MERCEDES-BENZ ML320 1997 Complete Repair Manual Oil pan Fig. 107: Identifying External Torx Set (001 589 76 09 00) Repair materials REMOVE/INSTALL BOTTOM PART OF OIL PAN - AR01.45-P-7555V ENGINE 112.942 in MODEL 163.154 ENGINE 112.97

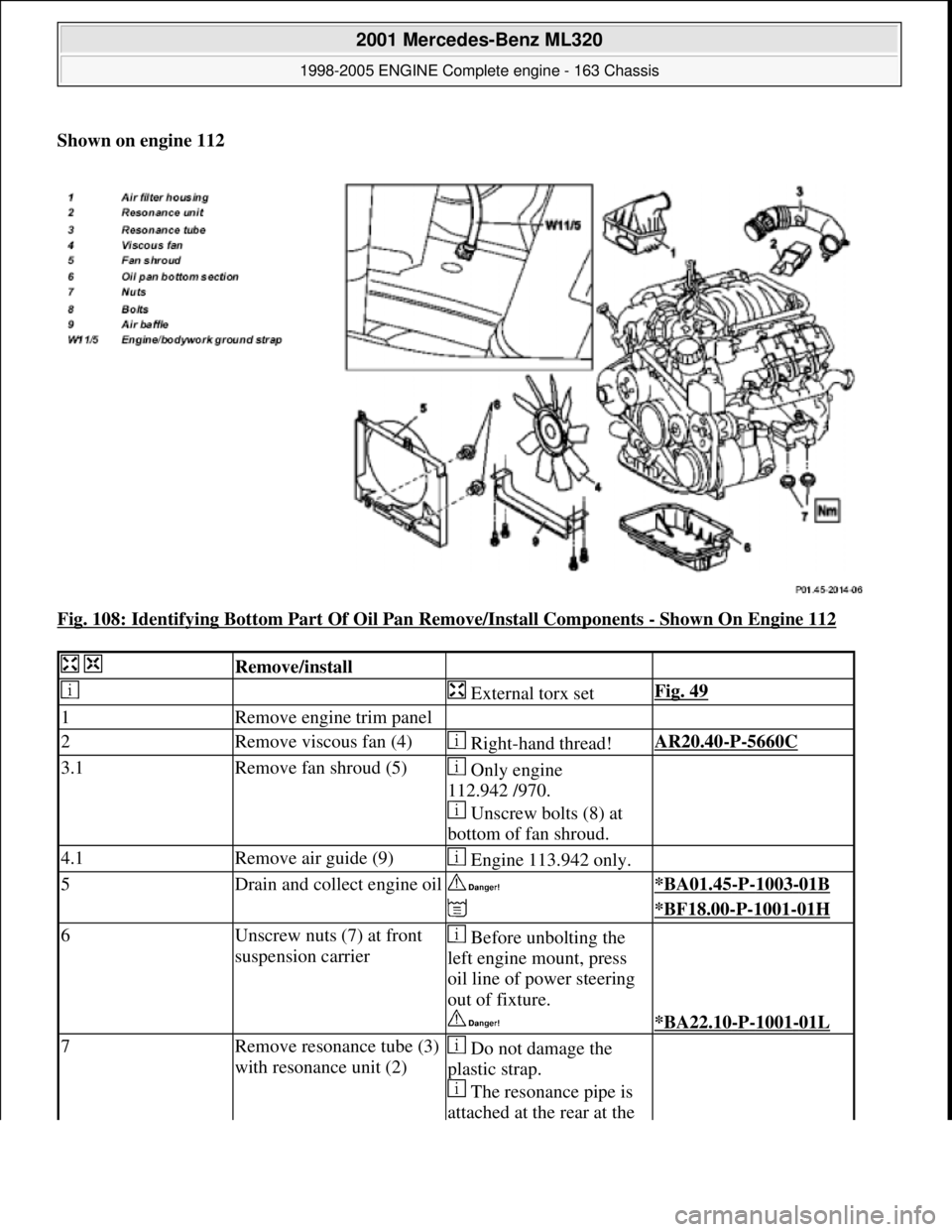

Page 2490 of 4133

MERCEDES-BENZ ML320 1997 Complete Repair Manual Shown on engine 112 Fig. 108: Identifying Bottom Part Of Oil Pan Remove/Install Components - Shown On Engine 112 Remove/install External torx setFig. 49 1Remove engine trim panel 2Rem

Page 2491 of 4133

MERCEDES-BENZ ML320 1997 Complete Repair Manual Oil pan intake manifold with a plastic plate. Separate connector of hot film MAF sensor (HFM) and unscrew resonance tube at cylinder head cover. Engine 112.942/970.AR07.07-P-1454A Eng

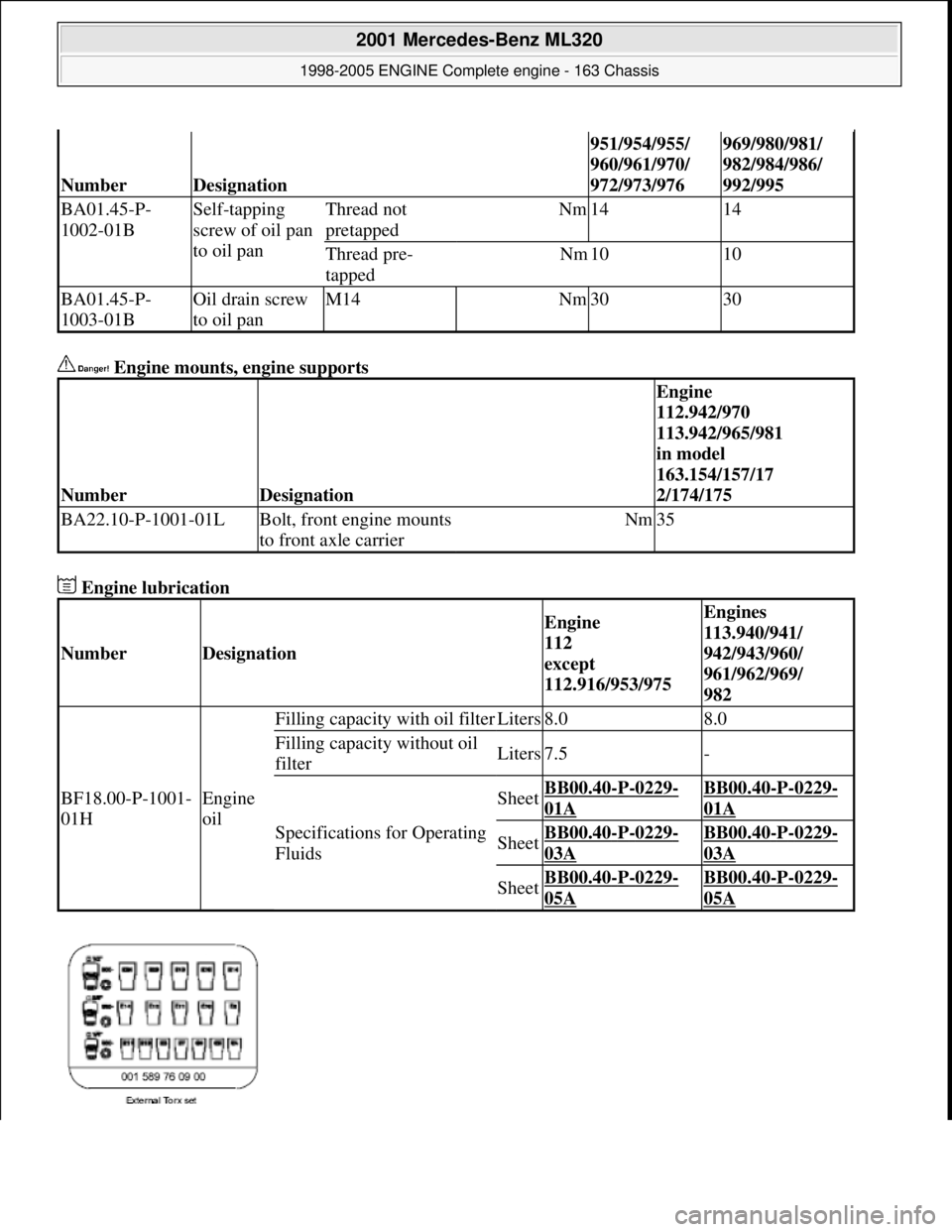

Page 2492 of 4133

MERCEDES-BENZ ML320 1997 Complete Repair Manual Engine mounts, engine supports Engine lubrication NumberDesignation 951/954/955/ 960/961/970/ 972/973/976969/980/981/ 982/984/986/ 992/995 BA01.45-P- 1002-01BSelf-tapping screw of oil

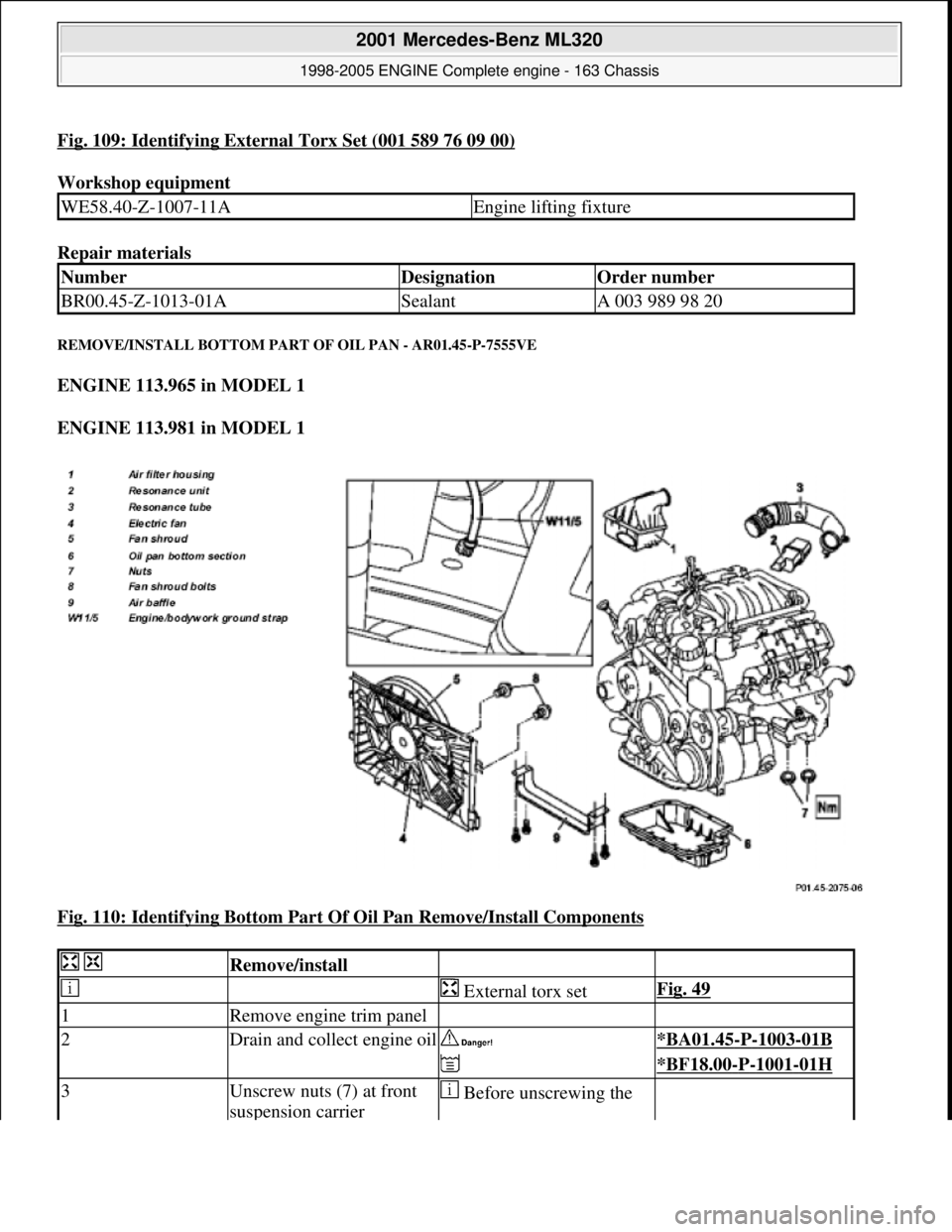

Page 2493 of 4133

MERCEDES-BENZ ML320 1997 Complete Repair Manual Fig. 109: Identifying External Torx Set (001 589 76 09 00) Workshop equipment Repair materials REMOVE/INSTALL BOTTOM PART OF OIL PAN - AR01.45-P-7555VE ENGINE 113.965 in MODEL 1 ENGINE 113.

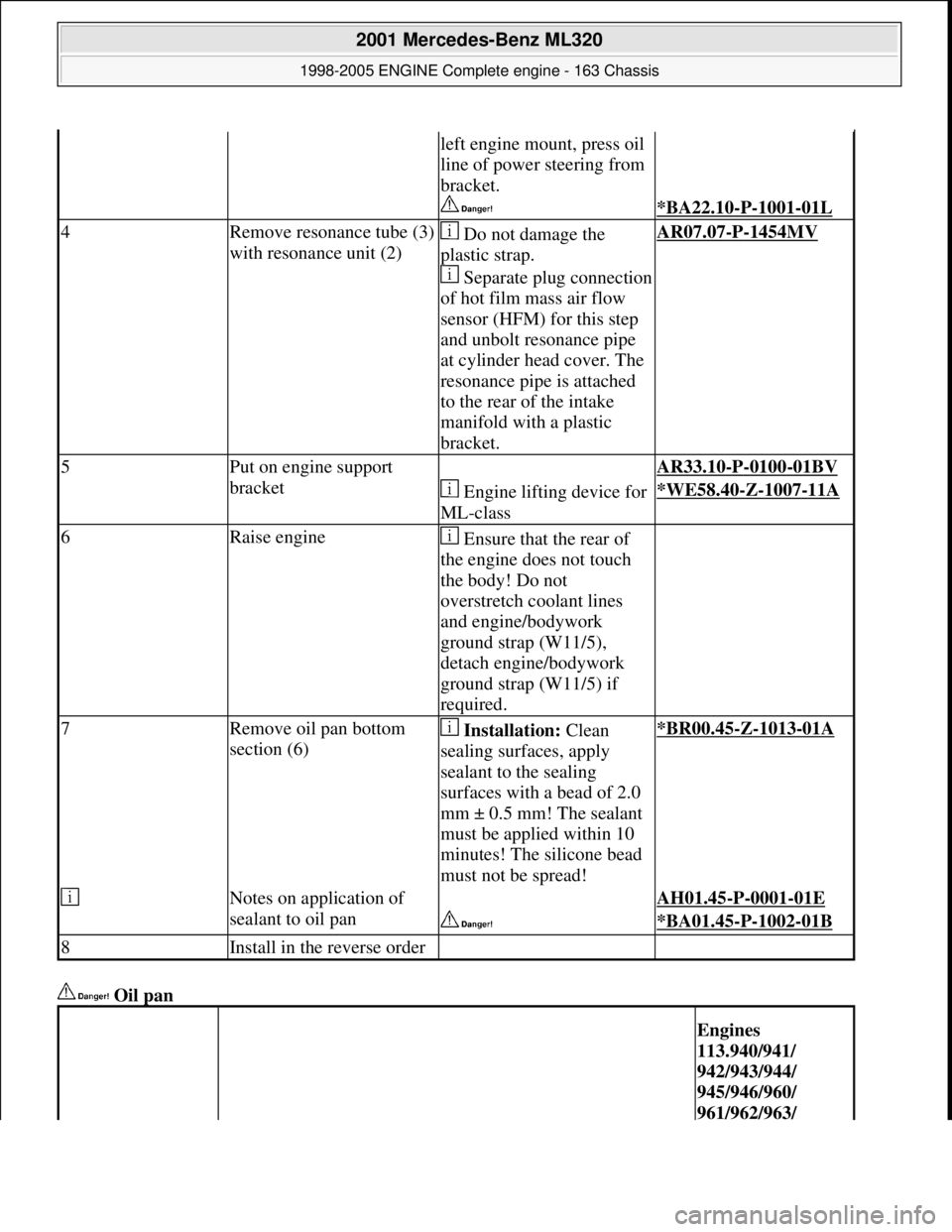

Page 2494 of 4133

MERCEDES-BENZ ML320 1997 Complete Repair Manual Oil pan left engine mount, press oil line of power steering from bracket. *BA22.10-P-1001-01L 4Remove resonance tube (3) with resonance unit (2) Do not damage the plastic strap. Separ

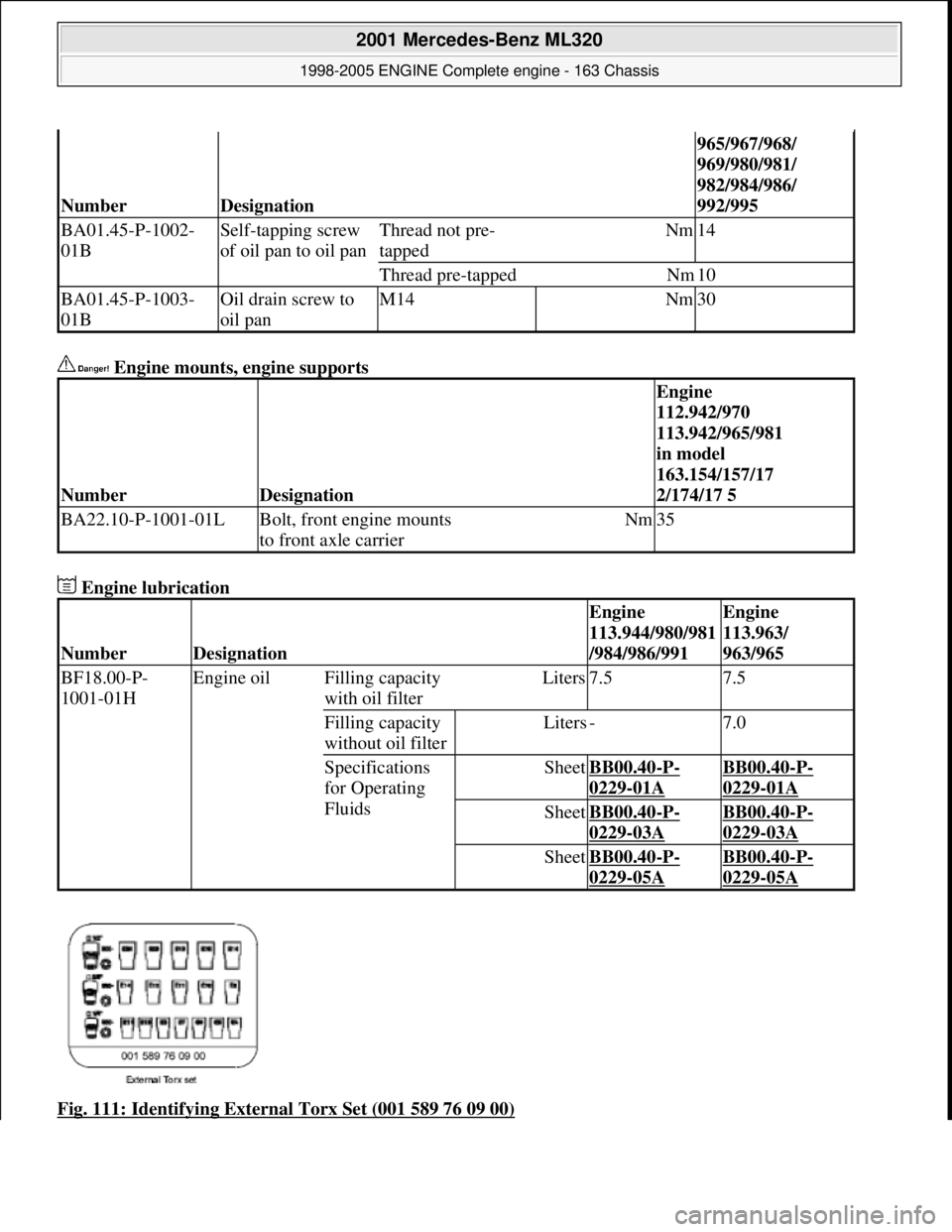

Page 2495 of 4133

MERCEDES-BENZ ML320 1997 Complete Repair Manual Engine mounts, engine supports Engine lubrication Fig. 111: Identifying External Torx Set (001 589 76 09 00) NumberDesignation 965/967/968/ 969/980/981/ 982/984/986/ 992/995 BA01.45-P-1

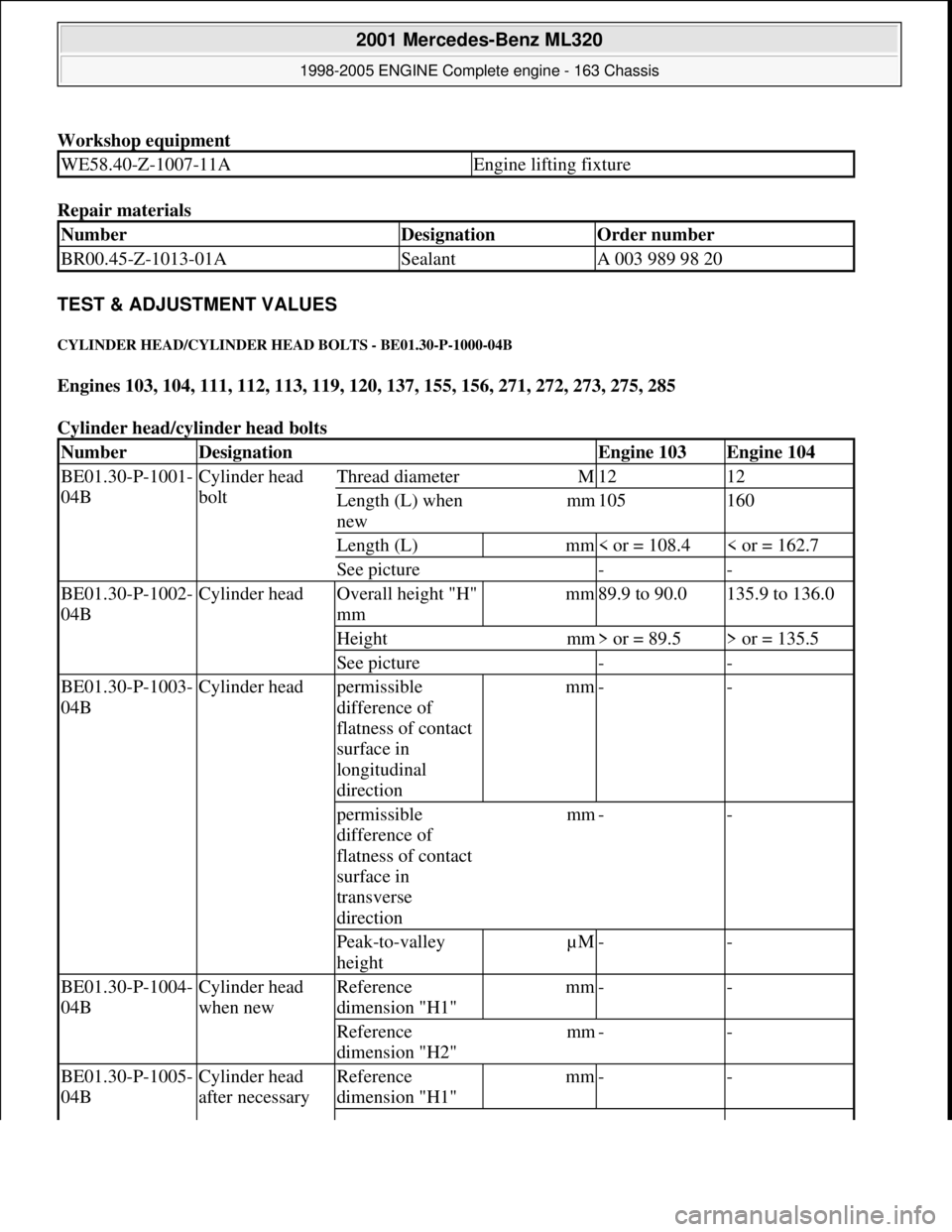

Page 2496 of 4133

MERCEDES-BENZ ML320 1997 Complete Repair Manual Workshop equipment Repair materials TEST & ADJUSTMENT VALUES CYLINDER HEAD /CYLINDER HEAD BOLTS - BE01.30-P-1000-04B Engines 103, 104, 111, 112, 113, 119, 120, 137, 155, 156, 271, 272, 273
