MERCEDES-BENZ ML320 1997 Complete Repair Manual COMAND continuously calculates the location of the vehicle with the aid of the following procedures:
GPS position finding
Basic position finding (compound position finding)
Map-supported

Page 1642 of 4133

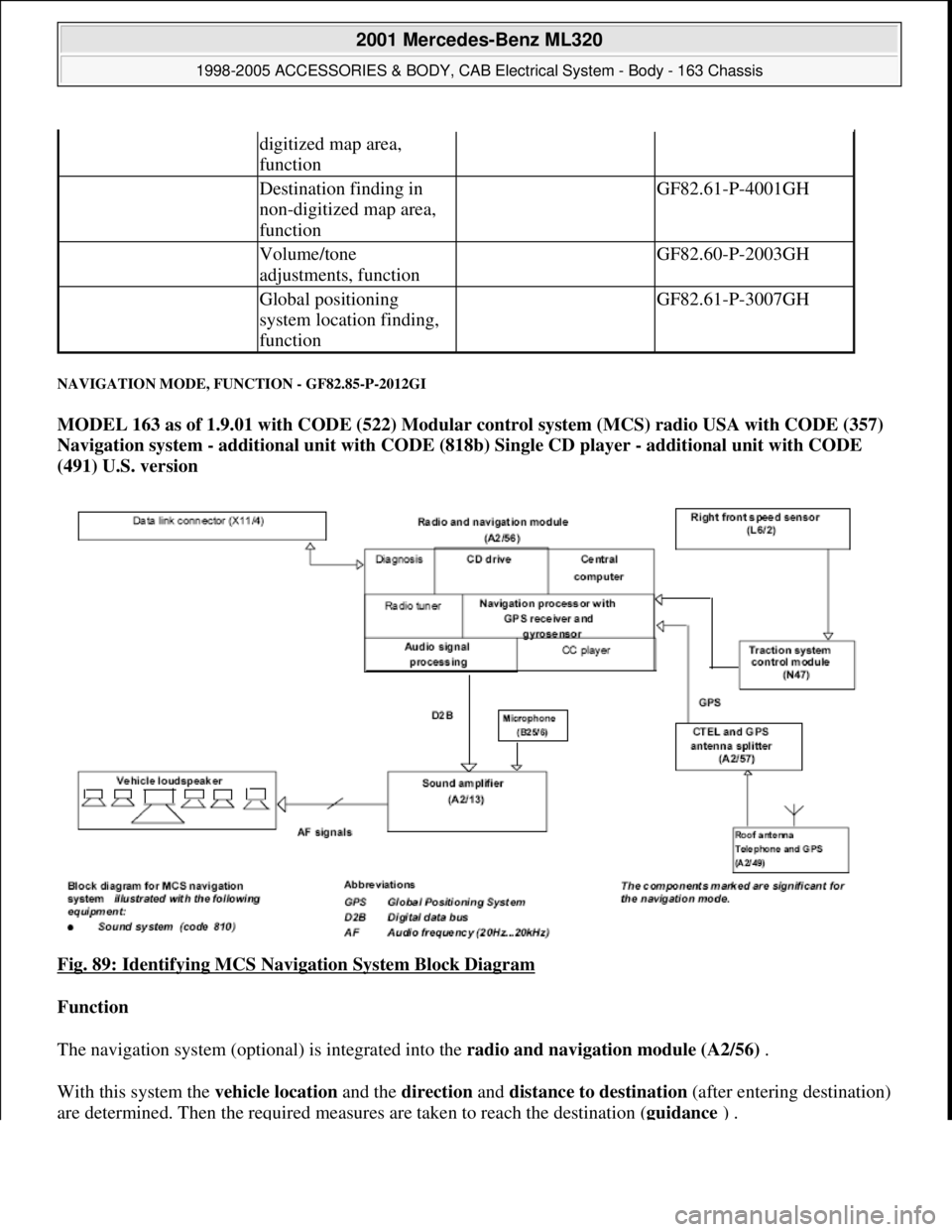

MERCEDES-BENZ ML320 1997 Complete Repair Manual NAVIGATION MODE, FUNCTION - GF82.85-P-2012GI
MODEL 163 as of 1.9.01 with CODE (522) Modular control system (MCS) radio USA with CODE (357)
Navigation system - additional unit with CODE (818b) Single

Page 1643 of 4133

MERCEDES-BENZ ML320 1997 Complete Repair Manual The navigation system can be activated by pressing the" NAVI" button on the control module.
A navigation processor with CD drive for the digital map data is integrated (optional) into the radio and
n

The navigation system can be activated by pressing the" NAVI" button on the control module.
A navigation processor with CD drive for the digital map data is integrated (optional) into the radio and
navigation module (A2/56)
The navigation CD drive can also play audio CD's .
Destination entry
The destination can be entered with menu-guidance on the control module and is processed by the navigation
processor . It is only possible to enter destinations which are stored on the CD-ROM .
Location finding
the radio and navigation module (A2/56) continuously calculates the vehicle location with the aid of the
following procedures:
GPS location finding
Basic location finding (dead reckoning)
Map-supported location finding (map matching)
The navigation processor calculates the most probable position by permanently comparing the location results
of these three methods.
Route calculation
The route calculation is accomplished in the navigation processor after the destination is entered or
automatically following a deviation from the suggested route.
The calculated route is stored in the navigation processor .
Route guidance
After the navigation processor has calculated the route guidance starts.
Route guidance is accomplished graphically with a digital map with direction arrows as well as with the aid of
the voice output on the vehicle loudspeakers. When the " NAVI VOICE " button is pressed the last current
navigation command is repeated. The volume of the voice output can be set on the volume knob during a
navigation command. The following functions are available in the navigation mode:
When the" NAVI MENU " button is actuated the main navigation menu opens.
All other entries can be made with the " joystick ".
"Dest" (destination entry)radio and navigation module (A2/56) offers the following possibilities for
destination entr
y:

2001 Mercedes-Benz ML320
1998-2005 ACCESSORIES & BODY, CAB Electrical System - Body - 163 Chassis
me
Saturday, October 02, 2010 3:30:06 PMPage 148 © 2006 Mitchell Repair Information Company, LLC.

Page 1644 of 4133

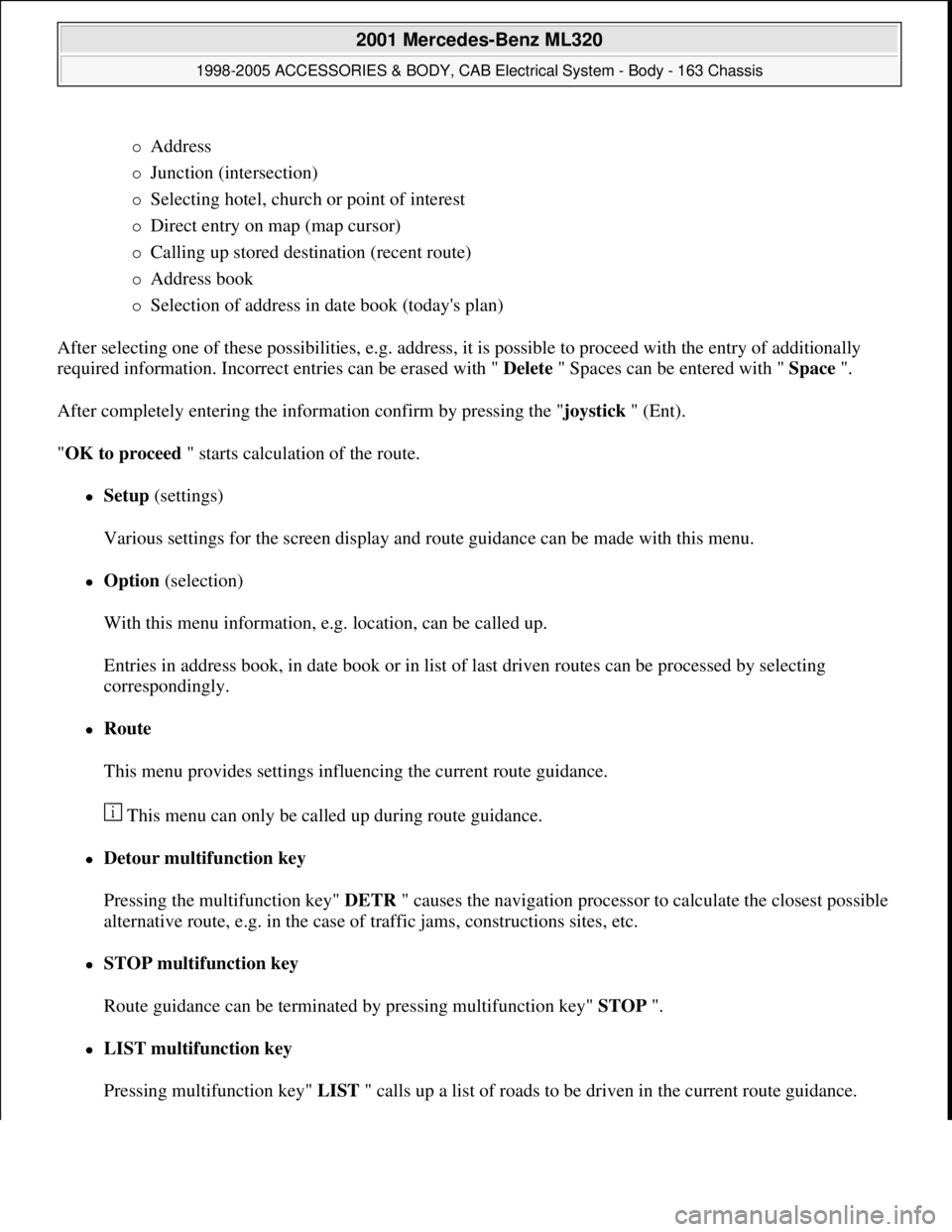

MERCEDES-BENZ ML320 1997 Complete Repair Manual Address
Junction (intersection)
Selecting hotel, church or point of interest
Direct entry on map (map cursor)
Calling up stored destination (recent route)
Address book
�

Page 1645 of 4133

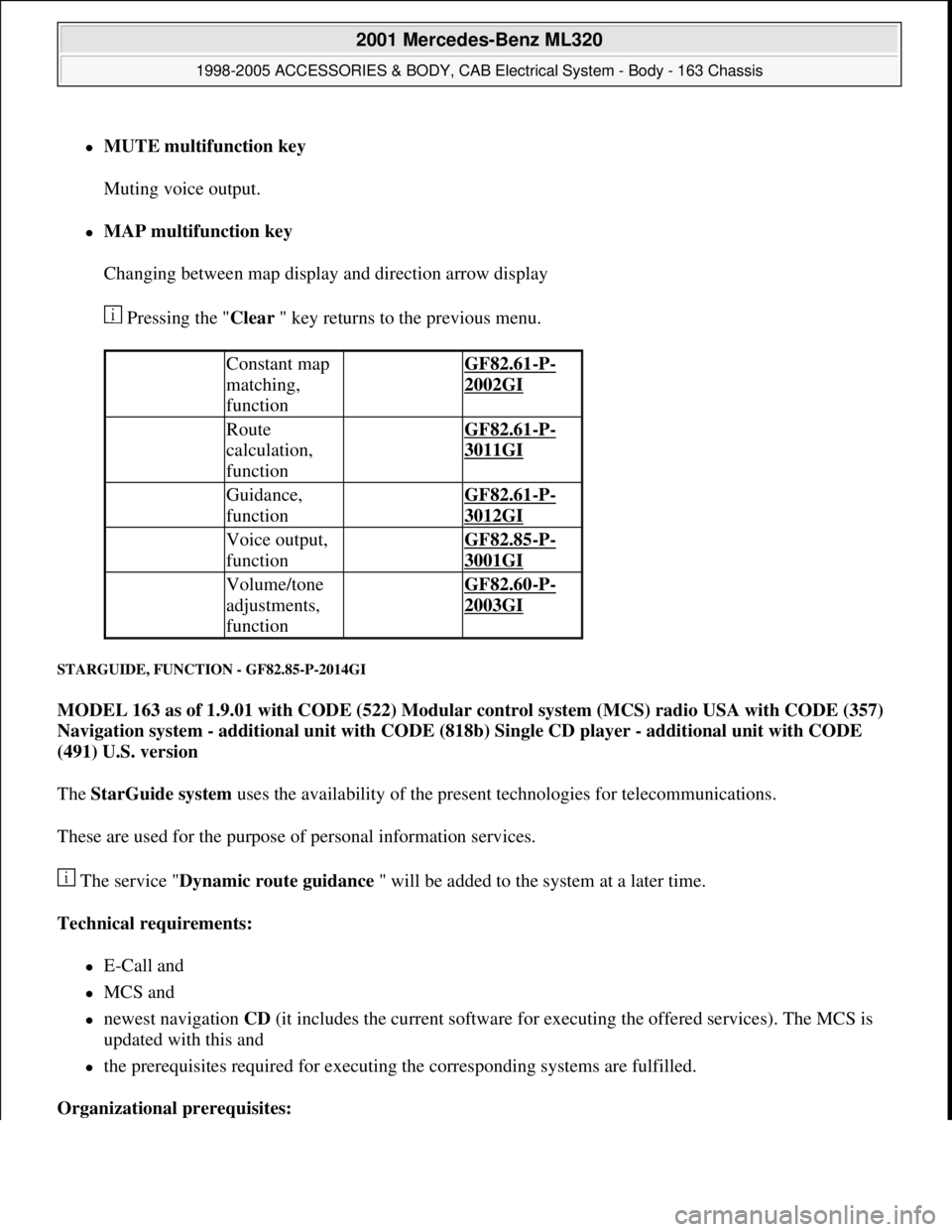

MERCEDES-BENZ ML320 1997 Complete Repair Manual MUTE multifunction key
Muting voice output.
MAP multifunction key
Changing between map display and direction arrow display
Pressing the "Clear " key returns to the previous menu.
STARGUIDE

Page 1646 of 4133

MERCEDES-BENZ ML320 1997 Complete Repair Manual GPS G lobal P ositioning S ystem. Satellite-supported system for precise positioning and navigation. At
present 26 satellites are in operation orbiting the earth on 6 orbits.
AMPS: A dvanced

Page 1647 of 4133

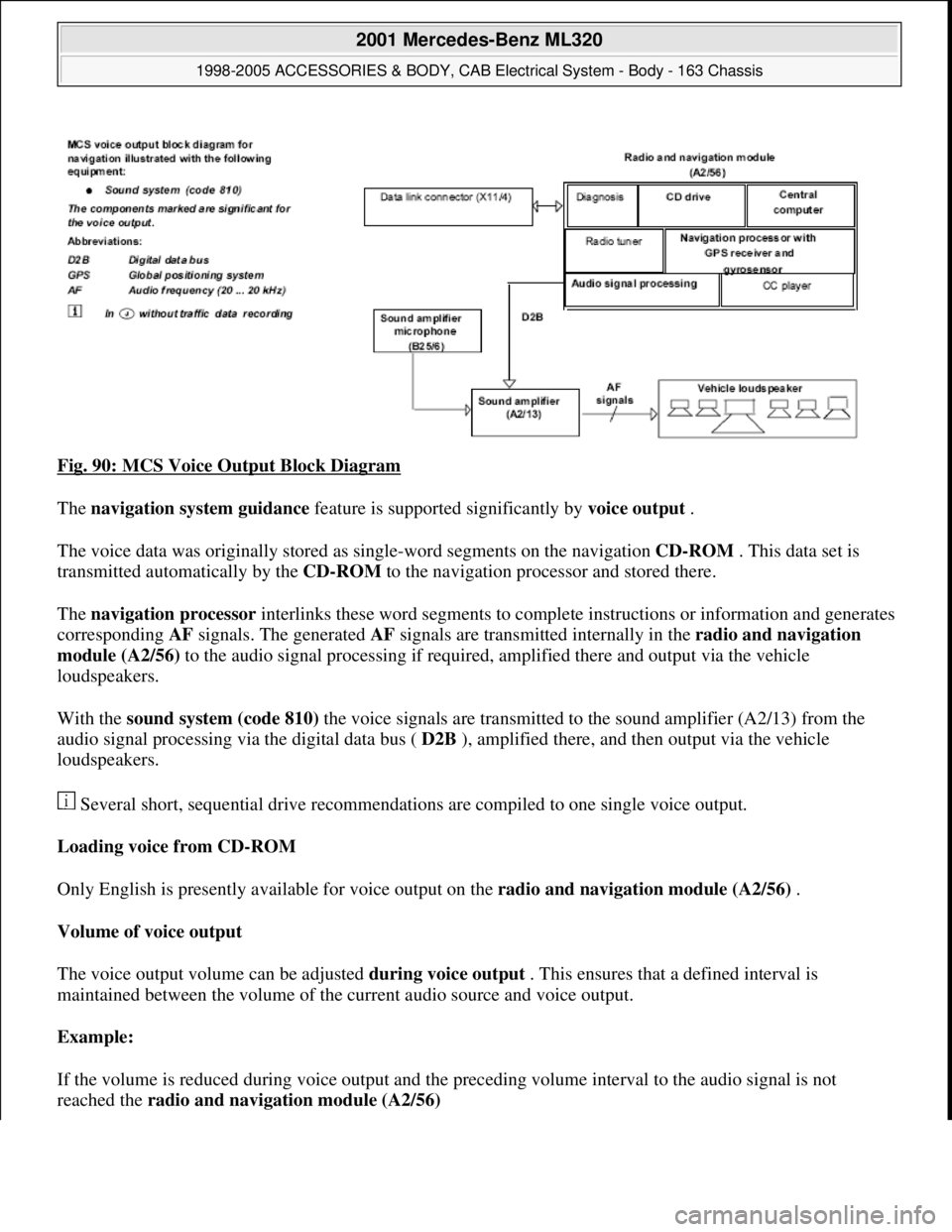

MERCEDES-BENZ ML320 1997 Complete Repair Manual Fig. 90: MCS Voice Output Block Diagram
The navigation system guidance feature is supported significantly by voice output .
The voice data was originally stored as single-word segments on the naviga

Page 1648 of 4133

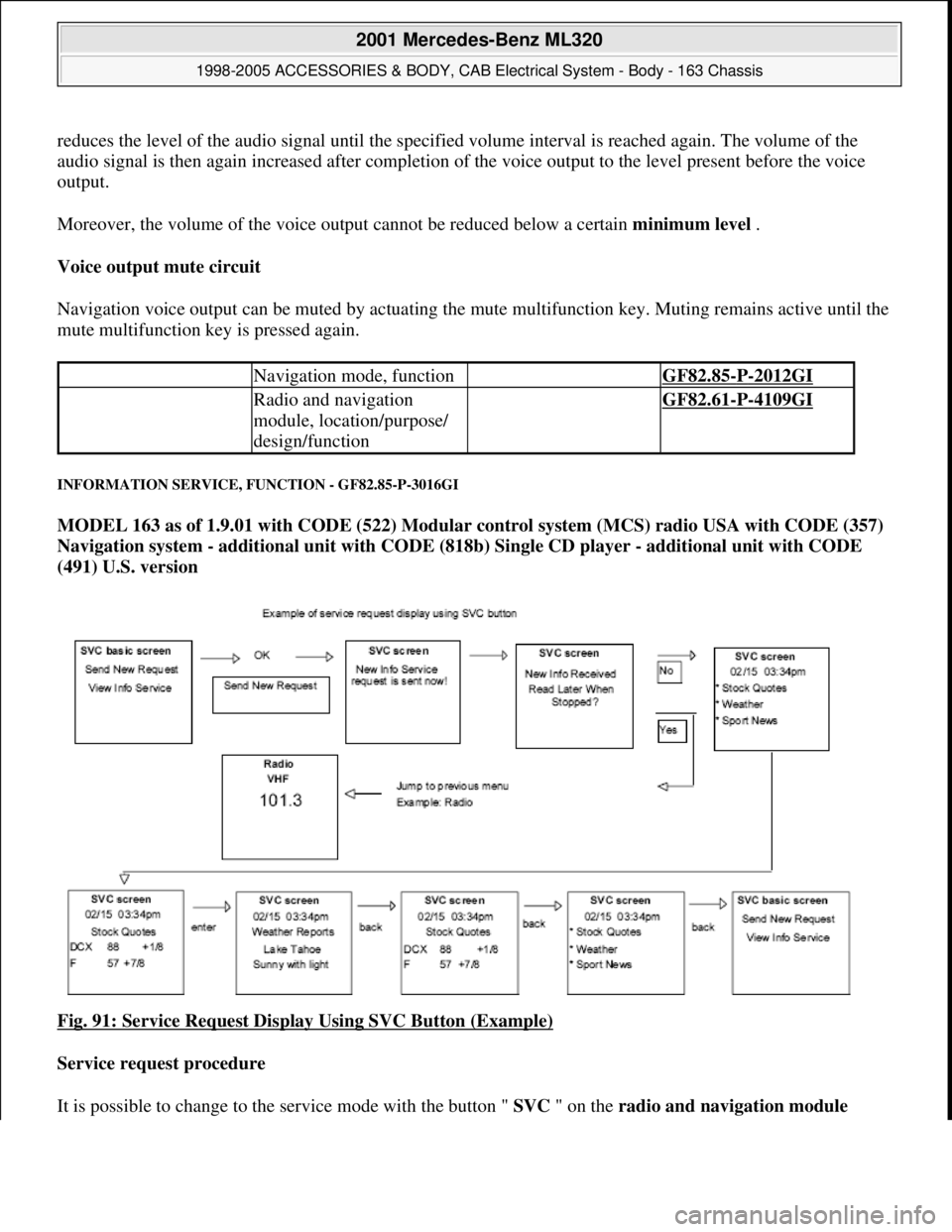

MERCEDES-BENZ ML320 1997 Complete Repair Manual reduces the level of the audio signal until the specified volume interval is reached again. The volume of the
audio signal is then again increased after completion of the voice output to the level pr
