Page 1689 of 4133

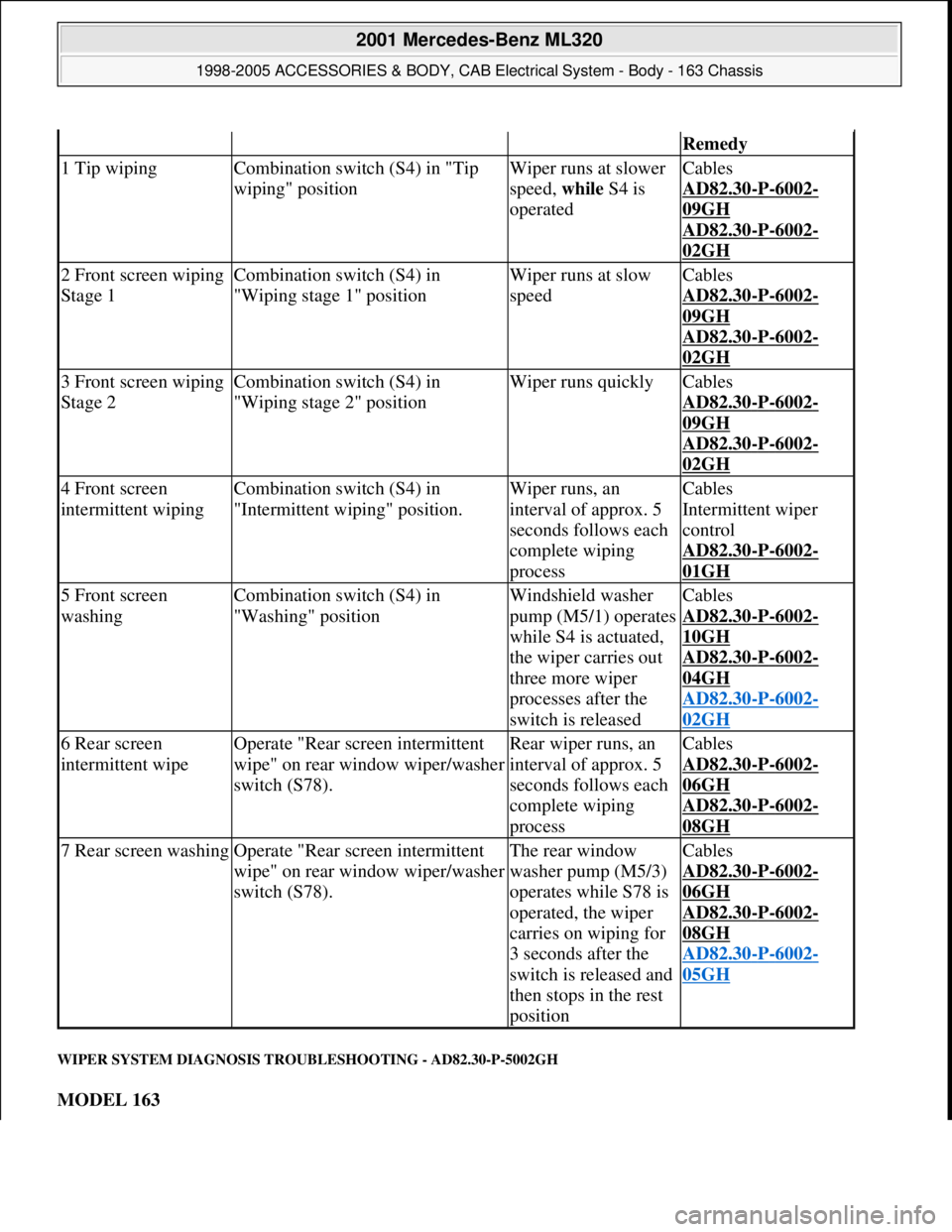

MERCEDES-BENZ ML320 1997 Complete Repair Manual WIPER SYSTEM DIAGNOSIS TROUBLESHOOTING - AD82.30-P-5002GH MODEL 163 Remedy 1 Tip wipingCombination switch (S4) in "Tip wiping" positionWiper runs at slower speed, while S4 is operatedCables AD

Page 1690 of 4133

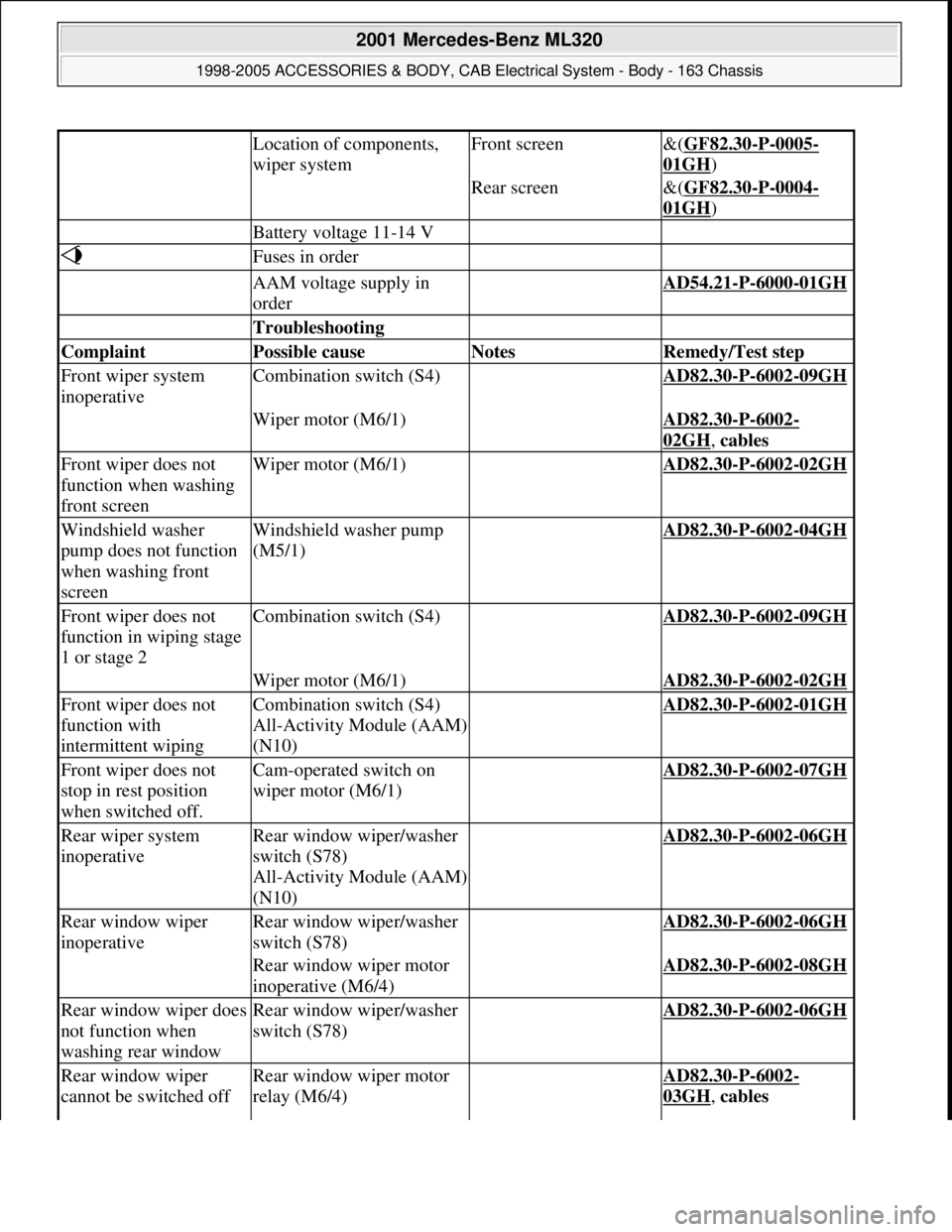

MERCEDES-BENZ ML320 1997 Complete Repair Manual Location of components, wiper systemFront screen&(GF82.30-P-0005- 01GH) Rear screen&(GF82.30-P-0004- 01GH) Battery voltage 11-14 V Fuses in order AAM voltage supply in order AD54.21-P-6000

Page 1691 of 4133

MERCEDES-BENZ ML320 1997 Complete Repair Manual WIPER SYSTEM TEST OF ELECTRICAL SYSTEM INTERMITTENT WIPE - AD82.30-P-6002-01GH Fig. 106: Wiper System Test Of Electrical System Intermittent Wipe WIPER SYSTEM TEST OF ELECTRICAL SYSTEM WIPER MOTOR -

Page 1692 of 4133

MERCEDES-BENZ ML320 1997 Complete Repair Manual Fig. 107: Wiper System Test Of Electrical System Wiper Motor WIPER SYSTEM TEST OF ELE CTRICAL SYSTEM TAILGATE WIPER RELAY - AD82.30-P-6002-03GH Fig. 108: Wiper System Test Of Elec trical System Tai

Page 1693 of 4133

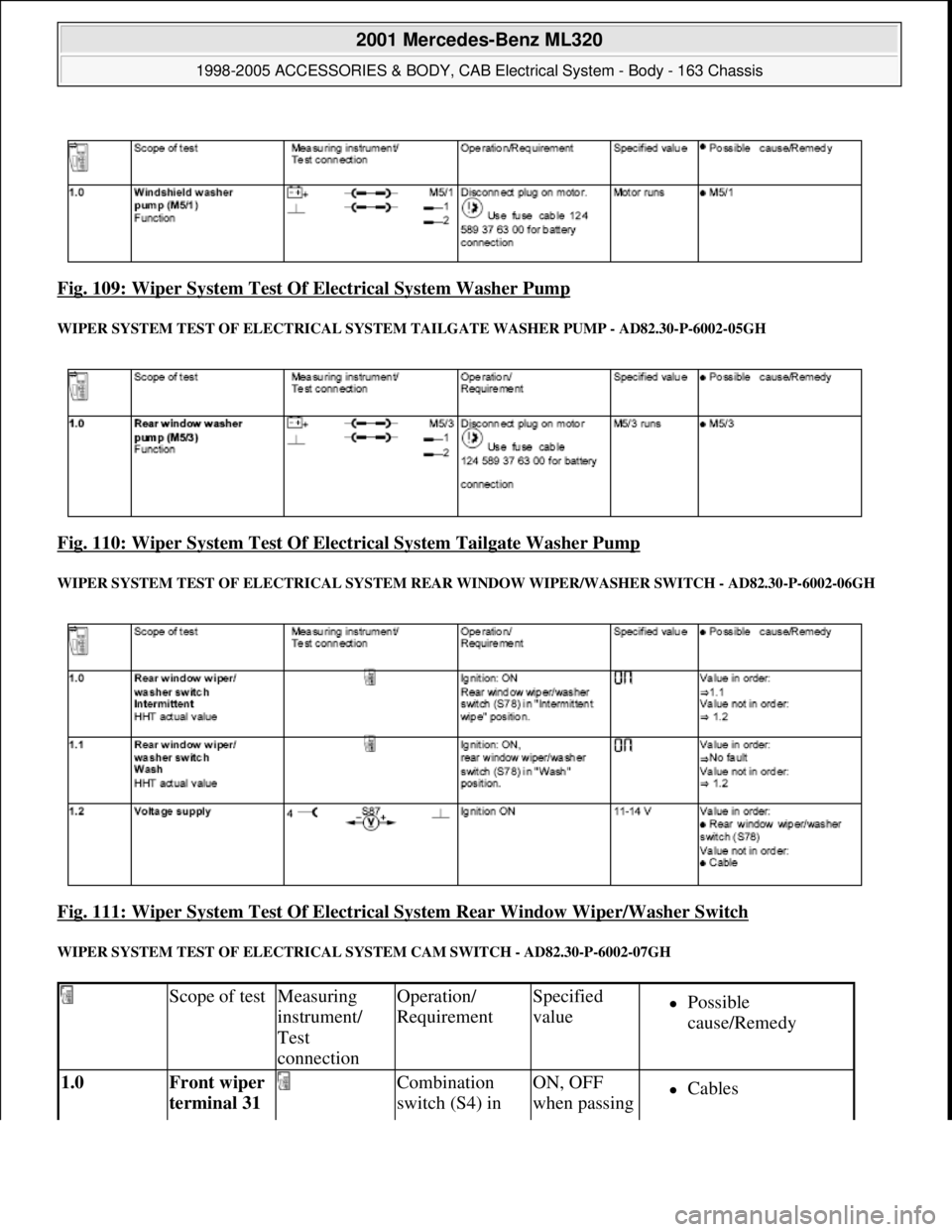

MERCEDES-BENZ ML320 1997 Complete Repair Manual Fig. 109: Wiper System Test Of Electrical System Washer Pump WIPER SYSTEM TEST OF ELECT RICAL SYSTEM TAILGATE WASHER PUMP - AD82.30-P-6002-05GH Fig. 110: Wiper System Test Of Elec trical System Tai

Page 1694 of 4133

MERCEDES-BENZ ML320 1997 Complete Repair Manual WIPER SYSTEM TEST OF ELECTRICAL SYSTEM TAILGATE WIPER MOTOR - AD82.30-P-6002-08GH Fig. 112: Wiper System Test Of Electrical System Tailgate Wiper Motor WIPER SYSTEM TEST OF ELECTRICAL SYSTEM WIPER P

Page 1695 of 4133

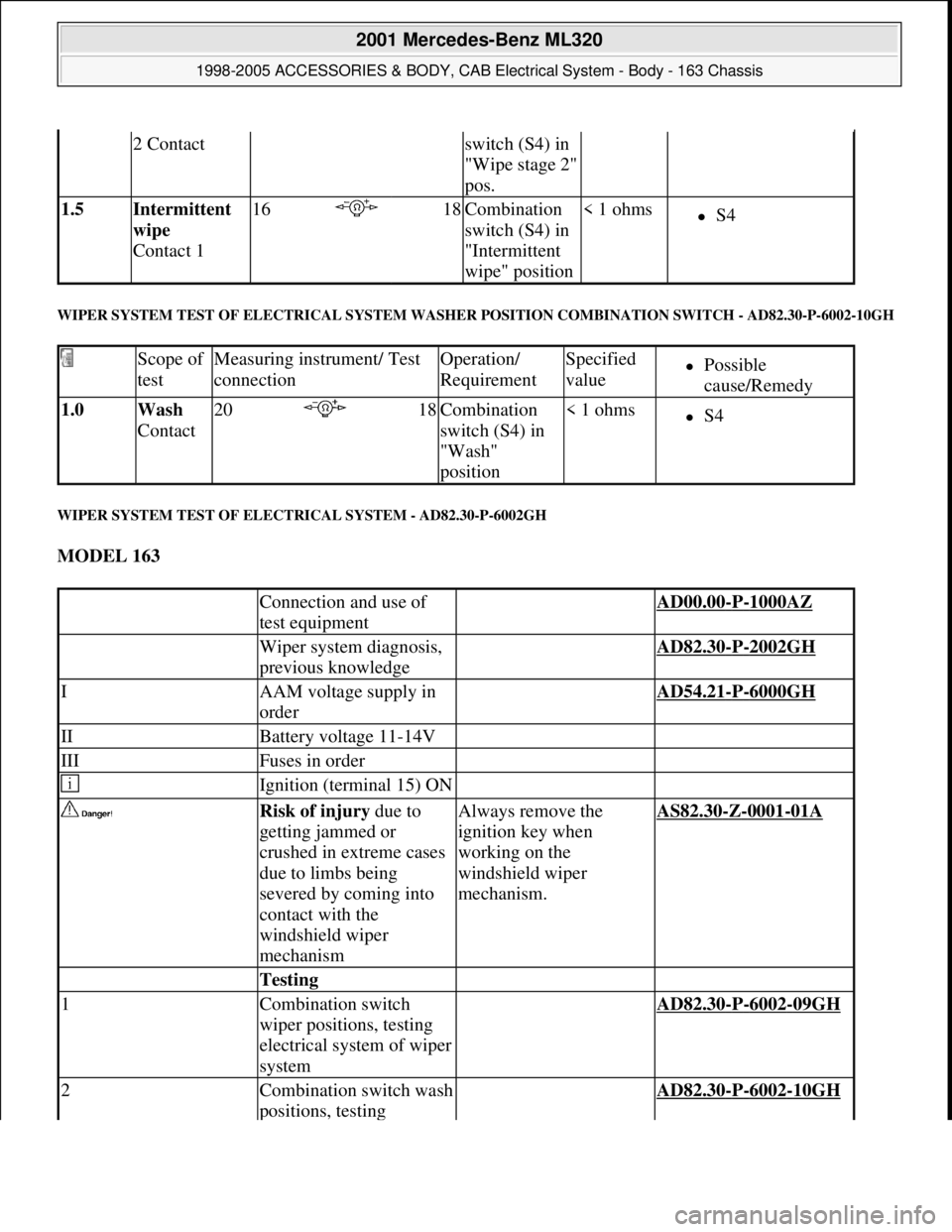

MERCEDES-BENZ ML320 1997 Complete Repair Manual WIPER SYSTEM TEST OF ELECTRICAL SYSTEM WASHER POSITION COMBINATION SWITCH - AD82.30-P-6002-10GH WIPER SYSTEM TEST OF ELECTRICAL SYSTEM - AD82.30-P-6002GH MODEL 163 2 Contactswitch (S4) in "Wipe st

Page 1696 of 4133

MERCEDES-BENZ ML320 1997 Complete Repair Manual RADIO (RD) DIAGNOSIS, CONTENTS - AD82.60-P-1000AZ MODEL 124, 129, 140, 163, 168, 170, 202, 208, 210 with MB radio MODEL 129, 140, 168, 170, 202, 208, 210 with MB radio and navigation operating unit
