Page 2929 of 4133

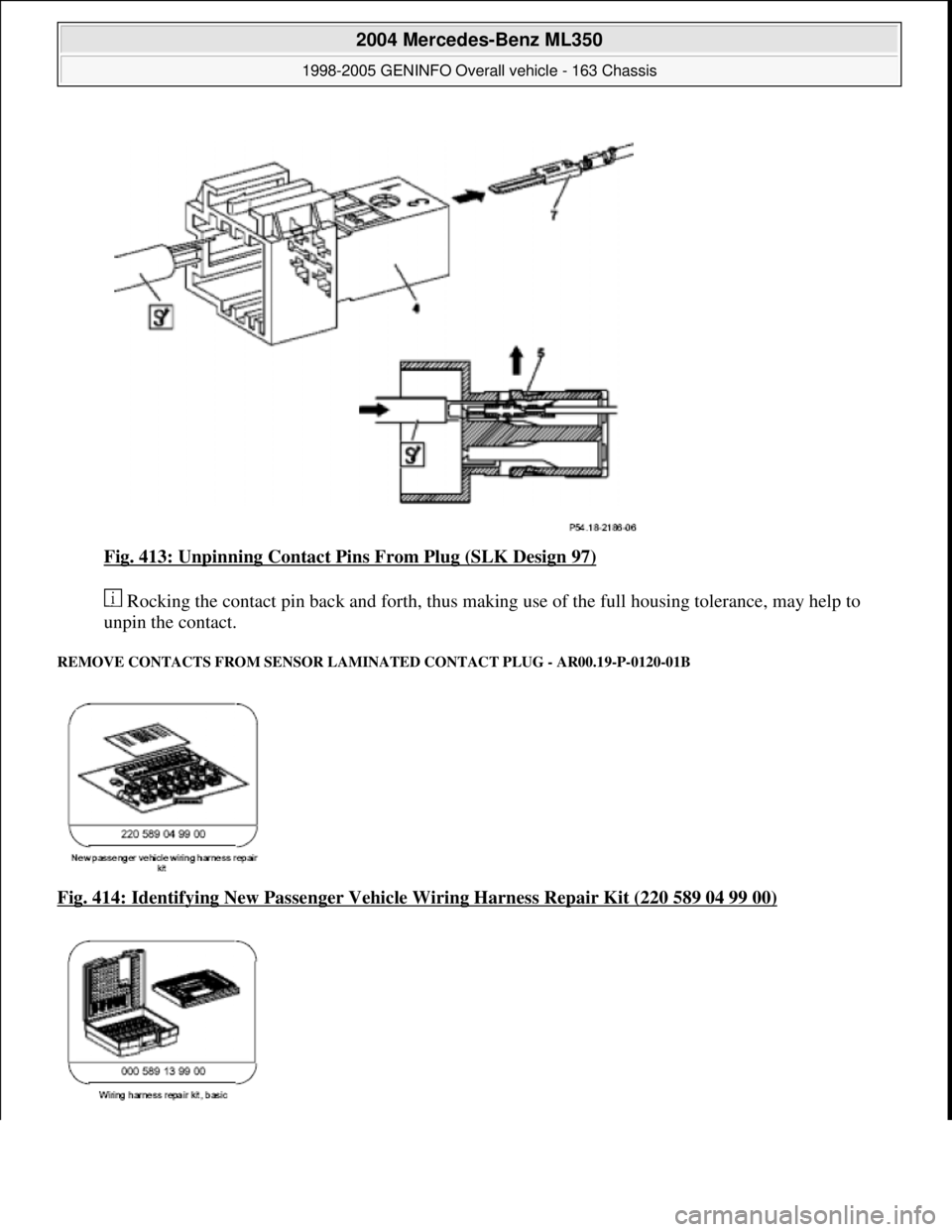

MERCEDES-BENZ ML320 1997 Complete Repair Manual Fig. 413: Unpinning Contact Pins From Plug (SLK Design 97) Rocking the contact pin back and forth, thus maki ng use of the full housing tolerance, may help to unpin the contact. REMOVE CONTACT

Page 2930 of 4133

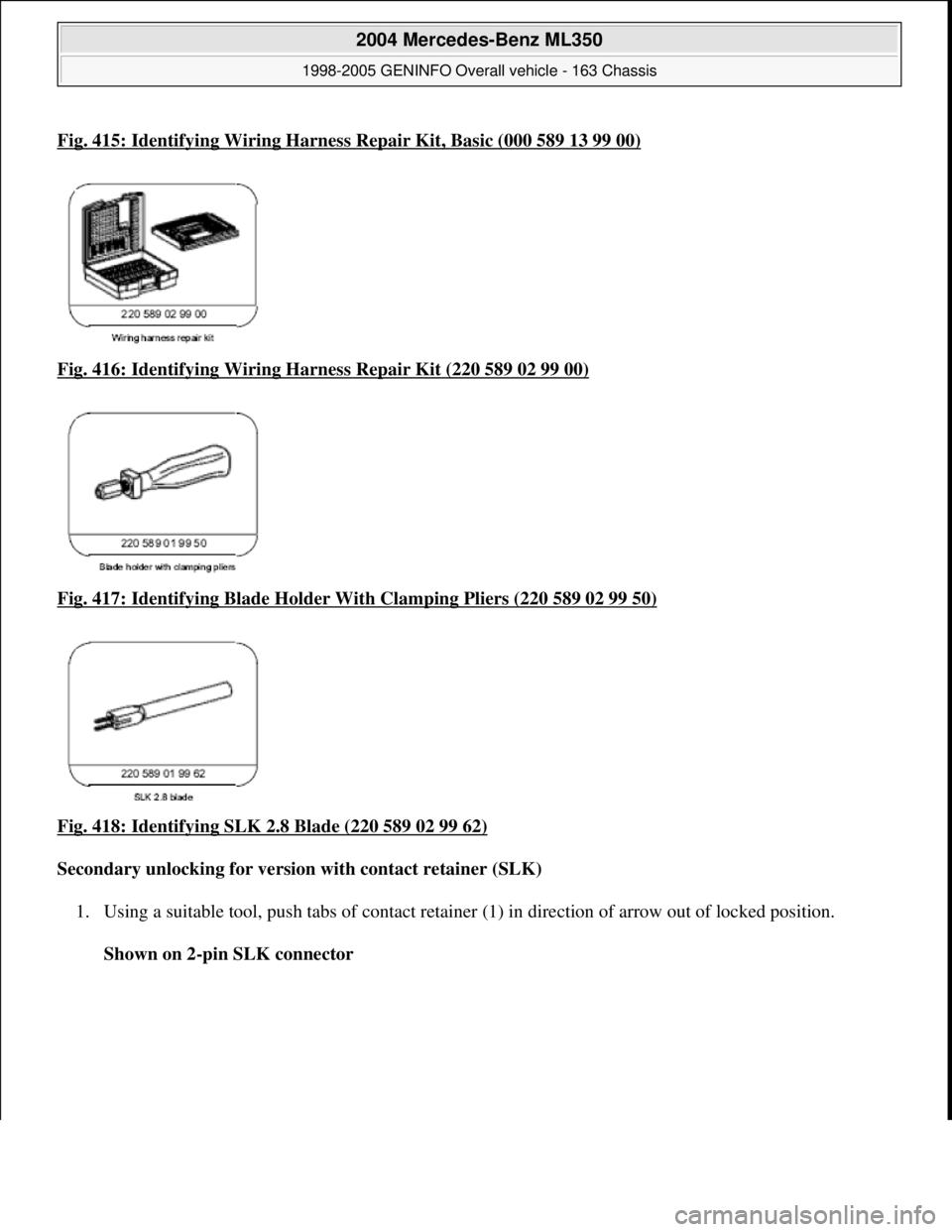

MERCEDES-BENZ ML320 1997 Complete Repair Manual Fig. 415: Identifying Wiring Harness Repair Kit, Basic (000 589 13 99 00) Fig. 416: Identifying Wiring Ha rness Repair Kit (220 589 02 99 00) Fig. 417: Identifying Blad e Holder With Clamping Plier

Page 2931 of 4133

MERCEDES-BENZ ML320 1997 Complete Repair Manual Fig. 419: Pushing Tabs Of Contact Retainer - Shown On 2-Pin SLK Connector Unpin contact pins form connector (SLK) 1. Insert blade holder with clamping pliers and SLK 2.8 blade from front side t

Page 2932 of 4133

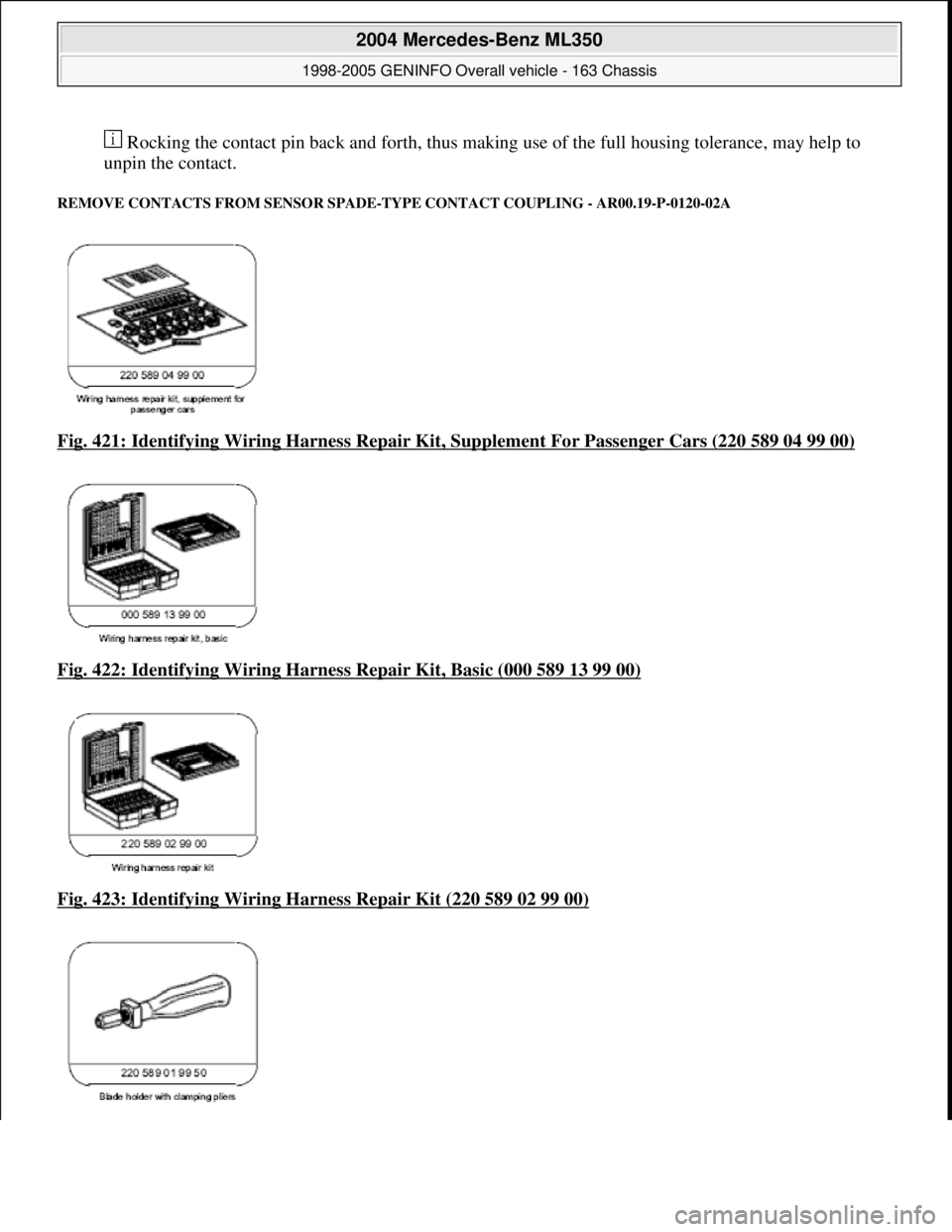

MERCEDES-BENZ ML320 1997 Complete Repair Manual Rocking the contact pin back and forth, thus maki ng use of the full housing tolerance, may help to unpin the contact. REMOVE CONTACTS FROM SENSOR SPADE- TYPE CONTACT COUPLING - AR00.19-P-0120-02

Page 2933 of 4133

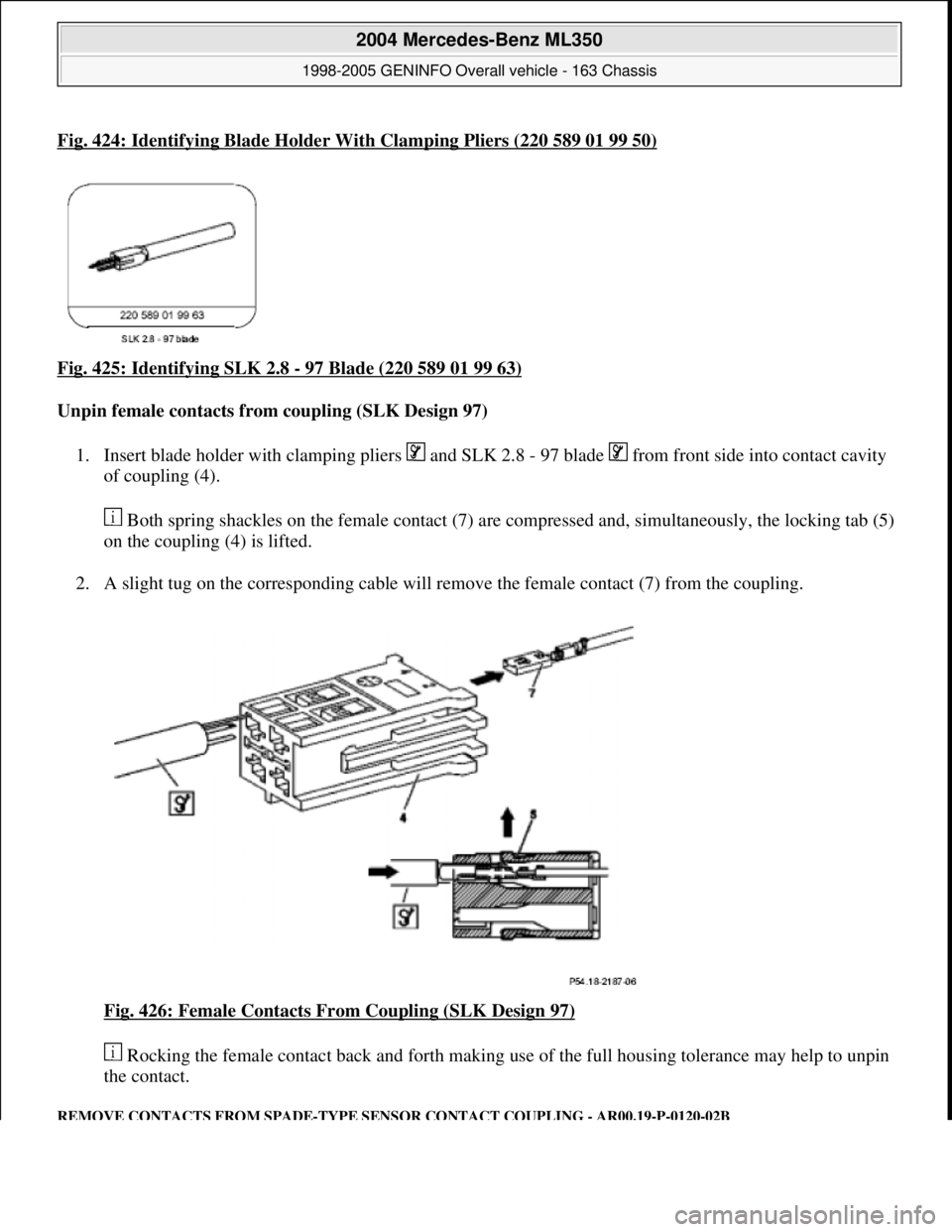

MERCEDES-BENZ ML320 1997 Complete Repair Manual Fig. 424: Identifying Blade Holder With Clamping Pliers (220 589 01 99 50) Fig. 425: Identifying SLK 2.8 - 97 Blade (220 589 01 99 63) Unpin female contacts from coupling (SLK Design 97) 1. Insert

Page 2934 of 4133

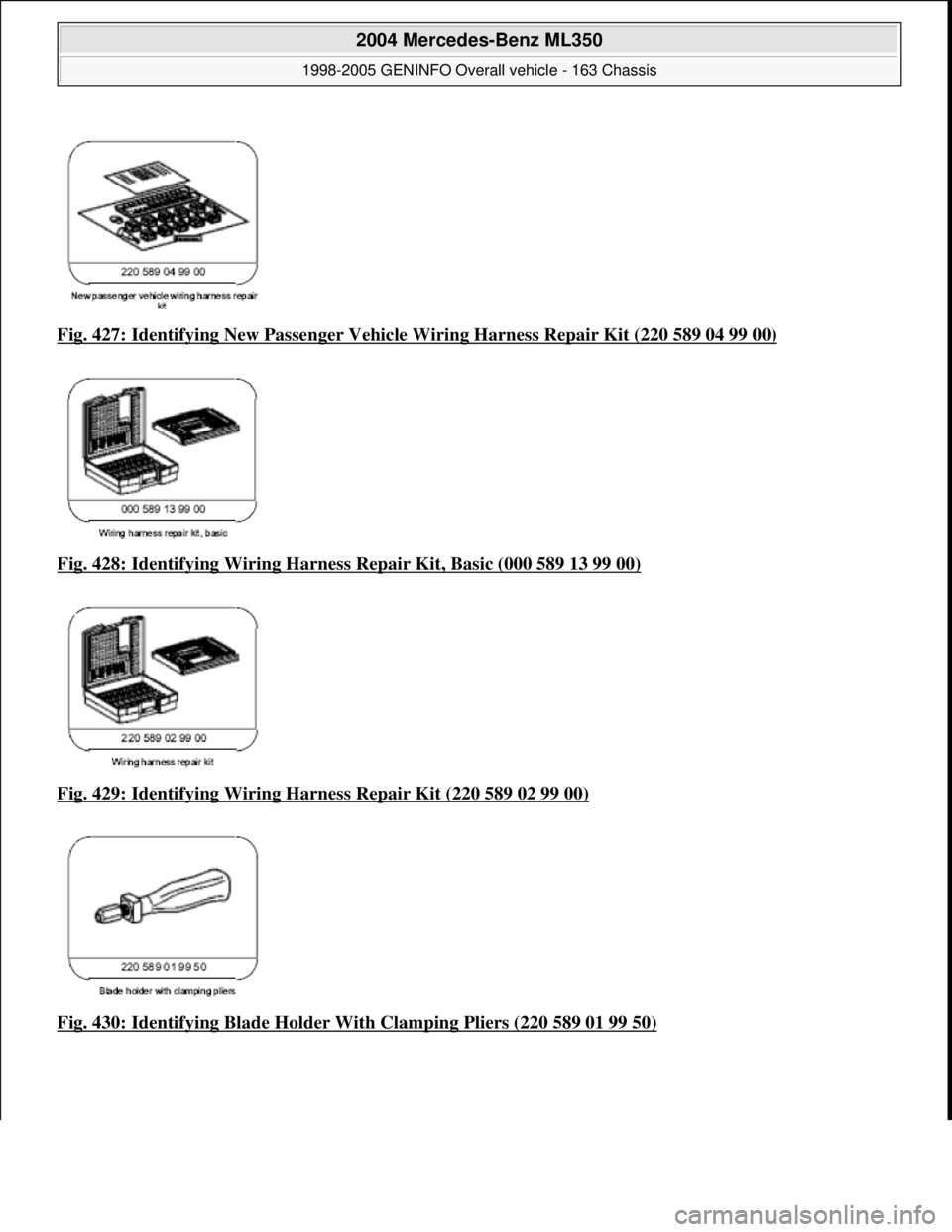

MERCEDES-BENZ ML320 1997 Complete Repair Manual Fig. 427: Identifying New Passe nger Vehicle Wiring Harness Repair Kit (220 589 04 99 00) Fig. 428: Identifying Wiring Harness Repair Kit, Basic (000 589 13 99 00) Fig. 429: Identifying Wiring

Page 2935 of 4133

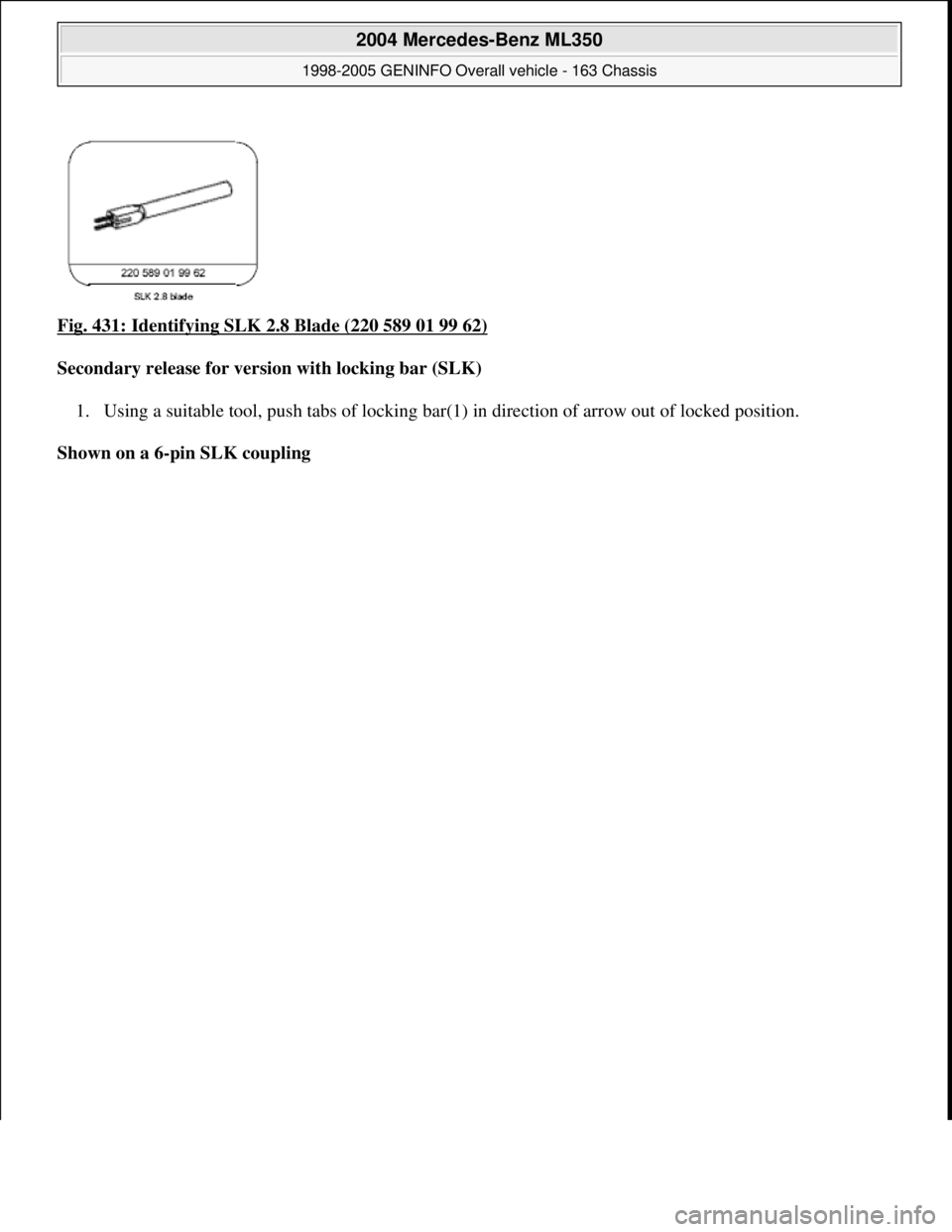

MERCEDES-BENZ ML320 1997 Complete Repair Manual Fig. 431: Identifying SLK 2.8 Blade (220 589 01 99 62) Secondary release for version with locking bar (SLK) 1. Using a suitable tool, push tabs of locking bar(1) in direction of arrow out of locked

Page 2936 of 4133

MERCEDES-BENZ ML320 1997 Complete Repair Manual Fig. 432: Pushing Tabs Of Locking Bar - Shown On A 6-Pin SLK Coupling Secondary release for version with locking slider (SLK) 1. Using a suitable tool, move locking slider (3) in direction shown by
