Page 2433 of 4133

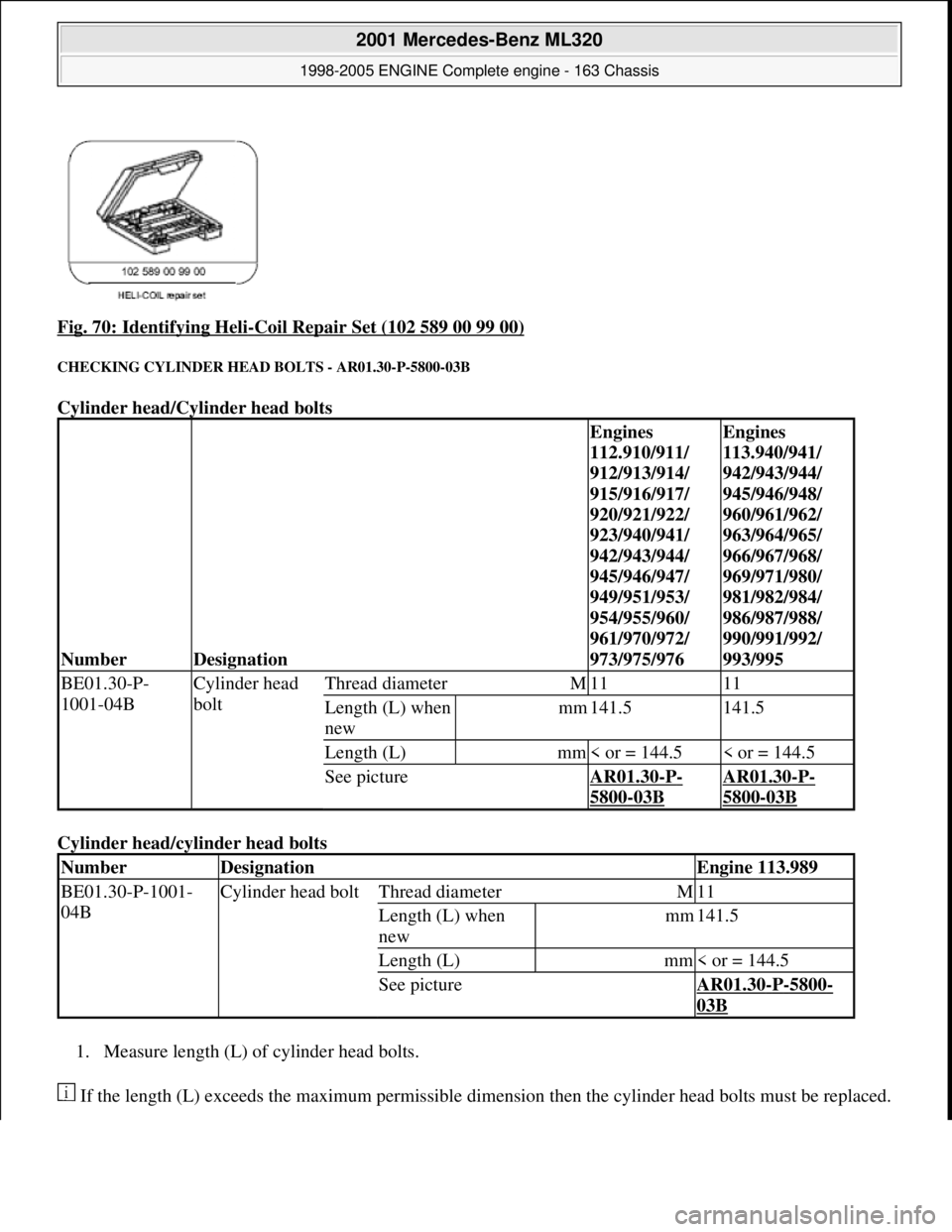

Fig. 70: Identifying Heli-Coil Repair Set (102 589 00 99 00)
CHECKING CYLINDER HEAD  BOLTS - AR01.30-P-5800-03B
Cylinder head/Cylinder head bolts
Cylinder head/cyl  inder head bolts
1. Measure length (L) of cylinder head bolts.
 If the length (L) exceeds the maximu  m permissible dimension then the cyli nder head bolts must be replaced.
NumberDesignation
Engines
112.910/911/
912/913/914/
915/916/917/
920/921/922/
923/940/941/
942/943/944/
945/946/947/
949/951/953/
954/955/960/
961/970/972/
973/975/976Engines
113.940/941/
942/943/944/
945/946/948/
960/961/962/
963/964/965/
966/967/968/
969/971/980/
981/982/984/
986/987/988/
990/991/992/
993/995
BE01.30-P-
1001-04BCylinder head
boltThread diameterM1111
Length (L) when
newmm141.5141.5
Length (L)mm< or = 144.5< or = 144.5
See pictureAR01.30-P-
5800-03B
AR01.30-P-
5800-03B
NumberDesignationEngine 113.989
BE01.30-P-1001-
04BCylinder head boltThread diameterM11
Length (L) when
newmm141.5
Length (L)mm< or = 144.5
See pictureAR01.30-P-5800-
03B

2001 Mercedes-Benz ML320
1998-2005 ENGINE Complete engine - 163 Chassis
me
Saturday, October 02, 2010 3:17:56 PMPage 77 © 2006 Mitchell Repair Information Company, LLC.


        Page 2434 of 4133

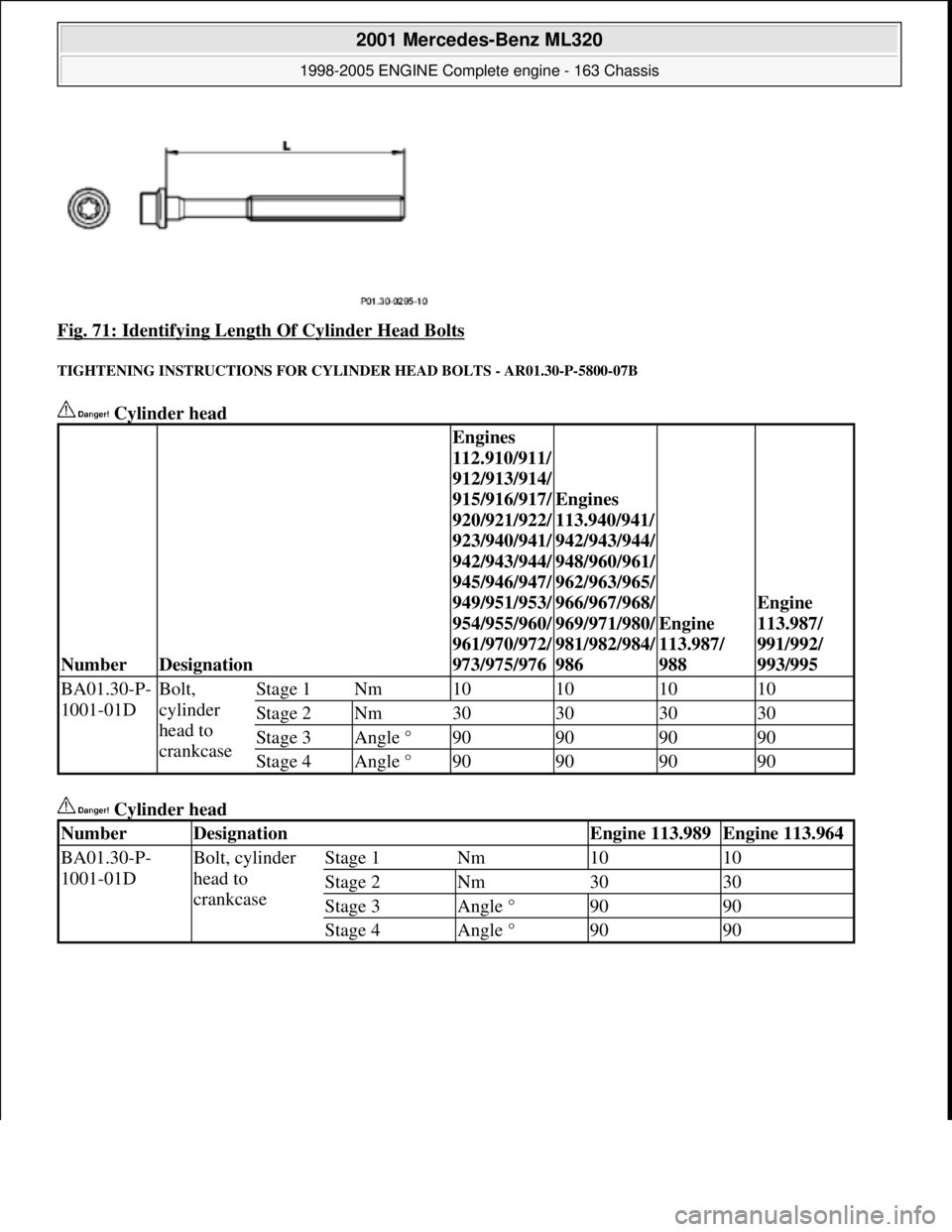

Fig. 71: Identifying Length  Of Cylinder Head Bolts
TIGHTENING INSTRUCTIO NS FOR CYLINDER HEAD BOLTS - AR01.30-P-5800-07B
 Cylinder head
 Cylinder head
NumberDesignation
Engines
112.910/911/
912/913/914/
915/916/917/
920/921/922/
923/940/941/
942/943/944/
945/946/947/
949/951/953/
954/955/960/
961/970/972/
973/975/976
Engines
113.940/941/
942/943/944/
948/960/961/
962/963/965/
966/967/968/
969/971/980/
981/982/984/
986
Engine
113.987/
988
Engine
113.987/
991/992/
993/995
BA01.30-P-
1001-01DBolt,
cylinder
head to
crankcaseStage 1Nm10101010
Stage 2Nm30303030
Stage 3Angle °90909090
Stage 4Angle °90909090
NumberDesignationEngine 113.989Engine 113.964
BA01.30-P-
1001-01DBolt, cylinder
head to
crankcaseStage 1Nm1010
Stage 2Nm3030
Stage 3Angle °9090
Stage 4Angle °9090

2001 Mercedes-Benz ML320
1998-2005 ENGINE Complete engine - 163 Chassis
me
Saturday, October 02, 2010 3:17:56 PMPage 78 © 2006 Mitchell Repair Information Company, LLC.


        Page 2435 of 4133

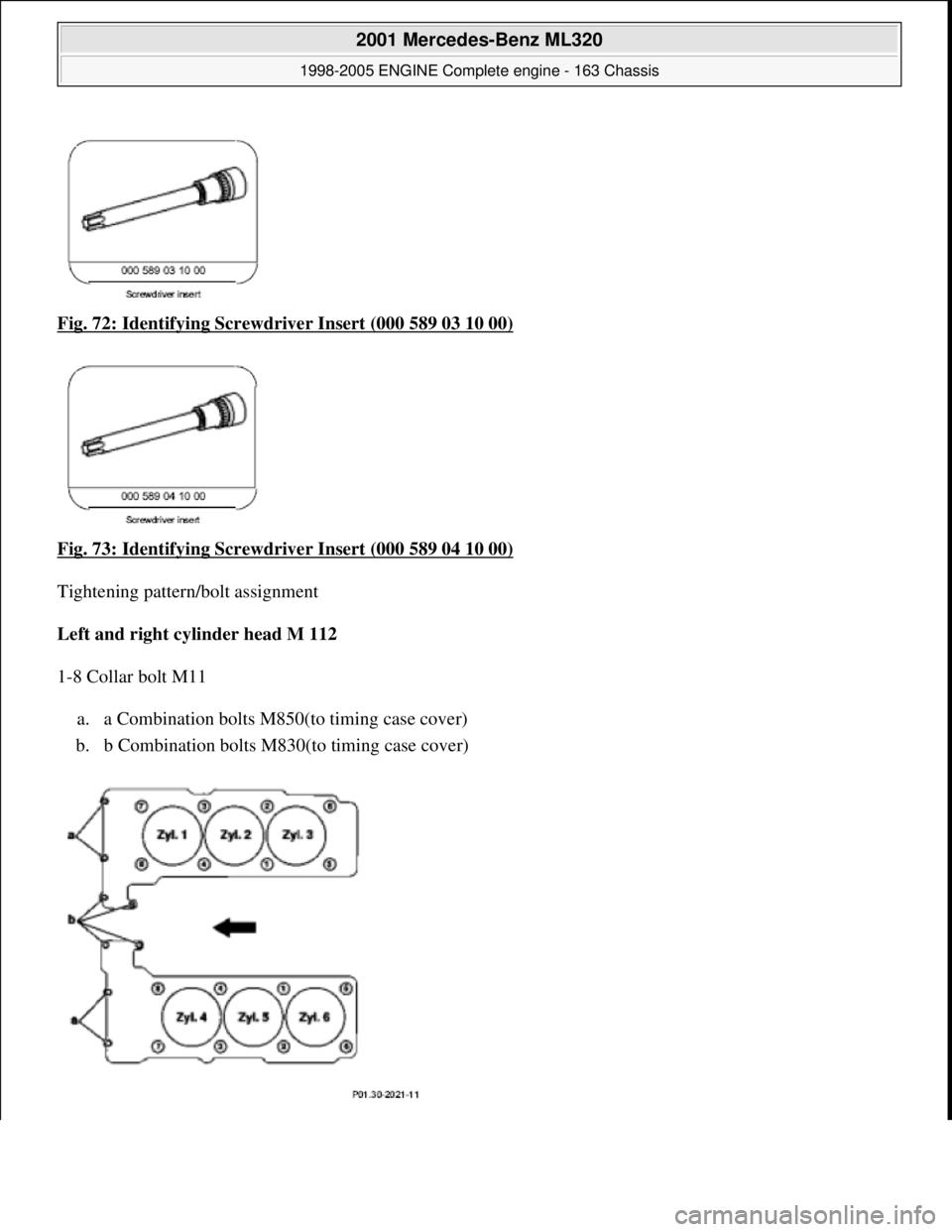

Fig. 72: Identifying Screwdr iver Insert (000 589 03 10 00)
Fig. 73: Identifying Screwdr  iver Insert (000 589 04 10 00)

Tightening pattern/bolt assignment
Left and right cylinder head M 112
1-8 Collar bolt M11   a. a Combination bolts M850(  to timing case cover)
b. b Combination bolts M830(to timing case cover)

2001 Mercedes-Benz ML320
1998-2005 ENGINE Complete engine - 163 Chassis
me
Saturday, October 02, 2010 3:17:56 PMPage 79 © 2006 Mitchell Repair Information Company, LLC.


        Page 2436 of 4133

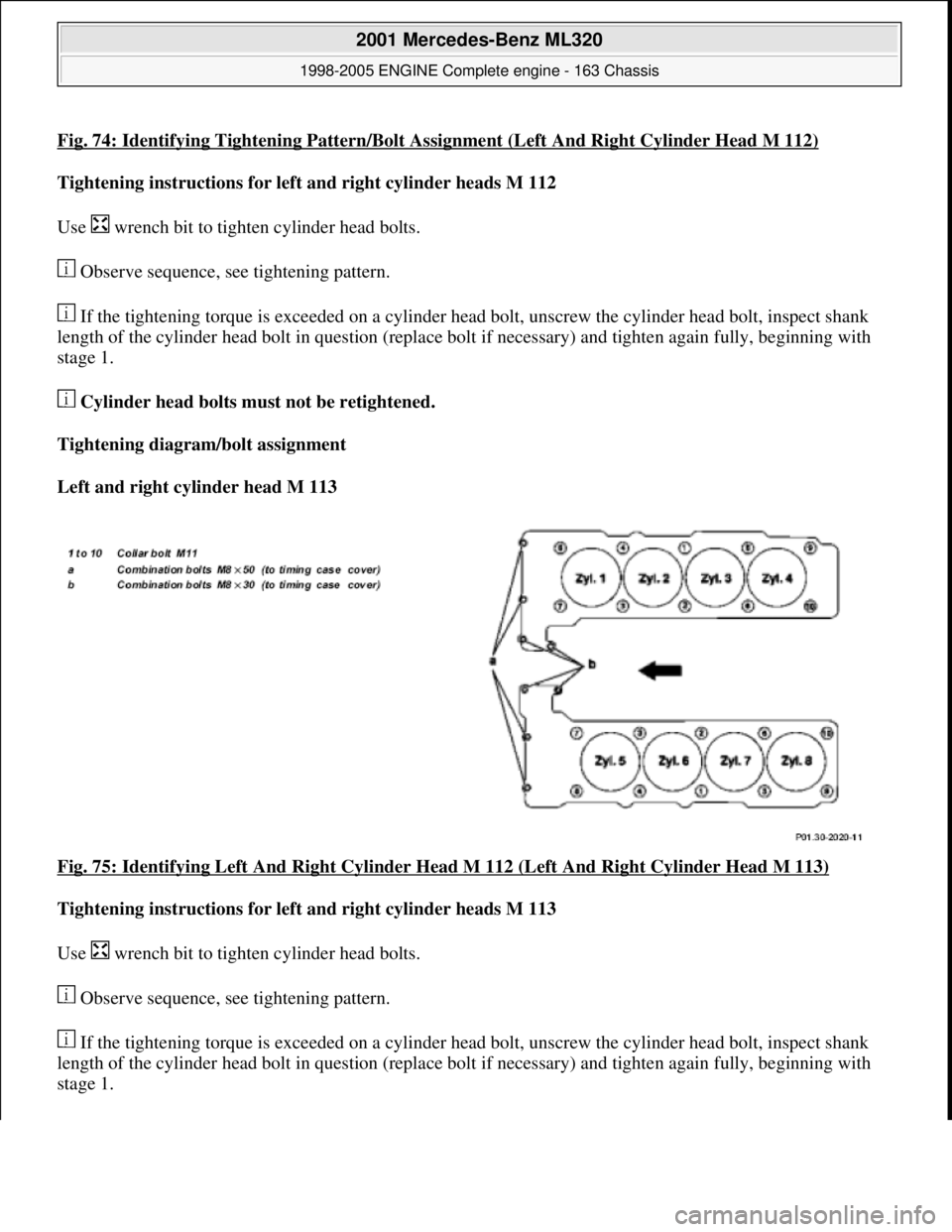

Fig. 74: Identifying Tightening Pattern/Bolt Assignment (Left And Right Cylinder Head M 112)
Tightening instructions for left and right cylinder heads M 112
Use   wrench bit to tight  en cylinder head bolts.
 Observe sequence, see tightening pattern.
 If the tightening torque is exceeded on a cylinder he  ad bolt, unscrew the cylinder head bolt, inspect shank
length of the cylinder head bolt in   question (replace bolt if necessary) and tighten again fully, beginning with
stage 1.
  Cylinder head bolts must  not be retightened.
Tightening diagram/bolt assignment
Left and right cylinder head M 113
Fig. 75: Identifying Left And Right Cylinder   Head M 112 (Left And Right Cylinder Head M 113)

Tightening instructions for left and right cylinder heads M 113
Use   wrench bit to tight  en cylinder head bolts.
 Observe sequence, see tightening pattern.
 If the tightening torque is exceeded on a cylinder he  ad bolt, unscrew the cylinder head bolt, inspect shank
length of the cylinder head bolt in   question (replace bolt if necessary) and tighten again fully, beginning with
stage 1.

2001 Mercedes-Benz ML320
1998-2005 ENGINE Complete engine - 163 Chassis
me
Saturday, October 02, 2010 3:17:56 PMPage 80 © 2006 Mitchell Repair Information Company, LLC.


        Page 2437 of 4133
  Cylinder head bolts must  not be retightened.

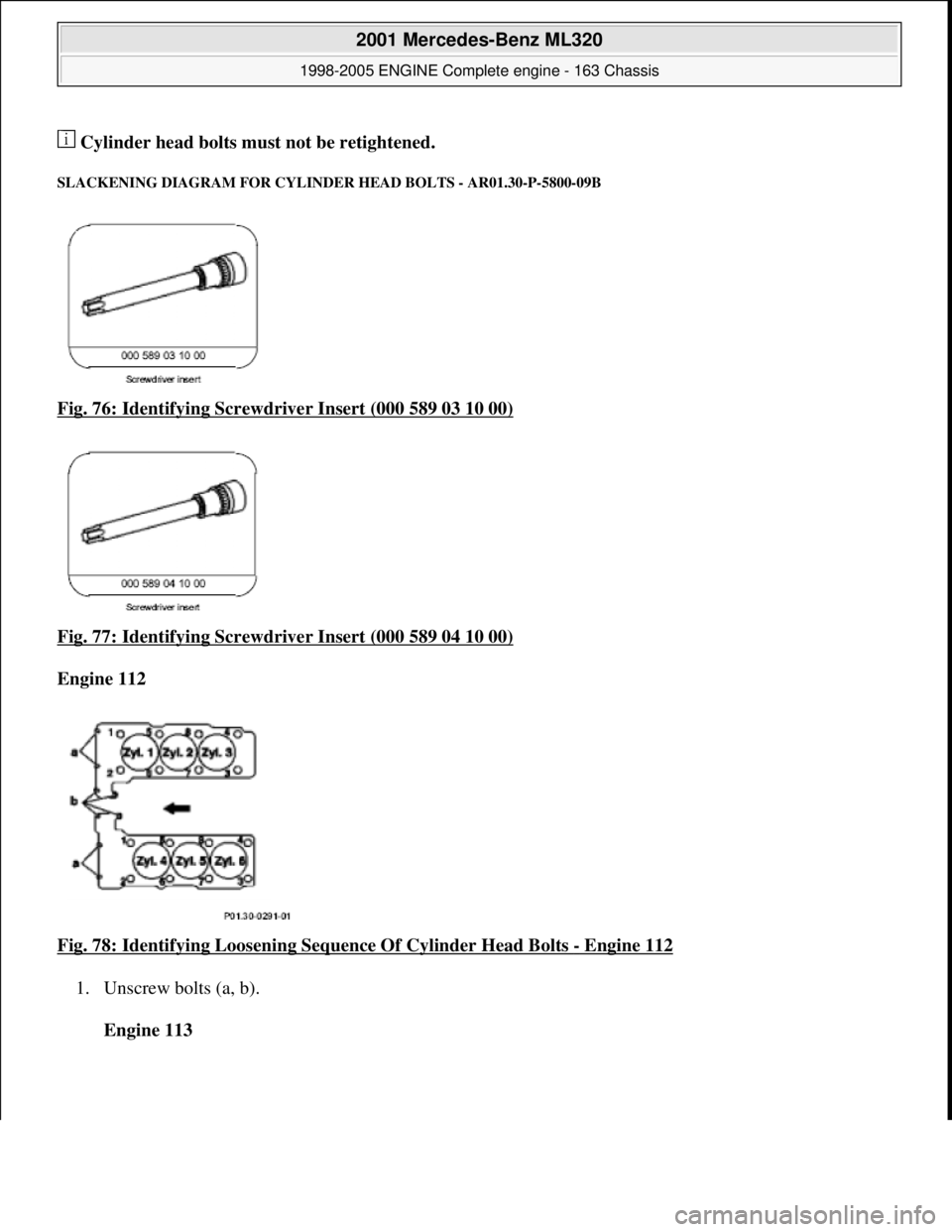

SLACKENING DIAGRAM FOR CYLINDER  HEAD BOLTS - AR01.30-P-5800-09B
Fig. 76: Identifying Screwdriver Insert (000 589 03 10 00)
Fig. 77: Identifying Screwdr  iver Insert (000 589 04 10 00)

Engine 112
Fig. 78: Identifying Loosening Se  quence Of Cylinder Head Bolts
- Engine 112
1. Unscrew bolts (a, b).
Engine 113

2001 Mercedes-Benz ML320
1998-2005 ENGINE Complete engine - 163 Chassis
me
Saturday, October 02, 2010 3:17:56 PMPage 81 © 2006 Mitchell Repair Information Company, LLC.


        Page 2438 of 4133

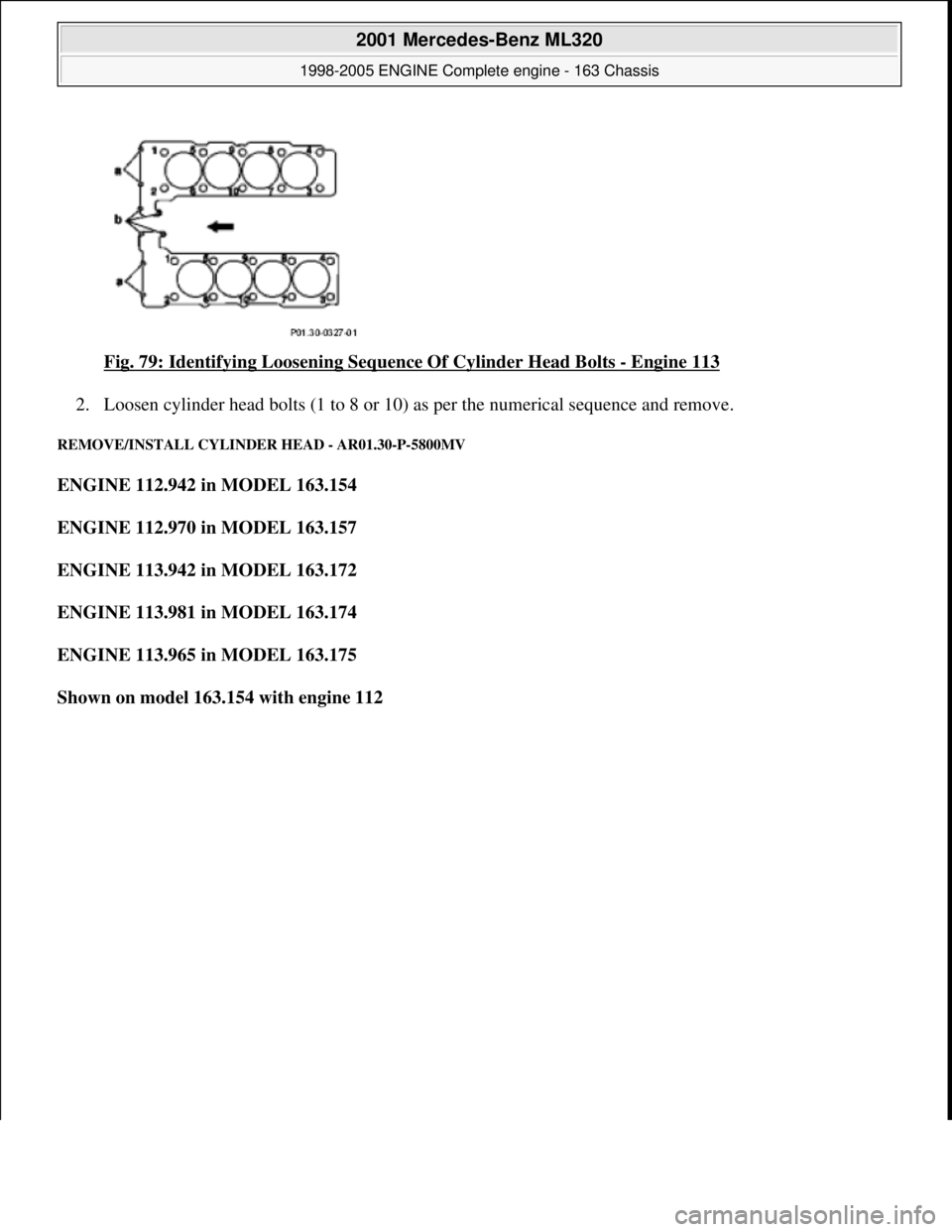

Fig. 79: Identifying Loosening Se quence Of Cylinder Head Bolts - Engine 113
2. Loosen cylinder head bolts (1 to 8 or 10)   as per the numerical sequence and remove.
REMOVE/INSTALL CYLINDER HEAD - AR01.30-P-5800MV
ENGINE 112.942 in MODEL 163.154
ENGINE 112.970 in MODEL 163.157
ENGINE 113.942 in MODEL 163.172
ENGINE 113.981 in MODEL 163.174
ENGINE 113.965 in MODEL 163.175
Shown on model 163.154 with engine 112

2001 Mercedes-Benz ML320
1998-2005 ENGINE Complete engine - 163 Chassis
me
Saturday, October 02, 2010 3:17:57 PMPage 82 © 2006 Mitchell Repair Information Company, LLC.


        Page 2439 of 4133
Fig. 80: Identifying Cylinder Head  Remove/Install Components - Shown On Model 163.154 With Engine
112 (1 Of 3)
Fig. 81: Identifying Cylinder Head   Remove/Install Components
- Shown On Model 163.154 With Engine
112 (2 Of 3)

2001 Mercedes-Benz ML320
1998-2005 ENGINE Complete engine - 163 Chassis
me
Saturday, October 02, 2010 3:17:57 PMPage 83 © 2006 Mitchell Repair Information Company, LLC.


        Page 2440 of 4133

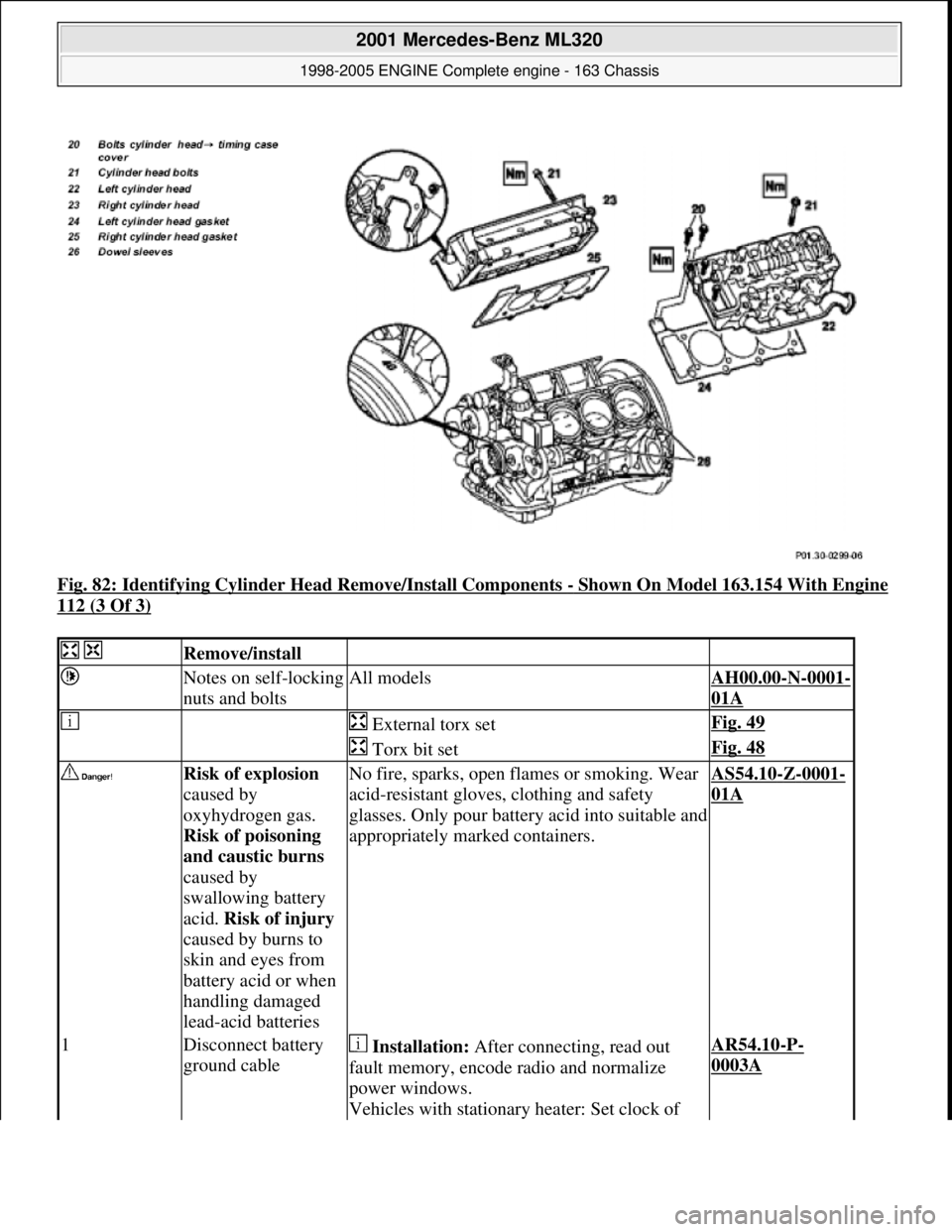

Fig. 82: Identifying Cylinder Head  Remove/Install Components - Shown On Model 163.154 With Engine
112 (3 Of 3)
  Remove/install
 Notes on self-locking
nuts and boltsAll modelsAH00.00-N-0001-
01A
   External torx setFig. 49
 Torx bit setFig. 48
 Risk of explosion
caused by
oxyhydrogen gas.
Risk of poisoning
and caustic burns
caused by
swallowing battery
acid.   Risk of injury
caused by burns to
skin and eyes from
battery acid or when
handling damaged
lead-acid batteriesNo fire, sparks, open fl  ames or smoking. Wear
acid-resistant gloves, clothing and safety
glasses. Only pour batter  y acid into suitable and
appropriately marked containers.AS54.10-Z-0001-
01A
1Disconnect battery
ground cable   Installation:  After connecting, read out
fault memory, encode radio and normalize
power windows.
Vehicles with stationary heater: Set clock of AR54.10-P-
0003A
