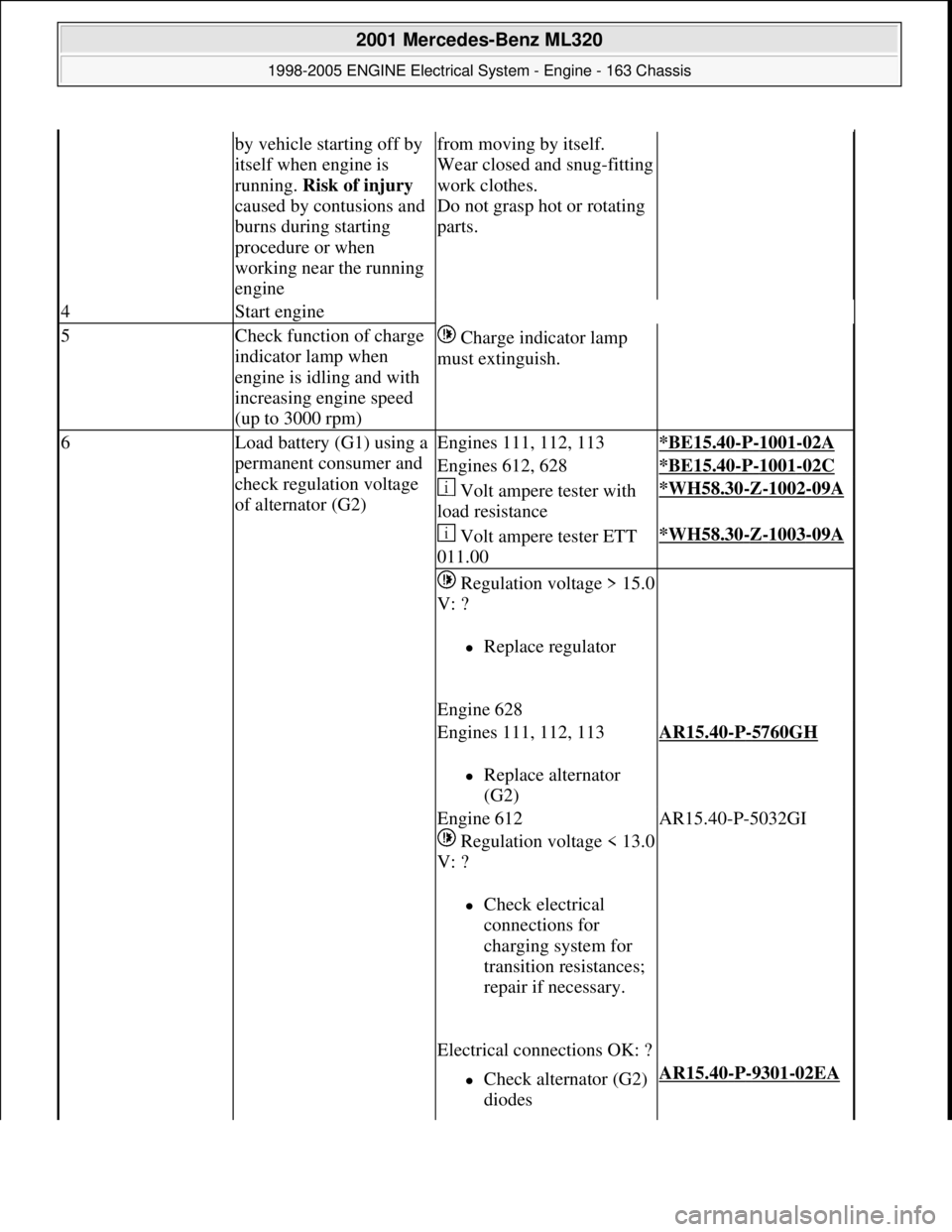

Page 2209 of 4133

MERCEDES-BENZ ML320 1997 Complete Repair Manual by vehicle starting off by itself when engine is running. Risk of injury caused by contusions and burns during starting procedure or when working near the running enginefrom moving by itself.

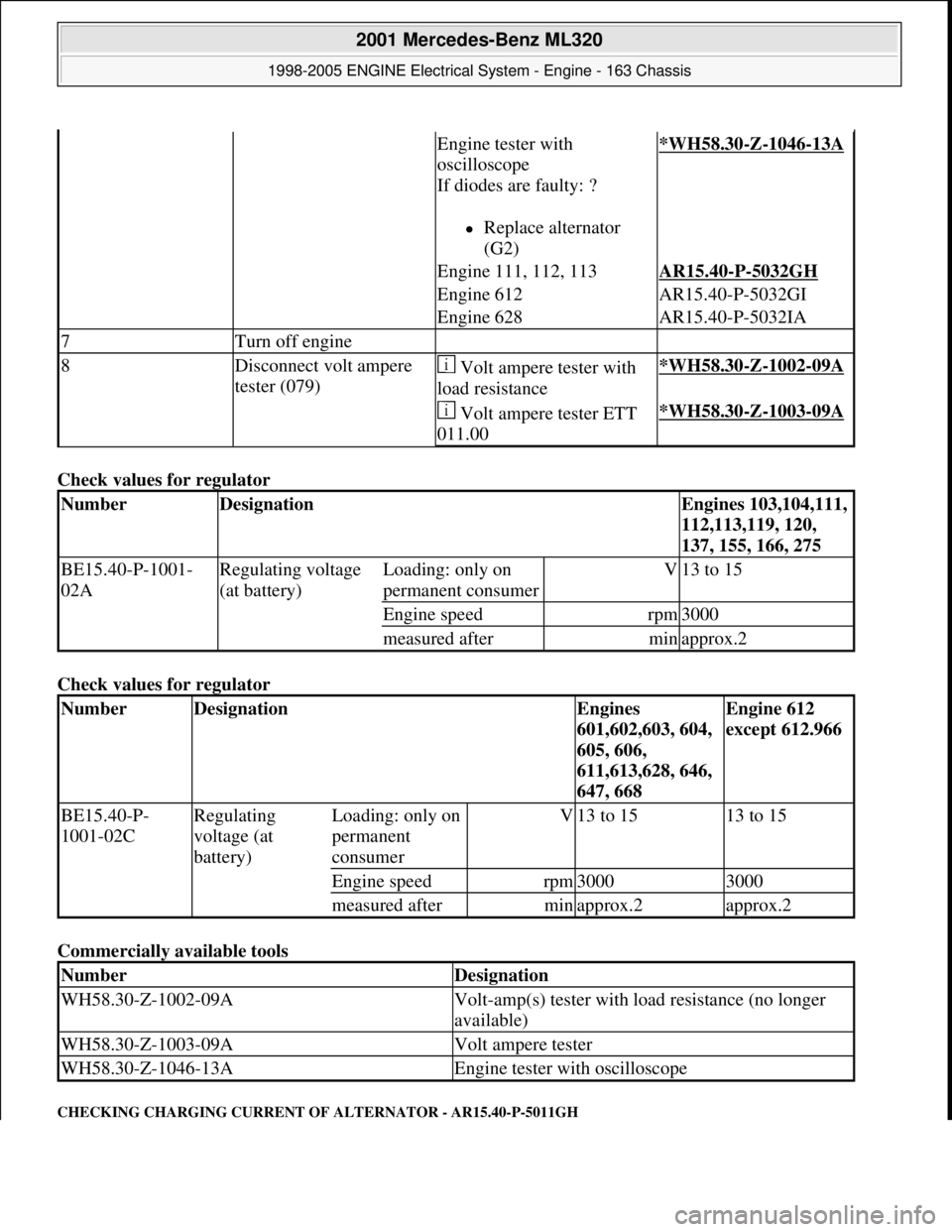

Page 2210 of 4133

MERCEDES-BENZ ML320 1997 Complete Repair Manual Check values for regulator Check values for regulator Commercially available tools CHECKING CHARGING CURRENT OF ALTERNATOR - AR15.40-P-5011GH Engine tester with oscilloscope If diodes are faulty:

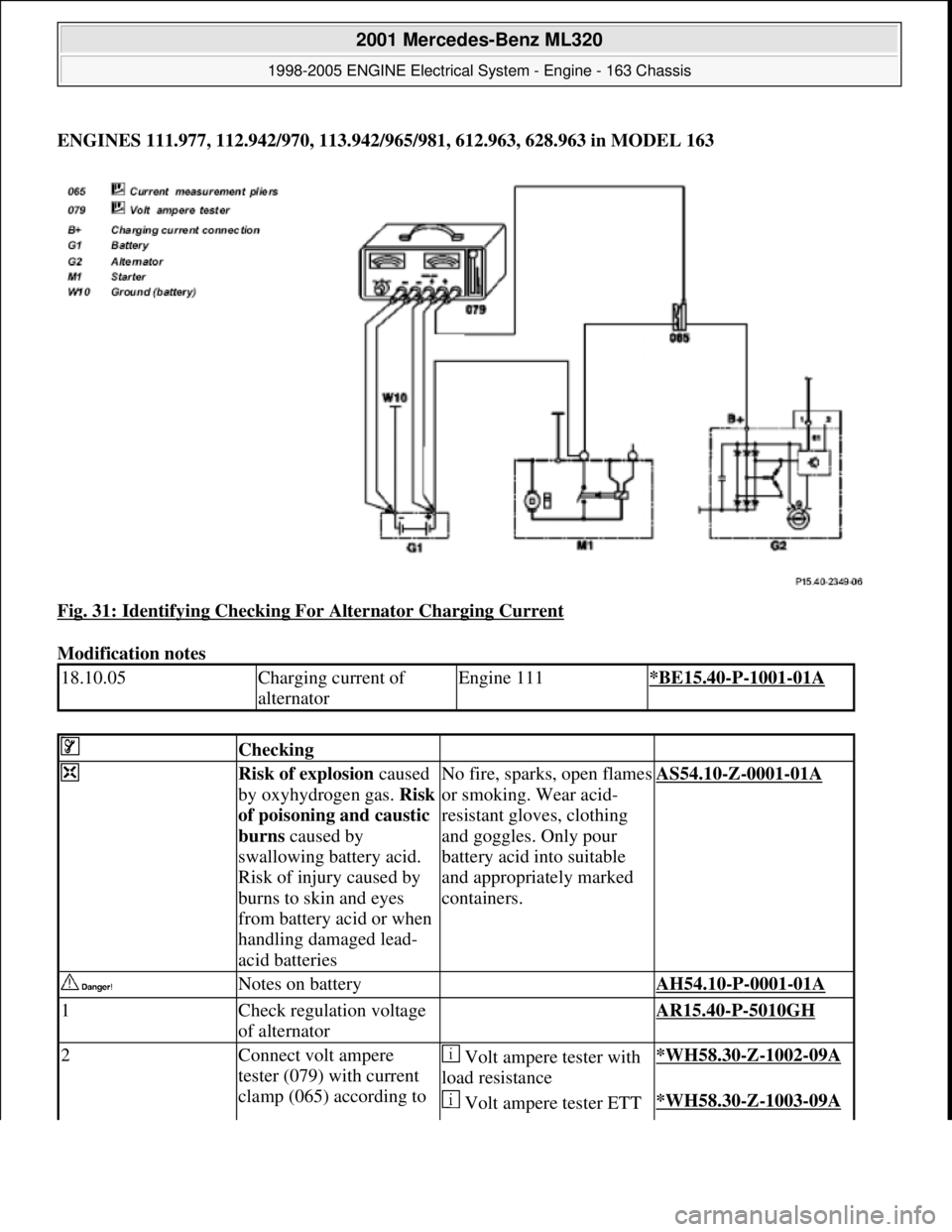

Page 2211 of 4133

MERCEDES-BENZ ML320 1997 Complete Repair Manual ENGINES 111.977, 112.942/970, 113.942/965/981, 612.963, 628.963 in MODEL 163 Fig. 31: Identifying Checking For Alternator Charging Current Modification notes 18.10.05Charging current of alternat

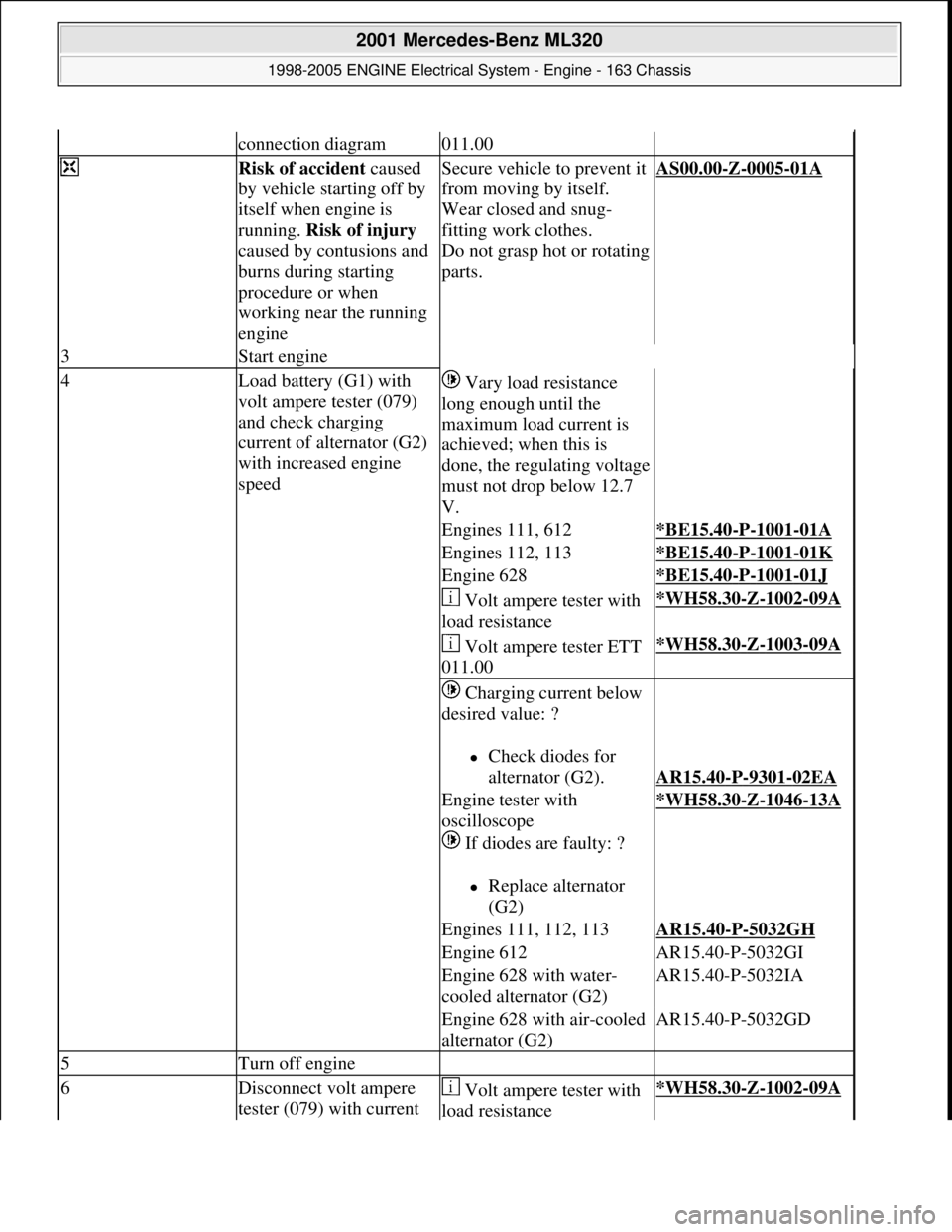

Page 2212 of 4133

MERCEDES-BENZ ML320 1997 Complete Repair Manual connection diagram011.00 Risk of accident caused by vehicle starting off by itself when engine is running. Risk of injury caused by contusions and burns during starting procedure or when worki

Page 2213 of 4133

MERCEDES-BENZ ML320 1997 Complete Repair Manual Check values for alternator Check values for alternator Check values for alternator Commercially available tools clamp (065) Volt ampere tester ETT 011.00*WH58.30-Z-1003-09A NumberDesignationEngi

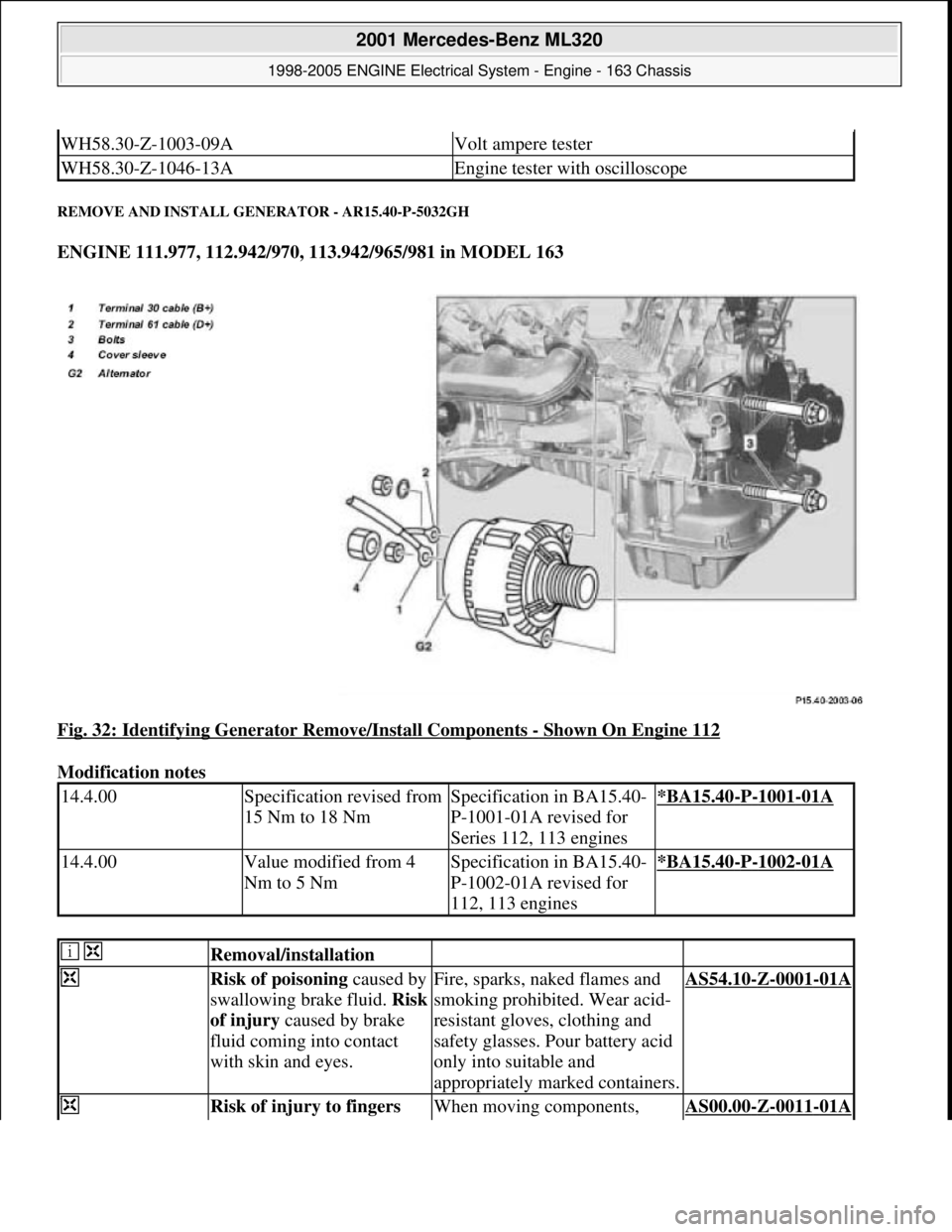

Page 2214 of 4133

MERCEDES-BENZ ML320 1997 Complete Repair Manual REMOVE AND INSTALL GENERATOR - AR15.40-P-5032GH ENGINE 111.977, 112.942/970, 113.942/965/981 in MODEL 163 Fig. 32: Identifying Generator Remove/Install Components - Shown On Engine 112 Modificati

Page 2215 of 4133

MERCEDES-BENZ ML320 1997 Complete Repair Manual being jammed or squeezed when removing and installing or aligning hoods, doors, trunk lid/tailgate or sliding roof.ensure that no body parts or limbs are within the operating range of moving par

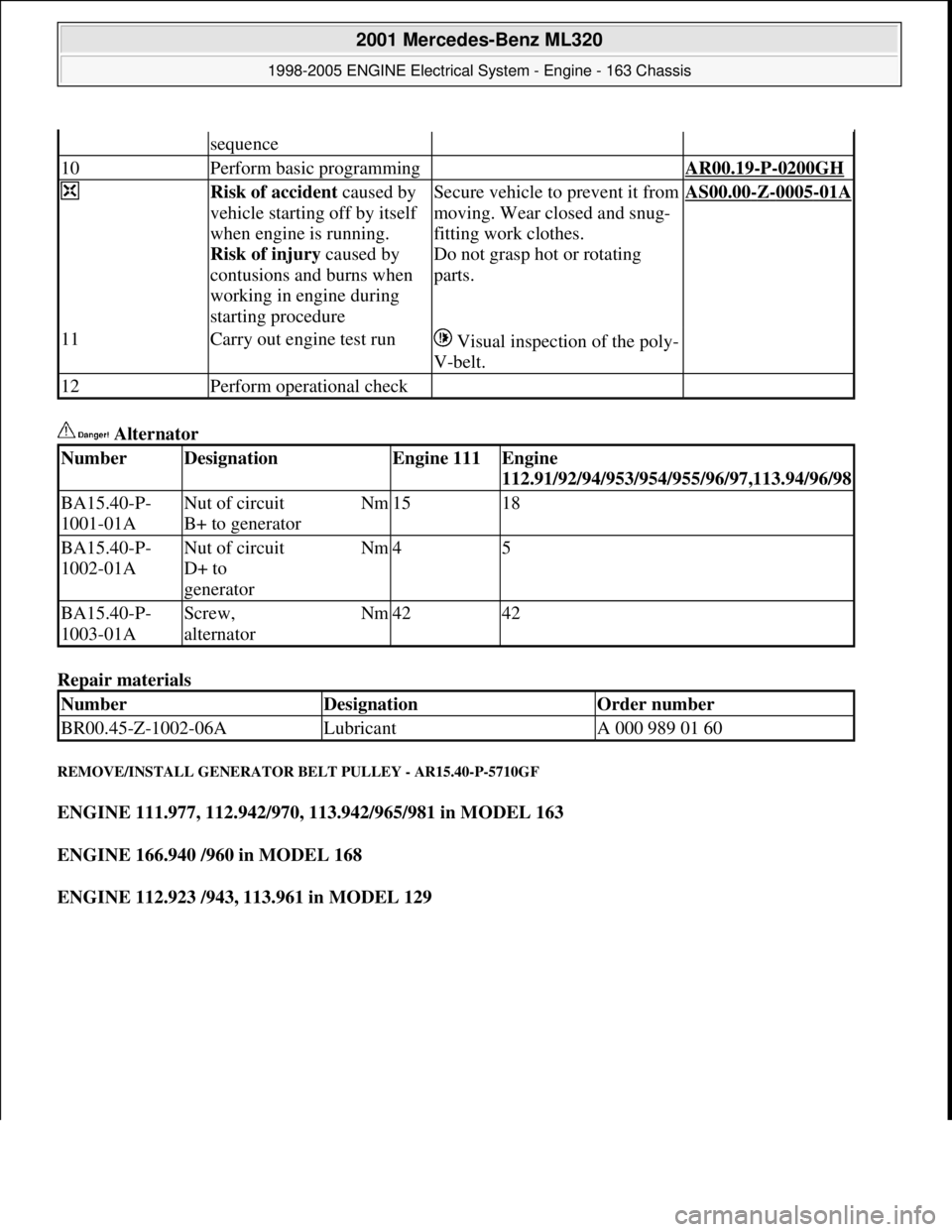

Page 2216 of 4133

MERCEDES-BENZ ML320 1997 Complete Repair Manual Alternator Repair materials REMOVE/INSTALL GENERATOR BELT PULLEY - AR15.40-P-5710GF ENGINE 111.977, 112.942/970, 113.942/965/981 in MODEL 163 ENGINE 166.940 /960 in MODEL 168 ENGINE 112.923 /9
