Page 2649 of 4133

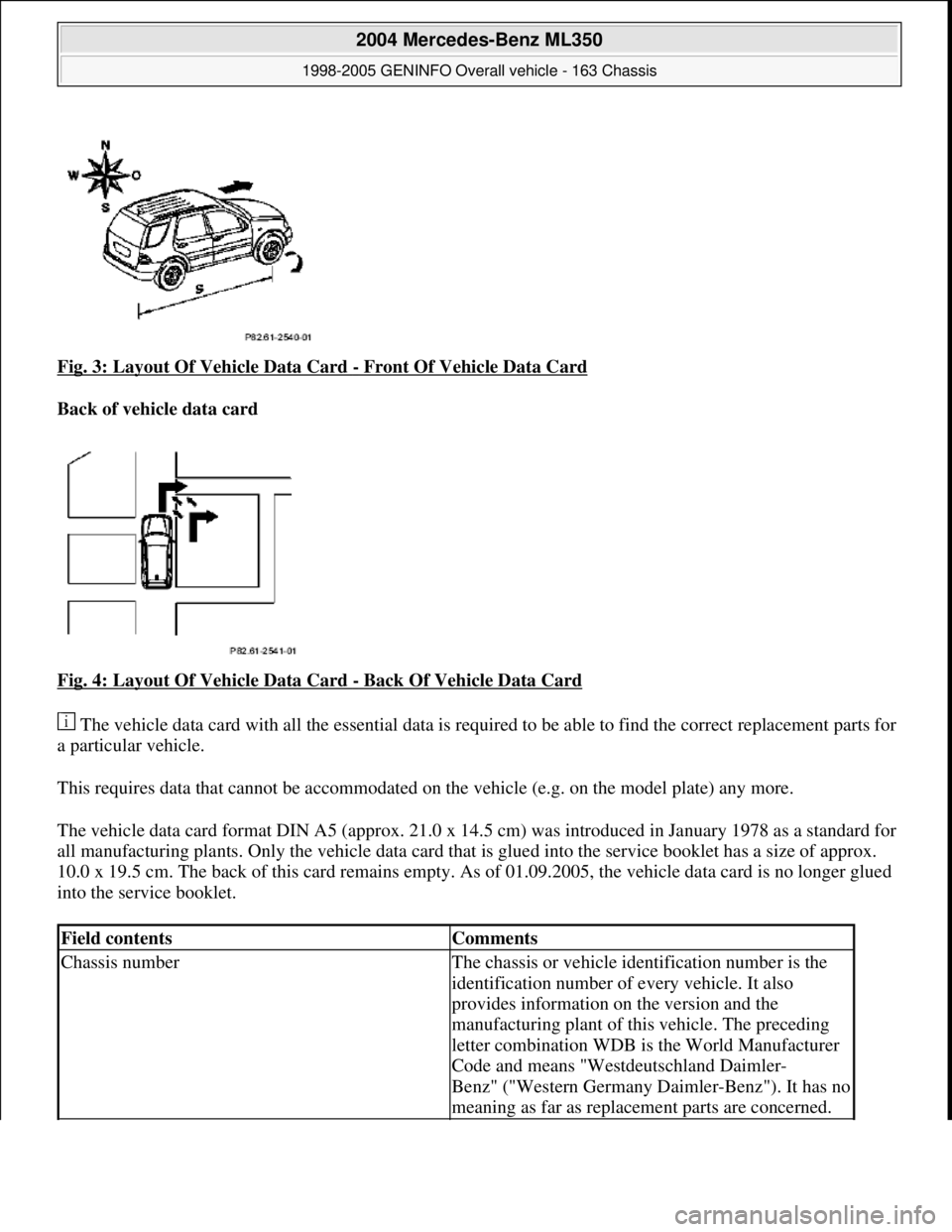

MERCEDES-BENZ ML320 1997 Complete Repair Manual Fig. 3: Layout Of Vehicle Data Card - Front Of Vehicle Data Card
Back of vehicle data card
Fig. 4: Layout Of Vehicle Data Card
- Back Of Vehicle Data Card
The vehicle data card with all the

Page 2650 of 4133

MERCEDES-BENZ ML320 1997 Complete Repair Manual KEY TO BODY PLATE - AH00.00-P-4000-01A
Model 100, 107, 108, 109, 111, 112, 113, 114, 115, 116, 123, 124, 126, 129, 140, 163, 168, 170, 201, 202, 208,
210

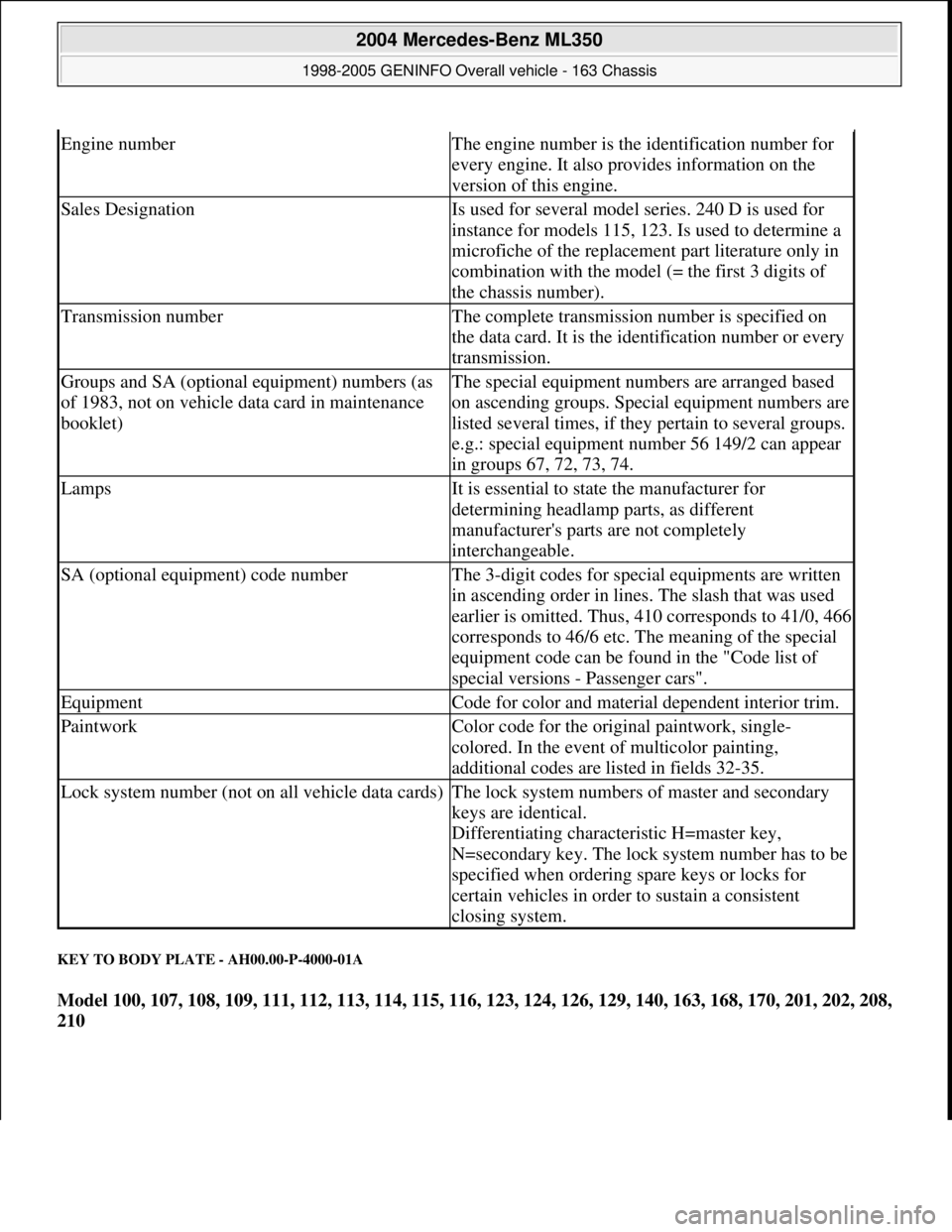

Engine numberThe engine number is the iden

KEY TO BODY PLATE - AH00.00-P-4000-01A
Model 100, 107, 108, 109, 111, 112, 113, 114, 115, 116, 123, 124, 126, 129, 140, 163, 168, 170, 201, 202, 208,
210
Engine numberThe engine number is the identification number for
every engine. It also provides information on the
version of this engine.
Sales DesignationIs used for several model series. 240 D is used for
instance for models 115, 123. Is used to determine a
microfiche of the replacement part literature only in
combination with the model (= the first 3 digits of
the chassis number).
Transmission numberThe complete transmission number is specified on
the data card. It is the identification number or every
transmission.
Groups and SA (optional equipment) numbers (as
of 1983, not on vehicle data card in maintenance
booklet)The special equipment numbers are arranged based
on ascending groups. Special equipment numbers are
listed several times, if they pertain to several groups.
e.g.: special equipment number 56 149/2 can appear
in groups 67, 72, 73, 74.
LampsIt is essential to state the manufacturer for
determining headlamp parts, as different
manufacturer's parts are not completely
interchangeable.
SA (optional equipment) code numberThe 3-digit codes for special equipments are written
in ascending order in lines. The slash that was used
earlier is omitted. Thus, 410 corresponds to 41/0, 466
corresponds to 46/6 etc. The meaning of the special
equipment code can be found in the "Code list of
special versions - Passenger cars".
EquipmentCode for color and material dependent interior trim.
PaintworkColor code for the original paintwork, single-
colored. In the event of multicolor painting,
additional codes are listed in fields 32-35.
Lock system number (not on all vehicle data cards)The lock system numbers of master and secondary
keys are identical.
Differentiating characteristic H=master key,
N=secondary key. The lock system number has to be
specified when ordering spare keys or locks for
certain vehicles in order to sustain a consistent
closing system.

2004 Mercedes-Benz ML350
1998-2005 GENINFO Overall vehicle - 163 Chassis
me
Saturday, October 02, 2010 3:47:44 PMPage 5 © 2006 Mitchell Repair Information Company, LLC.

Page 2651 of 4133

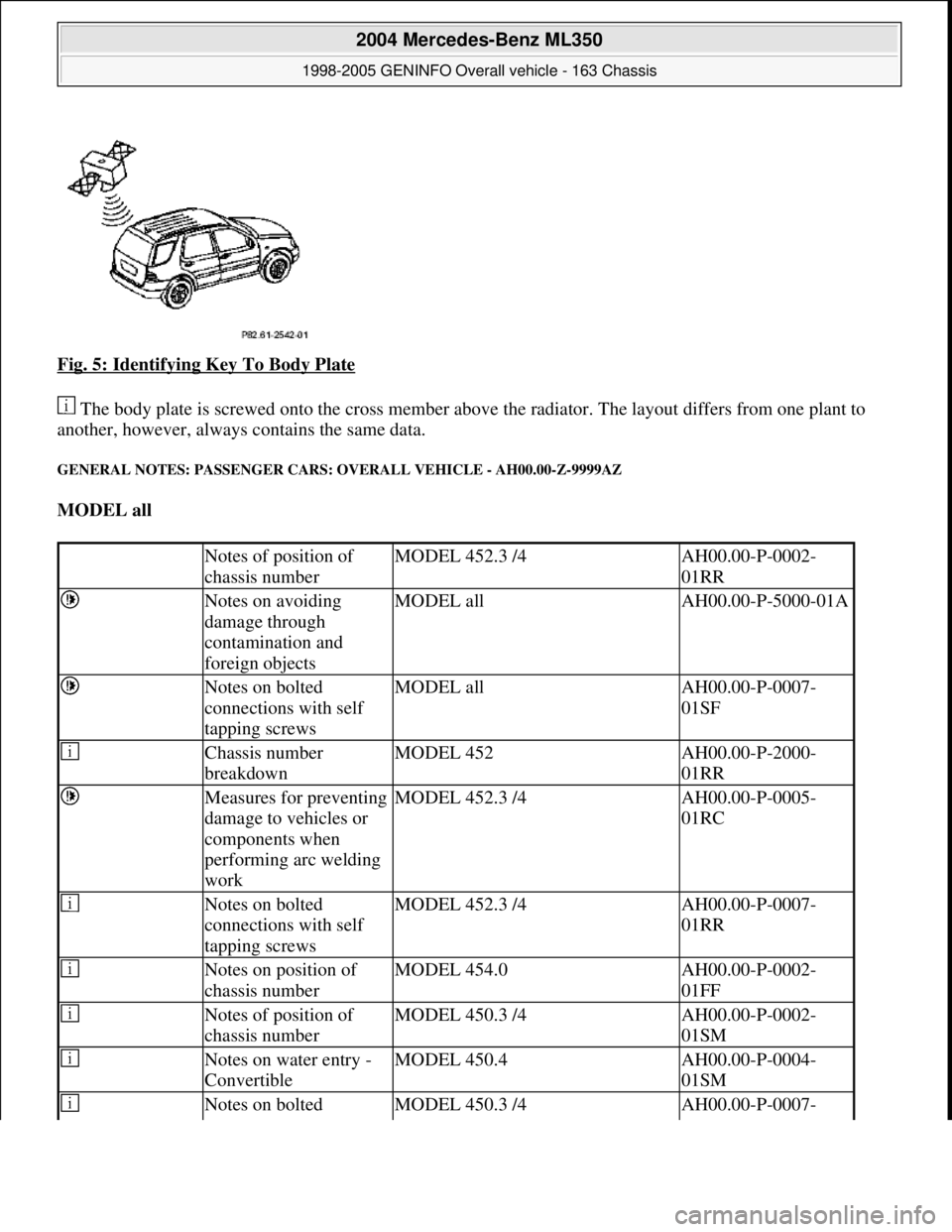

MERCEDES-BENZ ML320 1997 Complete Repair Manual Fig. 5: Identifying Key To Body Plate
The body plate is screwed onto the cross member above the radiator. The layout differs from one plant to
another, however, always contains the same data.
GENE

Page 2652 of 4133

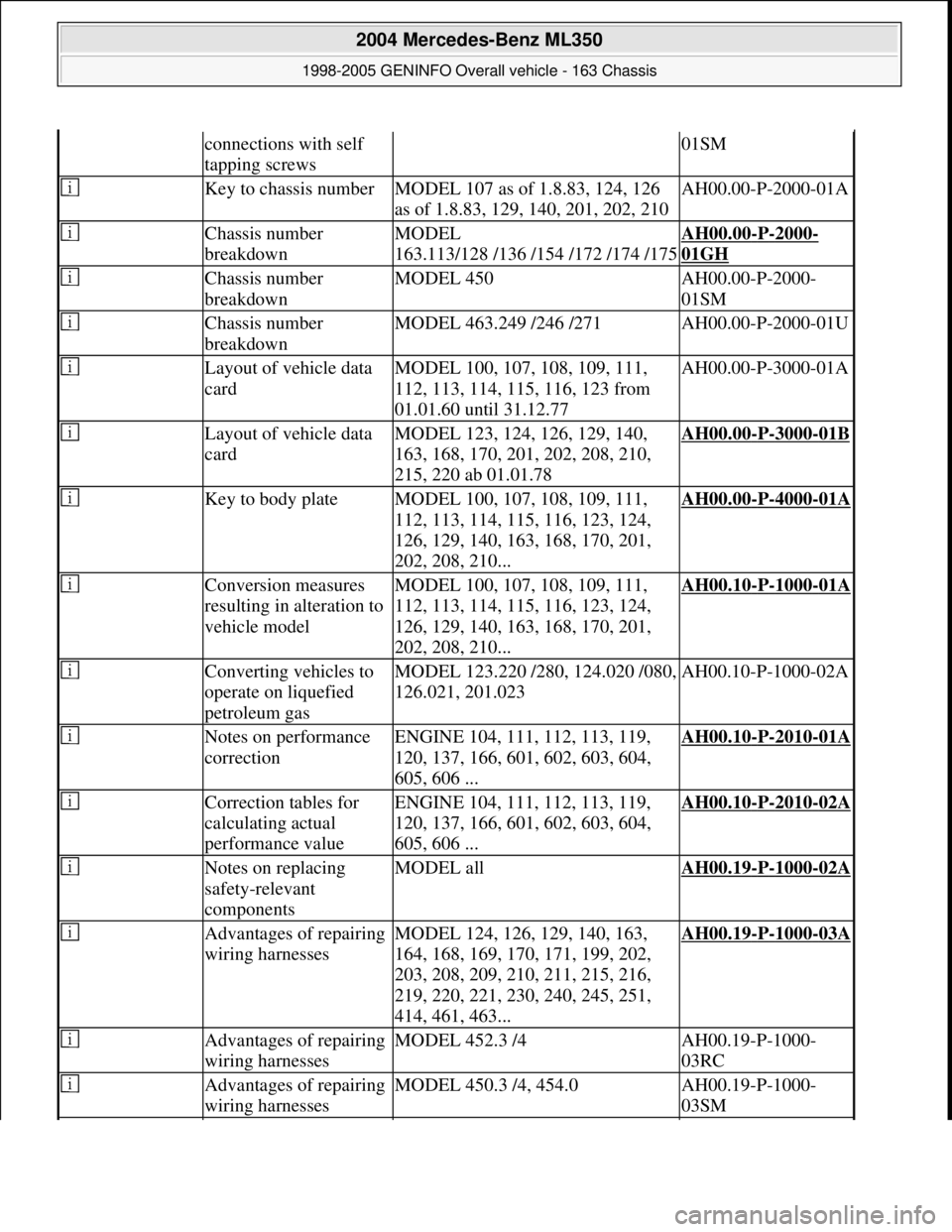

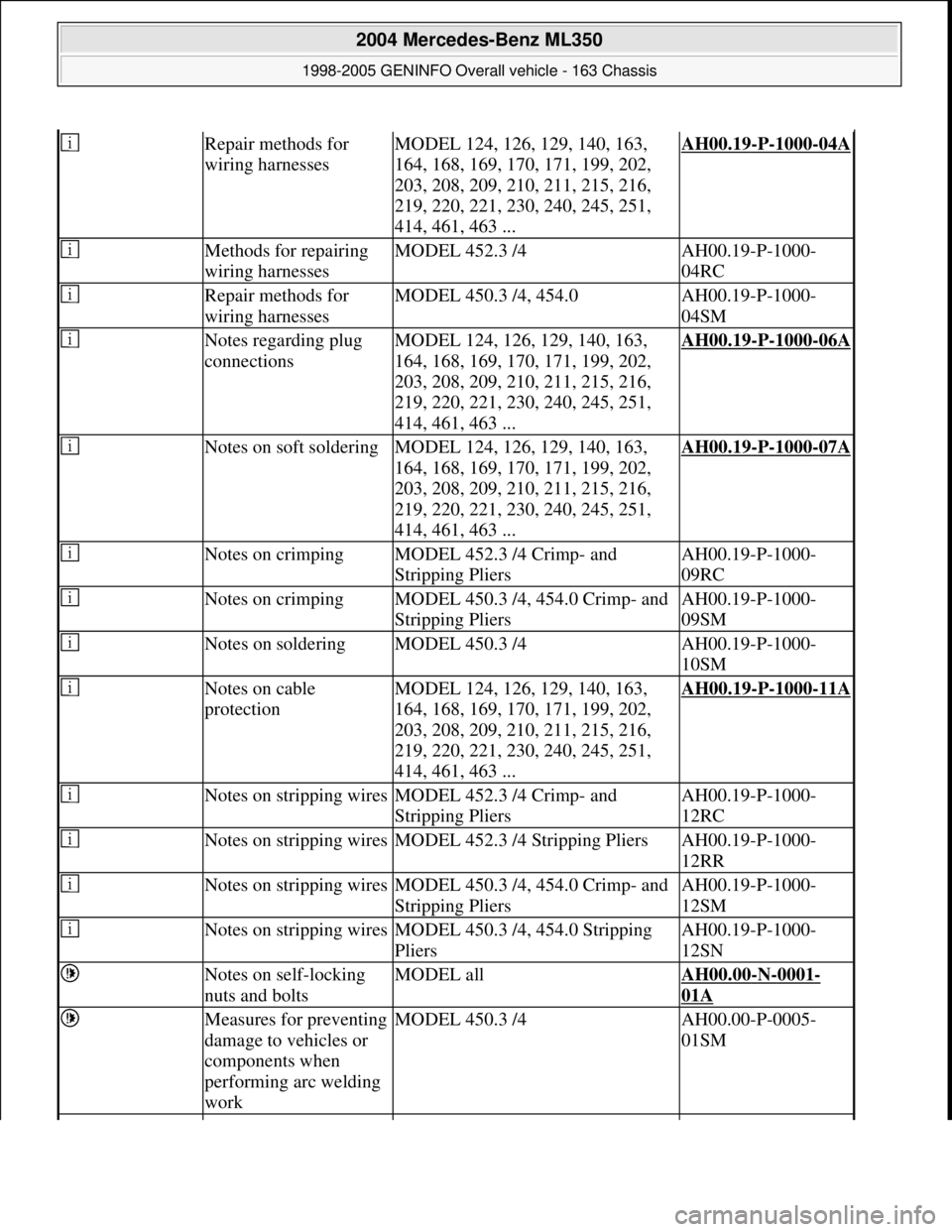

MERCEDES-BENZ ML320 1997 Complete Repair Manual connections with self
tapping screws01SM
Key to chassis numberMODEL 107 as of 1.8.83, 124, 126
as of 1.8.83, 129, 140, 201, 202, 210AH00.00-P-2000-01A
Chassis number
breakdownMODEL
163.113/128 /

connections with self
tapping screws01SM
Key to chassis numberMODEL 107 as of 1.8.83, 124, 126
as of 1.8.83, 129, 140, 201, 202, 210AH00.00-P-2000-01A
Chassis number
breakdownMODEL
163.113/128 /136 /154 /172 /174 /175AH00.00-P-2000-
01GH
Chassis number
breakdownMODEL 450AH00.00-P-2000-
01SM
Chassis number
breakdownMODEL 463.249 /246 /271AH00.00-P-2000-01U
Layout of vehicle data
cardMODEL 100, 107, 108, 109, 111,
112, 113, 114, 115, 116, 123 from
01.01.60 until 31.12.77AH00.00-P-3000-01A
Layout of vehicle data
cardMODEL 123, 124, 126, 129, 140,
163, 168, 170, 201, 202, 208, 210,
215, 220 ab 01.01.78AH00.00-P-3000-01B
Key to body plateMODEL 100, 107, 108, 109, 111,
112, 113, 114, 115, 116, 123, 124,
126, 129, 140, 163, 168, 170, 201,
202, 208, 210...AH00.00-P-4000-01A
Conversion measures
resulting in alteration to
vehicle modelMODEL 100, 107, 108, 109, 111,
112, 113, 114, 115, 116, 123, 124,
126, 129, 140, 163, 168, 170, 201,
202, 208, 210...AH00.10-P-1000-01A
Converting vehicles to
operate on liquefied
petroleum gasMODEL 123.220 /280, 124.020 /080,
126.021, 201.023AH00.10-P-1000-02A
Notes on performance
correctionENGINE 104, 111, 112, 113, 119,
120, 137, 166, 601, 602, 603, 604,
605, 606 ...AH00.10-P-2010-01A
Correction tables for
calculating actual
performance valueENGINE 104, 111, 112, 113, 119,
120, 137, 166, 601, 602, 603, 604,
605, 606 ...AH00.10-P-2010-02A
Notes on replacing
safety-relevant
componentsMODEL allAH00.19-P-1000-02A
Advantages of repairing
wiring harnessesMODEL 124, 126, 129, 140, 163,
164, 168, 169, 170, 171, 199, 202,
203, 208, 209, 210, 211, 215, 216,
219, 220, 221, 230, 240, 245, 251,
414, 461, 463...AH00.19-P-1000-03A
Advantages of repairing
wiring harnessesMODEL 452.3 /4AH00.19-P-1000-
03RC
Advantages of repairing
wiring harnessesMODEL 450.3 /4, 454.0AH00.19-P-1000-
03SM

2004 Mercedes-Benz ML350
1998-2005 GENINFO Overall vehicle - 163 Chassis
me
Saturday, October 02, 2010 3:47:44 PMPage 7 © 2006 Mitchell Repair Information Company, LLC.

Page 2653 of 4133

MERCEDES-BENZ ML320 1997 Complete Repair Manual Repair methods for
wiring harnessesMODEL 124, 126, 129, 140, 163,
164, 168, 169, 170, 171, 199, 202,
203, 208, 209, 210, 211, 215, 216,
219, 220, 221, 230, 240, 245, 251,
414, 461, 463 ...AH00.1

Page 2654 of 4133

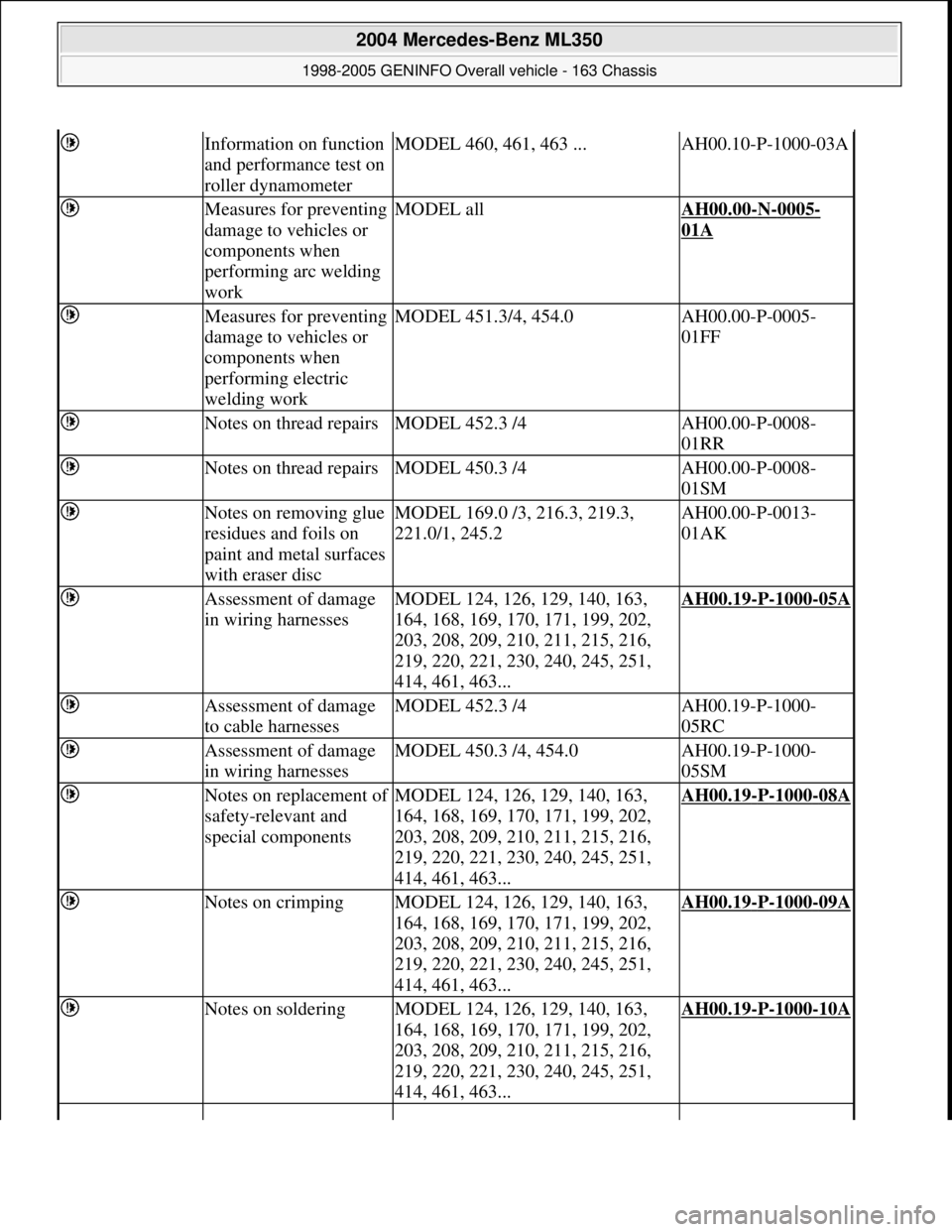

MERCEDES-BENZ ML320 1997 Complete Repair Manual Information on function
and performance test on
roller dynamometerMODEL 460, 461, 463 ...AH00.10-P-1000-03A
Measures for preventing
damage to vehicles or
components when
performing arc welding

Page 2655 of 4133

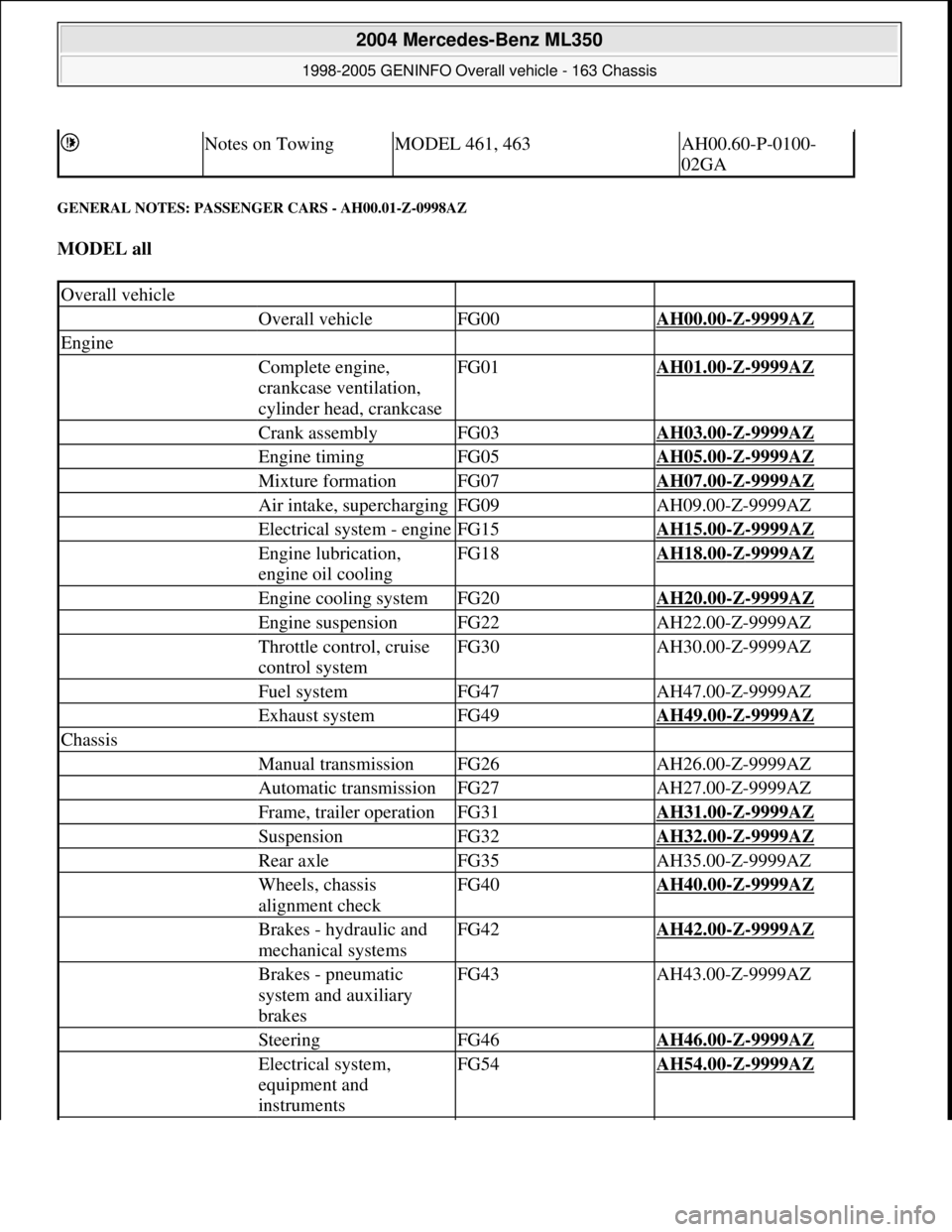

MERCEDES-BENZ ML320 1997 Complete Repair Manual GENERAL NOTES: PASSENGER CARS - AH00.01-Z-0998AZ
MODEL all
Notes on TowingMODEL 461, 463AH00.60-P-0100-
02GA
Overall vehicle
Overall vehicleFG00AH00.00-Z-9999AZ
Engine
Complete engine,
cr

Page 2656 of 4133

MERCEDES-BENZ ML320 1997 Complete Repair Manual CONVERSION MEASURES RESULTING IN ALTERATION TO VEHICLE MODEL - AH00.10-P-1000-01A
Model 100, 107, 108, 109, 111, 112, 113, 114, 115, 116, 123, 124, 126, 129, 140, 163, 168, 170, 201, 202, 208,
210

Load next 8 pages

Page: < prev 1-10 ... 2617-2624 2625-2632 2633-2640 2641-2648 2649-2656 2657-2664 2665-2672 2673-2680 2681-2688 ... 4136 next >
