Page 1321 of 4133

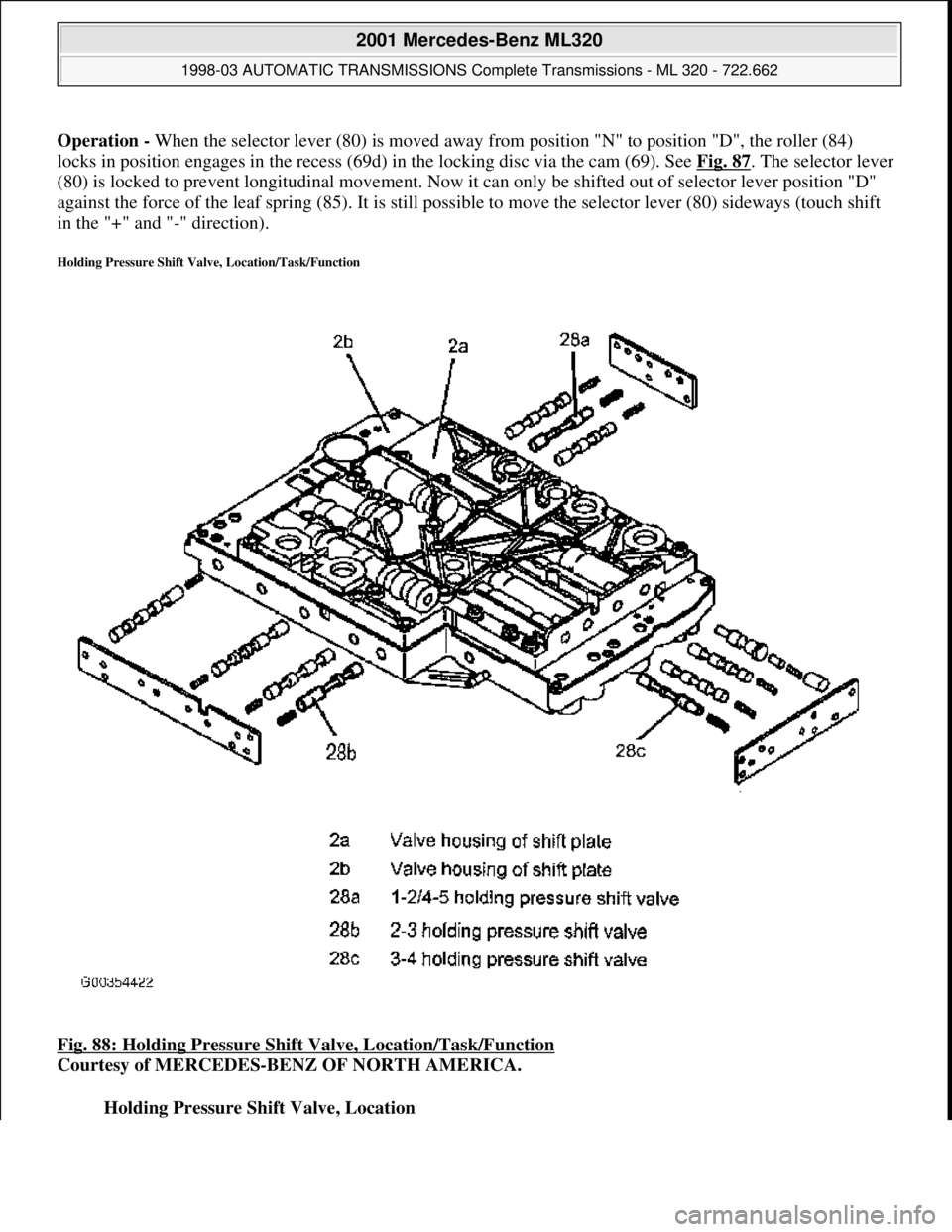

MERCEDES-BENZ ML320 1997 Complete Repair Manual Operation - When the selector lever (80) is moved away fr om position "N" to position "D", the roller (84) locks in position engages in the recess (69d) in the locking disc via the cam (69). See

Page 1322 of 4133

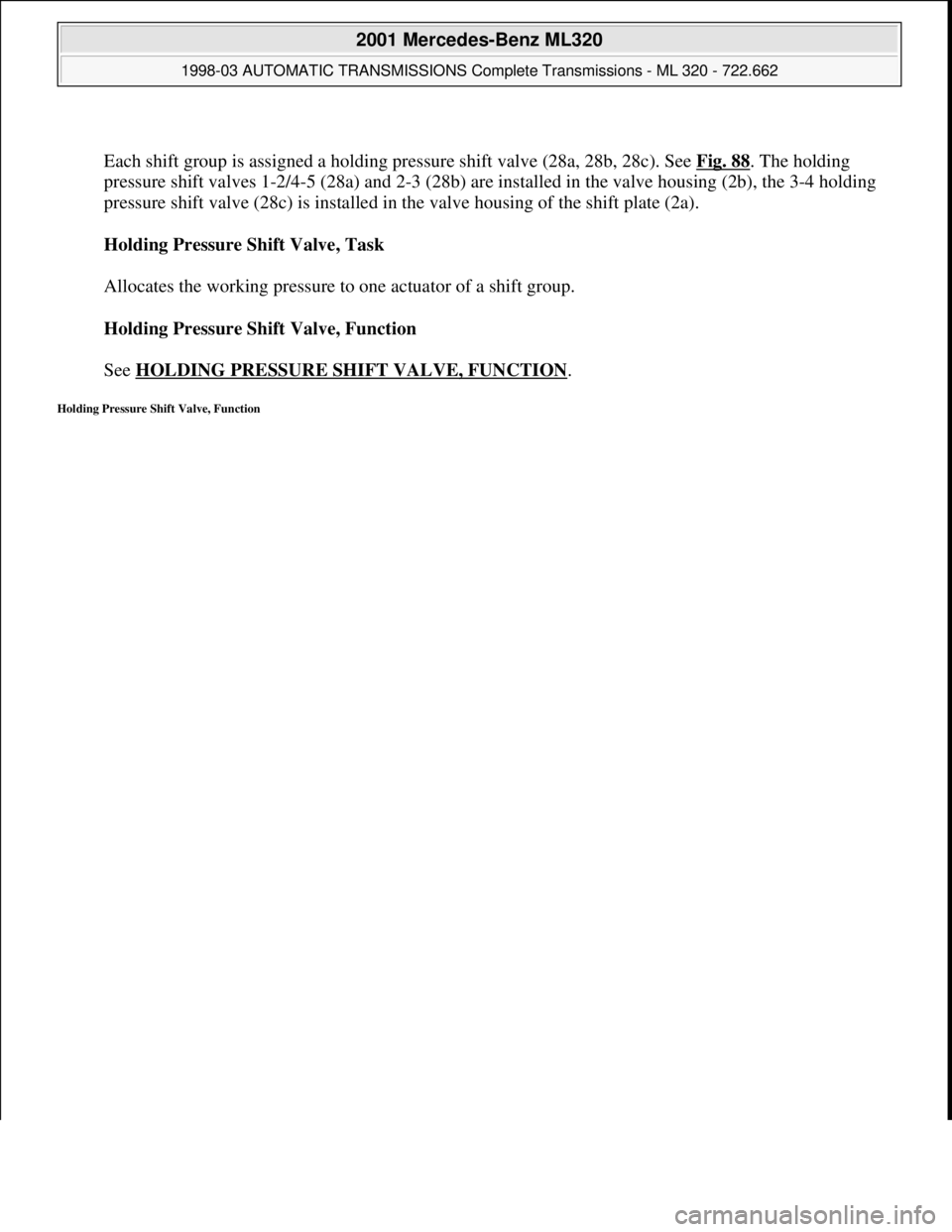

MERCEDES-BENZ ML320 1997 Complete Repair Manual Each shift group is assigned a holding pressure shift valve (28a, 28b, 28c). See Fig. 88 . The holding pressure shift valves 1-2/4-5 (28a) and 2-3 (28b) are installed in the valve housing (2b), the

Page 1323 of 4133

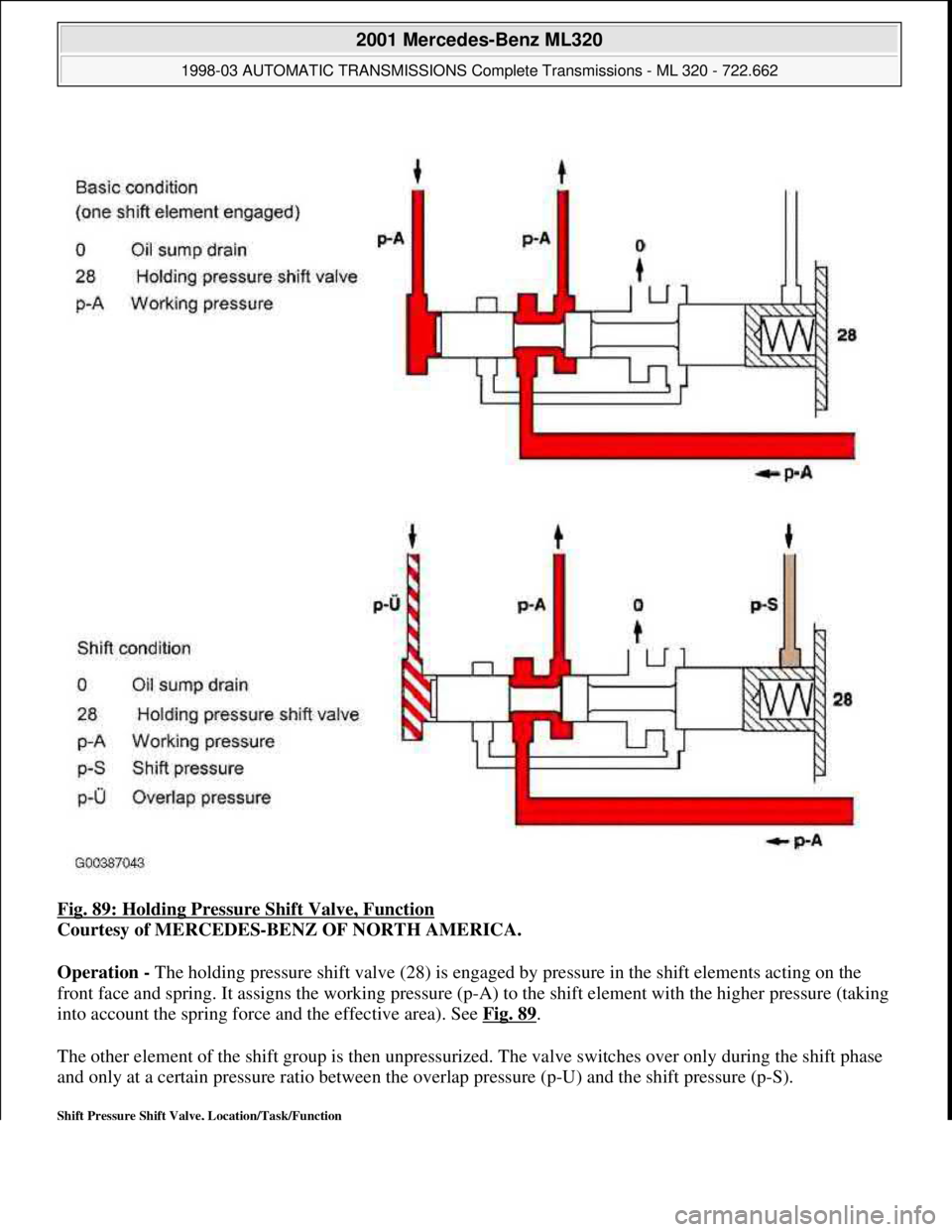

MERCEDES-BENZ ML320 1997 Complete Repair Manual Fig. 89: Holding Pressure Shift Valve, Function Courtesy of MERCEDES-BENZ OF NORTH AMERICA. Operation - The holding pressure shift valve (28) is engage d by pressure in the shift elements acti

Page 1324 of 4133

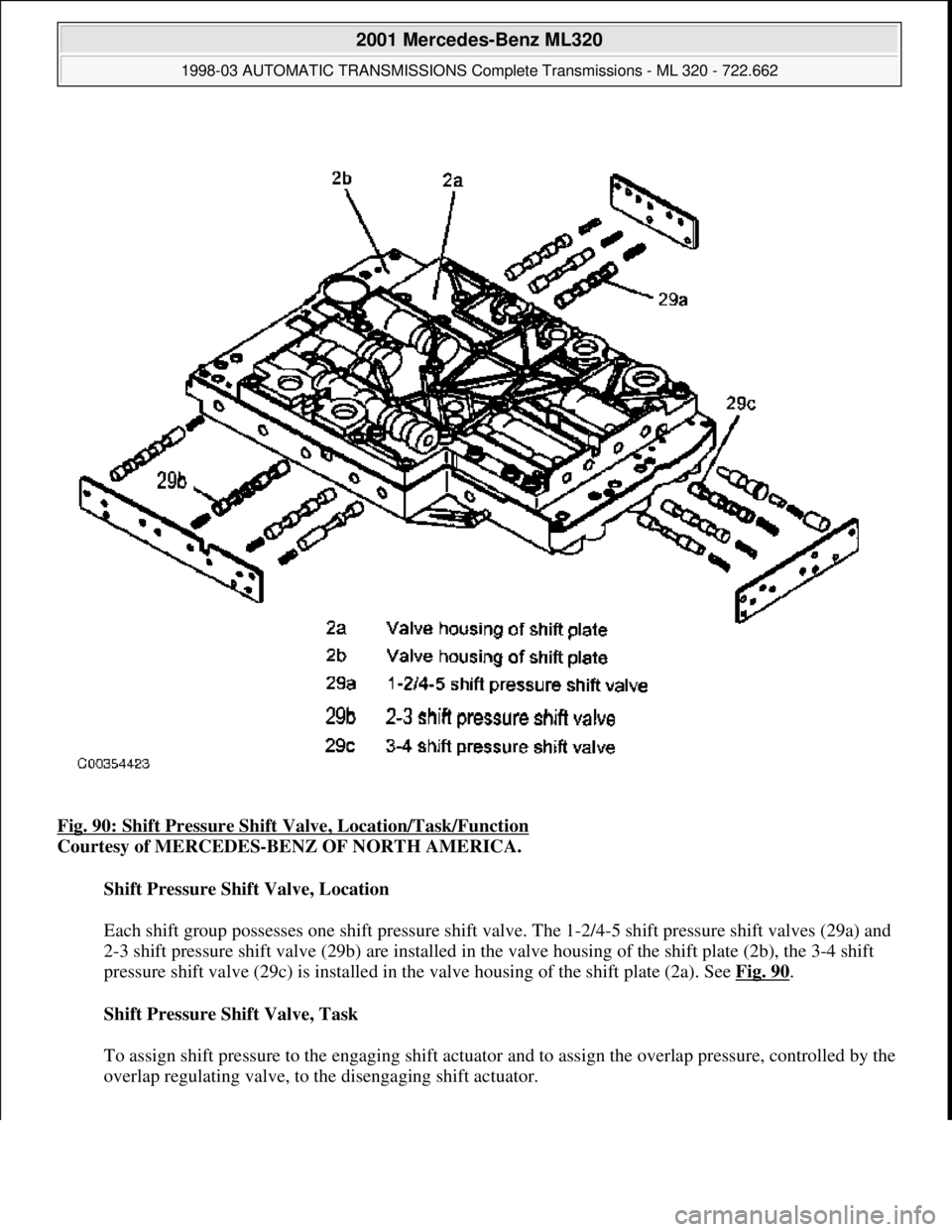

MERCEDES-BENZ ML320 1997 Complete Repair Manual Fig. 90: Shift Pressure Shift Valve, Location/Task/Function Courtesy of MERCEDES-BENZ OF NORTH AMERICA. Shift Pressure Shift Valve, Location Each shift group possesses one shift pr essure

Page 1325 of 4133

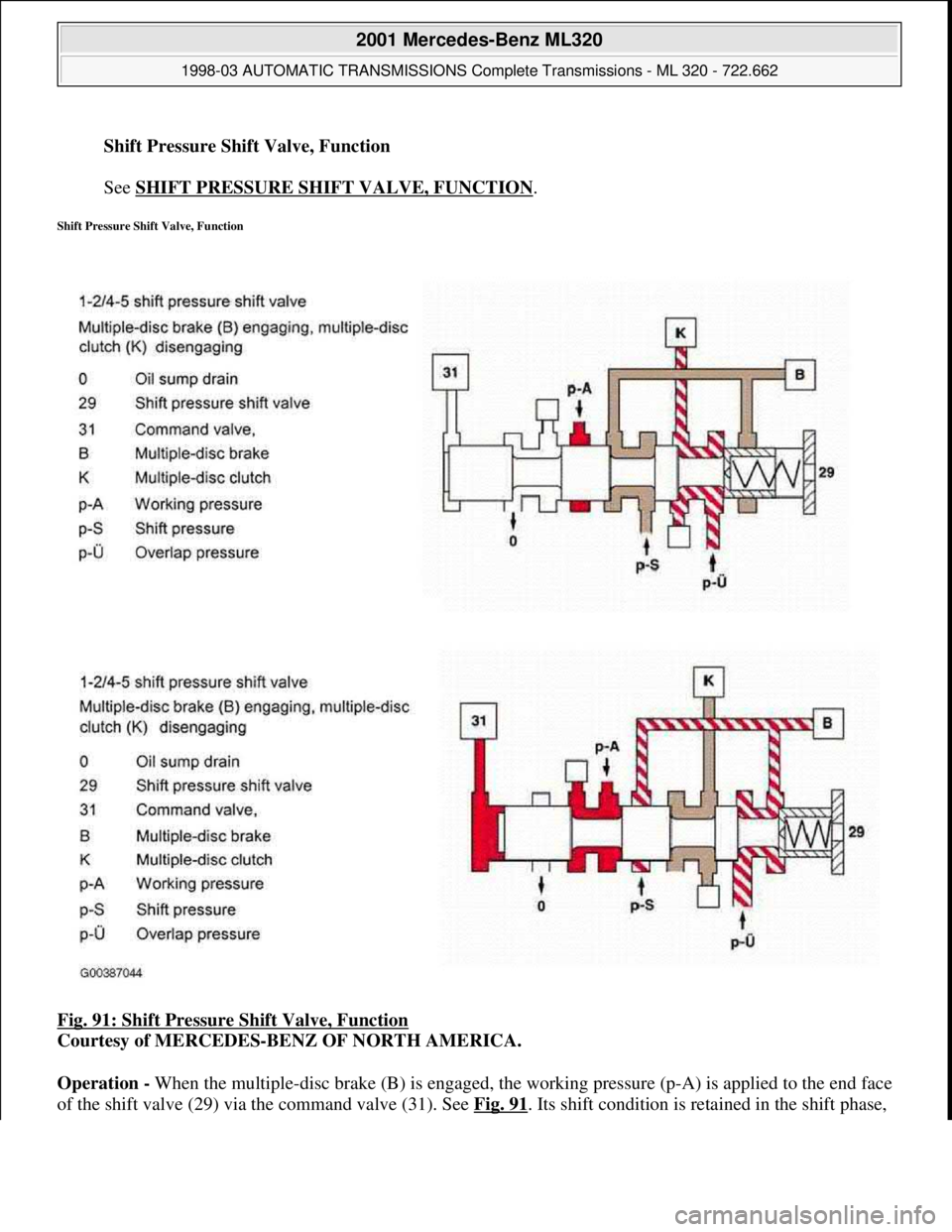

MERCEDES-BENZ ML320 1997 Complete Repair Manual Shift Pressure Shift Valve, Function See SHIFT PRESSURE SHIFT VALVE, FUNCTION . Shift Pressure Shift Valve, Function Fig. 91: Shift Pressure Shift Valve, Function Courtesy of MERCEDES-BENZ OF N

Page 1326 of 4133

MERCEDES-BENZ ML320 1997 Complete Repair Manual whilst the shift element pressure acting on the end face and which is variable during the shift phase is replaced by a corresponding, constant pressure. When the multiple-disc clutch (K) is engaged

Page 1327 of 4133

MERCEDES-BENZ ML320 1997 Complete Repair Manual 2001 Mercedes-Benz ML320 1998-03 AUTOMATIC TRANSMISSIONS Complete Transmissions - ML 320 - 722.662 me Saturday, October 02, 2010 3:15:27 PMPage 158 © 2006 Mitchell Repair Information Company,

Page 1328 of 4133

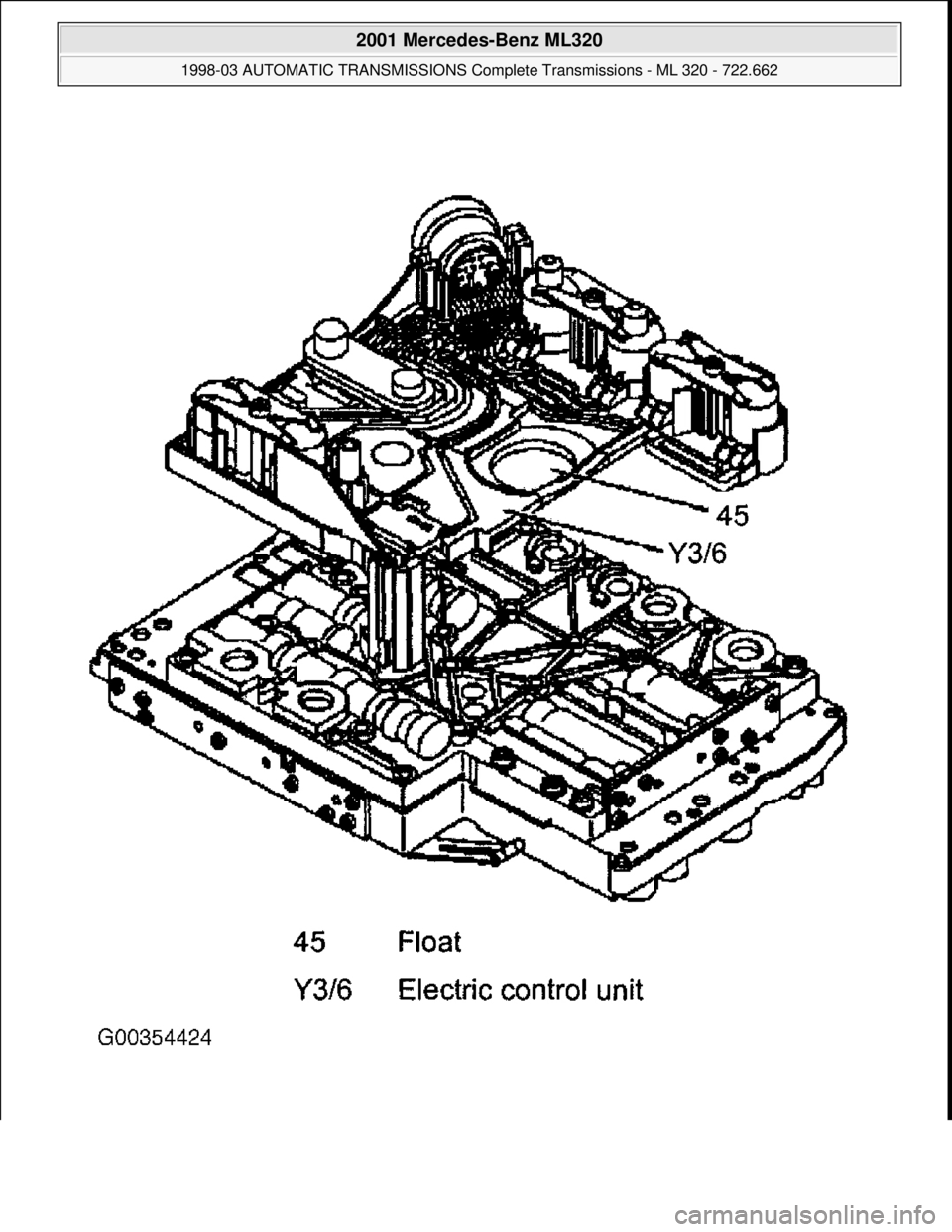

MERCEDES-BENZ ML320 1997 Complete Repair Manual Fig. 92: Shift Pressure Regulating Valve, Location/Task/Function Courtesy of MERCEDES-BENZ OF NORTH AMERICA. Float, Location In the electrical control unit (Y3/6). See Fig. 92 . Float, Function
