Page 1425 of 4133

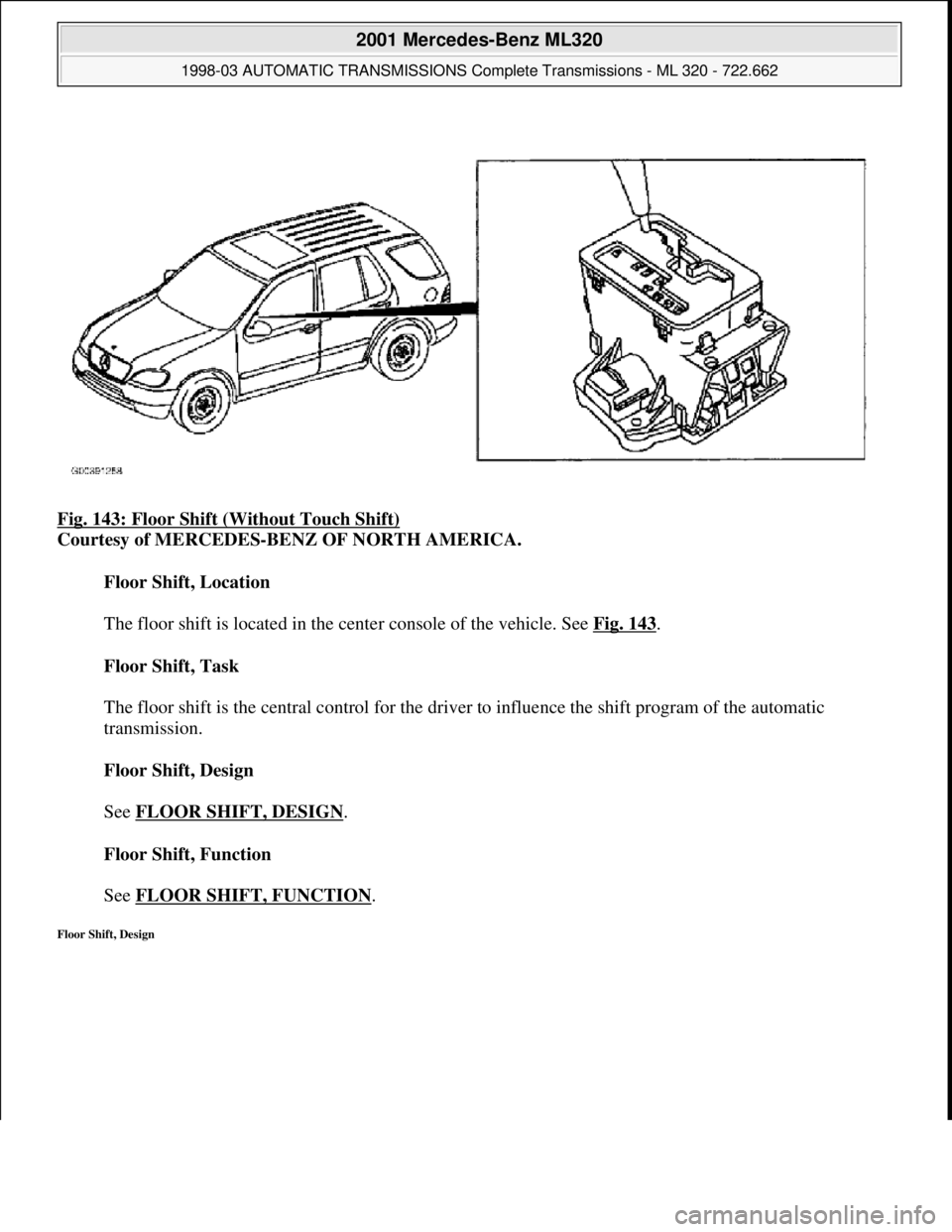

MERCEDES-BENZ ML320 1997 Complete Repair Manual Fig. 143: Floor Shift (Without Touch Shift) Courtesy of MERCEDES-BENZ OF NORTH AMERICA. Floor Shift, Location The floor shift is located in the center console of the vehicle. See Fig. 143

Page 1426 of 4133

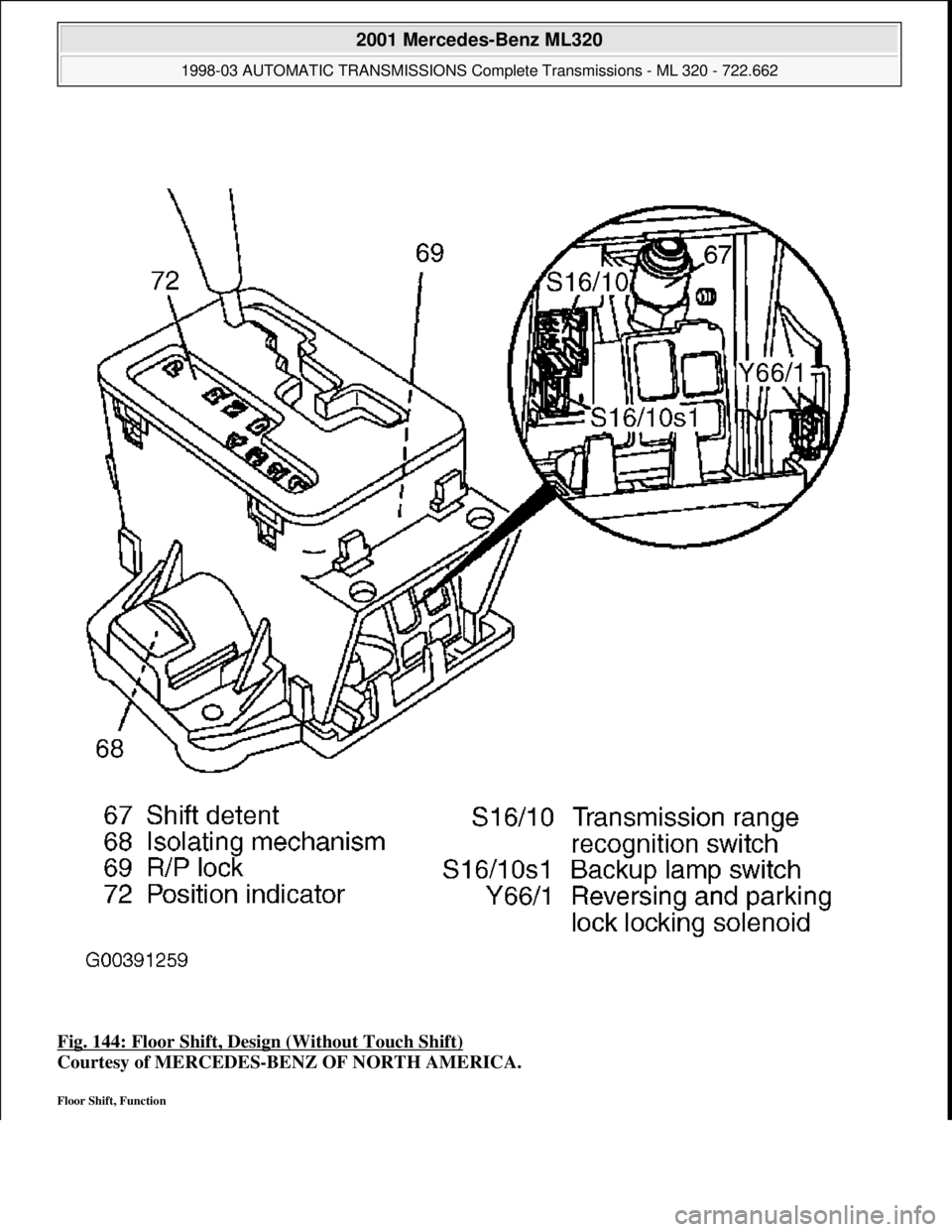

MERCEDES-BENZ ML320 1997 Complete Repair Manual Fig. 144: Floor Shift, Desi gn (Without Touch Shift) Courtesy of MERCEDES-BENZ OF NORTH AMERICA. Floor Shift, Function 2001 Mercedes-Benz ML320 1998-03 AUTOMATIC TRANSMISSIONS Complete Transm

Page 1427 of 4133

MERCEDES-BENZ ML320 1997 Complete Repair Manual 2001 Mercedes-Benz ML320 1998-03 AUTOMATIC TRANSMISSIONS Complete Transmissions - ML 320 - 722.662 me Saturday, October 02, 2010 3:15:29 PMPage 258 © 2006 Mitchell Repair Information Company,

Page 1428 of 4133

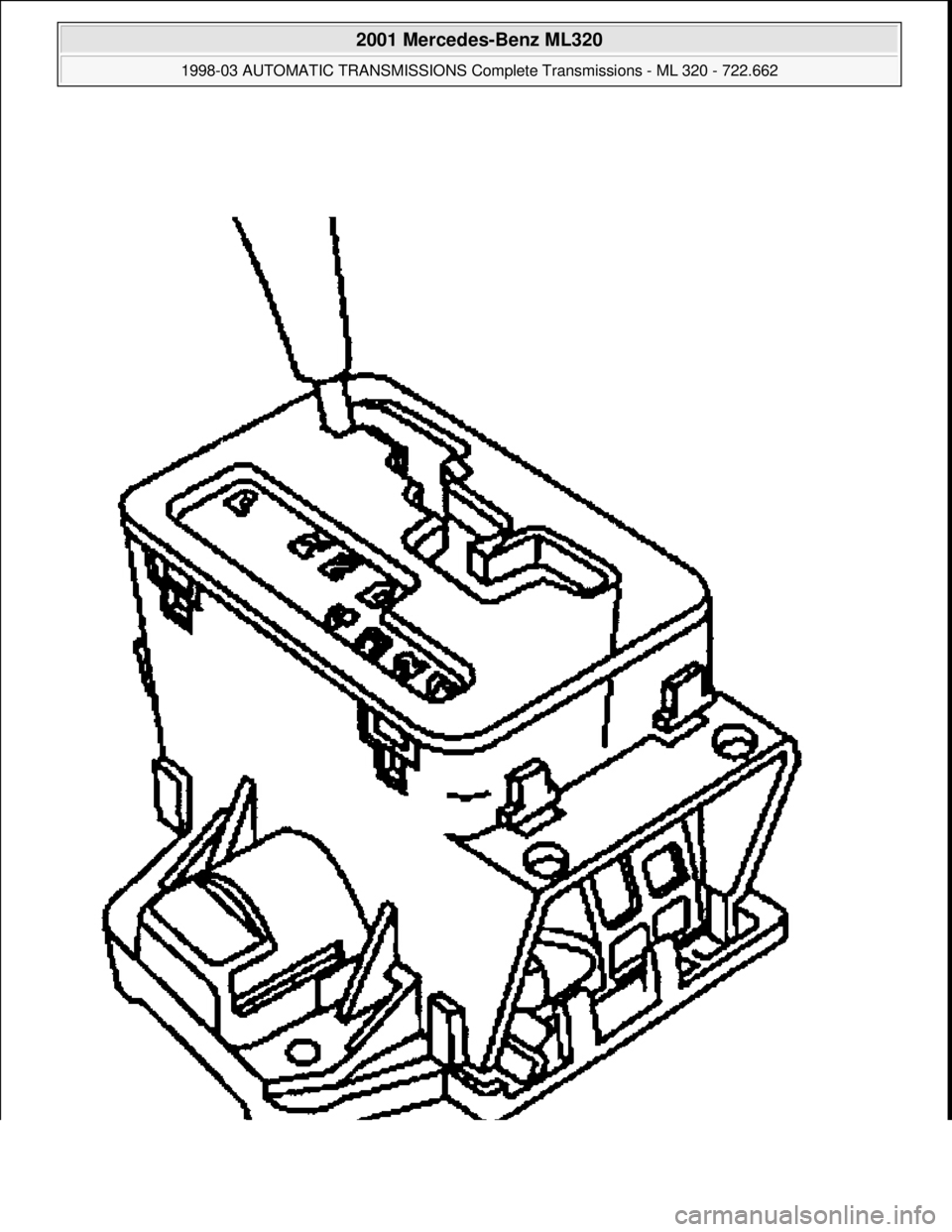

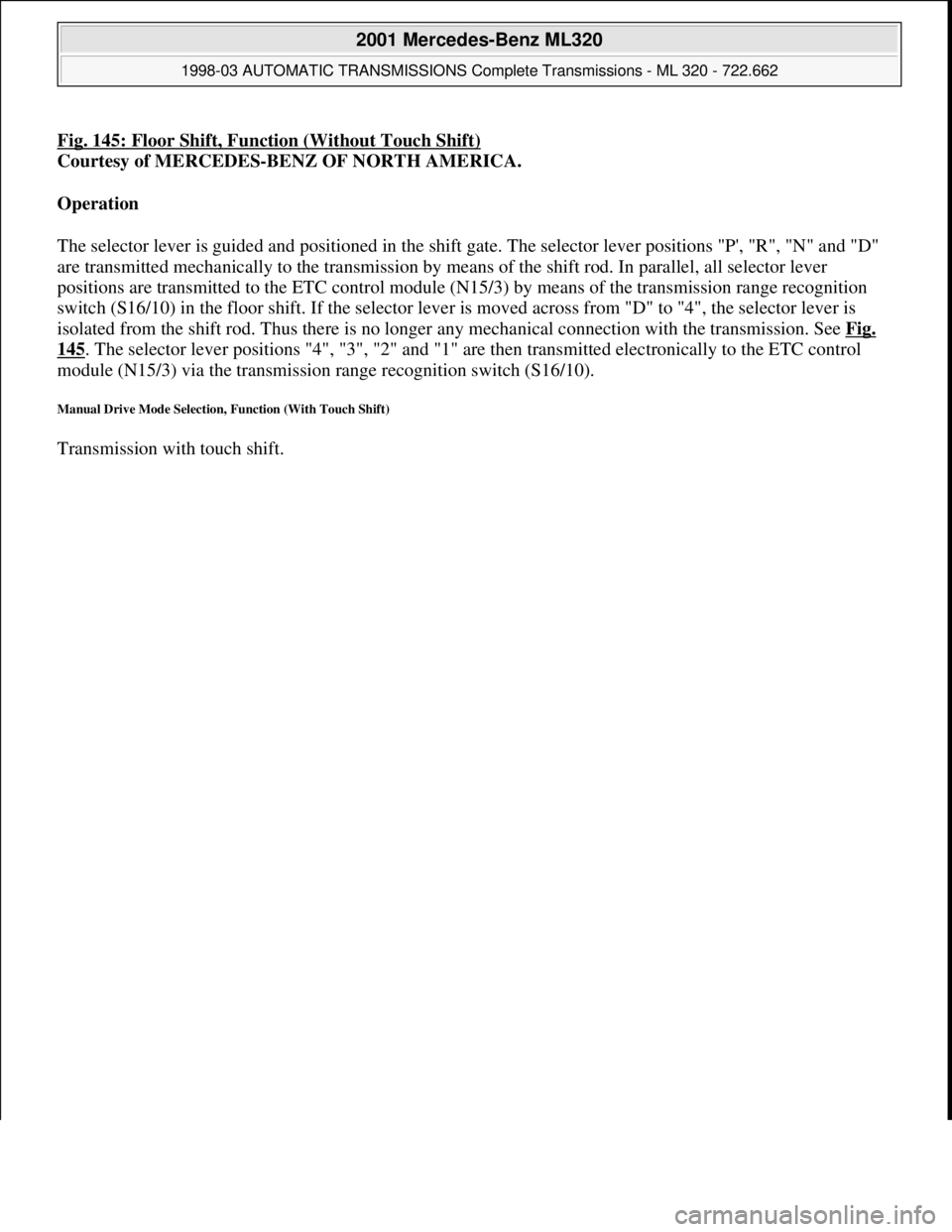

MERCEDES-BENZ ML320 1997 Complete Repair Manual Fig. 145: Floor Shift, Function (Without Touch Shift) Courtesy of MERCEDES-BENZ OF NORTH AMERICA. Operation The selector lever is guided and positioned in the shift gate. The selector lever positio

Page 1429 of 4133

MERCEDES-BENZ ML320 1997 Complete Repair Manual 2001 Mercedes-Benz ML320 1998-03 AUTOMATIC TRANSMISSIONS Complete Transmissions - ML 320 - 722.662 me Saturday, October 02, 2010 3:15:29 PMPage 260 © 2006 Mitchell Repair Information Company,

Page 1430 of 4133

MERCEDES-BENZ ML320 1997 Complete Repair Manual Fig. 146: Manual Drive Mode Selection, Function Courtesy of MERCEDES-BENZ OF NORTH AMERICA. Operation With the selector lever on the floor shift it is possible to adapt the automatic gearshift sequ

Page 1431 of 4133

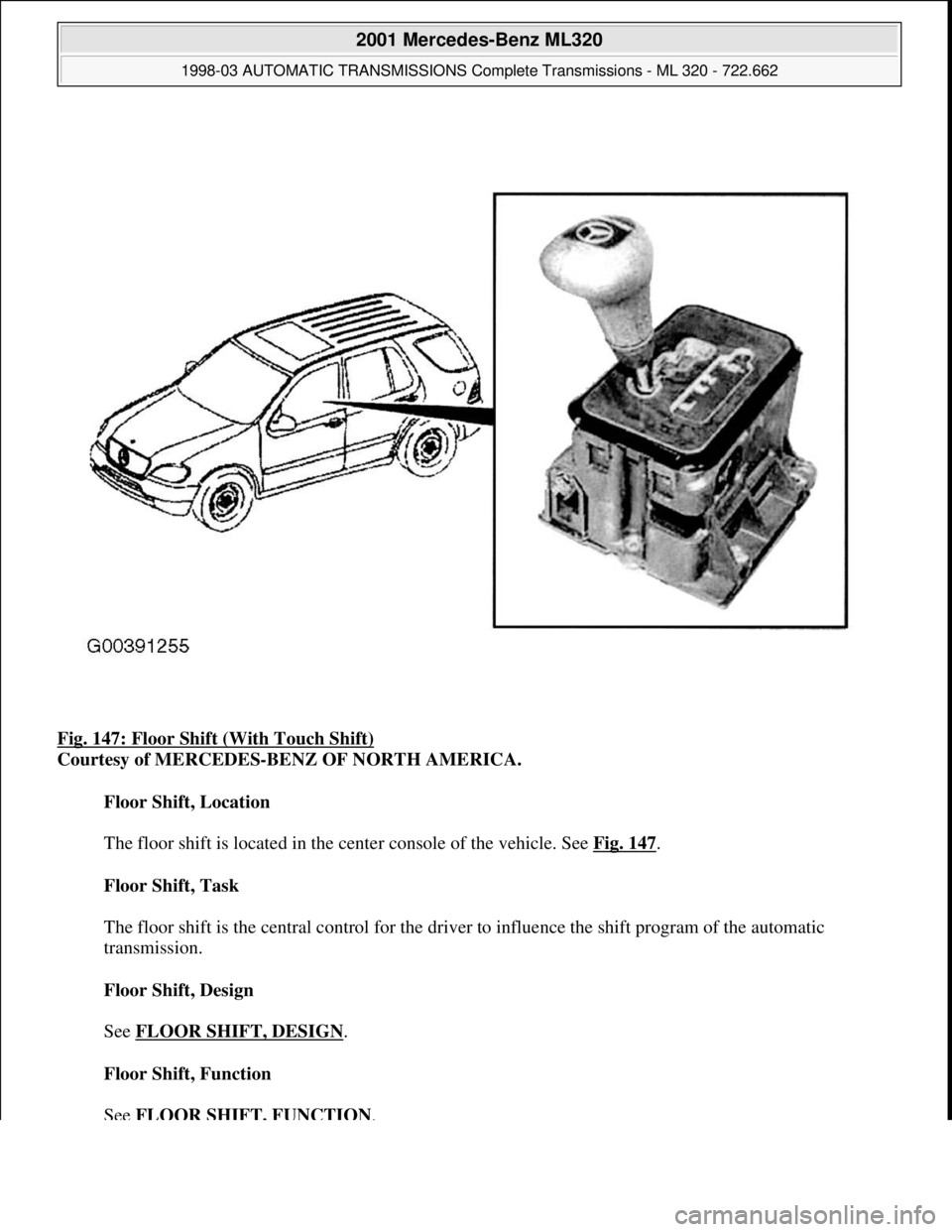

MERCEDES-BENZ ML320 1997 Complete Repair Manual Fig. 147: Floor Shift (With Touch Shift) Courtesy of MERCEDES-BENZ OF NORTH AMERICA. Floor Shift, Location The floor shift is located in the center console of the vehicle. See Fig. 147 . Floor S

Page 1432 of 4133

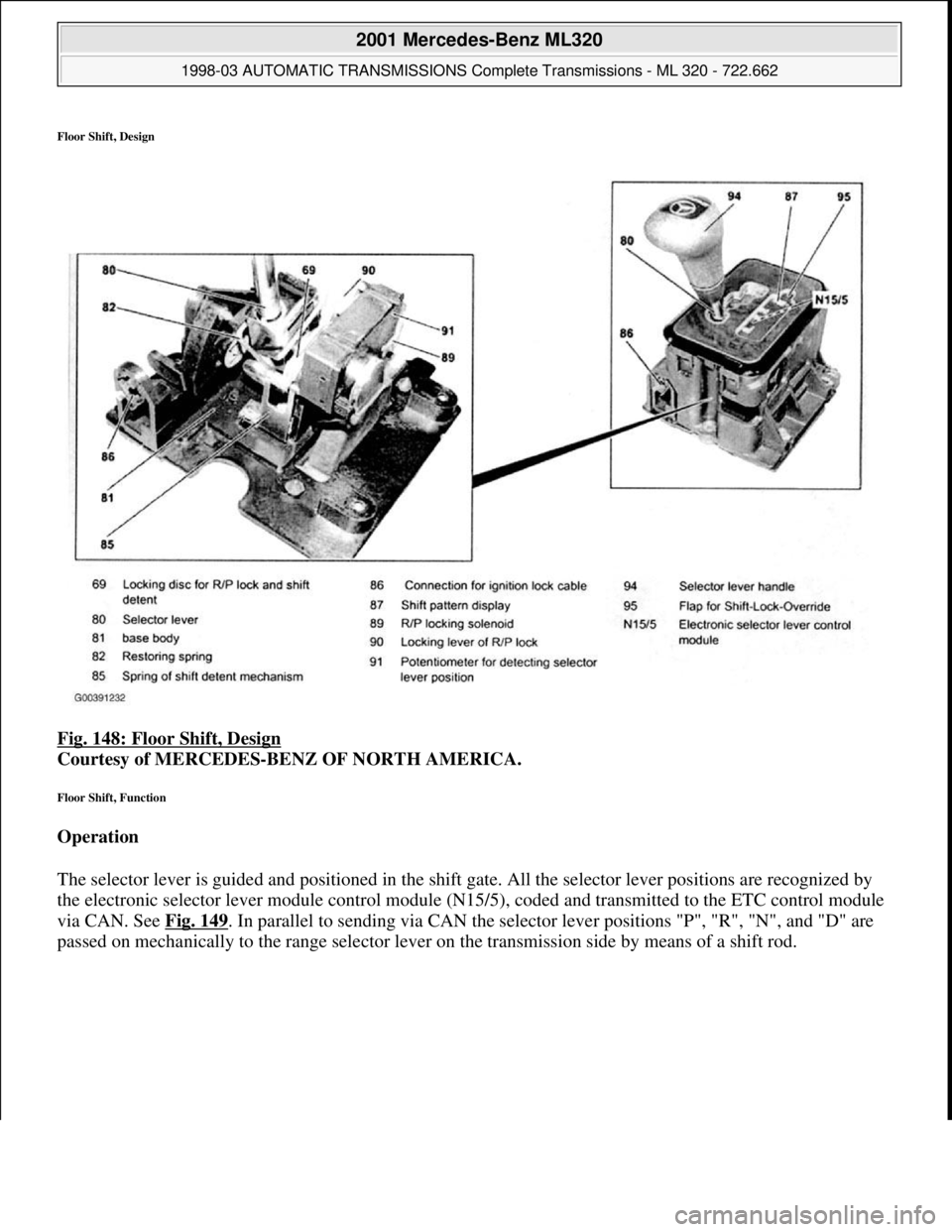

MERCEDES-BENZ ML320 1997 Complete Repair Manual Floor Shift, Design Fig. 148: Floor Shift, Design Courtesy of MERCEDES-BENZ OF NORTH AMERICA. Floor Shift, Function Operation The selector lever is guided and positioned in the shift gate. All t
