Page 3433 of 4133

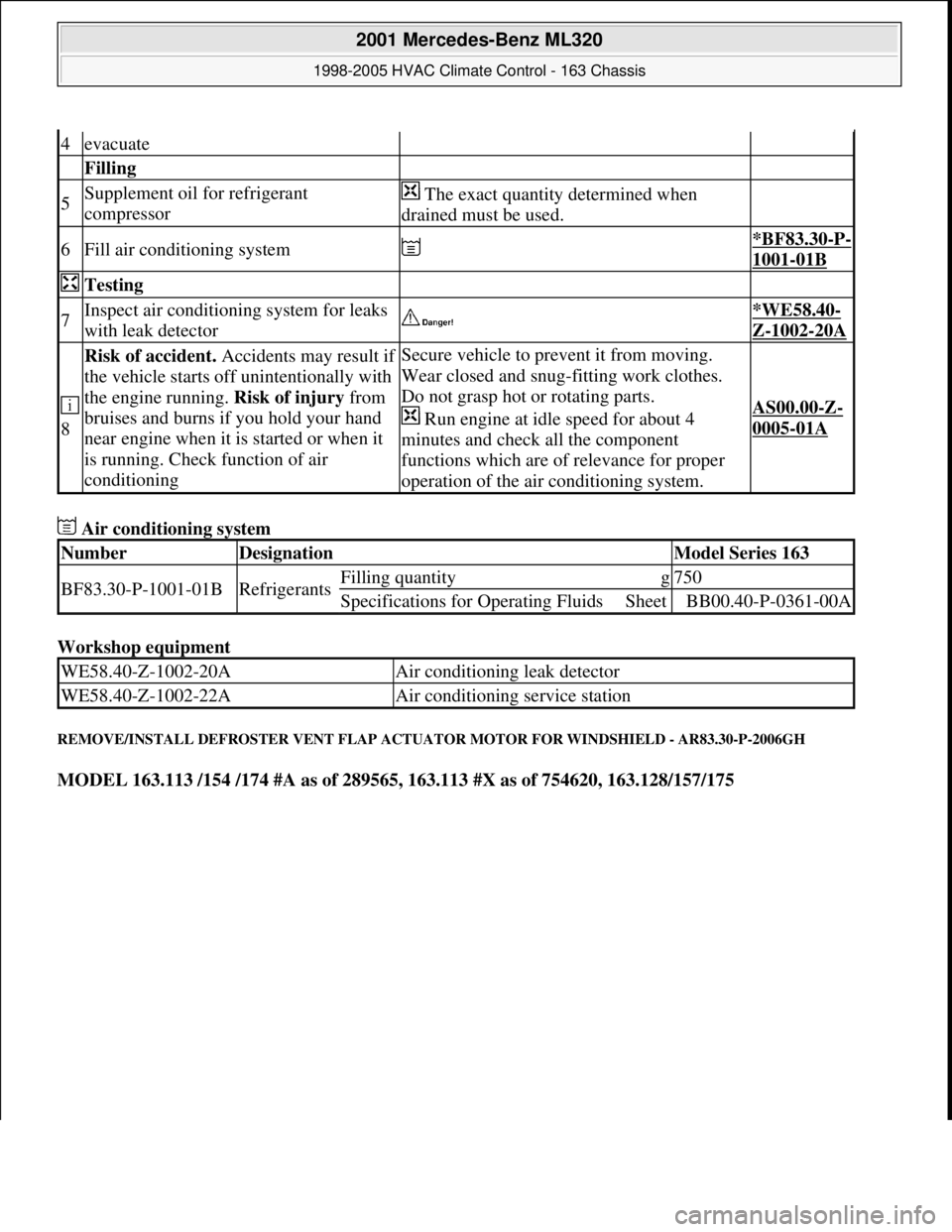

MERCEDES-BENZ ML320 1997 Complete Repair Manual Air conditioning system Workshop equipment REMOVE/INSTALL DEFROSTER VENT FLAP ACTUATOR MOTOR FOR WINDSHIELD - AR83.30-P-2006GH MODEL 163.113 /154 /174 #A as of 289565, 163.113 #X as of 754620, 163

Page 3434 of 4133

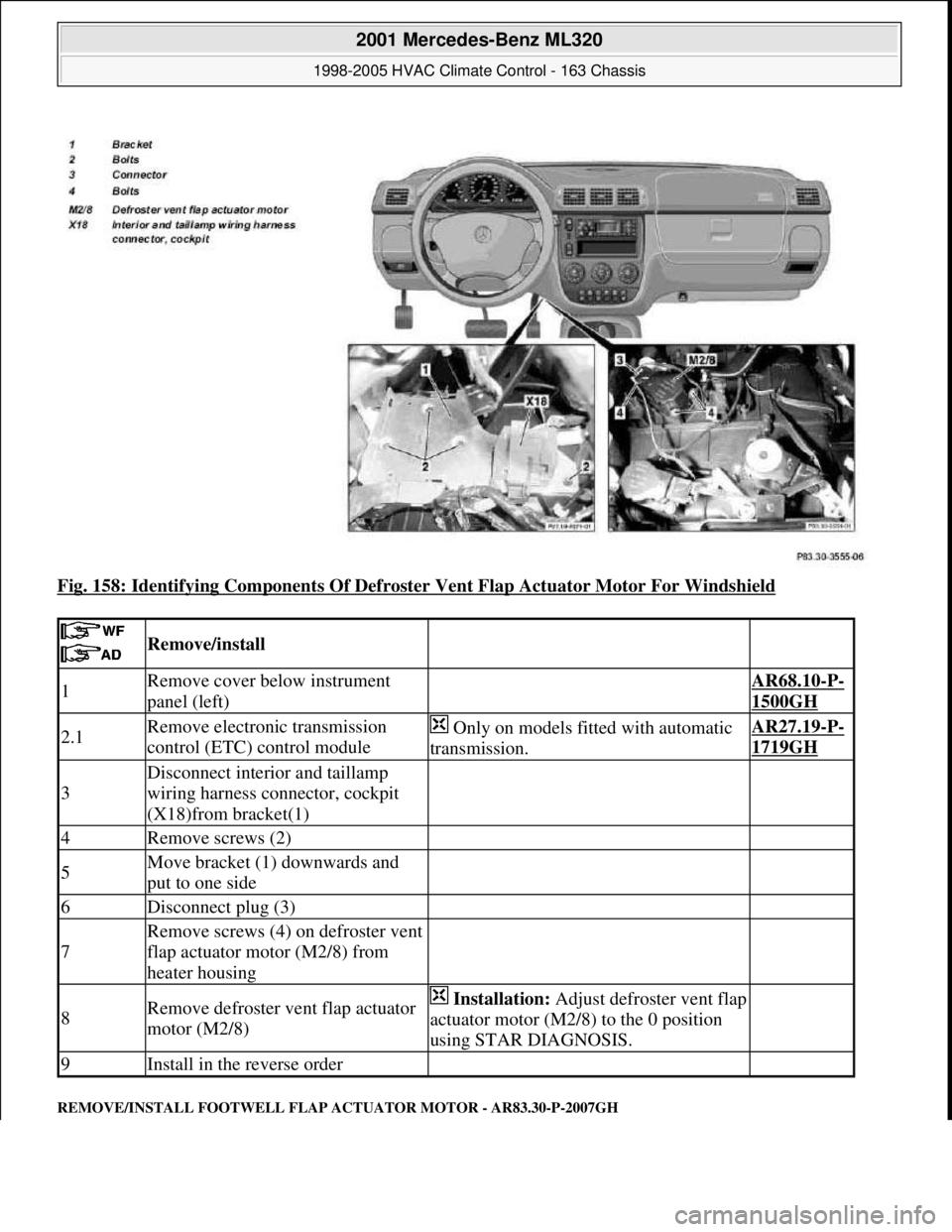

MERCEDES-BENZ ML320 1997 Complete Repair Manual Fig. 158: Identifying Components Of Defroster Vent Flap Actuator Motor For Windshield REMOVE/INSTALL FOOTWELL FLAP ACTUATOR MOTOR - AR83.30-P-2007GH Remove/install 1Remove cover below instrument

Page 3435 of 4133

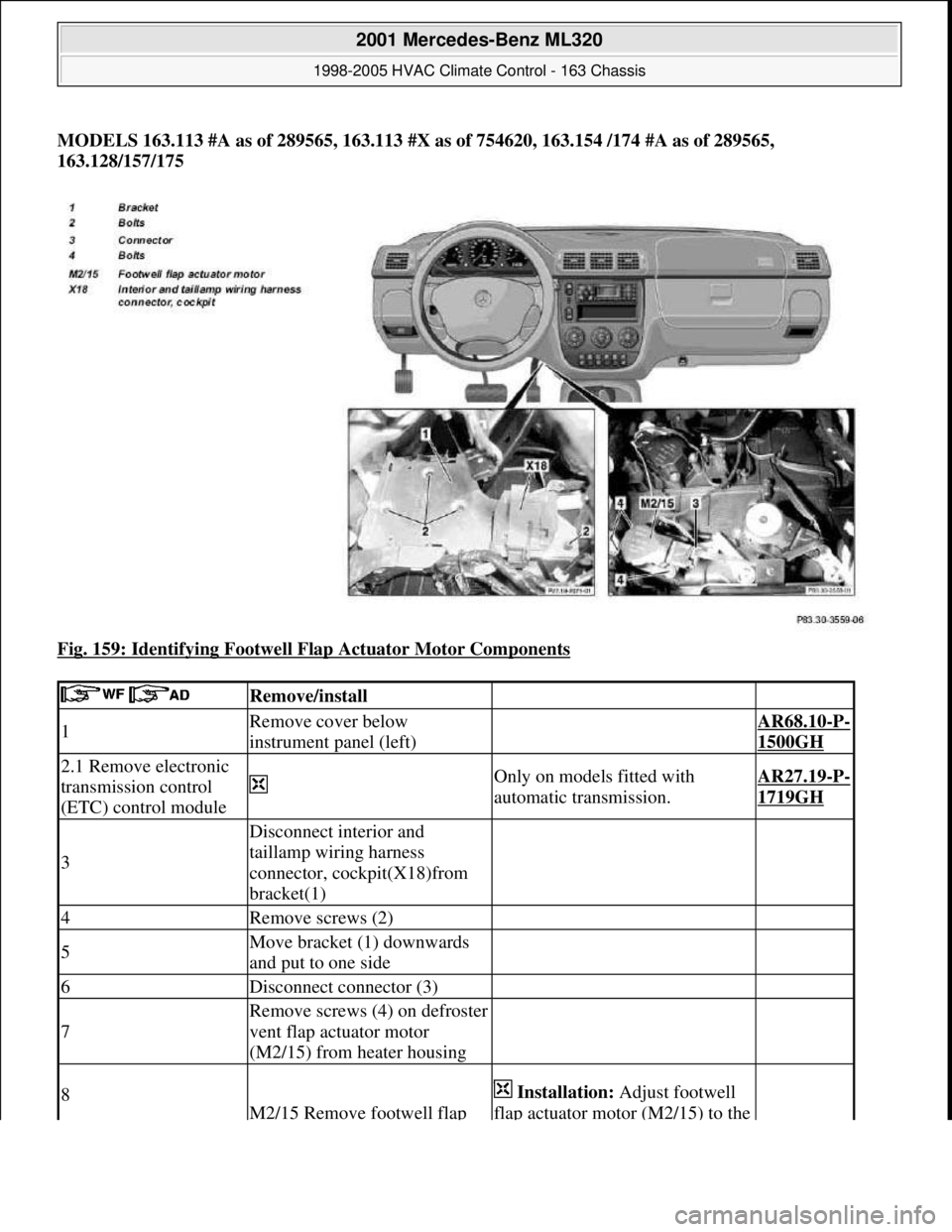

MERCEDES-BENZ ML320 1997 Complete Repair Manual MODELS 163.113 #A as of 289565, 163.113 #X as of 754620, 163.154 /174 #A as of 289565, 163.128/157/175 Fig. 159: Identifying Footwell Flap Actuator Motor Components Remove/install 1Remove cov

Page 3436 of 4133

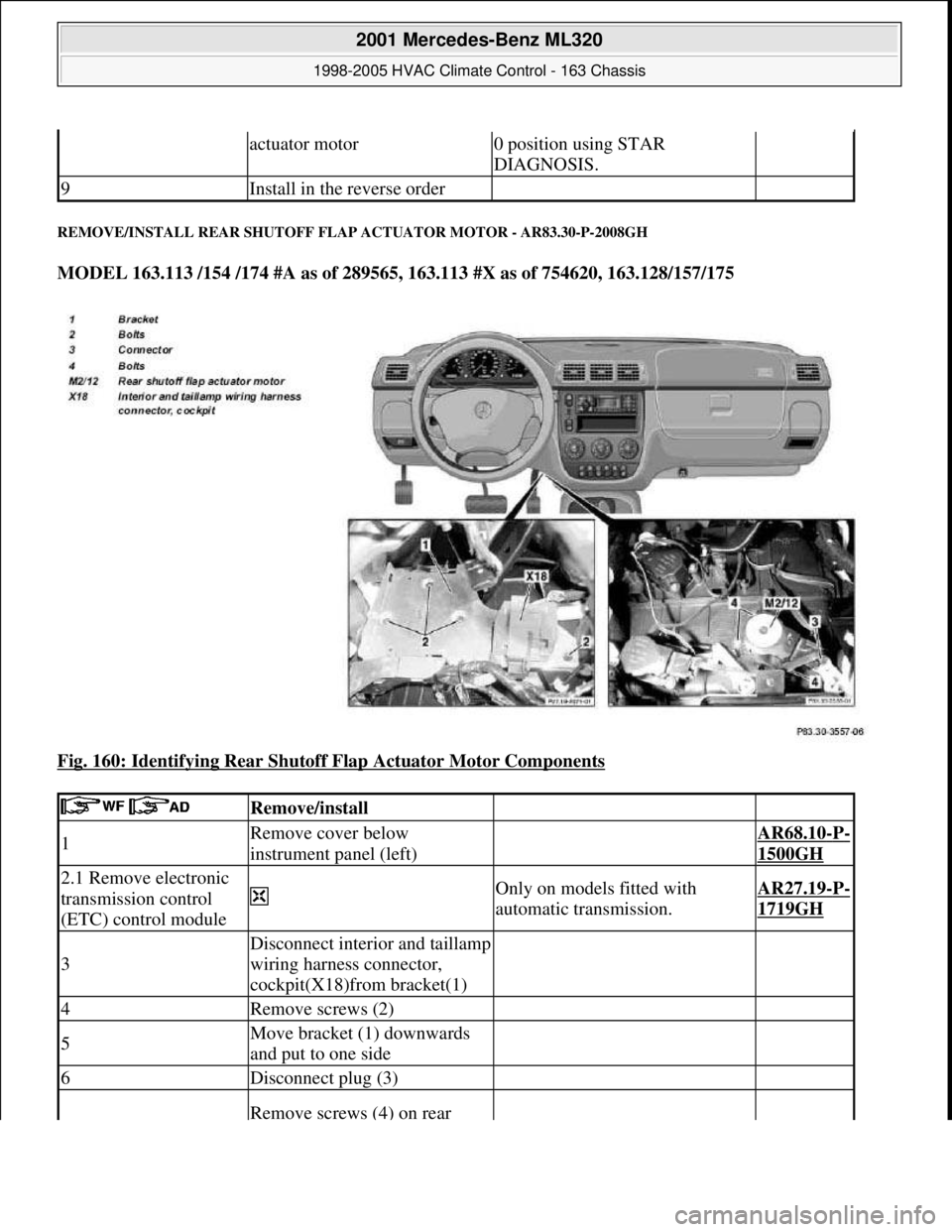

MERCEDES-BENZ ML320 1997 Complete Repair Manual REMOVE/INSTALL REAR SHUTOFF FLAP ACTUATOR MOTOR - AR83.30-P-2008GH MODEL 163.113 /154 /174 #A as of 289565, 163.113 #X as of 754620, 163.128/157/175 Fig. 160: Identifying Rear Shutoff Flap Actuator

Page 3437 of 4133

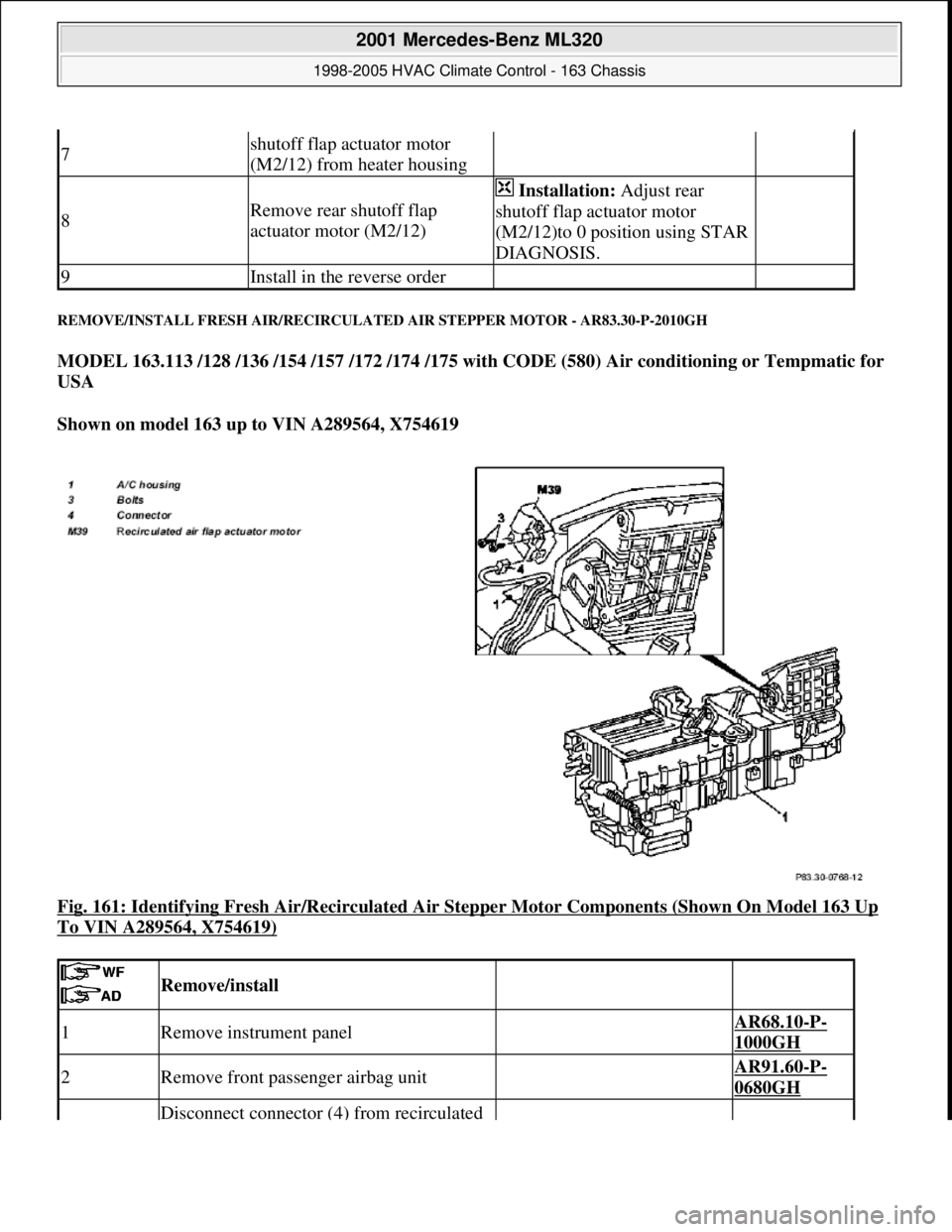

MERCEDES-BENZ ML320 1997 Complete Repair Manual REMOVE/INSTALL FRESH AIR/RECIRCULATED AIR STEPPER MOTOR - AR83.30-P-2010GH MODEL 163.113 /128 /136 /154 /157 /172 /174 /175 with CODE (580) Air conditioning or Tempmatic for USA Shown on model 163

Page 3438 of 4133

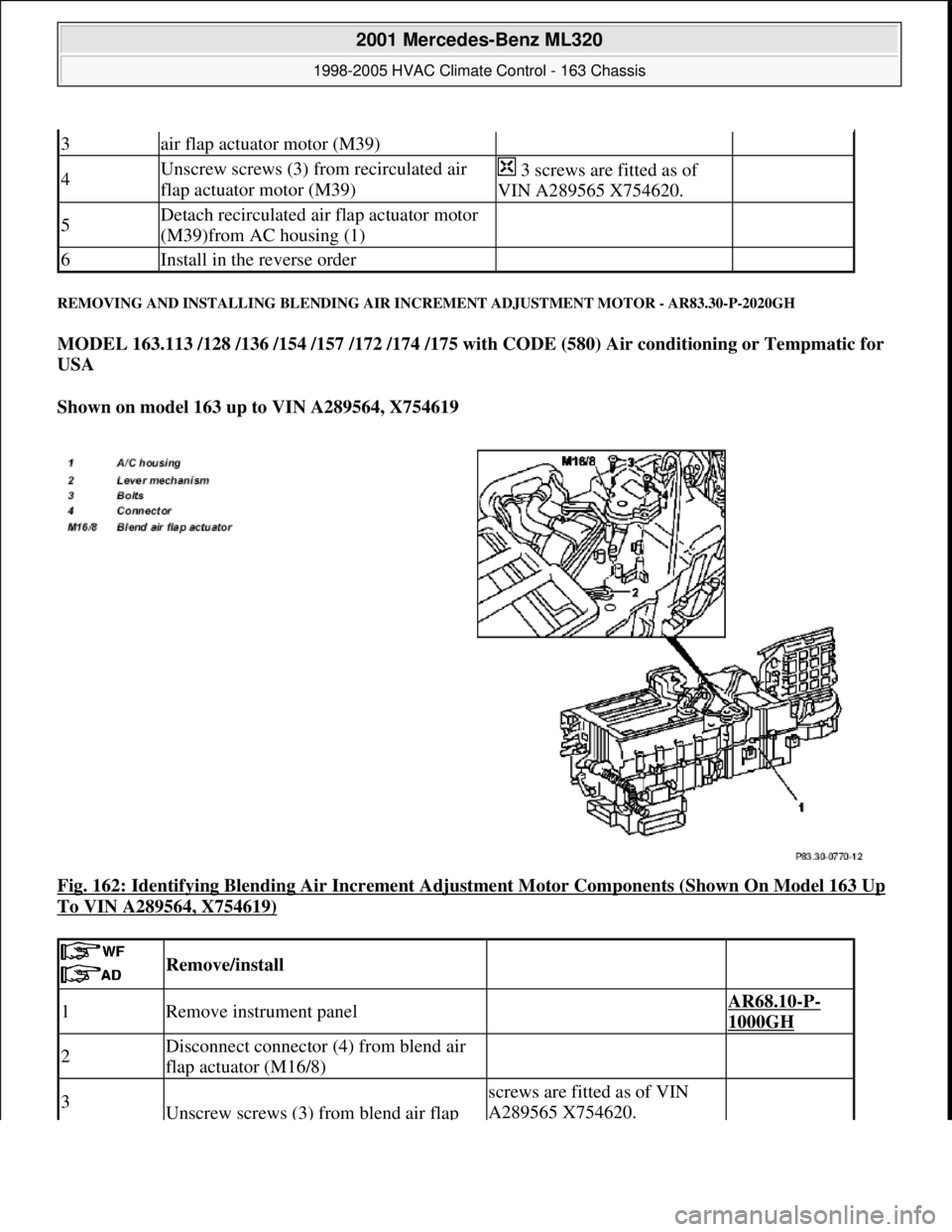

MERCEDES-BENZ ML320 1997 Complete Repair Manual REMOVING AND INSTALLING BLENDING AIR INCREMENT ADJUSTMENT MOTOR - AR83.30-P-2020GH MODEL 163.113 /128 /136 /154 /157 /172 /174 /175 with CODE (580) Air conditioning or Tempmatic for USA Shown on m

Page 3439 of 4133

MERCEDES-BENZ ML320 1997 Complete Repair Manual REMOVE AND INSTALL EVAPORATOR HOUSING - AR83.30-P-5200GH MODELS 163.113 /128 /136 /154 /157 /172 /174 /175 with CODE (580) Air conditioning or Tempmatic for USA Fig. 163: Identifying Evaporator Ho

Page 3440 of 4133

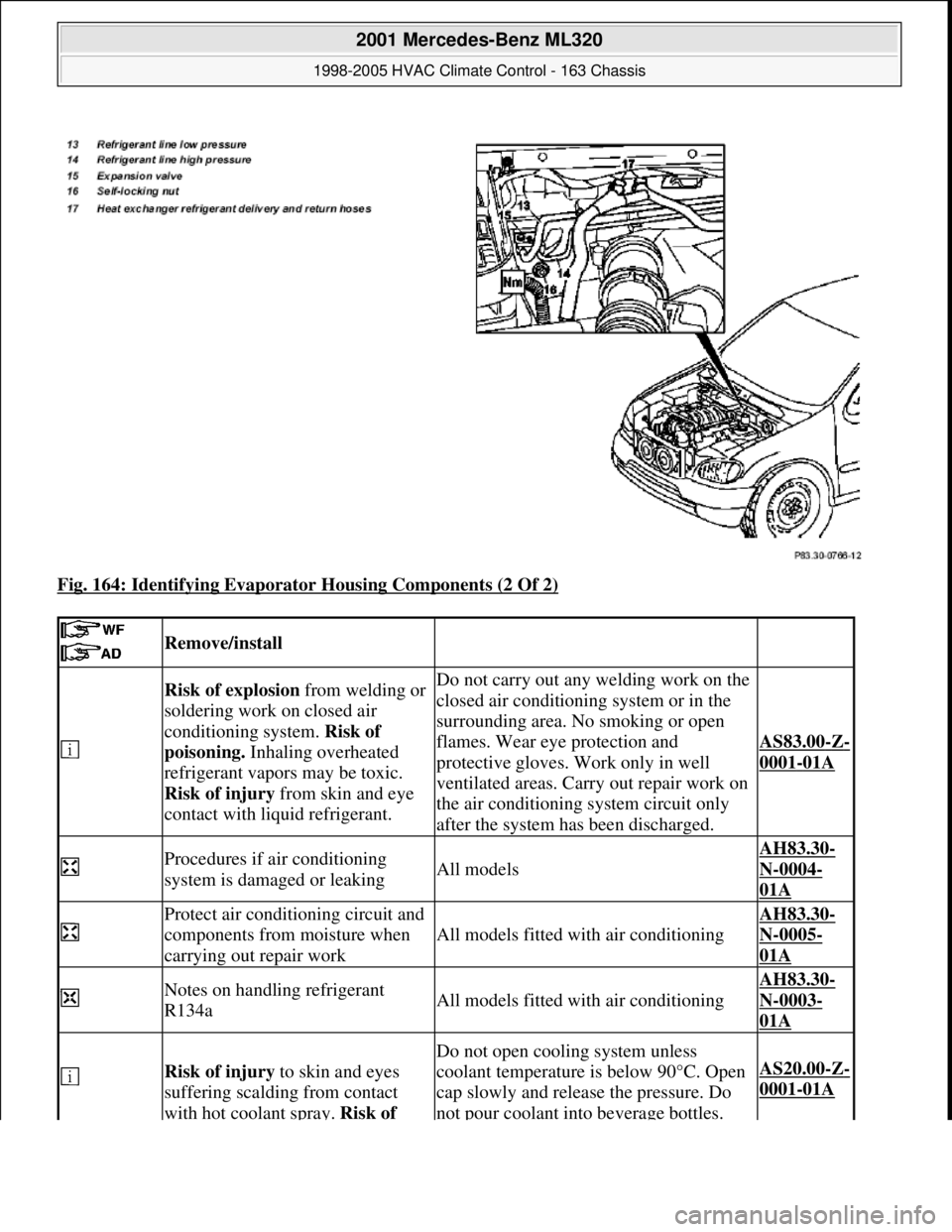

MERCEDES-BENZ ML320 1997 Complete Repair Manual Fig. 164: Identifying Evaporator Housing Components (2 Of 2) Remove/install Risk of explosion from welding or soldering work on closed air conditioning system. Risk of poisoning. Inhaling o
