Page 385 of 4133

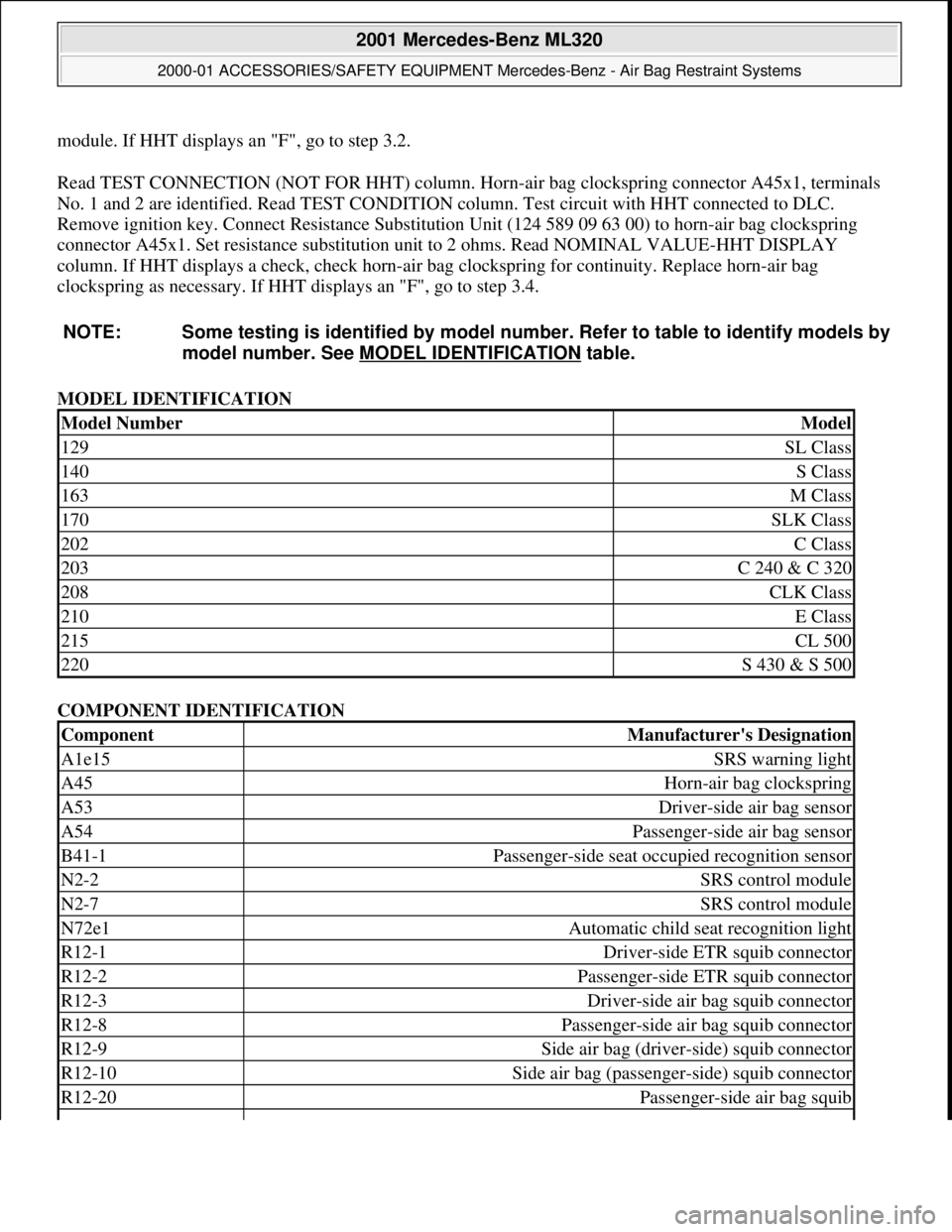

MERCEDES-BENZ ML320 1997 Complete Repair Manual module. If HHT displays an "F", go to step 3.2. Read TEST CONNECTION (NOT FOR HHT) column. Horn -air bag clockspring connector A45x1, terminals No. 1 and 2 are identified. Read TEST CONDITION colum

Page 386 of 4133

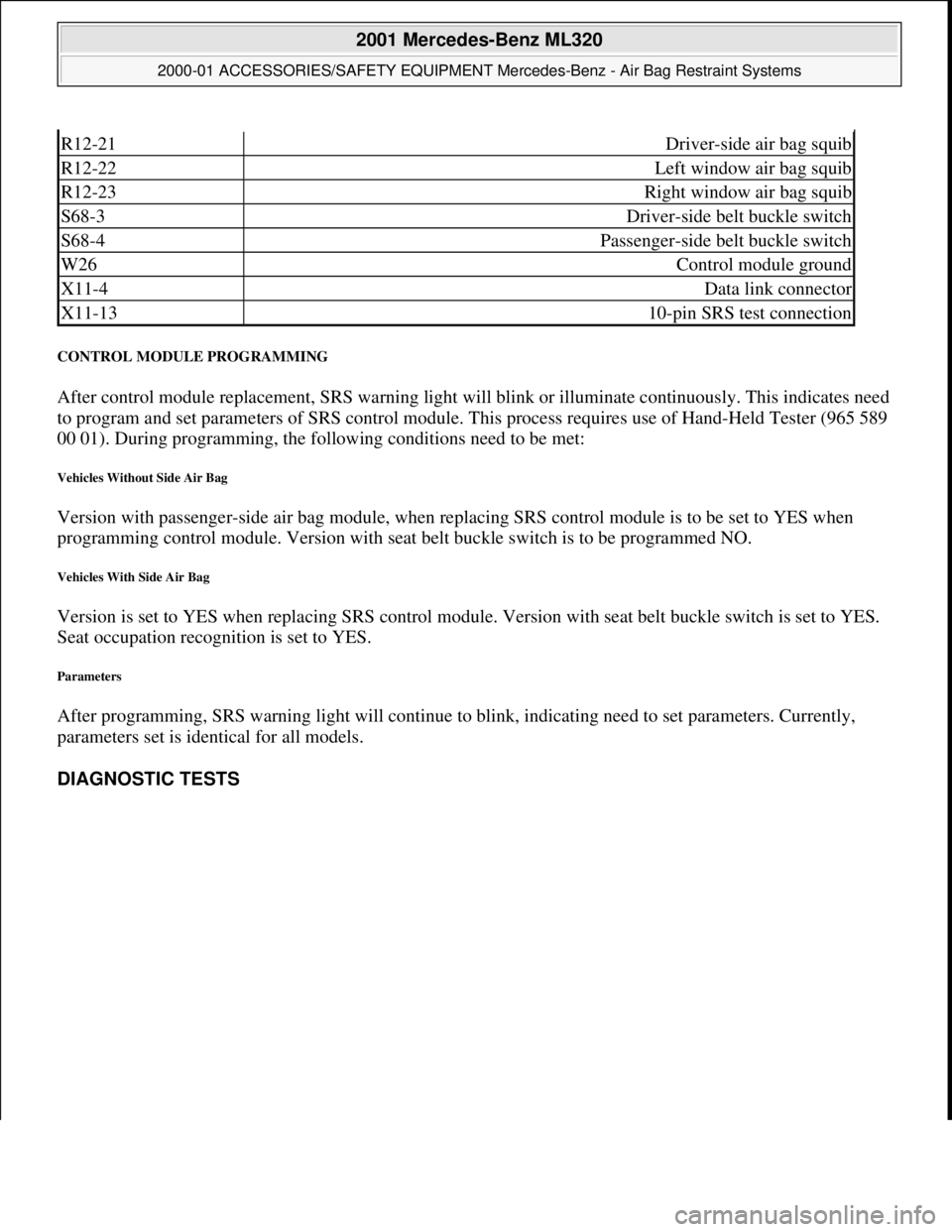

MERCEDES-BENZ ML320 1997 Complete Repair Manual CONTROL MODULE PROGRAMMING After control module replacement, SRS warning light will blink or illuminate continuously. This indicates need to program and set paramete rs of SRS control module. Thi

Page 387 of 4133

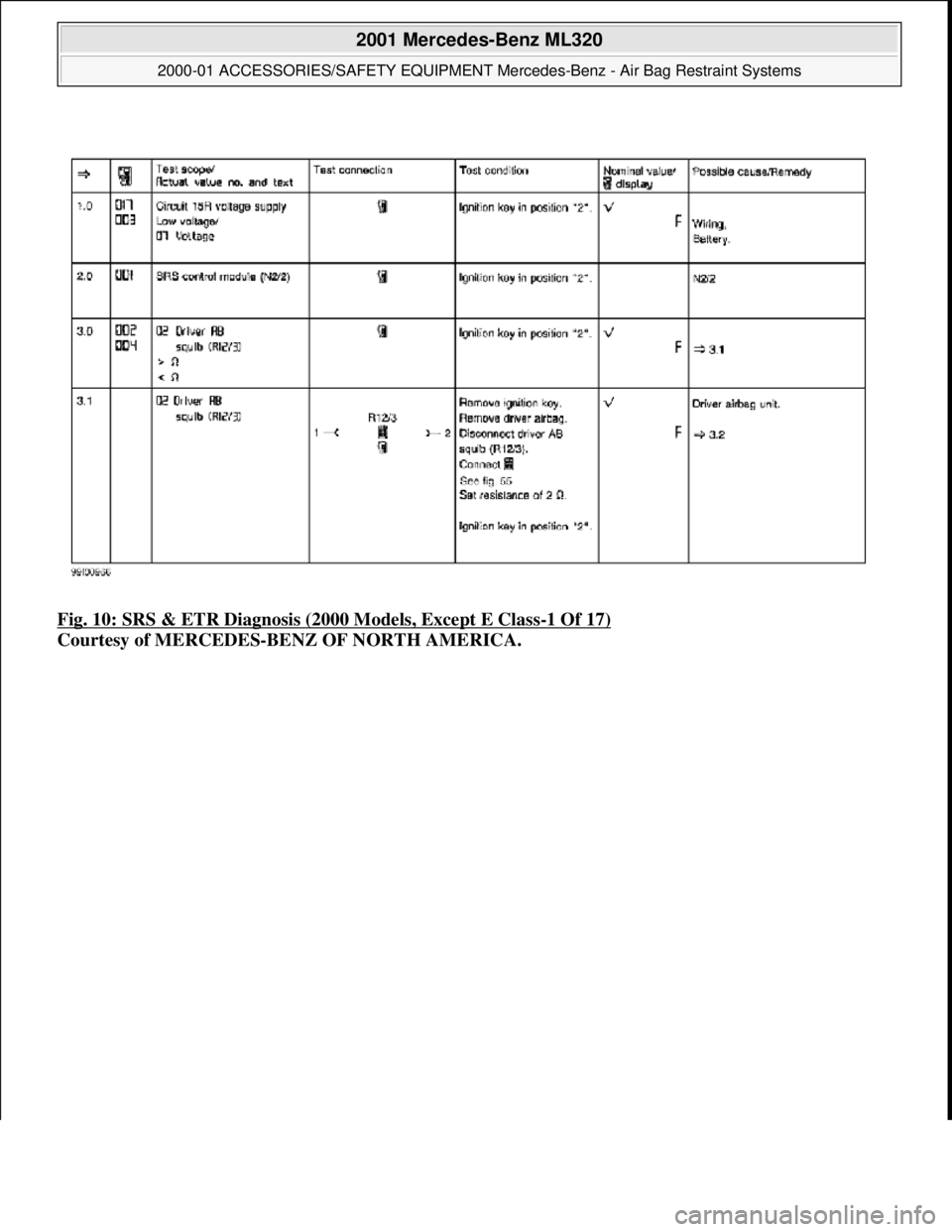

MERCEDES-BENZ ML320 1997 Complete Repair Manual Fig. 10: SRS & ETR Diagnosis (2000 Models, Except E Class-1 Of 17) Courtesy of MERCEDES-BENZ OF NORTH AMERICA. 2001 Mercedes-Benz ML320 2000-01 ACCESSORIES/SAFETY EQUIPMENT Merc edes-Benz - Air

Page 388 of 4133

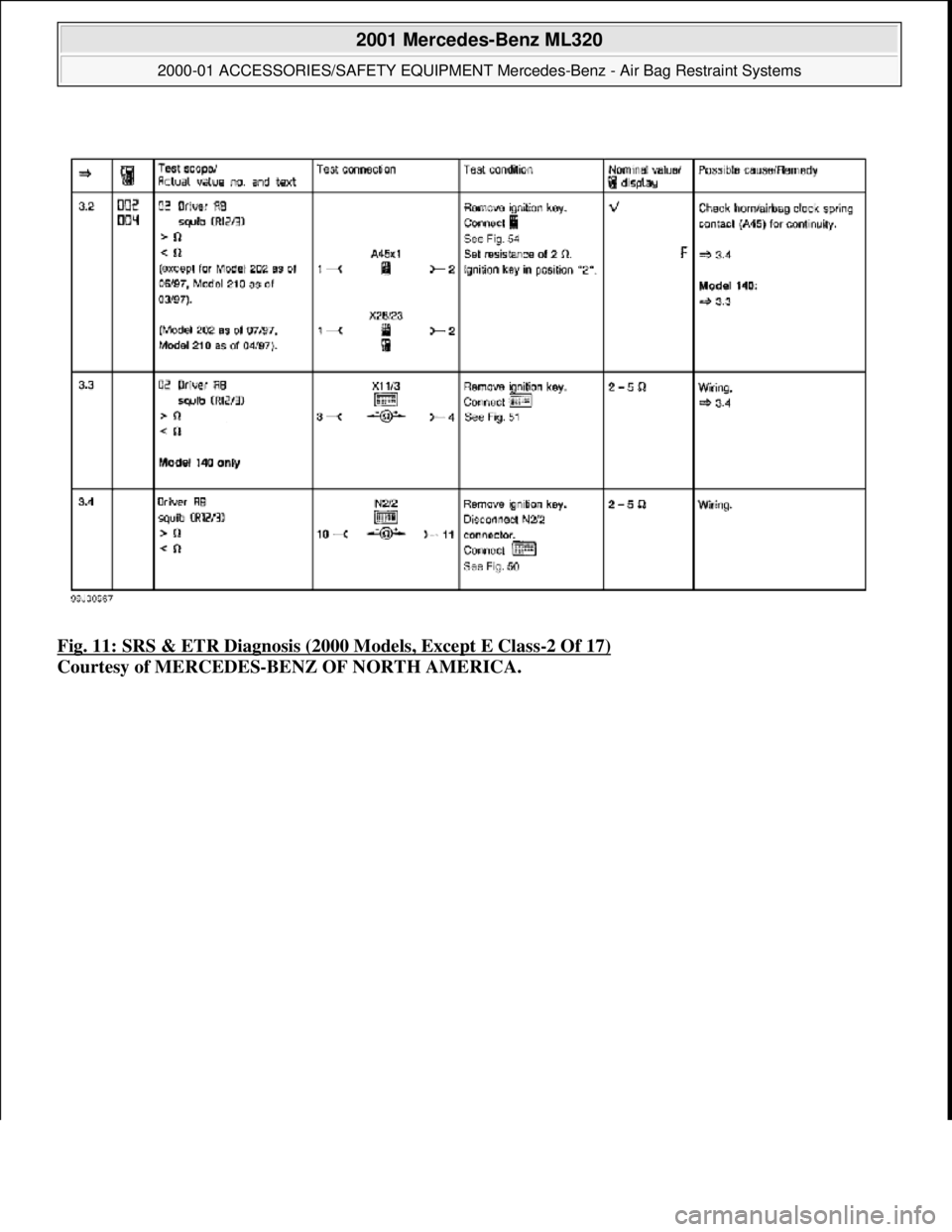

MERCEDES-BENZ ML320 1997 Complete Repair Manual Fig. 11: SRS & ETR Diagnosis (2000 Models, Except E Class-2 Of 17) Courtesy of MERCEDES-BENZ OF NORTH AMERICA. 2001 Mercedes-Benz ML320 2000-01 ACCESSORIES/SAFETY EQUIPMENT Merc edes-Benz - Air

Page 389 of 4133

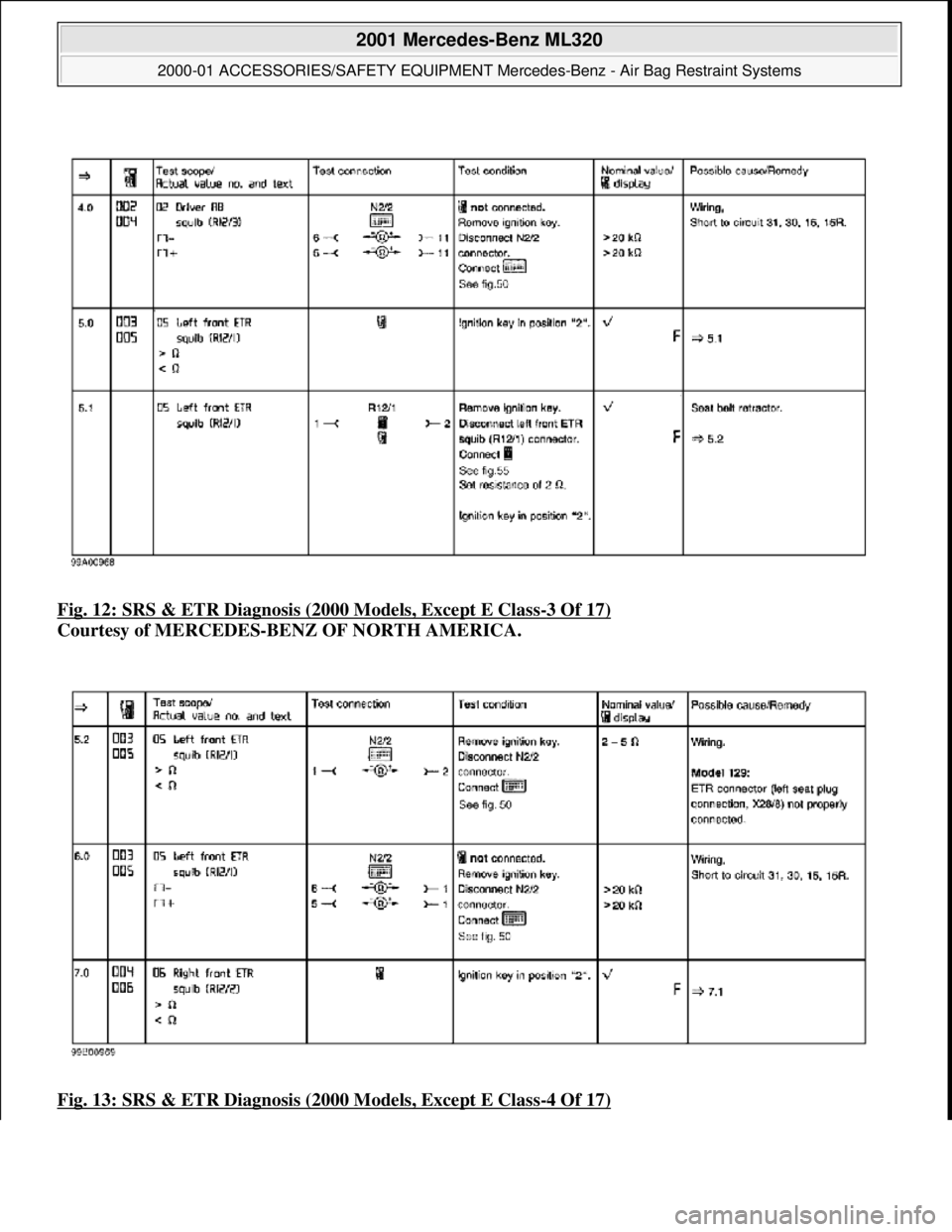

MERCEDES-BENZ ML320 1997 Complete Repair Manual Fig. 12: SRS & ETR Diagnosis (2000 Models, Except E Class-3 Of 17) Courtesy of MERCEDES-BENZ OF NORTH AMERICA. Fig. 13: SRS & ETR Diagnosis (2000 Models, Except E Class -4 Of 17) 2001 Mercedes

Page 390 of 4133

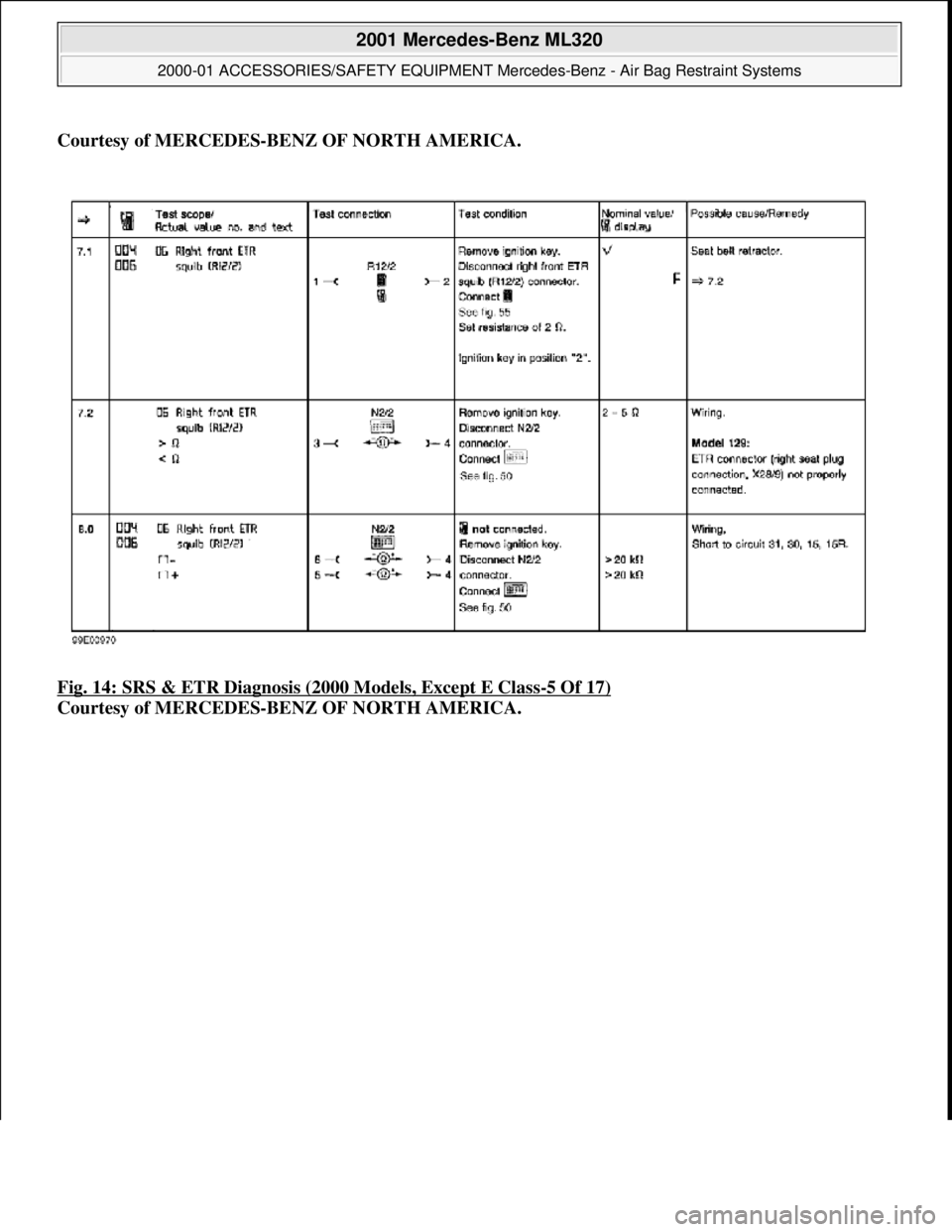

MERCEDES-BENZ ML320 1997 Complete Repair Manual Courtesy of MERCEDES-BENZ OF NORTH AMERICA. Fig. 14: SRS & ETR Diagnosis (2000 Models, Except E Class -5 Of 17) Courtesy of MERCEDES-BENZ OF NORTH AMERICA. 2001 Mercedes-Benz ML320 2000-01 ACCES

Page 391 of 4133

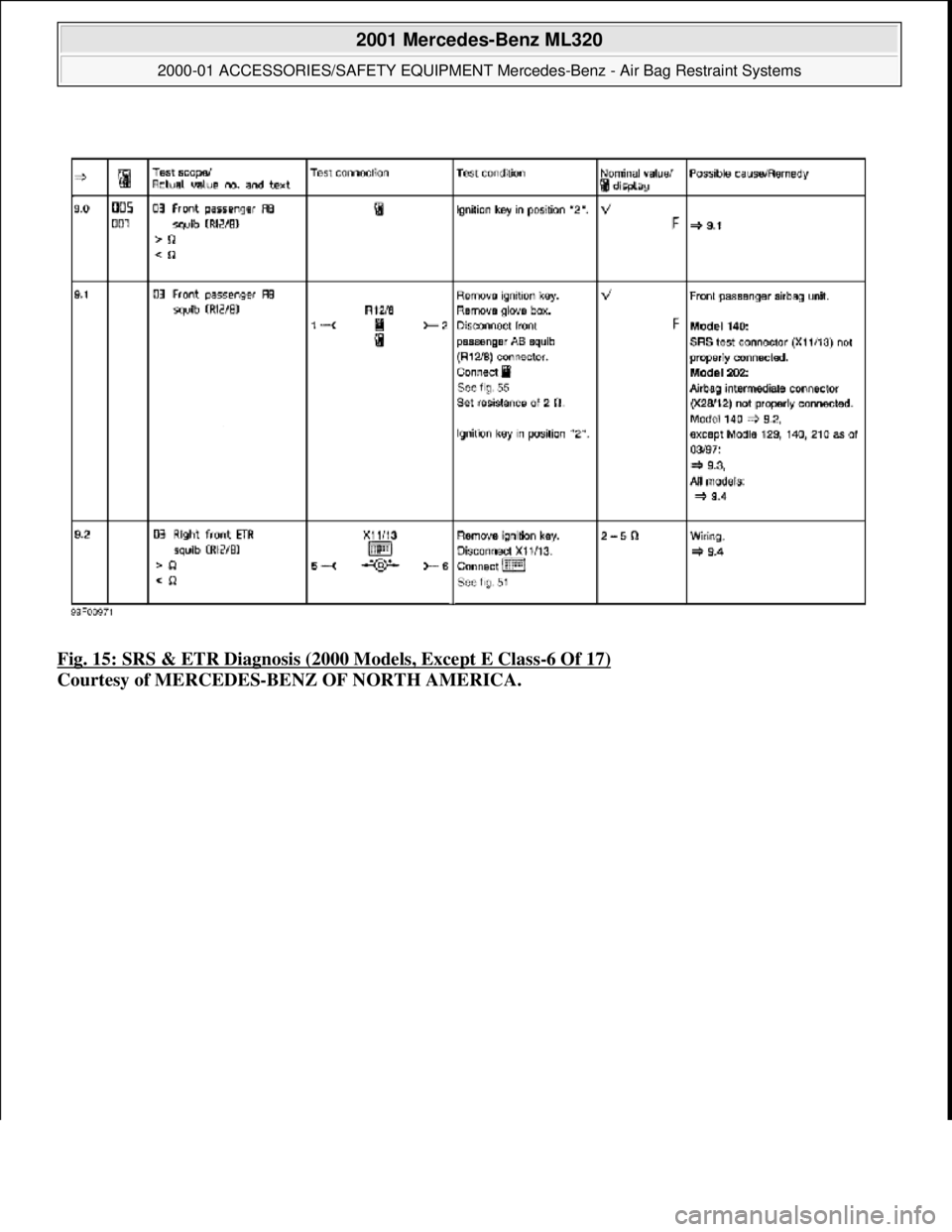

MERCEDES-BENZ ML320 1997 Complete Repair Manual Fig. 15: SRS & ETR Diagnosis (2000 Models, Except E Class-6 Of 17) Courtesy of MERCEDES-BENZ OF NORTH AMERICA. 2001 Mercedes-Benz ML320 2000-01 ACCESSORIES/SAFETY EQUIPMENT Merc edes-Benz - Air

Page 392 of 4133

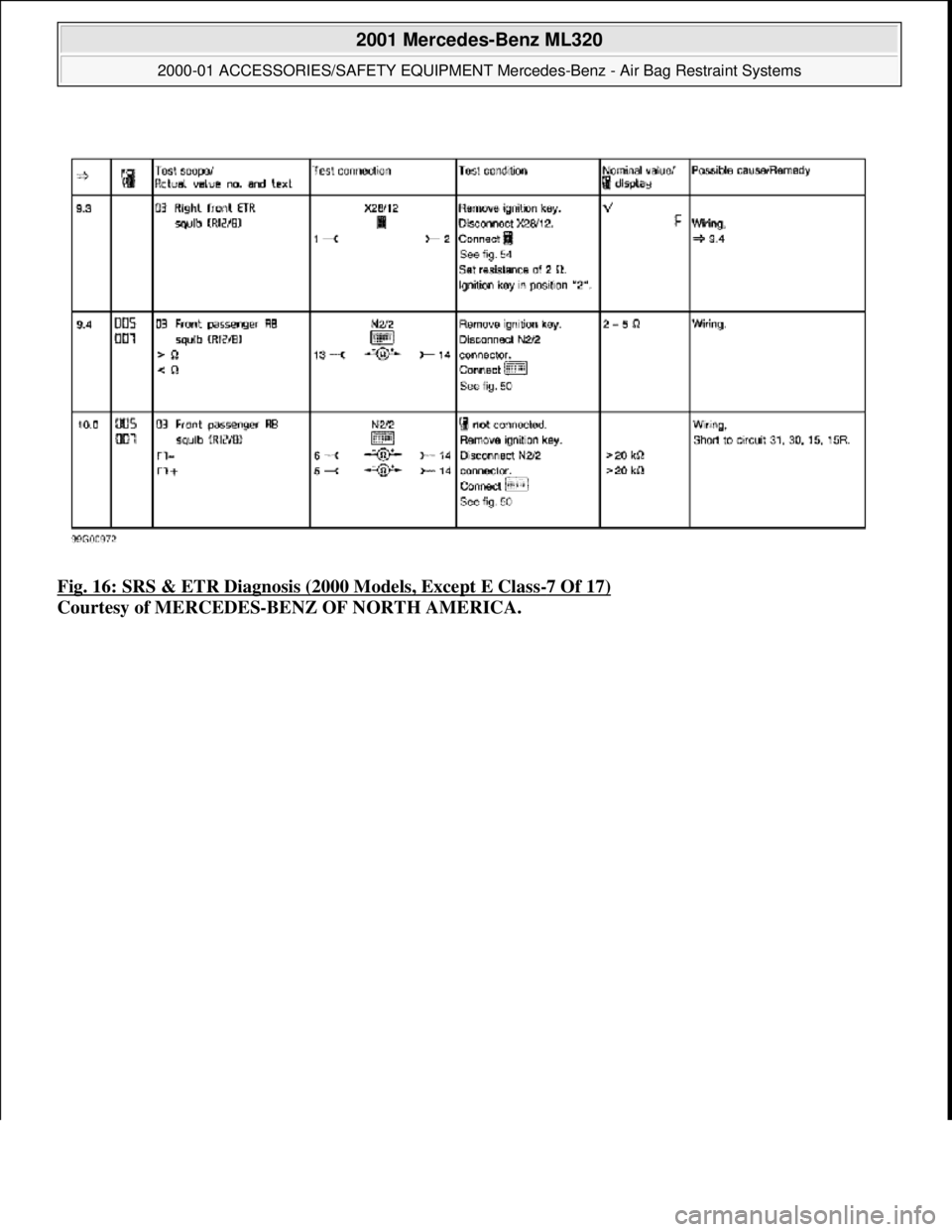

MERCEDES-BENZ ML320 1997 Complete Repair Manual Fig. 16: SRS & ETR Diagnosis (2000 Models, Except E Class-7 Of 17) Courtesy of MERCEDES-BENZ OF NORTH AMERICA. 2001 Mercedes-Benz ML320 2000-01 ACCESSORIES/SAFETY EQUIPMENT Merc edes-Benz - Air
