Page 2513 of 4133

MERCEDES-BENZ ML320 1997 Complete Repair Manual
BT27.35-P-0002-01A
Installation of a pressure feed valve

P27.35-0212-09

Production breakpoint data/Modifications/New features

Transmission/

steering gear

Transmission ident.

end no. as of
Typ

Page 2514 of 4133

MERCEDES-BENZ ML320 1997 Complete Repair Manual
AP82.10-P-8260-04A
Set or inspect fog lamps

P82.10-0205-01

1
The light-dark boundary must be as horizontal as possible at the height of the appropriate
dividing line (4), correct if necessary.

2

Page 2515 of 4133

MERCEDES-BENZ ML320 1997 Complete Repair Manual
AR82.10-P-5103GI
Remove/install fog lamp
27.2.01

MODELS
163.113 /154 #A as of 289565,

163.113 /154 #X as of 754620,

163.128 /157 /175

P82.10-2778-06

1
Lever

2
Fog lamp

3
Electrical conne

Page 2516 of 4133

MERCEDES-BENZ ML320 1997 Complete Repair Manual
AR68.30-P-4010GHRemove/install paneling in footwell
9.4.97

MODELS
163.113 /128 /136 /154 /157 /172 /174 /175

P68.30-2266-01

1
Door sill molding cover

2
Door seal

3
Driver-side paneling

4
P

Page 2517 of 4133

MERCEDES-BENZ ML320 1997 Complete Repair Manual
AR68.30-P-4470GH
Remove/install rear roof frame paneling
24.2.97

MODEL
163.113 /128 /136 /154 /157 /172 /174 /175

P68.30-0507-06

1
Belt end fitting in 3rd seat row

2
Center paneling of roof fr

Page 2518 of 4133

MERCEDES-BENZ ML320 1997 Complete Repair Manual
Assembly wedge

115 589 03 59 00

Copyright DaimlerChrysler AG 12.06.2006 CD-Ausgabe G/10/04 . This WIS print-out will not be recorde
d by Modification services.
Page 2

Page 2519 of 4133

MERCEDES-BENZ ML320 1997 Complete Repair Manual
BT27.50-P-0011-01A
Friction bearing in sun wheel of rear planet

gear set converted to anti-friction bearing
Transmission 722.6
k

TRANSMISSION
722.60# /61# /660 /662 /664 /665 /69# ## as of 15

Page 2520 of 4133

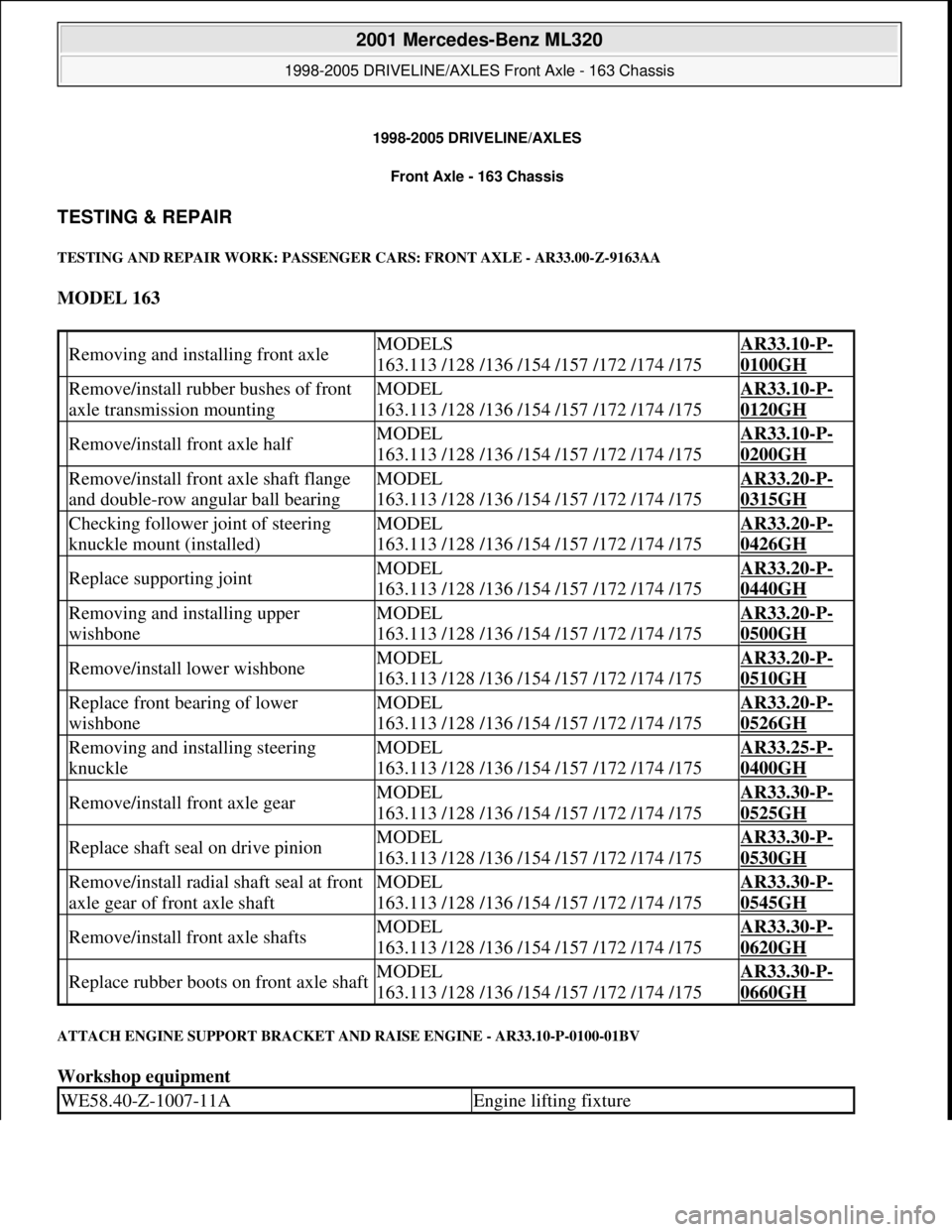

MERCEDES-BENZ ML320 1997 Complete Repair Manual 1998-2005 DRIVELINE/AXLES
Front Axle - 163 Chassis
TESTING & REPAIR
TESTING AND REPAIR WORK: PASSENGER CARS: FRONT AXLE - AR33.00-Z-9163AA
MODEL 163
ATTACH ENGINE SUPPORT BRACKET AND RAISE ENGINE

1998-2005 DRIVELINE/AXLES
Front Axle - 163 Chassis
TESTING & REPAIR
TESTING AND REPAIR WORK: PASSENGER CARS: FRONT AXLE - AR33.00-Z-9163AA
MODEL 163
ATTACH ENGINE SUPPORT BRACKET AND RAISE ENGINE - AR33.10-P-0100-01BV
Workshop equipment
Removing and installing front axleMODELS
163.113 /128 /136 /154 /157 /172 /174 /175AR33.10-P-
0100GH
Remove/install rubber bushes of front
axle transmission mountingMODEL
163.113 /128 /136 /154 /157 /172 /174 /175AR33.10-P-
0120GH
Remove/install front axle halfMODEL
163.113 /128 /136 /154 /157 /172 /174 /175AR33.10-P-
0200GH
Remove/install front axle shaft flange
and double-row angular ball bearingMODEL
163.113 /128 /136 /154 /157 /172 /174 /175AR33.20-P-
0315GH
Checking follower joint of steering
knuckle mount (installed)MODEL
163.113 /128 /136 /154 /157 /172 /174 /175AR33.20-P-
0426GH
Replace supporting jointMODEL
163.113 /128 /136 /154 /157 /172 /174 /175AR33.20-P-
0440GH
Removing and installing upper
wishboneMODEL
163.113 /128 /136 /154 /157 /172 /174 /175AR33.20-P-
0500GH
Remove/install lower wishboneMODEL
163.113 /128 /136 /154 /157 /172 /174 /175AR33.20-P-
0510GH
Replace front bearing of lower
wishboneMODEL
163.113 /128 /136 /154 /157 /172 /174 /175AR33.20-P-
0526GH
Removing and installing steering
knuckleMODEL
163.113 /128 /136 /154 /157 /172 /174 /175AR33.25-P-
0400GH
Remove/install front axle gearMODEL
163.113 /128 /136 /154 /157 /172 /174 /175AR33.30-P-
0525GH
Replace shaft seal on drive pinionMODEL
163.113 /128 /136 /154 /157 /172 /174 /175AR33.30-P-
0530GH
Remove/install radial shaft seal at front
axle gear of front axle shaftMODEL
163.113 /128 /136 /154 /157 /172 /174 /175AR33.30-P-
0545GH
Remove/install front axle shaftsMODEL
163.113 /128 /136 /154 /157 /172 /174 /175AR33.30-P-
0620GH
Replace rubber boots on front axle shaftMODEL
163.113 /128 /136 /154 /157 /172 /174 /175AR33.30-P-
0660GH
WE58.40-Z-1007-11AEngine lifting fixture

2001 Mercedes-Benz ML320
1998-2005 DRIVELINE/AXLES Front Axle - 163 Chassis

2001 Mercedes-Benz ML320
1998-2005 DRIVELINE/AXLES Front Axle - 163 Chassis
me
Saturday, October 02, 2010 3:38:21 PMPage 1 © 2006 Mitchell Repair Information Company, LLC.
me
Saturday, October 02, 2010 3:38:25 PMPage 1 © 2006 Mitchell Repair Information Company, LLC.
