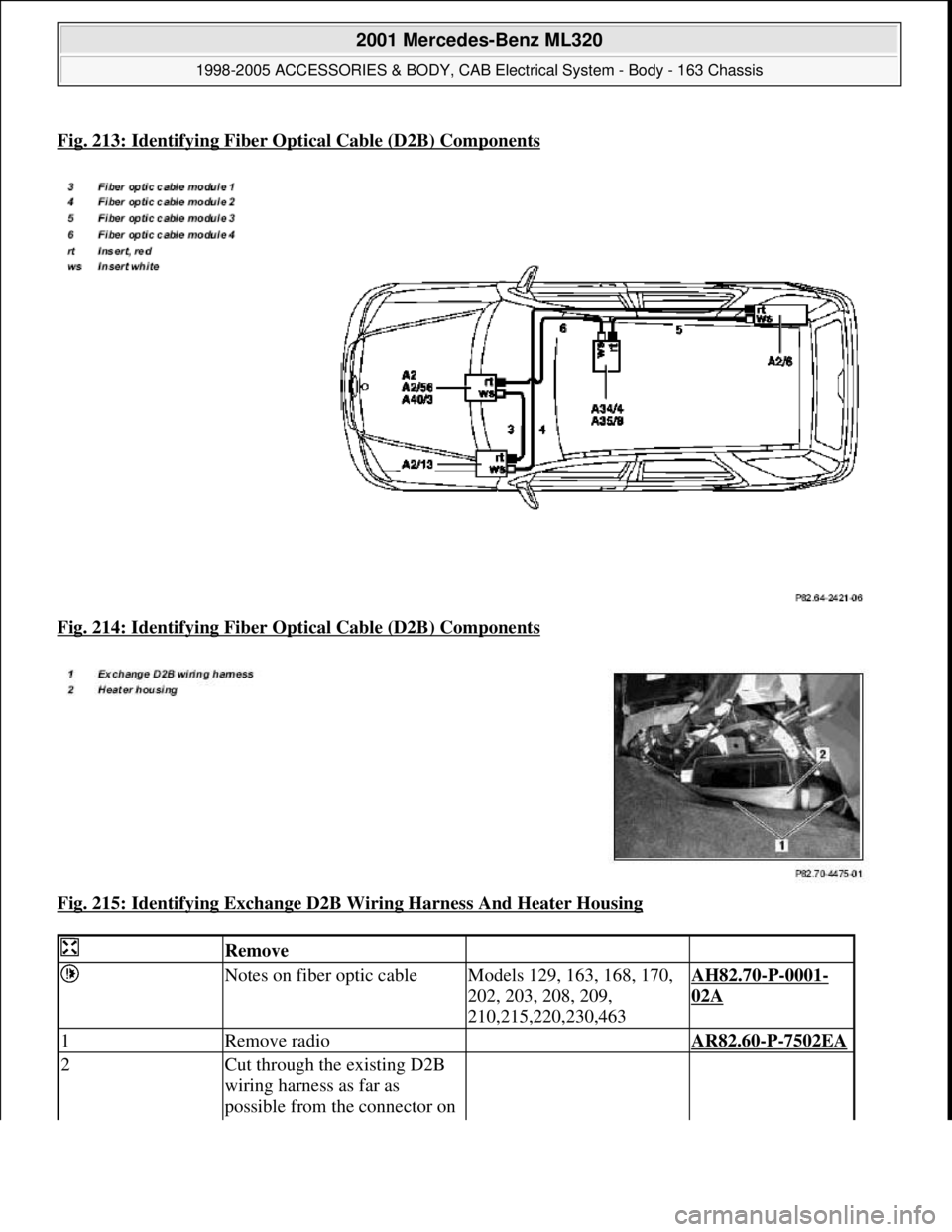

Fig. 213: Identifying Fiber Optical Cable (D2B) Components
Fig. 214: Identifying Fiber Op tical Cable (D2B) Components
Fig. 215: Identifying Exchange D2B Wi  ring Harness And Heater Housing

 Remove
 Notes on fiber optic cableModels 129, 163, 168, 170,
202, 203, 208, 209,
210,215,220,230,463AH82.70-P-0001-
02A
1Remove radio AR82.60-P-7502EA
2Cut through the existing D2B
wiring harness as far as
possible from the connector on

2001 Mercedes-Benz ML320
1998-2005 ACCESSORIES & BODY, CAB Electr  ical System - Body - 163 Chassis
me
Saturday, October 02, 2010 3:30:10 PMPage 314 © 2006 Mitchell Repair Information Company, LLC.


        Page 1810 of 4133

REMOVE/INSTALL ANTENNA SPLITTER - AR82.70-P-8953GH
MODEL 163.113 /136 /154 /157 /172 /174
the radio
3Remove cover under
instrument panel on driver's
side AR68.10-P-1500GH
4Unscrew screw on Sound
amplifier (A2/13) and
disconnect D2 B-plug
5Cut the existing D2B wiring
harness as far as possible away
from the plug for the sound
amplifier
 Install
6Plug the plug of the exchange
D2B wiring harness into the
sound amplifier (A2/13)
7Fasten sound amplifier (A2/13)
with screw
8Route exchange D2B wiring
harness (1) along existing
wiring harness to the center of
the instrument panel Danger of breaking! Do
not kink or stretch fiber optic
cable Before routing, push
the caps onto the plugs.AR82.95-P-0005-
01A
9Route exchange D2B wiring
harness (1) next to the heater
housing (2) downwards and
behind the bracket of the
control module for automatic
transmission/connector for
interior wiring harness Ensure that the D2B
wiring harness does not cross
other lines/wiring harnesses.
Fasten existing D2B wiring
harness to existing wiring
harness using tie straps.
10Route exchange D2B wiring
harness (1) upwards to the
radio installation opening Fasten D2B wiring
harness to existing wiring
harness using tie straps.
11Install cover under the
instrument panel on the driver's
side AR68.10-P-1500GH
12Plug the plug of the exchange
D2B wiring harness (1) into the
radio
13Install radio AR82.60-P-7502EA

2001 Mercedes-Benz ML320
1998-2005 ACCESSORIES & BODY, CAB Electrical System - Body - 163 Chassis
me
Saturday, October 02, 2010 3:30:10 PMPage 315 © 2006 Mitchell Repair Information Company, LLC.


        Page 1811 of 4133

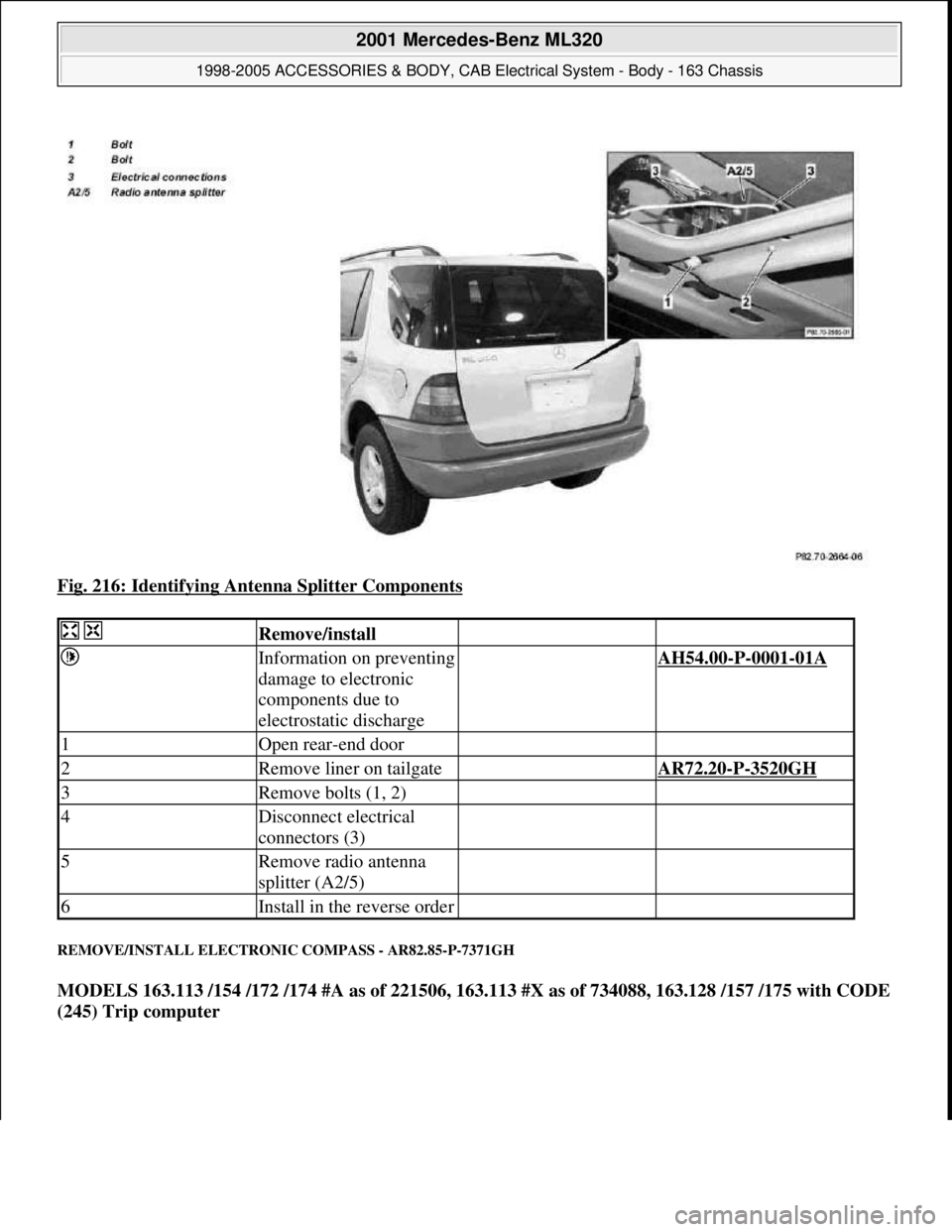

Fig. 216: Identifying Antenna Splitter Components
REMOVE/INSTALL ELECTRONIC COMPASS - AR82.85-P-7371GH
MODELS 163.113 /154 /172 /174 #A as of 221506, 163.113 #X as of 734088, 163.128 /157 /175 with CODE
(245) Trip computer
  Remove/install
 Information on preventing
damage to electronic
components due to
electrostatic discharge AH54.00-P-0001-01A
1Open rear-end door
2Remove liner on tailgate AR72.20-P-3520GH
3Remove bolts (1, 2)
4Disconnect electrical
connectors (3)
5Remove radio antenna
splitter (A2/5)
6Install in the reverse order

2001 Mercedes-Benz ML320
1998-2005 ACCESSORIES & BODY, CAB Electrical System - Body - 163 Chassis
me
Saturday, October 02, 2010 3:30:10 PMPage 316 © 2006 Mitchell Repair Information Company, LLC.


        Page 1812 of 4133

Fig. 217: Identifying Electronic Compass
COVER FIBER OPTIC CABLE - AR82.95-P-0005-01A
 Do not remove protective covers too early from the fiber optic cable coupling (3) or the device connection
(4) because contaminated or scratched surfaces may absorb the light. Fiber optic cables must not be kinked,
routed over sharp edges or bent in radii of less than 25 mm, otherwise the fiber optic cable core will be
yellowed and broken. Yellowed or broken fiber optic cables weaken the light.
 The work procedure is shown on components of the digital data bus (D2B).
1. Carefully detach the fiber optic cable coupling (3) from the device connection (4) and cover it with a
protective cap (1), stop plug (2) or a clean rag.
  Remove/Install
1Remove door sill molding
in load compartment AR68.30-P-4100GI
2Remove electronic
compass (B26)
3Install in the reverse order
4.1Calibrate compass and
perform zone adjustment Only when the
compass is replaced.
 Service Information:
Compass in trip computer SI54.50-P-0001A

2001 Mercedes-Benz ML320
1998-2005 ACCESSORIES & BODY, CAB Electrical System - Body - 163 Chassis
me
Saturday, October 02, 2010 3:30:10 PMPage 317 © 2006 Mitchell Repair Information Company, LLC.


        Page 1813 of 4133

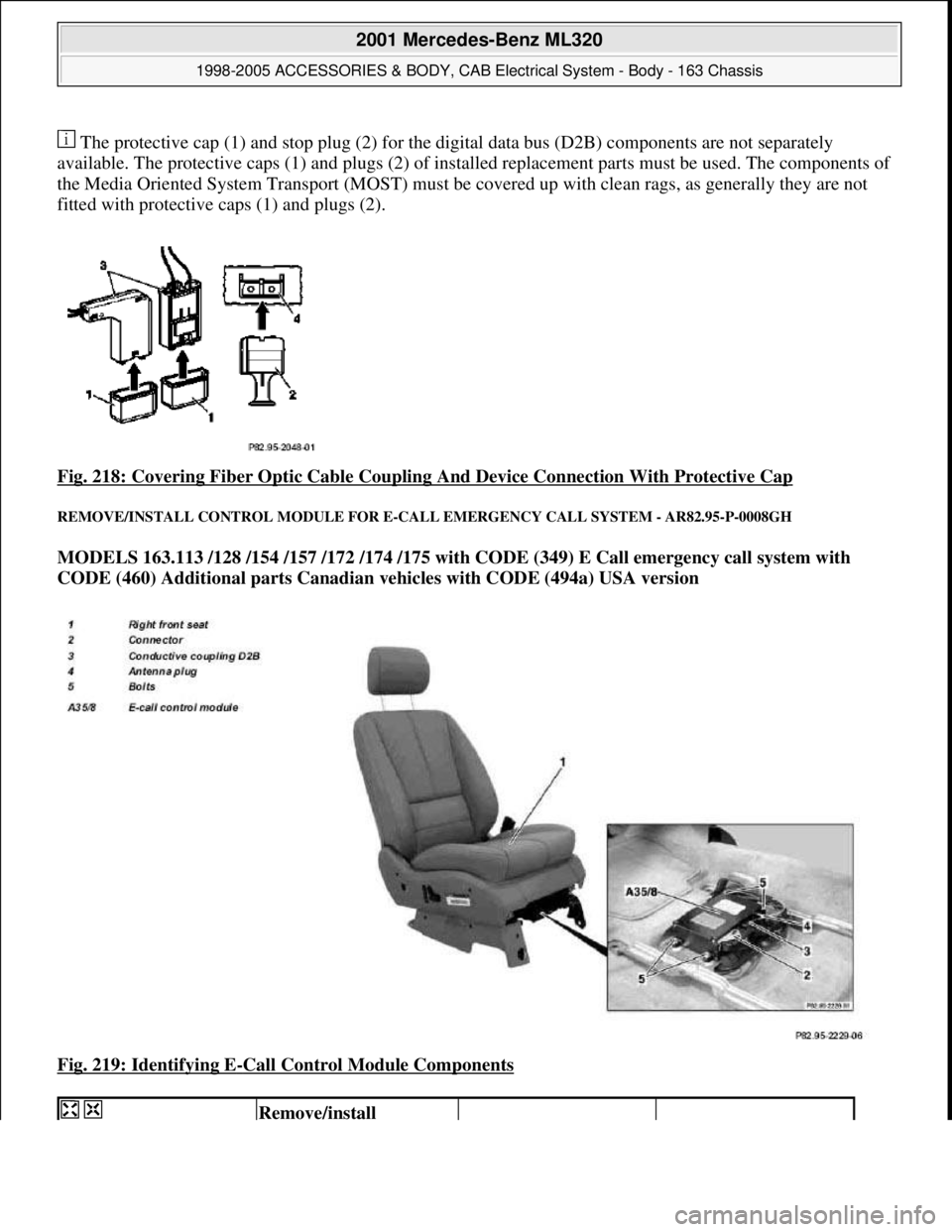

 The protective cap (1) and stop pl ug (2) for the digital data bus (D2B) components are not separately
available. The protective caps (1) a  nd plugs (2) of installed replacement pa rts must be used. The components of
the Media Oriented System   Transport (MOST) must be covered up with  clean rags, as generally they are not
fitted with protective caps (1) and plugs (2).
Fig. 218: Covering Fiber Optic Cable Coupling   And Device Connection With Protective Cap

REMOVE/INSTALL CONTROL MODULE FOR E-CALL EMERGENCY CALL SYSTEM - AR82.95-P-0008GH
MODELS 163.113 /128 /154 /157 /172 /174  /175 with CODE (349) E Call emergency call system with
CODE (460) Additional parts Canadian   vehicles with CODE (494a) USA version
Fig. 219: Identifying E
-Call Control Module Components
  Remove/install

2001 Mercedes-Benz ML320
1998-2005 ACCESSORIES & BODY, CAB Electr  ical System - Body - 163 Chassis
me
Saturday, October 02, 2010 3:30:10 PMPage 318 © 2006 Mitchell Repair Information Company, LLC.


        Page 1814 of 4133
![MERCEDES-BENZ ML320 1997  Complete Repair Manual  Front seats
REPLACE FIBER OPTICAL CABLE (D2B) BETWEEN THE RADIO AND E-CALL CONTROL MODULE/CTEL [TEL]
INTERFACE (AFTER TESTING) - AR82.95-P-0015GH
MODEL 163.136 #A as of 051500, 163.136 #X as of 70 MERCEDES-BENZ ML320 1997  Complete Repair Manual  Front seats
REPLACE FIBER OPTICAL CABLE (D2B) BETWEEN THE RADIO AND E-CALL CONTROL MODULE/CTEL [TEL]
INTERFACE (AFTER TESTING) - AR82.95-P-0015GH
MODEL 163.136 #A as of 051500, 163.136 #X as of 70](/manual-img/4/57305/w960_57305-1813.png)
 Front seats
REPLACE FIBER OPTICAL CABLE (D2B) BETWEEN THE RADIO AND E-CALL CONTROL MODULE/CTEL [TEL]
INTERFACE (AFTER TESTING) - AR82.95-P-0015GH
MODEL 163.136 #A as of 051500, 163.136 #X as of 708319, 163.154 #A as of 051500, 163.154 #X as of
708319, 163.172 #A as of 051500, 163.172 #X as of 708319, 163.113/128/157/174/175 with CODE (852)
CTEL preinstallation assembly at dome with CODE (854) MB portable cellular telephone
MODEL 163.154 /172 /174 #A as of 221506, 163.157/175 with CODE (349) E Call emergency call system
with CODE (494a) USA version

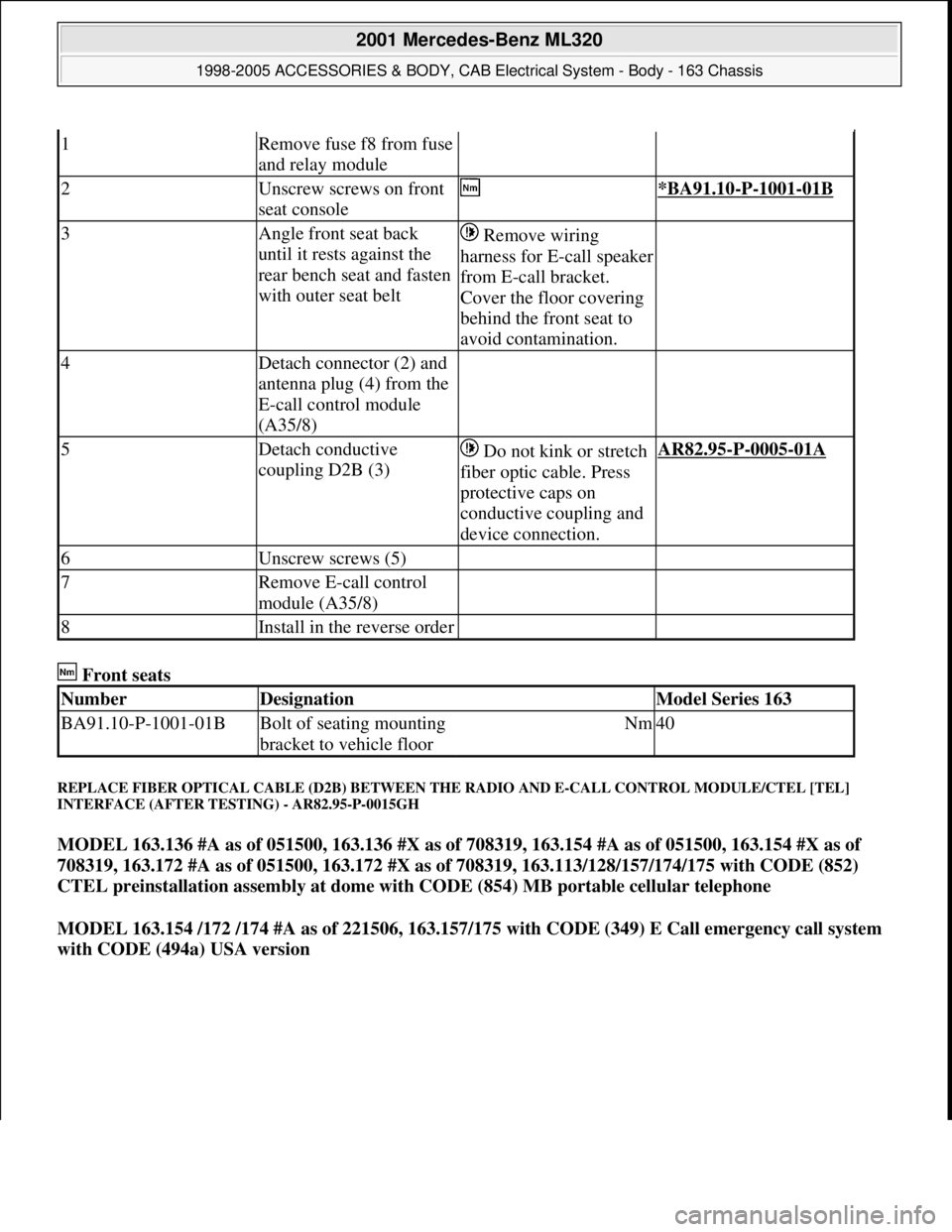

1Remove fuse f8 from fuse
and relay module
2Unscrew screws on front
seat console *BA91.10-P-1001-01B
3Angle front seat back
until it rests against the
rear bench seat and fasten
with outer seat belt Remove wiring
harness for E-call speaker
from E-call bracket.
Cover the floor covering
behind the front seat to
avoid contamination.
4Detach connector (2) and
antenna plug (4) from the
E-call control module
(A35/8)
5Detach conductive
coupling D2B (3) Do not kink or stretch
fiber optic cable. Press
protective caps on
conductive coupling and
device connection.AR82.95-P-0005-01A
6Unscrew screws (5)
7Remove E-call control
module (A35/8)
8Install in the reverse order
NumberDesignationModel Series 163
BA91.10-P-1001-01BBolt of seating mounting
bracket to vehicle floorNm40

2001 Mercedes-Benz ML320
1998-2005 ACCESSORIES & BODY, CAB Electrical System - Body - 163 Chassis
me
Saturday, October 02, 2010 3:30:10 PMPage 319 © 2006 Mitchell Repair Information Company, LLC.


        Page 1815 of 4133

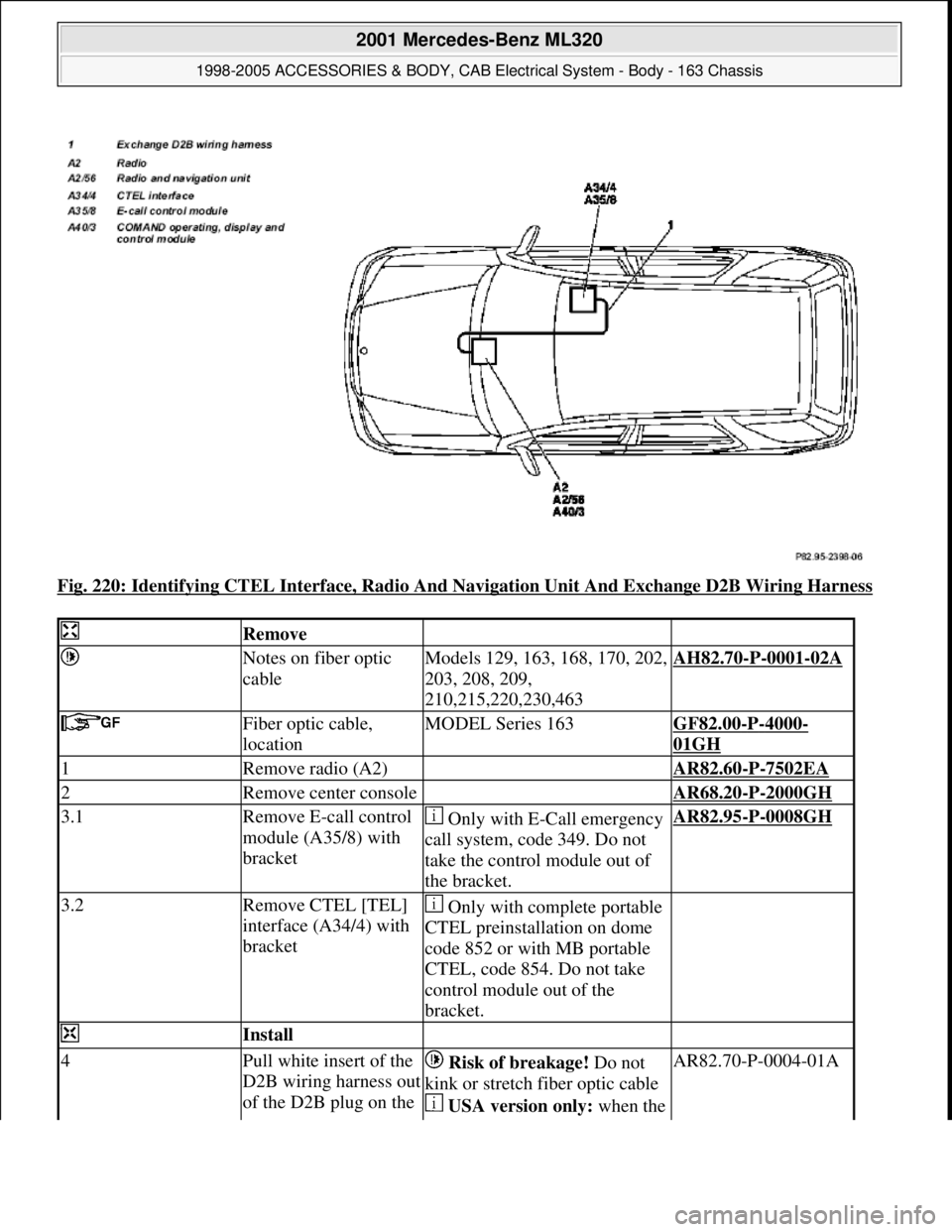

Fig. 220: Identifying CTEL Interface, Radio And Navigation Unit And Exchange D2B Wiring Harness
 Remove
 Notes on fiber optic
cableModels 129, 163, 168, 170, 202,
203, 208, 209,
210,215,220,230,463AH82.70-P-0001-02A
 Fiber optic cable,
locationMODEL Series 163GF82.00-P-4000-
01GH
1Remove radio (A2) AR82.60-P-7502EA
2Remove center console AR68.20-P-2000GH
3.1Remove E-call control
module (A35/8) with
bracket Only with E-Call emergency
call system, code 349. Do not
take the control module out of
the bracket.AR82.95-P-0008GH
3.2Remove CTEL [TEL]
interface (A34/4) with
bracket Only with complete portable
CTEL preinstallation on dome
code 852 or with MB portable
CTEL, code 854. Do not take
control module out of the
bracket.
 Install
4Pull white insert of the
D2B wiring harness out
of the D2B plug on the  Risk of breakage! Do not
kink or stretch fiber optic cable
 USA version only: when the AR82.70-P-0004-01A

2001 Mercedes-Benz ML320
1998-2005 ACCESSORIES & BODY, CAB Electrical System - Body - 163 Chassis
me
Saturday, October 02, 2010 3:30:10 PMPage 320 © 2006 Mitchell Repair Information Company, LLC.


        Page 1816 of 4133

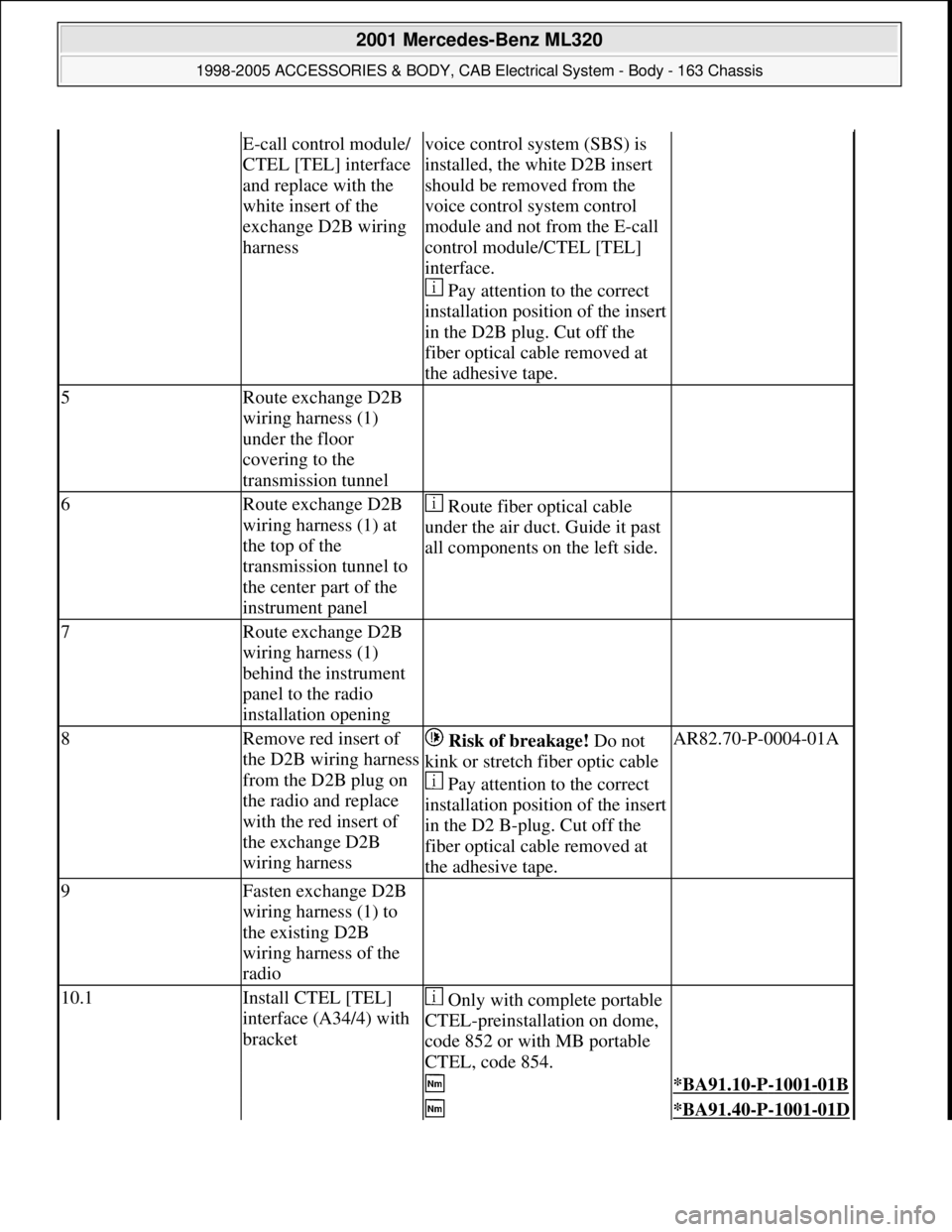

![MERCEDES-BENZ ML320 1997  Complete Repair Manual E-call control module/
