MERCEDES-BENZ ML320 1997 Complete Repair Manual Fig. 463: Pulling Coupling Housing From Retaining Cap - Shown On 12-Pin MQS Coupling Unpin female contacts from coupling (MQS) 1. Mount blade holder with clampi ng pliers and MQS blade fro

Page 2954 of 4133

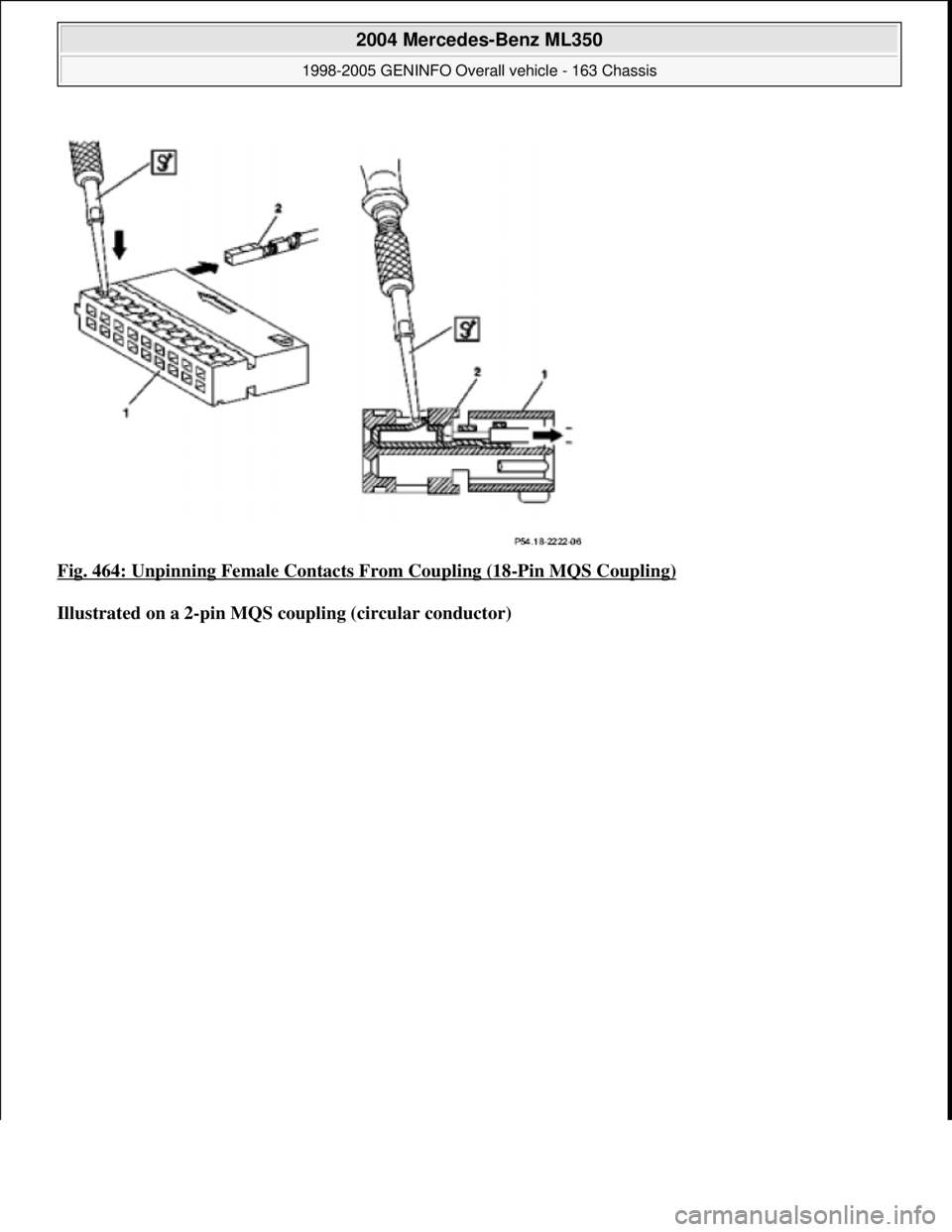

MERCEDES-BENZ ML320 1997 Complete Repair Manual Fig. 464: Unpinning Female Contacts From Coupling (18-Pin MQS Coupling) Illustrated on a 2-pin MQS coupling (circular conductor) 2004 Mercedes-Benz ML350 1998-2005 GENINFO Overall vehicle - 163 Ch

Page 2955 of 4133

MERCEDES-BENZ ML320 1997 Complete Repair Manual Fig. 465: Unpinning Female Contacts From Coupling (2-pin MQS Coupling) Unpin female contacts from couplin g with 2nd contact retainer (MQS) 1. Mount blade holder with clamping pliers and MQ

Page 2956 of 4133

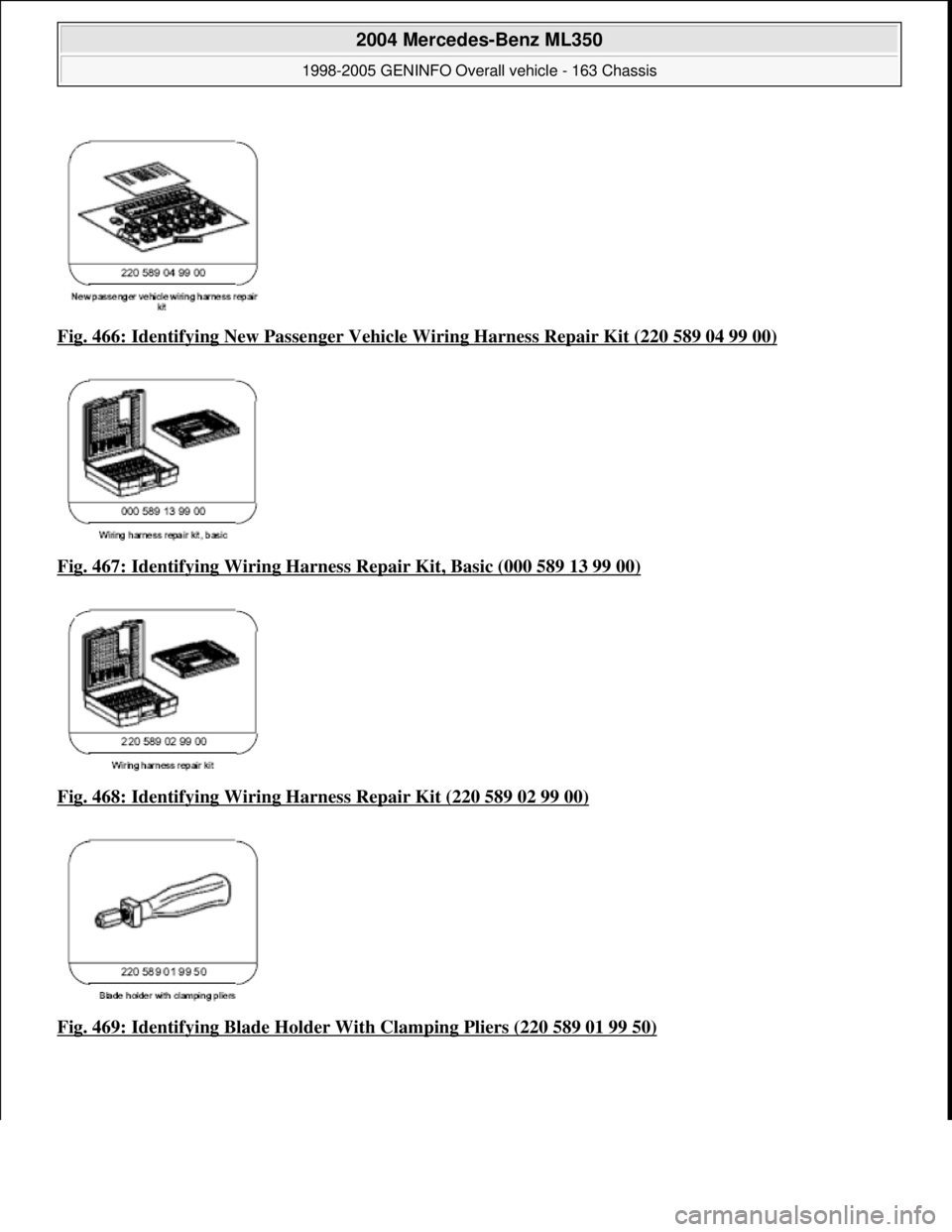

MERCEDES-BENZ ML320 1997 Complete Repair Manual Fig. 466: Identifying New Passe nger Vehicle Wiring Harness Repair Kit (220 589 04 99 00) Fig. 467: Identifying Wiring Harness Repair Kit, Basic (000 589 13 99 00) Fig. 468: Identifying Wiring

Page 2957 of 4133

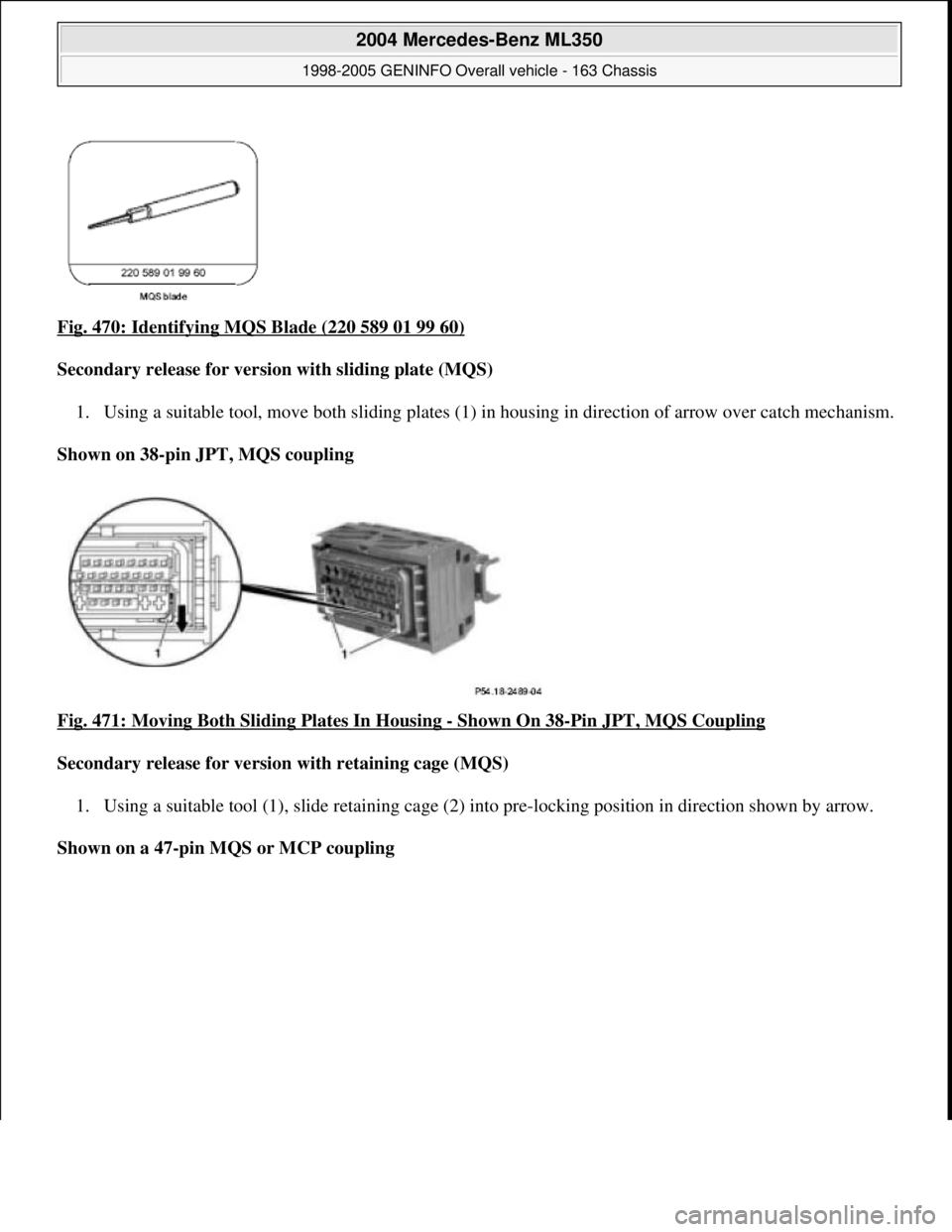

MERCEDES-BENZ ML320 1997 Complete Repair Manual Fig. 470: Identifying MQS Blade (220 589 01 99 60) Secondary release for versio n with sliding plate (MQS) 1. Using a suitable tool, move both sliding plates (1) in housing in direction of arr

Page 2958 of 4133

MERCEDES-BENZ ML320 1997 Complete Repair Manual Fig. 472: Sliding Retaining Cage - Shown On A 47-Pin MQS Or MCP Coupling Unpin female contacts from coupling (MQS) 1. Insert blade holder with clampi ng pliers and MQS blade from front si

Page 2959 of 4133

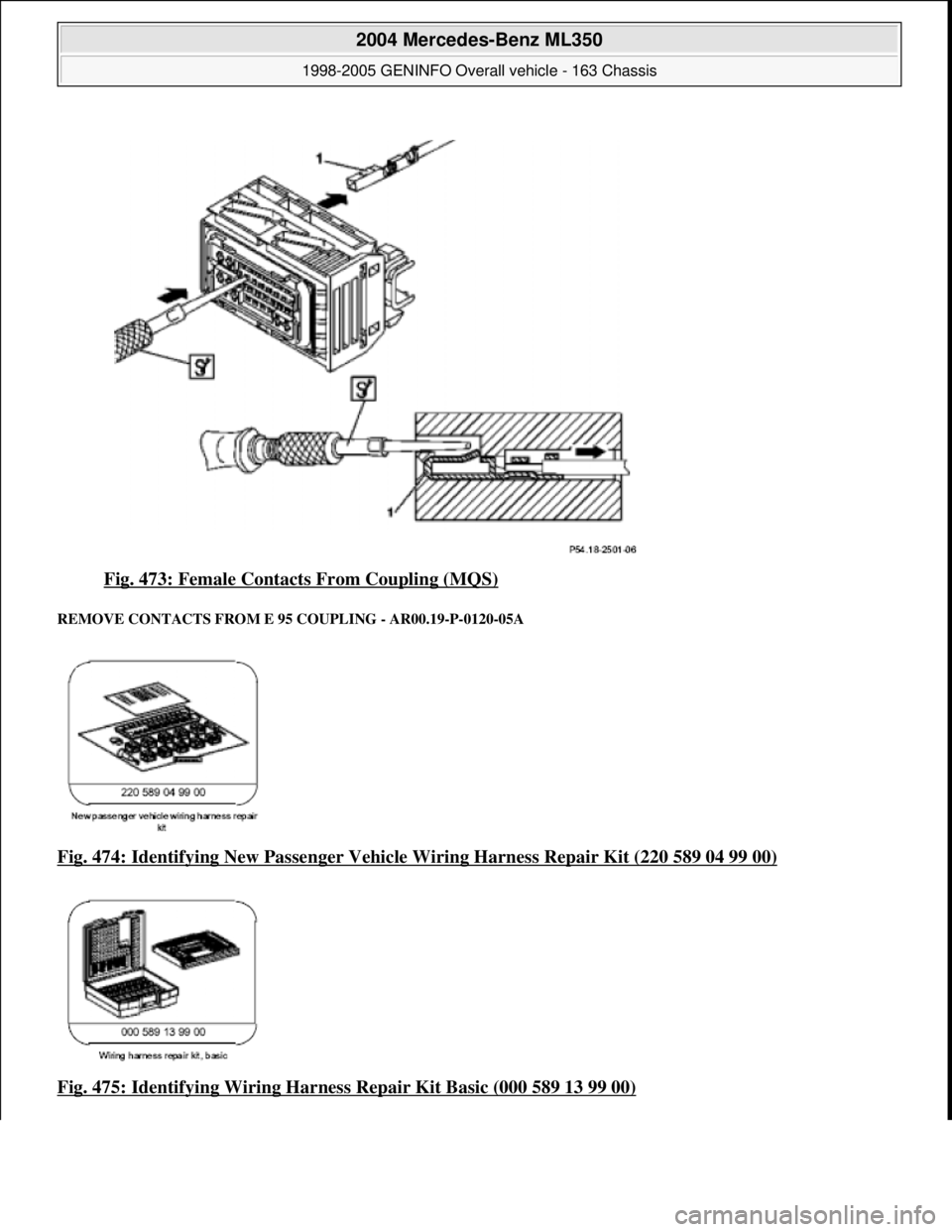

MERCEDES-BENZ ML320 1997 Complete Repair Manual Fig. 473: Female Contacts From Coupling (MQS) REMOVE CONTACTS FROM E 95 COUPLING - AR00.19-P-0120-05A Fig. 474: Identifying New Passenger Vehicle Wiring Harness Repair Kit (220 589 04 99 00) Fig.

Page 2960 of 4133

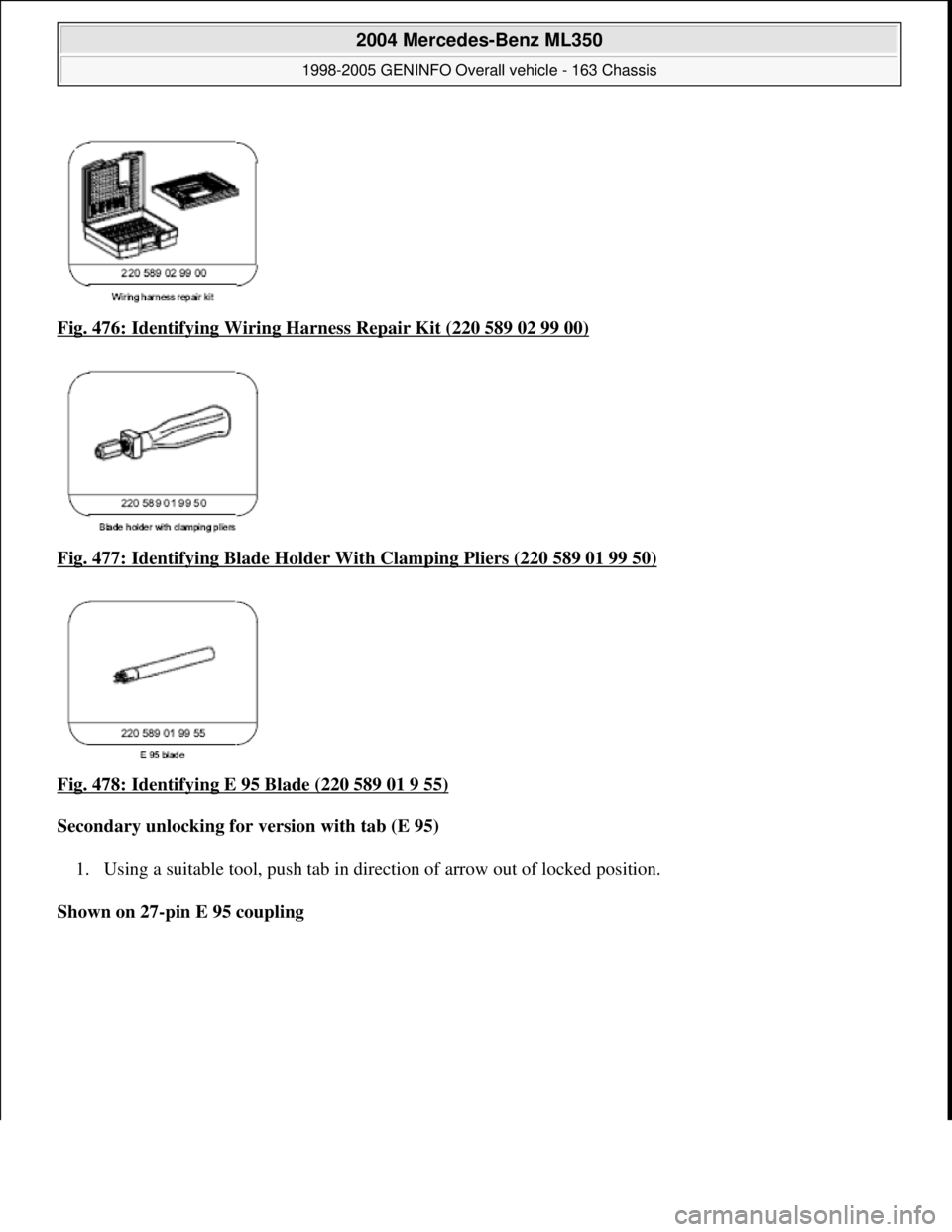

MERCEDES-BENZ ML320 1997 Complete Repair Manual Fig. 476: Identifying Wiring Ha rness Repair Kit (220 589 02 99 00) Fig. 477: Identifying Blad e Holder With Clamping Pliers (220 589 01 99 50) Fig. 478: Identifying E 95 Blade (220 589 01 9 55)
