Page 1473 of 4133

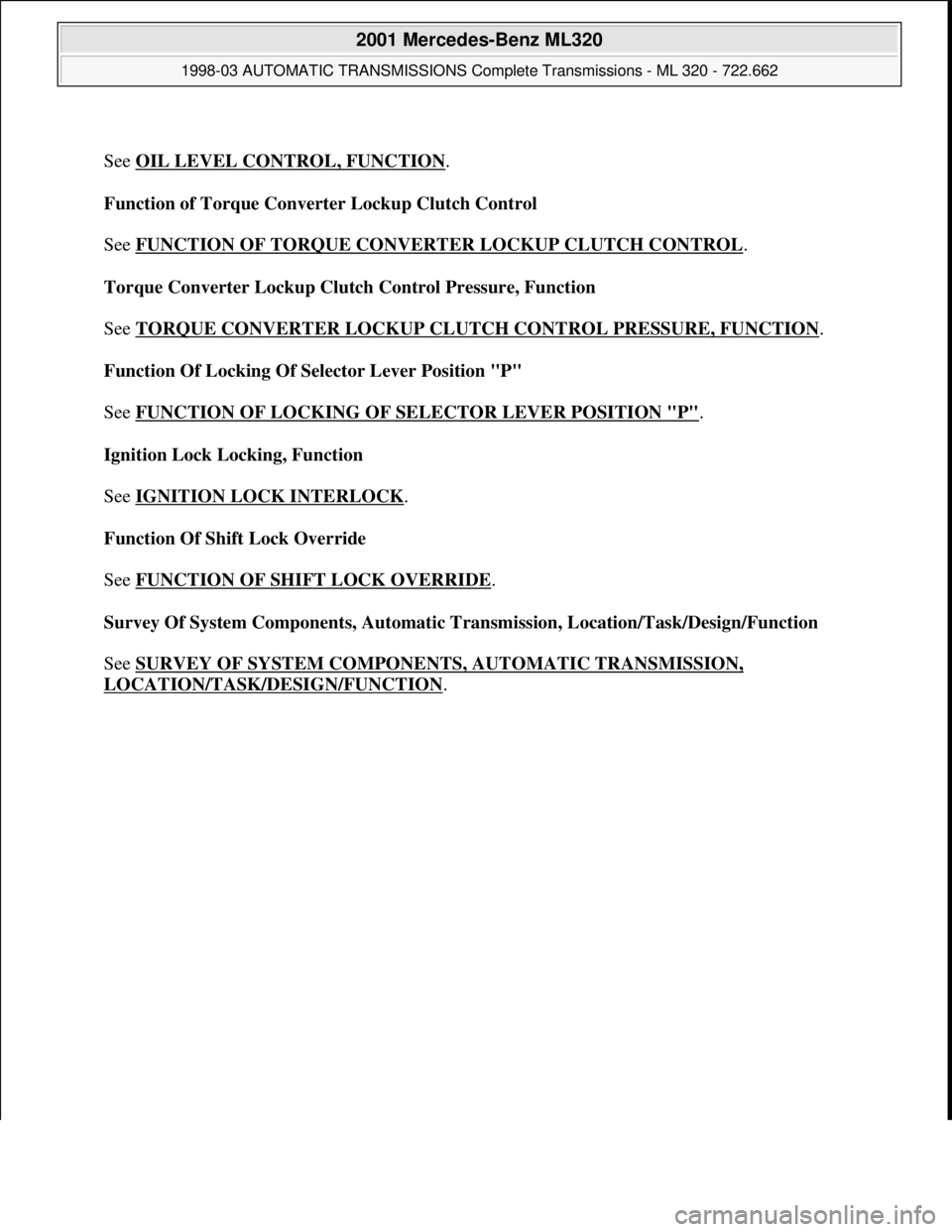

MERCEDES-BENZ ML320 1997 Complete Repair Manual See OIL LEVEL CONTROL, FUNCTION . Function of Torque Converter Lockup Clutch Control See FUNCTION OF TORQUE CONVERTER LOCKUP CLUTCH CONTROL . Torque Converter Lockup Clutch Control Pressure, Fu

Page 1474 of 4133

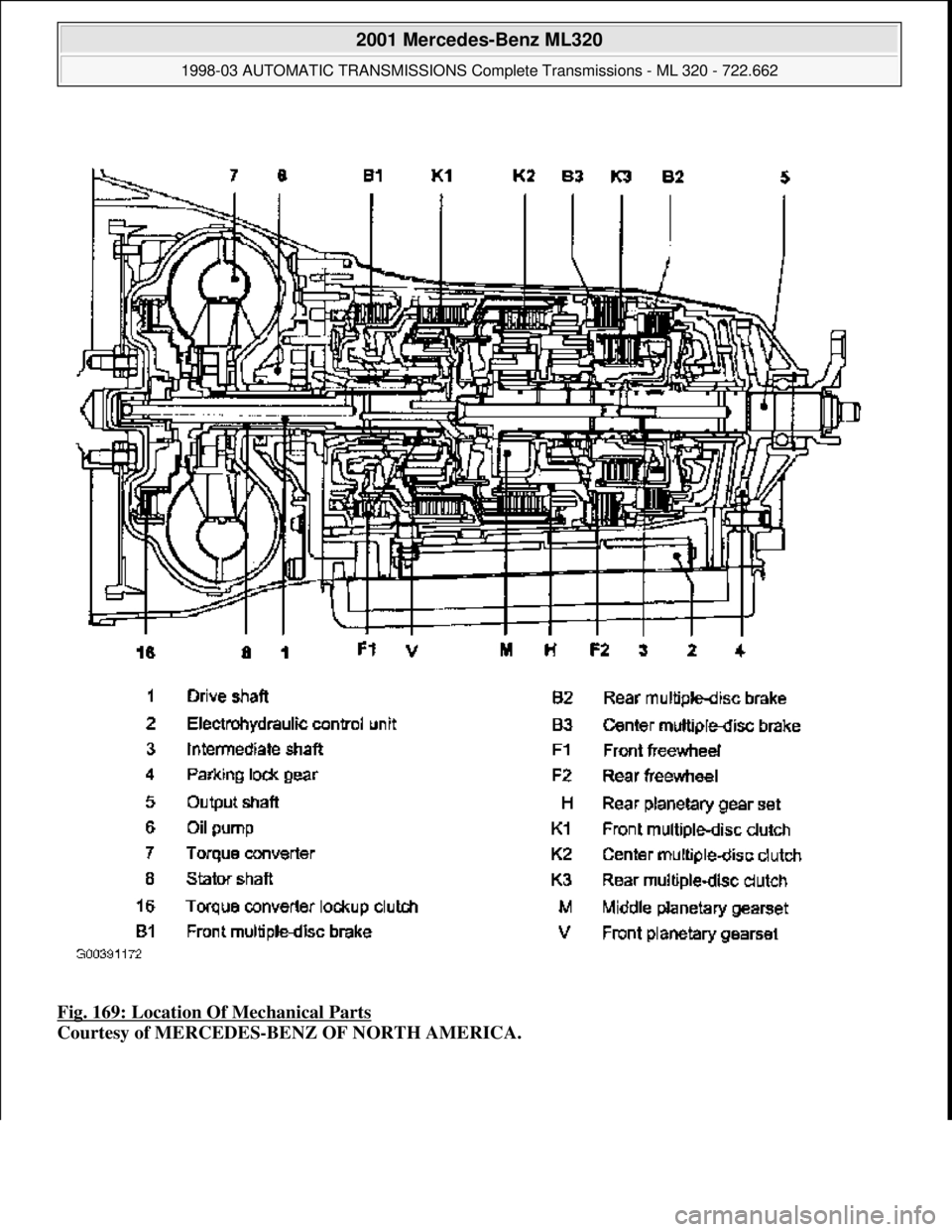

MERCEDES-BENZ ML320 1997 Complete Repair Manual Fig. 169: Location Of Mechanical Parts Courtesy of MERCEDES-BENZ OF NORTH AMERICA. 2001 Mercedes-Benz ML320 1998-03 AUTOMATIC TRANSMI SSIONS Complete Transmissions - ML 320 - 722.662 me Satu

Page 1475 of 4133

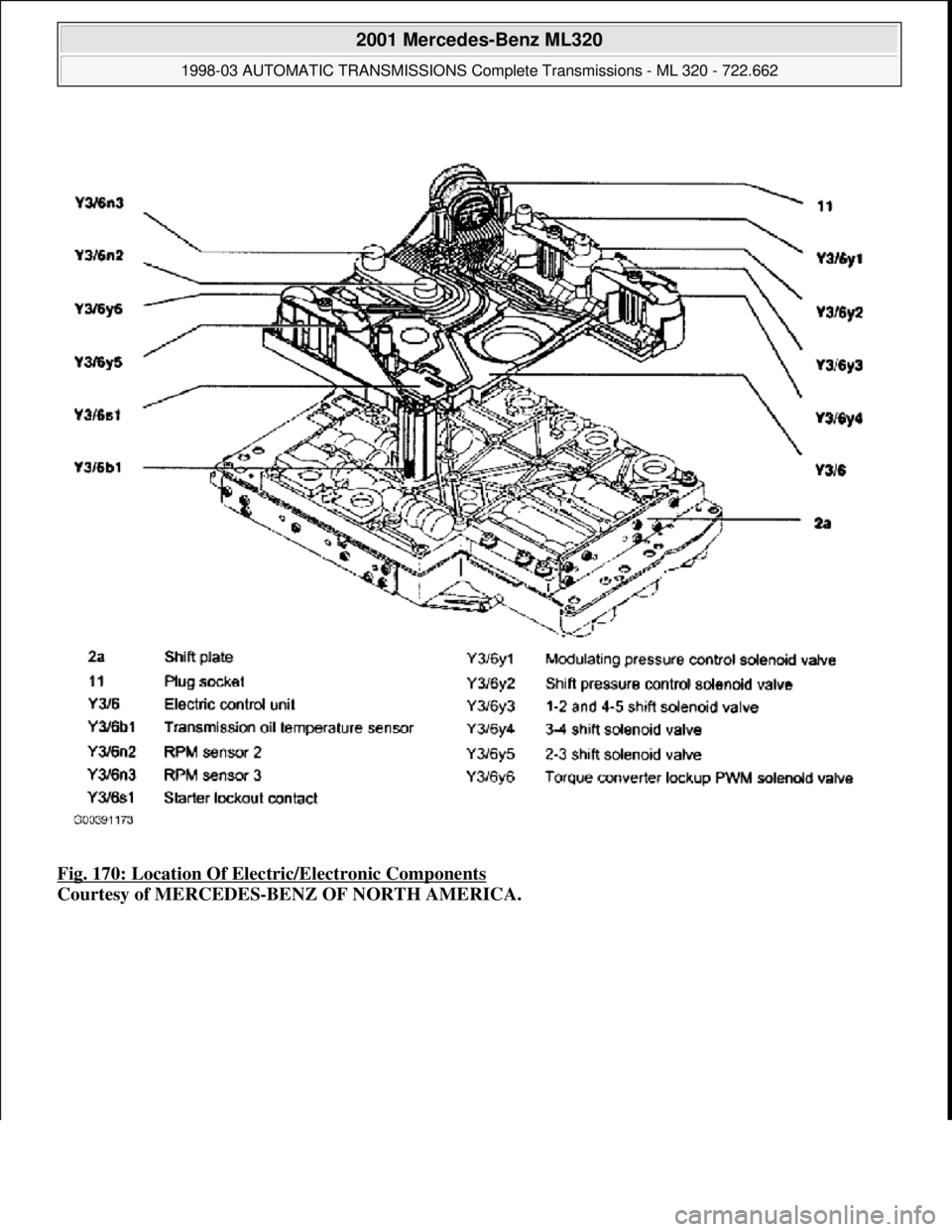

MERCEDES-BENZ ML320 1997 Complete Repair Manual Fig. 170: Location Of Elec tric/Electronic Components Courtesy of MERCEDES-BENZ OF NORTH AMERICA. 2001 Mercedes-Benz ML320 1998-03 AUTOMATIC TRANSMI SSIONS Complete Transmissions - ML 320 - 722.

Page 1476 of 4133

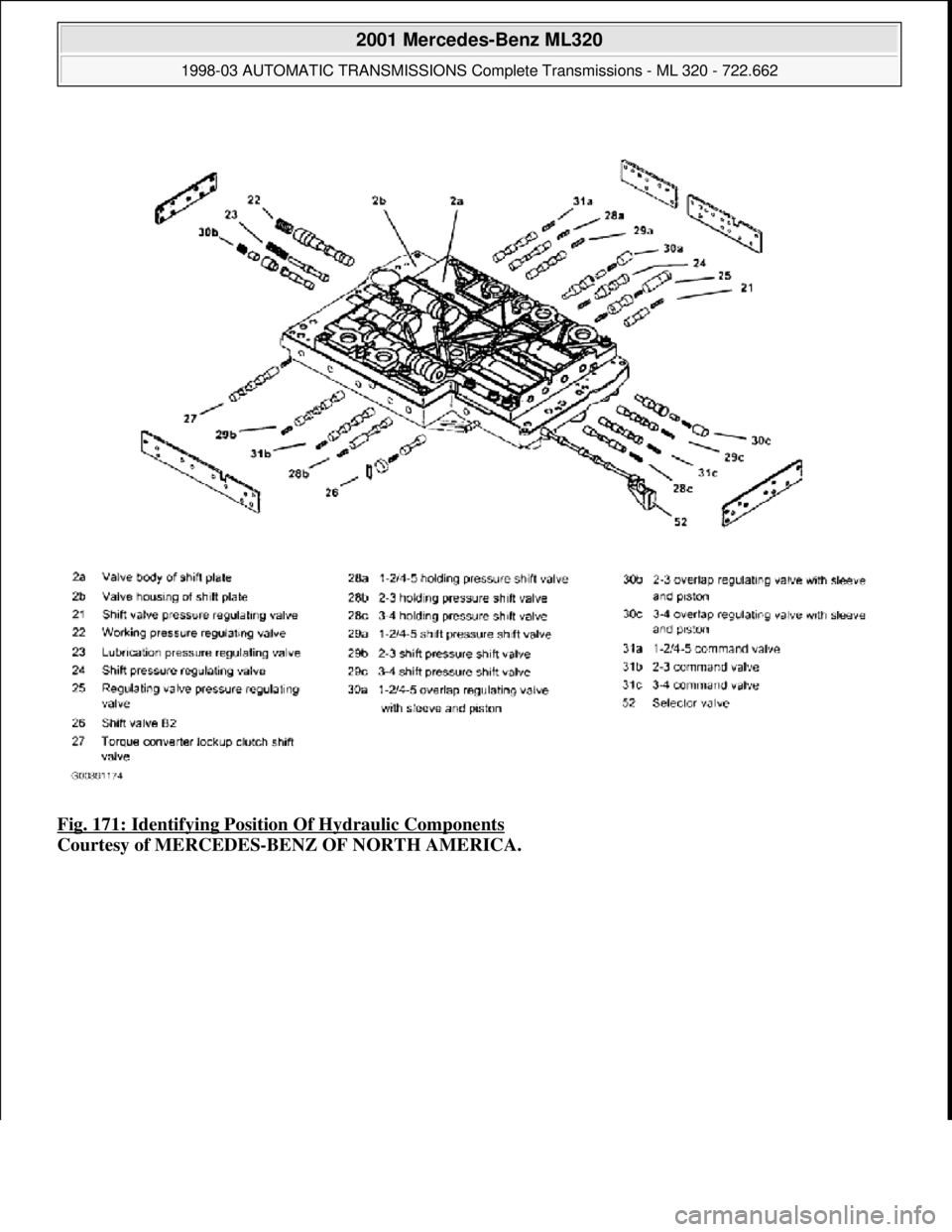

MERCEDES-BENZ ML320 1997 Complete Repair Manual Fig. 171: Identifying Position Of Hydraulic Components Courtesy of MERCEDES-BENZ OF NORTH AMERICA. 2001 Mercedes-Benz ML320 1998-03 AUTOMATIC TRANSMI SSIONS Complete Transmissions - ML 320 - 72

Page 1477 of 4133

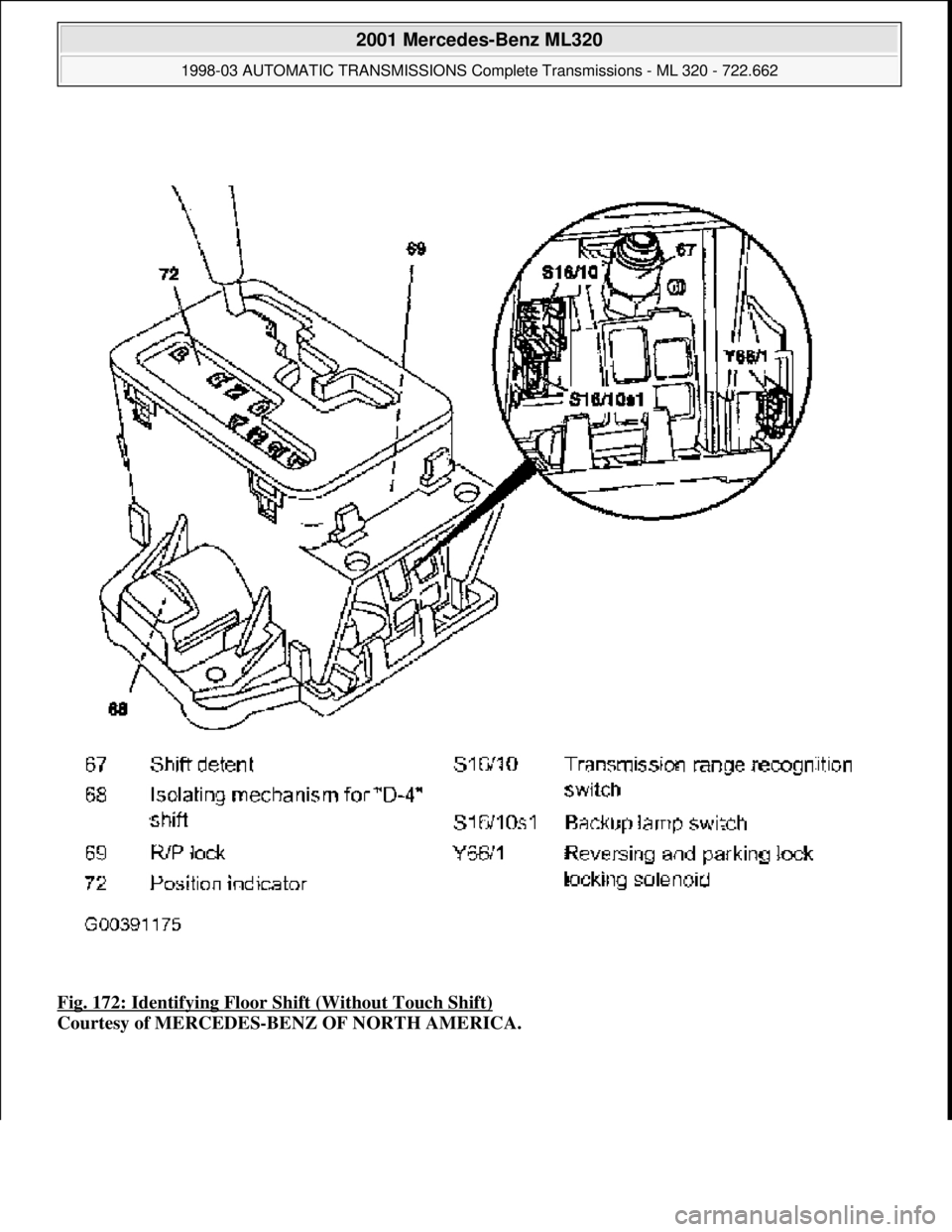

MERCEDES-BENZ ML320 1997 Complete Repair Manual Fig. 172: Identifying Floor Shi ft (Without Touch Shift) Courtesy of MERCEDES-BENZ OF NORTH AMERICA. 2001 Mercedes-Benz ML320 1998-03 AUTOMATIC TRANSMI SSIONS Complete Transmissions - ML 320 - 7

Page 1478 of 4133

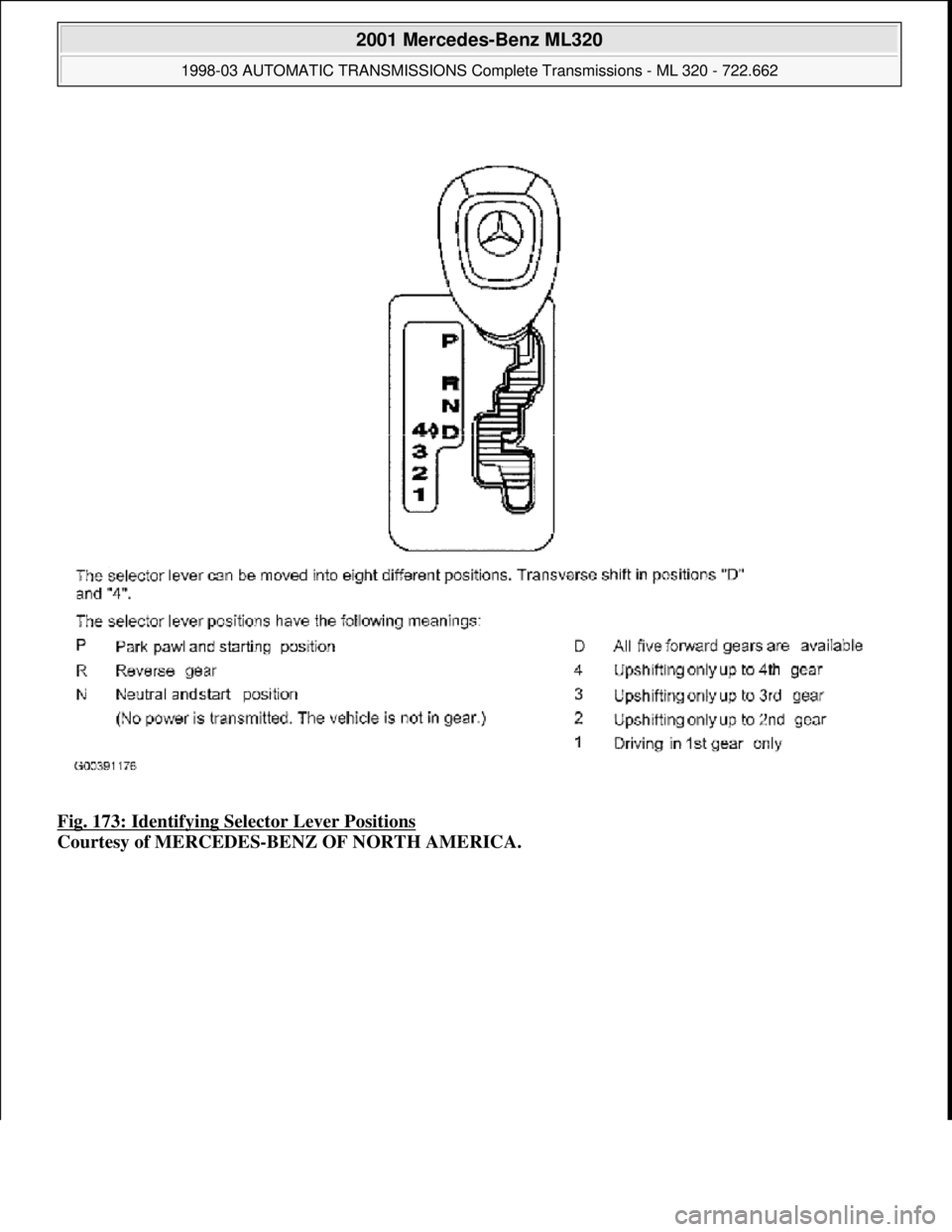

MERCEDES-BENZ ML320 1997 Complete Repair Manual Fig. 173: Identifying Sel ector Lever Positions Courtesy of MERCEDES-BENZ OF NORTH AMERICA. 2001 Mercedes-Benz ML320 1998-03 AUTOMATIC TRANSMI SSIONS Complete Transmissions - ML 320 - 722.662

Page 1479 of 4133

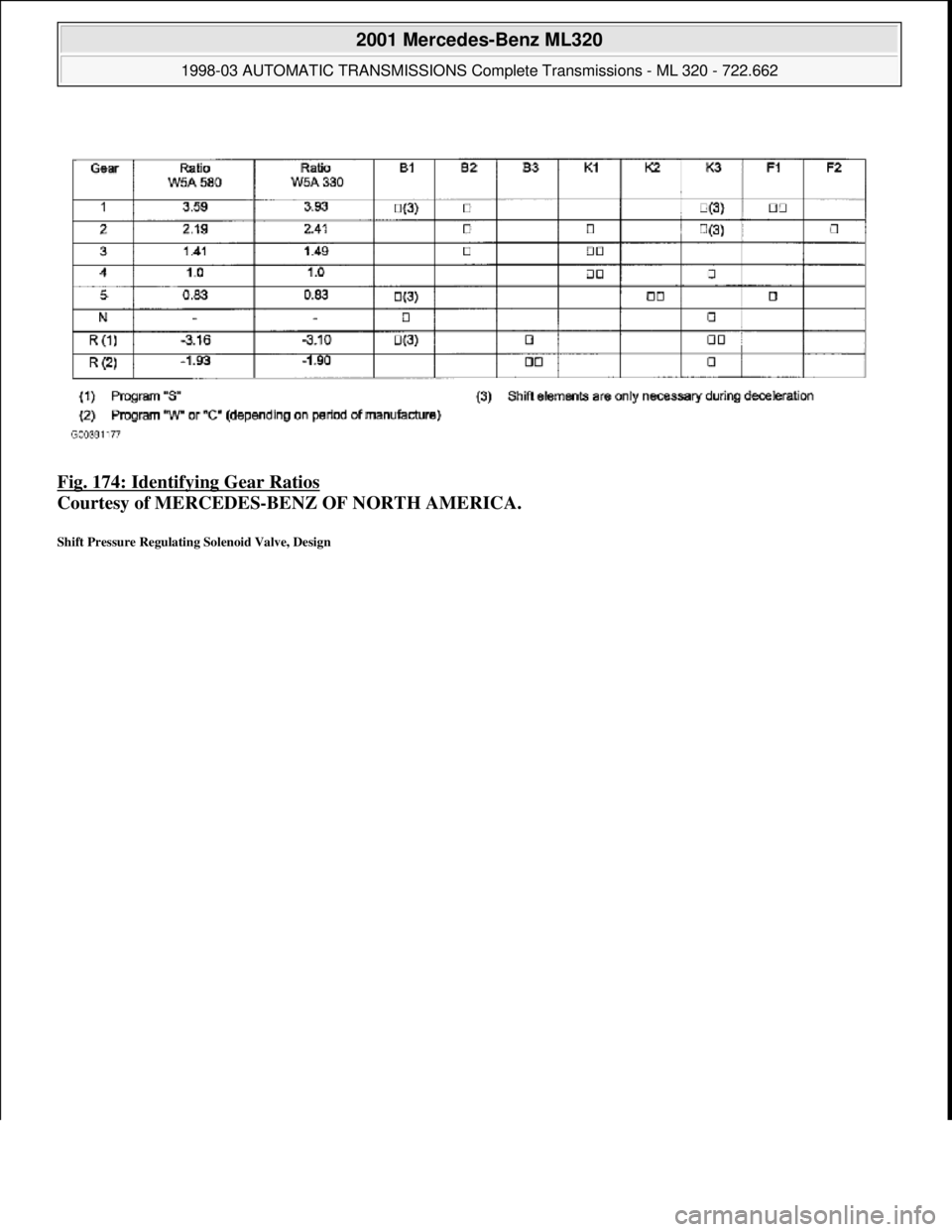

MERCEDES-BENZ ML320 1997 Complete Repair Manual Fig. 174: Identifying Gear Ratios Courtesy of MERCEDES-BENZ OF NORTH AMERICA. Shift Pressure Regulating Solenoid Valve, Design 2001 Mercedes-Benz ML320 1998-03 AUTOMATIC TRANSMISSIONS Complet

Page 1480 of 4133

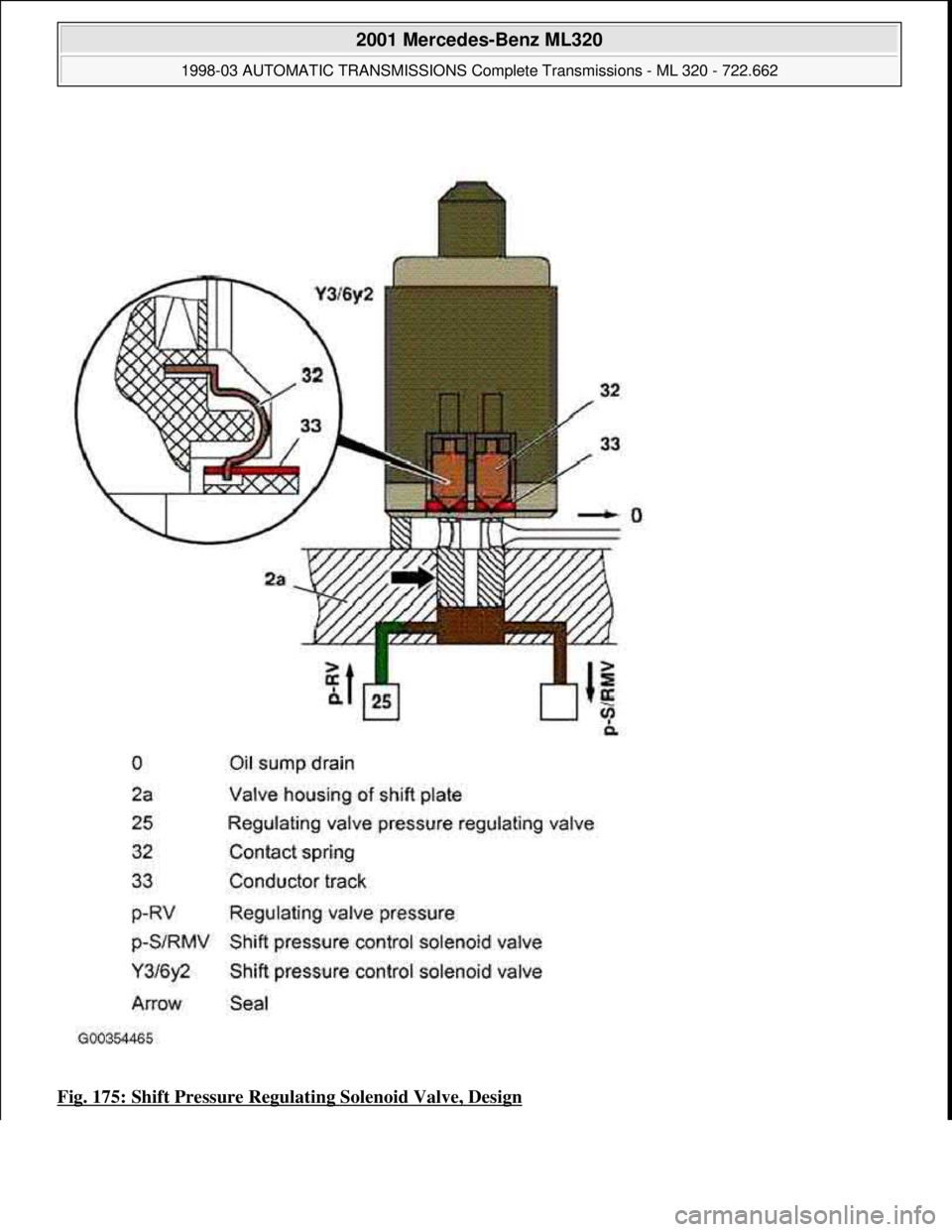

MERCEDES-BENZ ML320 1997 Complete Repair Manual Fig. 175: Shift Pressure Regulating Solenoid Valve, Design 2001 Mercedes-Benz ML320 1998-03 AUTOMATIC TRANSMISSIONS Complete Transmissions - ML 320 - 722.662 me Saturday, October 02, 2010 3:15:
