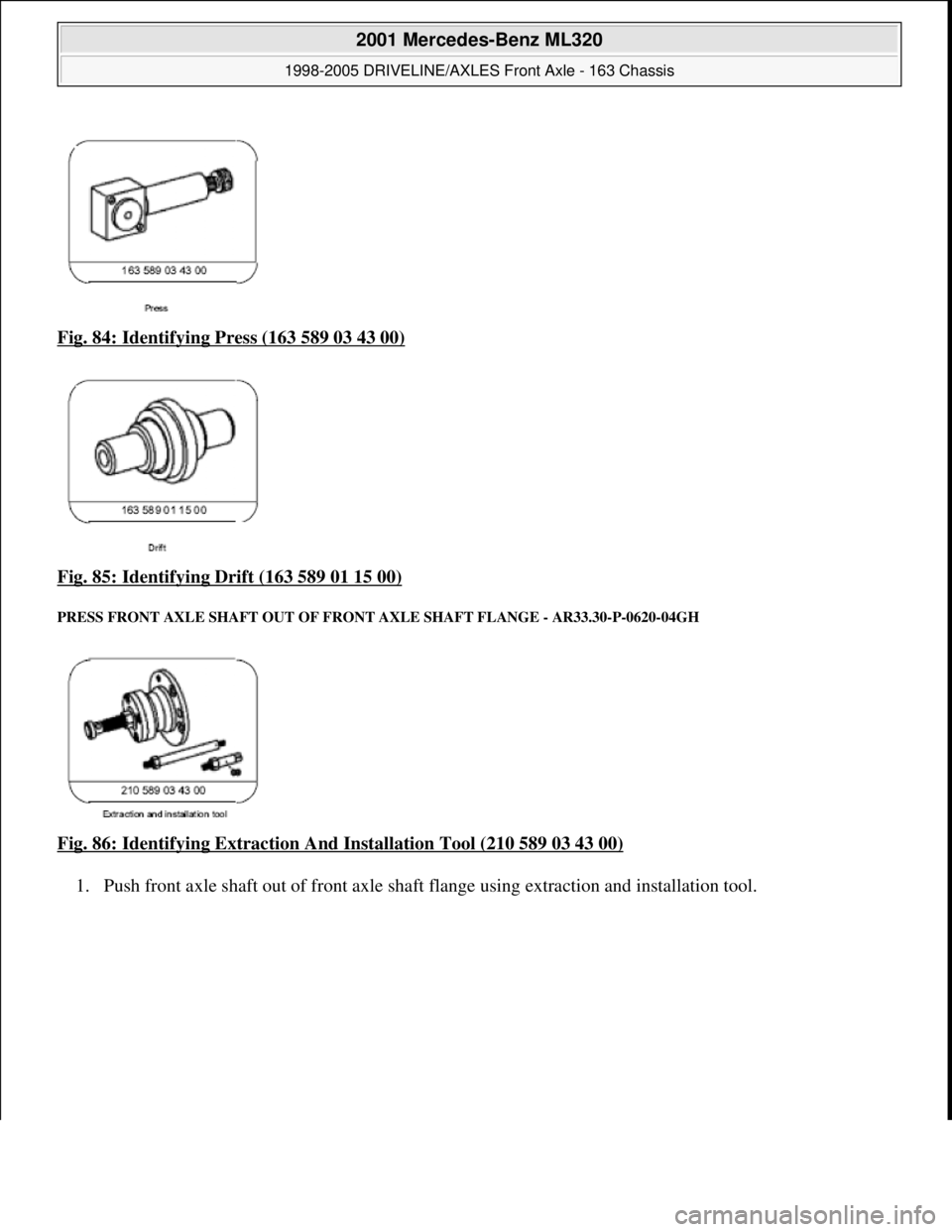

Fig. 84: Identifying Press (163 589 03 43 00)
Fig. 85: Identifying Drift (163 589 01 15 00)

PRESS FRONT AXLE SHAFT   OUT OF FRONT AXLE SHAFT FLANGE  - AR33.30-P-0620-04GH
Fig. 86: Identifying Extraction A nd Installation Tool (210 589 03 43 00)
1. Push front axle shaft out of front axle shaft flan
ge using extraction and installation tool.

2001 Mercedes-Benz ML320
1998-2005 DRIVELINE/AXLES Front Axle - 163 Chassis
me
Saturday, October 02, 2010 3:38:22 PMPage 50 © 2006 Mitchell Repair Information Company, LLC.


        Page 2570 of 4133

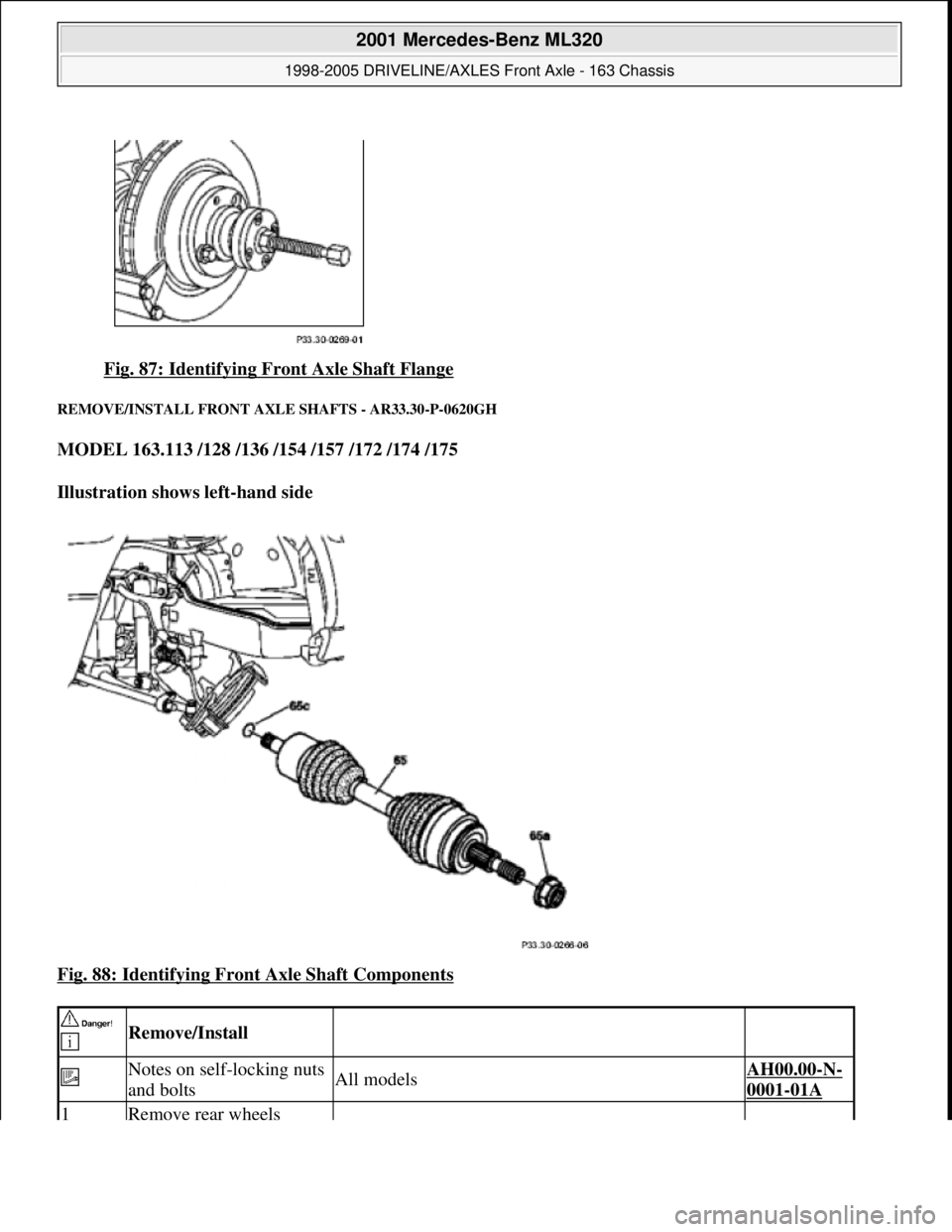

Fig. 87: Identifying Front Axle Shaft Flange
REMOVE/INSTALL FRON T AXLE SHAFTS - AR33.30-P-0620GH
MODEL 163.113 /128 /136 /154 /157 /172 /174 /175
Illustration shows left-hand side
Fig. 88: Identifying Front Axle Shaft Components


 Remove/Install
 Notes on self-locking nuts
and boltsAll modelsAH00.00-N-
0001-01A

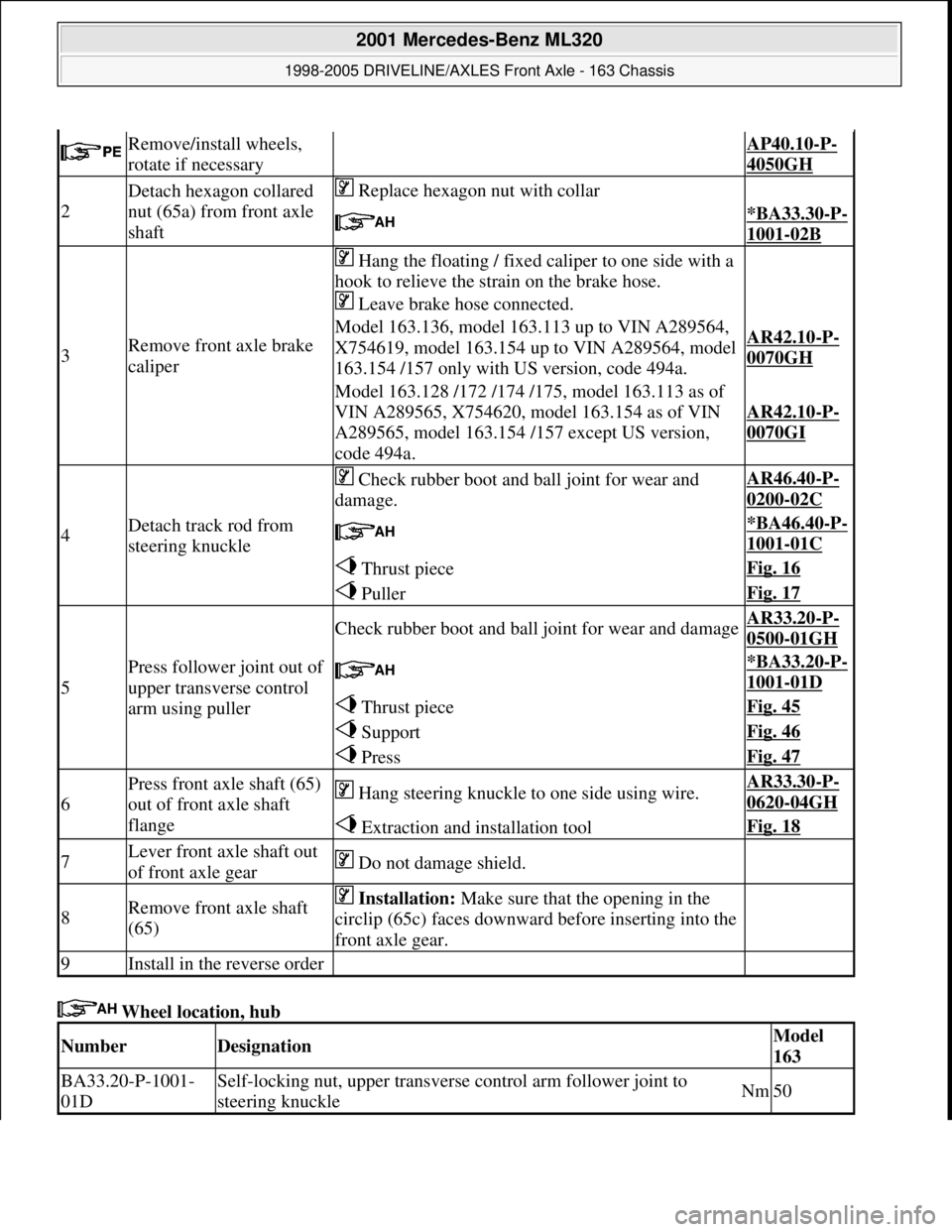

1Remove rear wheels

2001 Mercedes-Benz ML320
1998-2005 DRIVELINE/AXLES Front Axle - 163 Chassis
me
Saturday, October 02, 2010 3:38:22 PMPage 51 © 2006 Mitchell Repair Information Company, LLC.


        Page 2571 of 4133

 Wheel location, hub
 Remove/install wheels,
rotate if necessary AP40.10-P-
4050GH
2
Detach hexagon collared
nut (65a) from front axle
shaft Replace hexagon nut with collar
 *BA33.30-P-
1001-02B
3Remove front axle brake
caliper
 Hang the floating / fixed caliper to one side with a
hook to relieve the strain on the brake hose.
 Leave brake hose connected.

Model 163.136, model 163.113 up to VIN A289564,
X754619, model 163.154 up to VIN A289564, model
163.154 /157 only with US version, code 494a.AR42.10-P-
0070GH
Model 163.128 /172 /174 /175, model 163.113 as of
VIN A289565, X754620, model 163.154 as of VIN
A289565, model 163.154 /157 except US version,
code 494a.
AR42.10-P-
0070GI
4Detach track rod from
steering knuckle
 Check rubber boot and ball joint for wear and
damage.AR46.40-P-
0200-02C
 *BA46.40-P-
1001-01C
 Thrust pieceFig. 16
 PullerFig. 17
5
Press follower joint out of
upper transverse control
arm using puller
Check rubber boot and ball joint for wear and damageAR33.20-P-
0500-01GH
 *BA33.20-P-
1001-01D
 Thrust pieceFig. 45
 SupportFig. 46
 PressFig. 47
6
Press front axle shaft (65)
out of front axle shaft
flange Hang steering knuckle to one side using wire.AR33.30-P-
0620-04GH
 Extraction and installation toolFig. 18
7Lever front axle shaft out
of front axle gear Do not damage shield.
8Remove front axle shaft
(65) Installation: Make sure that the opening in the
circlip (65c) faces downward before inserting into the
front axle gear.

9Install in the reverse order
NumberDesignationModel
163
BA33.20-P-1001-
01DSelf-locking nut, upper transverse control arm follower joint to
steering knuckleNm50

2001 Mercedes-Benz ML320
1998-2005 DRIVELINE/AXLES Front Axle - 163 Chassis
me
Saturday, October 02, 2010 3:38:22 PMPage 52 © 2006 Mitchell Repair Information Company, LLC.


        Page 2572 of 4133
 Front axle shaft
 Track rod

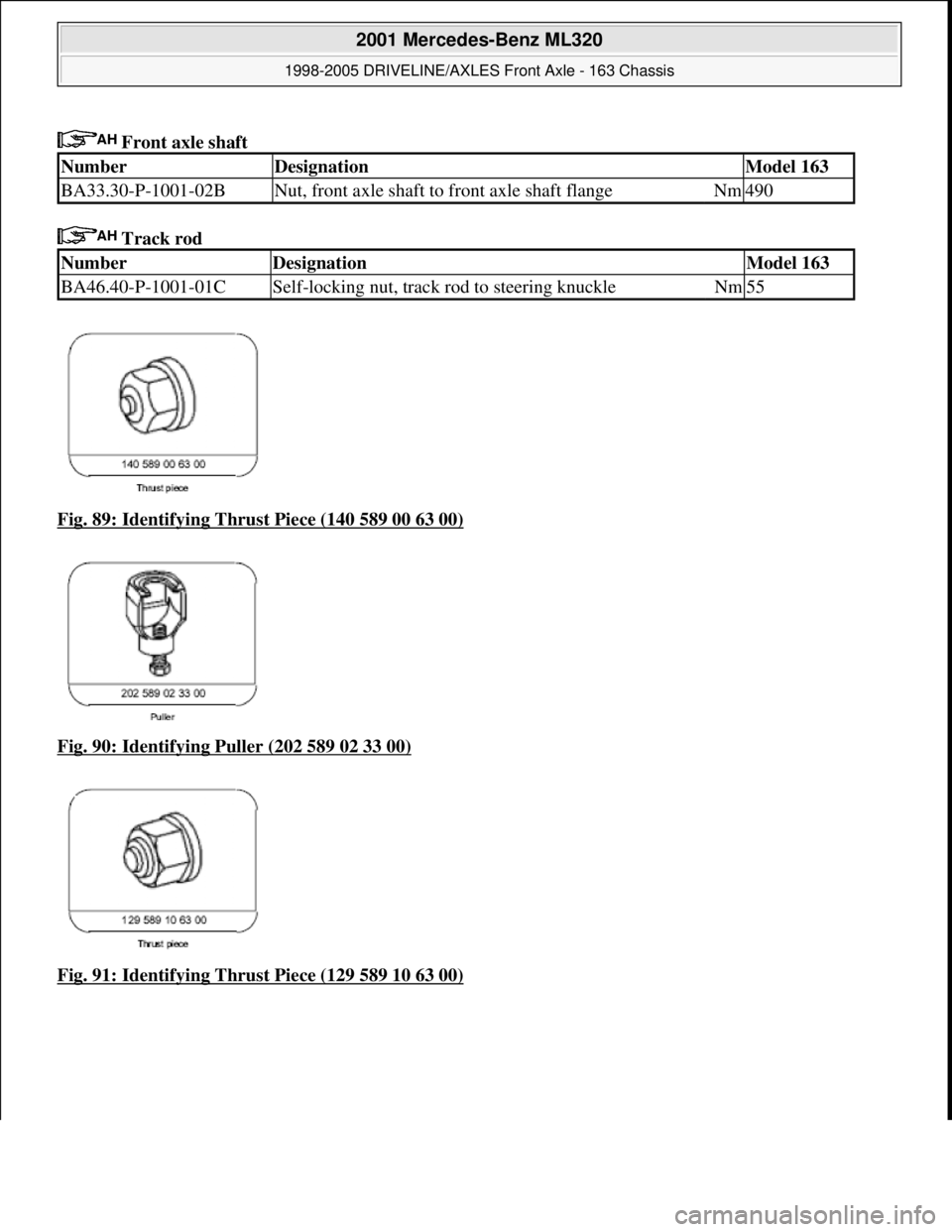

Fig. 89: Identifying Thrust Piece (140 589 00 63 00)

Fig. 90: Identifying Puller (202 589 02 33 00)

Fig. 91: Identifying Thrust Piece (129 589 10 63 00)
NumberDesignationModel 163
BA33.30-P-1001-02BNut, front axle shaft to front axle shaft flangeNm490
NumberDesignationModel 163
BA46.40-P-1001-01CSelf-locking nut, track   rod to steering knuckleNm55

2001 Mercedes-Benz ML320
1998-2005 DRIVELINE/AXLES Front Axle - 163 Chassis
me
Saturday, October 02, 2010 3:38:22 PMPage 53 © 2006 Mitchell Repair Information Company, LLC.


        Page 2573 of 4133

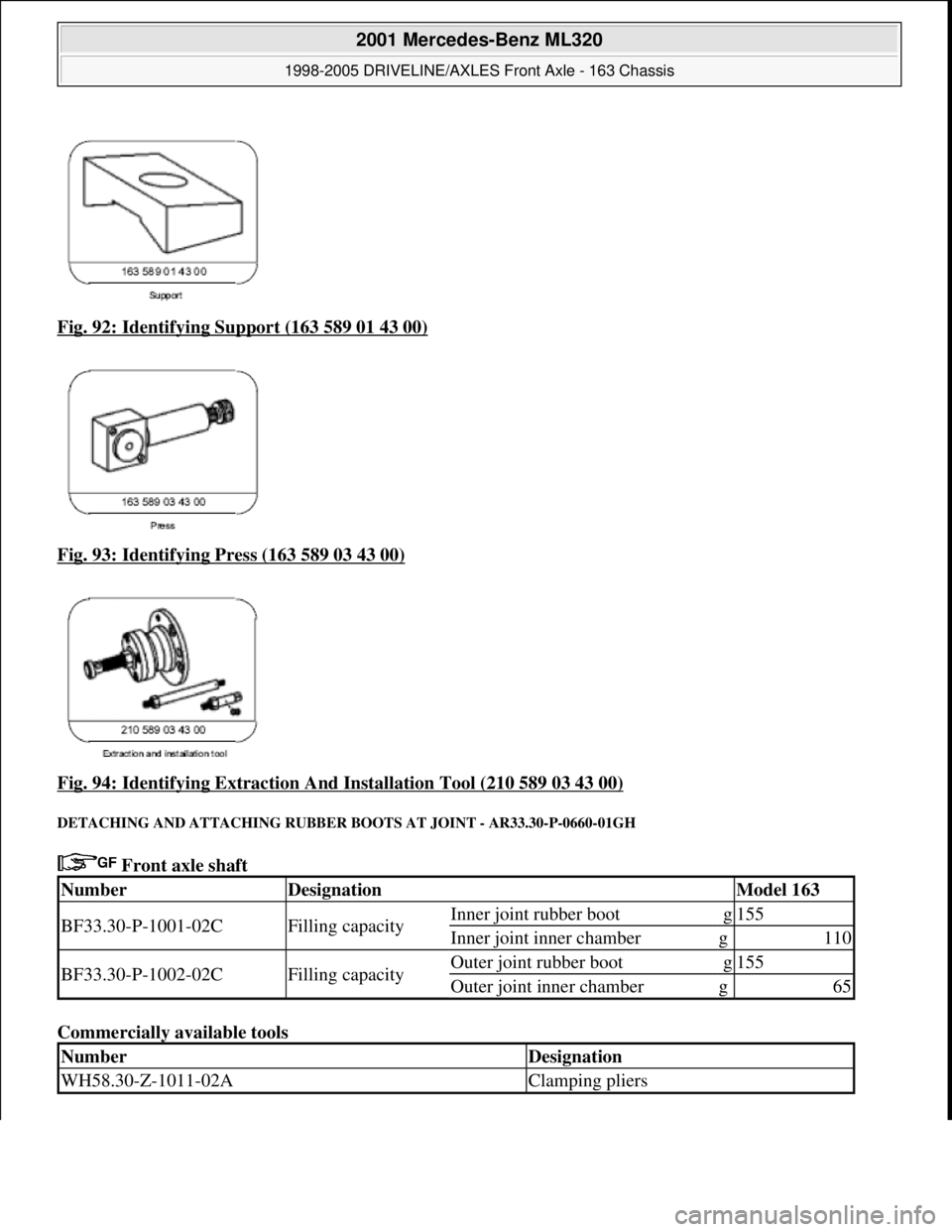

Fig. 92: Identifying Support (163 589 01 43 00)
Fig. 93: Identifying Press (163 589 03 43 00)

Fig. 94: Identifying Extraction A  nd Installation Tool (210 589 03 43 00)

DETACHING AND ATTACHING RUBBER BOOTS AT JOINT - AR33.30-P-0660-01GH
 Front axle shaft
Commercially available tools
NumberDesignationModel 163
BF33.30-P-1001-02CFilling capacityInner joint rubber bootg155
Inner joint inner chamberg110
BF33.30-P-1002-02CFilling capacityOuter joint rubber bootg155
Outer joint inner chamberg65
NumberDesignation
WH58.30-Z-1011-02AClamping pliers

2001 Mercedes-Benz ML320
1998-2005 DRIVELINE/AXLES Front Axle - 163 Chassis
me
Saturday, October 02, 2010 3:38:22 PMPage 54 © 2006 Mitchell Repair Information Company, LLC.


        Page 2574 of 4133

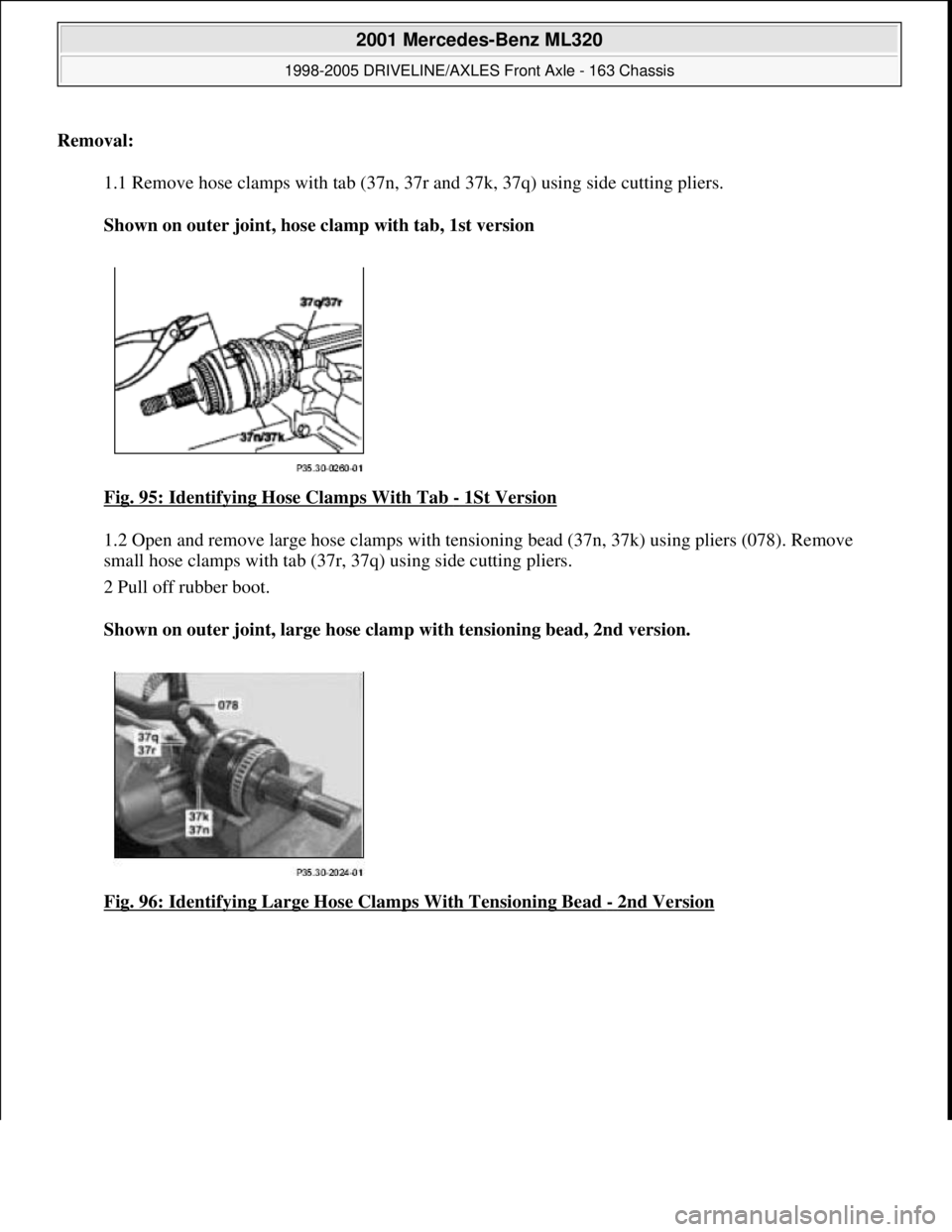

Removal:
1.1 Remove hose clamps with tab (37n, 37  r and 37k, 37q) using side cutting pliers.
Shown on outer joint, hose clamp with tab, 1st version
Fig. 95: Identifying Ho  se Clamps With Tab
- 1St Version
1.2 Open and remove large hose clamps with tens  ioning bead (37n, 37k) using pliers (078). Remove
small hose clamps with tab (37r,   37q) using side cutting pliers.
2 Pull off rubber boot.
Shown on outer joint, large hose clam  p with tensioning bead, 2nd version.
Fig. 96: Identifying Large Hose   Clamps With Tensioning Bead
- 2nd Version

2001 Mercedes-Benz ML320
1998-2005 DRIVELINE/AXLES Front Axle - 163 Chassis
me
Saturday, October 02, 2010 3:38:22 PMPage 55 © 2006 Mitchell Repair Information Company, LLC.


        Page 2575 of 4133

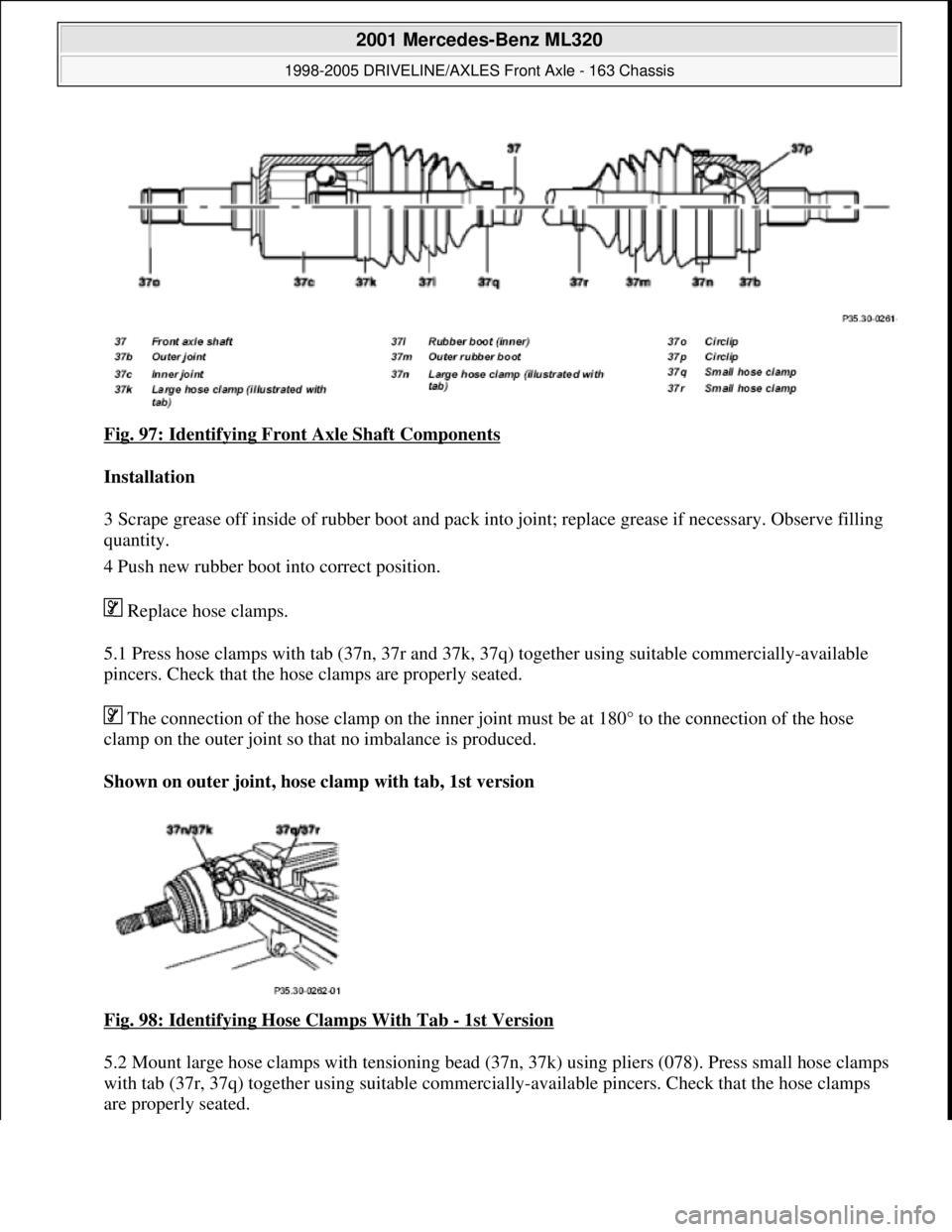

Fig. 97: Identifying Front Axle Shaft Components
Installation
3 Scrape grease off inside of rubber boot and pack into joint; replace grease if necessary. Observe filling
quantity.
4 Push new rubber boot into correct position.
 Replace hose clamps.
5.1 Press hose clamps with tab (37n, 37r and 37k, 37q) together using suitable commercially-available
pincers. Check that the hose clamps are properly seated.
 The connection of the hose clamp on the inner joint must be at 180° to the connection of the hose
clamp on the outer joint so that no imbalance is produced.
Shown on outer joint, hose clamp with tab, 1st version
Fig. 98: Identifying Hose Clamps With Tab
- 1st Version
5.2 Mount large hose clamps with tensioning bead (37n, 37k) using pliers (078). Press small hose clamps
with tab (37r, 37q) together using suitable commercially-available pincers. Check that the hose clamps
are properly seated.

2001 Mercedes-Benz ML320
1998-2005 DRIVELINE/AXLES Front Axle - 163 Chassis
me
Saturday, October 02, 2010 3:38:22 PMPage 56 © 2006 Mitchell Repair Information Company, LLC.


        Page 2576 of 4133

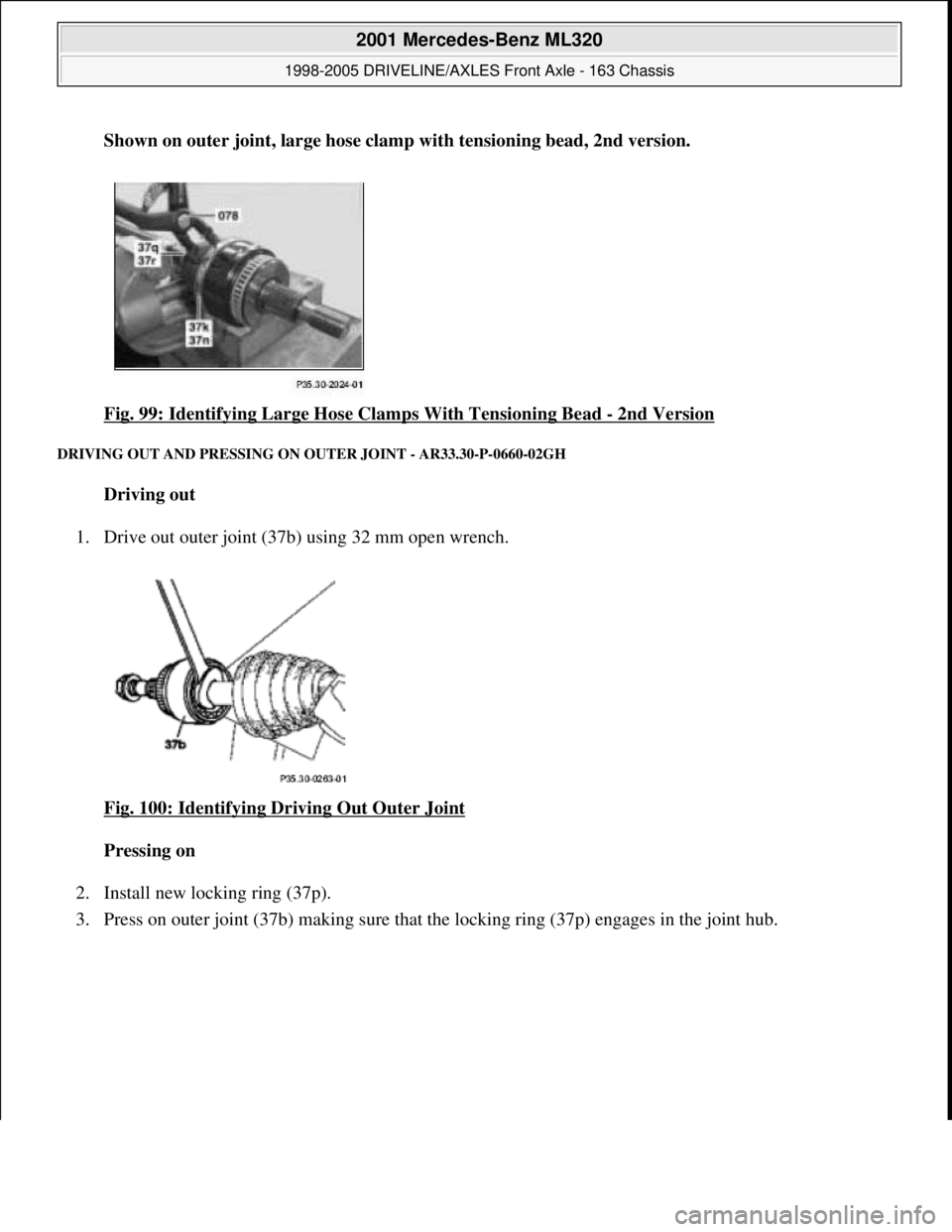

Shown on outer joint, large hose clamp with tensioning bead, 2nd version.
