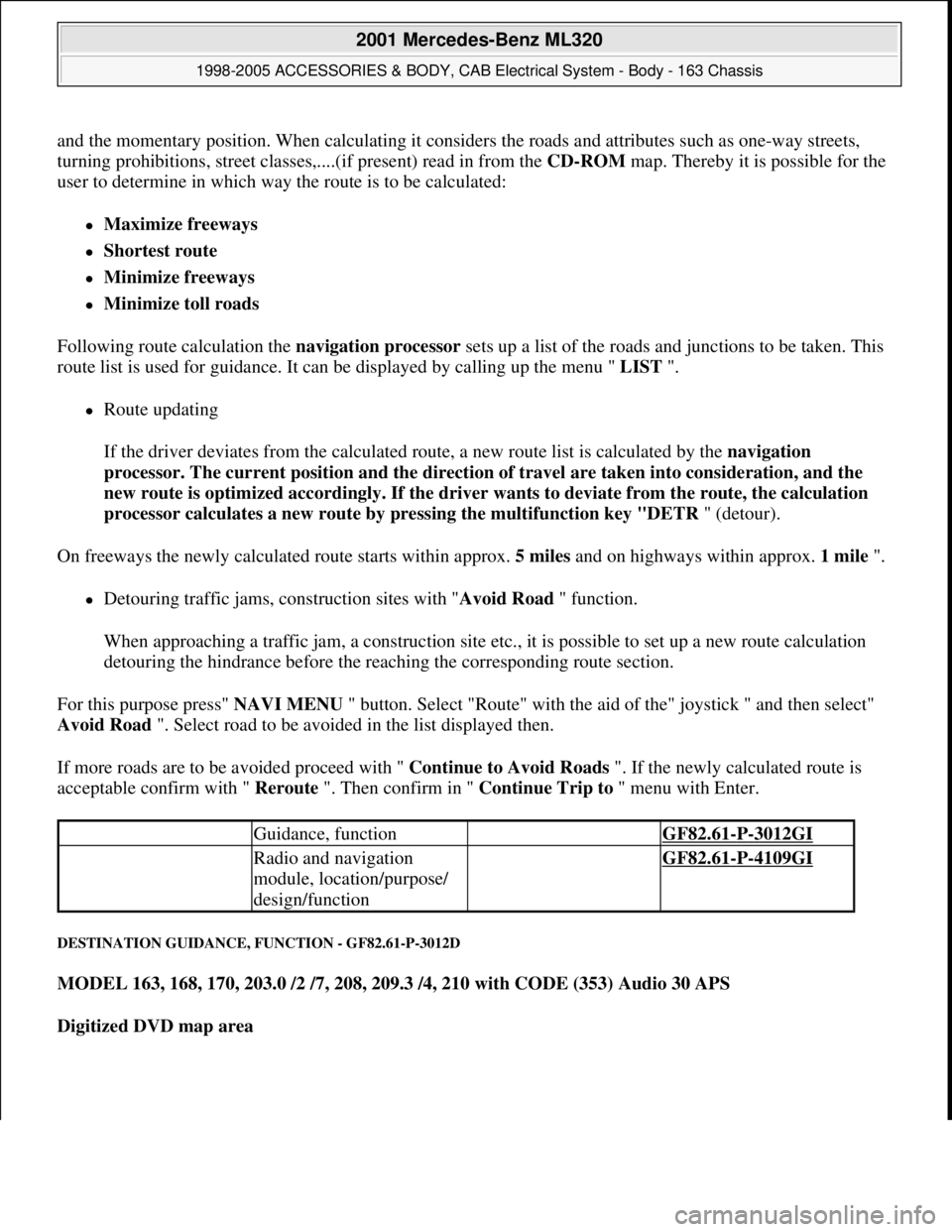

MERCEDES-BENZ ML320 1997 Complete Repair Manual and the momentary position. When calculating it considers the roads and attributes such as one-way streets,
turning prohibitions, street classes,....(if present) read in from the CD-ROM map. Thereby

and the momentary position. When calculating it considers the roads and attributes such as one-way streets,
turning prohibitions, street classes,....(if present) read in from the CD-ROM map. Thereby it is possible for the
user to determine in which way the route is to be calculated:
Maximize freeways
Shortest route
Minimize freeways
Minimize toll roads
Following route calculation the navigation processor sets up a list of the roads and junctions to be taken. This
route list is used for guidance. It can be displayed by calling up the menu " LIST ".
Route updating
If the driver deviates from the calculated route, a new route list is calculated by the navigation
processor. The current position and the direction of travel are taken into consideration, and the
new route is optimized accordingly. If the driver wants to deviate from the route, the calculation
processor calculates a new route by pressing the multifunction key "DETR " (detour).
On freeways the newly calculated route starts within approx. 5 miles and on highways within approx. 1 mile ".
Detouring traffic jams, construction sites with "Avoid Road " function.
When approaching a traffic jam, a construction site etc., it is possible to set up a new route calculation
detouring the hindrance before the reaching the corresponding route section.
For this purpose press" NAVI MENU " button. Select "Route" with the aid of the" joystick " and then select"
Avoid Road ". Select road to be avoided in the list displayed then.
If more roads are to be avoided proceed with " Continue to Avoid Roads ". If the newly calculated route is
acceptable confirm with " Reroute ". Then confirm in " Continue Trip to " menu with Enter.
DESTINATION GUIDANCE, FUNCTION - GF82.61-P-3012D
MODEL 163, 168, 170, 203.0 /2 /7, 208, 209.3 /4, 210 with CODE (353) Audio 30 APS
Digitized DVD map area
Guidance, function GF82.61-P-3012GI
Radio and navigation
module, location/purpose/
design/function GF82.61-P-4109GI

2001 Mercedes-Benz ML320
1998-2005 ACCESSORIES & BODY, CAB Electrical System - Body - 163 Chassis
me
Saturday, October 02, 2010 3:30:05 PMPage 90 © 2006 Mitchell Repair Information Company, LLC.

Page 1586 of 4133

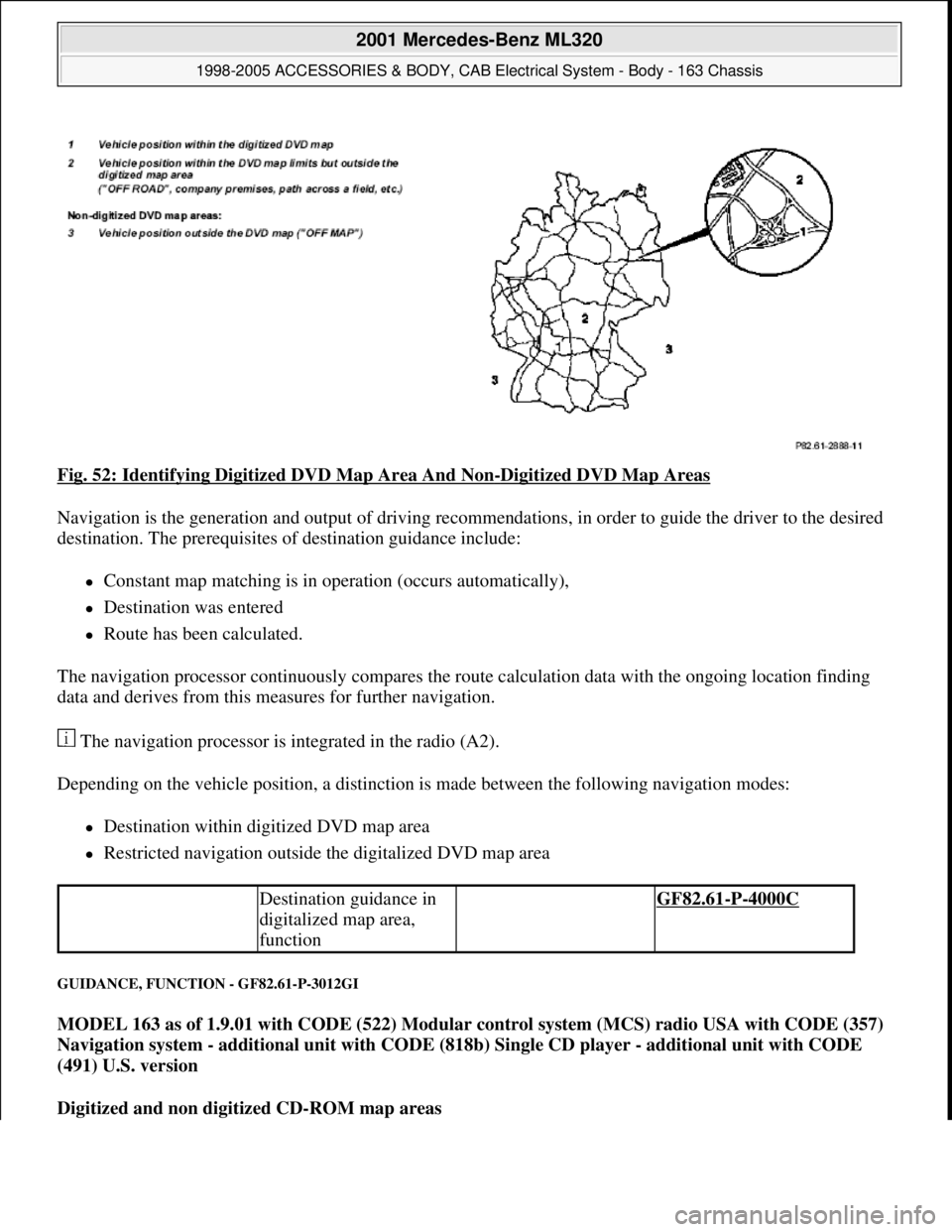

MERCEDES-BENZ ML320 1997 Complete Repair Manual Fig. 52: Identifying Digitized DVD Map Area And Non-Digitized DVD Map Areas
Navigation is the generation and output of driving recommendations, in order to guide the driver to the desired
destinatio

Page 1587 of 4133

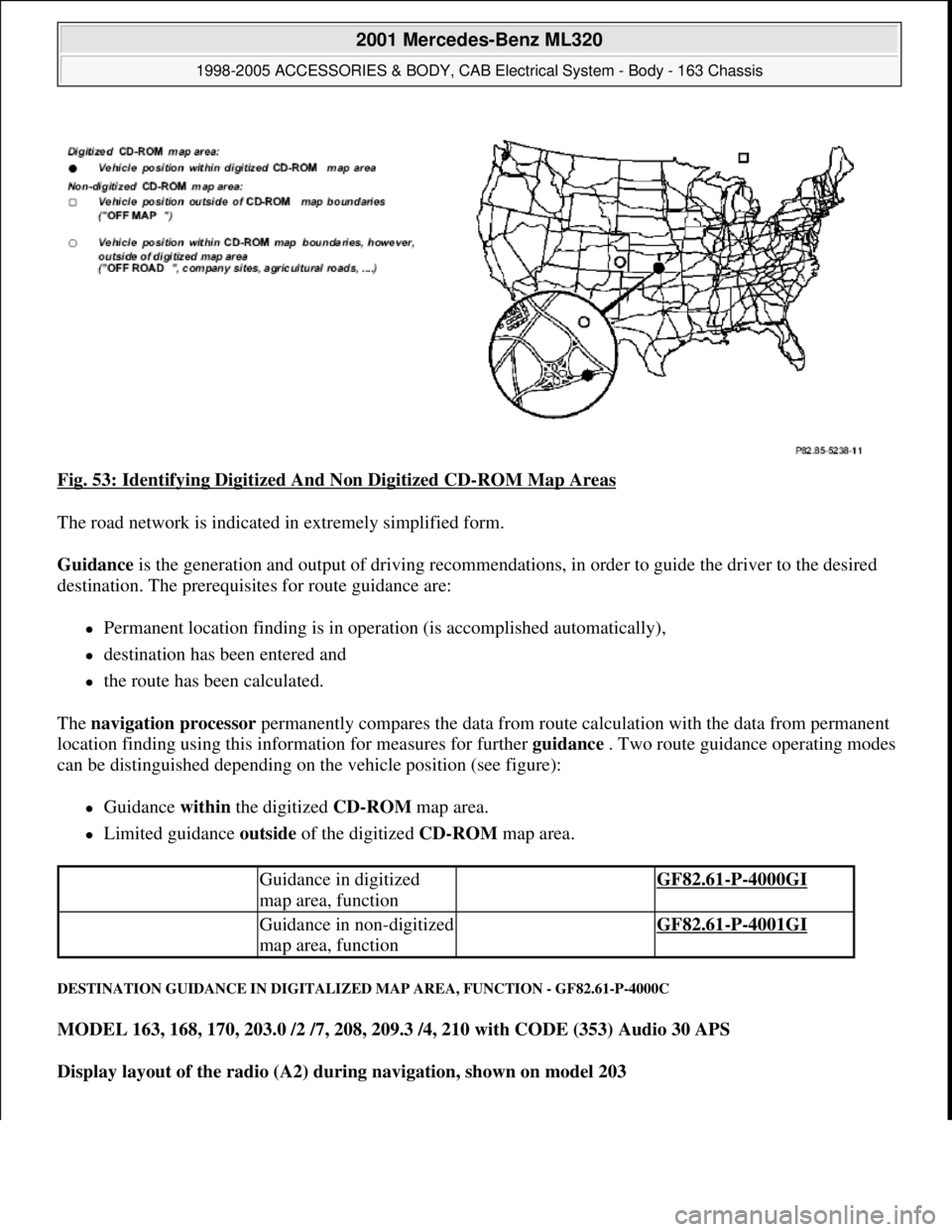

MERCEDES-BENZ ML320 1997 Complete Repair Manual Fig. 53: Identifying Digitized And Non Digitized CD-ROM Map Areas
The road network is indicated in extremely simplified form.
Guidance is the generation and output of driving recommendations, in ord

Page 1588 of 4133

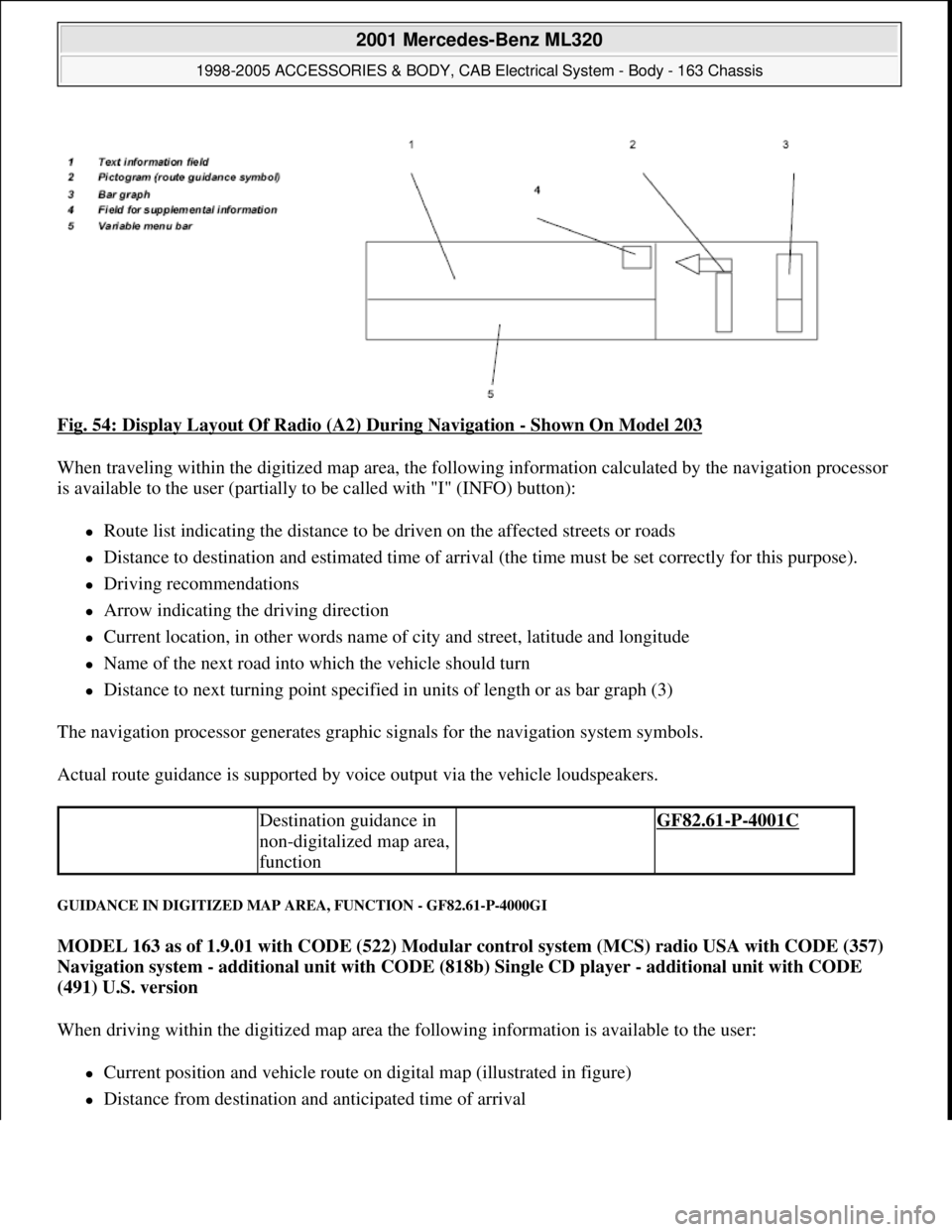

MERCEDES-BENZ ML320 1997 Complete Repair Manual Fig. 54: Display Layout Of Radio (A2) During Navigation - Shown On Model 203
When traveling within the digitized map area, the following information calculated by the navigation processor
is availab

Page 1589 of 4133

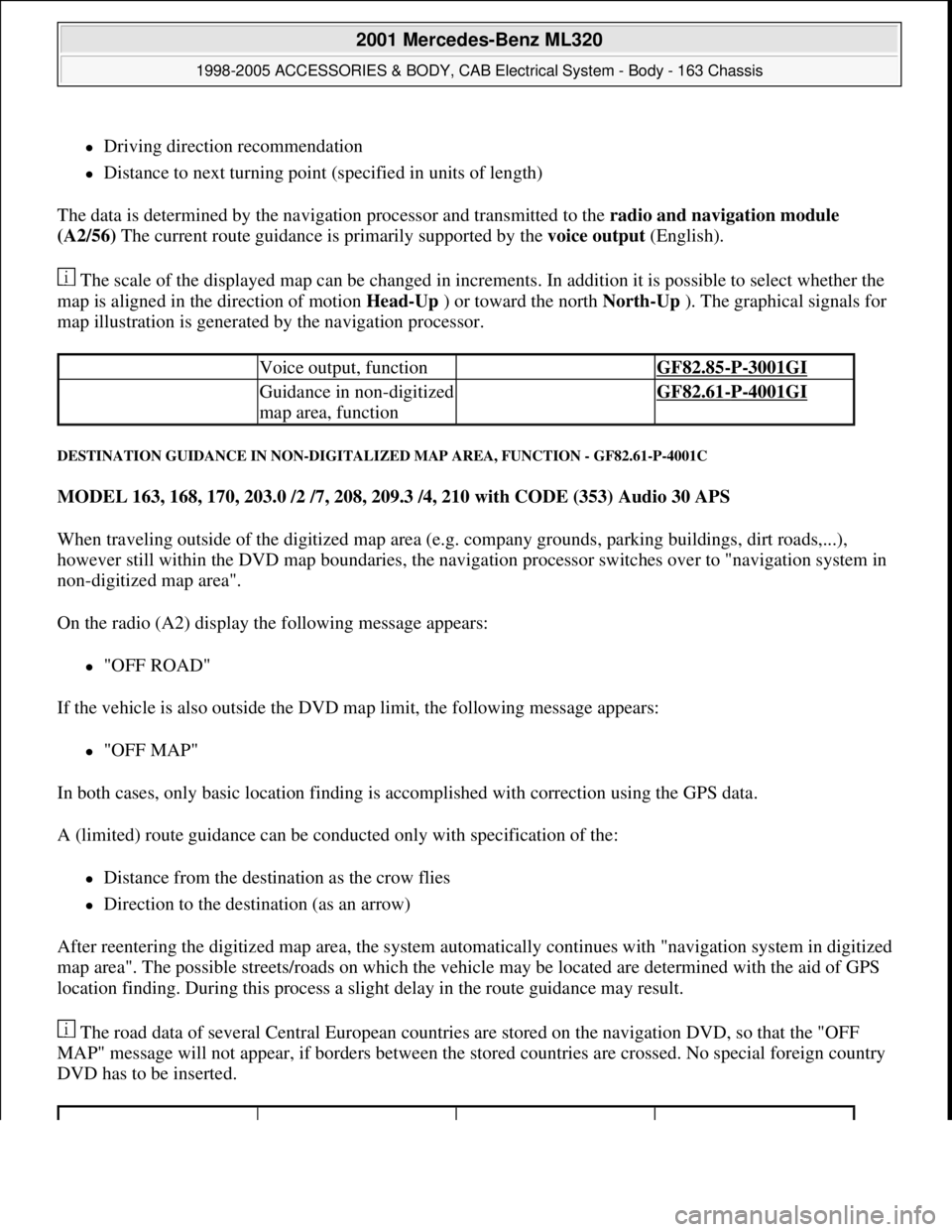

MERCEDES-BENZ ML320 1997 Complete Repair Manual Driving direction recommendation
Distance to next turning point (specified in units of length)
The data is determined by the navigation processor and transmitted to the radio and navigation

Driving direction recommendation
Distance to next turning point (specified in units of length)
The data is determined by the navigation processor and transmitted to the radio and navigation module
(A2/56) The current route guidance is primarily supported by the voice output (English).
The scale of the displayed map can be changed in increments. In addition it is possible to select whether the
map is aligned in the direction of motion Head-Up ) or toward the north North-Up ). The graphical signals for
map illustration is generated by the navigation processor.
DESTINATION GUIDANCE IN NON-DIGITALIZED MAP AREA, FUNCTION - GF82.61-P-4001C
MODEL 163, 168, 170, 203.0 /2 /7, 208, 209.3 /4, 210 with CODE (353) Audio 30 APS
When traveling outside of the digitized map area (e.g. company grounds, parking buildings, dirt roads,...),
however still within the DVD map boundaries, the navigation processor switches over to "navigation system in
non-digitized map area".
On the radio (A2) display the following message appears:
"OFF ROAD"
If the vehicle is also outside the DVD map limit, the following message appears:
"OFF MAP"
In both cases, only basic location finding is accomplished with correction using the GPS data.
A (limited) route guidance can be conducted only with specification of the:
Distance from the destination as the crow flies
Direction to the destination (as an arrow)
After reentering the digitized map area, the system automatically continues with "navigation system in digitized
map area". The possible streets/roads on which the vehicle may be located are determined with the aid of GPS
location finding. During this process a slight delay in the route guidance may result.
The road data of several Central European countries are stored on the navigation DVD, so that the "OFF
MAP" message will not appear, if borders between the stored countries are crossed. No special foreign country
DVD has to be inserted.
Voice output, function GF82.85-P-3001GI
Guidance in non-digitized
map area, function GF82.61-P-4001GI

2001 Mercedes-Benz ML320
1998-2005 ACCESSORIES & BODY, CAB Electrical System - Body - 163 Chassis
me
Saturday, October 02, 2010 3:30:05 PMPage 94 © 2006 Mitchell Repair Information Company, LLC.

Page 1590 of 4133

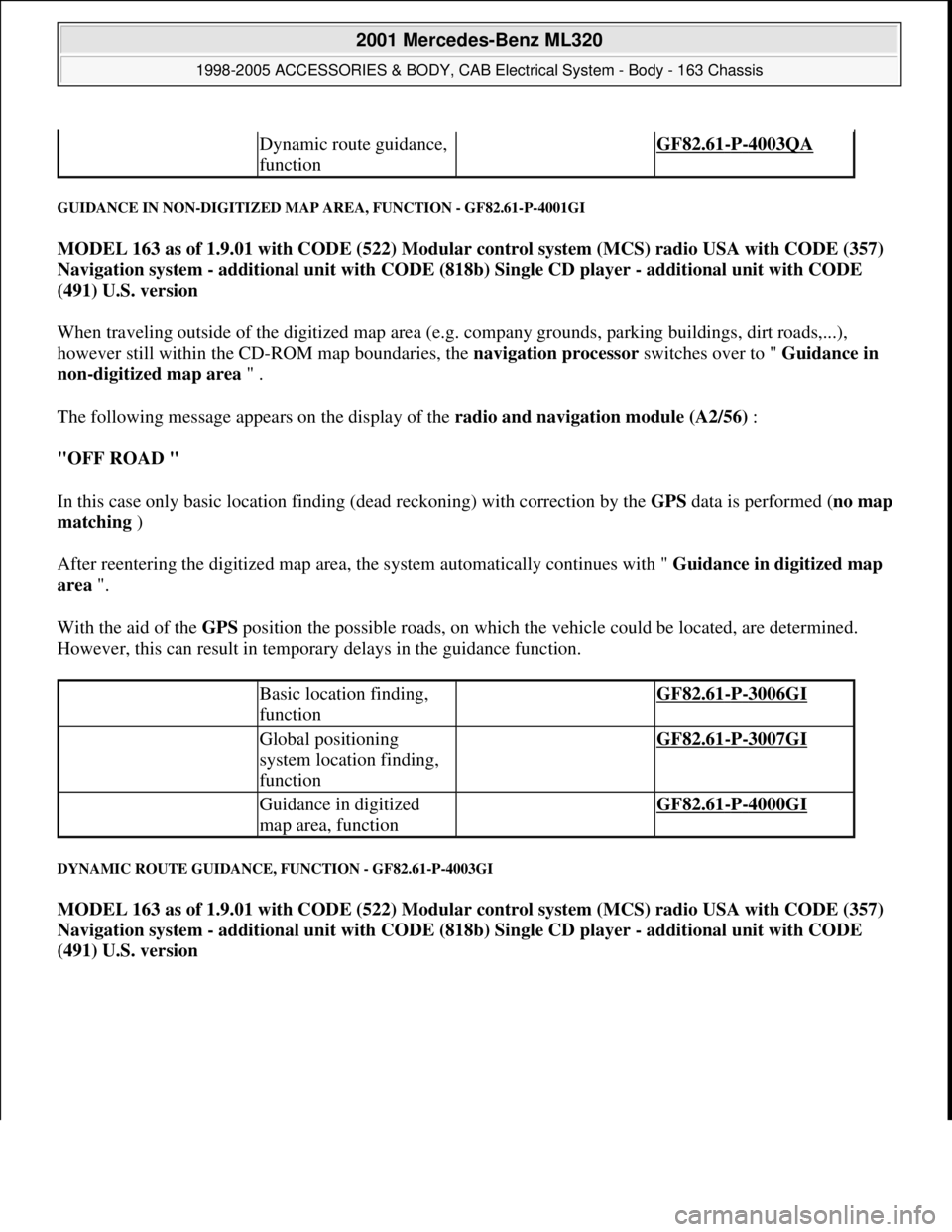

MERCEDES-BENZ ML320 1997 Complete Repair Manual GUIDANCE IN NON-DIGITIZED MAP AREA, FUNCTION - GF82.61-P-4001GI
MODEL 163 as of 1.9.01 with CODE (522) Modular control system (MCS) radio USA with CODE (357)
Navigation system - additional unit with

Page 1591 of 4133

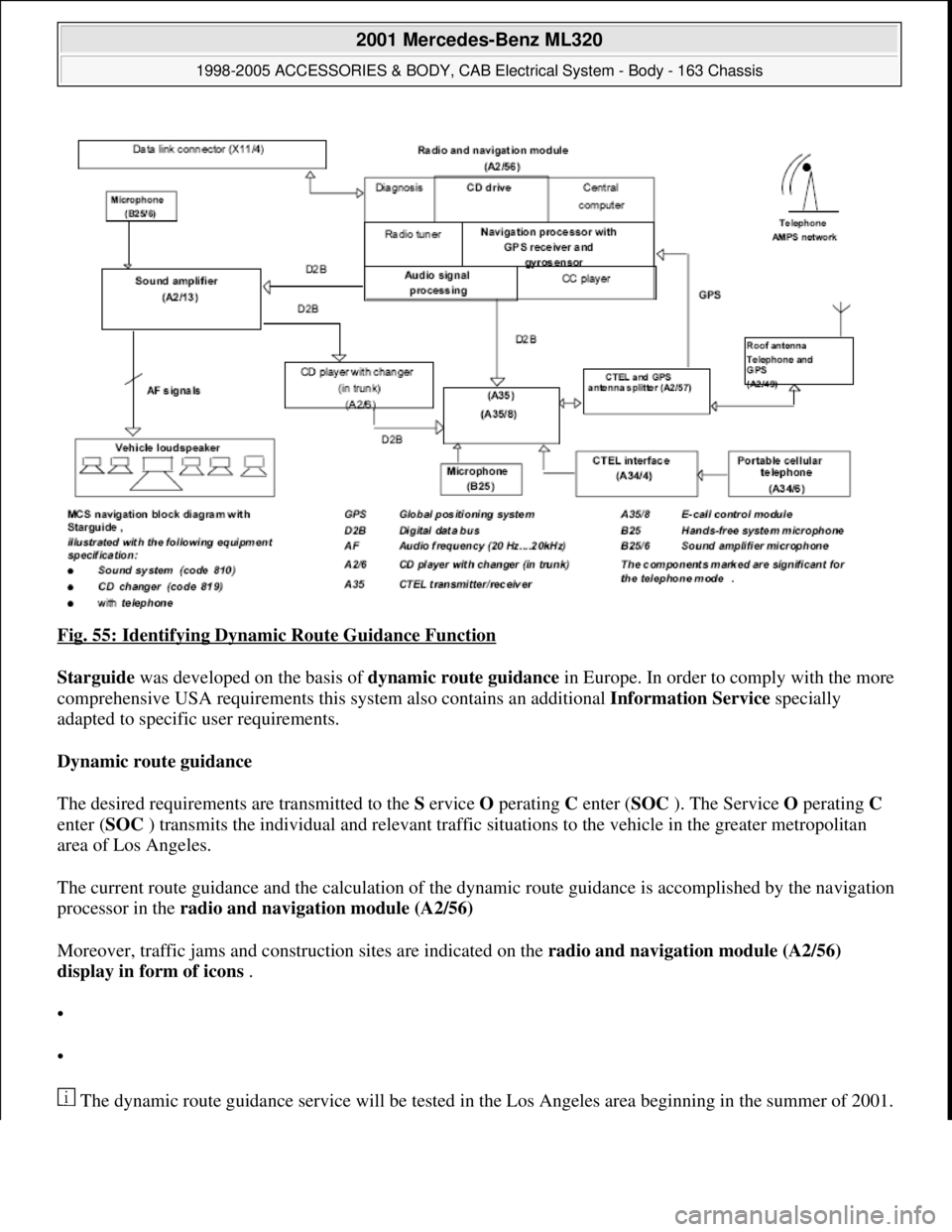

MERCEDES-BENZ ML320 1997 Complete Repair Manual Fig. 55: Identifying Dynamic Route Guidance Function
Starguide was developed on the basis of dynamic route guidancein Europe. In order to comply with the more
comprehensive USA requirements this sys

Page 1592 of 4133

MERCEDES-BENZ ML320 1997 Complete Repair Manual DYNAMIC ROUTE GUIDANCE, FUNCTION - GF82.61-P-4003QA
MODEL 163, 168, 170, 203.0 /2 /7, 208, 209.3 /4, 210 with CODE (353) Audio 30 APS
The current traffic situation is taken into consideration in th

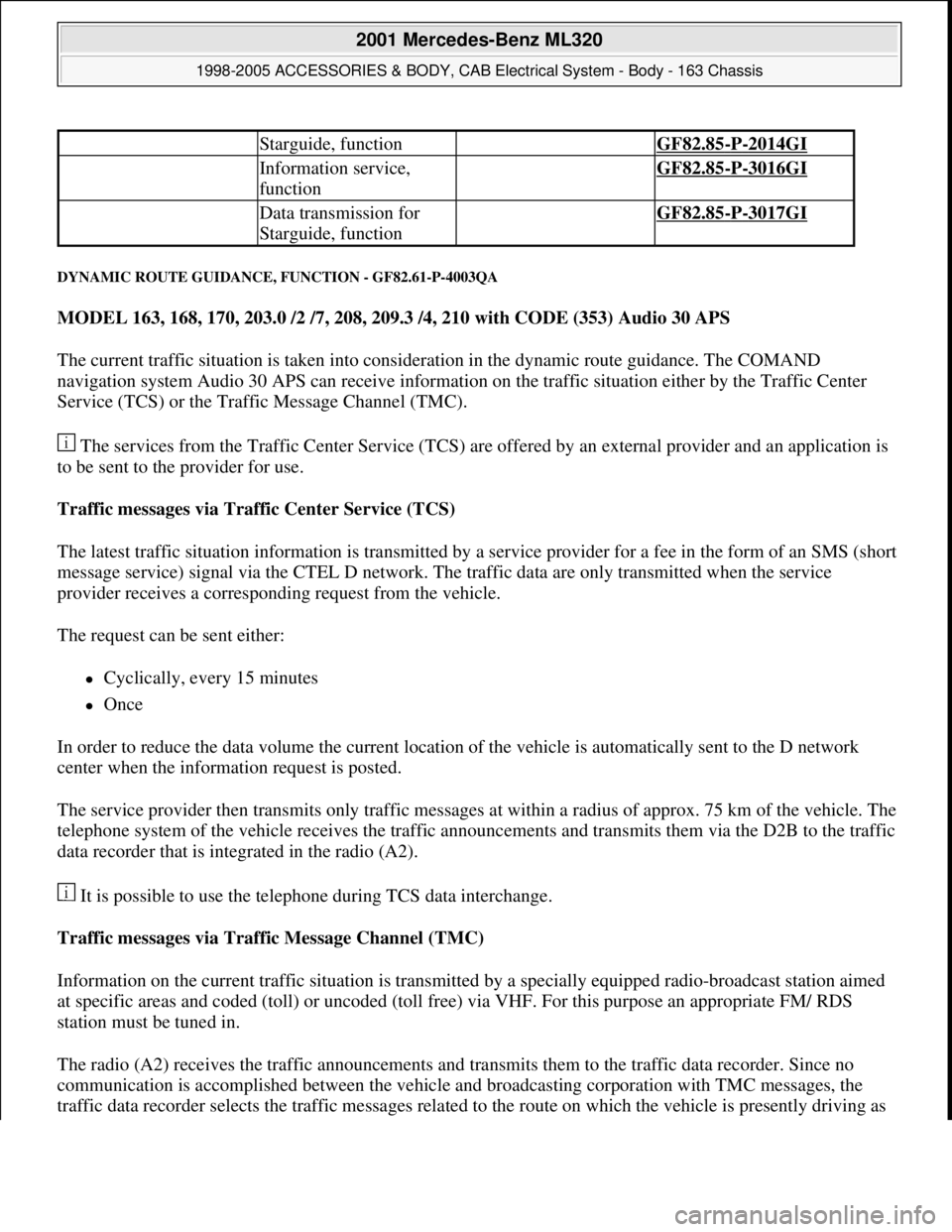

DYNAMIC ROUTE GUIDANCE, FUNCTION - GF82.61-P-4003QA
MODEL 163, 168, 170, 203.0 /2 /7, 208, 209.3 /4, 210 with CODE (353) Audio 30 APS
The current traffic situation is taken into consideration in the dynamic route guidance. The COMAND
navigation system Audio 30 APS can receive information on the traffic situation either by the Traffic Center
Service (TCS) or the Traffic Message Channel (TMC).
The services from the Traffic Center Service (TCS) are offered by an external provider and an application is
to be sent to the provider for use.
Traffic messages via Traffic Center Service (TCS)
The latest traffic situation information is transmitted by a service provider for a fee in the form of an SMS (short
message service) signal via the CTEL D network. The traffic data are only transmitted when the service
provider receives a corresponding request from the vehicle.
The request can be sent either:
Cyclically, every 15 minutes
Once
In order to reduce the data volume the current location of the vehicle is automatically sent to the D network
center when the information request is posted.
The service provider then transmits only traffic messages at within a radius of approx. 75 km of the vehicle. The
telephone system of the vehicle receives the traffic announcements and transmits them via the D2B to the traffic
data recorder that is integrated in the radio (A2).
It is possible to use the telephone during TCS data interchange.
Traffic messages via Traffic Message Channel (TMC)
Information on the current traffic situation is transmitted by a specially equipped radio-broadcast station aimed
at specific areas and coded (toll) or uncoded (toll free) via VHF. For this purpose an appropriate FM/ RDS
station must be tuned in.
The radio (A2) receives the traffic announcements and transmits them to the traffic data recorder. Since no
communication is accomplished between the vehicle and broadcasting corporation with TMC messages, the
traffic data recorder selects the traffic messa
ges related to the route on which the vehicle is presently driving as
Starguide, function GF82.85-P-2014GI
Information service,
function GF82.85-P-3016GI
Data transmission for
Starguide, function GF82.85-P-3017GI

2001 Mercedes-Benz ML320
1998-2005 ACCESSORIES & BODY, CAB Electrical System - Body - 163 Chassis
me
Saturday, October 02, 2010 3:30:05 PMPage 97 © 2006 Mitchell Repair Information Company, LLC.
