Page 3273 of 4133

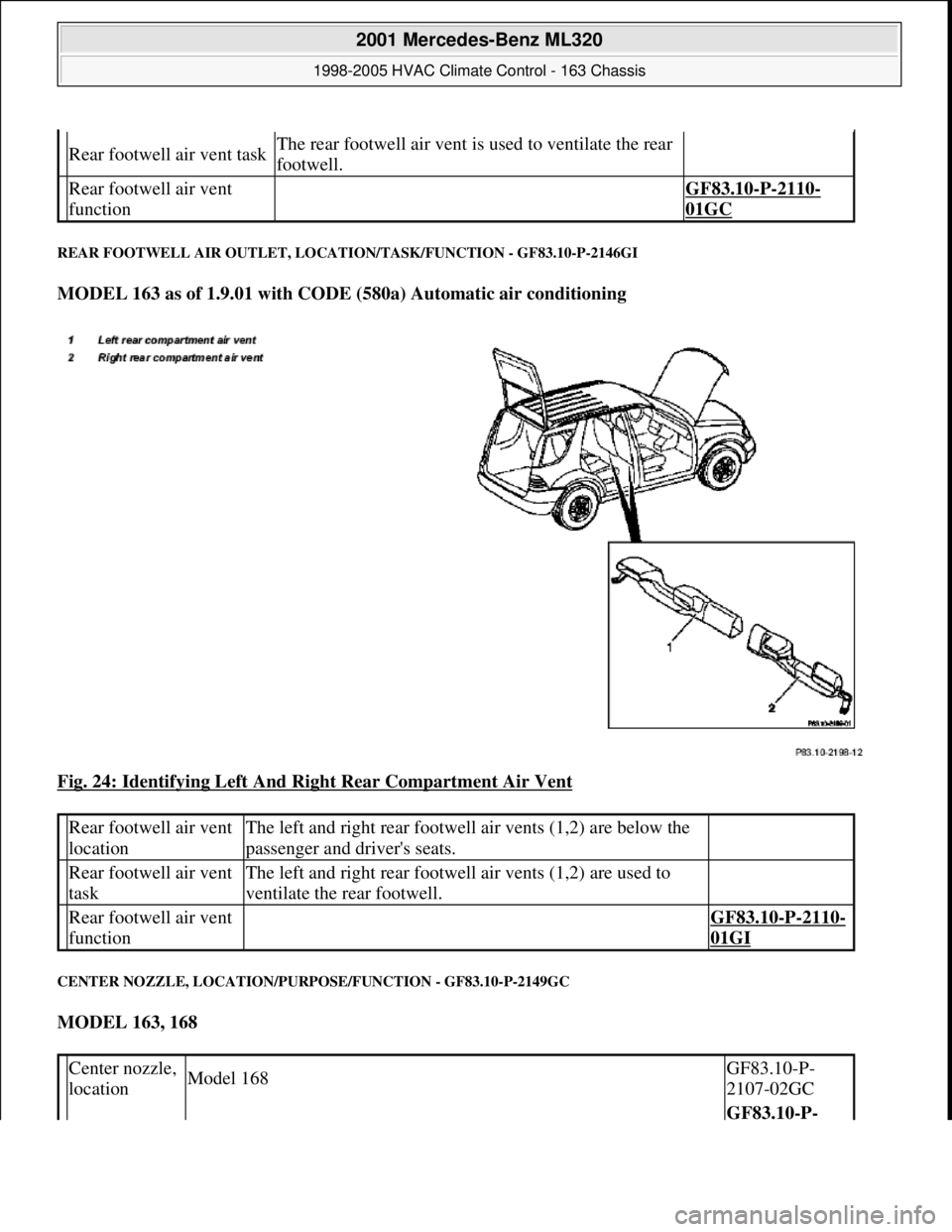

MERCEDES-BENZ ML320 1997 Complete Repair Manual REAR FOOTWELL AIR OUTLET, LOCATION/TASK/FUNCTION - GF83.10-P-2146GI MODEL 163 as of 1.9.01 with CODE (580a) Automatic air conditioning Fig. 24: Identifying Left And Right Rear Compartment Air Vent

Page 3274 of 4133

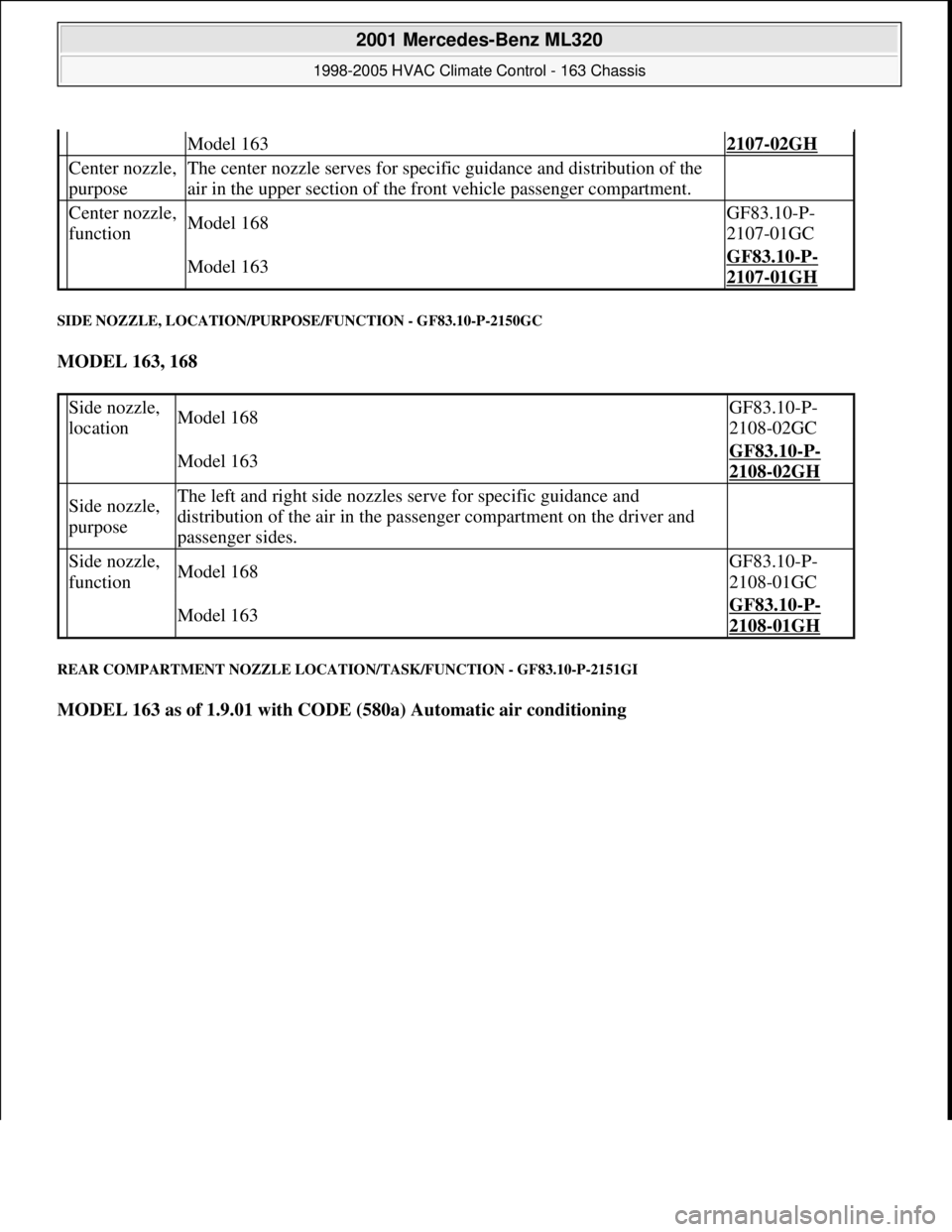

MERCEDES-BENZ ML320 1997 Complete Repair Manual SIDE NOZZLE, LOCATION/PURPOSE/FUNCTION - GF83.10-P-2150GC MODEL 163, 168 REAR COMPARTMENT NOZZLE LOCATION/TASK/FUNCTION - GF83.10-P-2151GI MODEL 163 as of 1.9.01 with CODE (580a) Automatic air con

Page 3275 of 4133

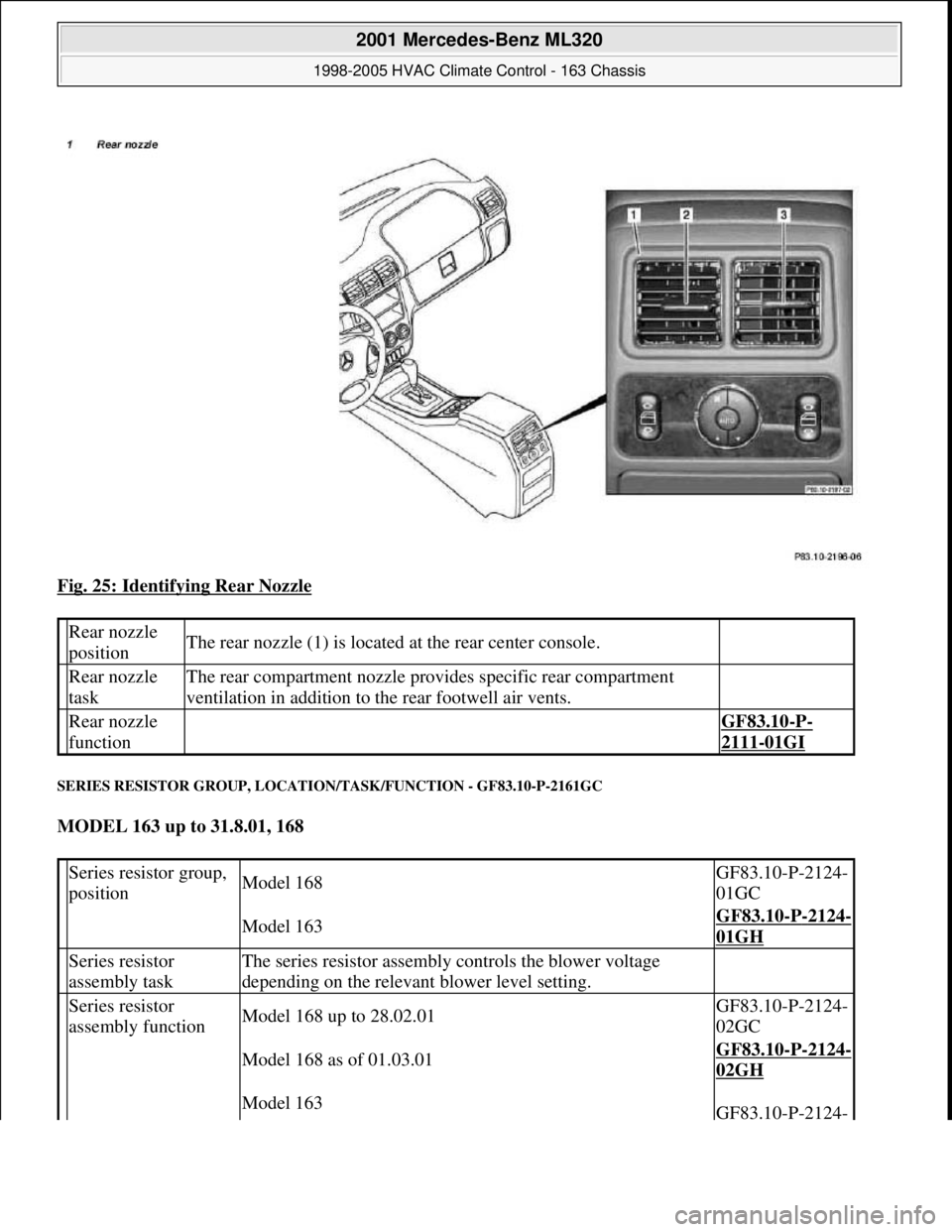

MERCEDES-BENZ ML320 1997 Complete Repair Manual Fig. 25: Identifying Rear Nozzle SERIES RESISTOR GROUP, LOCATION/TASK/FUNCTION - GF83.10-P-2161GC MODEL 163 up to 31.8.01, 168 Rear nozzle positionThe rear nozzle (1) is located at the rear cent

Page 3276 of 4133

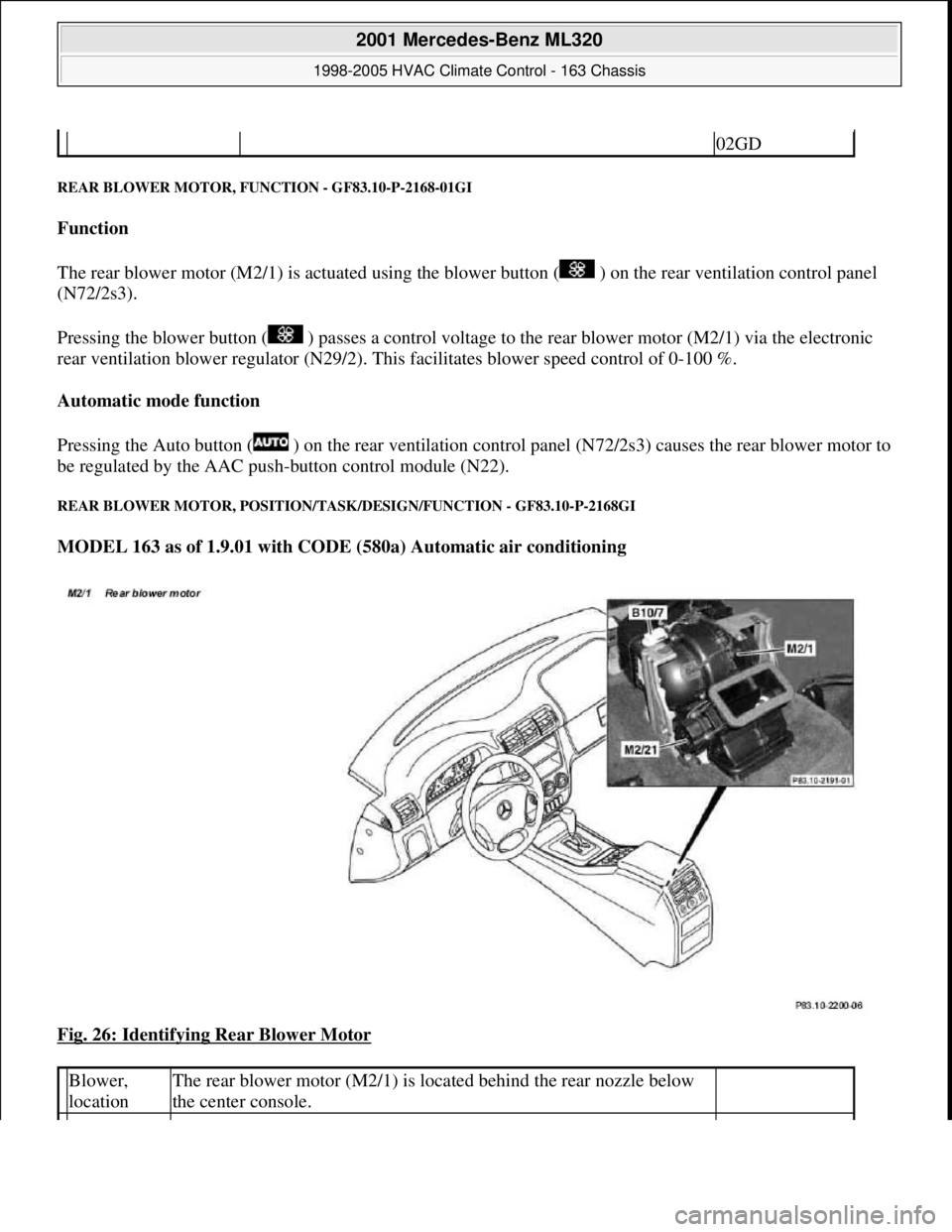

MERCEDES-BENZ ML320 1997 Complete Repair Manual REAR BLOWER MOTOR, FU NCTION - GF83.10-P-2168-01GI Function The rear blower motor (M2/1) is actuated using the bl ower button ( ) on the rear ventilation control panel (N72/2s3). Pressing th

Page 3277 of 4133

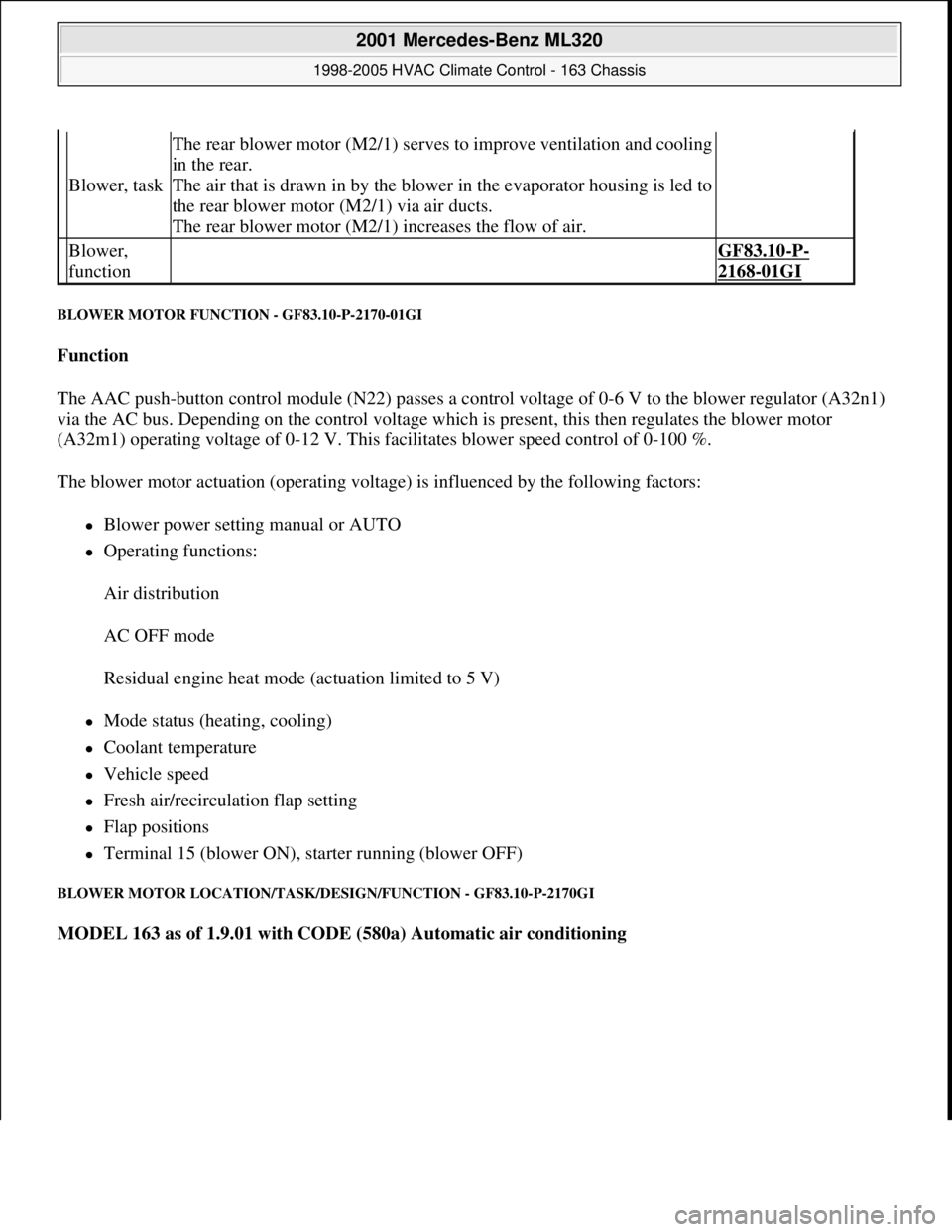

MERCEDES-BENZ ML320 1997 Complete Repair Manual BLOWER MOTOR FUNCTION - GF83.10-P-2170-01GI Function The AAC push-button control module (N22) passes a control voltage of 0-6 V to the blower regulator (A32n1) via the AC bus. Depending on the con

Page 3278 of 4133

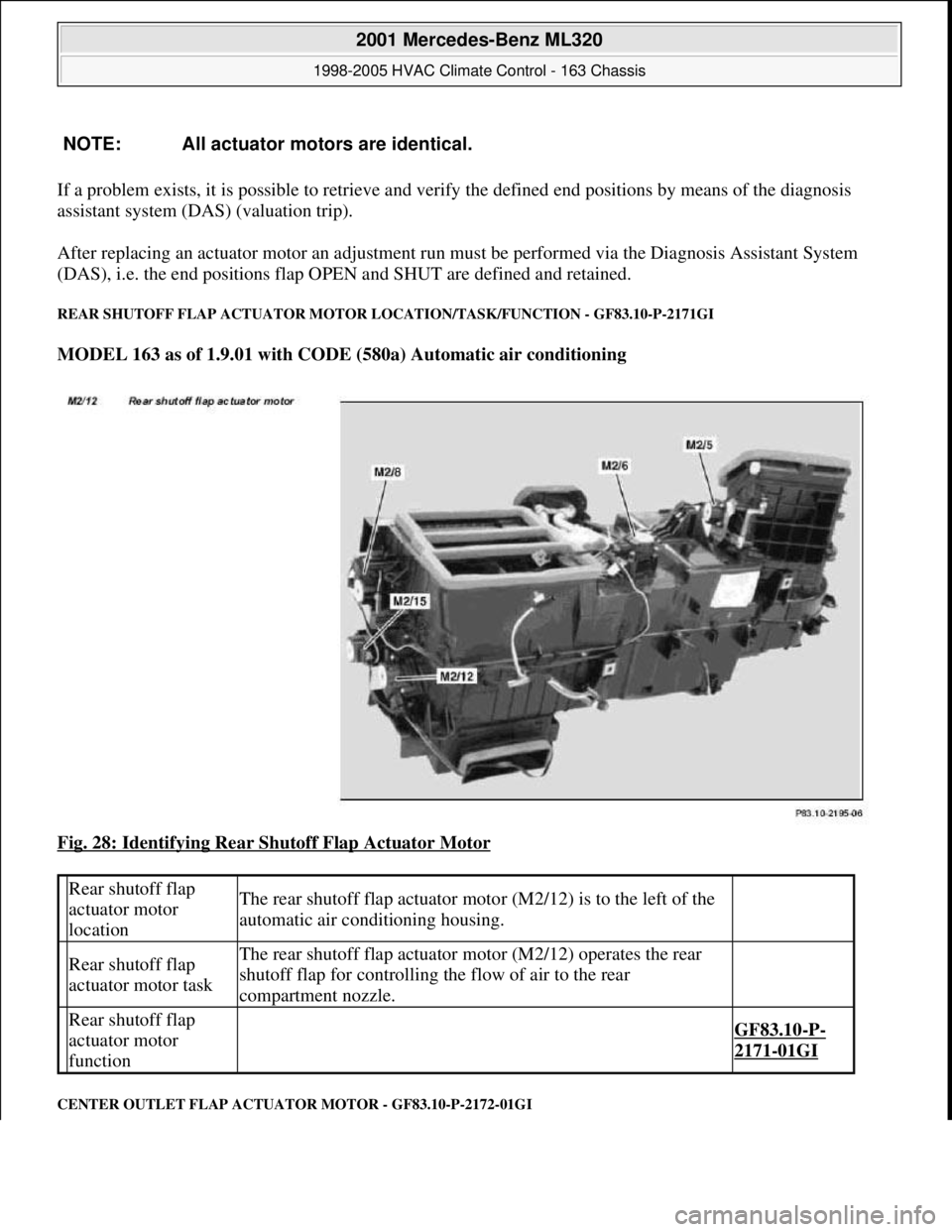

MERCEDES-BENZ ML320 1997 Complete Repair Manual Fig. 27: Identifying Blower Motor REAR SHUTOFF FLAP ACTUATOR MOTOR FUNCTION - GF83.10-P-2171-01GI Function Pressing the rear compartment air distribution button ( ) on the AAC push-button control

Page 3279 of 4133

MERCEDES-BENZ ML320 1997 Complete Repair Manual If a problem exists, it is possible to retrieve and verify the defined end positions by means of the diagnosis assistant system (DAS) (valuation trip). After replacing an actuator motor an adjustmen

Page 3280 of 4133

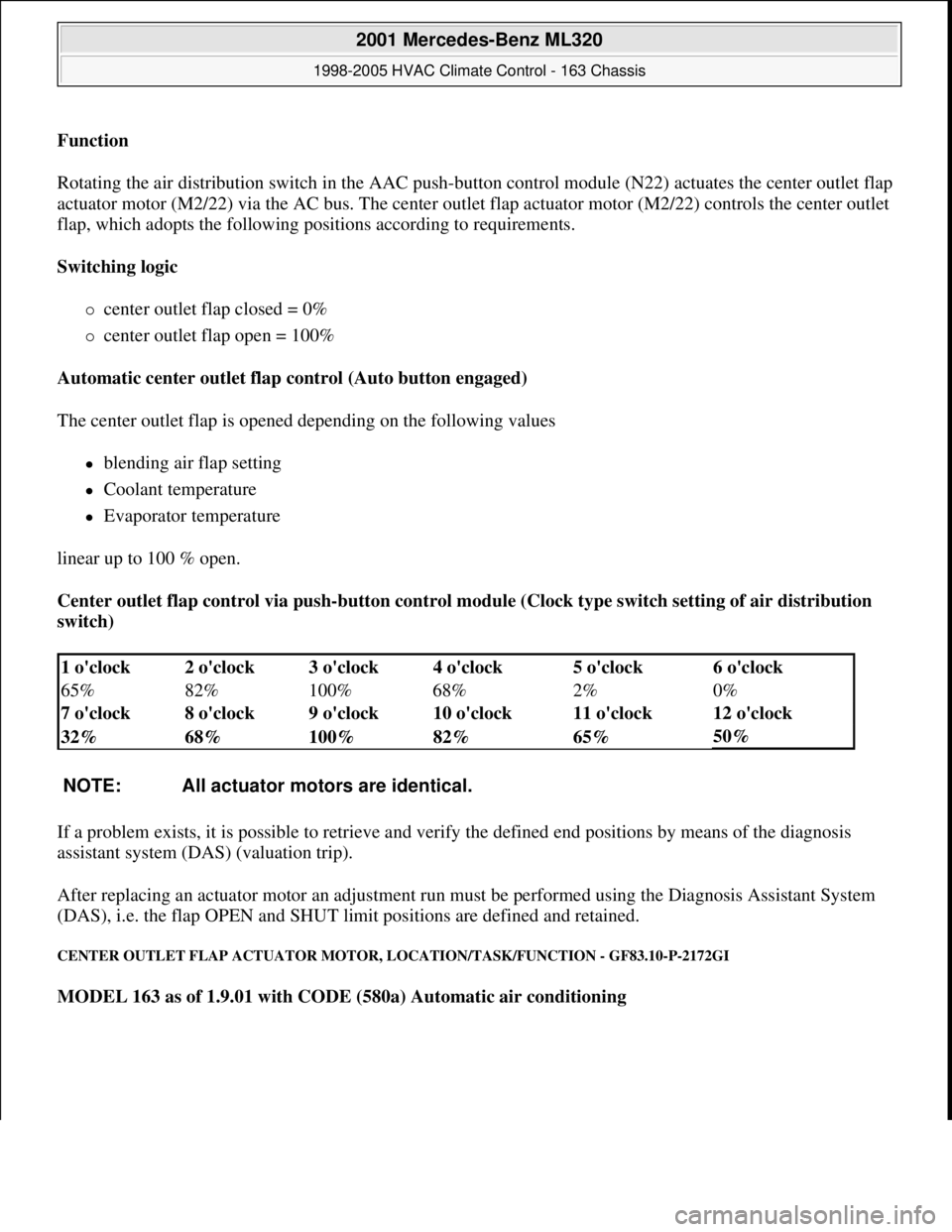

MERCEDES-BENZ ML320 1997 Complete Repair Manual Function Rotating the air distribution switch in the AAC push- button control module (N22) actuates the center outlet flap actuator motor (M2/22) via the AC bus. The center outlet flap actuator mot
