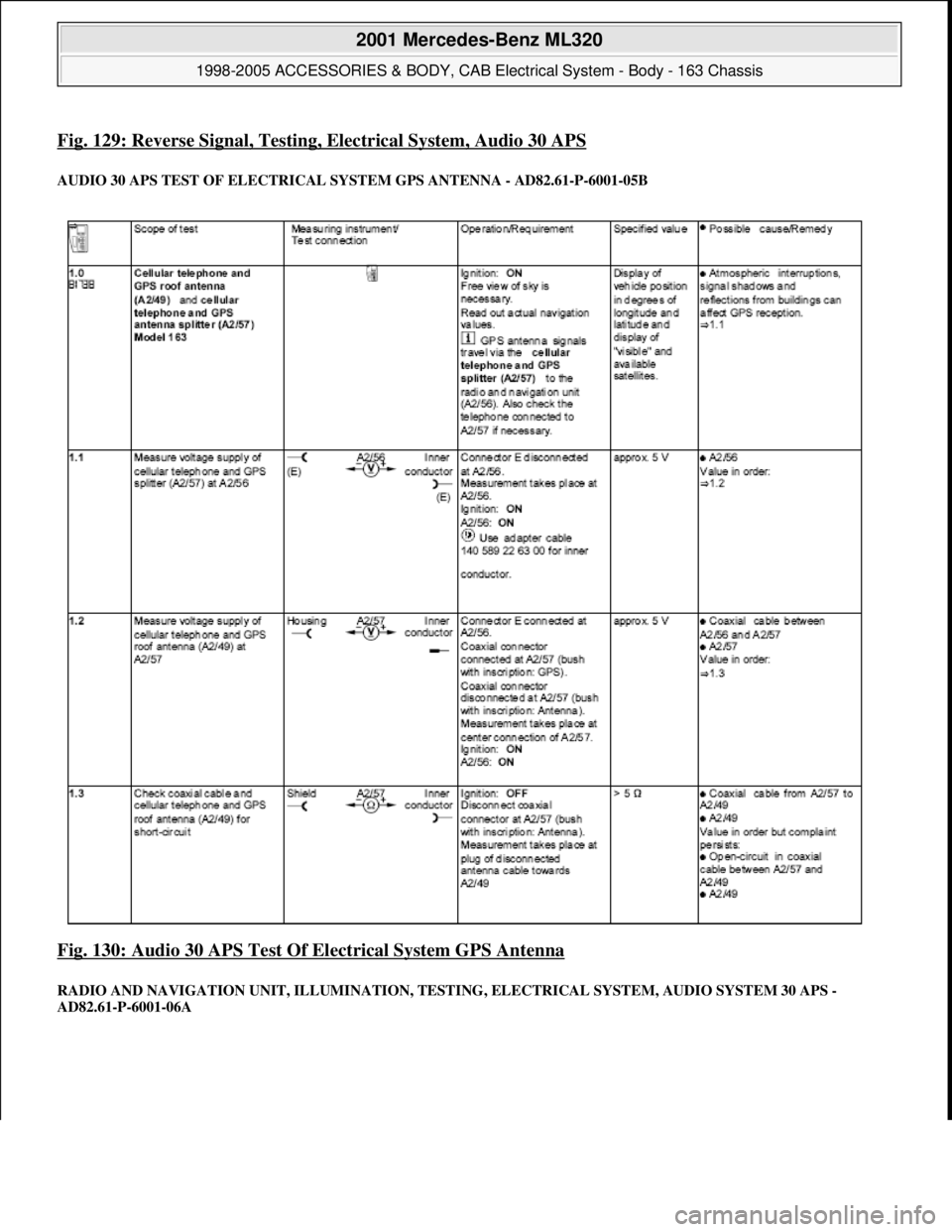

MERCEDES-BENZ ML320 1997 Complete Repair Manual Fig. 129: Reverse Signal, Testing, Electrical System, Audio 30 APS AUDIO 30 APS TEST OF ELECTRICAL SYSTEM GPS ANTENNA - AD82.61-P-6001-05B Fig. 130: Audio 30 APS Test Of Electrical System GPS Antenna

Page 1722 of 4133

MERCEDES-BENZ ML320 1997 Complete Repair Manual Fig. 131: Radio And Navigation Unit, Illumination, Testing, Electrical System, Audio System 30 APS AUDIO 30 APS, TESTING, ELECTRICAL SYSTEM - AD82.61-P-6001A MODEL 163,168,170, 208, 210 with CODE (3

Page 1723 of 4133

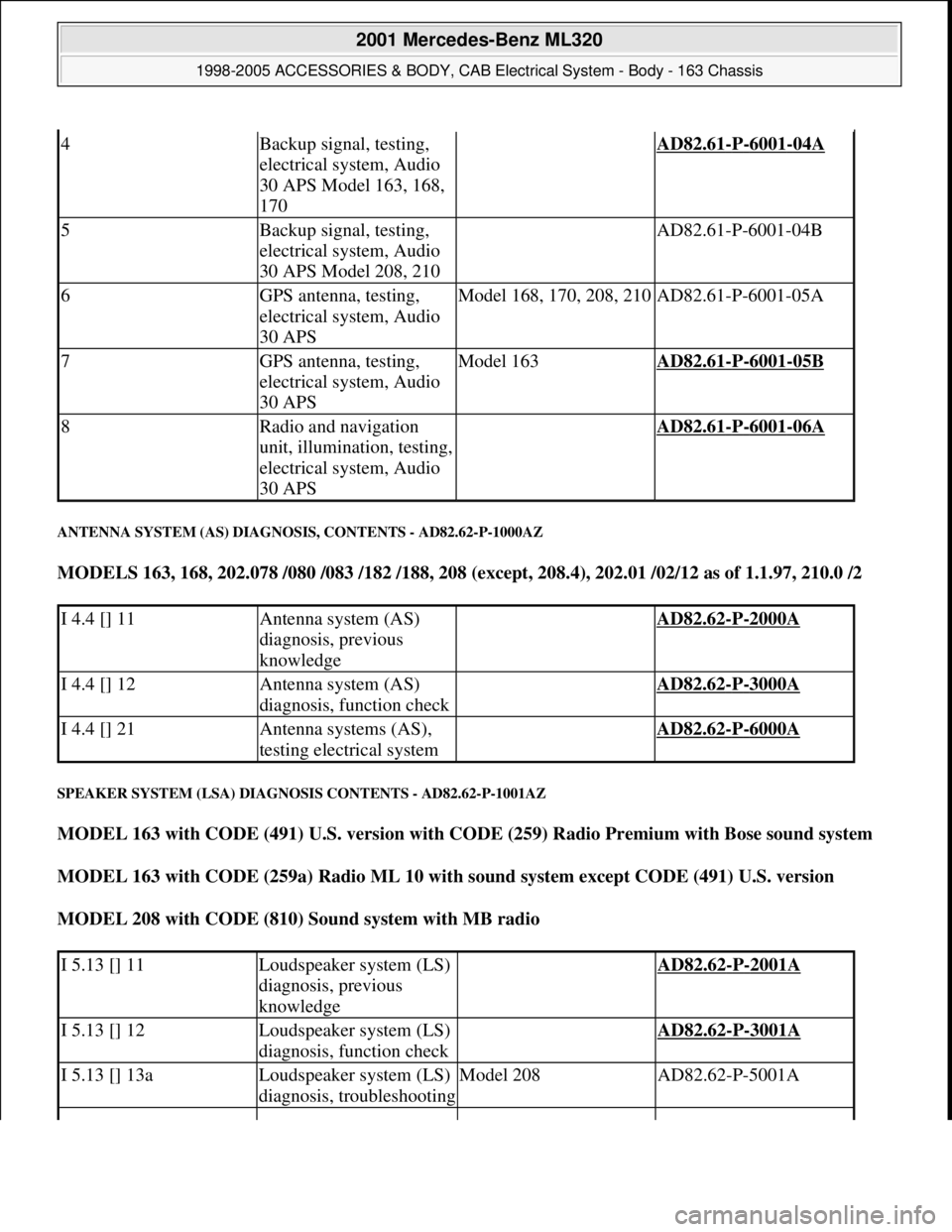

MERCEDES-BENZ ML320 1997 Complete Repair Manual ANTENNA SYSTEM (AS) DIAGNOSIS, CONTENTS - AD82.62-P-1000AZ MODELS 163, 168, 202.078 /080 /083 /182 /188, 208 (except, 208.4), 202.01 /02/12 as of 1.1.97, 210.0 /2 SPEAKER SYSTEM (LSA) DIAGNOSIS CON

Page 1724 of 4133

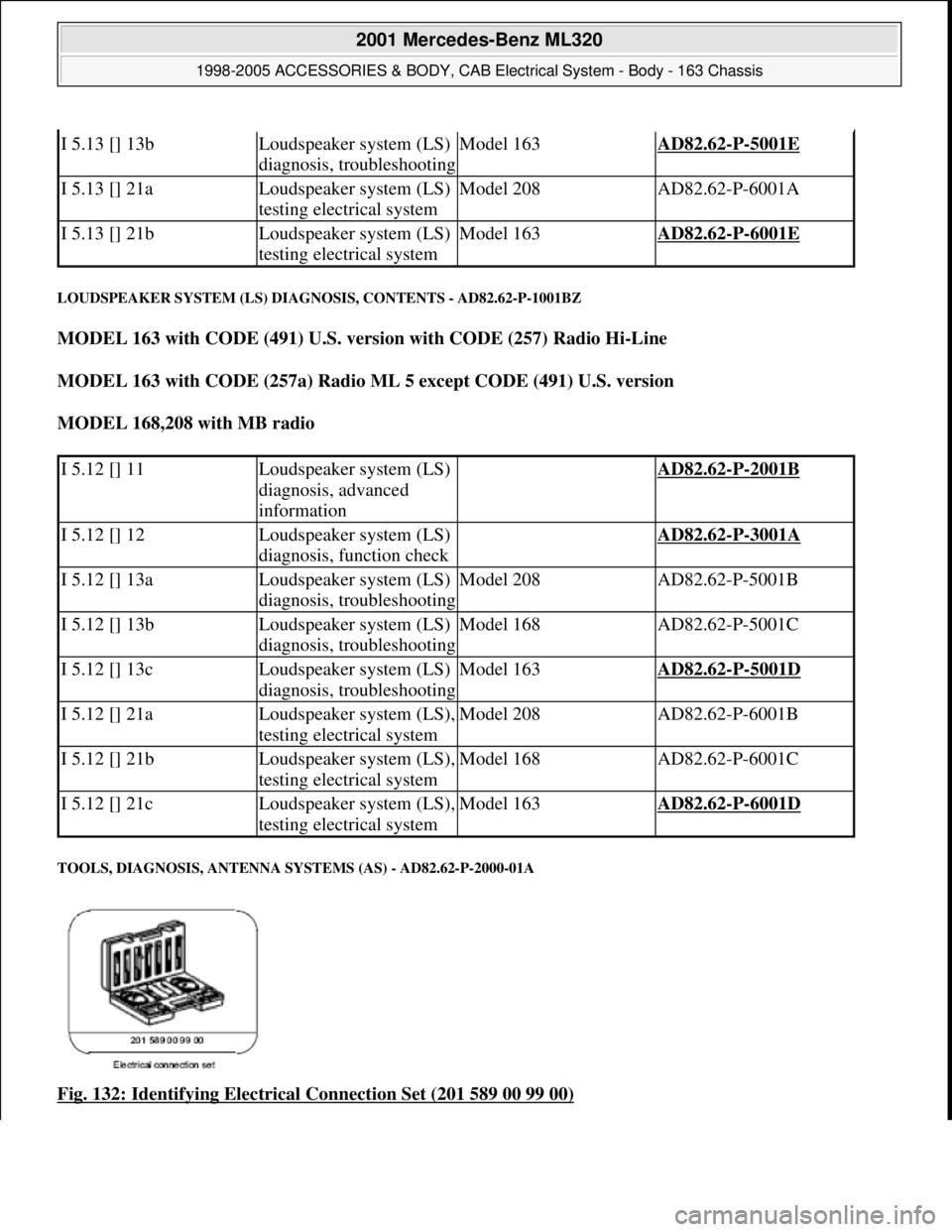

MERCEDES-BENZ ML320 1997 Complete Repair Manual LOUDSPEAKER SYSTEM (LS) DIAGNOSIS, CONTENTS - AD82.62-P-1001BZ MODEL 163 with CODE (491) U.S. version with CODE (257) Radio Hi-Line MODEL 163 with CODE (257a) Radio ML 5 except CODE (491) U.S. vers

Page 1725 of 4133

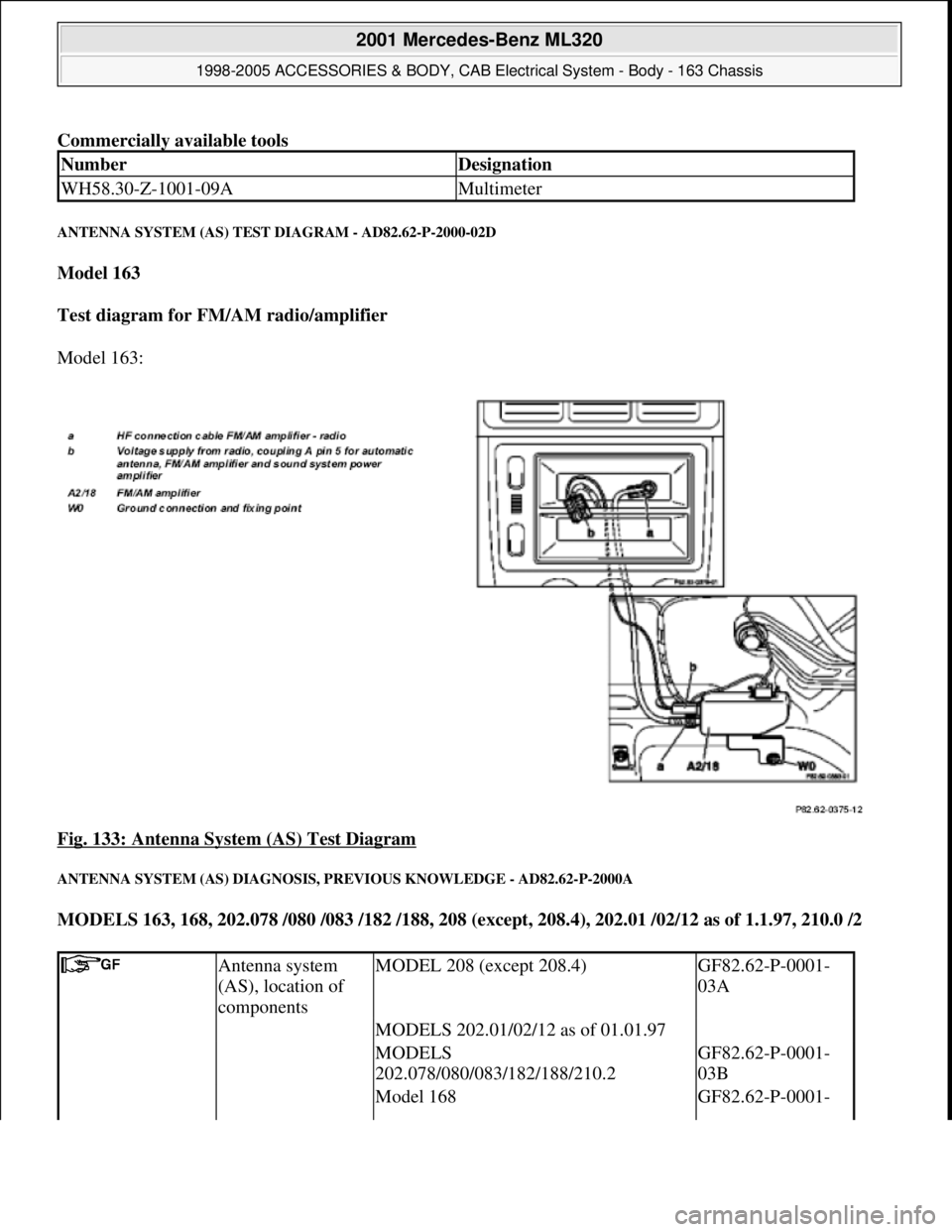

MERCEDES-BENZ ML320 1997 Complete Repair Manual Commercially available tools ANTENNA SYSTEM (AS) TEST DIAGRAM - AD82.62-P-2000-02D Model 163 Test diagram for FM/AM radio/amplifier Model 163: Fig. 133: Antenna System (AS) Test Diagram ANTEN

Page 1726 of 4133

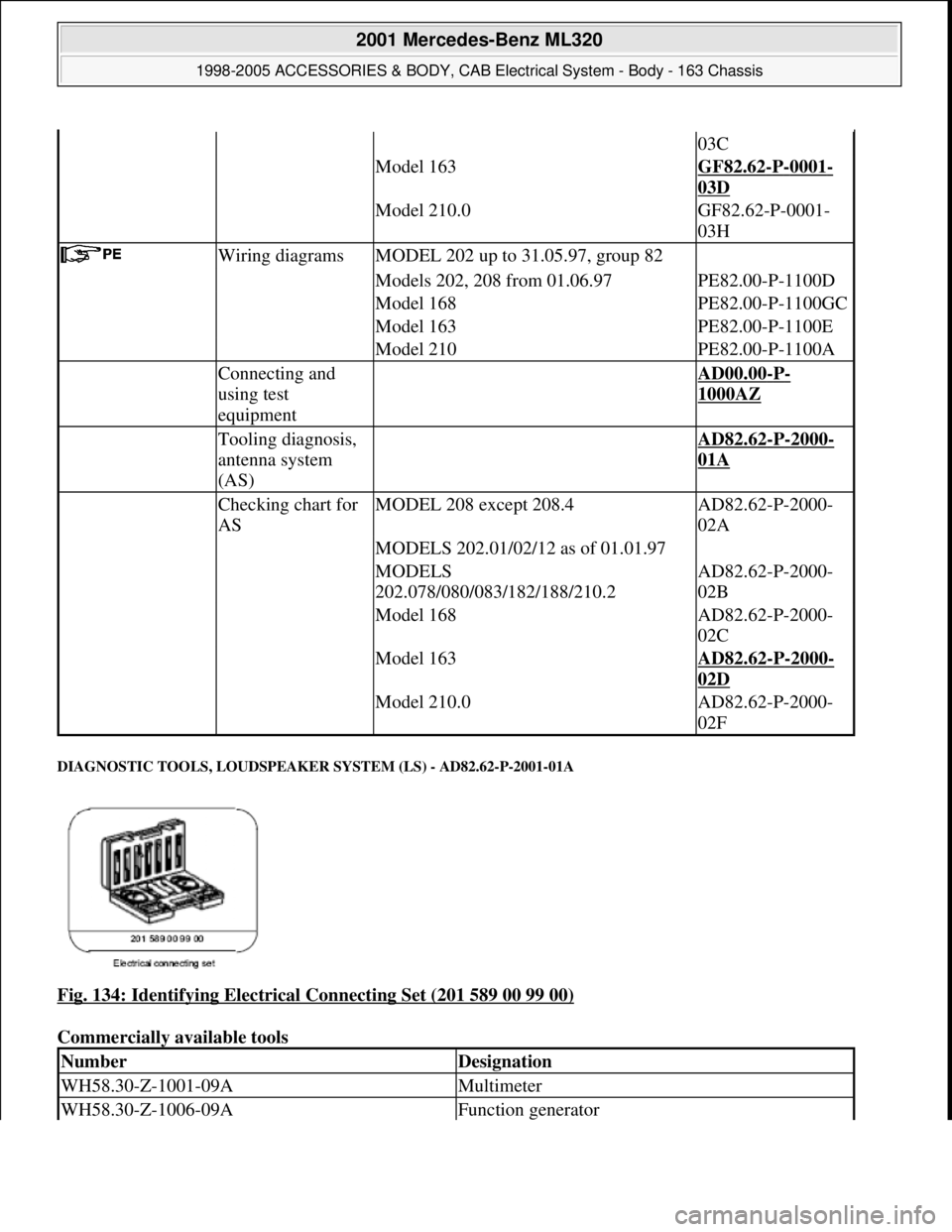

MERCEDES-BENZ ML320 1997 Complete Repair Manual DIAGNOSTIC TOOLS, LOUDSPEAKER SYSTEM (LS) - AD82.62-P-2001-01A Fig. 134: Identifying Electrical Connecting Set (201 589 00 99 00) Commercially available tools 03C Model 163GF82.62-P-0001- 03D M

Page 1727 of 4133

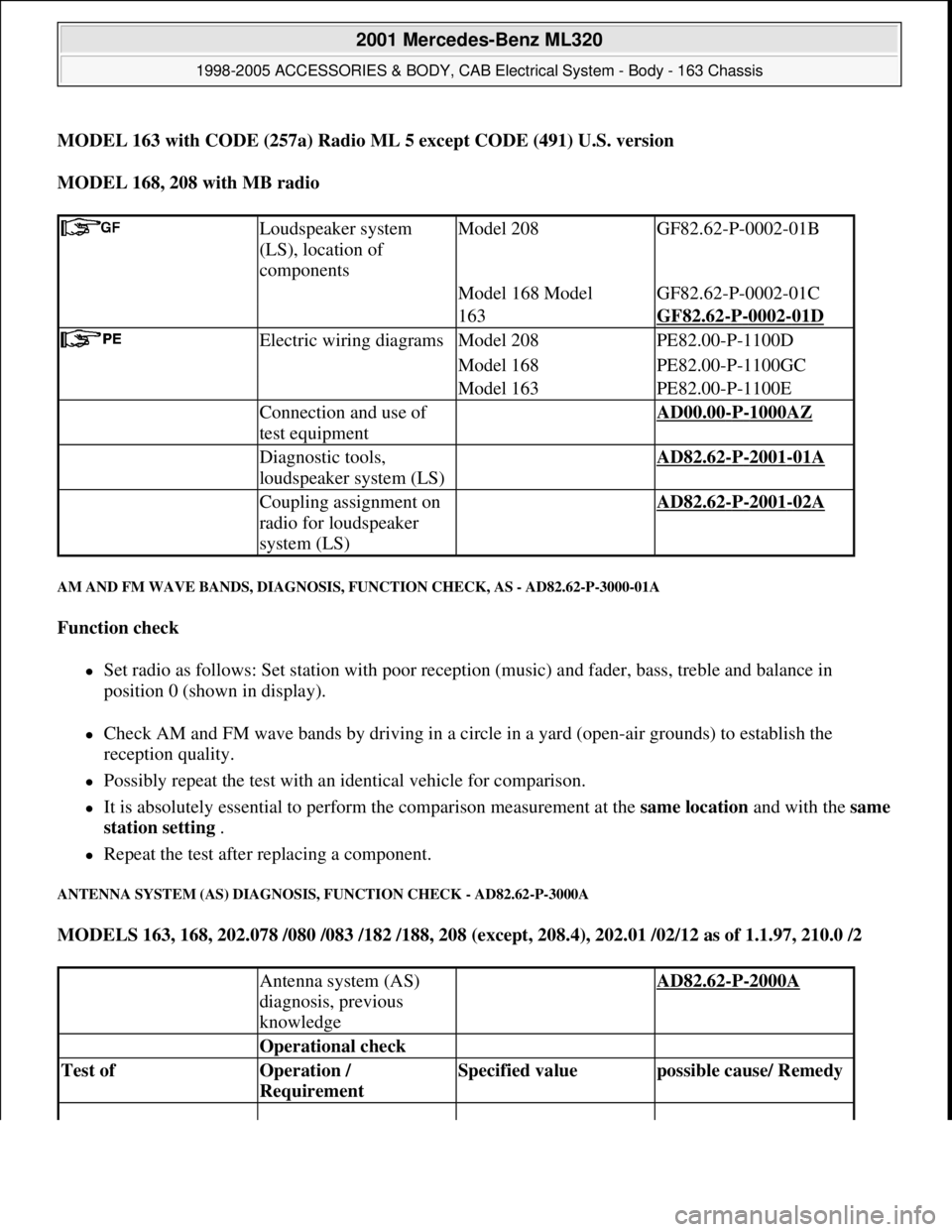

MERCEDES-BENZ ML320 1997 Complete Repair Manual COUPLING ASSIGNMENT ON RADIO FOR LOUDSPEAKER SYSTEM (LS) - AD82.62-P-2001-02A All MB radios Coupling B Fig. 135: Identifying Coupling Assignment On Radio For Loudspeaker System (LS) LOUDSPEAKER

Page 1728 of 4133

MERCEDES-BENZ ML320 1997 Complete Repair Manual MODEL 163 with CODE (257a) Radio ML 5 except CODE (491) U.S. version MODEL 168, 208 with MB radio AM AND FM WAVE BANDS, DIAGNOSIS, FUNCTION CHECK, AS - AD82.62-P-3000-01A Function check Set
