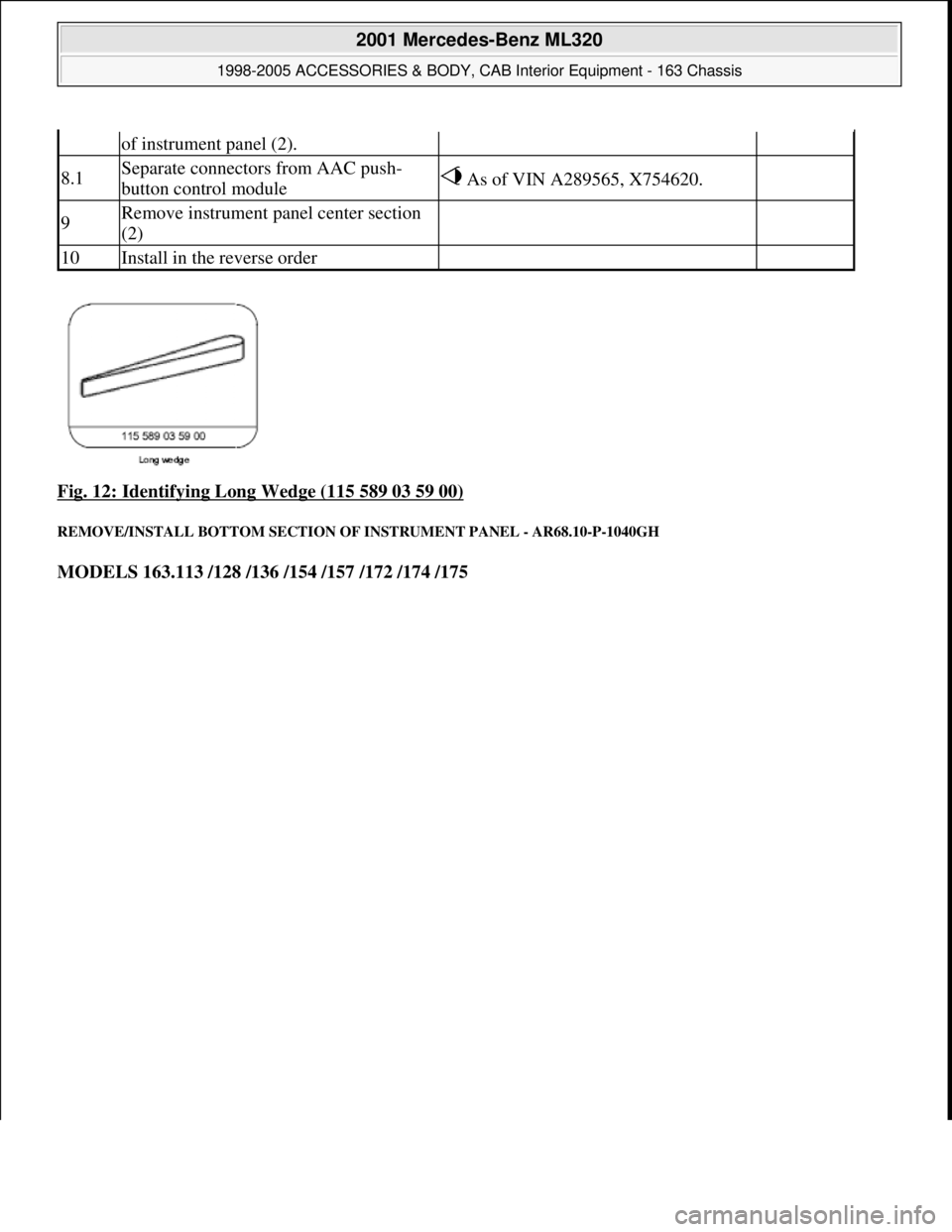

Fig. 12: Identifying Long Wedge (115 589 03 59 00)
REMOVE/INSTALL BOTTOM SECTION OF INSTRUMENT PANEL - AR68.10-P-1040GH
MODELS 163.113 /128 /136 /154 /157 /172 /174 /175
of instrument panel (2).
8.1Separate connectors from AAC push-
button control module As of VIN A289565, X754620.
9Remove instrument panel center section
(2)
10Install in the reverse order

2001 Mercedes-Benz ML320
1998-2005 ACCESSORIES & BODY, CAB Interior Equipment - 163 Chassis
me
Saturday, October 02, 2010 3:35:21 PMPage 19 © 2006 Mitchell Repair Information Company, LLC.


        Page 3538 of 4133

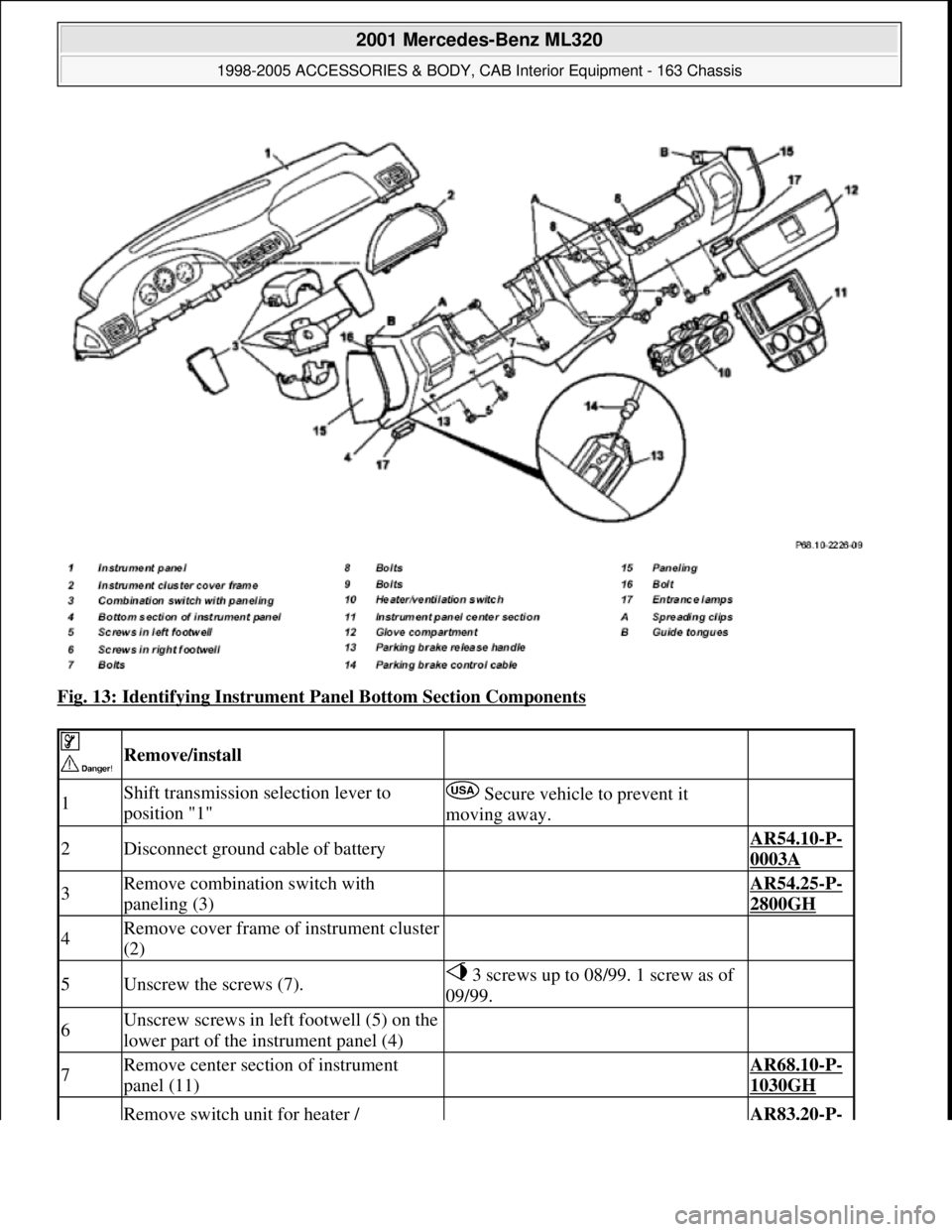

Fig. 13: Identifying Instrument Panel Bottom Section Components

 Remove/install
1Shift transmission selection lever to
position "1" Secure vehicle to prevent it
moving away.
2Disconnect ground cable of battery AR54.10-P-
0003A
3Remove combination switch with
paneling (3) AR54.25-P-
2800GH
4Remove cover frame of instrument cluster
(2)
5Unscrew the screws (7). 3 screws up to 08/99. 1 screw as of
09/99.
6Unscrew screws in left footwell (5) on the
lower part of the instrument panel (4)
7Remove center section of instrument
panel (11) AR68.10-P-
1030GH
Remove switch unit for heater / AR83.20-P-

2001 Mercedes-Benz ML320
1998-2005 ACCESSORIES & BODY, CAB Interior Equipment - 163 Chassis
me
Saturday, October 02, 2010 3:35:21 PMPage 20 © 2006 Mitchell Repair Information Company, LLC.


        Page 3539 of 4133

REMOVING AND INSTALLING SIDE AIR NOZZLE - AR68.10-P-1100GH
MODELS 163.113 /128 /136 /154 /157 /172 /174 /175

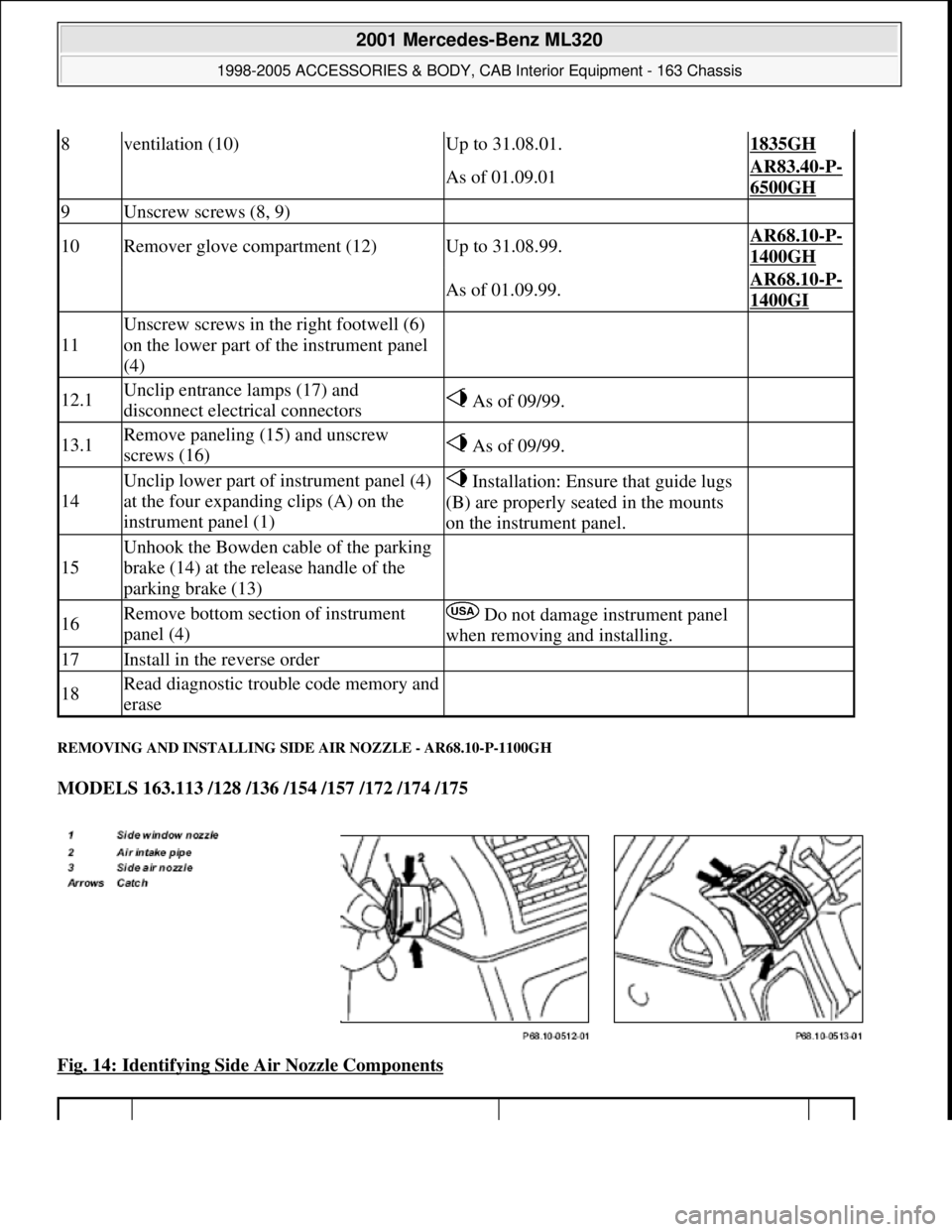

Fig. 14: Identifying Side Air Nozzle Components

8ventilation (10)Up to 31.08.01.1835GH
  As of 01.09.01AR83.40-P-
6500GH
9Unscrew screws (8, 9)
10Remover glove compartment (12)Up to 31.08.99.AR68.10-P-
1400GH
  As of 01.09.99.AR68.10-P-
1400GI
11
Unscrew screws in the right footwell (6)
on the lower part of the instrument panel
(4)

12.1Unclip entrance lamps (17) and
disconnect electrical connectors As of 09/99.
13.1Remove paneling (15) and unscrew
screws (16) As of 09/99.
14
Unclip lower part of instrument panel (4)
at the four expanding clips (A) on the
instrument panel (1) Installation: Ensure that guide lugs
(B) are properly seated in the mounts
on the instrument panel.

15
Unhook the Bowden cable of the parking
brake (14) at the release handle of the
parking brake (13)

16Remove bottom section of instrument
panel (4) Do not damage instrument panel
when removing and installing.
17Install in the reverse order
18Read diagnostic trouble code memory and
erase

2001 Mercedes-Benz ML320
1998-2005 ACCESSORIES & BODY, CAB Interior Equipment - 163 Chassis
me
Saturday, October 02, 2010 3:35:21 PMPage 21 © 2006 Mitchell Repair Information Company, LLC.


        Page 3540 of 4133

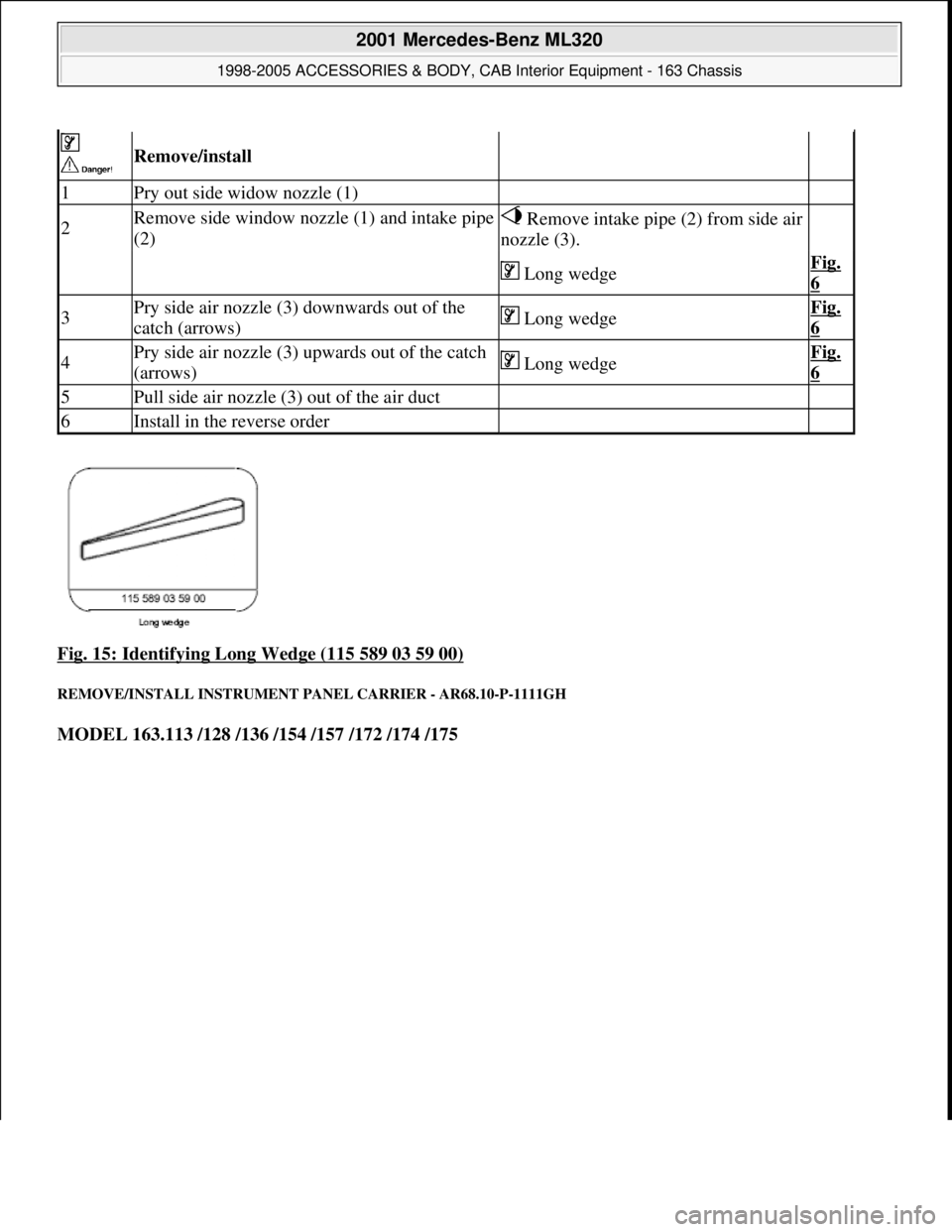

Fig. 15: Identifying Long Wedge (115 589 03 59 00)
REMOVE/INSTALL INSTRUMENT PANEL CARRIER - AR68.10-P-1111GH
MODEL 163.113 /128 /136 /154 /157 /172 /174 /175

 Remove/install
1Pry out side widow nozzle (1)
2Remove side window nozzle (1) and intake pipe
(2) Remove intake pipe (2) from side air
nozzle (3).
   Long wedgeFig.
6
3Pry side air nozzle (3) downwards out of the
catch (arrows) Long wedgeFig.
6
4Pry side air nozzle (3) upwards out of the catch
(arrows) Long wedgeFig.
6
5Pull side air nozzle (3) out of the air duct
6Install in the reverse order

2001 Mercedes-Benz ML320
1998-2005 ACCESSORIES & BODY, CAB Interior Equipment - 163 Chassis
me
Saturday, October 02, 2010 3:35:21 PMPage 22 © 2006 Mitchell Repair Information Company, LLC.


        Page 3541 of 4133

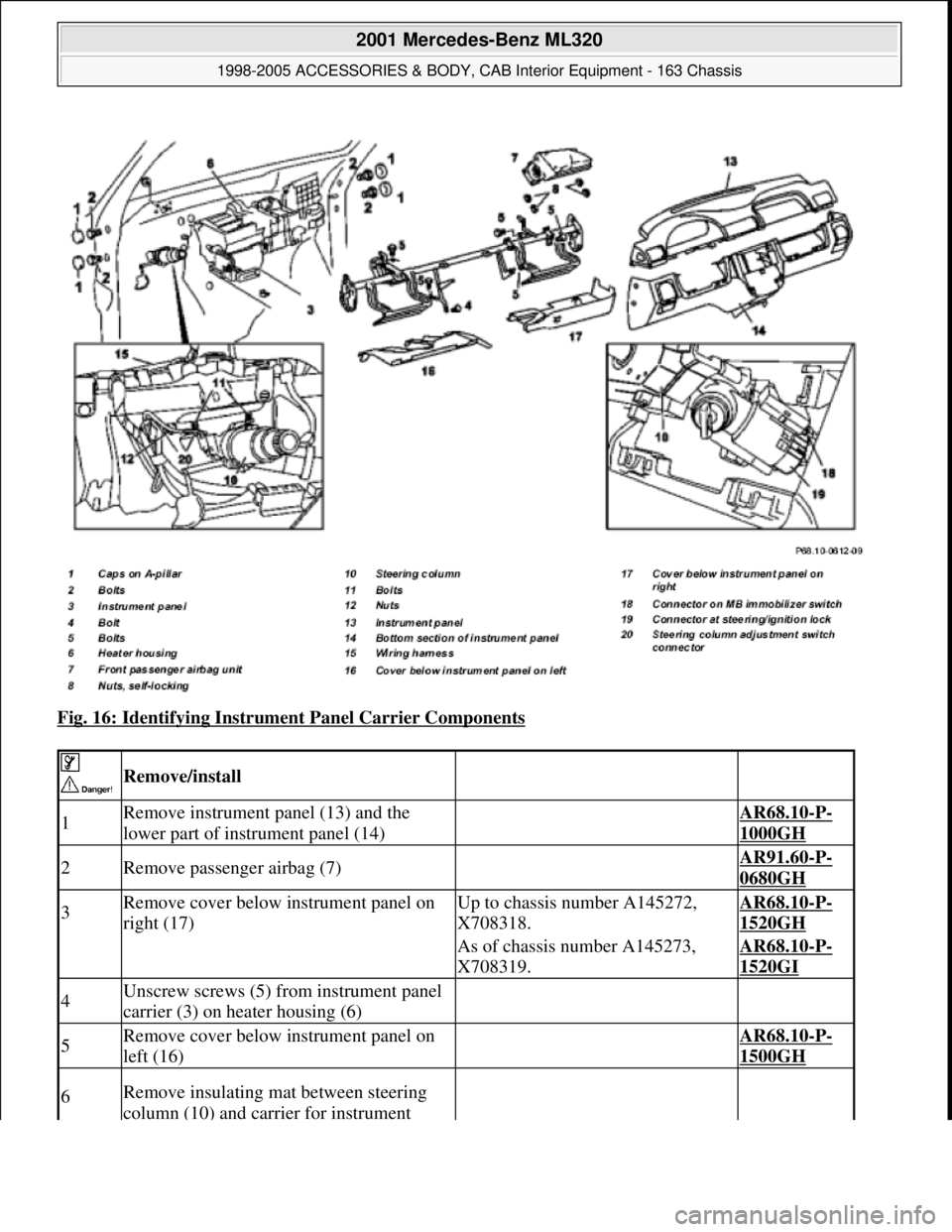

Fig. 16: Identifying Instrument Panel Carrier Components

 Remove/install
1Remove instrument panel (13) and the
lower part of instrument panel (14) AR68.10-P-
1000GH
2Remove passenger airbag (7) AR91.60-P-
0680GH
3Remove cover below instrument panel on
right (17)Up to chassis number A145272,
X708318.AR68.10-P-
1520GH
  As of chassis number A145273,
X708319.AR68.10-P-
1520GI
4Unscrew screws (5) from instrument panel
carrier (3) on heater housing (6)
5Remove cover below instrument panel on
left (16) AR68.10-P-
1500GH
6Remove insulating mat between steering
column (10) and carrier for instrument

2001 Mercedes-Benz ML320
1998-2005 ACCESSORIES & BODY, CAB Interior Equipment - 163 Chassis
me
Saturday, October 02, 2010 3:35:21 PMPage 23 © 2006 Mitchell Repair Information Company, LLC.


        Page 3542 of 4133

 Jacket tube
REMOVING AND INSTALLING CENTER AIR NOZZLE - AR68.10-P-1150GH
MODEL 163.113 /128 /136 /154 /157 /172 /174 /175
panel (3)
7Unscrew screws (11) for steering column
(10) from instrument panel carrier (3) *BA46.10-P-
1006-03C
8Remove nuts (12) for steering column (10)
from instrument panel carrier (3) *BA46.10-P-
1007-03C
9Unscrew screws (4) for instrument panel
carrier (3) from middle tunnel
10Disconnect connector from steering column
height adjustment switch (20)
11Disconnect connector from MB
immobilizer switching unit (18)
12Disconnect connector from steering/ignition
switch (19)
13Disconnect wiring harness (15) from
instrument panel carrier Installation:Ensure that wiring
harness is routed correctly on
instrument panel carrier.

14Remove wiper system AR82.30-P-
6400GH
15Unscrew nuts for instrument panel carrier
(3) on firewall Installation: Install new self-
locking nuts.
16Remove caps on A-pillar (1)
17Unscrew screws (2) for instrument panel
carrier (3) from A-pillar
18
Remove instrument panel carrier (3) and
take out of passenger compartment to side
through passenger doorBe careful not to damage center
console when removing and
installing.

19Install in the reverse order

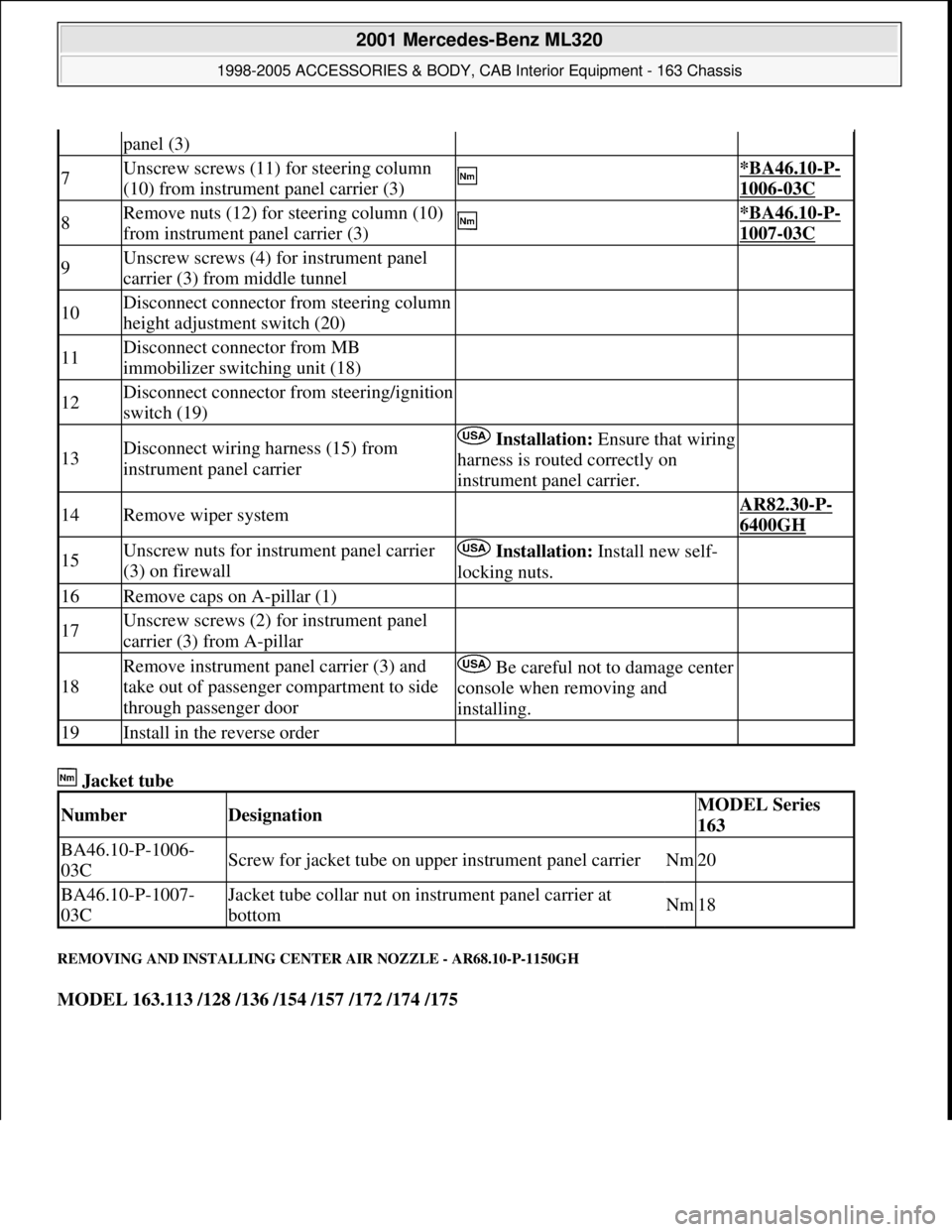

NumberDesignationMODEL Series
163
BA46.10-P-1006-
03CScrew for jacket tube on upper instrument panel carrierNm20
BA46.10-P-1007-
03CJacket tube collar nut on instrument panel carrier at
bottomNm18

2001 Mercedes-Benz ML320
1998-2005 ACCESSORIES & BODY, CAB Interior Equipment - 163 Chassis
me
Saturday, October 02, 2010 3:35:21 PMPage 24 © 2006 Mitchell Repair Information Company, LLC.


        Page 3543 of 4133

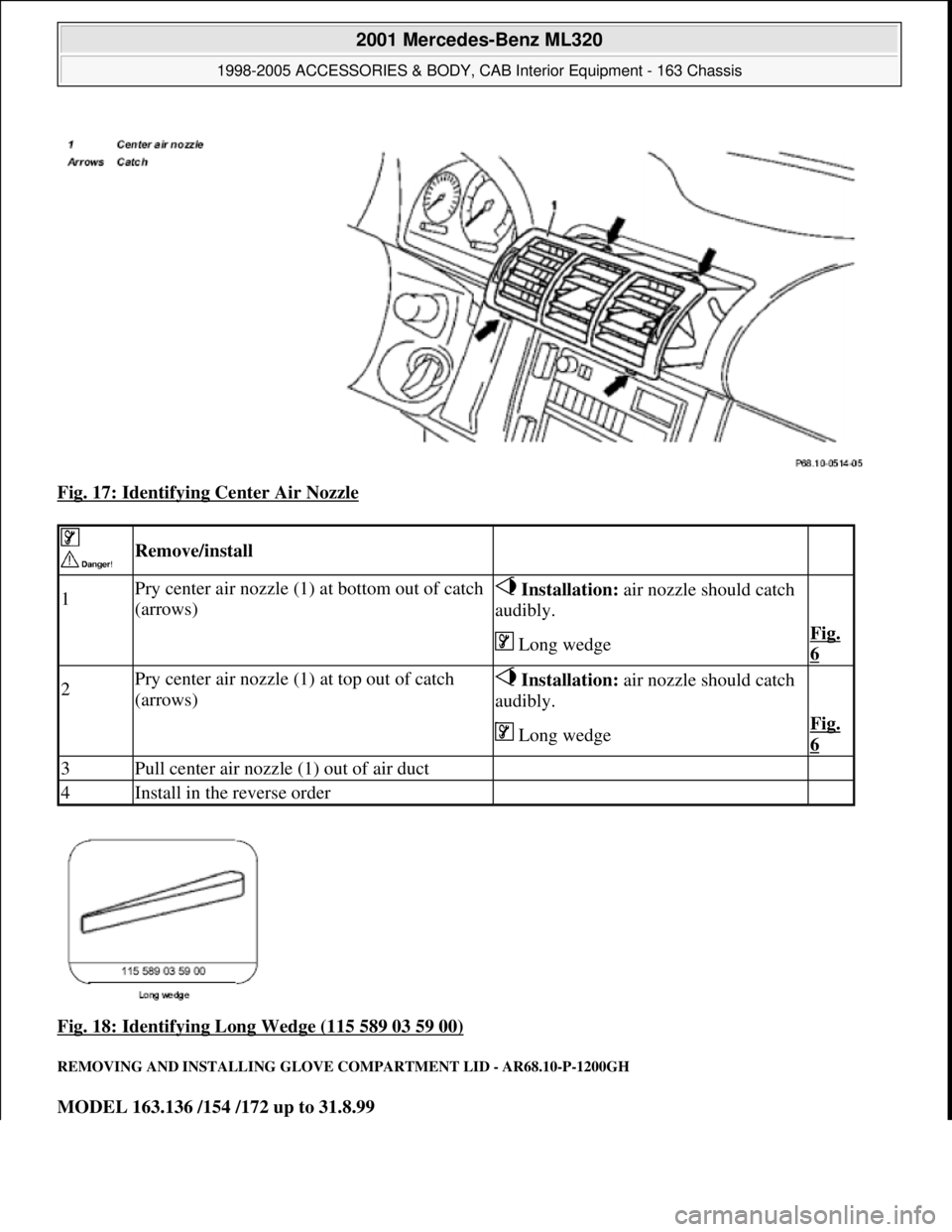

Fig. 17: Identifying Center Air Nozzle
Fig. 18: Identifying Long Wedge (115 589 03 59 00)

REMOVING AND INSTALLING GLOVE COMPARTMENT LID - AR68.10-P-1200GH
MODEL 163.136 /154 /172 up to 31.8.99

 Remove/install
1Pry center air nozzle (1) at bottom out of catch
(arrows) Installation: air nozzle should catch
audibly.
   Long wedgeFig.
6
2Pry center air nozzle (1) at top out of catch
(arrows) Installation: air nozzle should catch
audibly.
   Long wedgeFig.
6
3Pull center air nozzle (1) out of air duct
4Install in the reverse order

2001 Mercedes-Benz ML320
1998-2005 ACCESSORIES & BODY, CAB Interior Equipment - 163 Chassis
me
Saturday, October 02, 2010 3:35:21 PMPage 25 © 2006 Mitchell Repair Information Company, LLC.


        Page 3544 of 4133

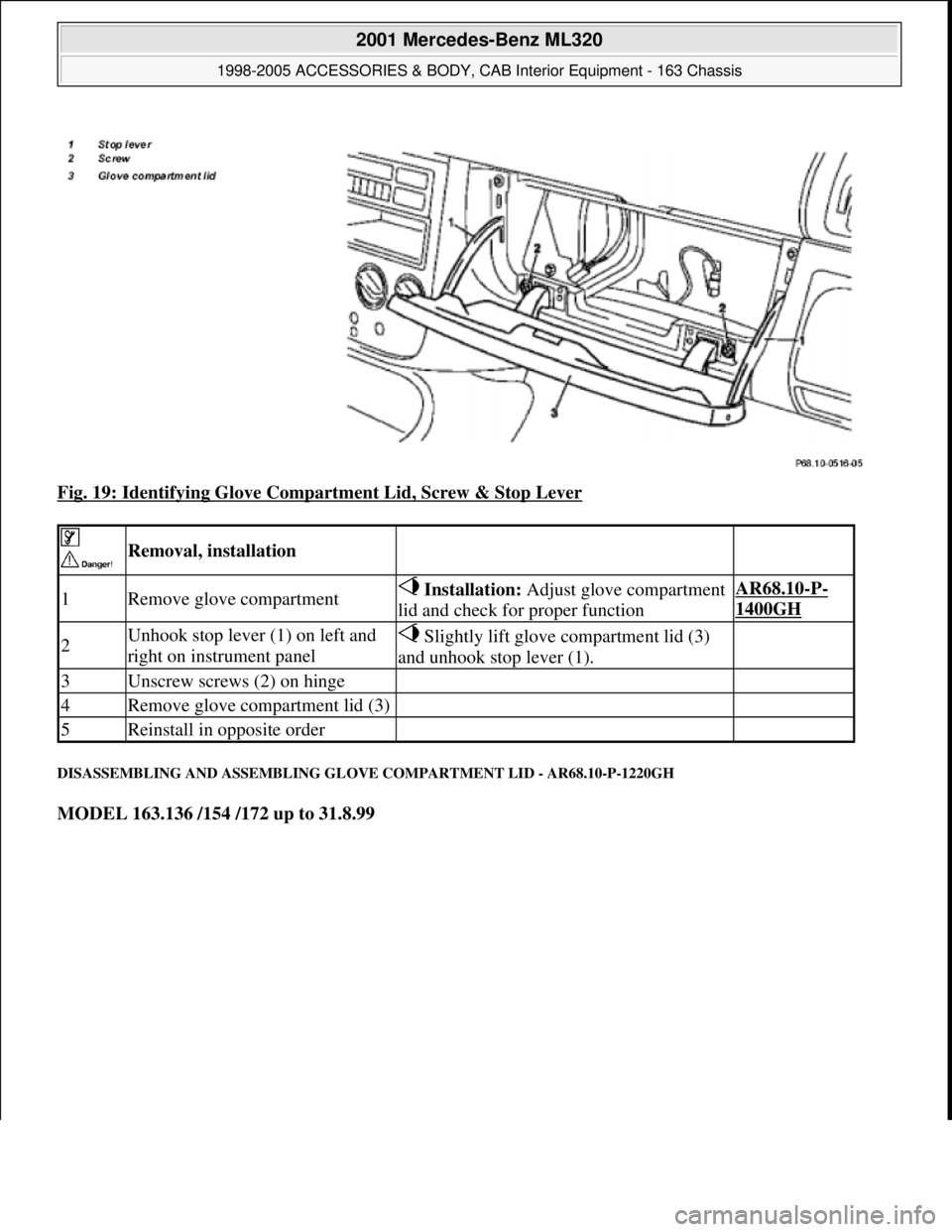

Fig. 19: Identifying Glove Compartment Lid, Screw & Stop Lever
