Page 1177 of 4133

MERCEDES-BENZ ML320 1997 Complete Repair Manual Fig. 4: Removing & Installing Transmission With Torque Converter Courtesy of MERCEDES-BENZ OF NORTH AMERICA. Remove/Install - 1 - Disconnect ground cable of battery. See DISCONNECT GROUND LEAD FROM

Page 1178 of 4133

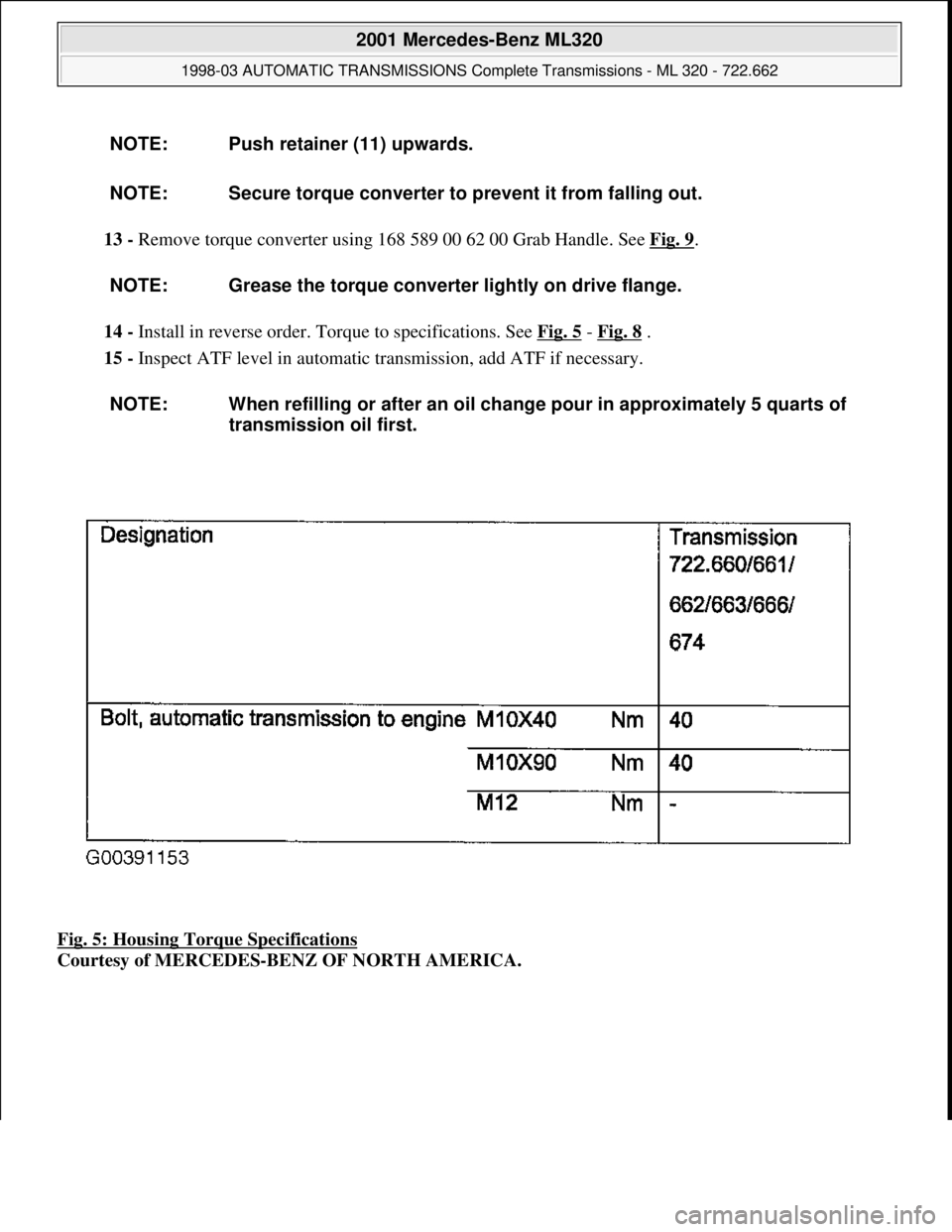

MERCEDES-BENZ ML320 1997 Complete Repair Manual 13 - Remove torque converter using 168 589 00 62 00 Grab Handle. See Fig. 9. 14 - Install in reverse order. Torque to specifications. See Fig. 5 - Fig. 8 . 15 - Inspect ATF level in automatic tran

Page 1179 of 4133

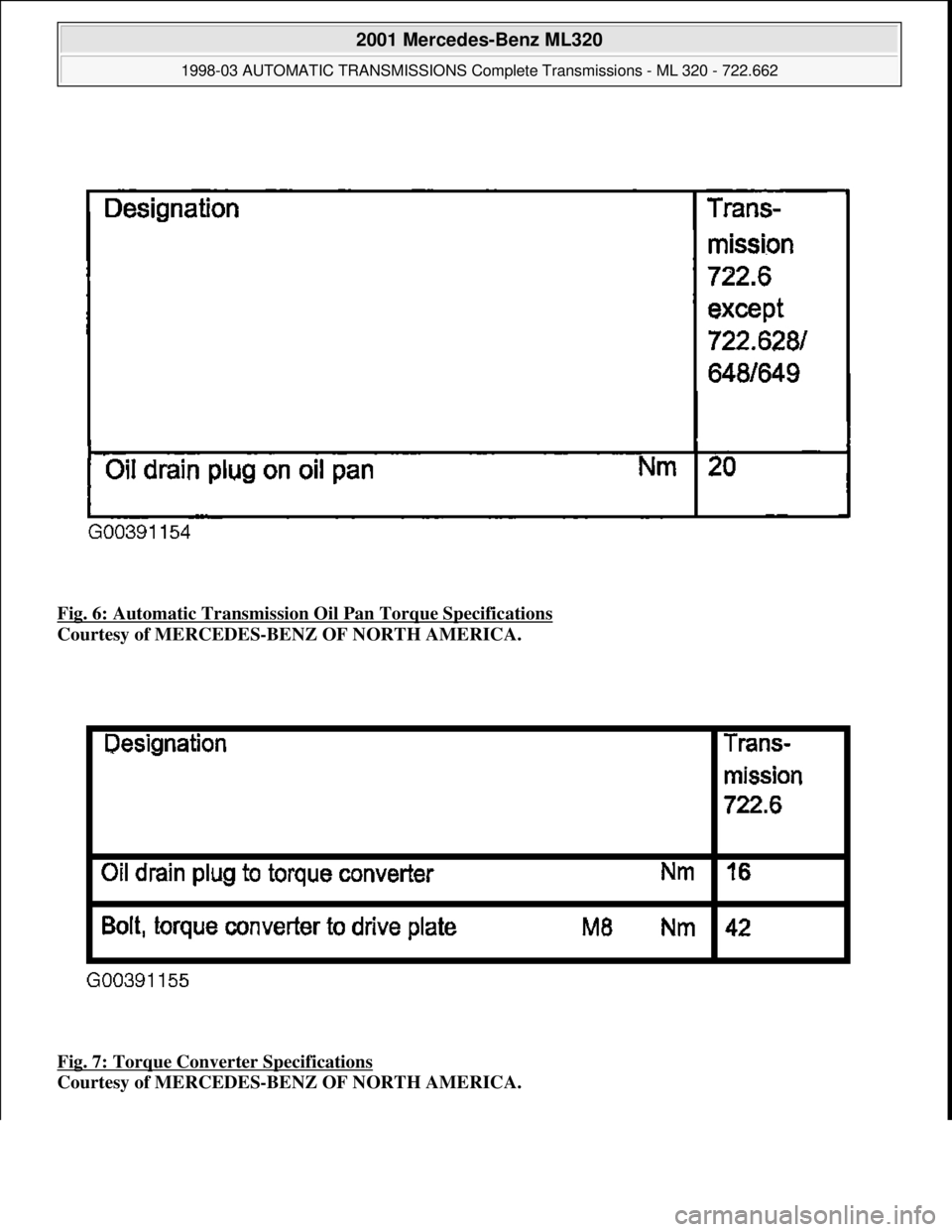

MERCEDES-BENZ ML320 1997 Complete Repair Manual Fig. 6: Automatic Transmission Oil Pan Torque Specifications Courtesy of MERCEDES-BENZ OF NORTH AMERICA. Fig. 7: Torque Converter Specifications Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Page 1180 of 4133

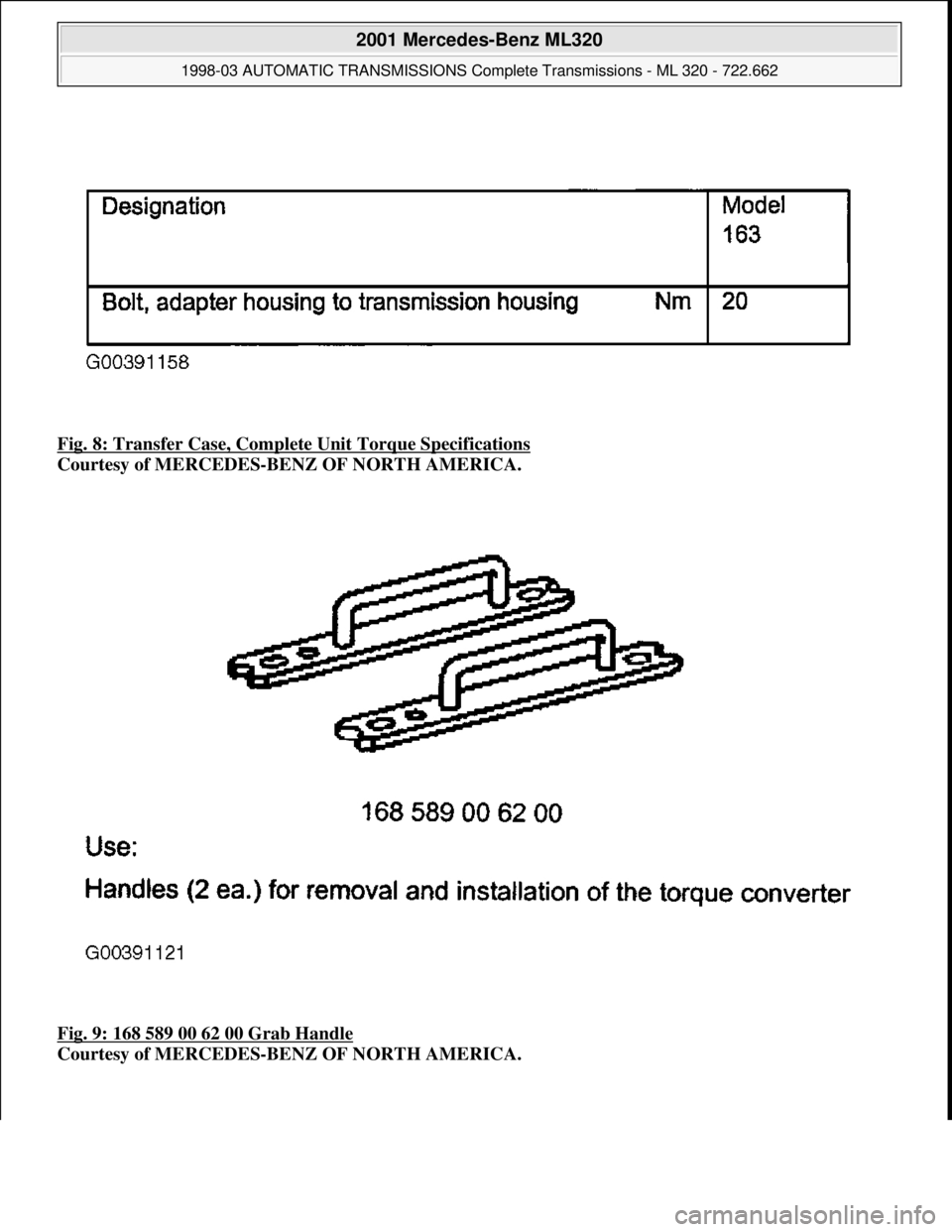

MERCEDES-BENZ ML320 1997 Complete Repair Manual Fig. 8: Transfer Case, Complete Unit Torque Specifications Courtesy of MERCEDES-BENZ OF NORTH AMERICA. Fig. 9: 168 589 00 62 00 Grab Handle Courtesy of MERCEDES-BENZ OF NORTH AMERICA. 2001 Merce

Page 1181 of 4133

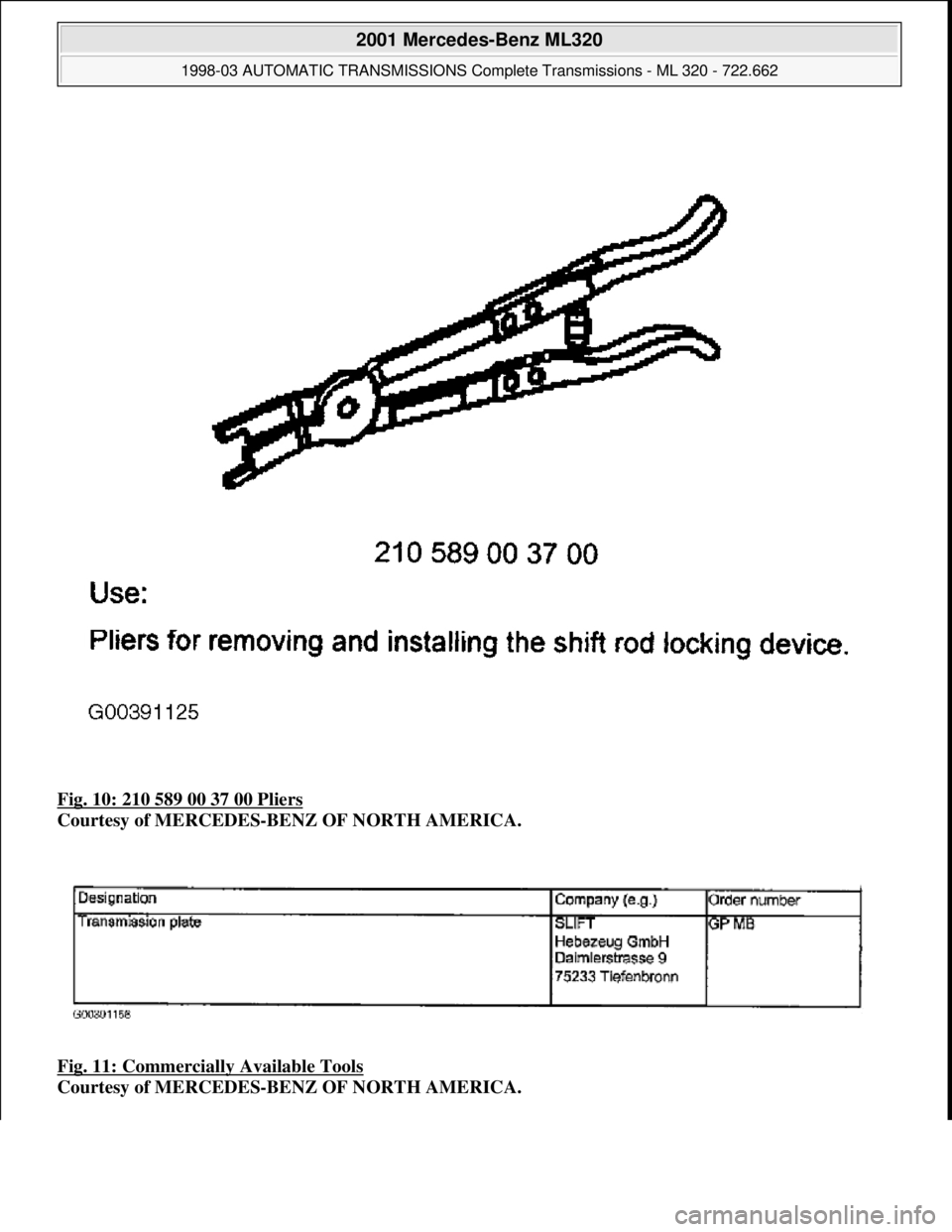

MERCEDES-BENZ ML320 1997 Complete Repair Manual Fig. 10: 210 589 00 37 00 Pliers Courtesy of MERCEDES-BENZ OF NORTH AMERICA. Fig. 11: Commercially Available Tools Courtesy of MERCEDES-BENZ OF NORTH AMERICA. 2001 Mercedes-Benz ML320 1998-03 A

Page 1182 of 4133

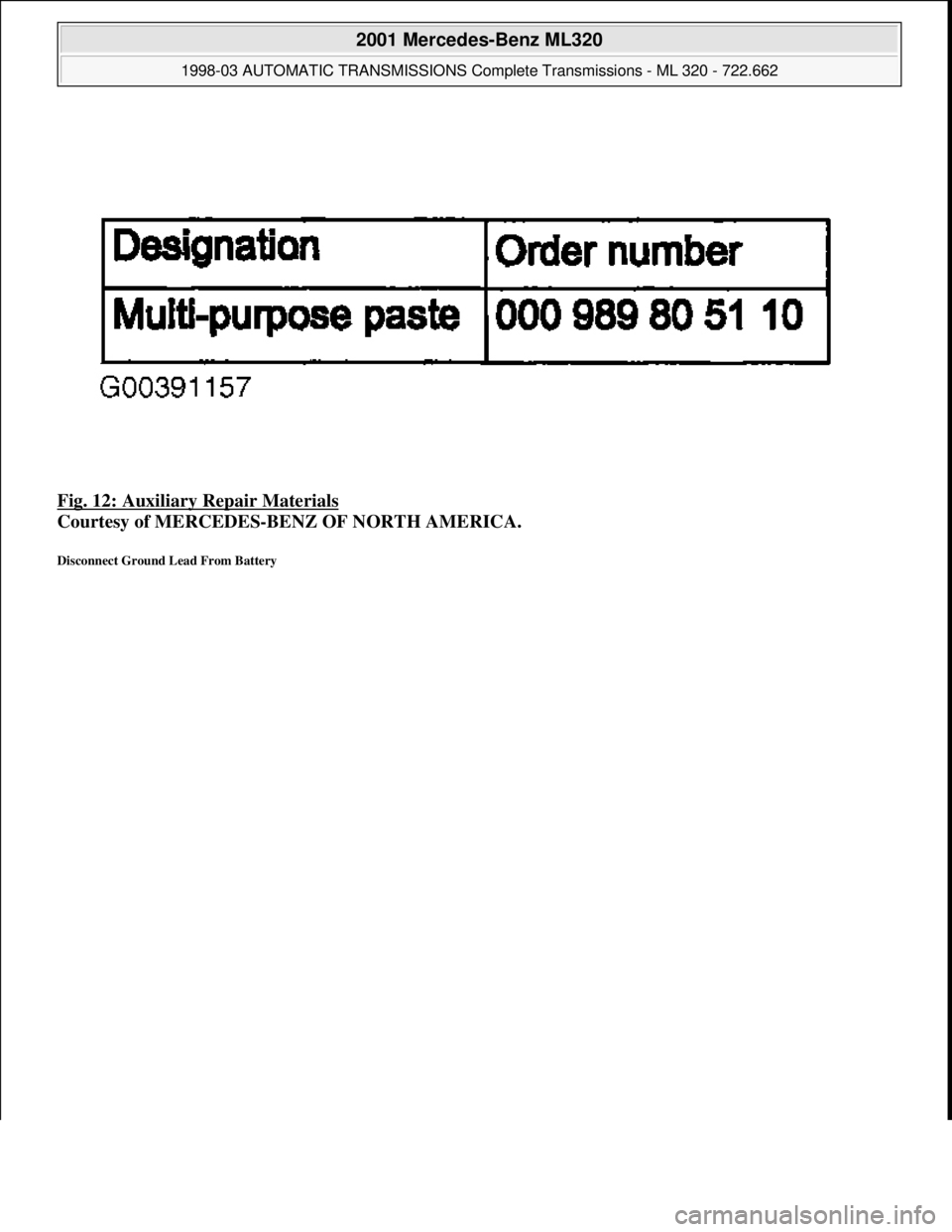

MERCEDES-BENZ ML320 1997 Complete Repair Manual Fig. 12: Auxiliary Repair Materials Courtesy of MERCEDES-BENZ OF NORTH AMERICA. Disconnect Ground Lead From Battery 2001 Mercedes-Benz ML320 1998-03 AUTOMATIC TRANSMISSIONS Complete Transmission

Page 1183 of 4133

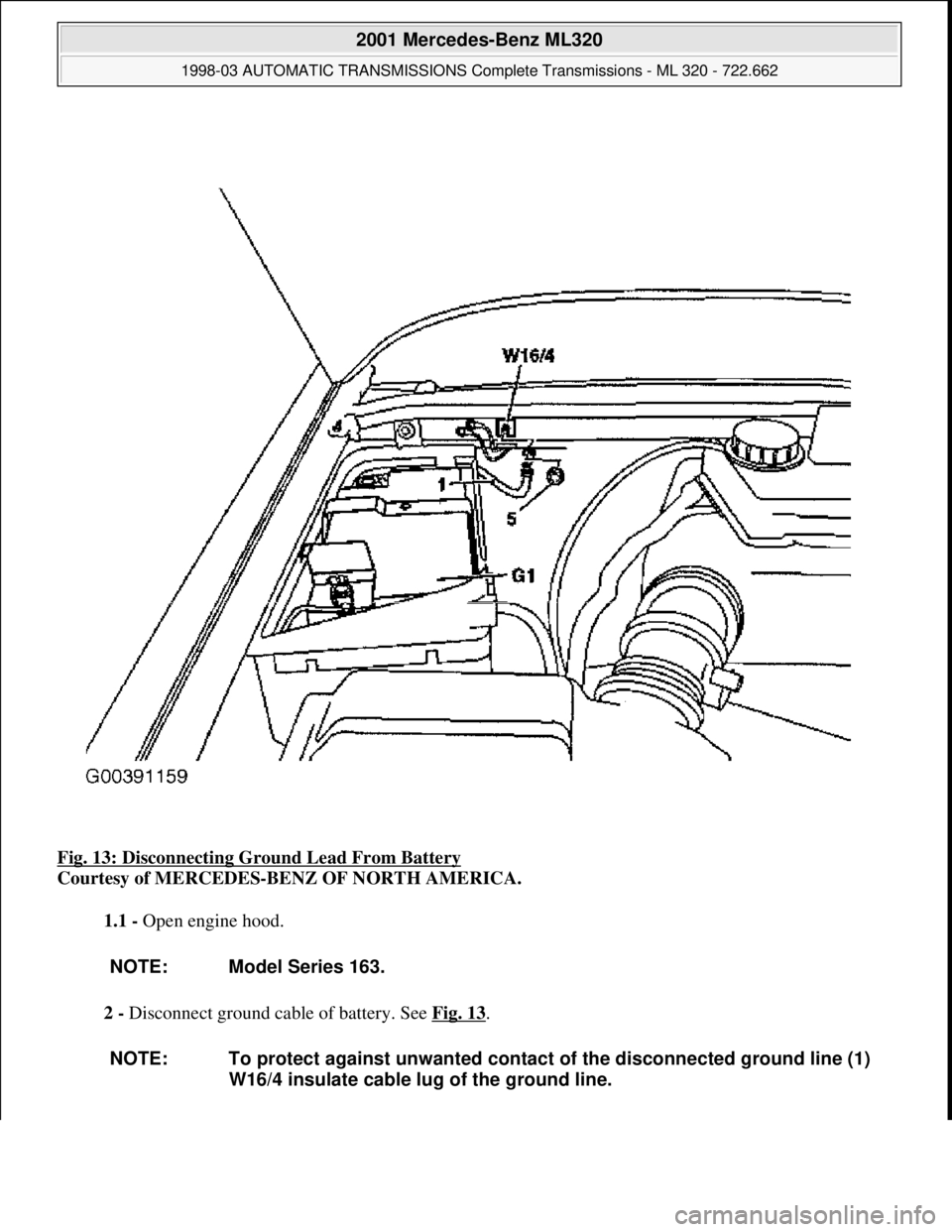

MERCEDES-BENZ ML320 1997 Complete Repair Manual Fig. 13: Disconnecting Ground Lead From Battery Courtesy of MERCEDES-BENZ OF NORTH AMERICA. 1.1 - Open engine hood. 2 - Disconnect ground cable of battery. See Fig. 13 . NOTE: Model Series 163. NO

Page 1184 of 4133

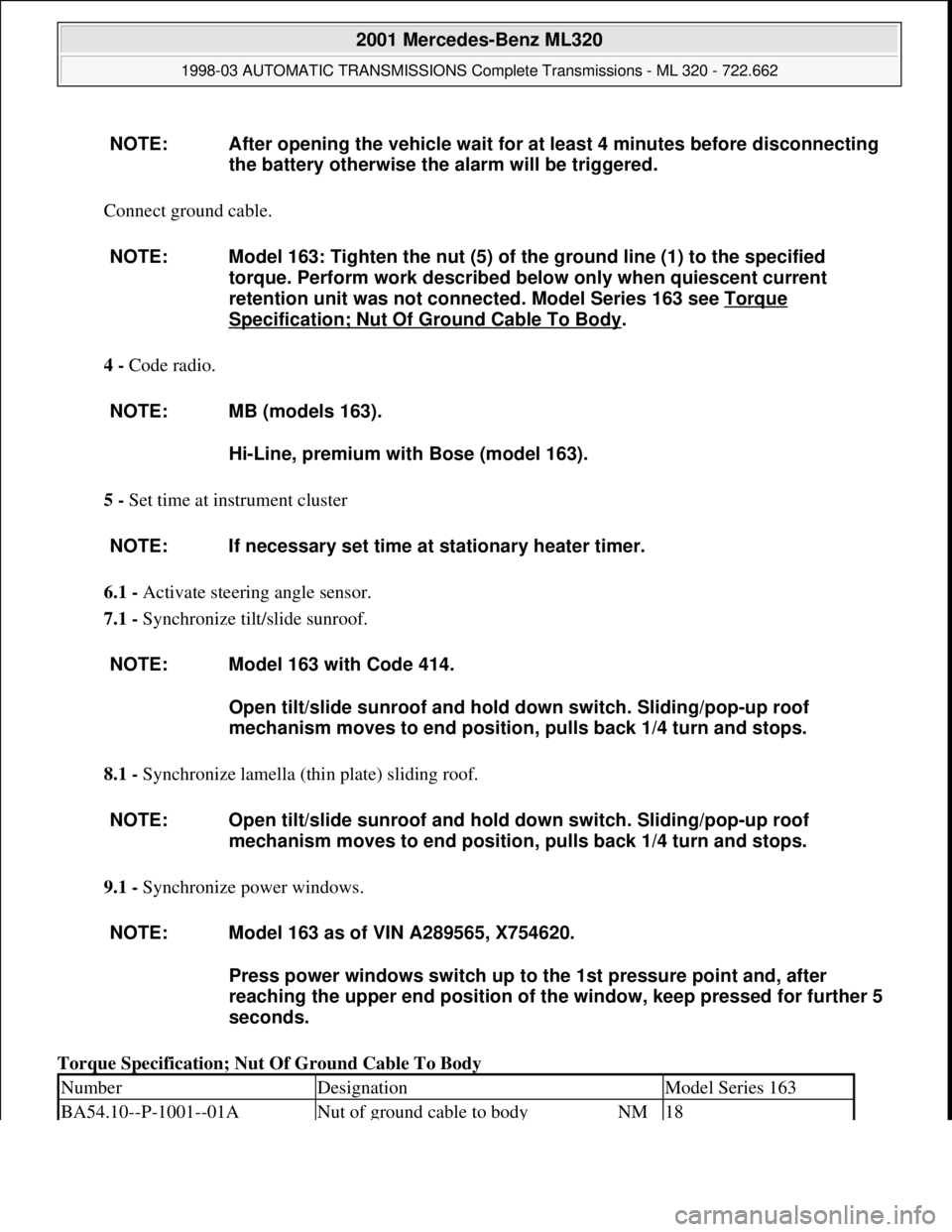

MERCEDES-BENZ ML320 1997 Complete Repair Manual Connect ground cable. 4 - Code radio. 5 - Set time at instrument cluster 6.1 - Activate steering angle sensor. 7.1 - Synchronize tilt/slide sunroof. 8.1 - Synchronize lamella (thin plate) slidin
