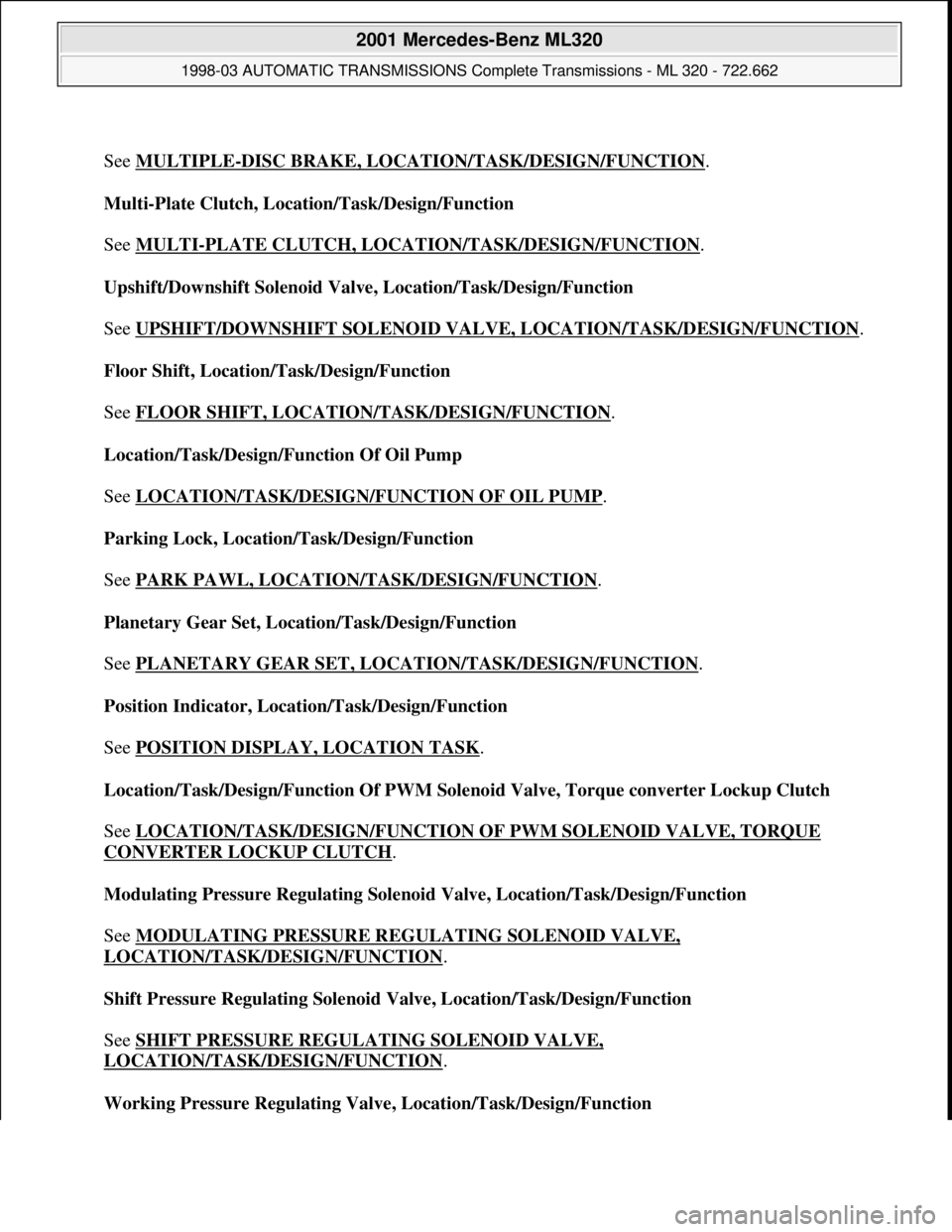

MERCEDES-BENZ ML320 1997 Complete Repair Manual See MULTIPLE -DISC BRAKE, LOCATION/TASK/DESIGN/FUNCTION. Multi-Plate Clutch, Location/Task/Design/Function See MULTI -PLATE CLUTCH, LOCATION/TASK/DESIGN/FUNCTION. Upshift/Downshift Solenoid Val

Page 1226 of 4133

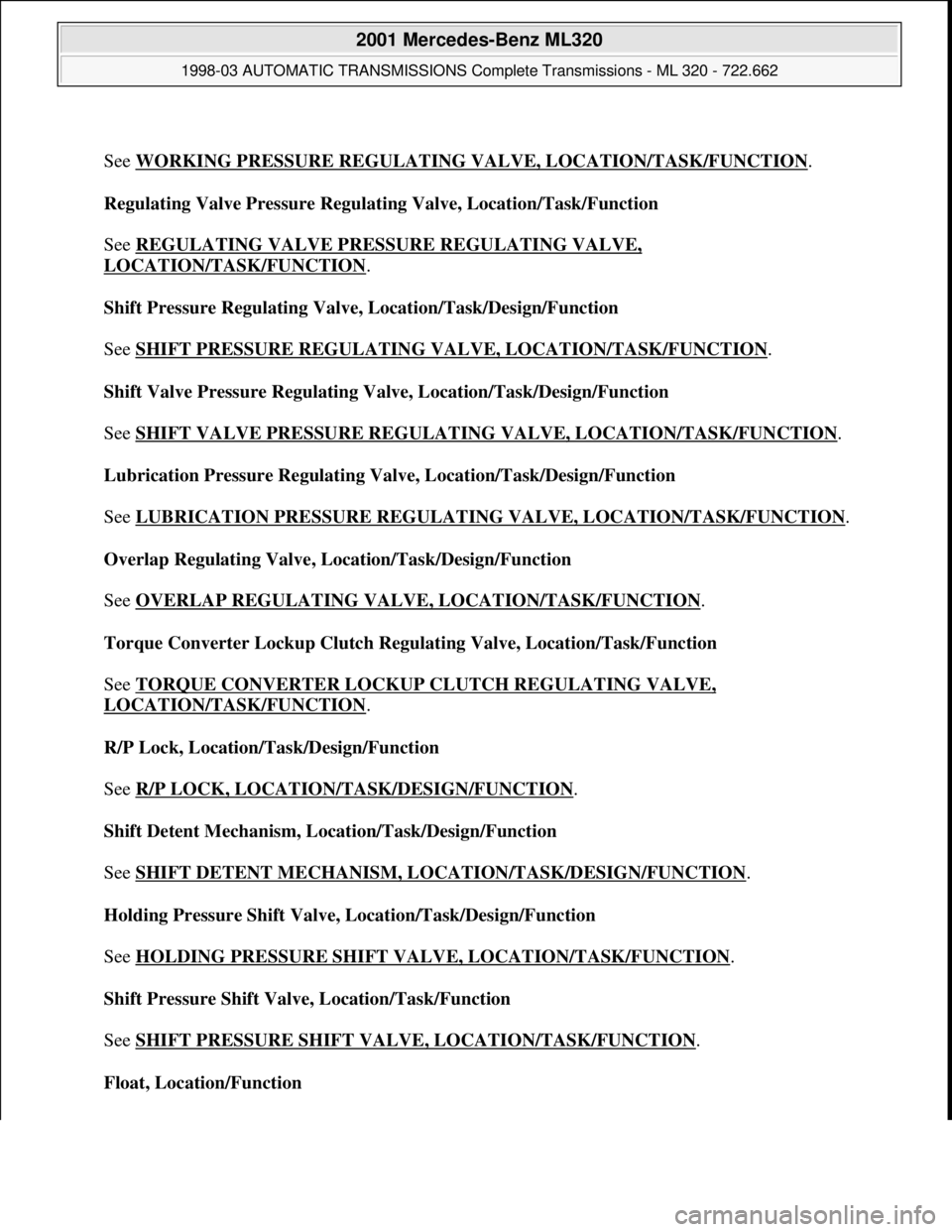

MERCEDES-BENZ ML320 1997 Complete Repair Manual See WORKING PRESSURE REGULATING VALVE, LOCATION/TASK/FUNCTION . Regulating Valve Pressure Regulating Valve, Location/Task/Function See REGULATING VALVE PRESSURE REGULATING VALVE, LOCATION/TASK/

Page 1227 of 4133

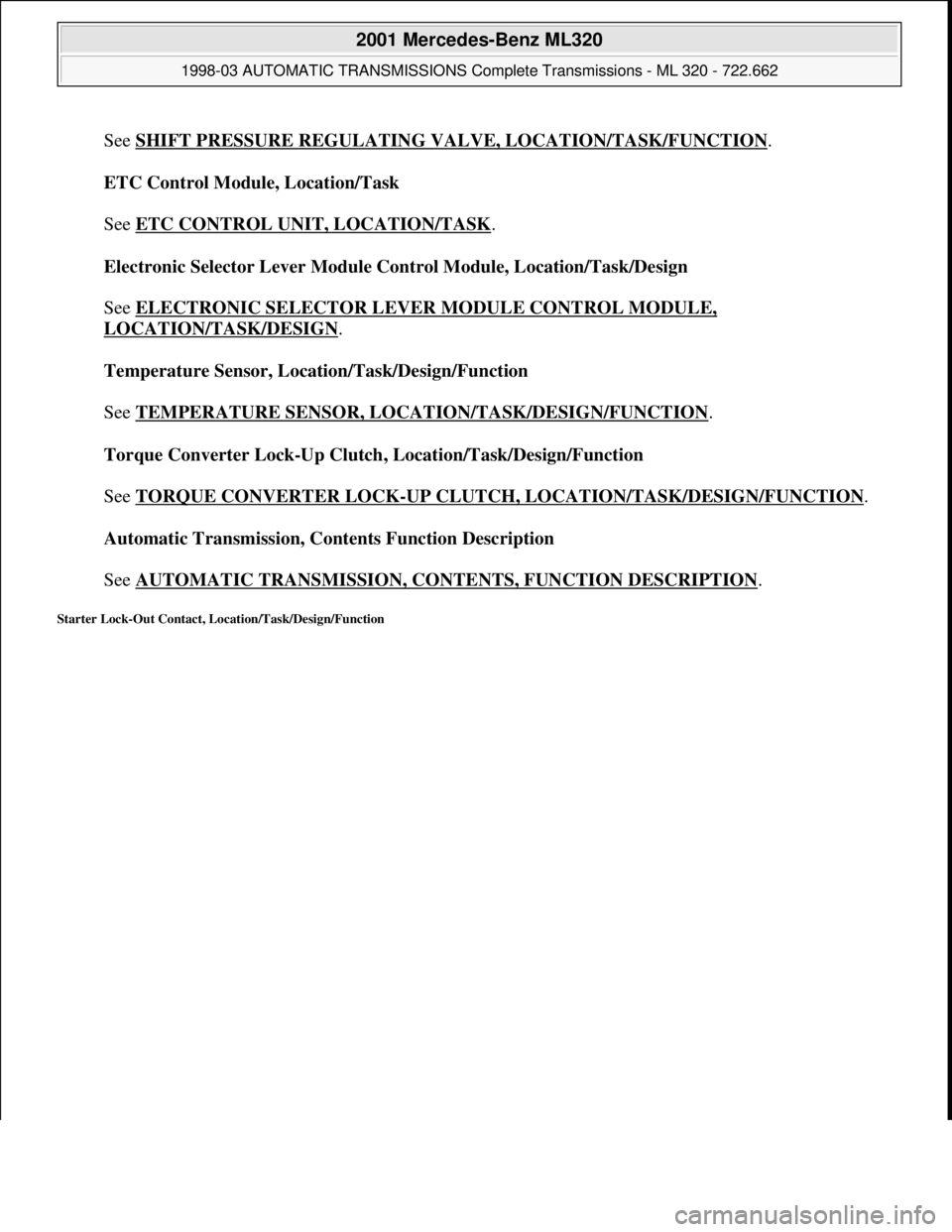

MERCEDES-BENZ ML320 1997 Complete Repair Manual See SHIFT PRESSURE REGULATING VALVE, LOCATION/TASK/FUNCTION. ETC Control Module, Location/Task See ETC CONTROL UNIT, LOCATION/TASK . Electronic Selector Lever Module Control Module, Location/Task

Page 1228 of 4133

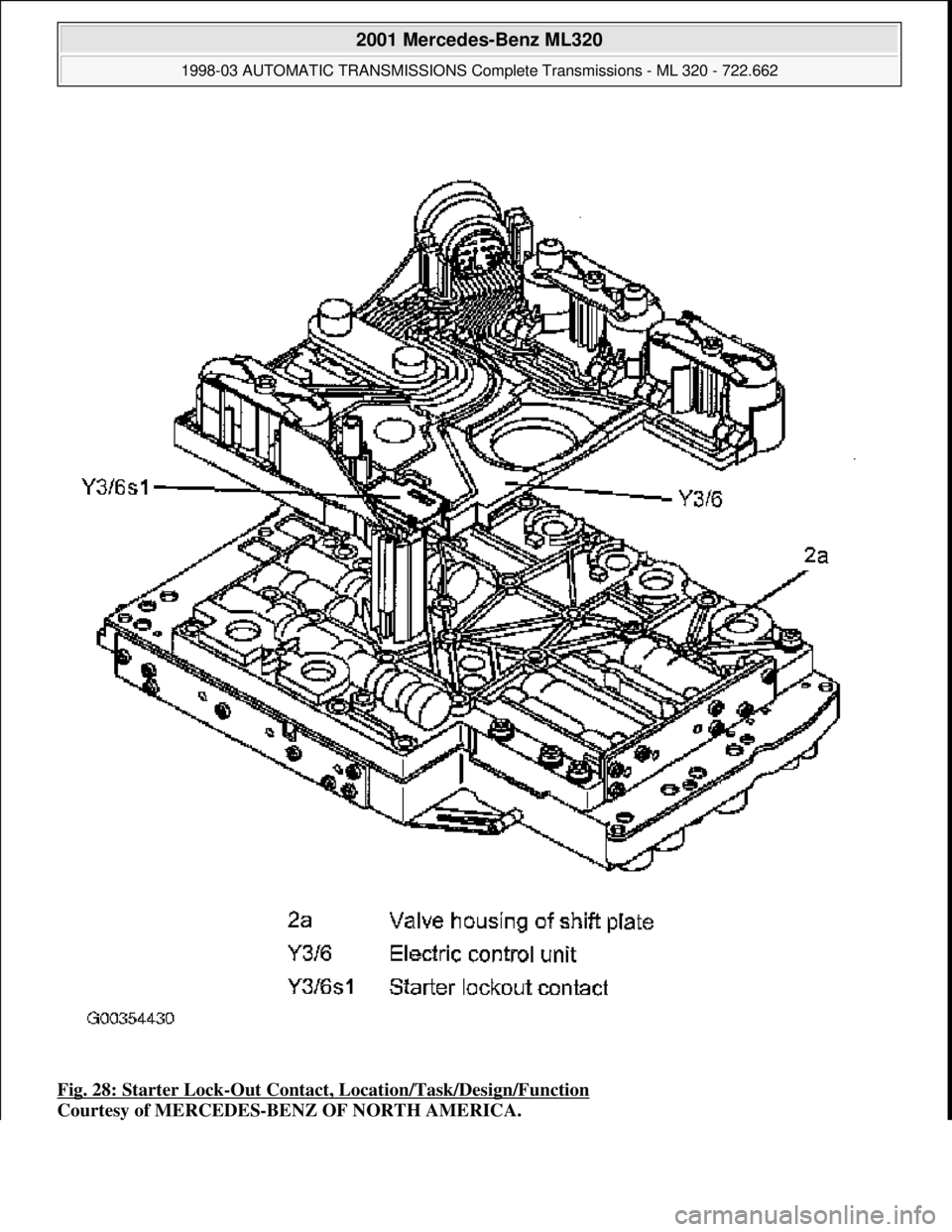

MERCEDES-BENZ ML320 1997 Complete Repair Manual Fig. 28: Starter Lock-Out Contact, Location/Task/Design/Function Courtesy of MERCEDES-BENZ OF NORTH AMERICA. 2001 Mercedes-Benz ML320 1998-03 AUTOMATIC TRANSMI SSIONS Complete Transmissions - ML

Page 1229 of 4133

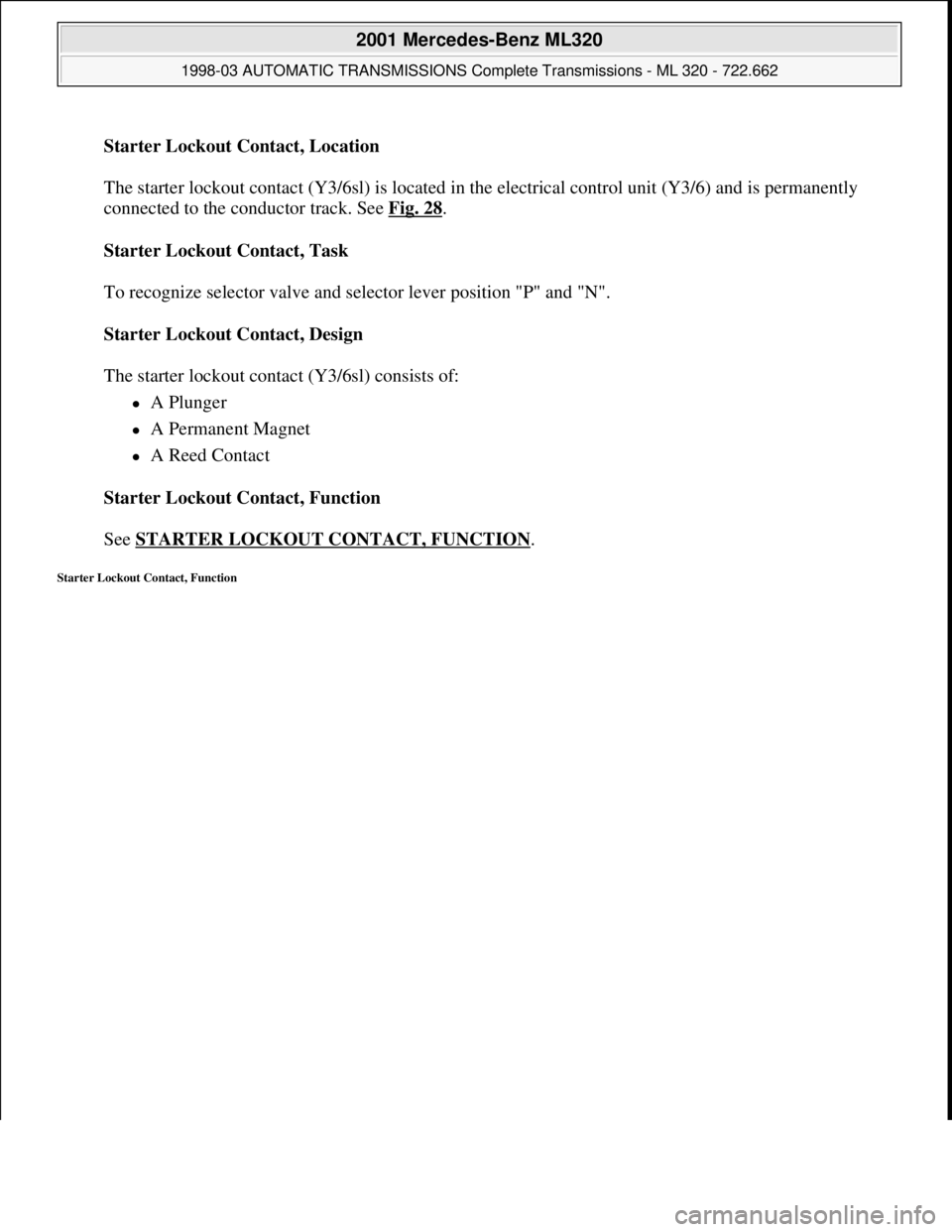

MERCEDES-BENZ ML320 1997 Complete Repair Manual Starter Lockout Contact, Location The starter lockout contact (Y3/6sl) is located in the electrical control unit (Y3/6) and is permanently connected to the conductor track. See Fig. 28 . Starter

Page 1230 of 4133

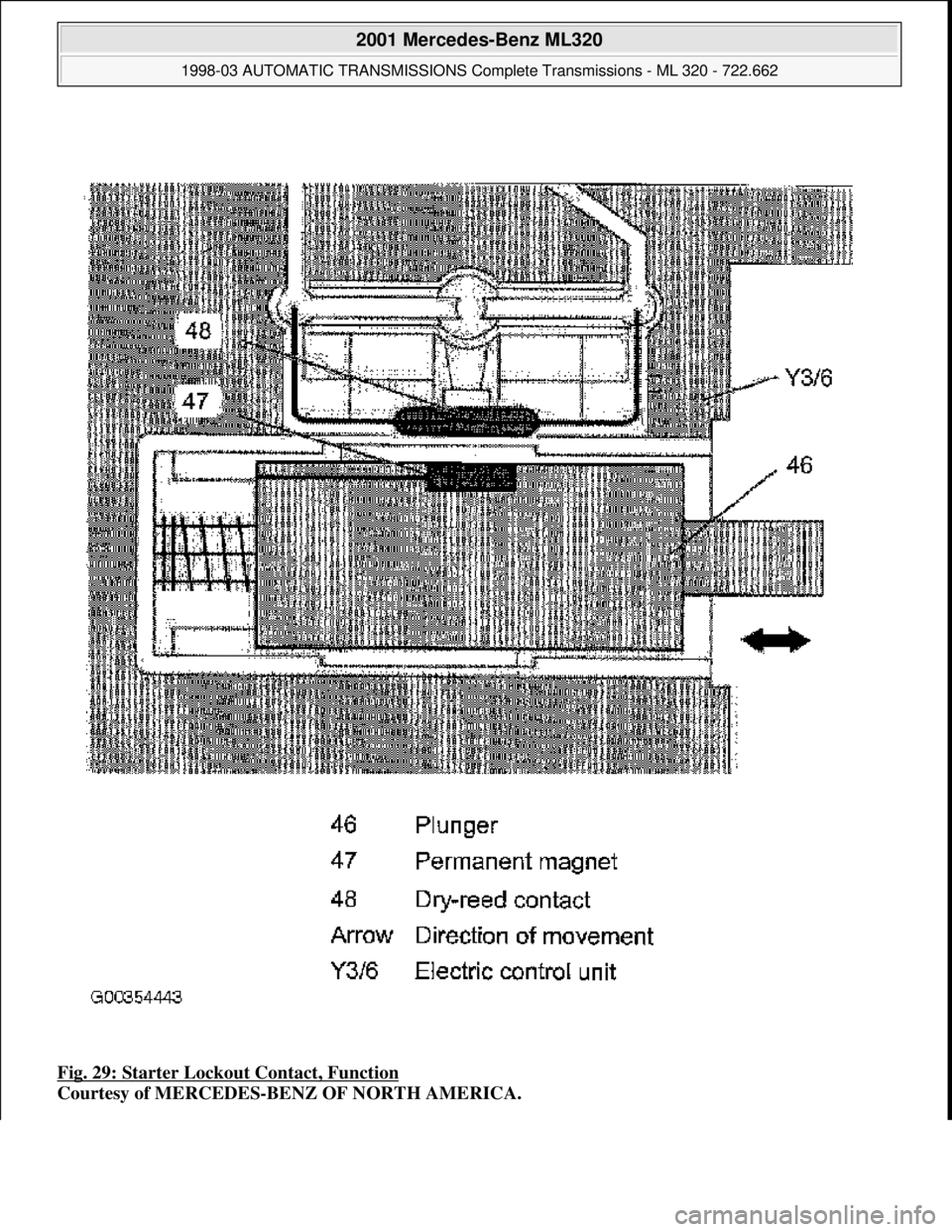

MERCEDES-BENZ ML320 1997 Complete Repair Manual Fig. 29: Starter Lockout Contact, Function Courtesy of MERCEDES-BENZ OF NORTH AMERICA. 2001 Mercedes-Benz ML320 1998-03 AUTOMATIC TRANSMI SSIONS Complete Transmissions - ML 320 - 722.662 me

Page 1231 of 4133

MERCEDES-BENZ ML320 1997 Complete Repair Manual Operation In selector lever position "P" and "N" the starter lockout contact (Y3/6s1) is actuated by a cam track which is located on the detent plate. See Fig. 29 . The permanent magnet (47) is mo

Page 1232 of 4133

MERCEDES-BENZ ML320 1997 Complete Repair Manual vehicle is stationary and the engine is idling, boosts the engine torque and provides infinitely variable engine speed and torque matching when moving off. Torque Converter, Design The impeller (
