Page 1217 of 4133

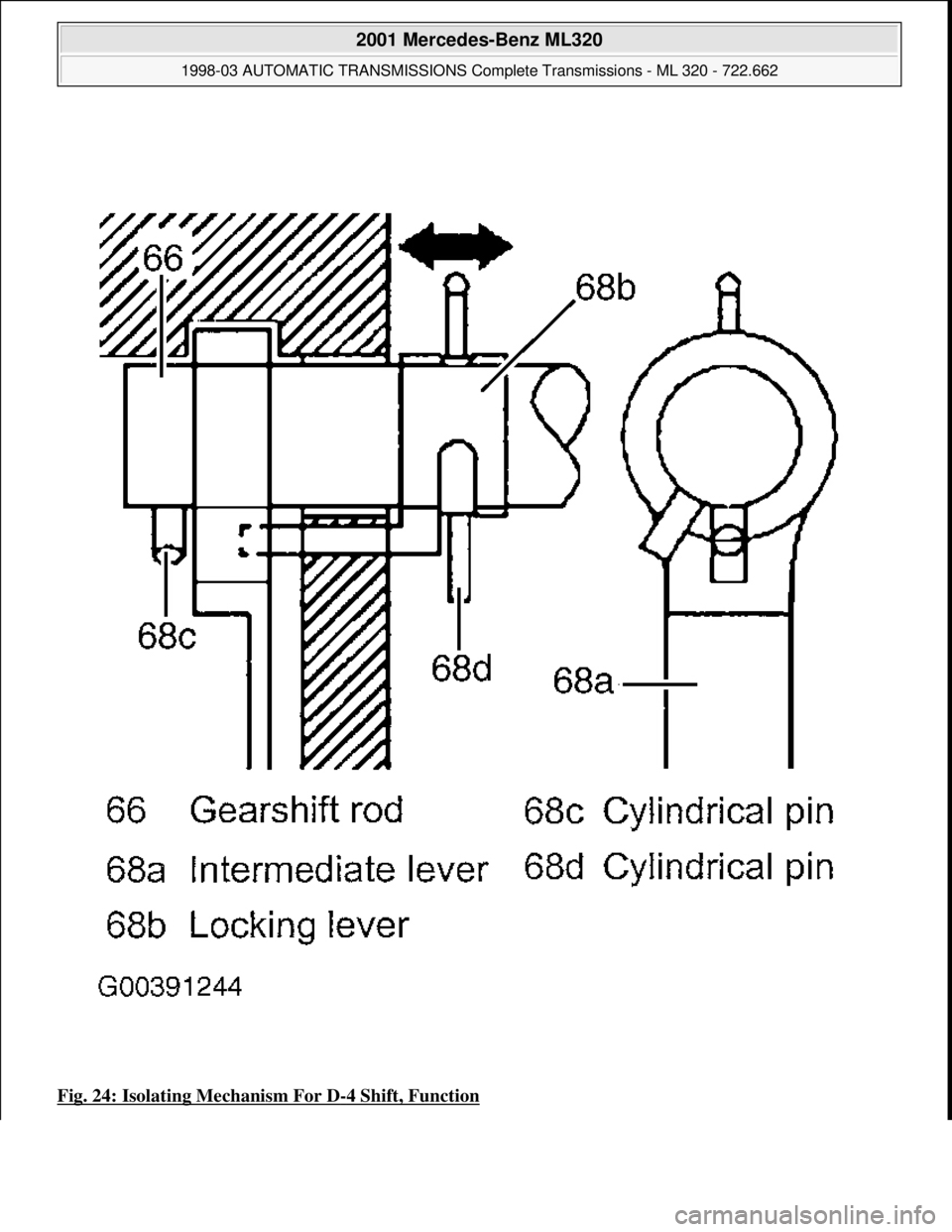

MERCEDES-BENZ ML320 1997 Complete Repair Manual Fig. 24: Isolating Mechanism For D-4 Shift, Function 2001 Mercedes-Benz ML320 1998-03 AUTOMATIC TRANSMISSIONS Complete Transmissions - ML 320 - 722.662 me Saturday, October 02, 2010 3:15:26 PMP

Page 1218 of 4133

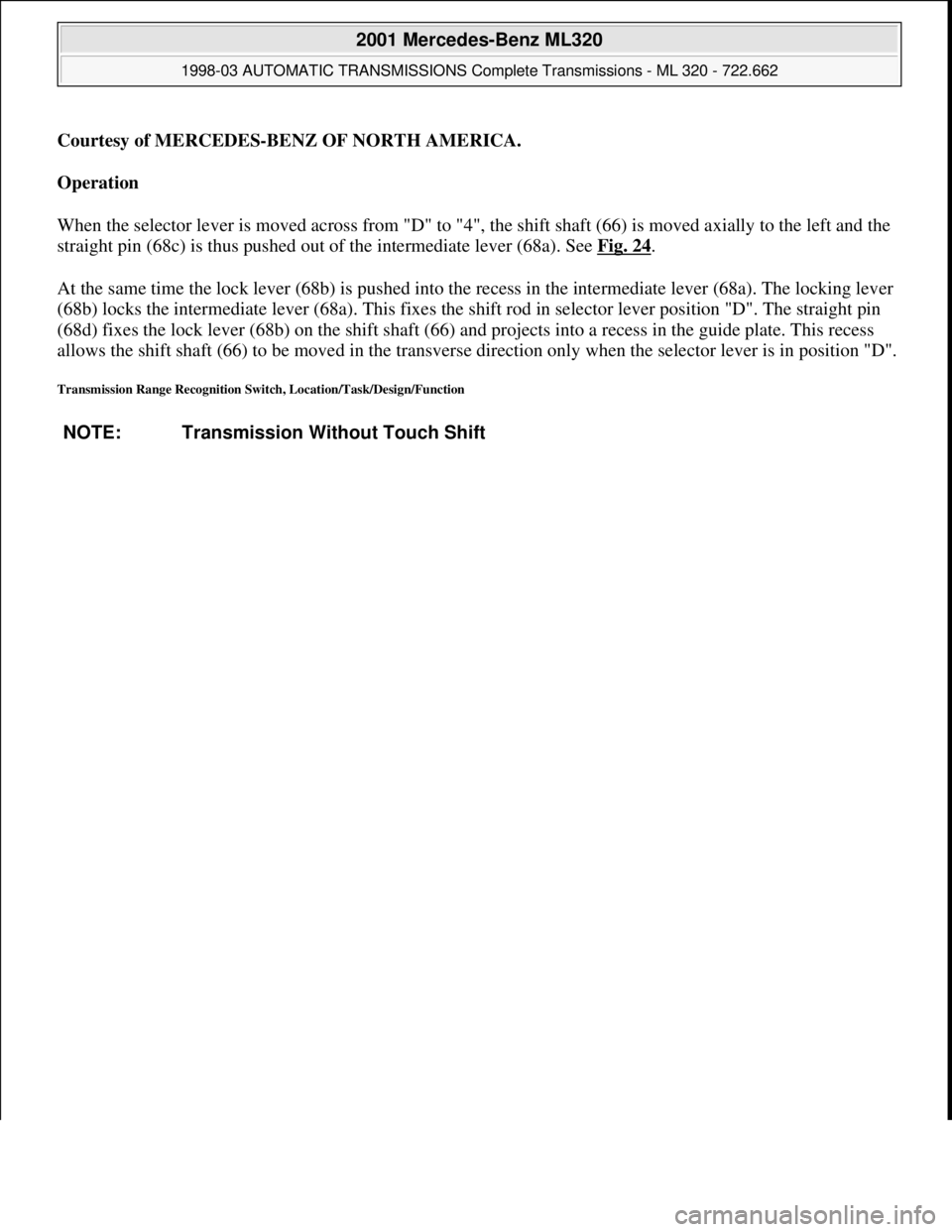

MERCEDES-BENZ ML320 1997 Complete Repair Manual Courtesy of MERCEDES-BENZ OF NORTH AMERICA. Operation When the selector lever is moved across from "D" to "4", the shift shaft (66) is moved axially to the left and the straight pin (68c) is thus p

Page 1219 of 4133

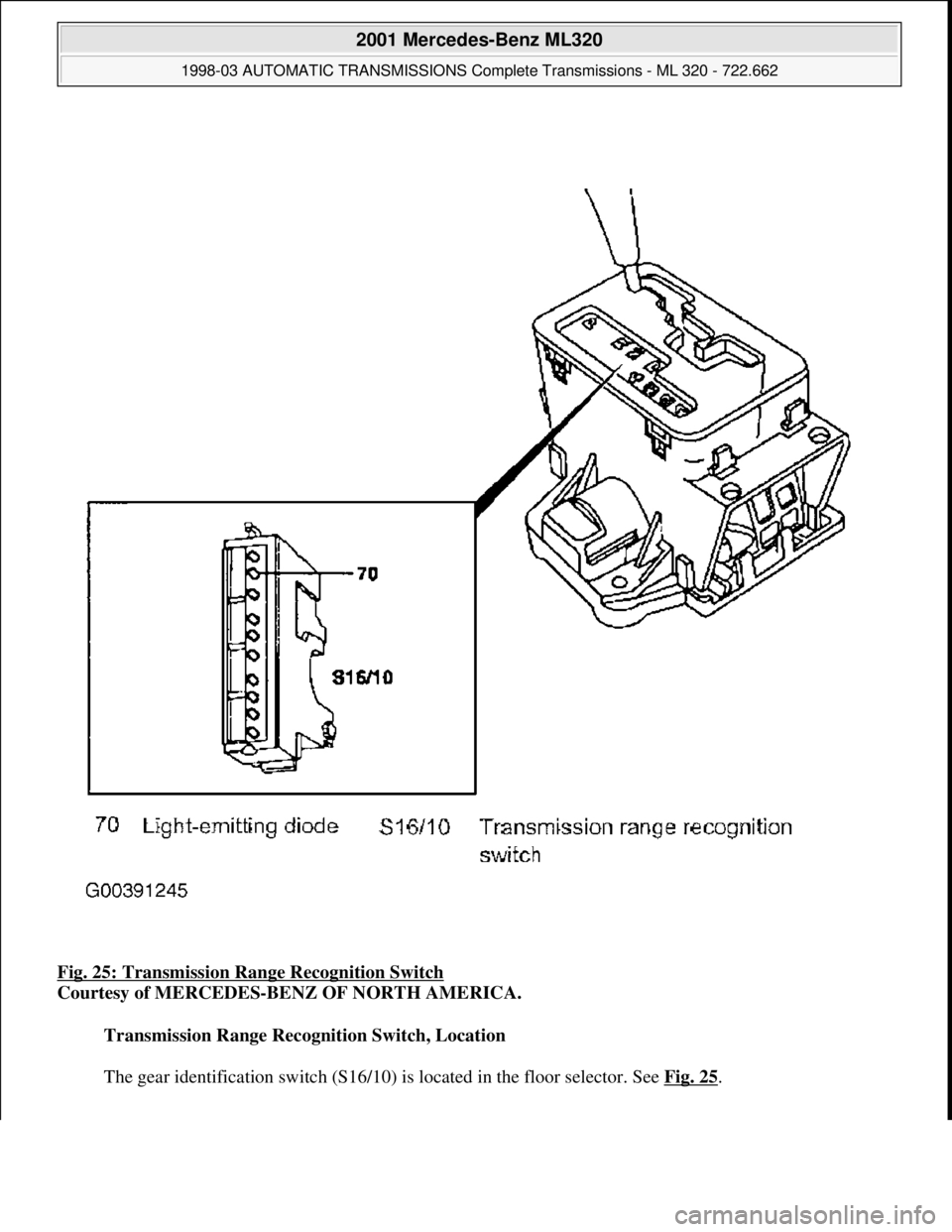

MERCEDES-BENZ ML320 1997 Complete Repair Manual Fig. 25: Transmission Ra nge Recognition Switch Courtesy of MERCEDES-BENZ OF NORTH AMERICA. Transmission Range Recognition Switch, Location The gear identification switch (S16/10) is loc

Page 1220 of 4133

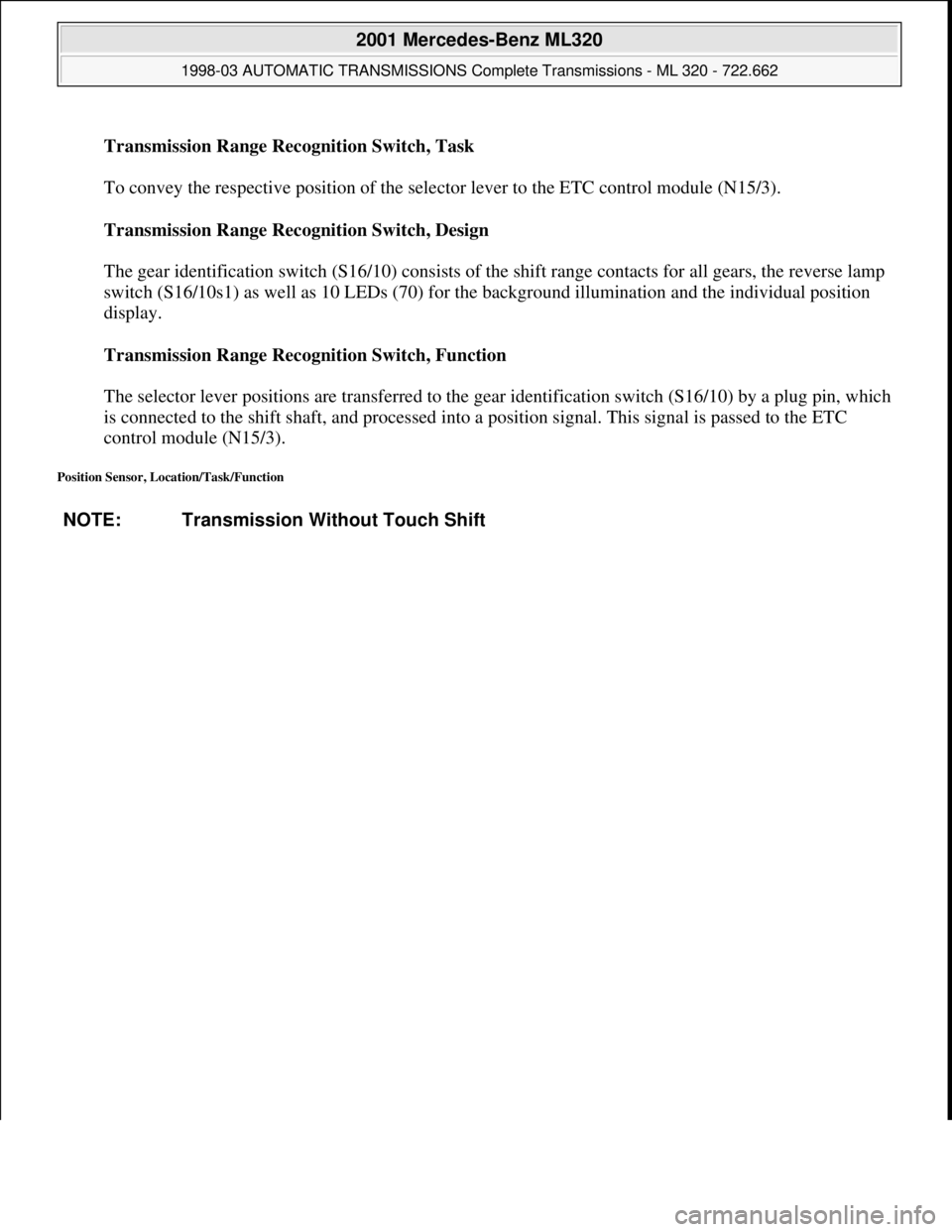

MERCEDES-BENZ ML320 1997 Complete Repair Manual Transmission Range Recognition Switch, Task To convey the respective position of the selector lever to the ETC control module (N15/3). Transmission Range Recognition Switch, Design The gear ide

Page 1221 of 4133

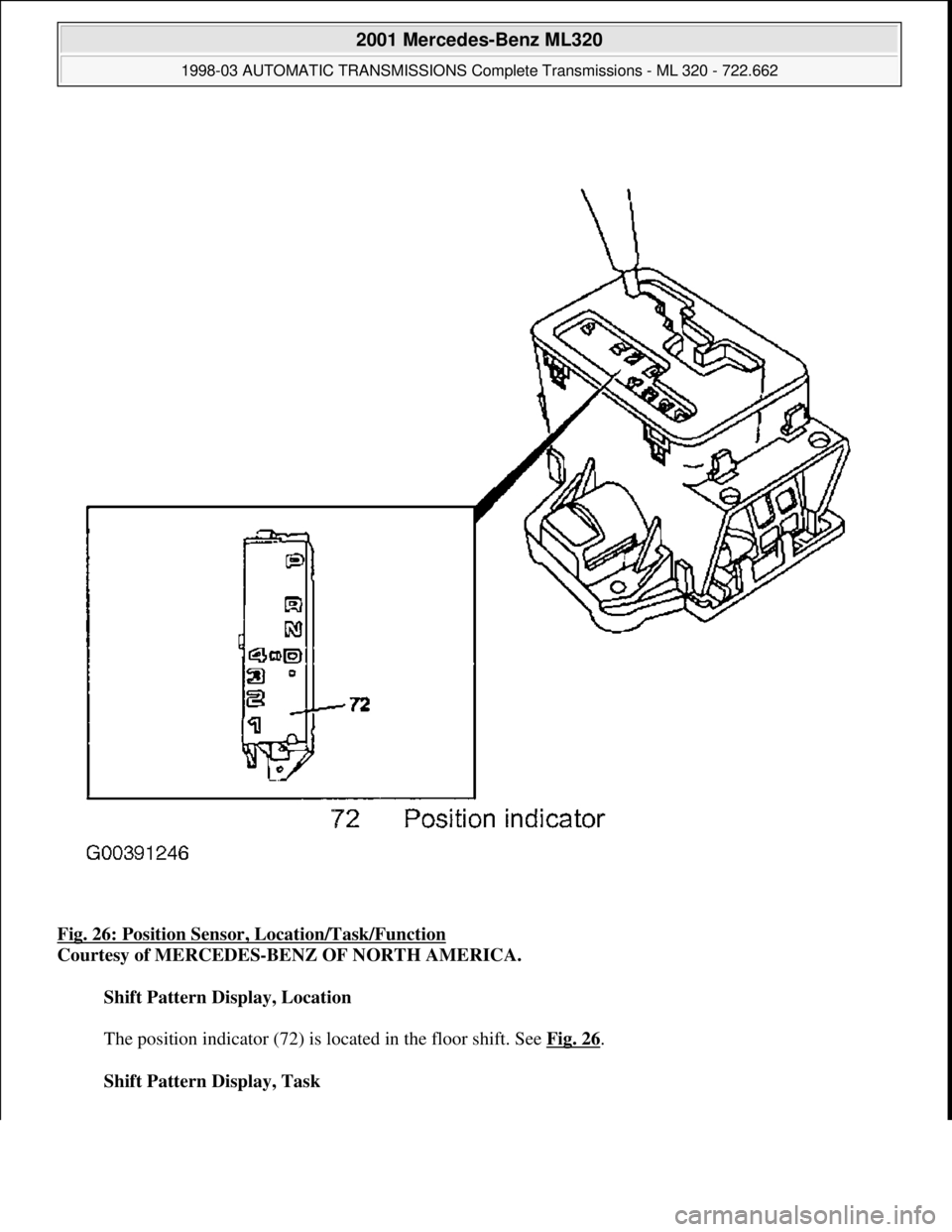

MERCEDES-BENZ ML320 1997 Complete Repair Manual Fig. 26: Position Sensor, Location/Task/Function Courtesy of MERCEDES-BENZ OF NORTH AMERICA. Shift Pattern Display, Location The position indicator (72) is located in the floor shift. See Fig. 26

Page 1222 of 4133

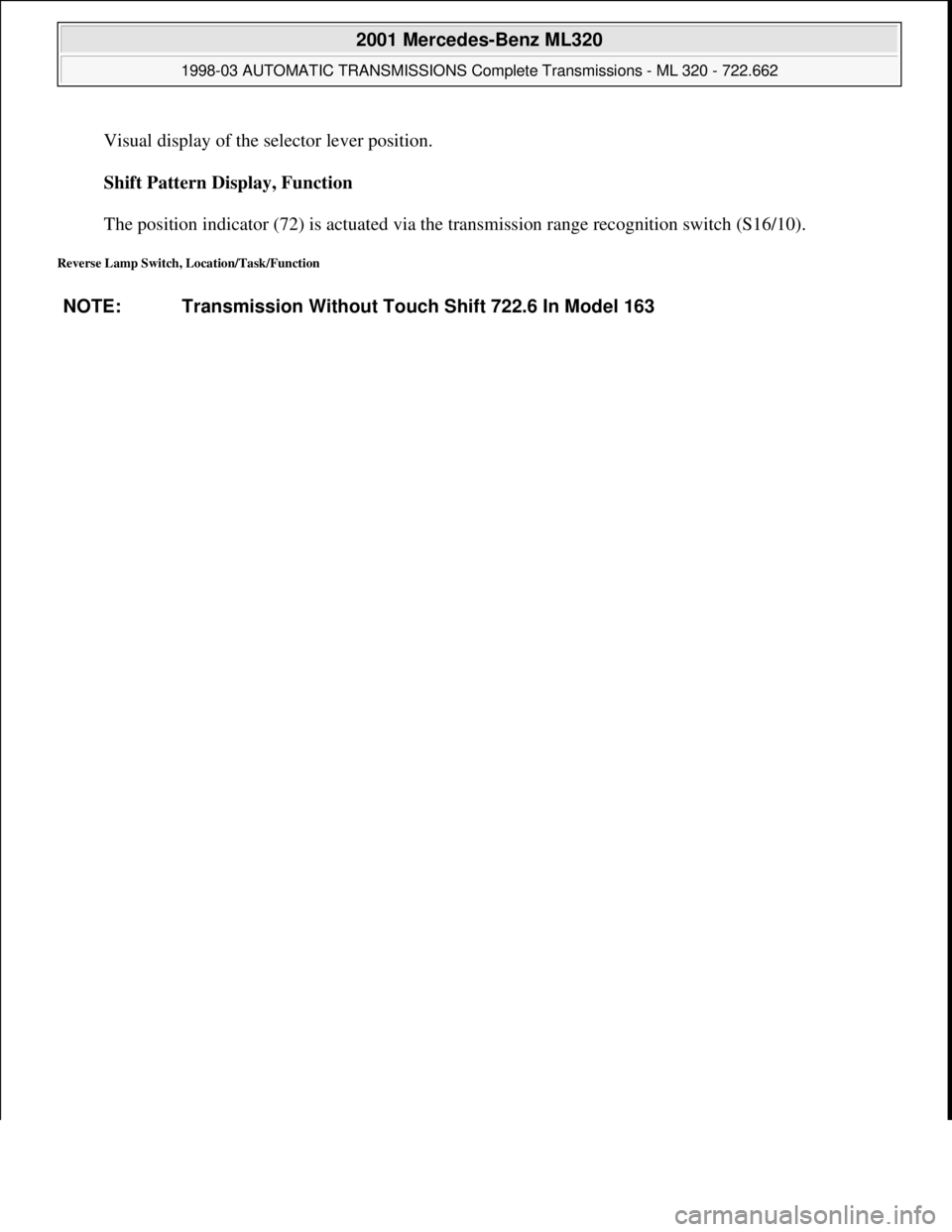

MERCEDES-BENZ ML320 1997 Complete Repair Manual Visual display of the selector lever position. Shift Pattern Display, Function The position indicator (72) is actuated via the transmission range recognition switch (S16/10). Reverse Lamp Switch

Page 1223 of 4133

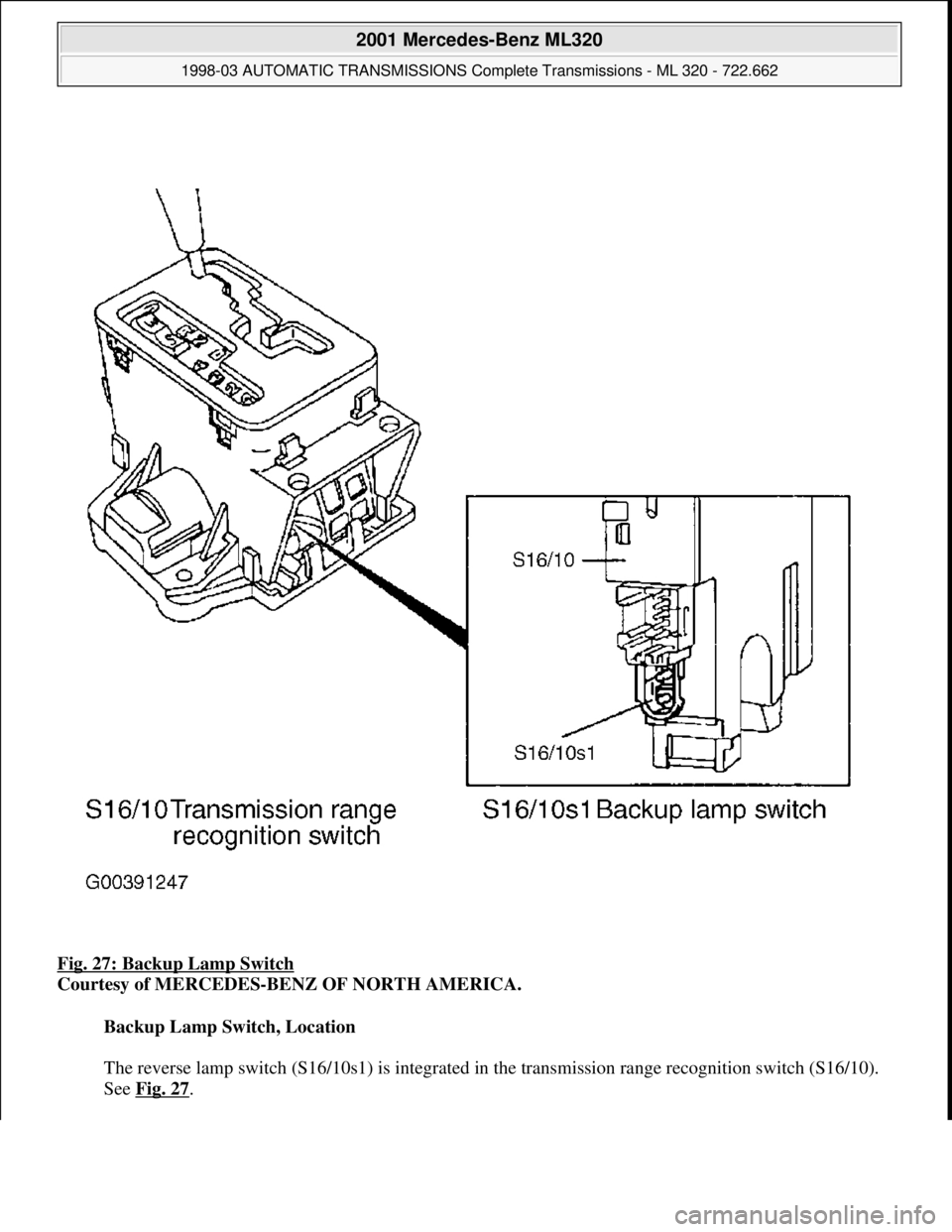

MERCEDES-BENZ ML320 1997 Complete Repair Manual Fig. 27: Backup Lamp Switch Courtesy of MERCEDES-BENZ OF NORTH AMERICA. Backup Lamp Switch, Location The reverse lamp switch (S16/10s1) is integrated in the transmission range recognition

Page 1224 of 4133

MERCEDES-BENZ ML320 1997 Complete Repair Manual Backup Lamp Switch, Task To switch on the backup lamp. Backup Lamp Switch, Function When reverse gear is engaged the reversing lamp is actuated direct via the reverse lamp switch (S16/10s1).
