Page 3545 of 4133

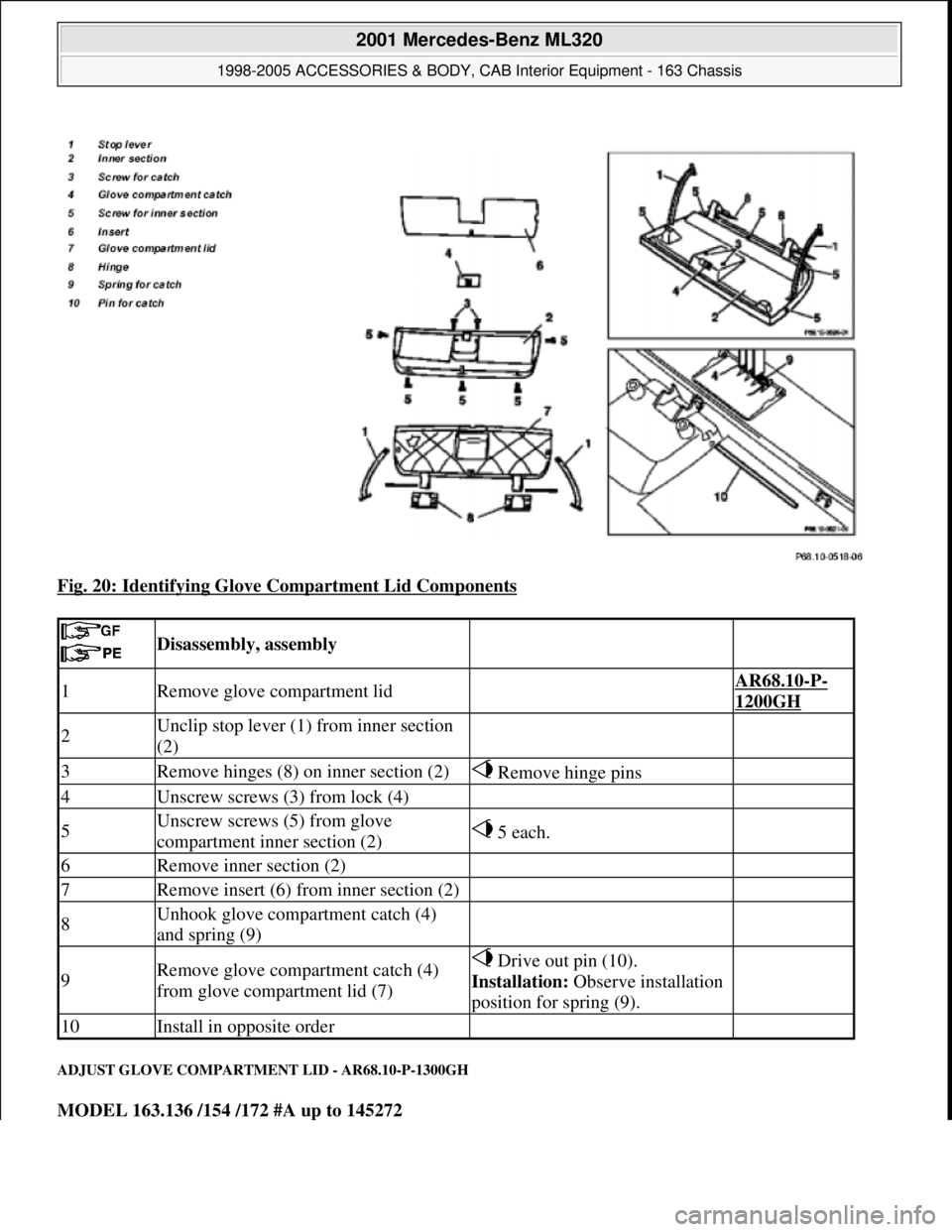

MERCEDES-BENZ ML320 1997 Complete Repair Manual Fig. 20: Identifying Glove Compartment Lid Components ADJUST GLOVE COMPARTMENT LID - AR68.10-P-1300GH MODEL 163.136 /154 /172 #A up to 145272 Disassembly, assembly 1Remove glove compartment lid

Page 3546 of 4133

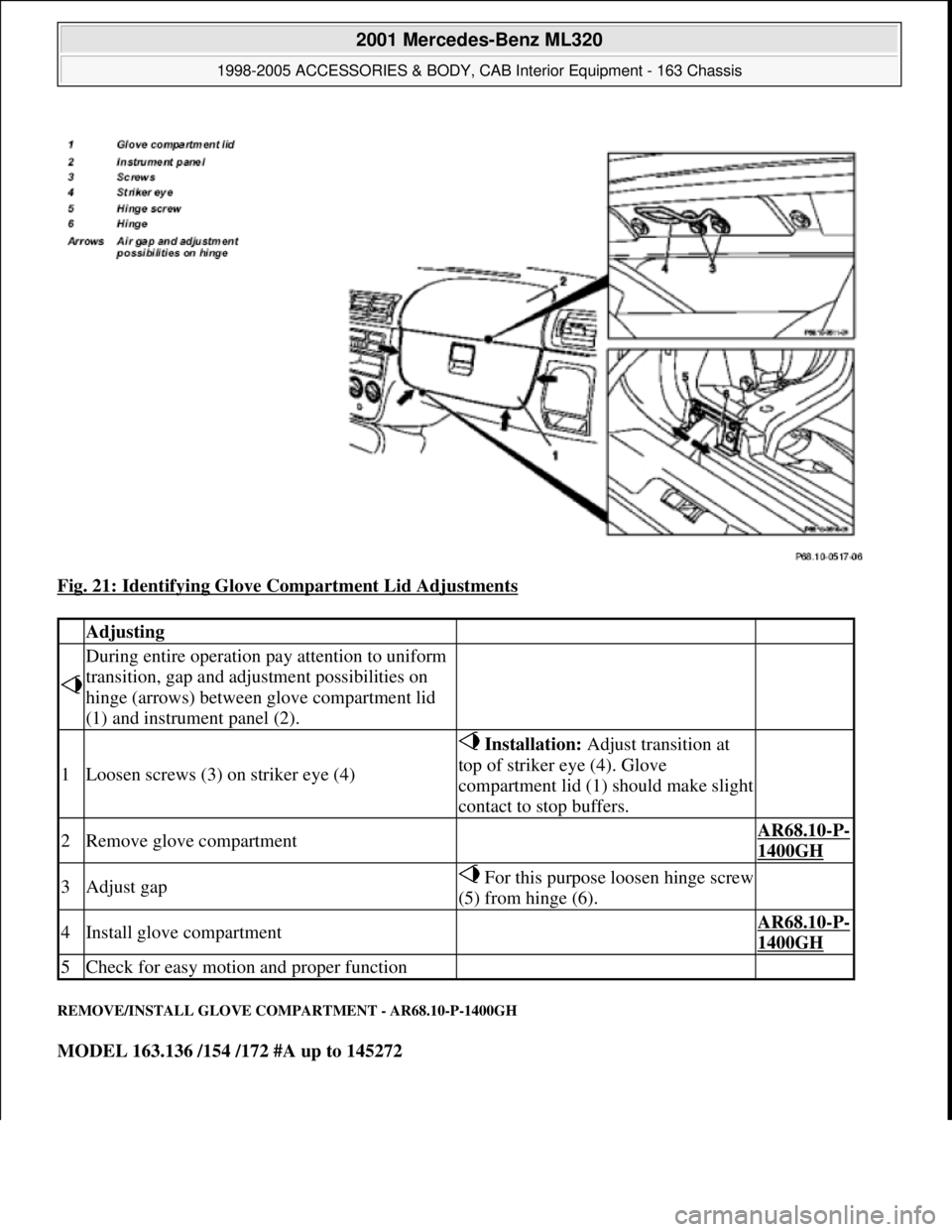

MERCEDES-BENZ ML320 1997 Complete Repair Manual Fig. 21: Identifying Glove Compartment Lid Adjustments REMOVE/INSTALL GLOVE COMPARTMENT - AR68.10-P-1400GH MODEL 163.136 /154 /172 #A up to 145272 Adjusting During entire operation pay attentio

Page 3547 of 4133

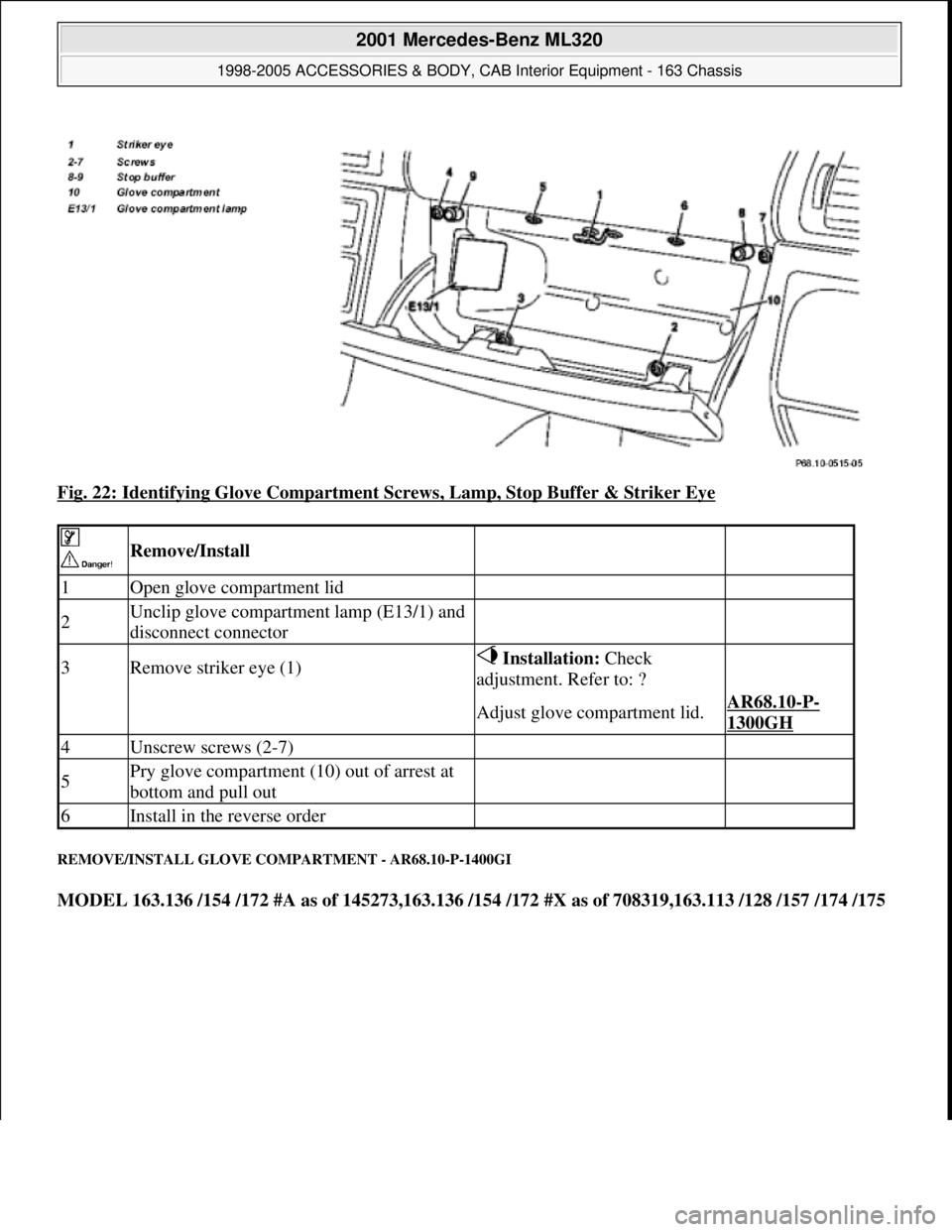

MERCEDES-BENZ ML320 1997 Complete Repair Manual Fig. 22: Identifying Glove Compartment Screws, Lamp, Stop Buffer & Striker Eye REMOVE/INSTALL GLOVE COMPARTMENT - AR68.10-P-1400GI MODEL 163.136 /154 /172 #A as of 145273,163.136 /154 /172 #X as of

Page 3548 of 4133

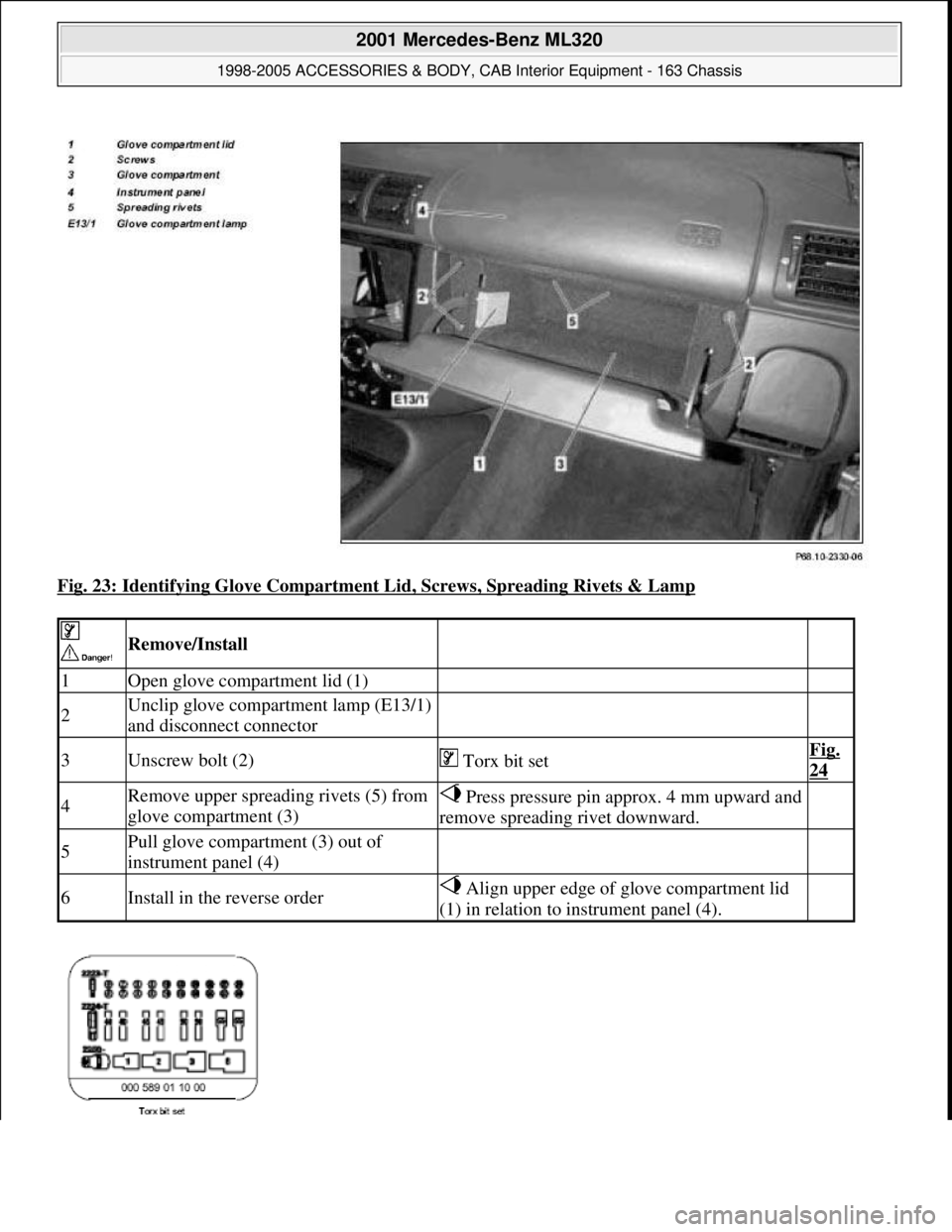

MERCEDES-BENZ ML320 1997 Complete Repair Manual Fig. 23: Identifying Glove Compartment Lid, Screws, Spreading Rivets & Lamp Remove/Install 1Open glove compartment lid (1) 2Unclip glove compartment lamp (E13/1) and disconnect connector 3U

Page 3549 of 4133

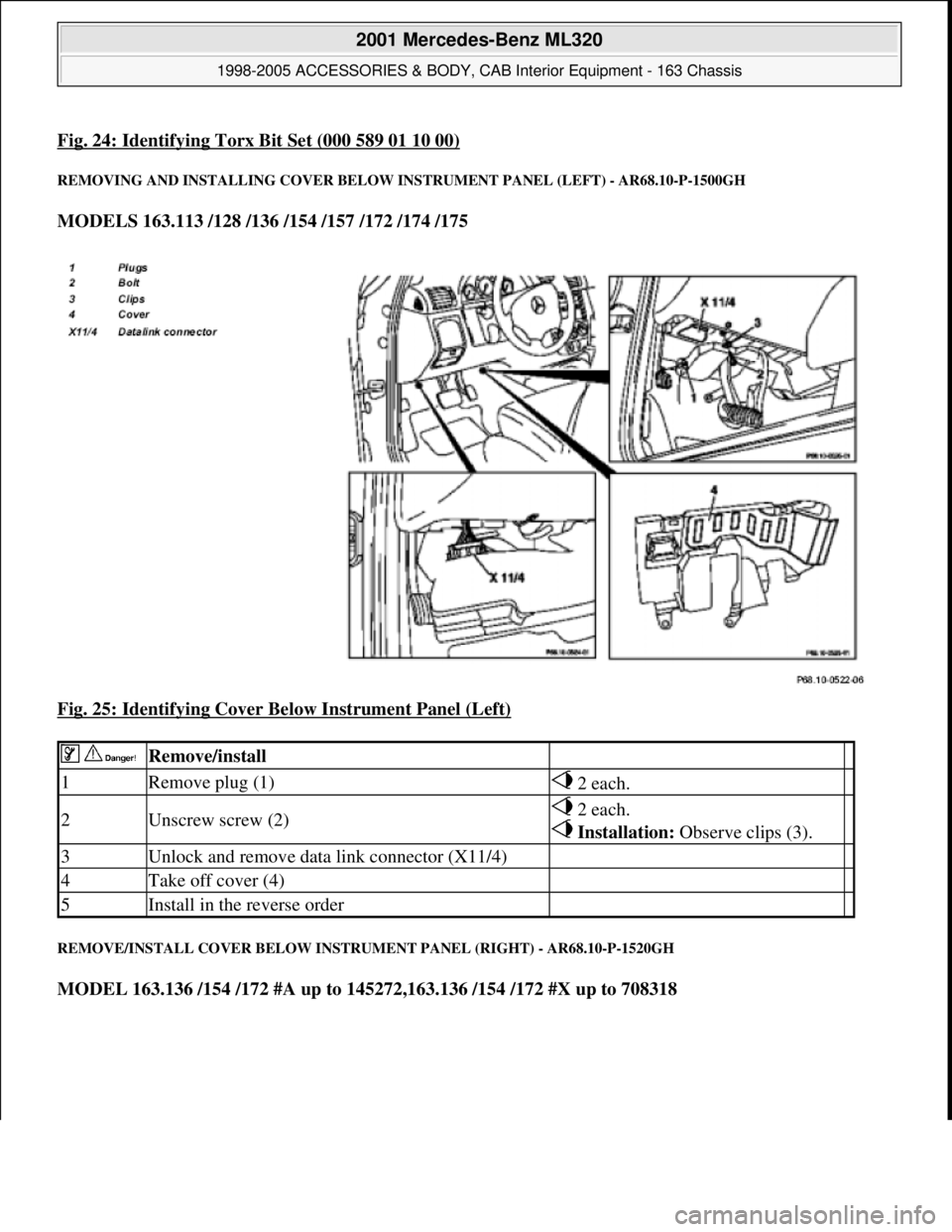

MERCEDES-BENZ ML320 1997 Complete Repair Manual Fig. 24: Identifying Torx Bit Set (000 589 01 10 00) REMOVING AND INSTALLING COVER BELOW INSTRUMENT PANEL (LEFT) - AR68.10-P-1500GH MODELS 163.113 /128 /136 /154 /157 /172 /174 /175 Fig. 25: Identi

Page 3550 of 4133

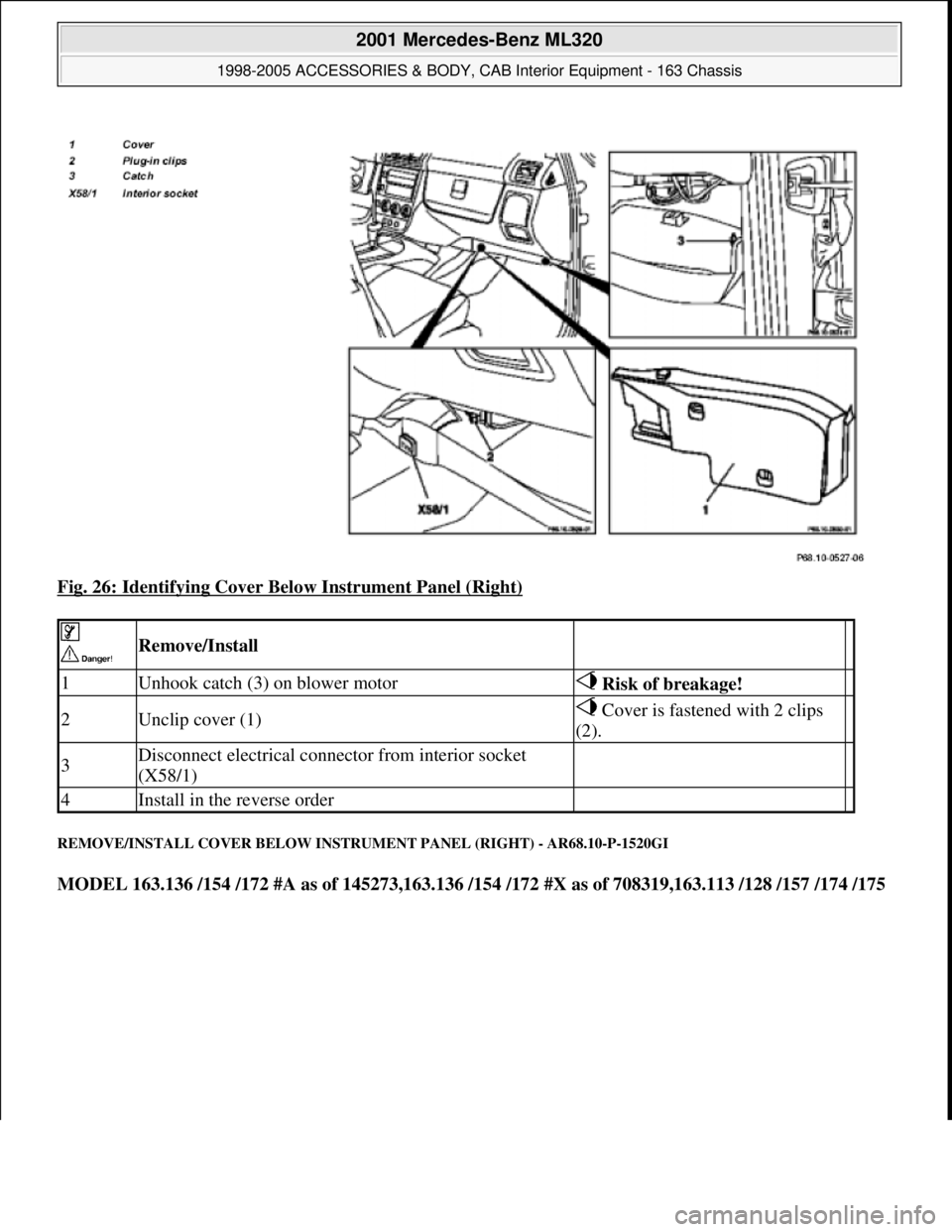

MERCEDES-BENZ ML320 1997 Complete Repair Manual Fig. 26: Identifying Cover Below Instrument Panel (Right) REMOVE/INSTALL COVER BELOW INSTRUMENT PANEL (RIGHT) - AR68.10-P-1520GI MODEL 163.136 /154 /172 #A as of 145273,163.136 /154 /172 #X as of 70

Page 3551 of 4133

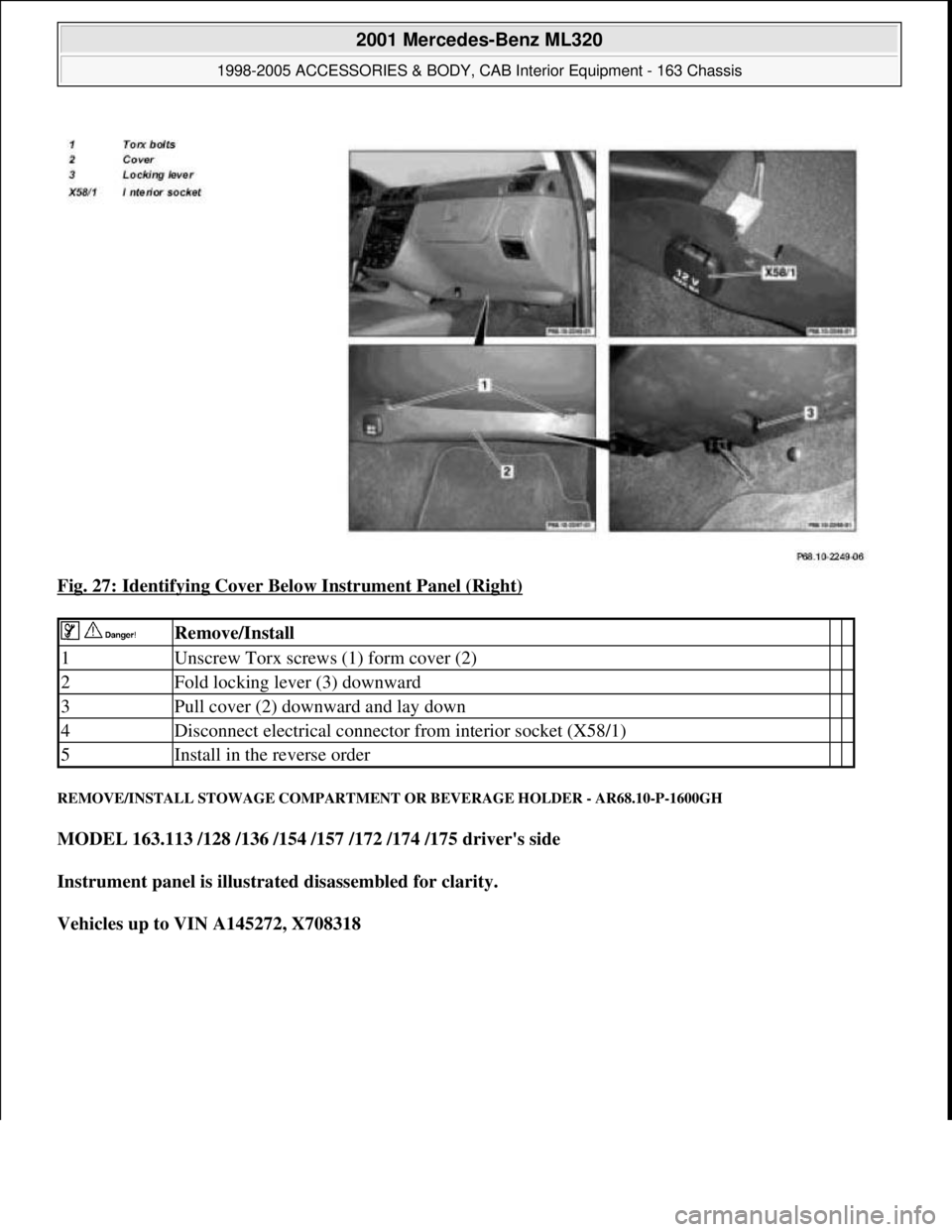

MERCEDES-BENZ ML320 1997 Complete Repair Manual Fig. 27: Identifying Cover Below Instrument Panel (Right) REMOVE/INSTALL STOWAGE COMPARTMENT OR BEVERAGE HOLDER - AR68.10-P-1600GH MODEL 163.113 /128 /136 /154 /157 /172 /174 /175 drivers side In

Page 3552 of 4133

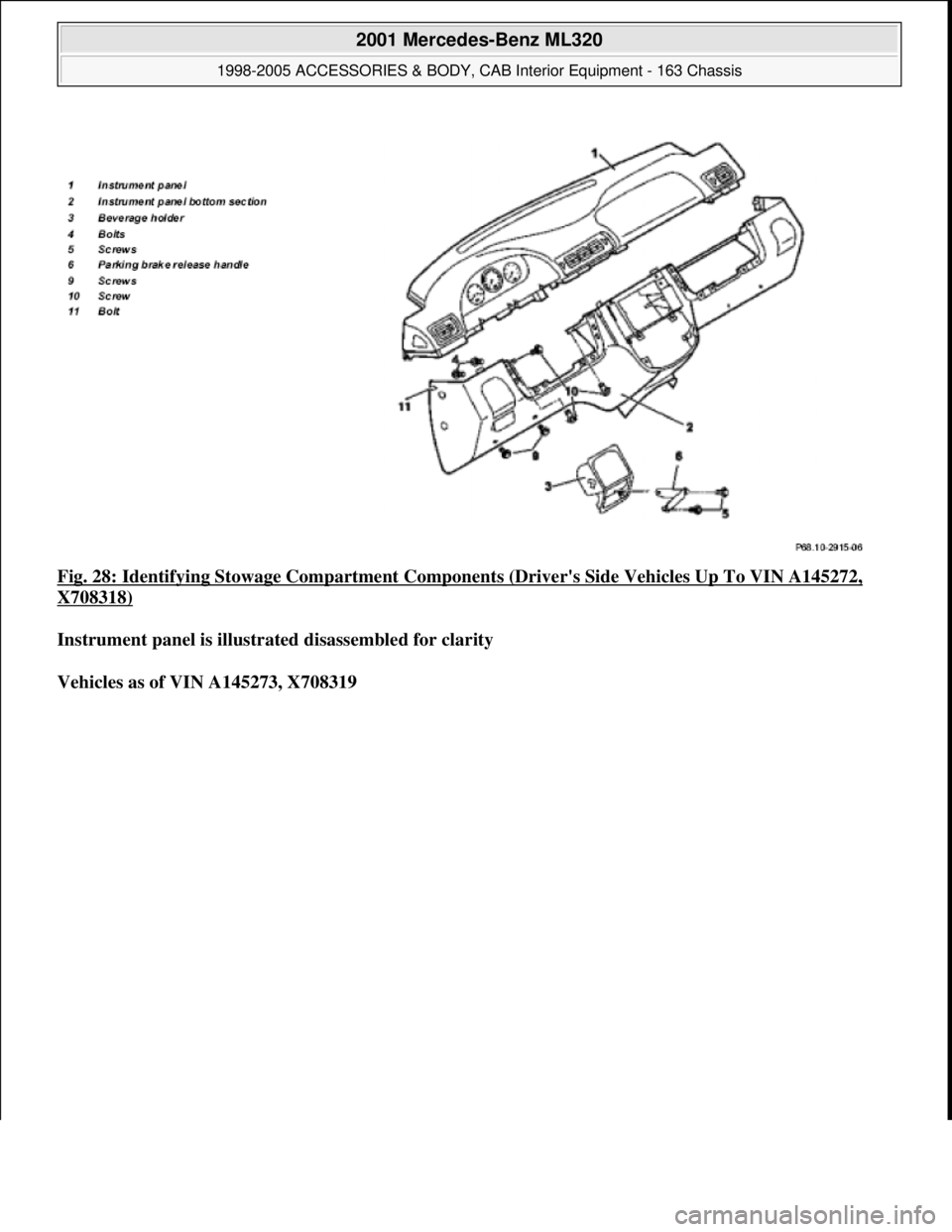

MERCEDES-BENZ ML320 1997 Complete Repair Manual Fig. 28: Identifying Stowage Compartment Components (Drivers Side Vehicles Up To VIN A145272, X708318) Instrument panel is illustrated disassembled for clarity Vehicles as of VIN A145273, X708319
