Page 3449 of 4133

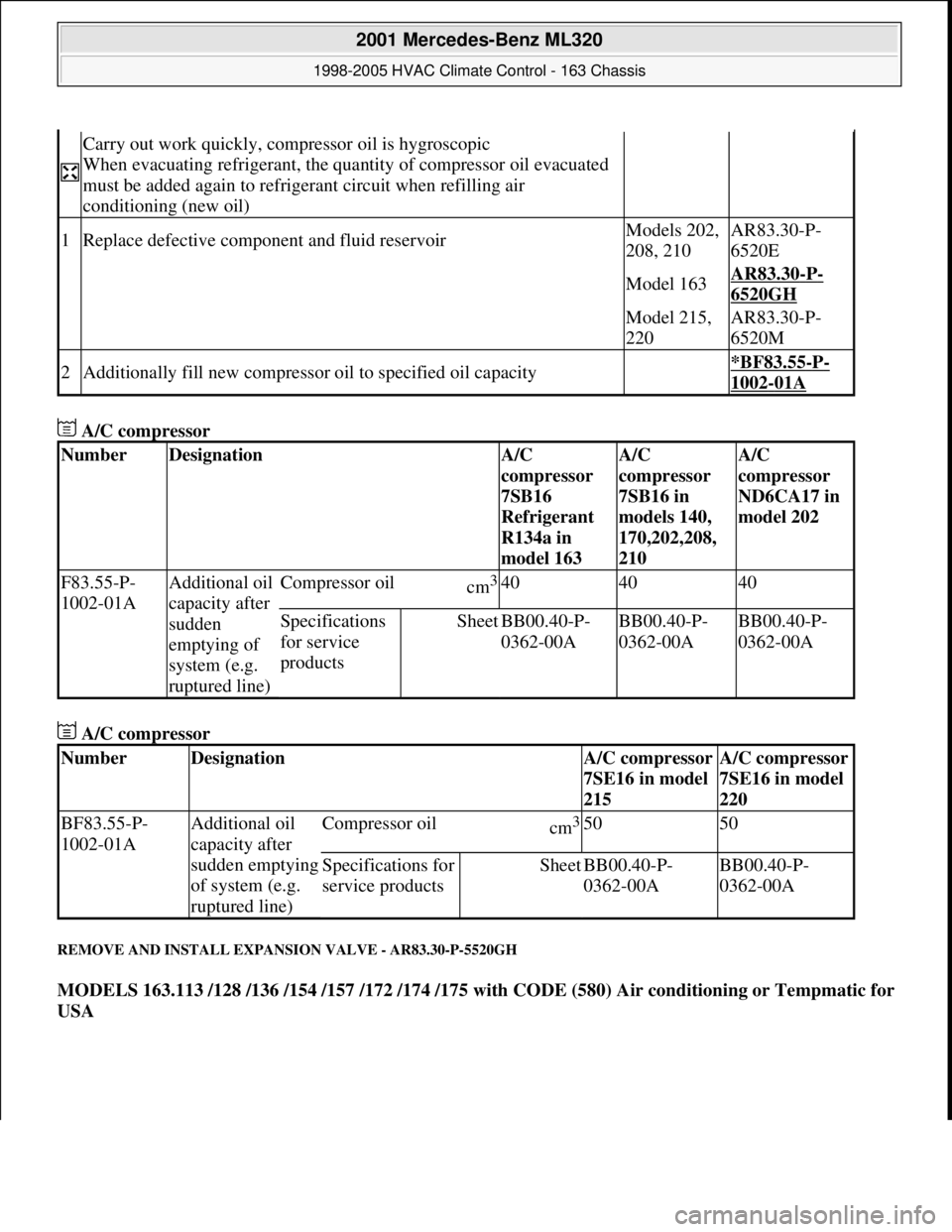

MERCEDES-BENZ ML320 1997 Complete Repair Manual A/C compressor A/C compressor REMOVE AND INSTALL EXPANSION VALVE - AR83.30-P-5520GH MODELS 163.113 /128 /136 /154 /157 /172 /174 /175 with CODE (580) Air conditioning or Tempmatic for USA Ca

Page 3450 of 4133

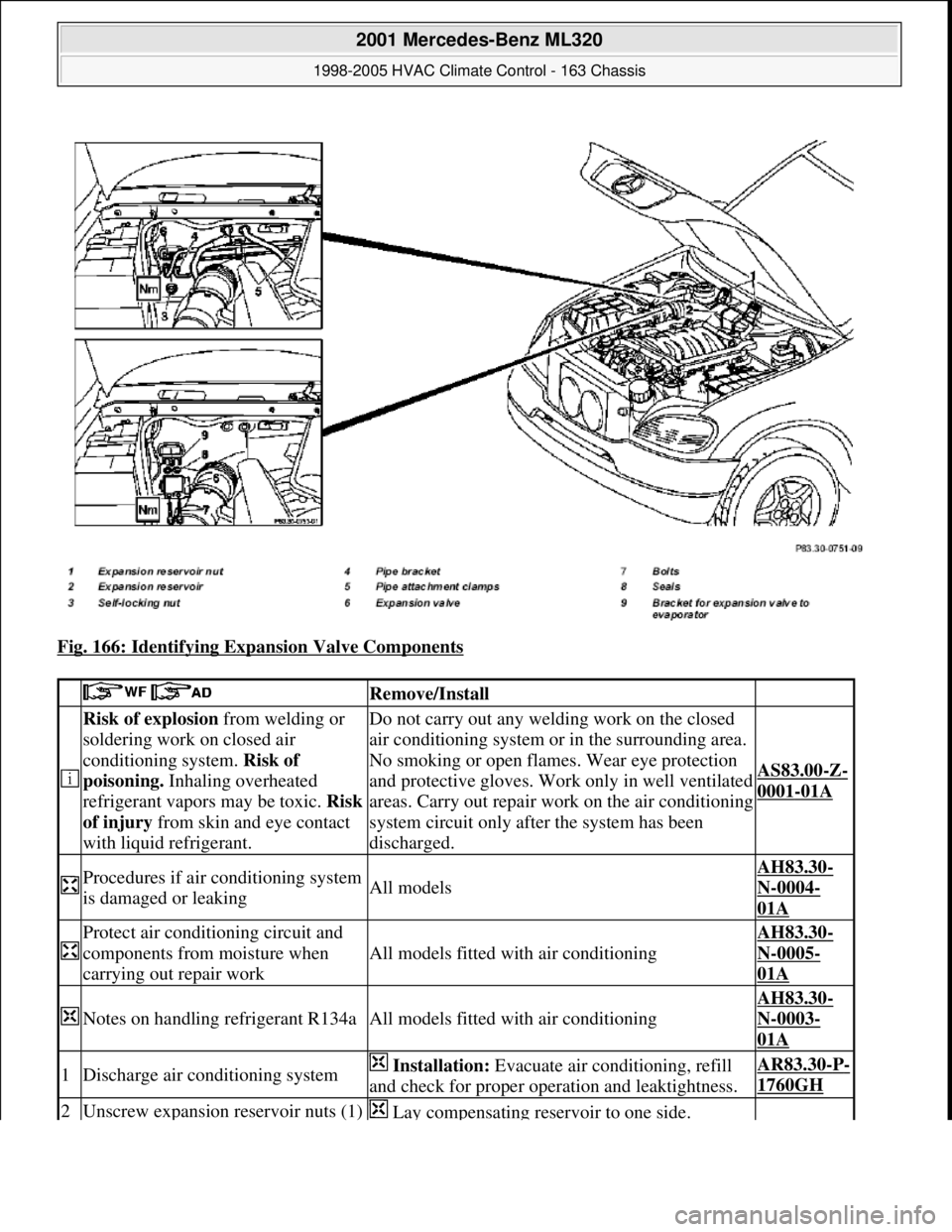

MERCEDES-BENZ ML320 1997 Complete Repair Manual Fig. 166: Identifying Expansion Valve Components Remove/Install Risk of explosion from welding or soldering work on closed air conditioning system. Risk of poisoning. Inhaling overheated re

Page 3451 of 4133

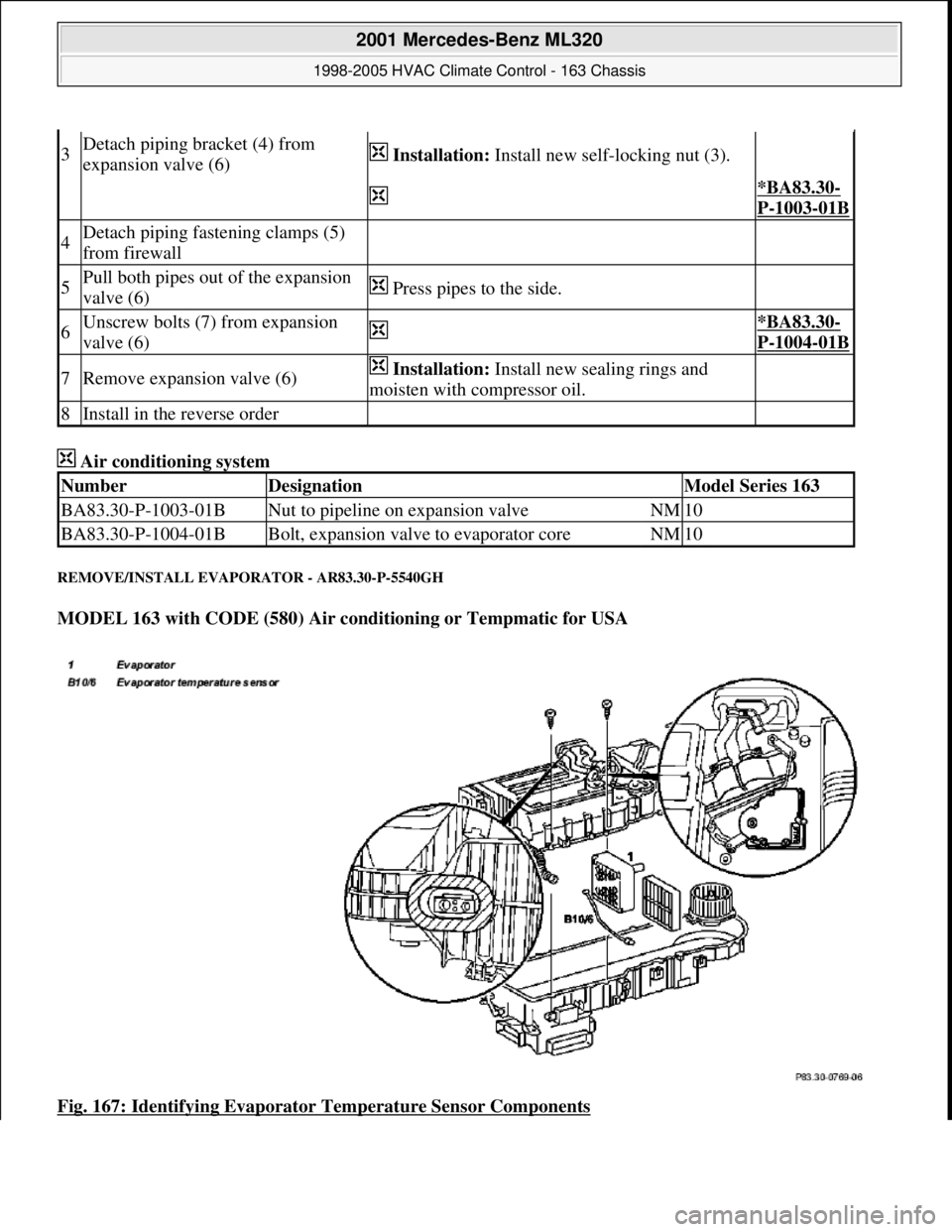

MERCEDES-BENZ ML320 1997 Complete Repair Manual Air conditioning system REMOVE/INSTALL EVAPORATOR - AR83.30-P-5540GH MODEL 163 with CODE (580) Air conditioning or Tempmatic for USA Fig. 167: Identifying Evaporator Temperature Sensor Components

Page 3452 of 4133

MERCEDES-BENZ ML320 1997 Complete Repair Manual Refrigerant compressor Remove/Install Risk of explosion from welding or soldering work on closed air conditioning system. Risk of poisoning . Inhaling overheated refrigerant vapors may be

Page 3453 of 4133

MERCEDES-BENZ ML320 1997 Complete Repair Manual REMOVE/INSTALL AIR CONDITIONING BLOWER MOTOR - AR83.30-P-5560GH MODEL 163.113 /128 /136 /154 /157 /172 /174 /175 with CODE (580) Air conditioning or Tempmatic for USA Fig. 168: Identifying Air Cond

Page 3454 of 4133

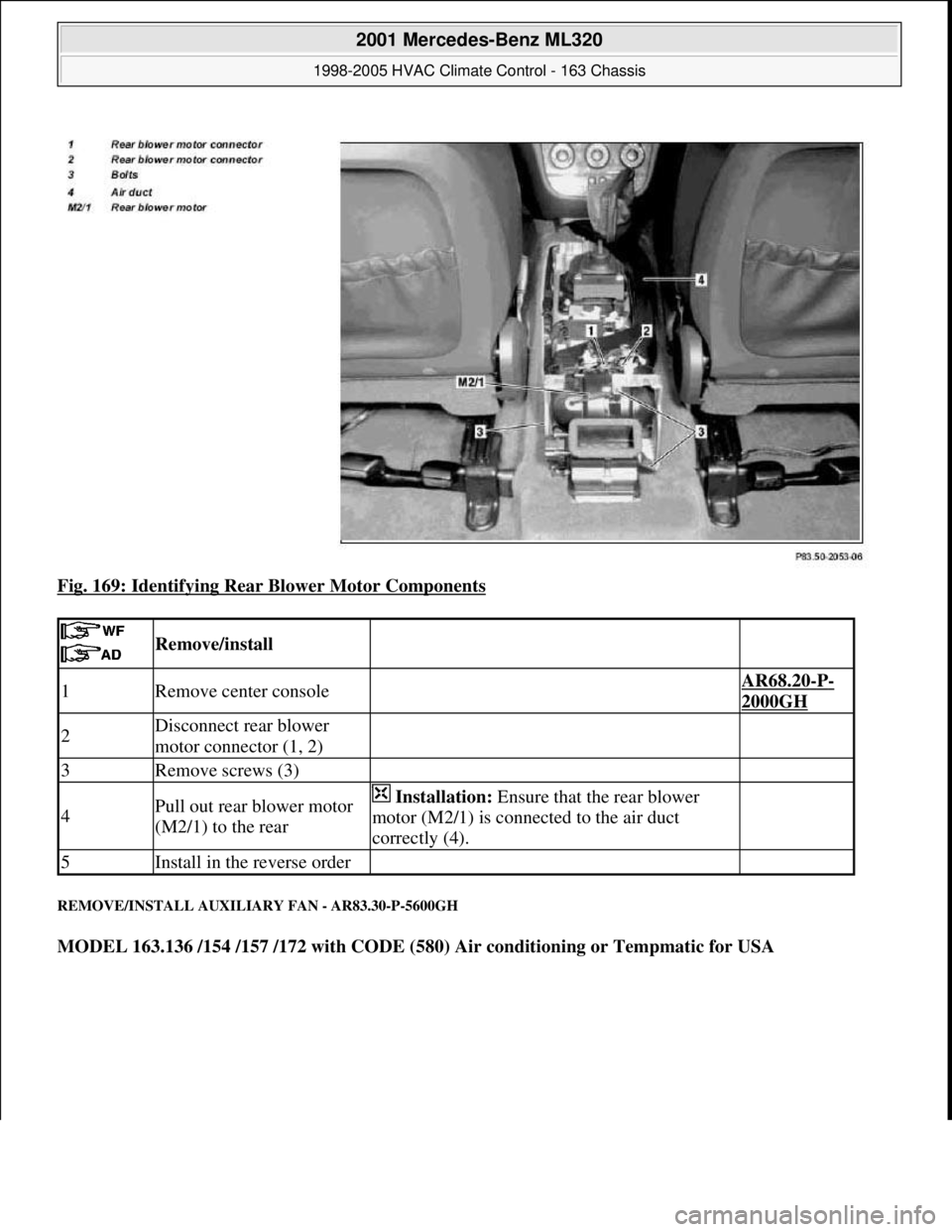

MERCEDES-BENZ ML320 1997 Complete Repair Manual Fig. 169: Identifying Rear Blower Motor Components REMOVE/INSTALL AUXILIARY FAN - AR83.30-P-5600GH MODEL 163.136 /154 /157 /172 with CODE (580) Air conditioning or Tempmatic for USA Remove/instal

Page 3455 of 4133

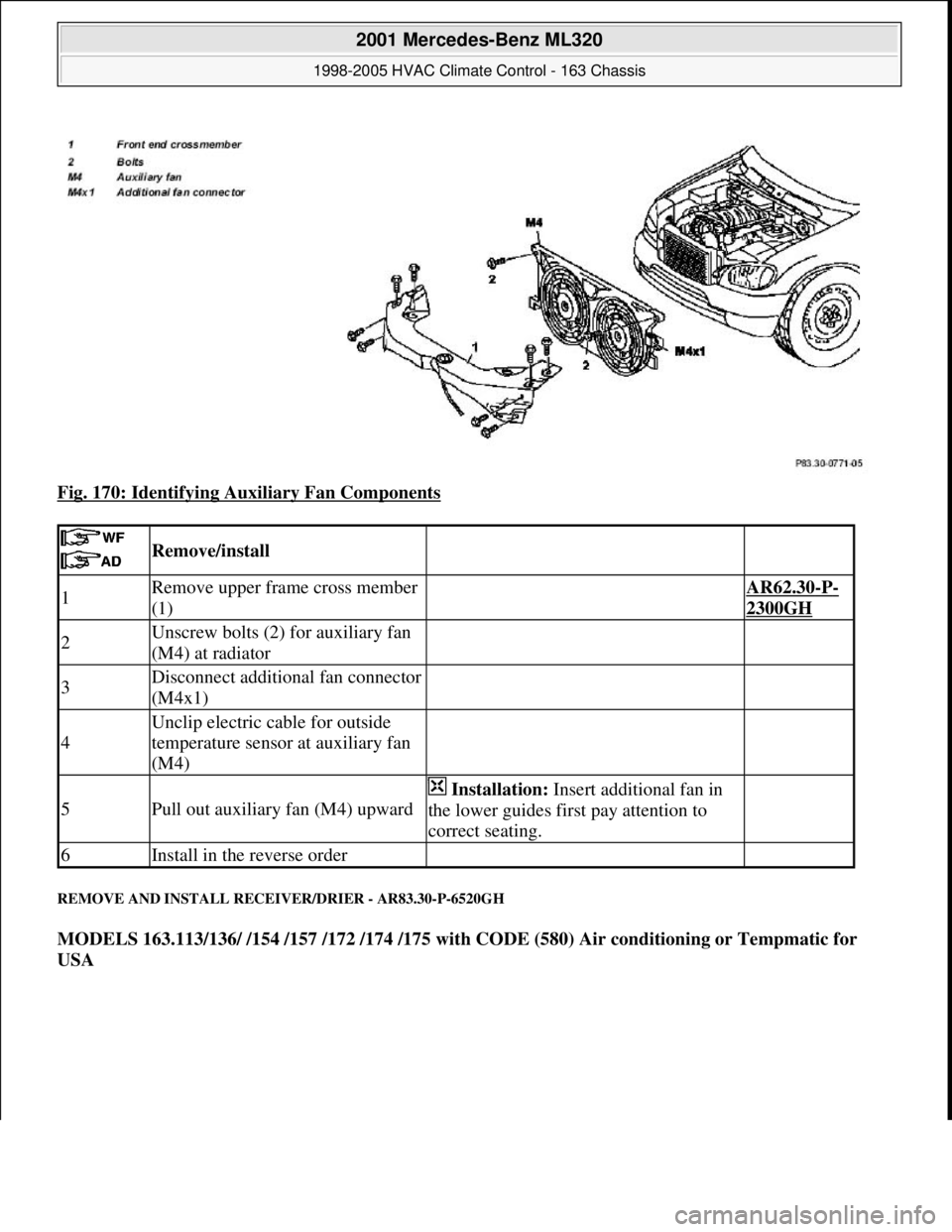

MERCEDES-BENZ ML320 1997 Complete Repair Manual Fig. 170: Identifying Auxiliary Fan Components REMOVE AND INSTALL RECEIVER/DRIER - AR83.30-P-6520GH MODELS 163.113/136/ /154 /157 /172 /174 /175 with CODE (580) Air conditioning or Tempmatic for US

Page 3456 of 4133

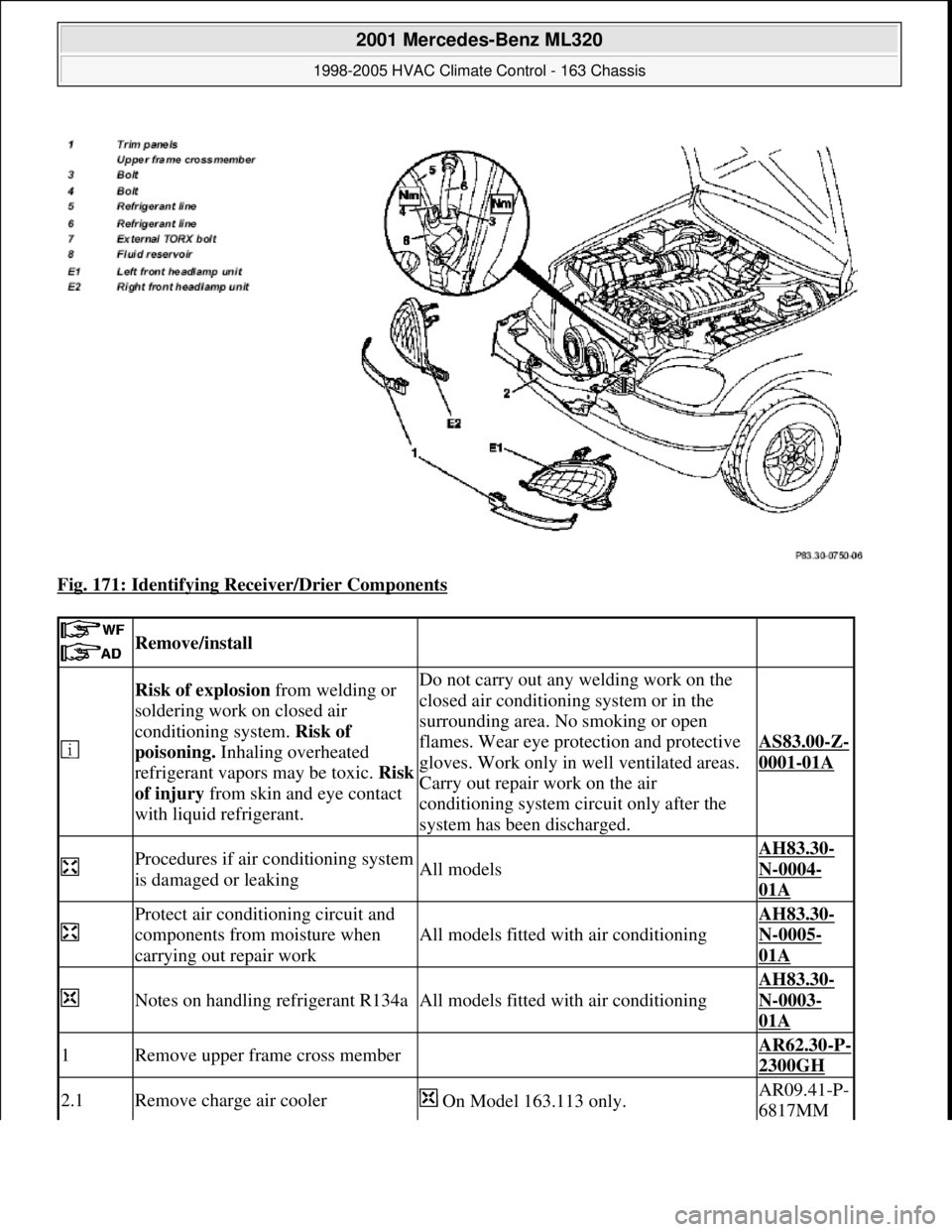

MERCEDES-BENZ ML320 1997 Complete Repair Manual Fig. 171: Identifying Receiver/Drier Components Remove/install Risk of explosion from welding or soldering work on closed air conditioning system. Risk of poisoning. Inhaling overheated re
