Page 1297 of 4133

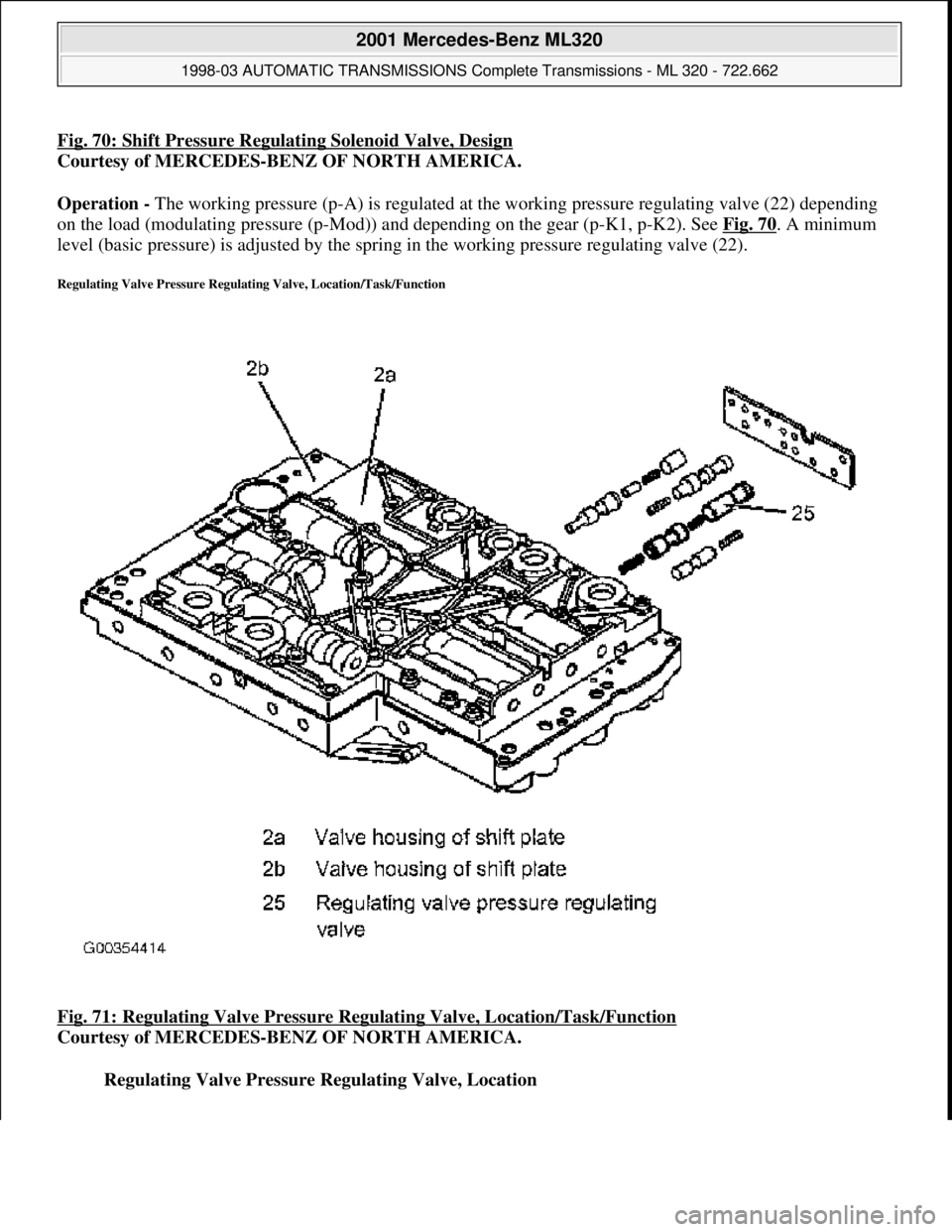

MERCEDES-BENZ ML320 1997 Complete Repair Manual Fig. 70: Shift Pressure Regulating Solenoid Valve, Design Courtesy of MERCEDES-BENZ OF NORTH AMERICA. Operation - The working pressure (p-A) is regulated at th e working pressure regulating valve

Page 1298 of 4133

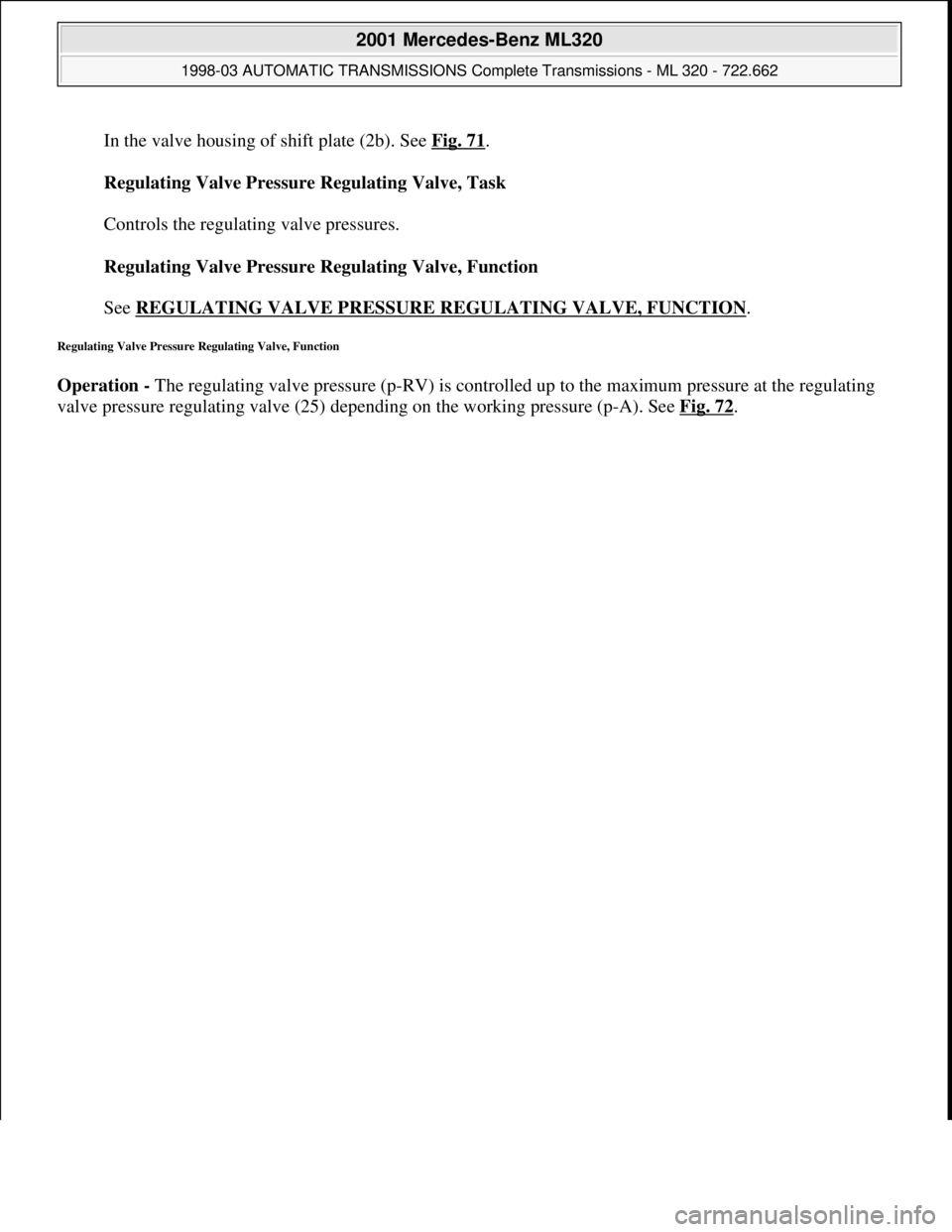

MERCEDES-BENZ ML320 1997 Complete Repair Manual In the valve housing of shift plate (2b). See Fig. 71. Regulating Valve Pressure Regulating Valve, Task Controls the regulating valve pressures. Regulating Valve Pressure Regulating Valve, Functi

Page 1299 of 4133

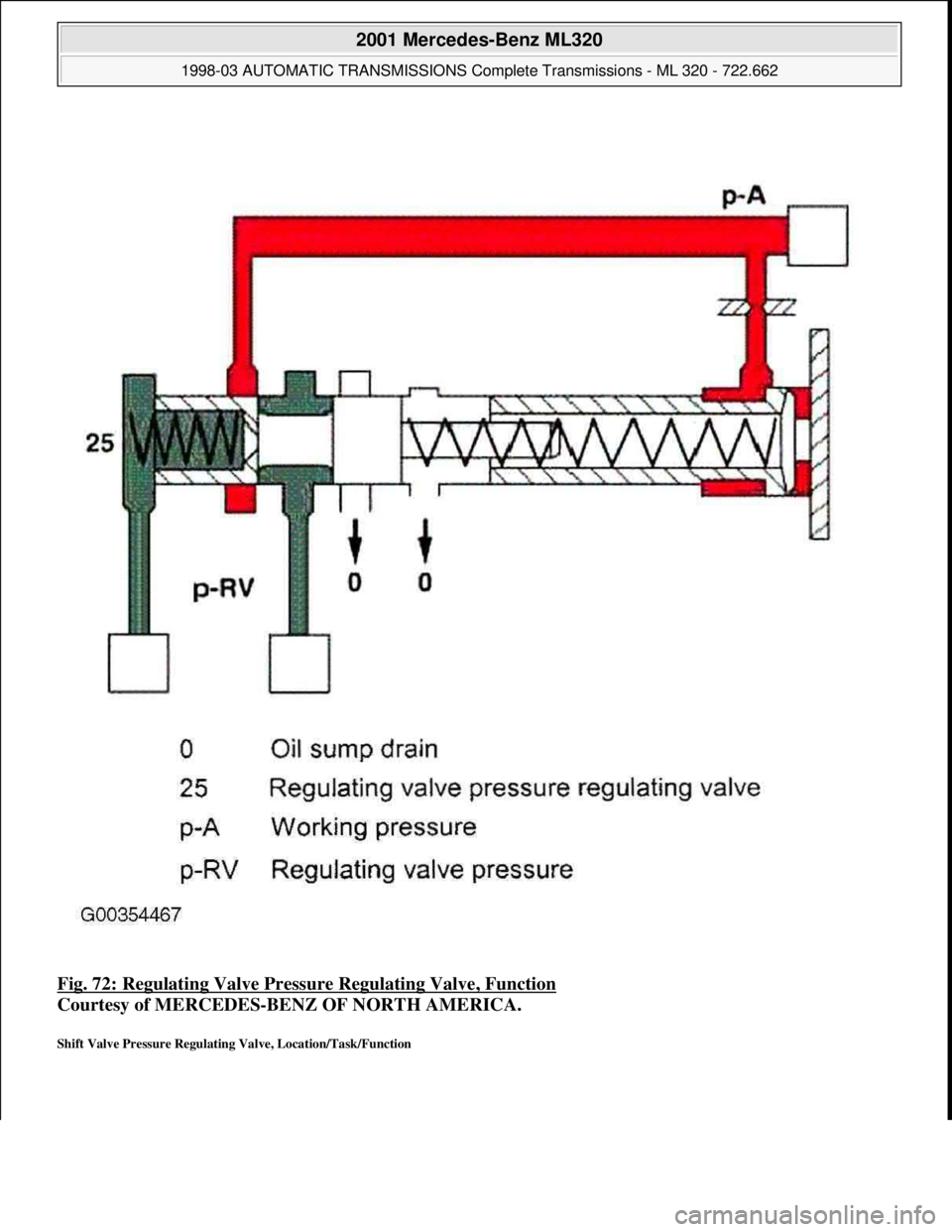

MERCEDES-BENZ ML320 1997 Complete Repair Manual Fig. 72: Regulating Valve Pressu re Regulating Valve, Function Courtesy of MERCEDES-BENZ OF NORTH AMERICA. Shift Valve Pressure Regulating Valve, Location/Task/Function 2001 Mercedes-Benz ML32

Page 1300 of 4133

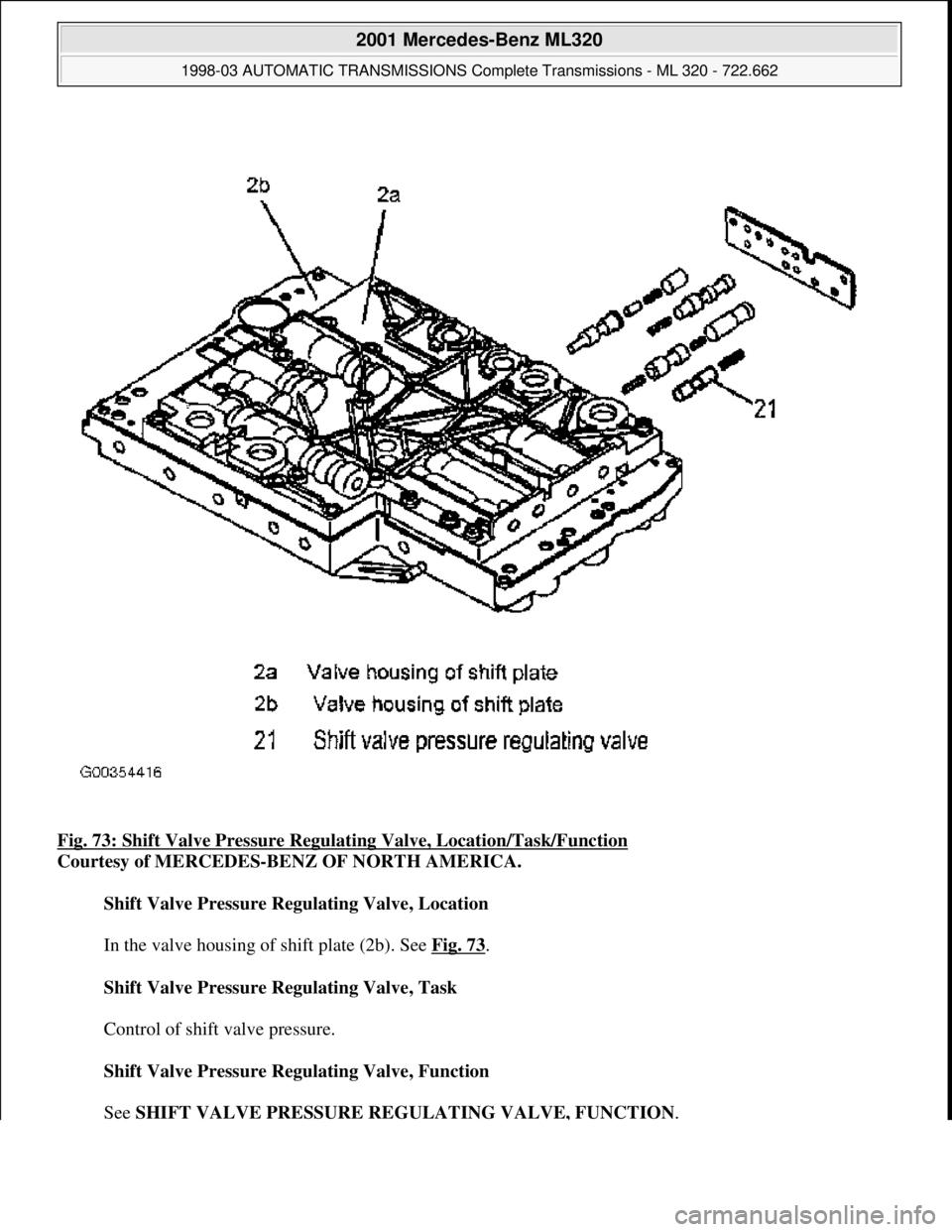

MERCEDES-BENZ ML320 1997 Complete Repair Manual Fig. 73: Shift Valve Pressure Regulati ng Valve, Location/Task/Function Courtesy of MERCEDES-BENZ OF NORTH AMERICA. Shift Valve Pressure Regulating Valve, Location In the valve housing of s

Page 1301 of 4133

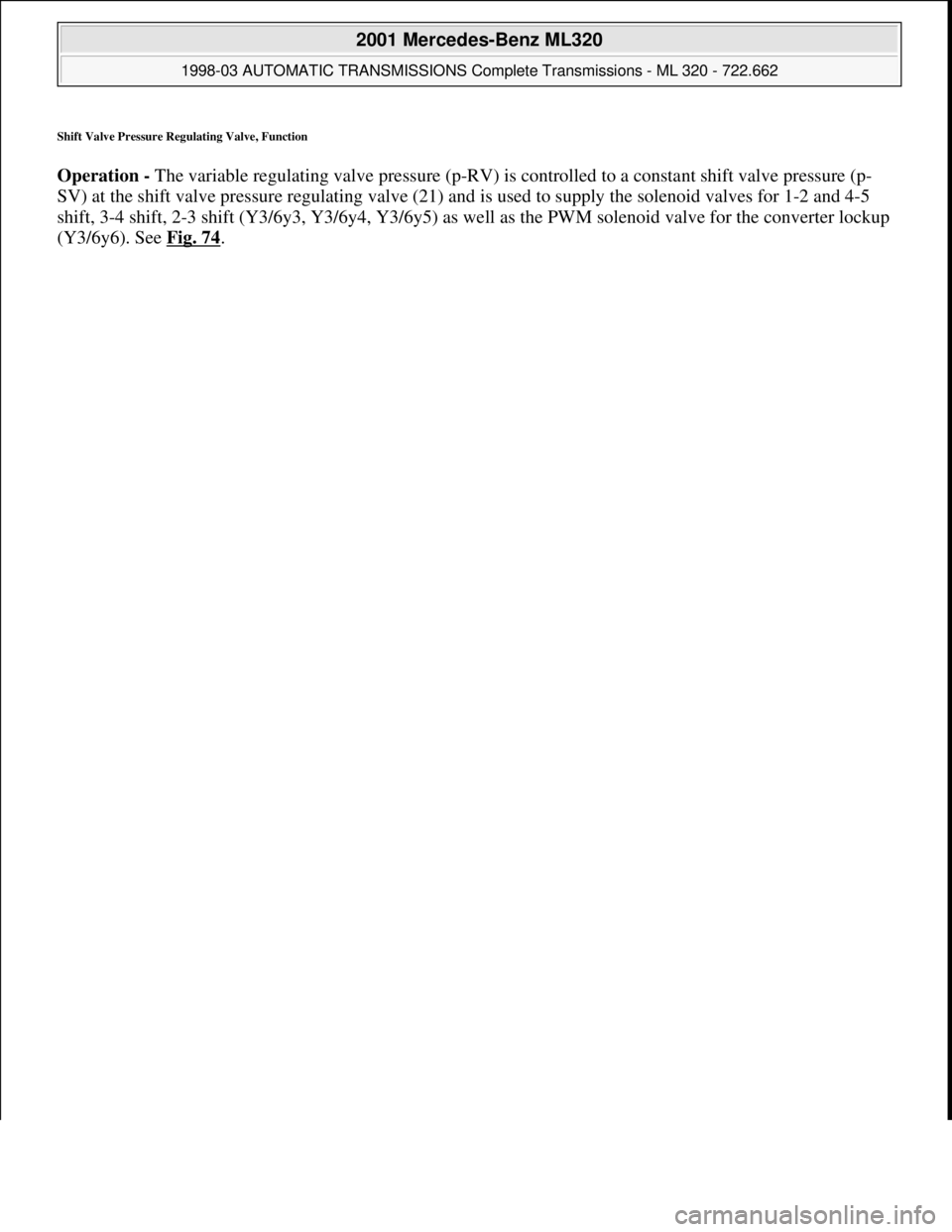

MERCEDES-BENZ ML320 1997 Complete Repair Manual Shift Valve Pressure Regulating Valve, Function Operation - The variable regulating valve pressure (p-RV) is controlled to a constant shift valve pressure (p- SV) at the shift valve pressure regulati

Page 1302 of 4133

MERCEDES-BENZ ML320 1997 Complete Repair Manual 2001 Mercedes-Benz ML320 1998-03 AUTOMATIC TRANSMISSIONS Complete Transmissions - ML 320 - 722.662 me Saturday, October 02, 2010 3:15:27 PMPage 133 © 2006 Mitchell Repair Information Company,

Page 1303 of 4133

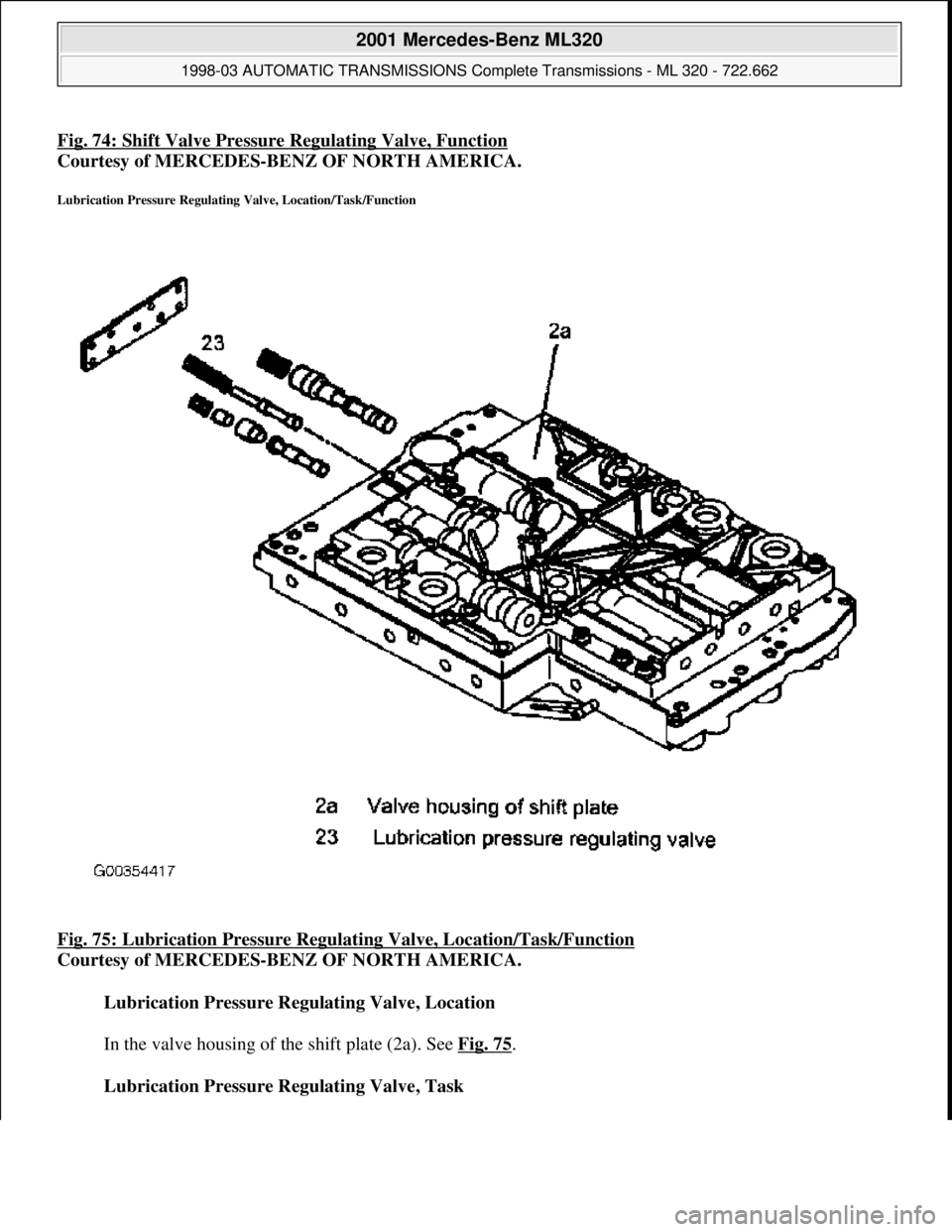

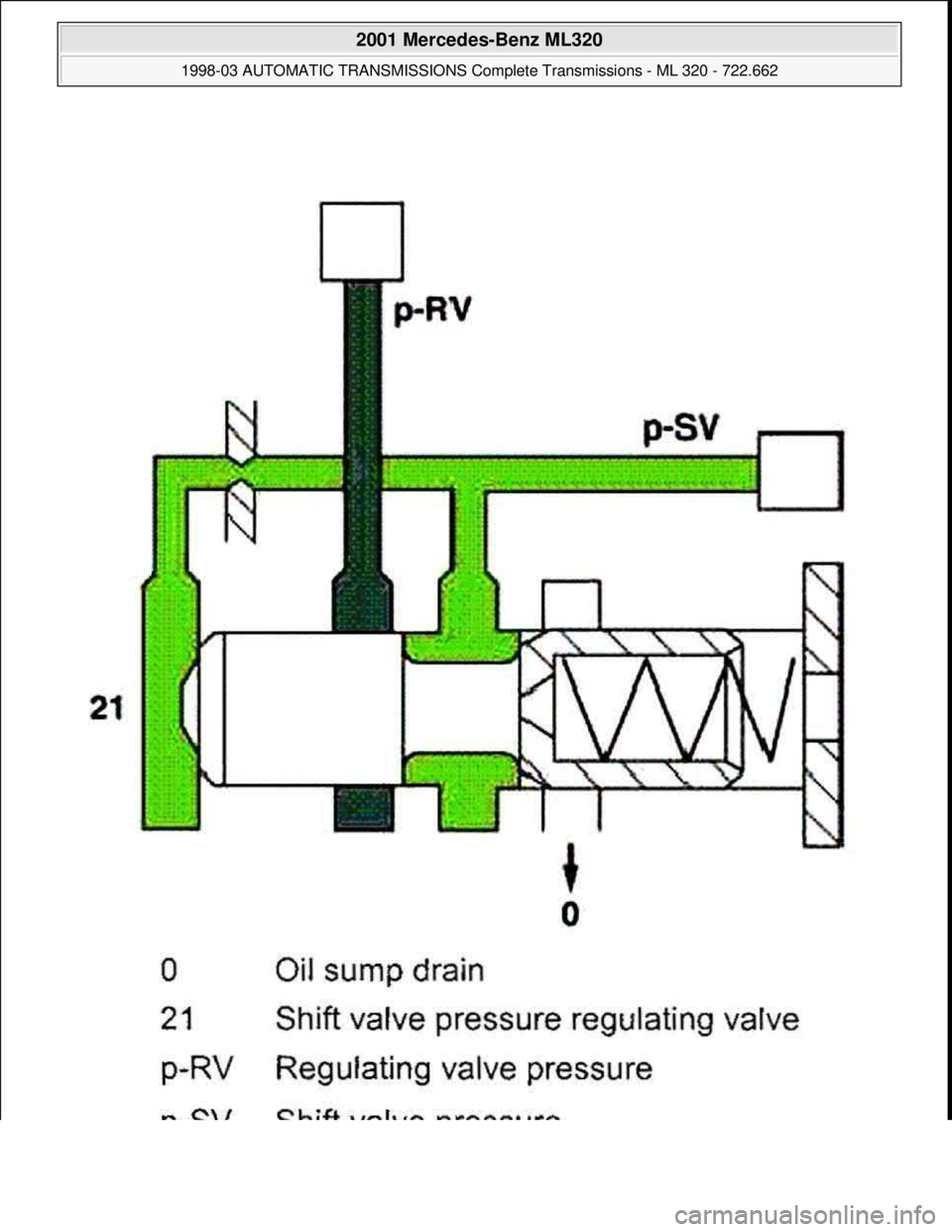

MERCEDES-BENZ ML320 1997 Complete Repair Manual Fig. 74: Shift Valve Pressure Regulating Valve, Function Courtesy of MERCEDES-BENZ OF NORTH AMERICA. Lubrication Pressure Regulating Valve, Location/Task/Function Fig. 75: Lubrication Pressure Regu

Page 1304 of 4133

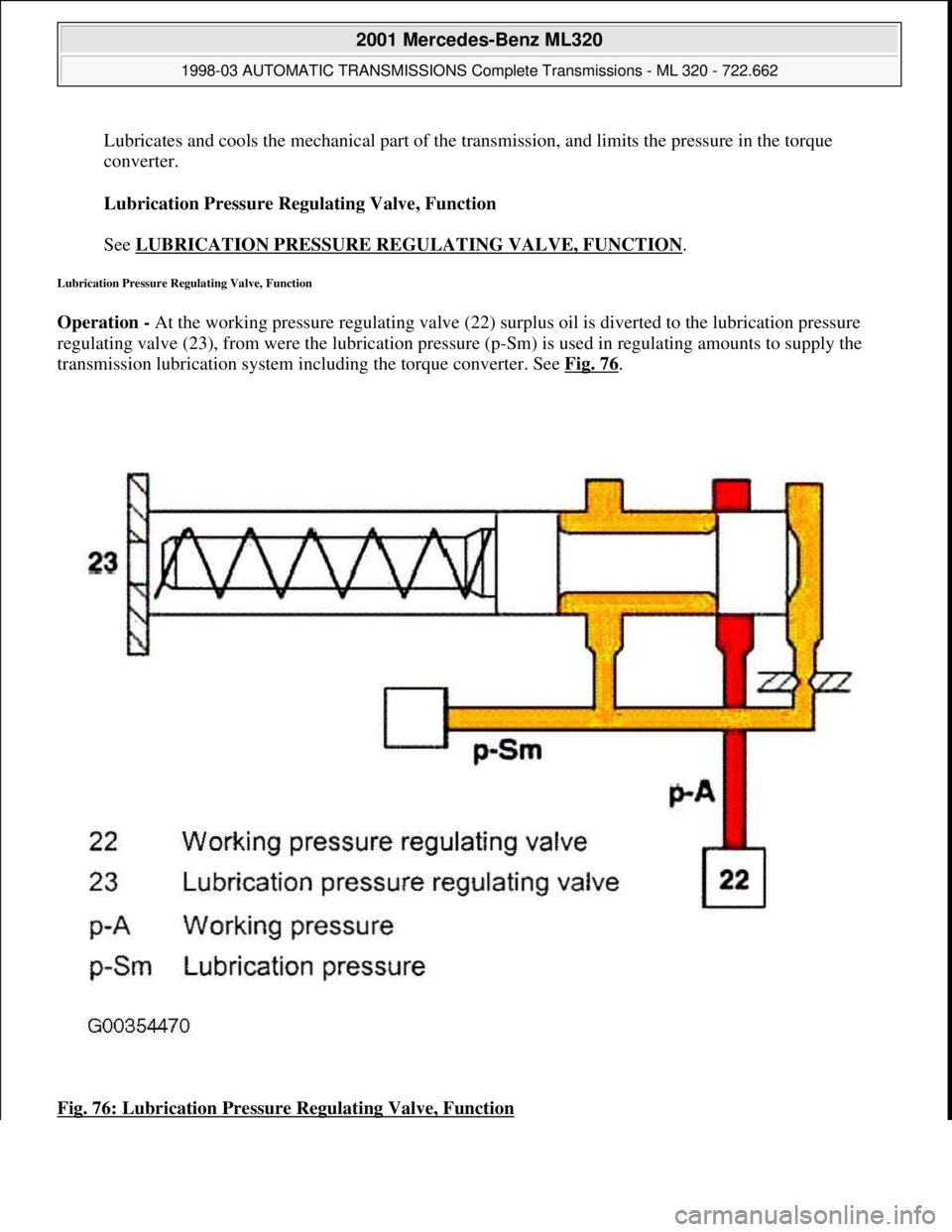

MERCEDES-BENZ ML320 1997 Complete Repair Manual Lubricates and cools the mechanical part of the transmission, and limits the pressure in the torque converter. Lubrication Pressure Regulating Valve, Function See LUBRICATION PRESSURE REGULATING
