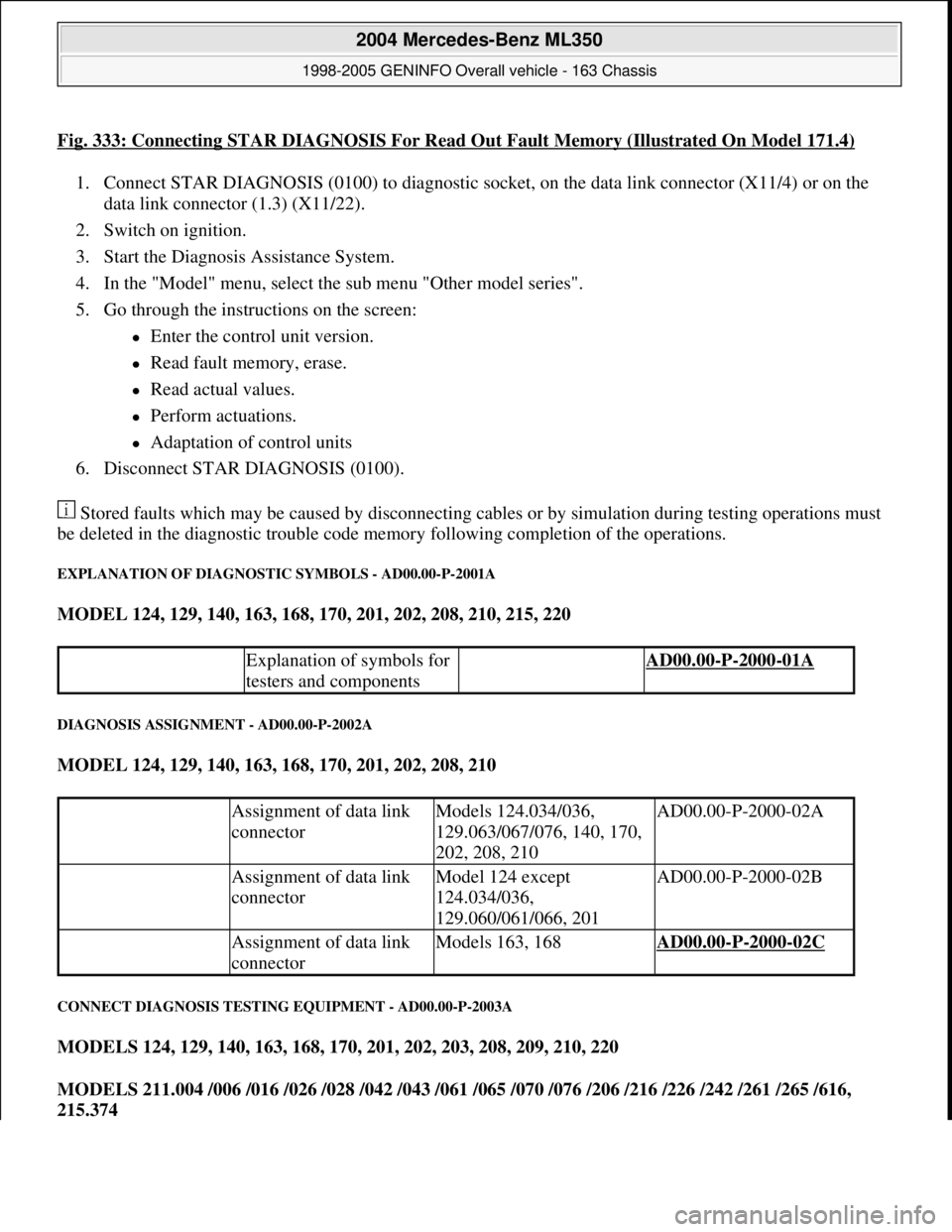

MERCEDES-BENZ ML320 1997 Complete Repair Manual Fig. 333: Connecting STAR DIAGNOSIS For Read Out Fault Memory (Illustrated On Model 171.4) 1. Connect STAR DIAGNOSIS (0100) to diagnostic socket, on the data link connector (X11/4) or on the data lin

Page 2890 of 4133

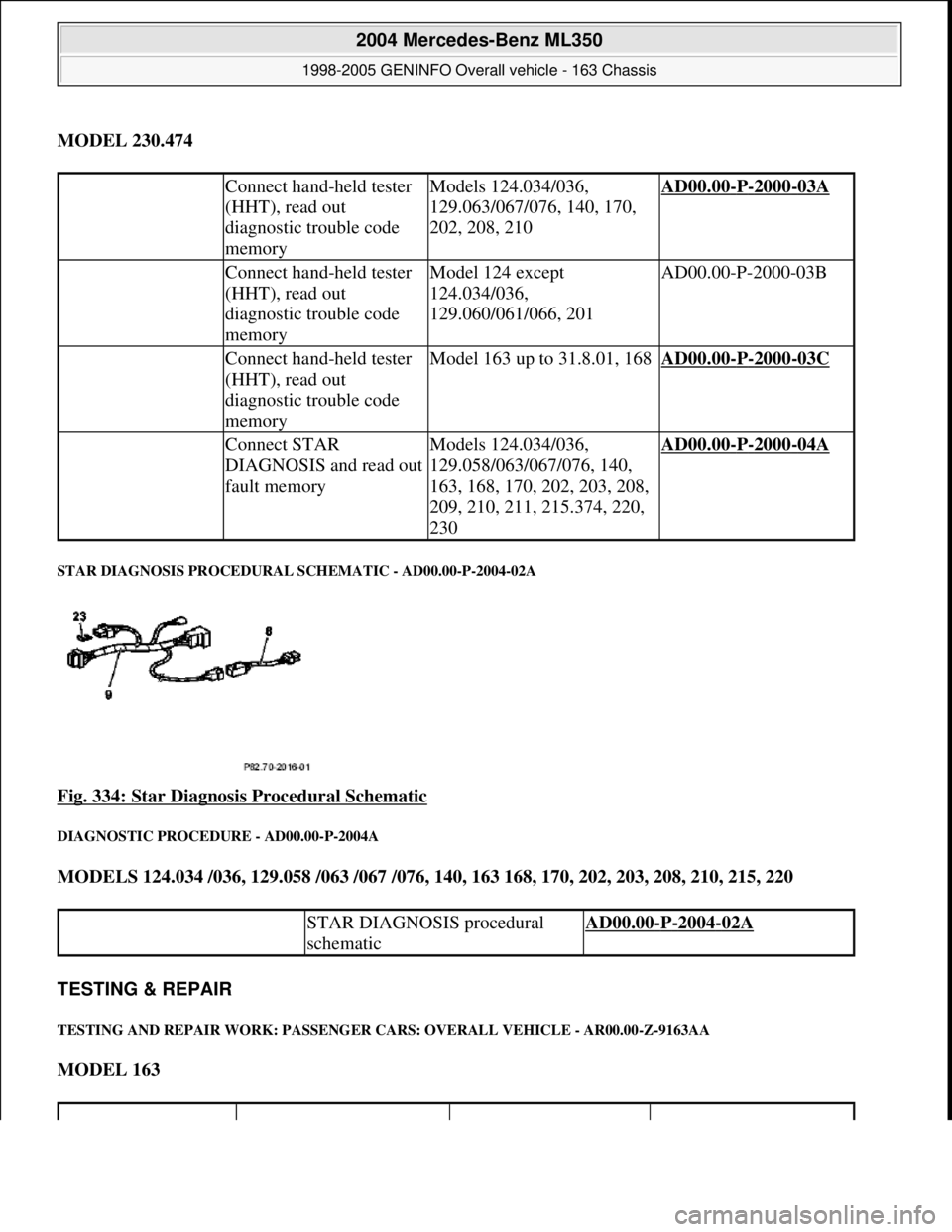

MERCEDES-BENZ ML320 1997 Complete Repair Manual MODEL 230.474 STAR DIAGNOSIS PROCEDURAL SCHEMATIC - AD00.00-P-2004-02A Fig. 334: Star Diagnosis Procedural Schematic DIAGNOSTIC PROCEDURE - AD00.00-P-2004A MODELS 124.034 /036, 129.058 /063 /067

Page 2891 of 4133

MERCEDES-BENZ ML320 1997 Complete Repair Manual REPAIR WIRING HARNESS AS PER SPECIFIED REPAIR METHOD - AR00.19-P-0001A MODEL 124, 126, 129, 140, 163, 164, 168, 169, 170, 171, 202, 203, 208, 209, 210, 211, 215, 216, 219, 220, 221, 230, 240, 245, 2

Page 2892 of 4133

MERCEDES-BENZ ML320 1997 Complete Repair Manual 211, 215, 216, 219, 220, 221, 230, 240, 245, 251, 414, 461 as of 1.4.94, 463 Assessment of damage in wiring harnessesModel 124, 126, 129, 140, 163, 164, 168, 169, 170, 171, 199, 202, 203, 208, 2

Page 2893 of 4133

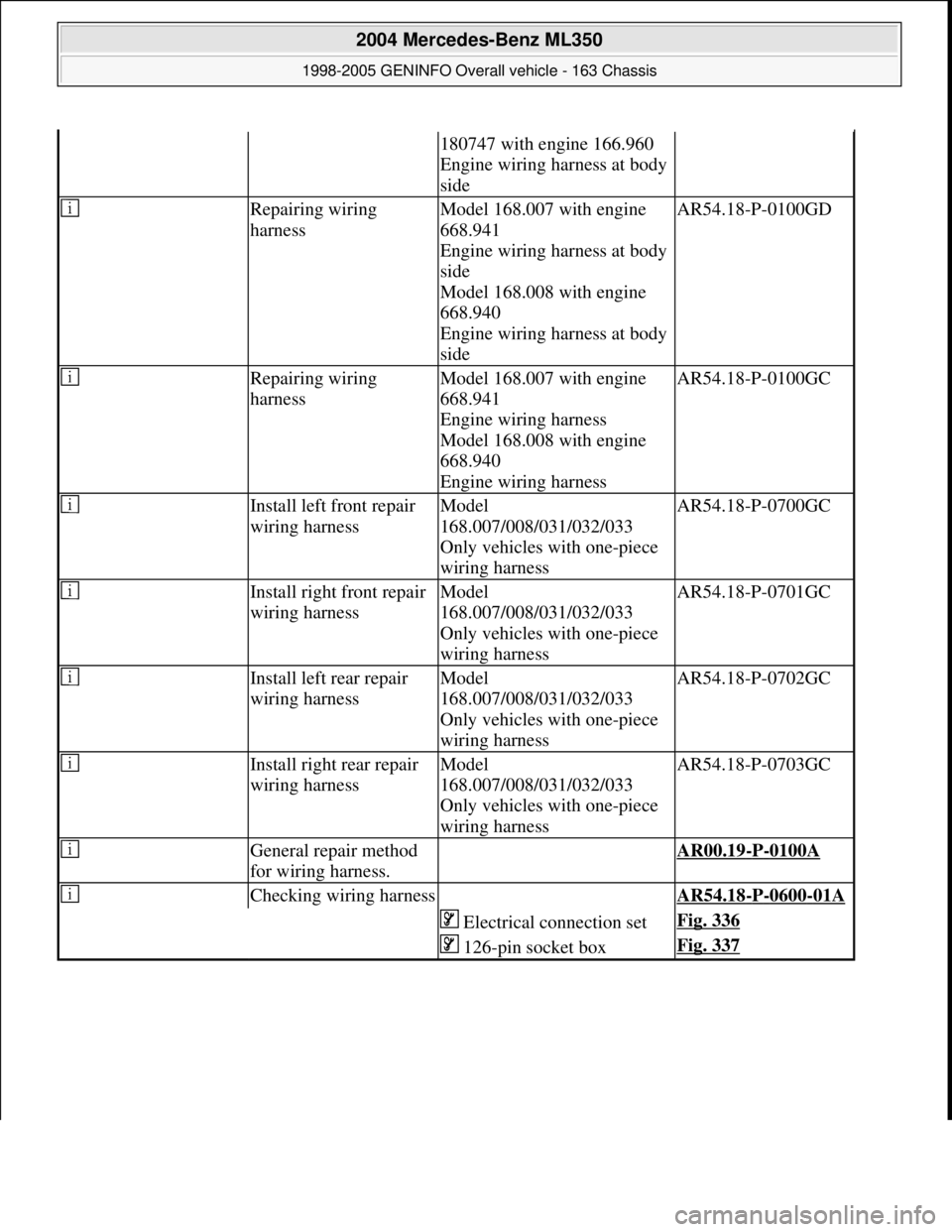

MERCEDES-BENZ ML320 1997 Complete Repair Manual 180747 with engine 166.960 Engine wiring harness at body side Repairing wiring harnessModel 168.007 with engine 668.941 Engine wiring harness at body side Model 168.008 with engine 668.940 E

Page 2894 of 4133

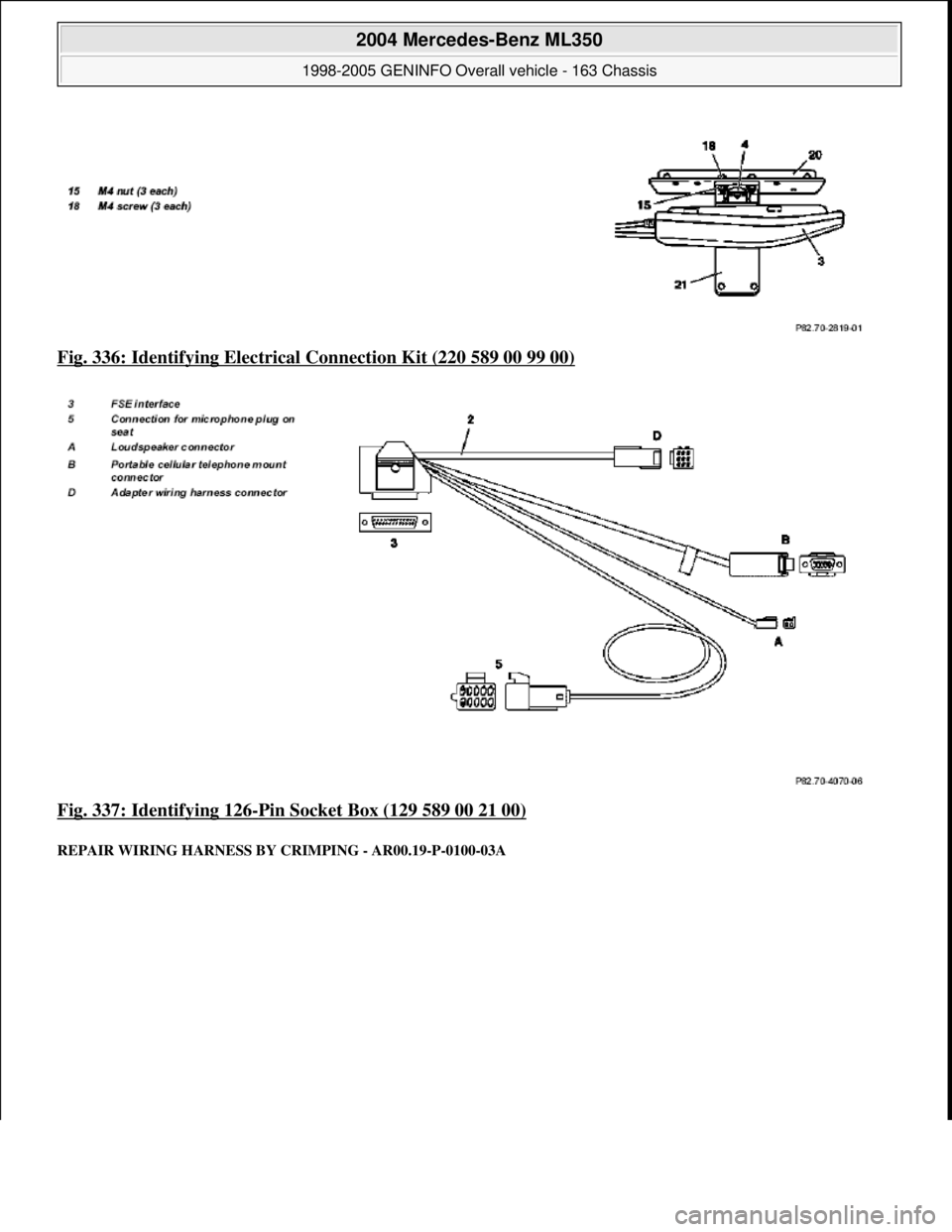

MERCEDES-BENZ ML320 1997 Complete Repair Manual Fig. 336: Identifying Electrical Connection Kit (220 589 00 99 00) Fig. 337: Identifying 126 -Pin Socket Box (129 589 00 21 00) REPAIR WIRING HA RNESS BY CRIMPING - AR00.19-P-0100-03A 2004 Me

Page 2895 of 4133

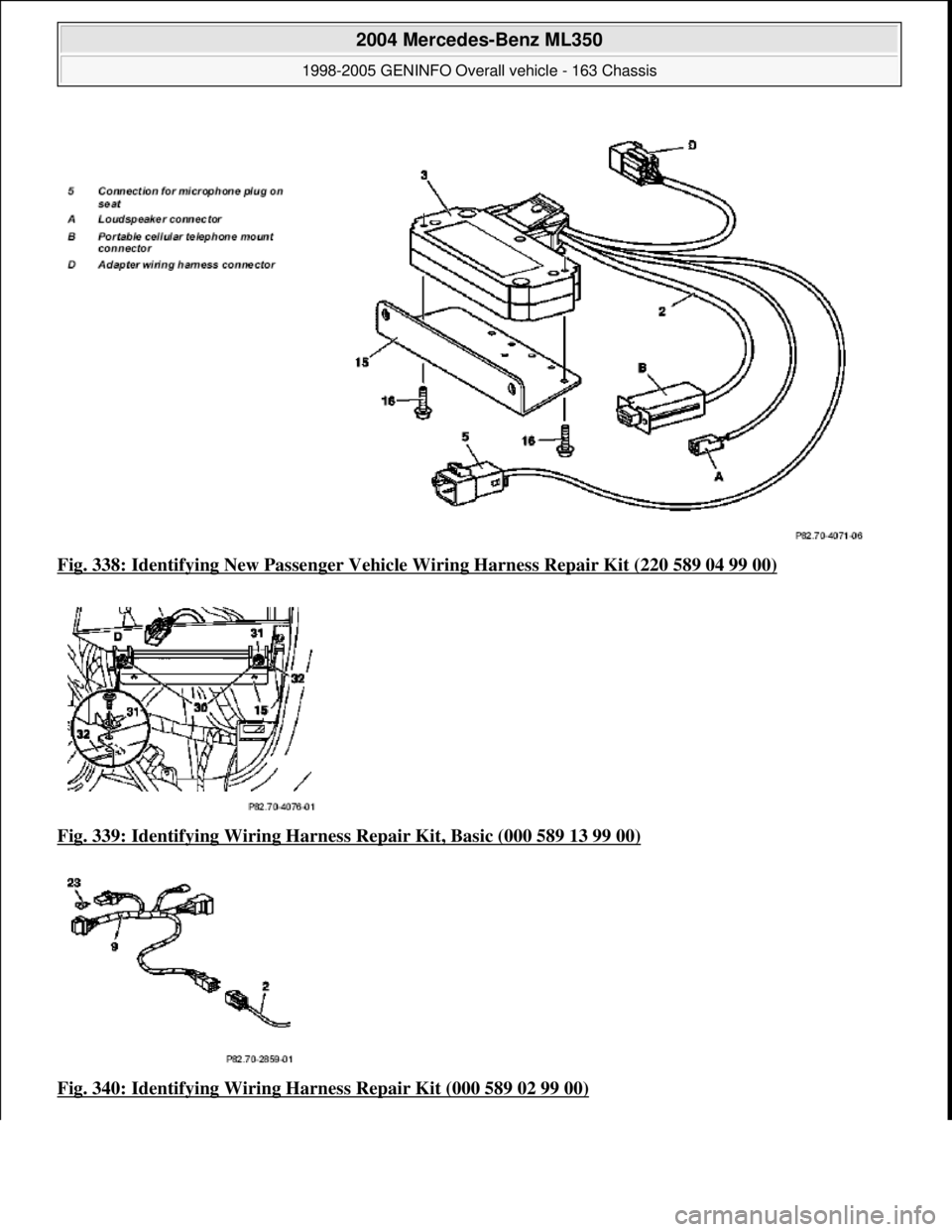

MERCEDES-BENZ ML320 1997 Complete Repair Manual Fig. 338: Identifying New Passe nger Vehicle Wiring Harness Repair Kit (220 589 04 99 00) Fig. 339: Identifying Wiring Harness Repair Kit, Basic (000 589 13 99 00) Fig. 340: Identifying Wiring

Page 2896 of 4133

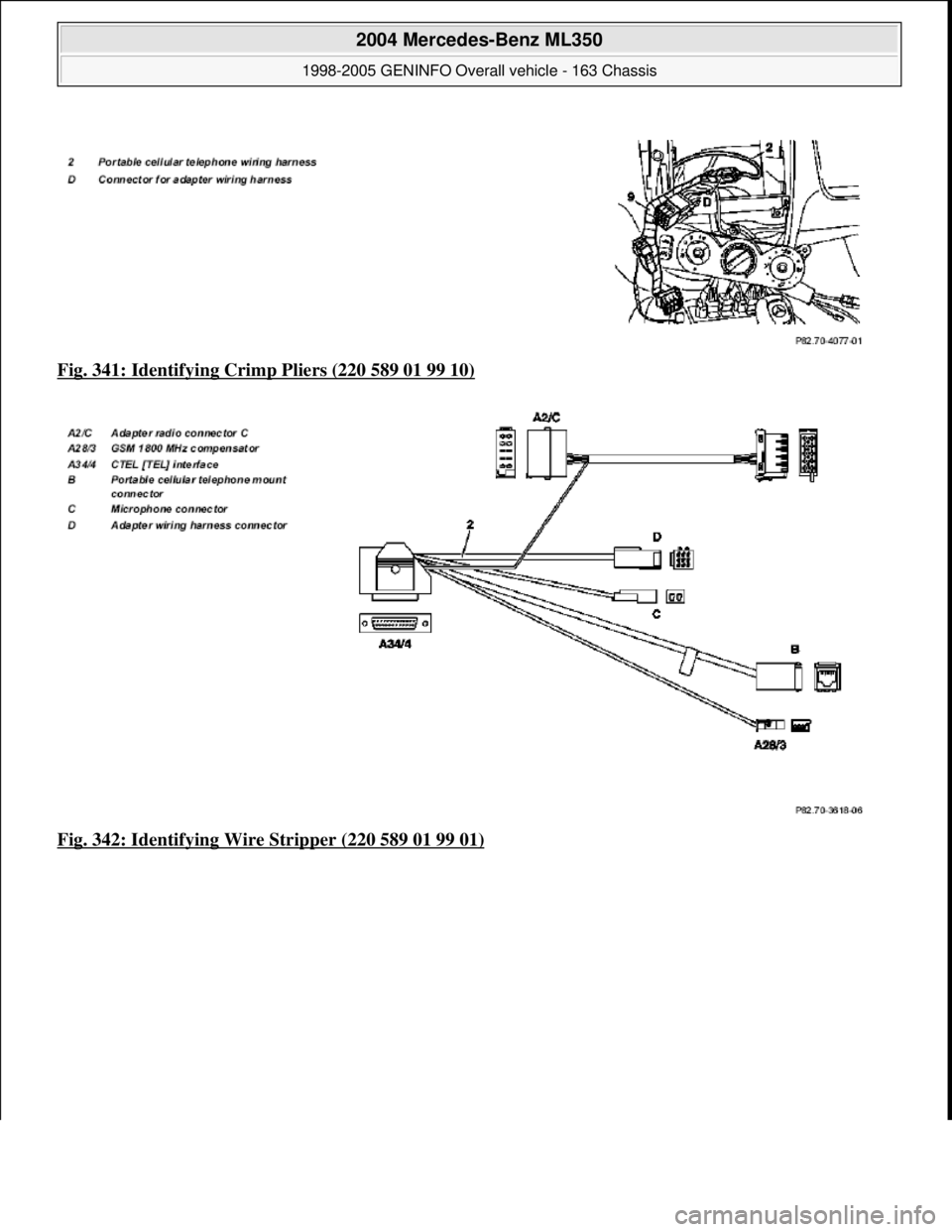

MERCEDES-BENZ ML320 1997 Complete Repair Manual Fig. 341: Identifying Crimp Pliers (220 589 01 99 10) Fig. 342: Identifying Wi re Stripper (220 589 01 99 01) 2004 Mercedes-Benz ML350 1998-2005 GENINFO Overall vehicle - 163 Chassis me Satu
