Page 1329 of 4133

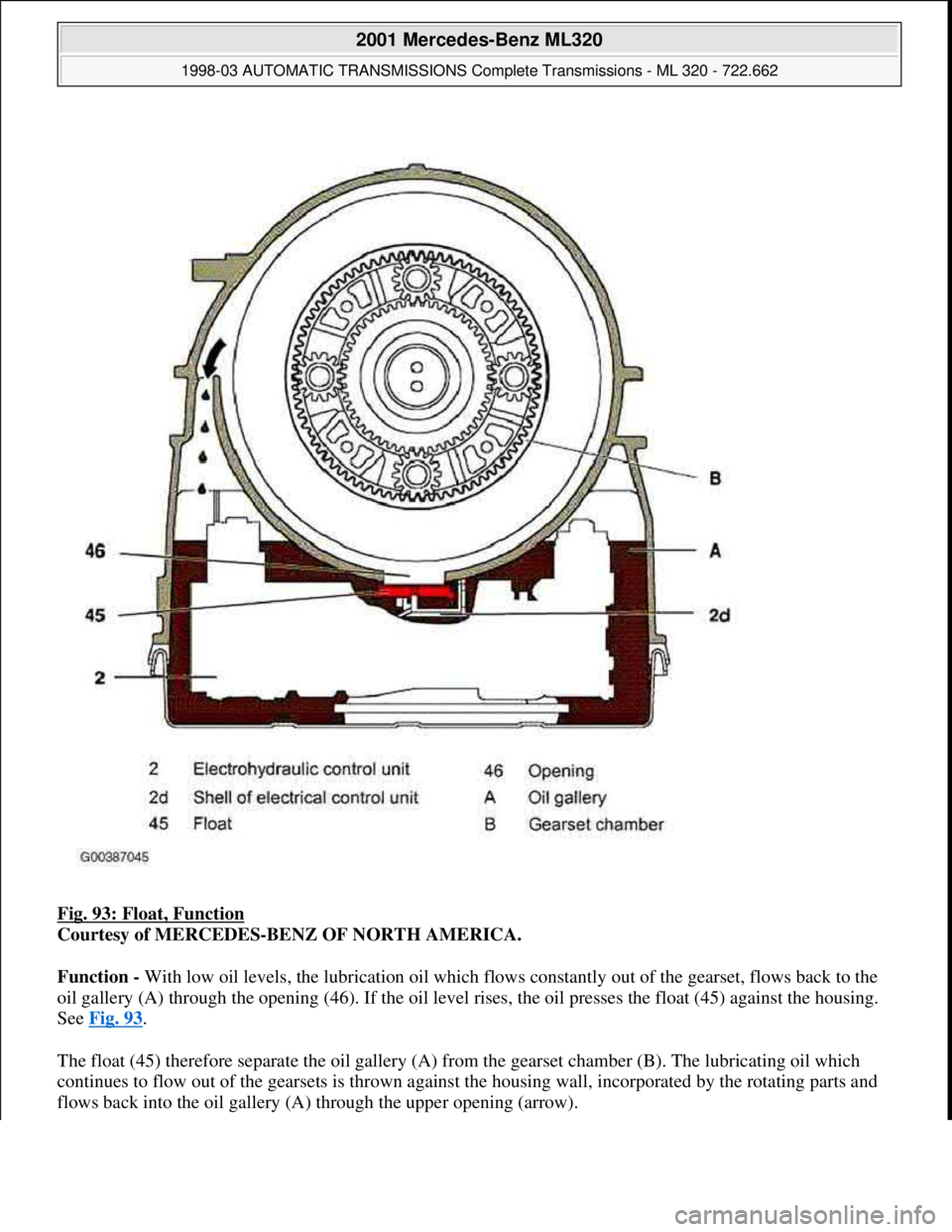

MERCEDES-BENZ ML320 1997 Complete Repair Manual Fig. 93: Float, Function Courtesy of MERCEDES-BENZ OF NORTH AMERICA. Function - With low oil levels, the lubrication oil which flows constantly out of the gearset, flows back to the oil gallery (A)

Page 1330 of 4133

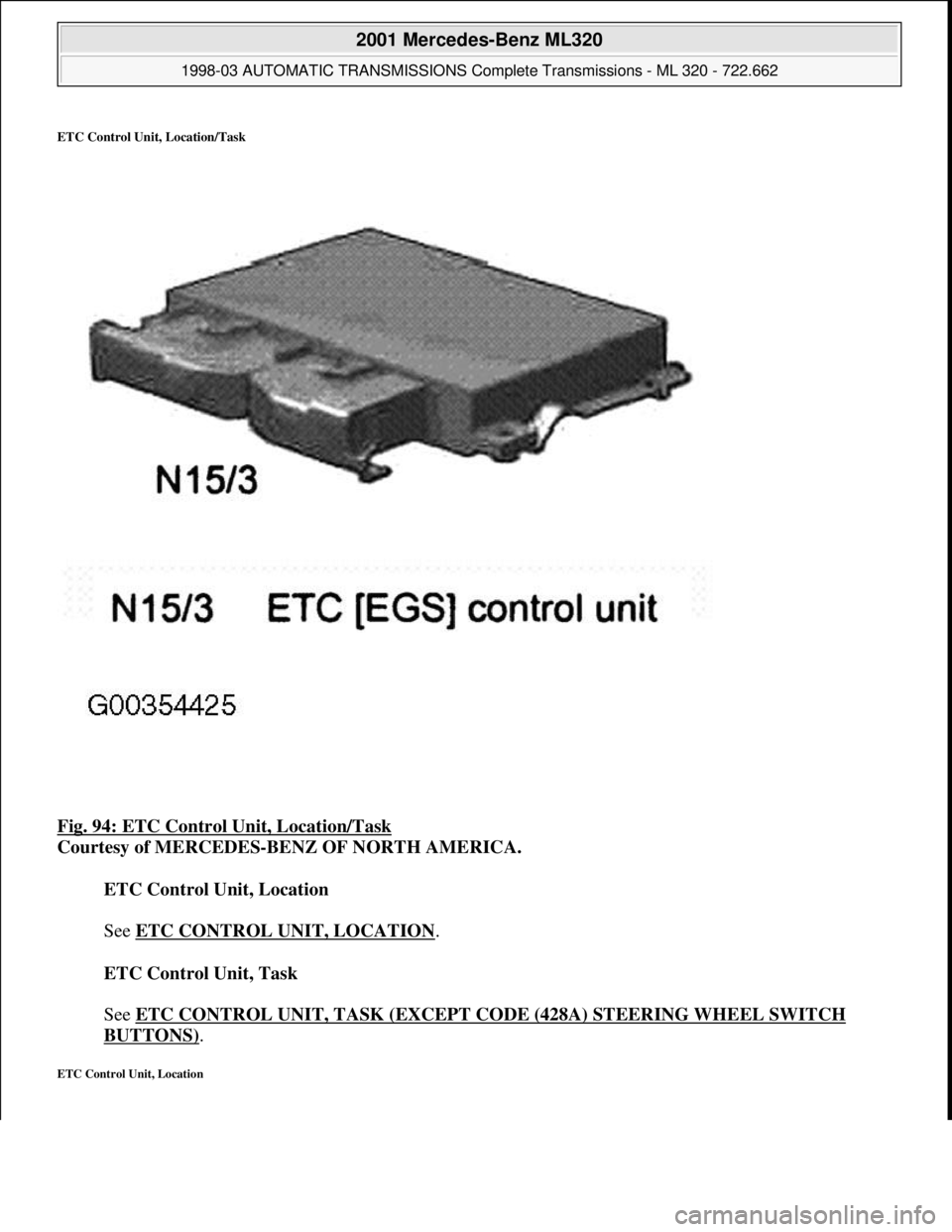

MERCEDES-BENZ ML320 1997 Complete Repair Manual ETC Control Unit, Location/Task Fig. 94: ETC Control Unit, Location/Task Courtesy of MERCEDES-BENZ OF NORTH AMERICA. ETC Control Unit, Location See ETC CONTROL UNIT, LOCATION . ETC Control Unit

Page 1331 of 4133

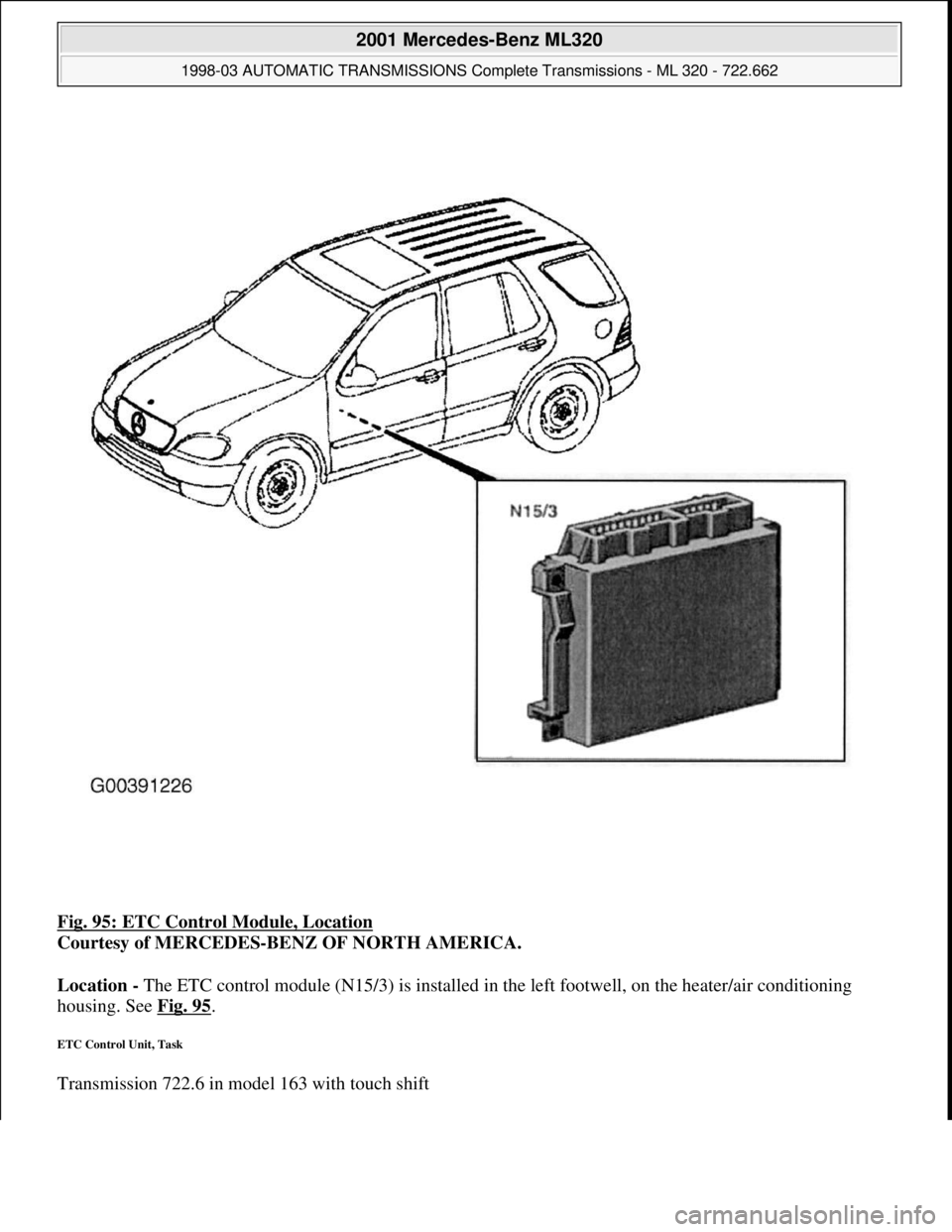

MERCEDES-BENZ ML320 1997 Complete Repair Manual Fig. 95: ETC Control Module, Location Courtesy of MERCEDES-BENZ OF NORTH AMERICA. Location - The ETC control module (N15/3) is installed in the left footwell, on the heater/air conditioning housing

Page 1332 of 4133

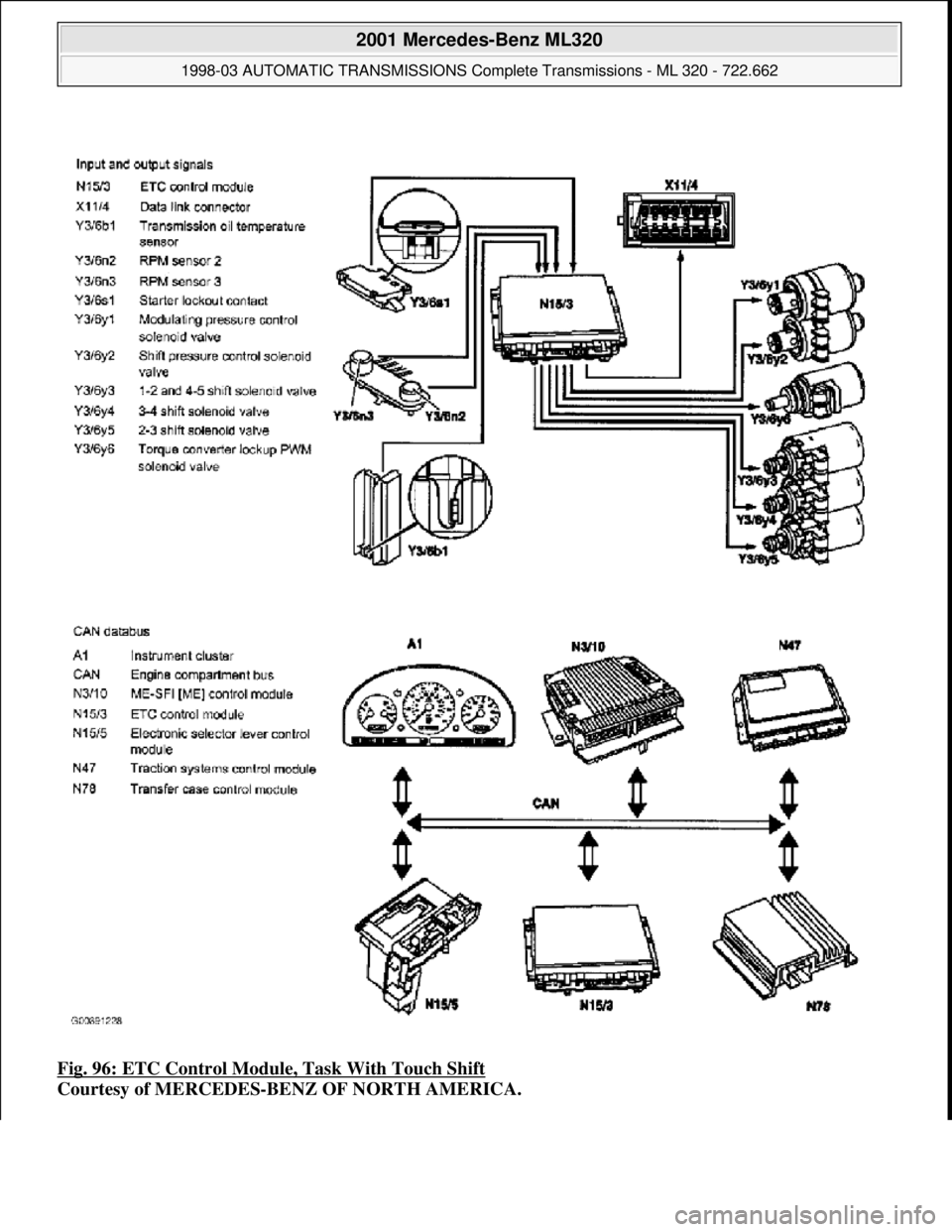

MERCEDES-BENZ ML320 1997 Complete Repair Manual Fig. 96: ETC Control Module, Task With Touch Shift Courtesy of MERCEDES-BENZ OF NORTH AMERICA. 2001 Mercedes-Benz ML320 1998-03 AUTOMATIC TRANSMI SSIONS Complete Transmissions - ML 320 - 722.662

Page 1333 of 4133

MERCEDES-BENZ ML320 1997 Complete Repair Manual Task - The ETC control module (N15/3) determines the instantaneous operating condition of the vehicle and controls all gearshift sequences taking into account the ease of shifting and the driving sit

Page 1334 of 4133

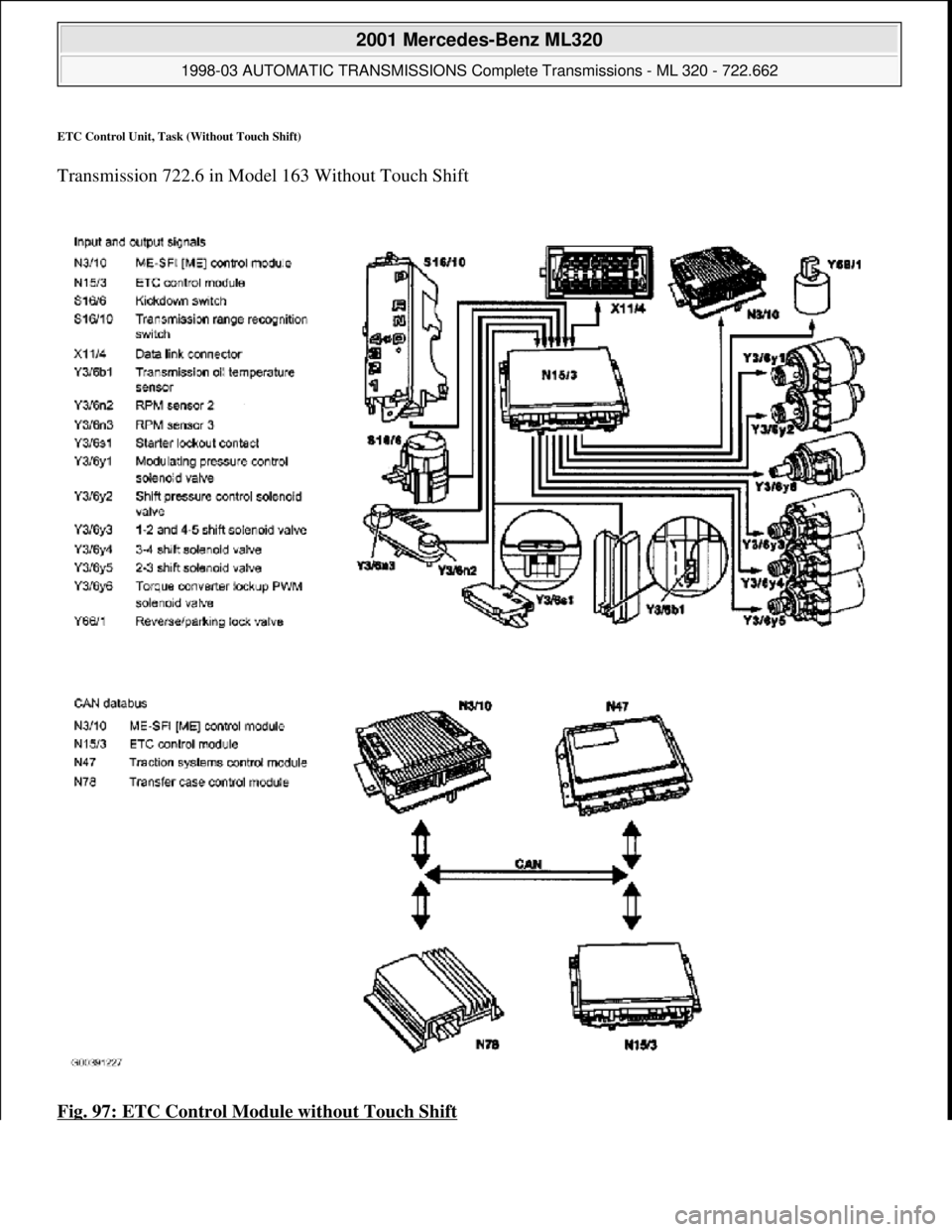

MERCEDES-BENZ ML320 1997 Complete Repair Manual ETC Control Unit, Task (Without Touch Shift) Transmission 722.6 in Model 163 Without Touch Shift Fig. 97: ETC Control Module without Touch Shift 2001 Mercedes-Benz ML320 1998-03 AUTOMATIC TRANS

Page 1335 of 4133

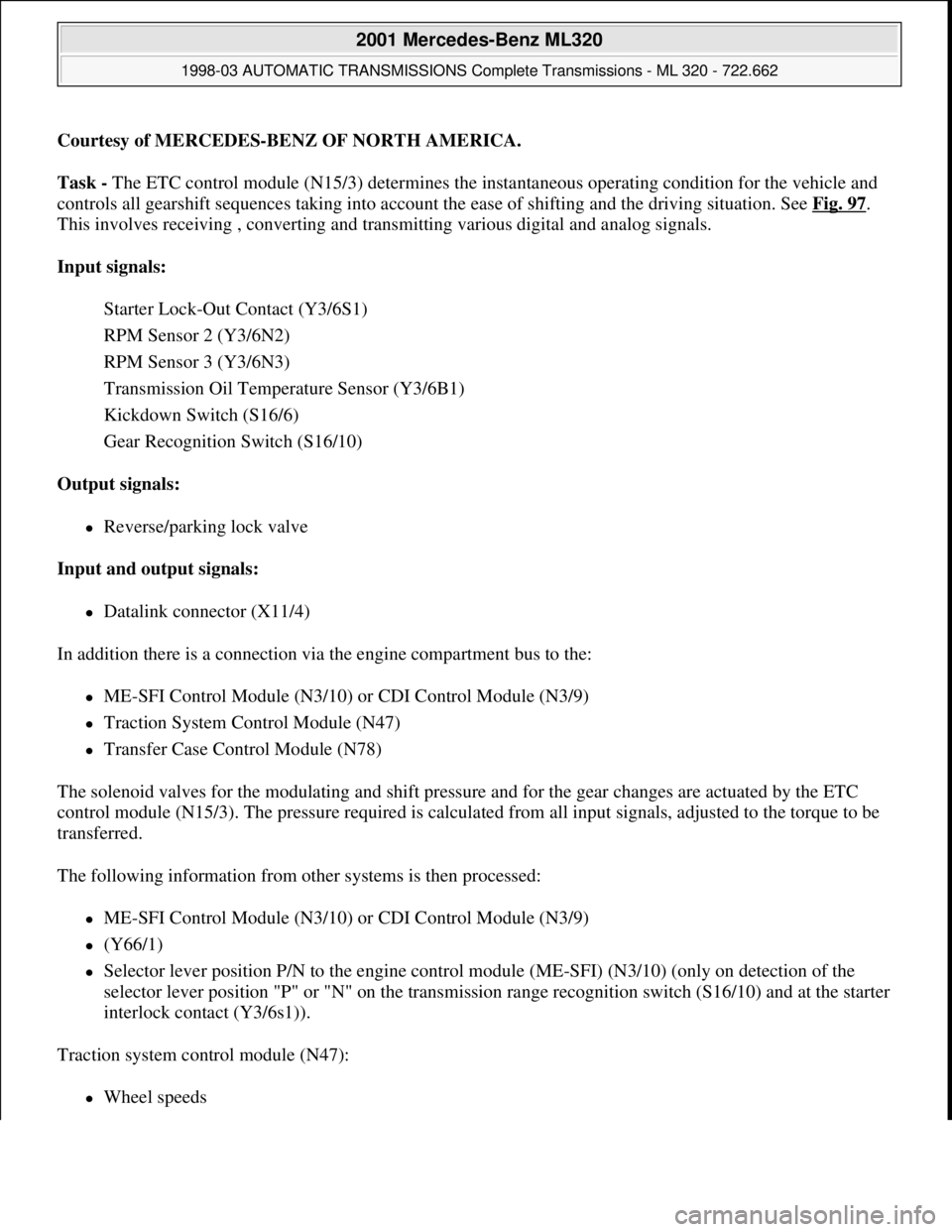

MERCEDES-BENZ ML320 1997 Complete Repair Manual Courtesy of MERCEDES-BENZ OF NORTH AMERICA. Task - The ETC control module (N15/3) determines the instantaneous operating condition for the vehicle and controls all gearshift sequences taking into acc

Page 1336 of 4133

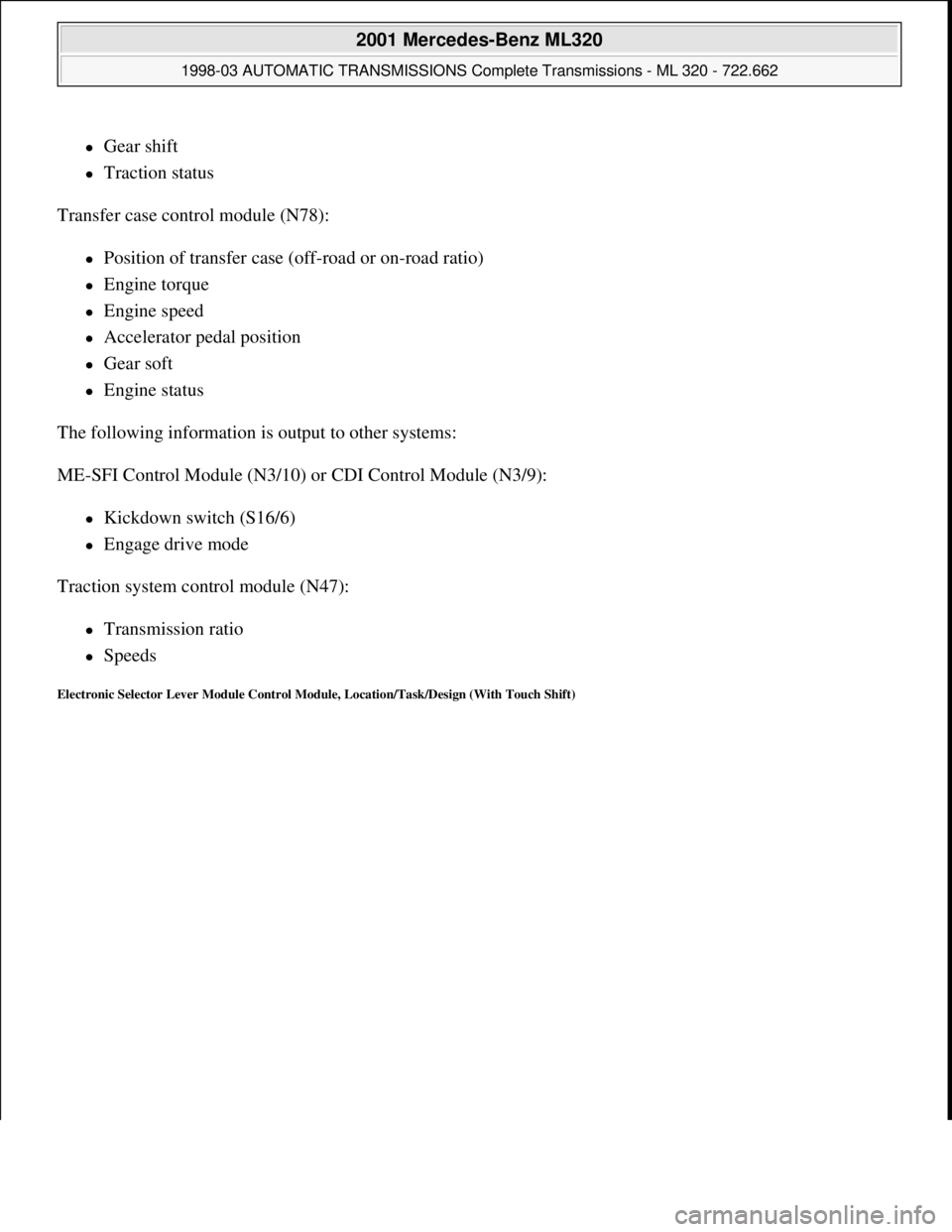

MERCEDES-BENZ ML320 1997 Complete Repair Manual Gear shift Traction status Transfer case control module (N78): Position of transfer case (off-road or on-road ratio) Engine torque Engine speed Accelerator pedal position
