MERCEDES-BENZ ML320 1997 Complete Repair Manual GF54.15-P-1255GH Assignment and cable connections of fuse blocks 18.3.97 MODEL 163 P54.15-0438-06 Fuses 1-42 Relay k1-k32 P54.15-2486-12 Overview of fuse and relay module in right front foot

Page 1170 of 4133

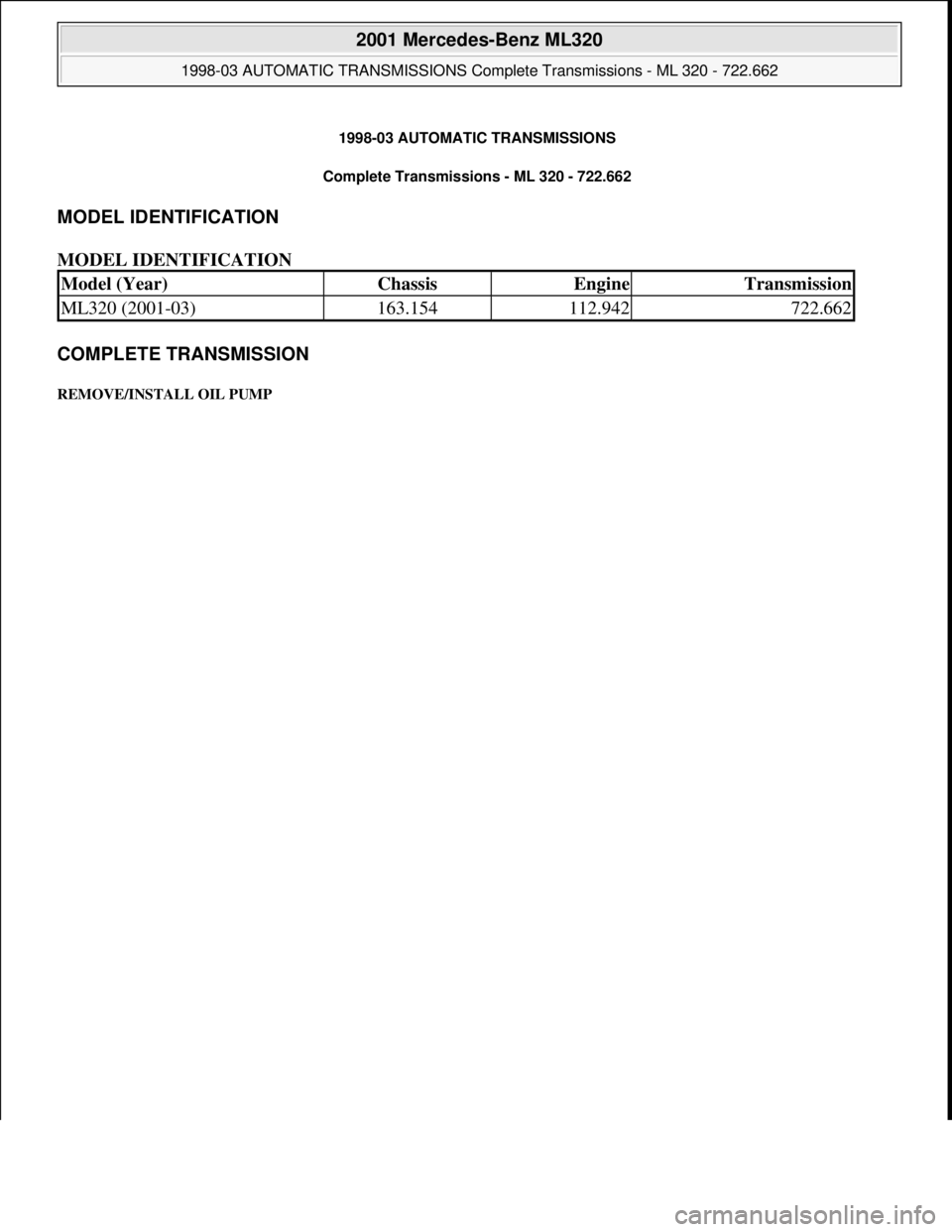

MERCEDES-BENZ ML320 1997 Complete Repair Manual 1998-03 AUTOMATIC TRANSMISSIONS Complete Transmissions - ML 320 - 722.662 MODEL IDENTIFICATION MODEL IDENTIFICATION COMPLETE TRANSMISSION REMOVE/INSTALL OIL PUMP Model (Year)ChassisEngineTransmis

Page 1171 of 4133

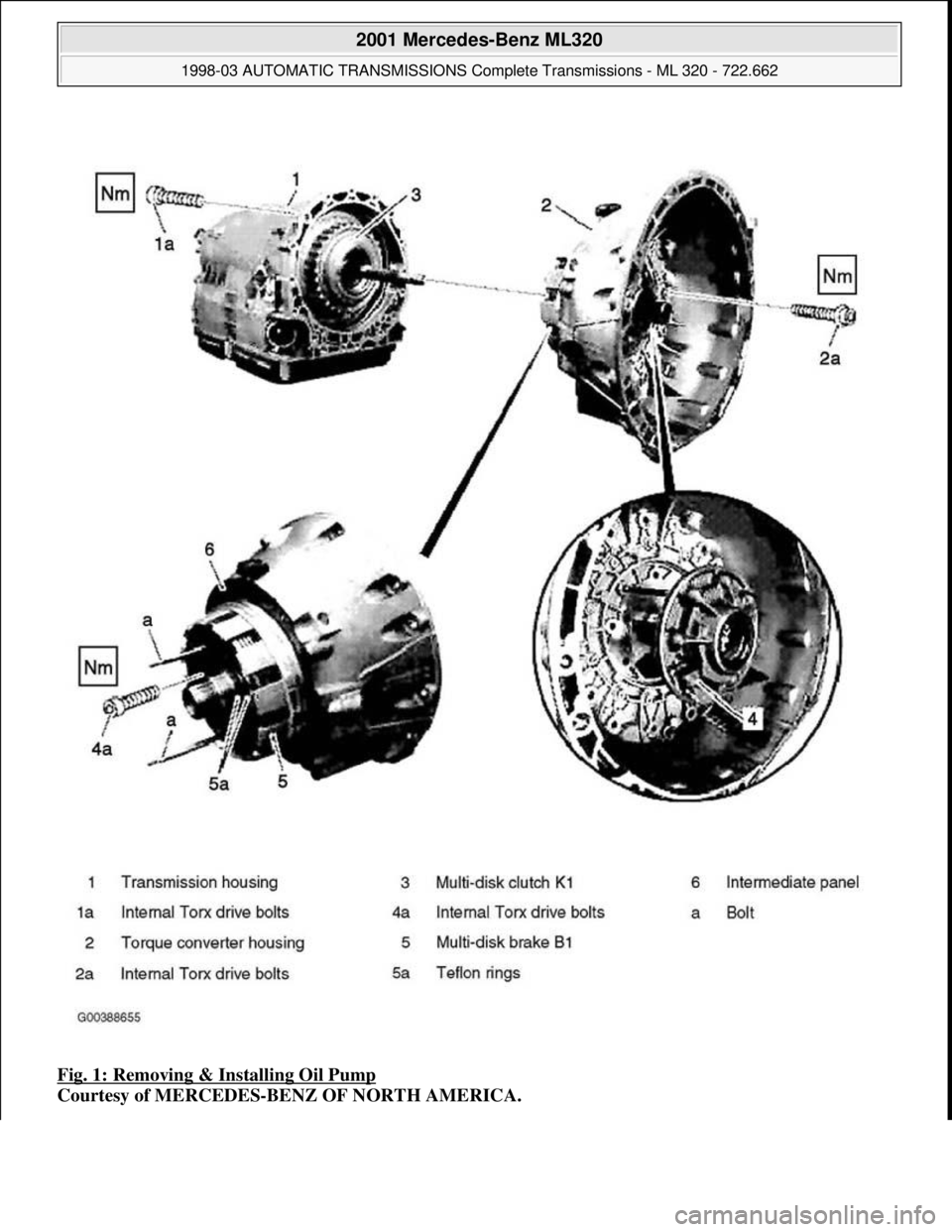

MERCEDES-BENZ ML320 1997 Complete Repair Manual Fig. 1: Removing & Installing Oil Pump Courtesy of MERCEDES-BENZ OF NORTH AMERICA. 2001 Mercedes-Benz ML320 1998-03 AUTOMATIC TRANSMISSIONS Complete Transmissions - ML 320 - 722.662 me Saturda

Page 1172 of 4133

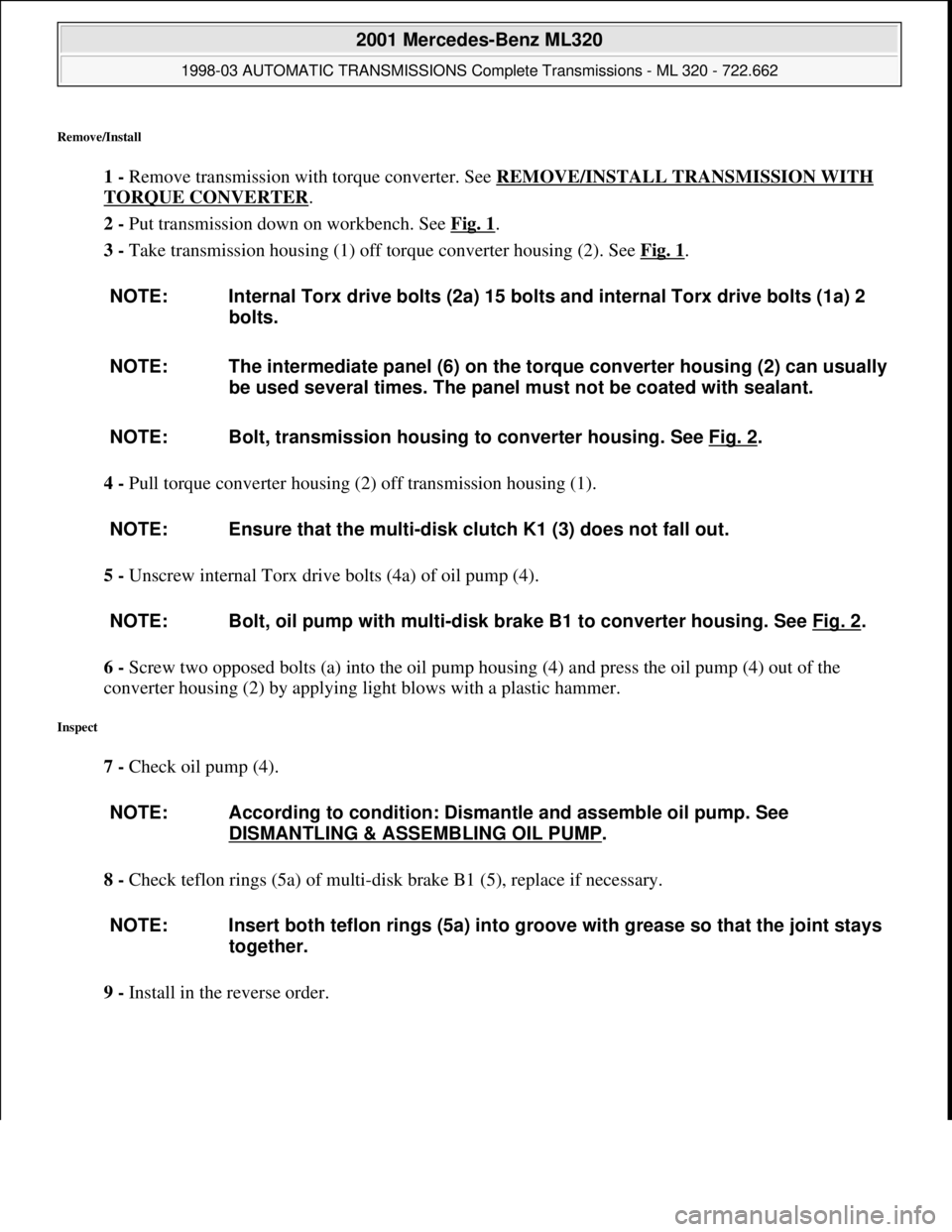

MERCEDES-BENZ ML320 1997 Complete Repair Manual Remove/Install 1 - Remove transmission with torque converter. See REMOVE/INSTALL TRANSMISSION WITH TORQUE CONVERTER. 2 - Put transmission down on workbench. See Fig. 1 . 3 - Take transmission ho

Page 1173 of 4133

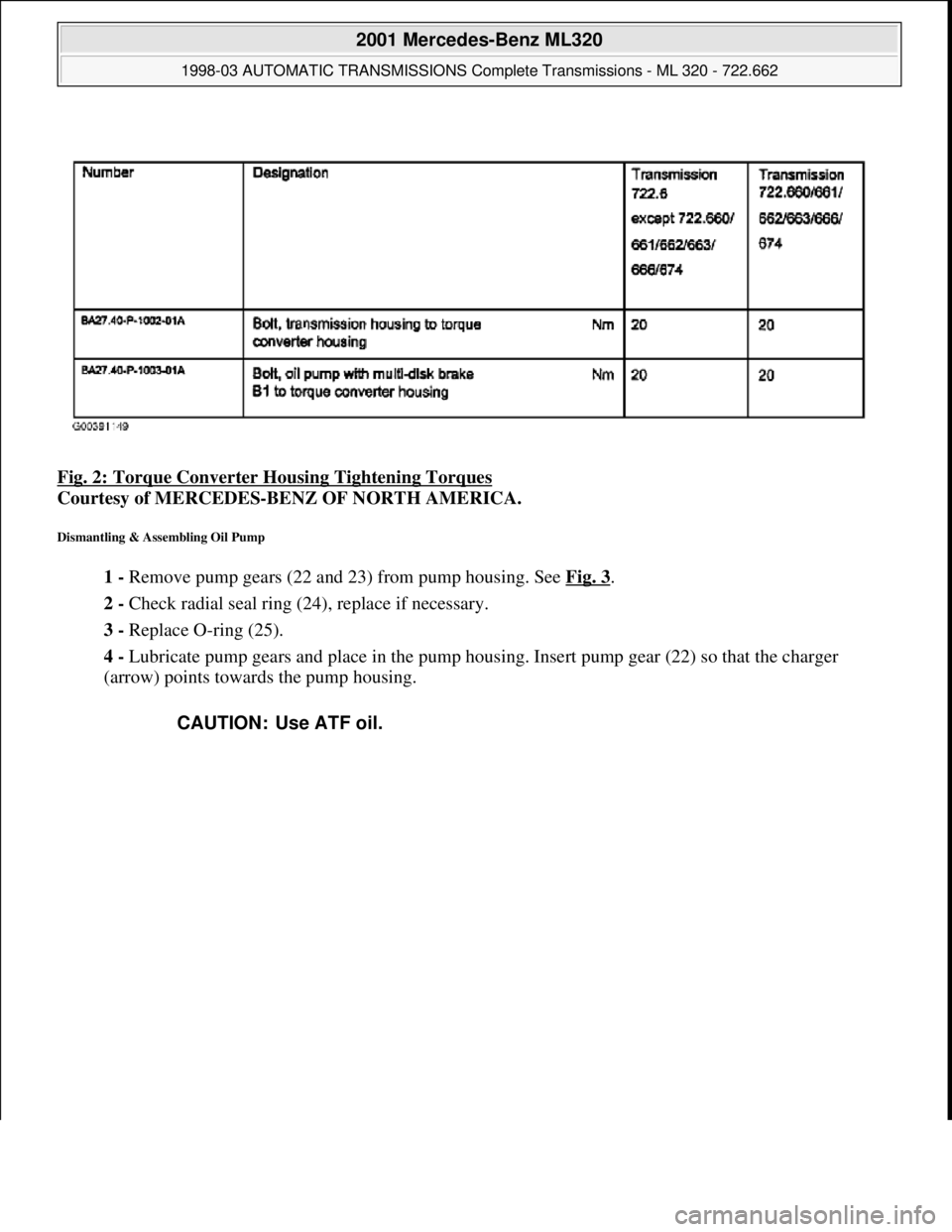

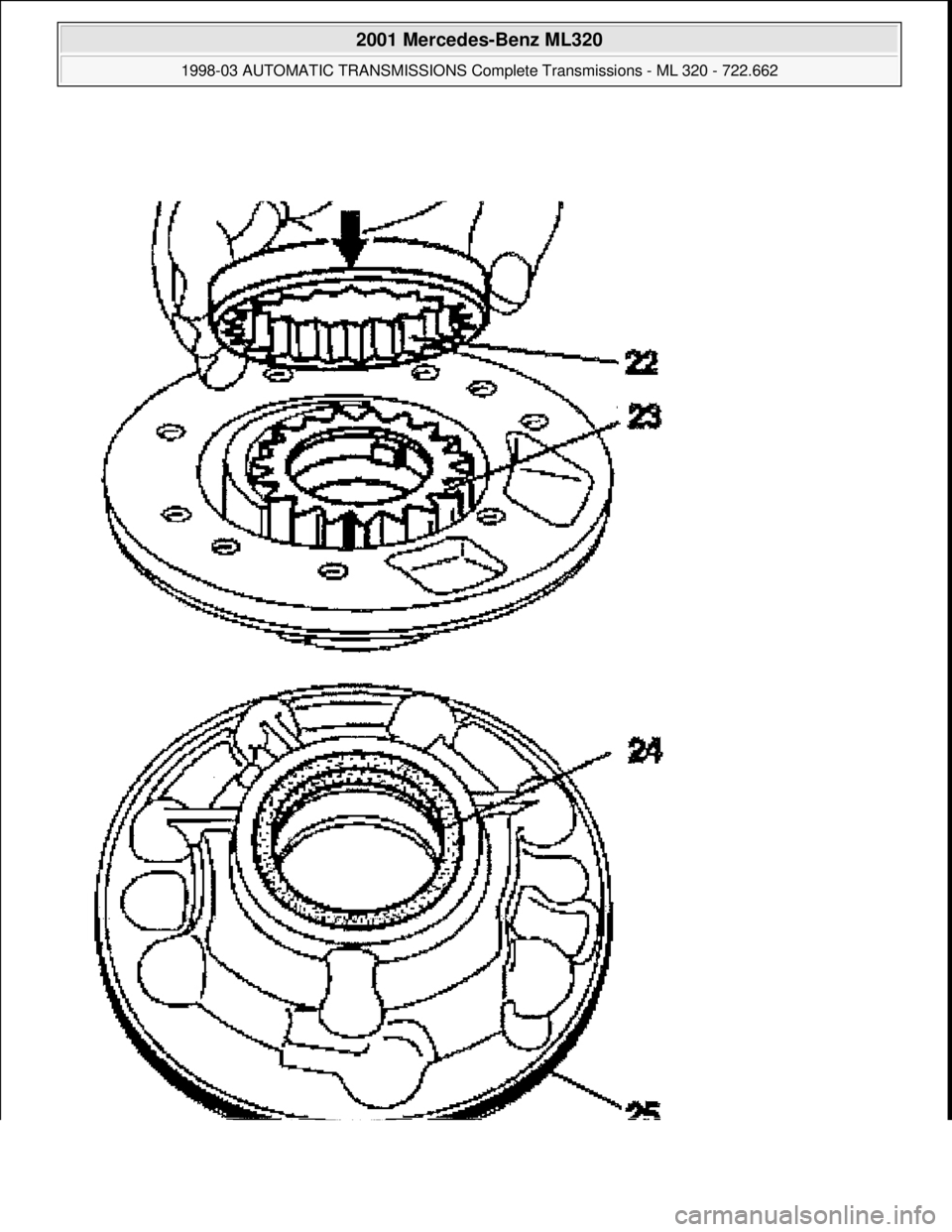

MERCEDES-BENZ ML320 1997 Complete Repair Manual Fig. 2: Torque Converter Housing Tightening Torques Courtesy of MERCEDES-BENZ OF NORTH AMERICA. Dismantling & Assembling Oil Pump 1 - Remove pump gears (22 a nd 23) from pump housing. See Fig.

Page 1174 of 4133

MERCEDES-BENZ ML320 1997 Complete Repair Manual 2001 Mercedes-Benz ML320 1998-03 AUTOMATIC TRANSMISSIONS Complete Transmissions - ML 320 - 722.662 me Saturday, October 02, 2010 3:15:25 PMPage 5 © 2006 Mitchell Repair Information Company, LL

Page 1175 of 4133

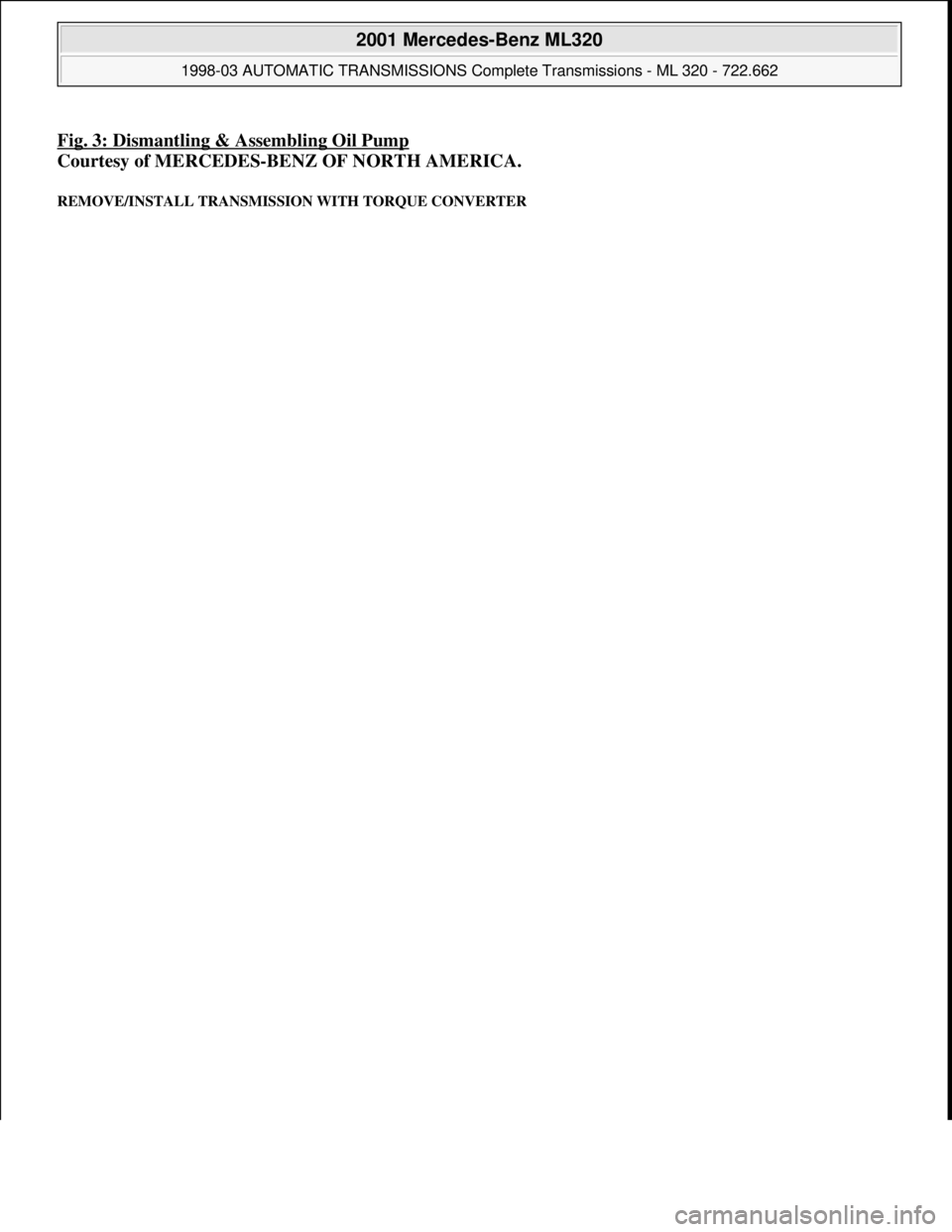

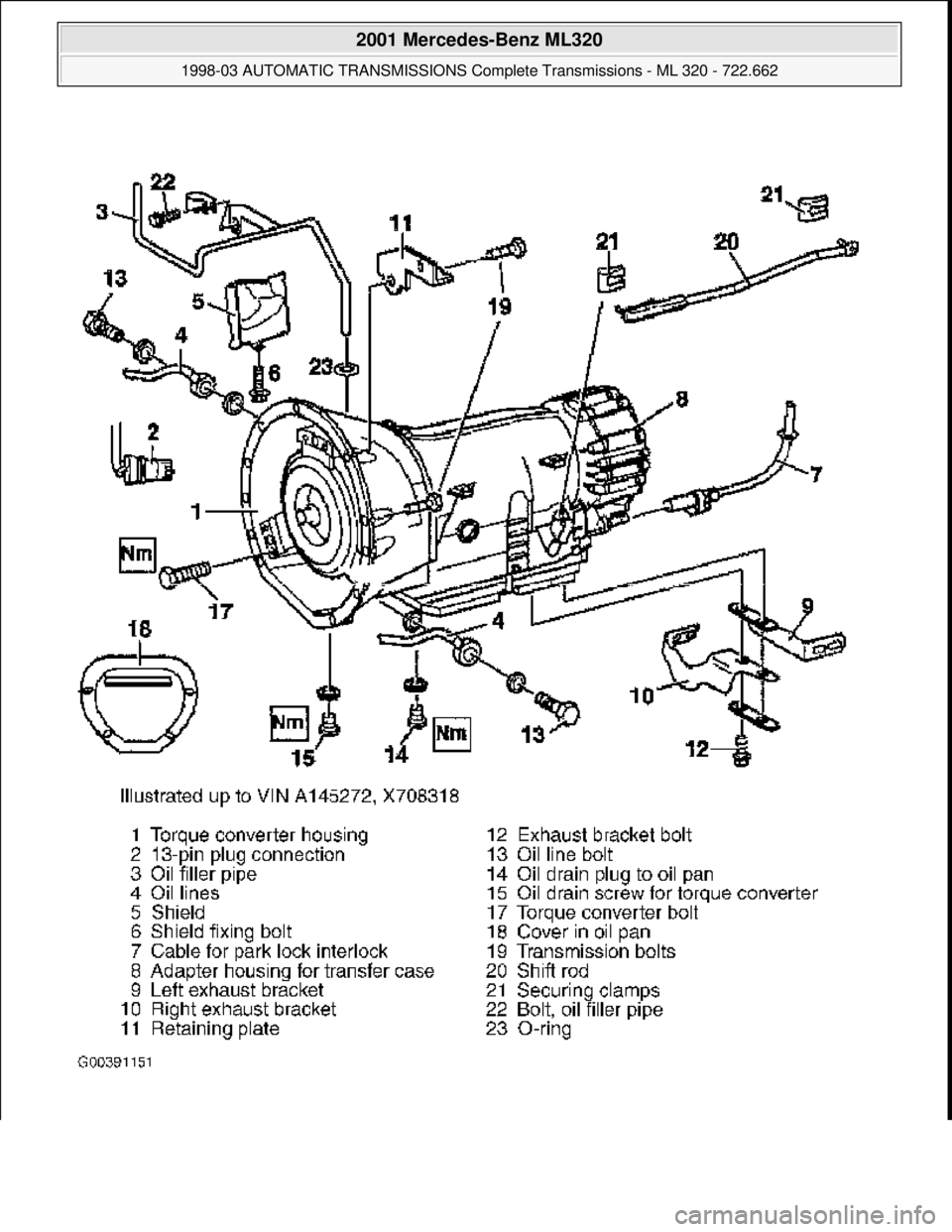

MERCEDES-BENZ ML320 1997 Complete Repair Manual Fig. 3: Dismantling & Assembling Oil Pump Courtesy of MERCEDES-BENZ OF NORTH AMERICA. REMOVE/INSTALL TRANSMISSION WITH TORQUE CONVERTER 2001 Mercedes-Benz ML320 1998-03 AUTOMATIC TRANSMISSIONS Co

Page 1176 of 4133

MERCEDES-BENZ ML320 1997 Complete Repair Manual 2001 Mercedes-Benz ML320 1998-03 AUTOMATIC TRANSMI SSIONS Complete Transmissions - ML 320 - 722.662 me Saturday, October 02, 2010 3:15:25 PMPage 7 © 2006 Mitchell Repair Information Company, L
