MERCEDES-BENZ ML320 1997 Complete Repair Manual Fig. 130: Identifying Fuse And Relay Module, Additional Fan Connector And Plug Connector, Blue NO REFRIGERATION/HEAT FROM AUTOMATIC AIR CONDITIONER - AF83.40-P-3400A MODEL 163.### #A as of 289565 up

Page 3402 of 4133

MERCEDES-BENZ ML320 1997 Complete Repair Manual Parts ordering notes HEATER DOES NOT FUNCTION - AF83.40-P-6008A MODEL 163.154 /174 /175 #A as of 289565 up to 348398 with CODE (494) USA version with CODE (580) Automatic air conditioning MODEL 1

Page 3403 of 4133

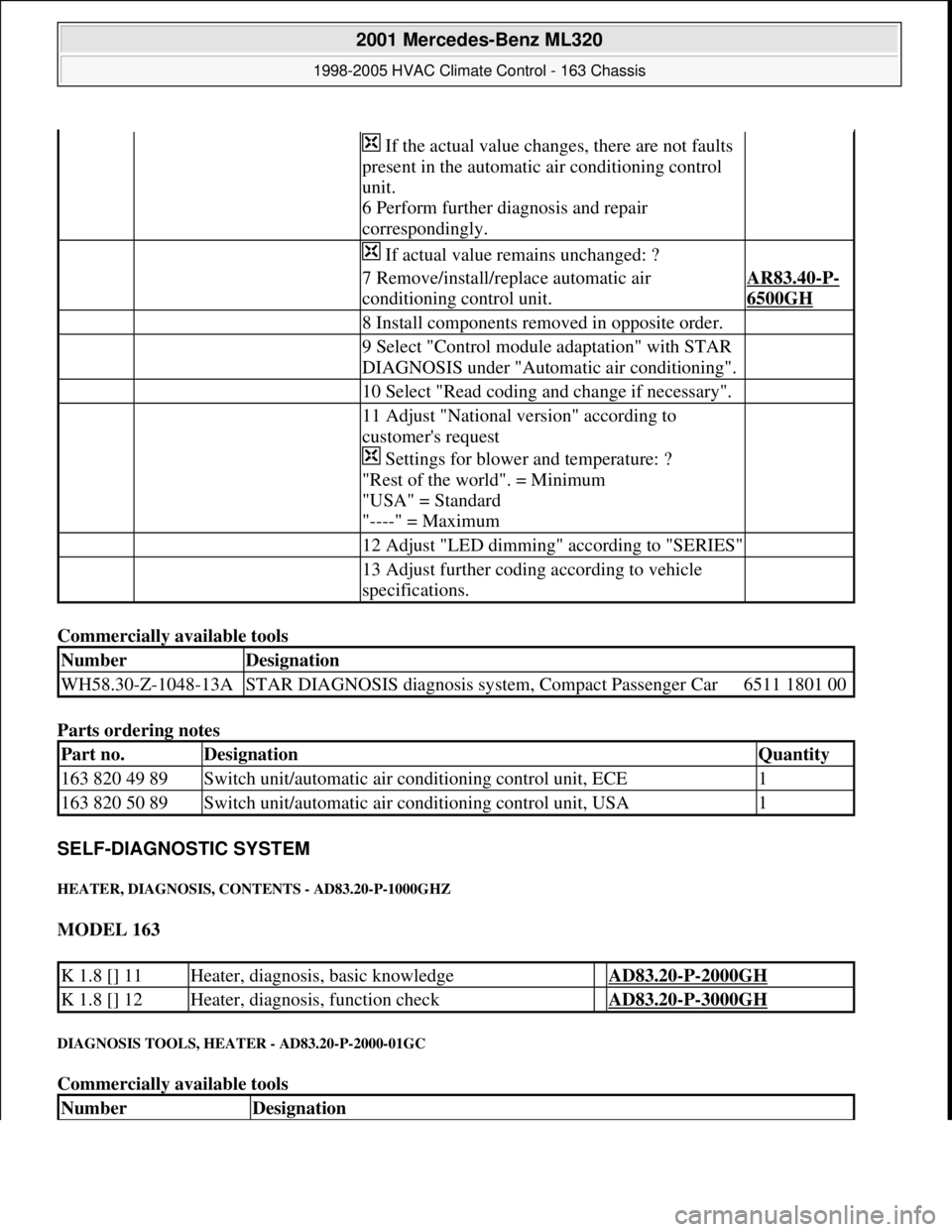

MERCEDES-BENZ ML320 1997 Complete Repair Manual Commercially available tools Parts ordering notes SELF-DIAGNOSTIC SYSTEM HEATER, DIAGNOSIS, CONTENTS - AD83.20-P-1000GHZ MODEL 163 DIAGNOSIS TOOLS, HEATER - AD83.20-P-2000-01GC Commercially ava

Page 3404 of 4133

MERCEDES-BENZ ML320 1997 Complete Repair Manual HEATER, DIAGNOSIS, BASIC KNOWLEDGE - AD83.20-P-2000GH MODEL 163 HEATER CAPACITY, FUNCTION CHECK, HEATER - AD83.20-P-3000-01GH Test sequence Heater switch (2) on "red" stop Blower switch

Page 3405 of 4133

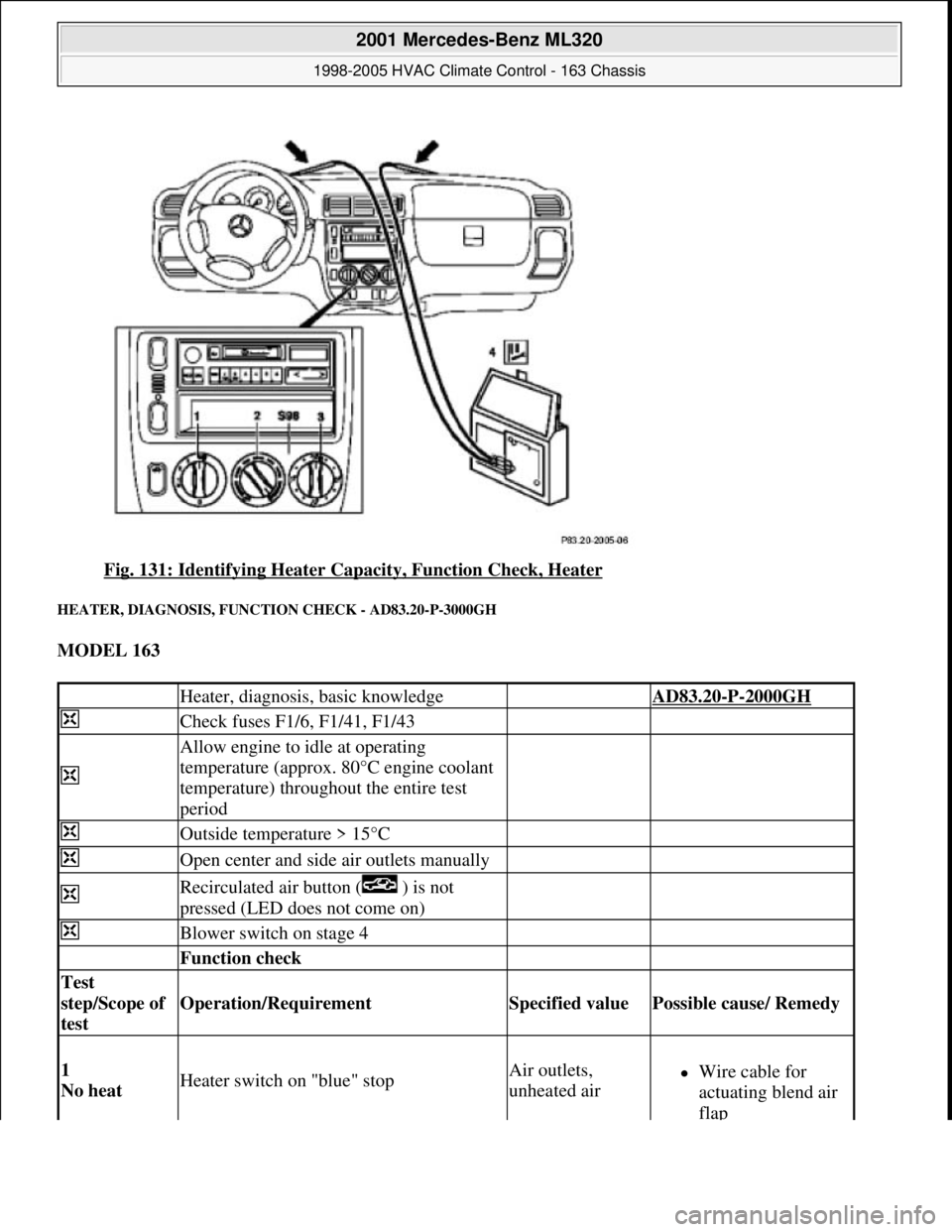

MERCEDES-BENZ ML320 1997 Complete Repair Manual Fig. 131: Identifying Heater Capacity, Function Check, Heater HEATER, DIAGNOSIS, FUNCTION CHECK - AD83.20-P-3000GH MODEL 163 Heater, diagnosis, basic knowledge AD83.20-P-2000GH Check fuses F1/6,

Page 3406 of 4133

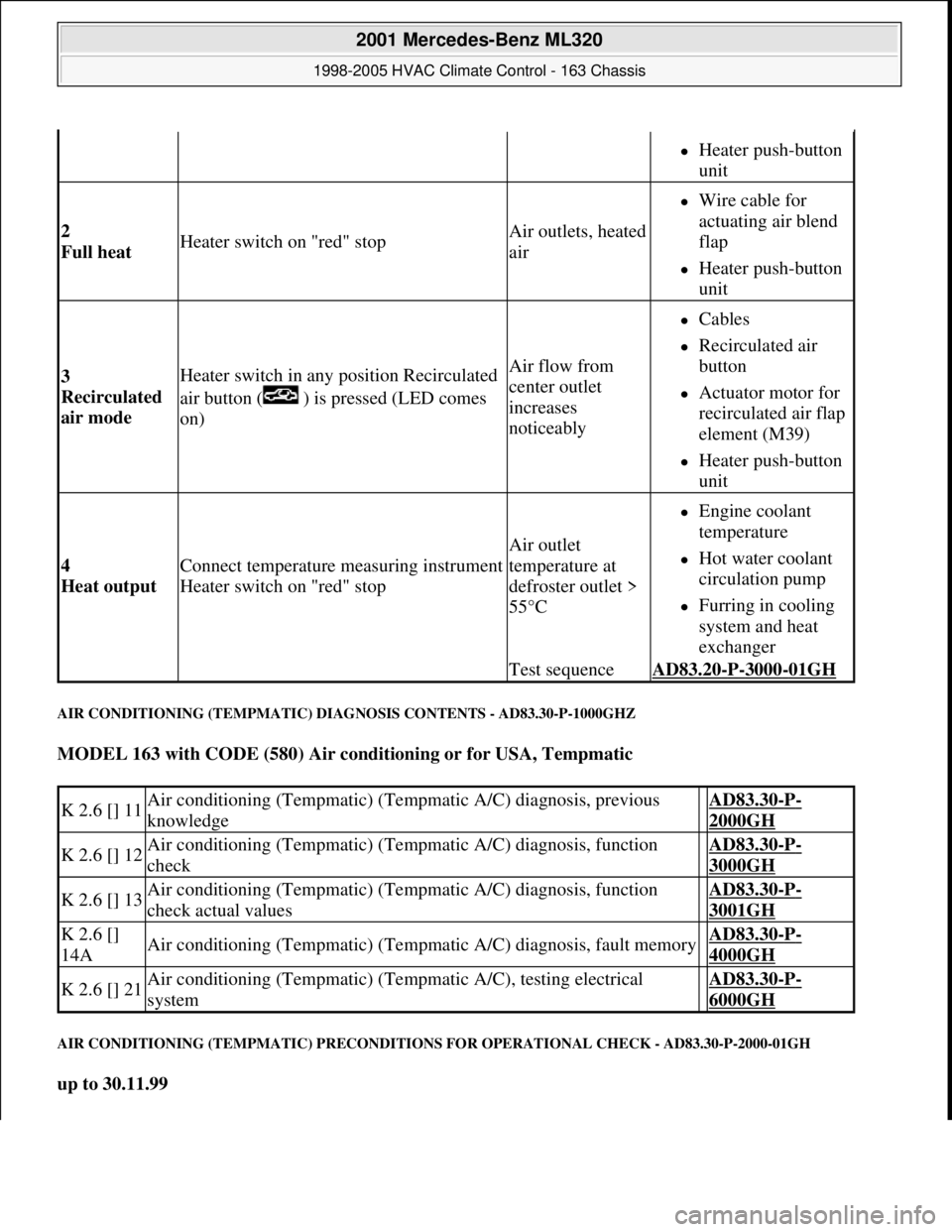

MERCEDES-BENZ ML320 1997 Complete Repair Manual AIR CONDITIONING (TEMPMATIC) DIAGNOSIS CONTENTS - AD83.30-P-1000GHZ MODEL 163 with CODE (580) Air conditioning or for USA, Tempmatic AIR CONDITIONING (TEMPMATIC) PRECONDITIONS FOR OPERATIONAL CHECK

Page 3407 of 4133

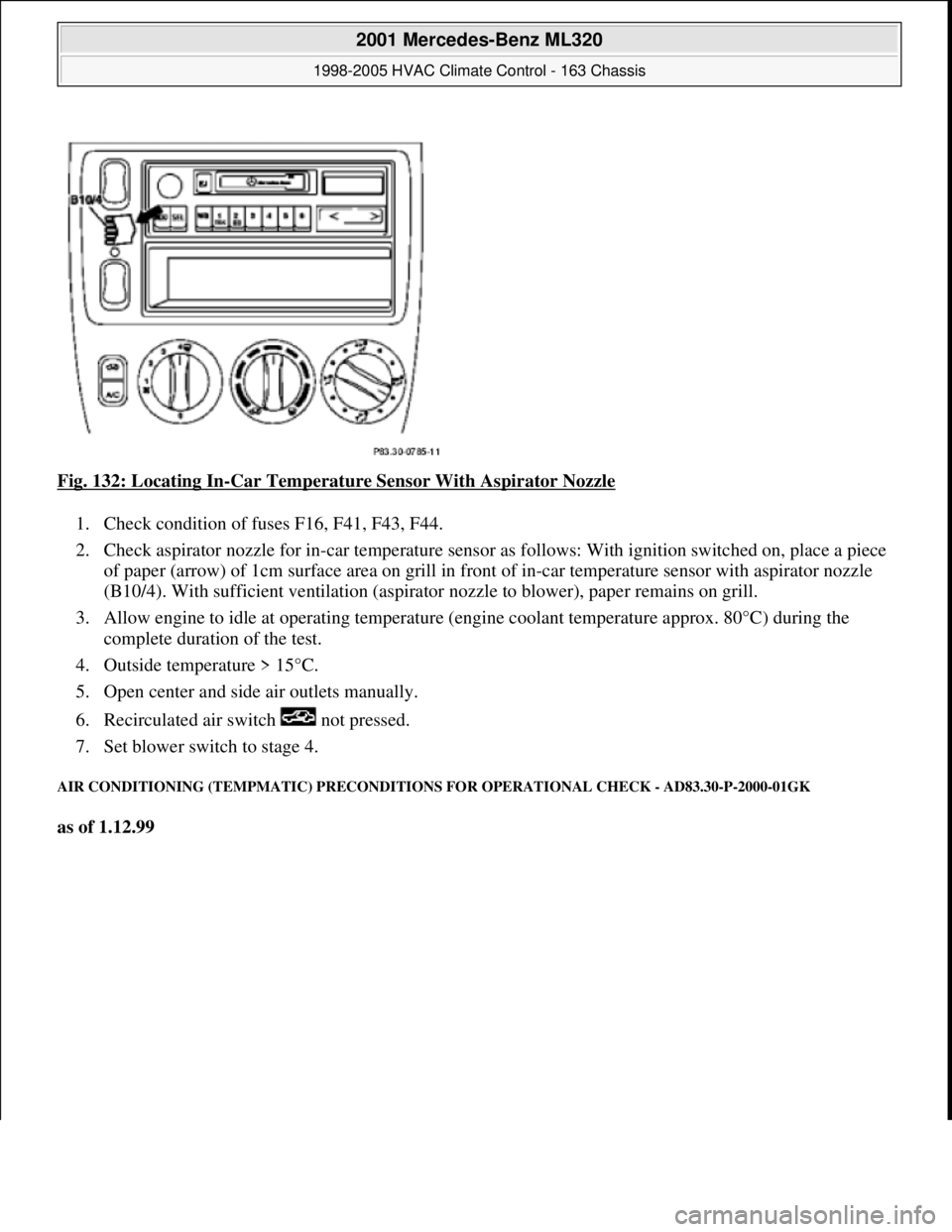

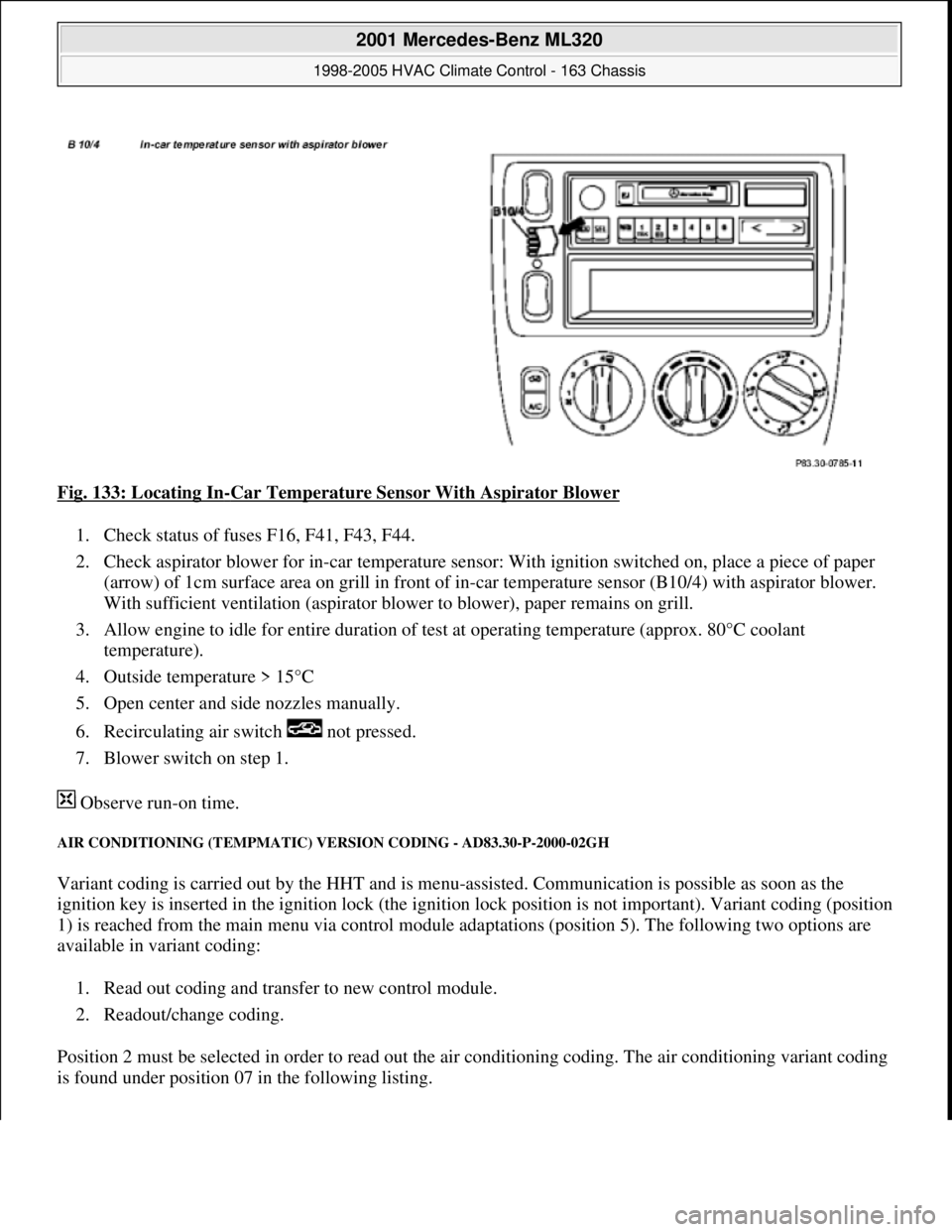

MERCEDES-BENZ ML320 1997 Complete Repair Manual Fig. 132: Locating In-Car Temperature Sensor With Aspirator Nozzle 1. Check condition of fuses F16, F41, F43, F44. 2. Check aspirator nozzle for in-car temperature sensor as follows: With ignit

Page 3408 of 4133

MERCEDES-BENZ ML320 1997 Complete Repair Manual Fig. 133: Locating In-Car Temperature Sensor With Aspirator Blower 1. Check status of fuses F16, F41, F43, F44. 2. Check aspirator blower for in-car temperature sensor: With ignition switched o
