Page 3577 of 4133

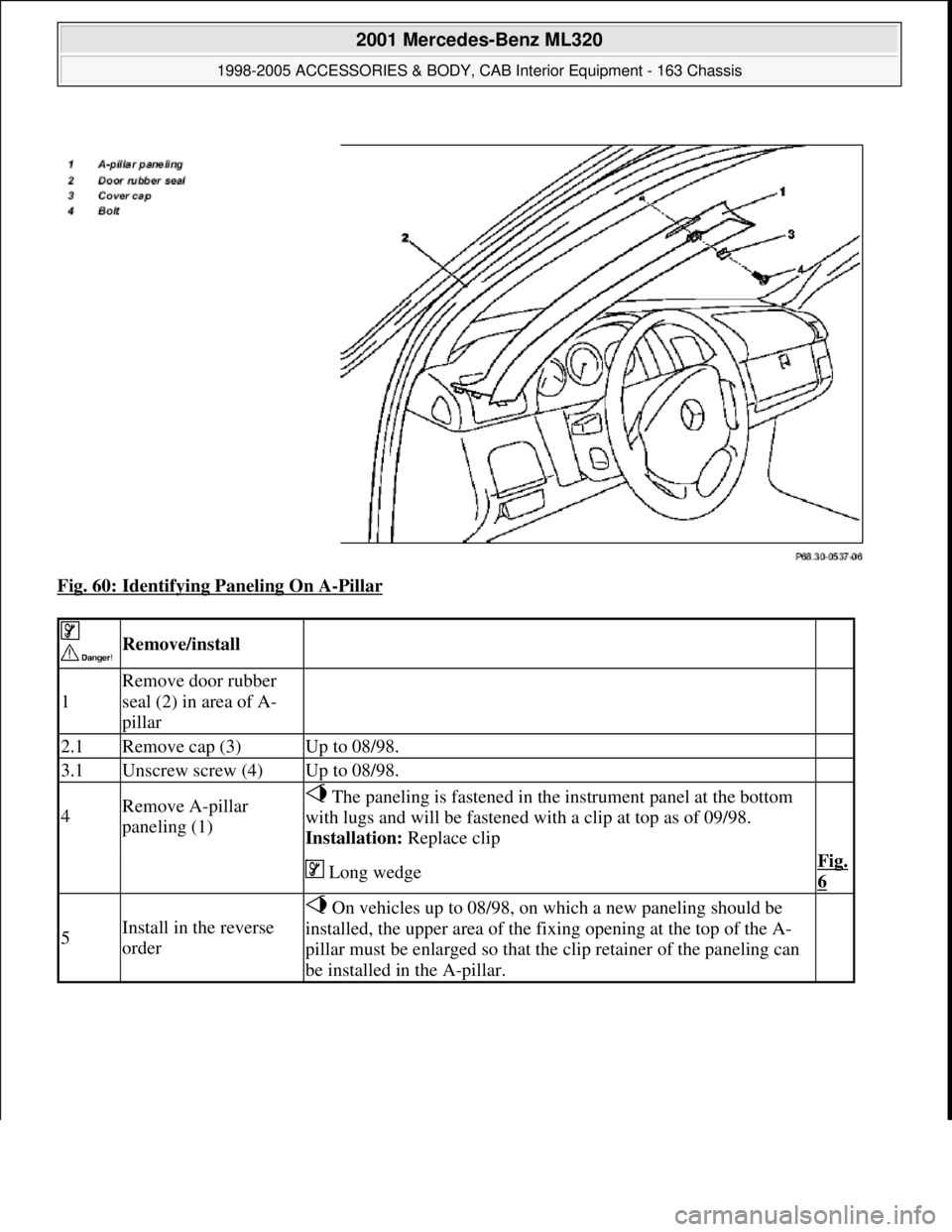

MERCEDES-BENZ ML320 1997 Complete Repair Manual Fig. 60: Identifying Paneling On A-Pillar

Remove/install
1
Remove door rubber
seal (2) in area of A-
pillar

2.1Remove cap (3)Up to 08/98.
3.1Unscrew screw (4)Up to 08/98.
4Remove A-pillar

Page 3578 of 4133

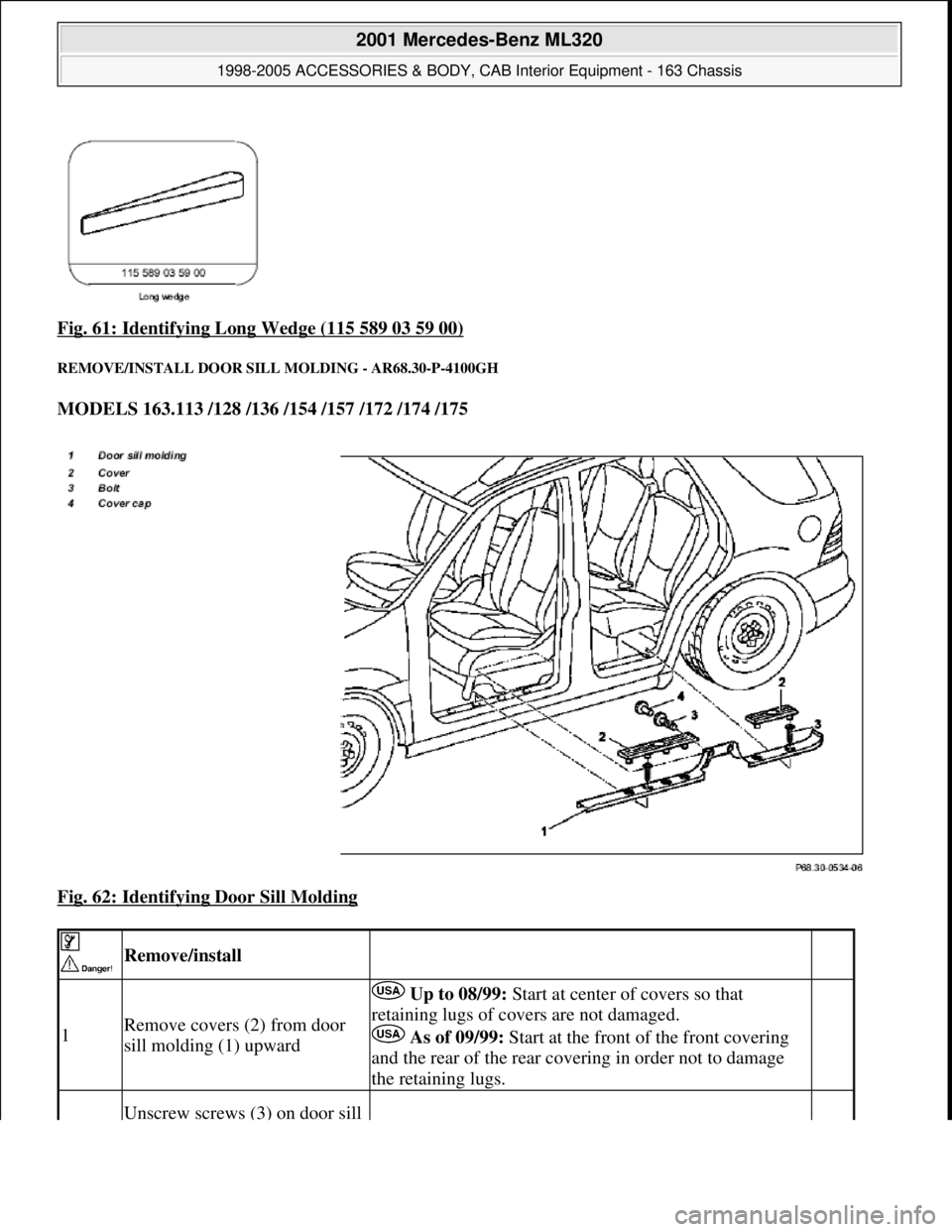

MERCEDES-BENZ ML320 1997 Complete Repair Manual Fig. 61: Identifying Long Wedge (115 589 03 59 00)
REMOVE/INSTALL DOOR SILL MOLDING - AR68.30-P-4100GH
MODELS 163.113 /128 /136 /154 /157 /172 /174 /175
Fig. 62: Identifying Door Sill Molding

Page 3579 of 4133

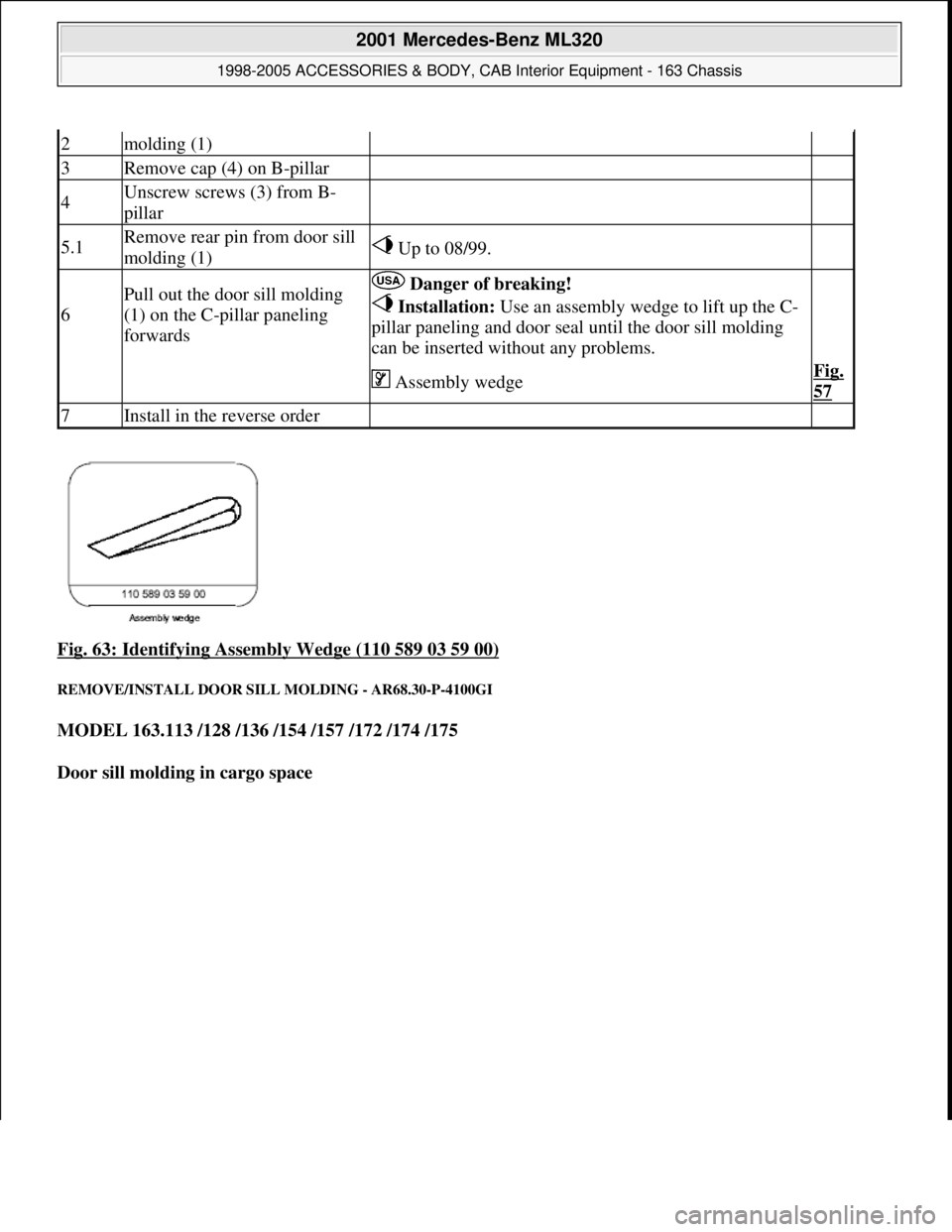

MERCEDES-BENZ ML320 1997 Complete Repair Manual Fig. 63: Identifying Assembly Wedge (110 589 03 59 00)
REMOVE/INSTALL DOOR SILL MOLDING - AR68.30-P-4100GI
MODEL 163.113 /128 /136 /154 /157 /172 /174 /175
Door sill molding in cargo space
2mold

Page 3580 of 4133

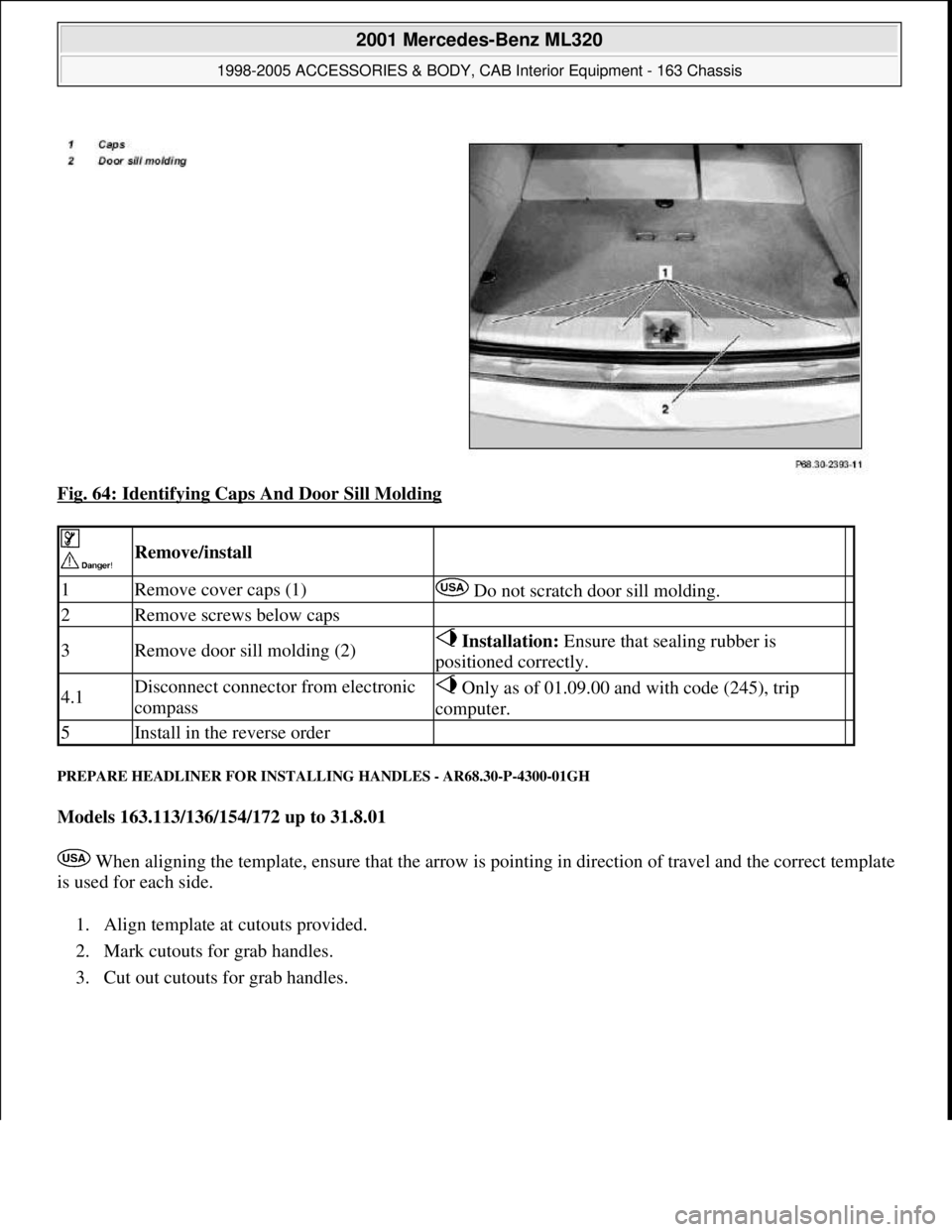

MERCEDES-BENZ ML320 1997 Complete Repair Manual Fig. 64: Identifying Caps And Door Sill Molding
PREPARE HEADLINER FOR INSTALLING HANDLES - AR68.30-P-4300-01GH
Models 163.113/136/154/172 up to 31.8.01
When aligning the template, ensure that the

Page 3581 of 4133

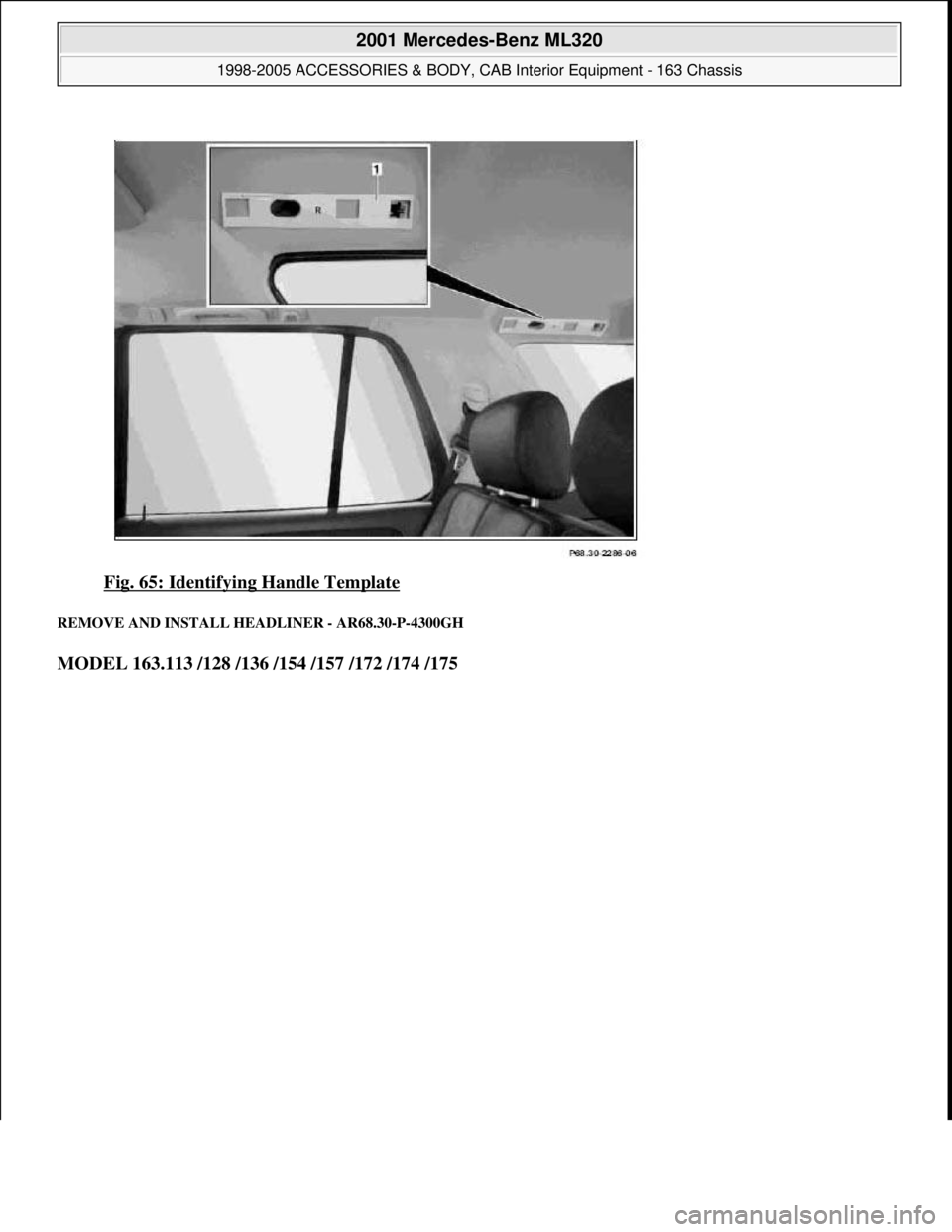

MERCEDES-BENZ ML320 1997 Complete Repair Manual Fig. 65: Identifying Handle Template
REMOVE AND INSTALL HEADLINER - AR68.30-P-4300GH
MODEL 163.113 /128 /136 /154 /157 /172 /174 /175

2001 Mercedes-Benz ML320
1998-2005 ACCESSORIES & BODY, CAB In

Page 3582 of 4133

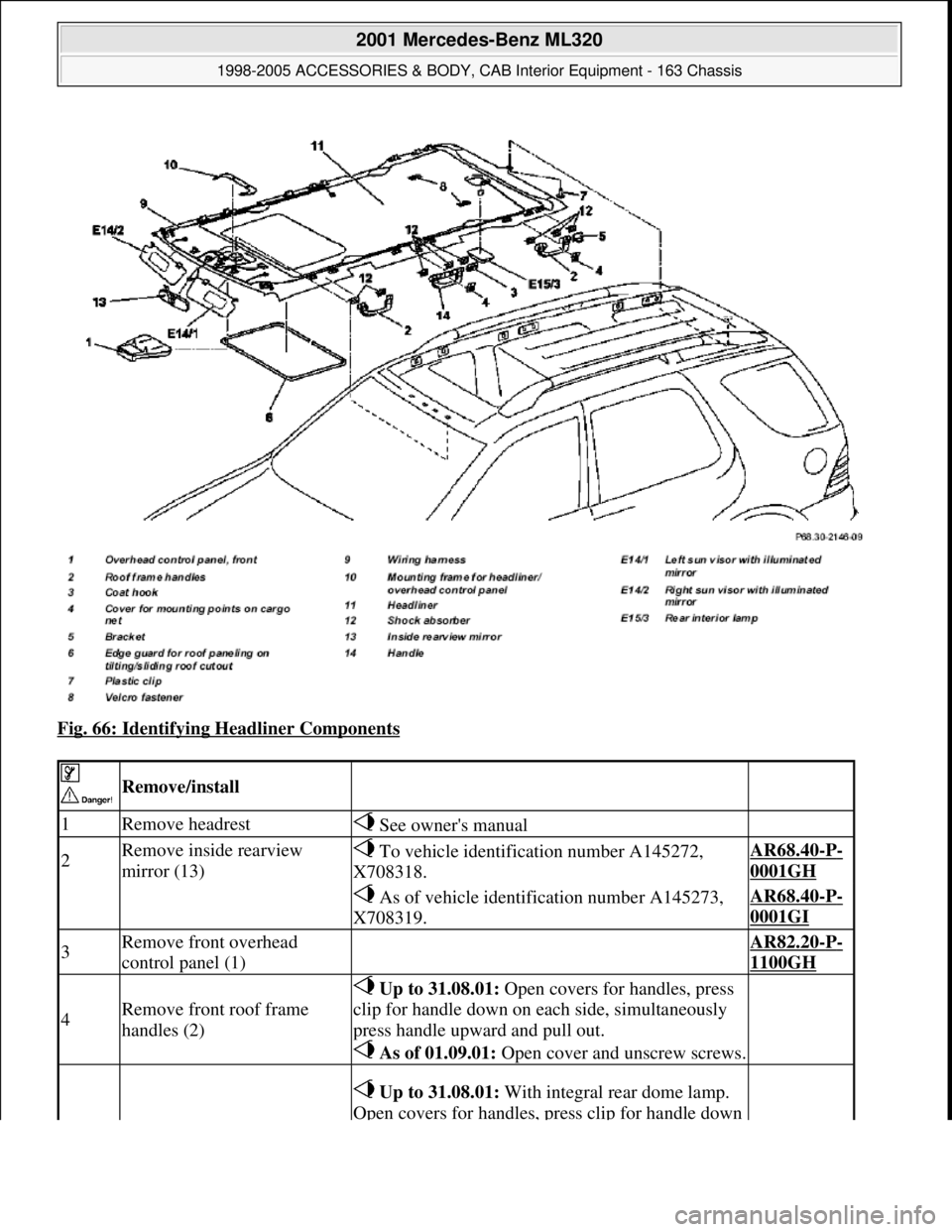

MERCEDES-BENZ ML320 1997 Complete Repair Manual Fig. 66: Identifying Headliner Components

Remove/install
1Remove headrest See owners manual
2Remove inside rearview
mirror (13) To vehicle identification number A145272,
X708318.AR68.40-P-
0

Page 3583 of 4133

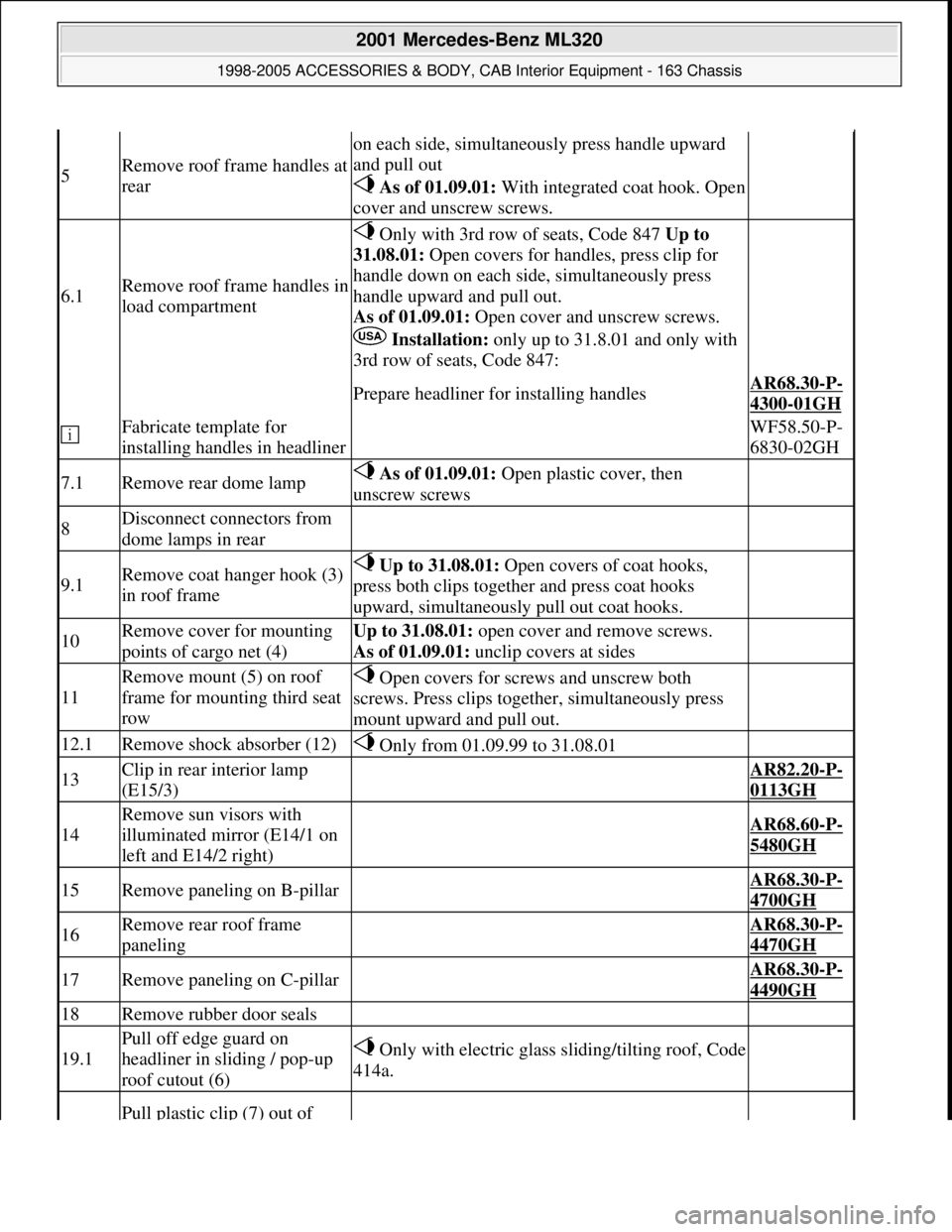

MERCEDES-BENZ ML320 1997 Complete Repair Manual 5Remove roof frame handles at
rear
on each side, simultaneously press handle upward
and pull out
As of 01.09.01:With integrated coat hook. Open
cover and unscrew screws.

6.1Remove roof frame ha

5Remove roof frame handles at
rear
on each side, simultaneously press handle upward
and pull out
As of 01.09.01:With integrated coat hook. Open
cover and unscrew screws.

6.1Remove roof frame handles in
load compartment
Only with 3rd row of seats, Code 847 Up to
31.08.01: Open covers for handles, press clip for
handle down on each side, simultaneously press
handle upward and pull out.
As of 01.09.01: Open cover and unscrew screws.
Installation: only up to 31.8.01 and only with
3rd row of seats, Code 847:

Prepare headliner for installing handlesAR68.30-P-
4300-01GH
Fabricate template for
installing handles in headliner WF58.50-P-
6830-02GH
7.1Remove rear dome lamp As of 01.09.01: Open plastic cover, then
unscrew screws
8Disconnect connectors from
dome lamps in rear
9.1Remove coat hanger hook (3)
in roof frame Up to 31.08.01: Open covers of coat hooks,
press both clips together and press coat hooks
upward, simultaneously pull out coat hooks.

10Remove cover for mounting
points of cargo net (4)Up to 31.08.01: open cover and remove screws.
As of 01.09.01: unclip covers at sides
11
Remove mount (5) on roof
frame for mounting third seat
row Open covers for screws and unscrew both
screws. Press clips together, simultaneously press
mount upward and pull out.

12.1Remove shock absorber (12) Only from 01.09.99 to 31.08.01
13Clip in rear interior lamp
(E15/3) AR82.20-P-
0113GH
14
Remove sun visors with
illuminated mirror (E14/1 on
left and E14/2 right)
AR68.60-P-
5480GH
15Remove paneling on B-pillar AR68.30-P-
4700GH
16Remove rear roof frame
paneling AR68.30-P-
4470GH
17Remove paneling on C-pillar AR68.30-P-
4490GH
18Remove rubber door seals
19.1
Pull off edge guard on
headliner in sliding / pop-up
roof cutout (6) Only with electric glass sliding/tilting roof, Code
414a.
Pull plastic clip (7) out of

2001 Mercedes-Benz ML320
1998-2005 ACCESSORIES & BODY, CAB Interior Equipment - 163 Chassis
me
Saturday, October 02, 2010 3:35:22 PMPage 65 © 2006 Mitchell Repair Information Company, LLC.

Page 3584 of 4133

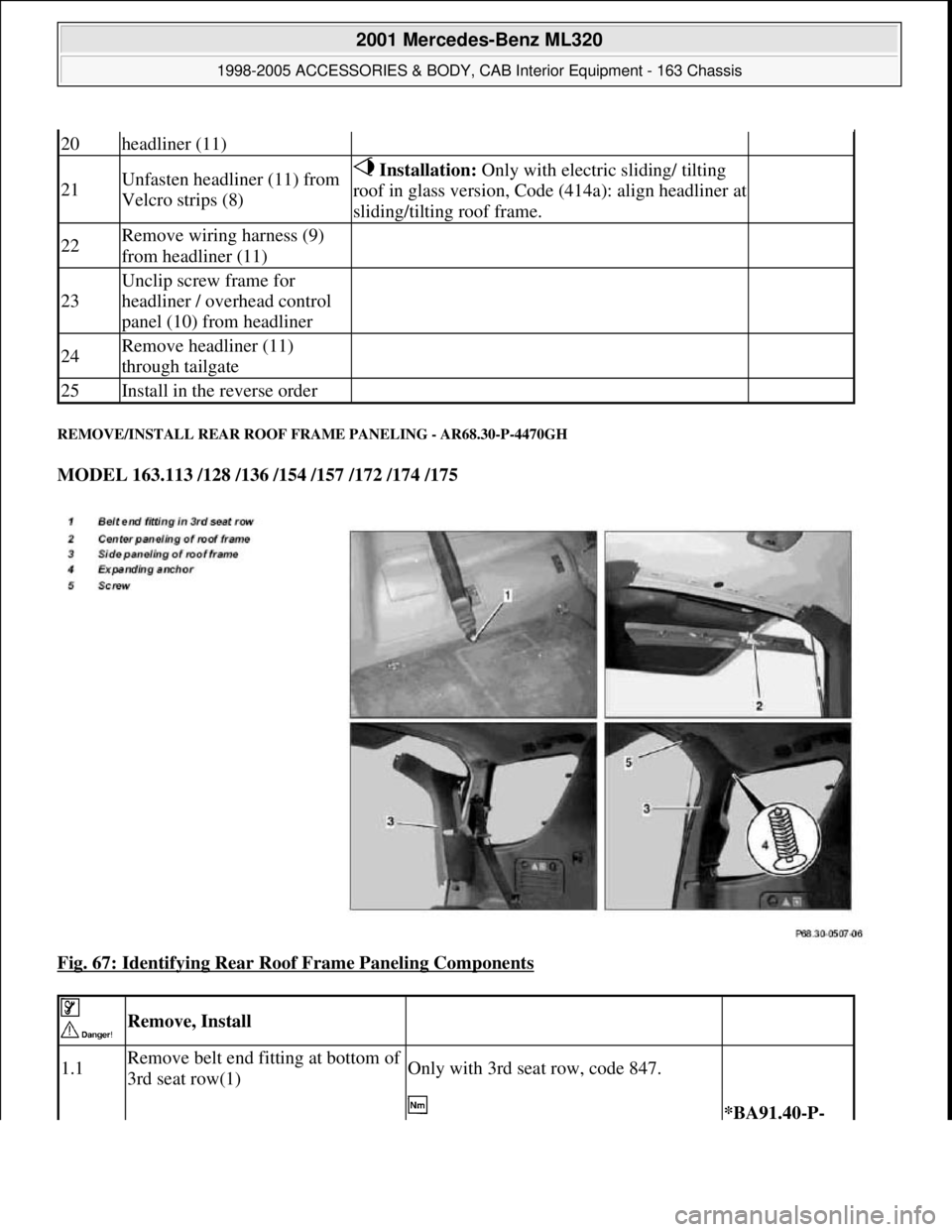

MERCEDES-BENZ ML320 1997 Complete Repair Manual REMOVE/INSTALL REAR ROOF FRAME PANELING - AR68.30-P-4470GH
MODEL 163.113 /128 /136 /154 /157 /172 /174 /175
Fig. 67: Identifying Rear Roof Frame Paneling Components

20headliner (11)
21Unfasten
