Page 1153 of 4133

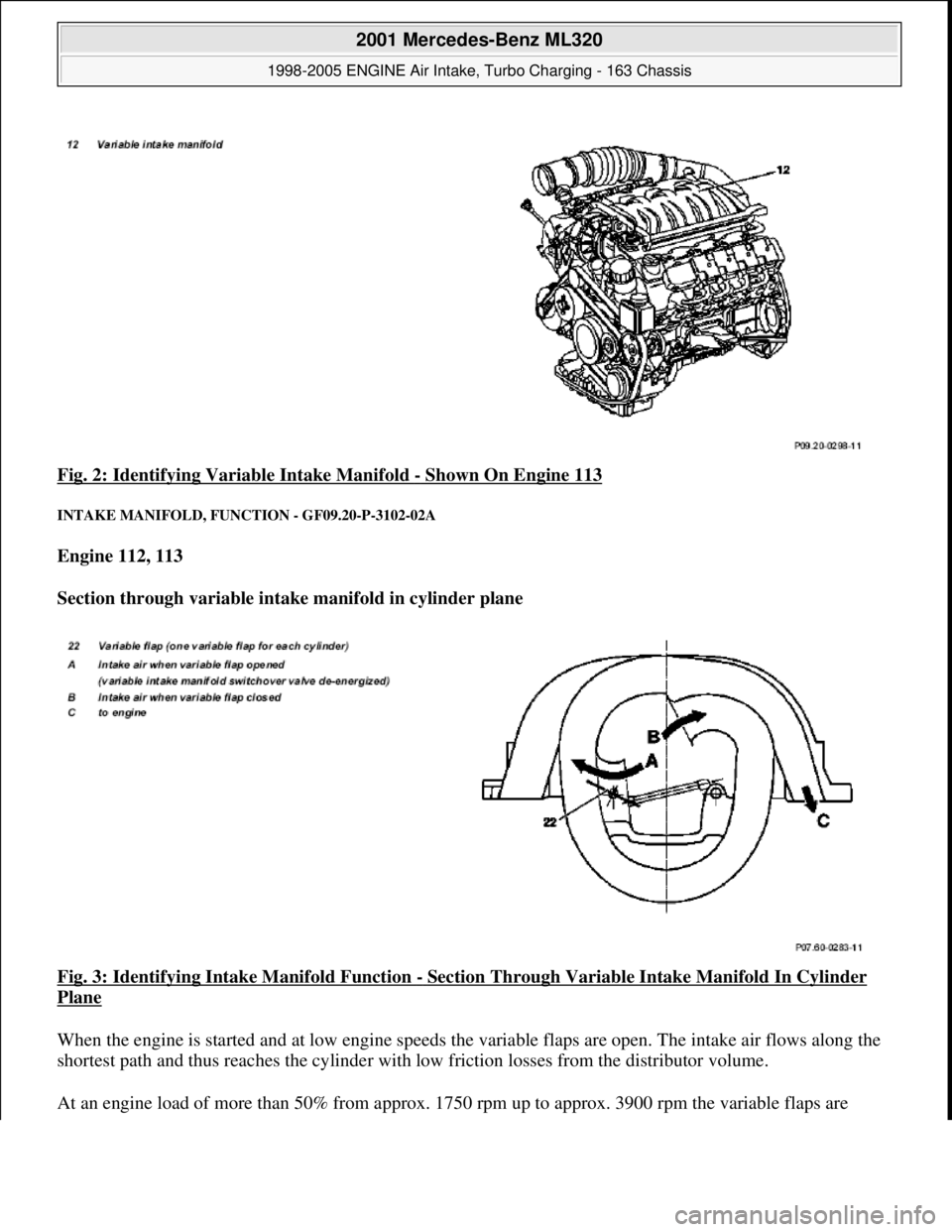

MERCEDES-BENZ ML320 1997 Complete Repair Manual Fig. 2: Identifying Variable Intake Manifold - Shown On Engine 113 INTAKE MANIFOLD, FUNC TION - GF09.20-P-3102-02A Engine 112, 113 Section through variable intake manifold in cylinder plane

Page 1154 of 4133

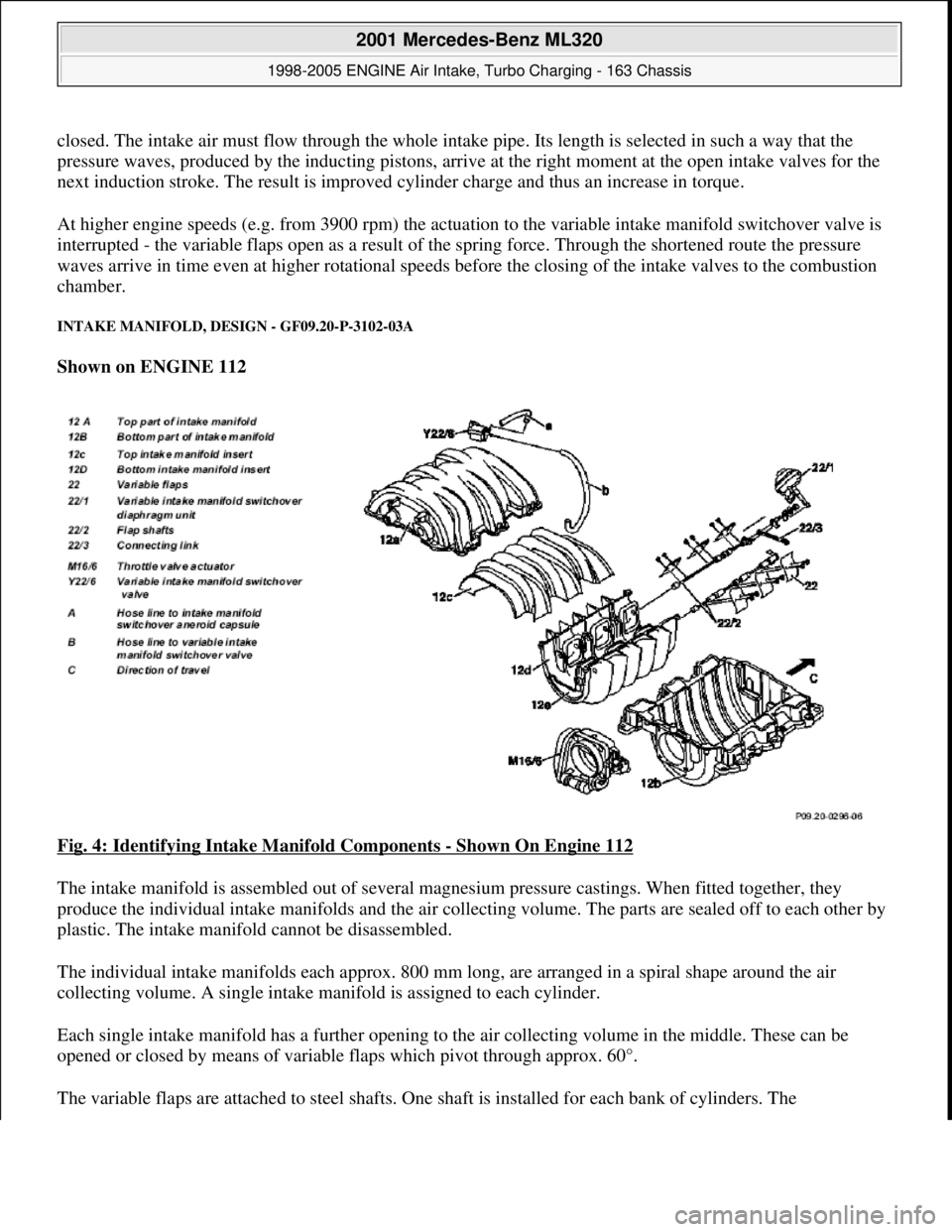

MERCEDES-BENZ ML320 1997 Complete Repair Manual closed. The intake air must flow through the whole intake pipe. Its length is selected in such a way that the pressure waves, produced by the inducting pistons, arrive at the right moment at the open

Page 1155 of 4133

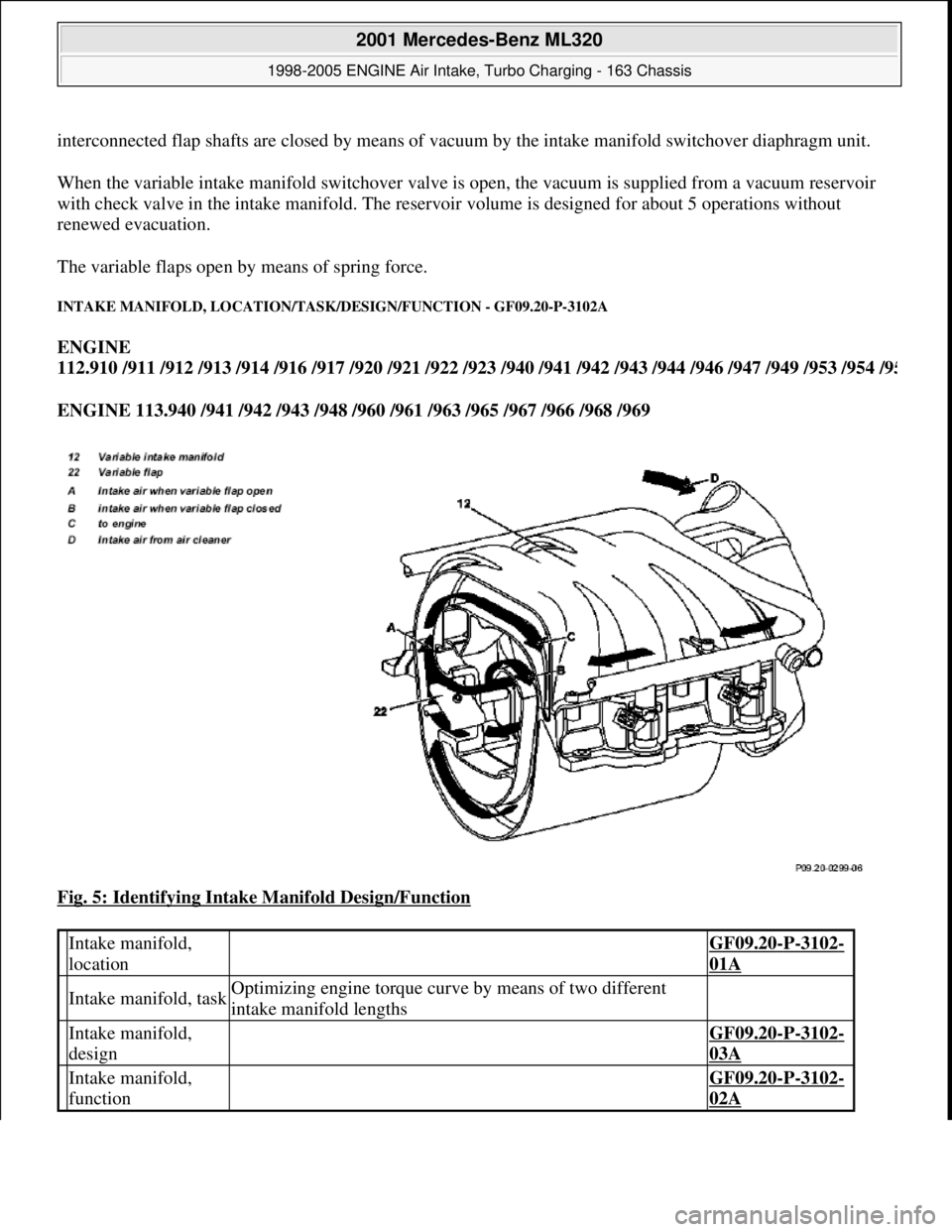

MERCEDES-BENZ ML320 1997 Complete Repair Manual interconnected flap shafts are closed by means of vacuum by the intake manifold switchover diaphragm unit. When the variable intake manifold switchover valve is open, the vacuum is supplied from a vac

Page 1156 of 4133

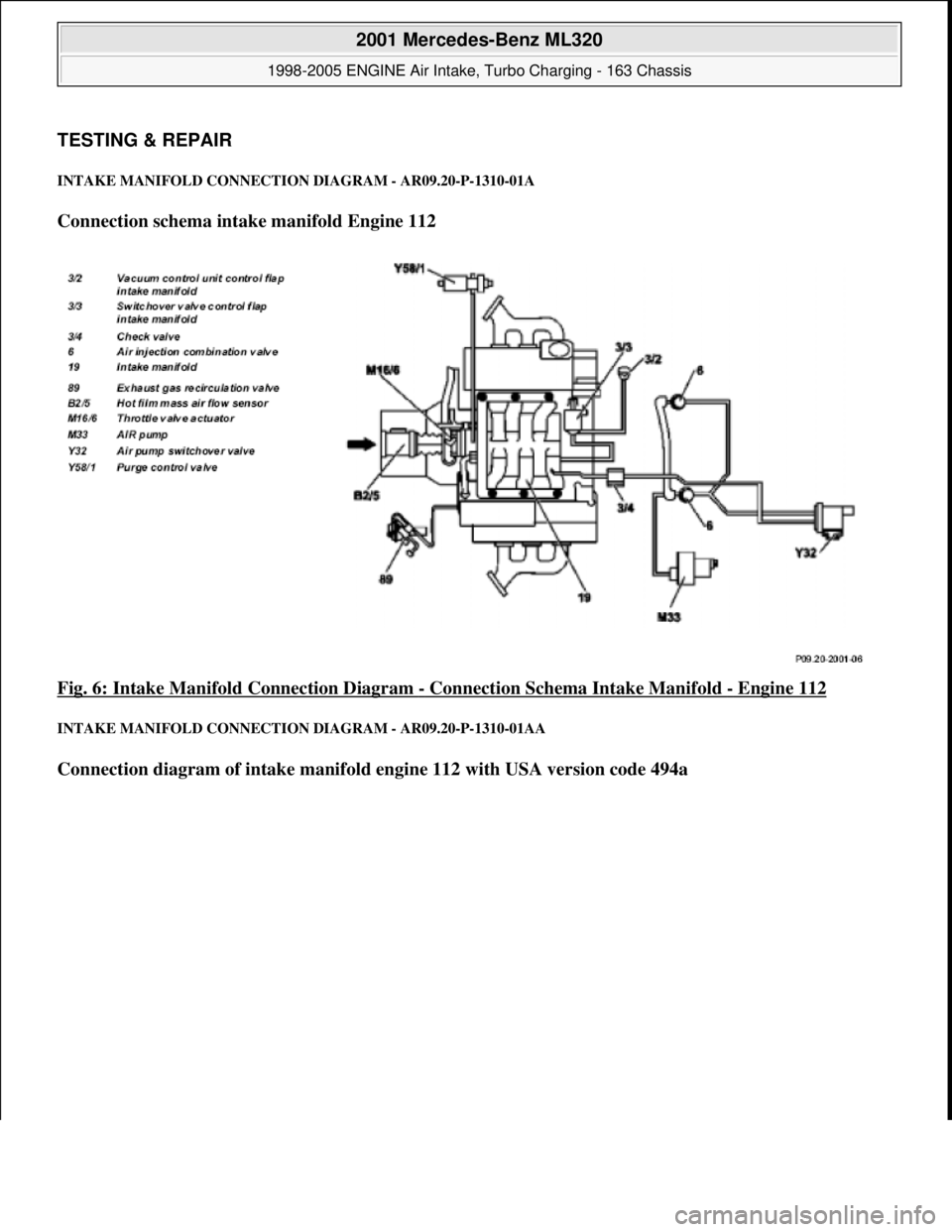

MERCEDES-BENZ ML320 1997 Complete Repair Manual TESTING & REPAIR INTAKE MANIFOLD CONNECTION DIAGRAM - AR09.20-P-1310-01A Connection schema intake manifold Engine 112 Fig. 6: Intake Manifold Connection Diagram - Connection Schema Intake Manifol

Page 1157 of 4133

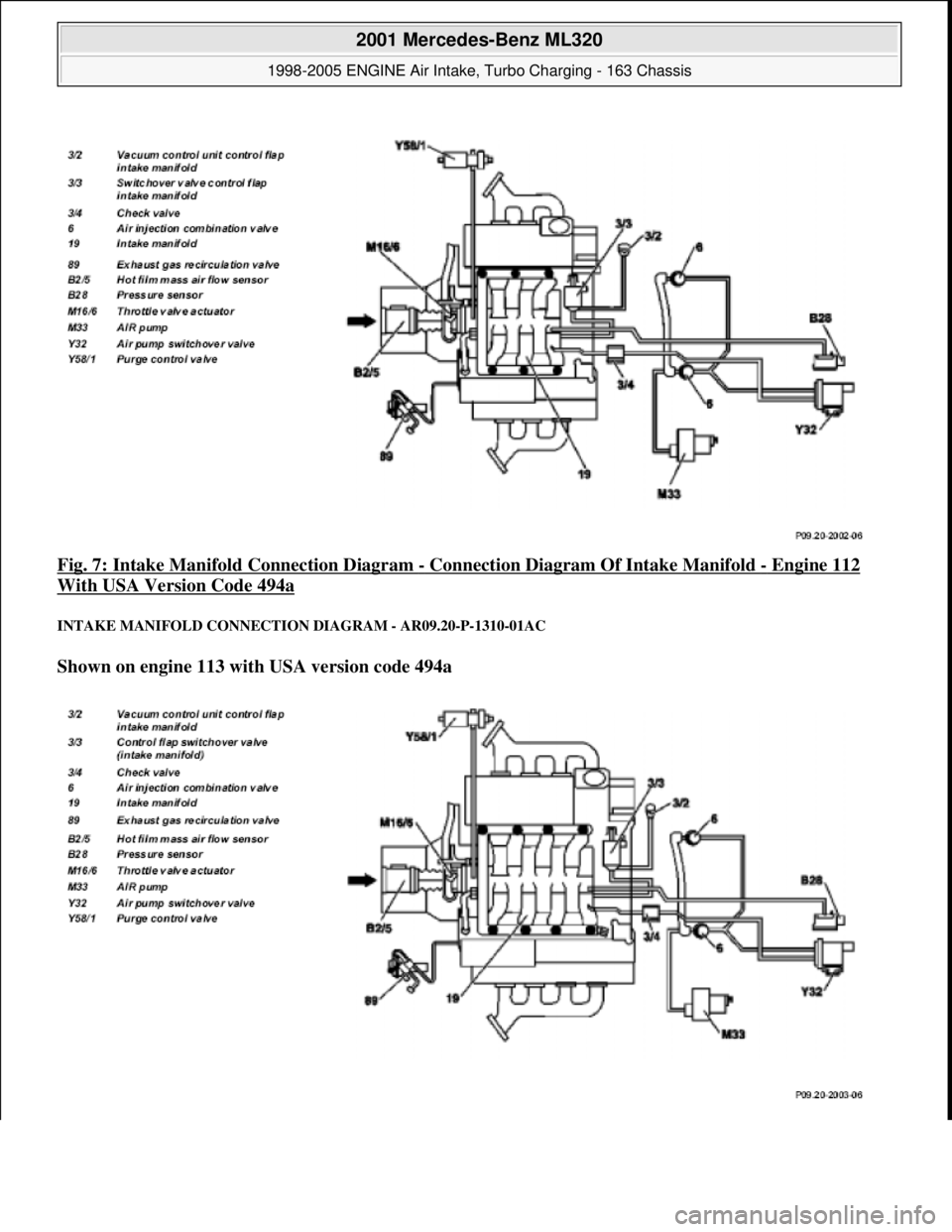

MERCEDES-BENZ ML320 1997 Complete Repair Manual Fig. 7: Intake Manifold Connection Diagram - Connection Diagram Of Intake Manifold - Engine 112 With USA Version Code 494a INTAKE MANIFOLD CONNECTION DIAGRA M - AR09.20-P-1310-01AC Shown on engine

Page 1158 of 4133

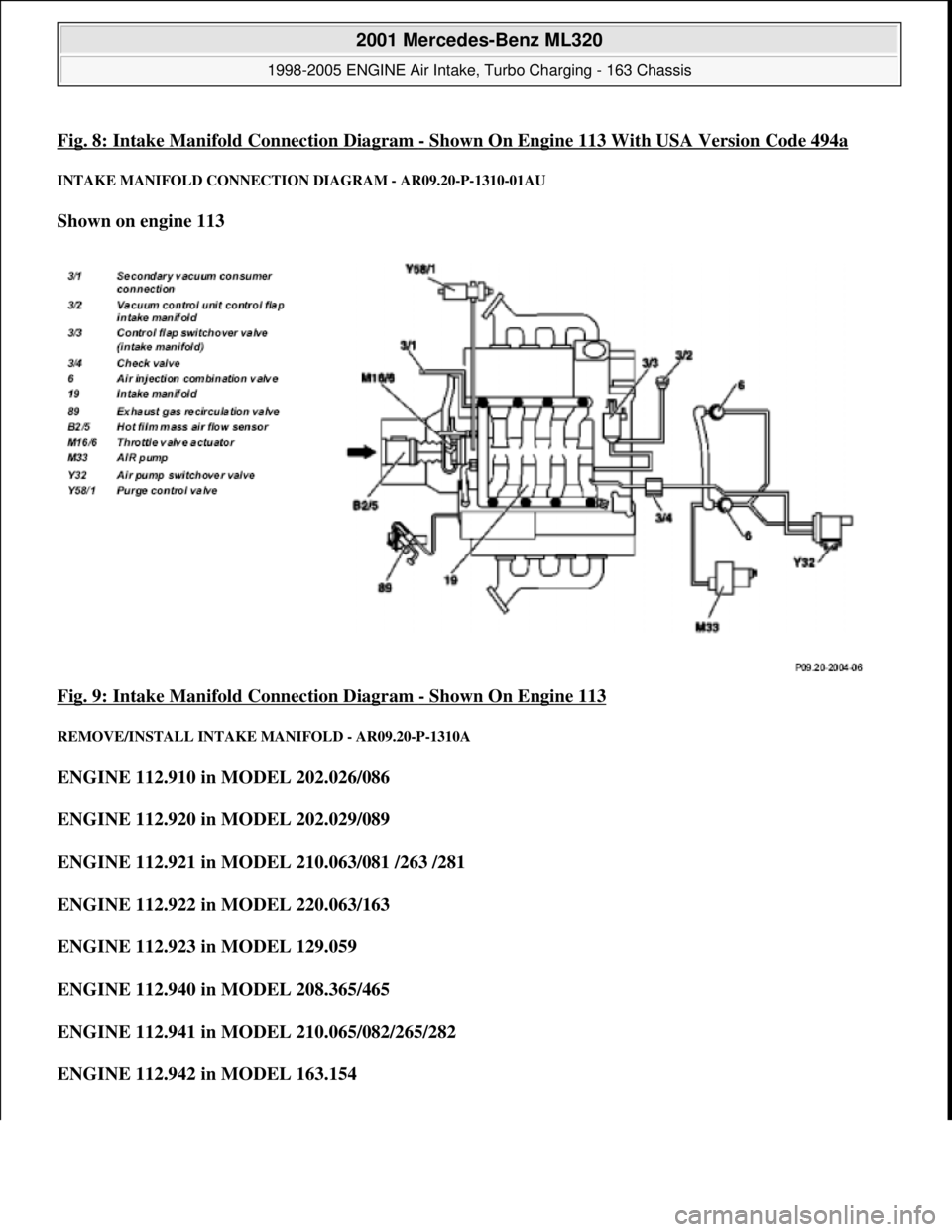

MERCEDES-BENZ ML320 1997 Complete Repair Manual Fig. 8: Intake Manifold Connection Diagram -Shown On Engine 113 With USA Version Code 494a INTAKE MANIFOLD CONNECTION DIAGRAM - AR09.20-P-1310-01AU Shown on engine 113 Fig. 9: Intake Manifold Conne

Page 1159 of 4133

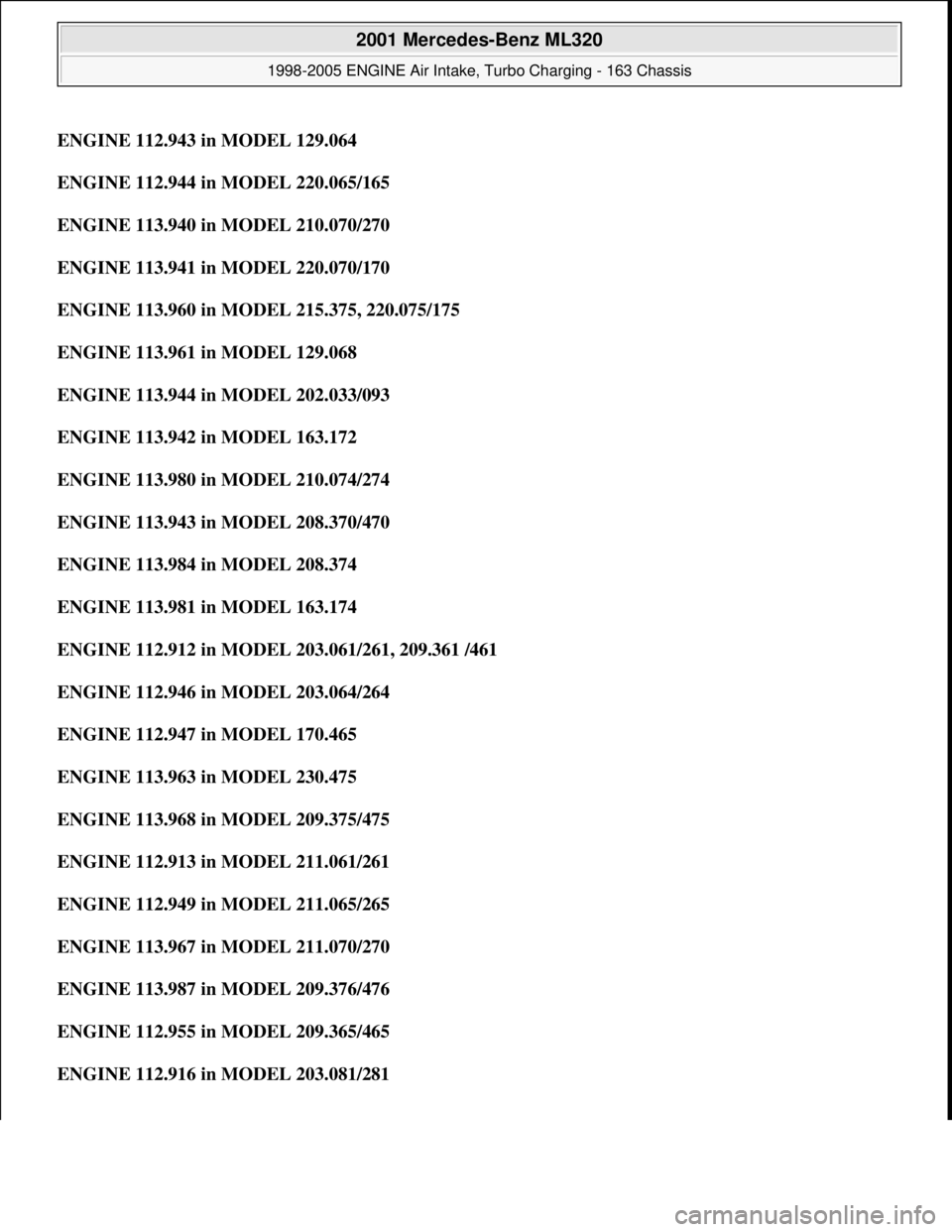

MERCEDES-BENZ ML320 1997 Complete Repair Manual ENGINE 112.943 in MODEL 129.064 ENGINE 112.944 in MODEL 220.065/165 ENGINE 113.940 in MODEL 210.070/270 ENGINE 113.941 in MODEL 220.070/170 ENGINE 113.960 in MODEL 215.375, 220.075/175 ENGIN

Page 1160 of 4133

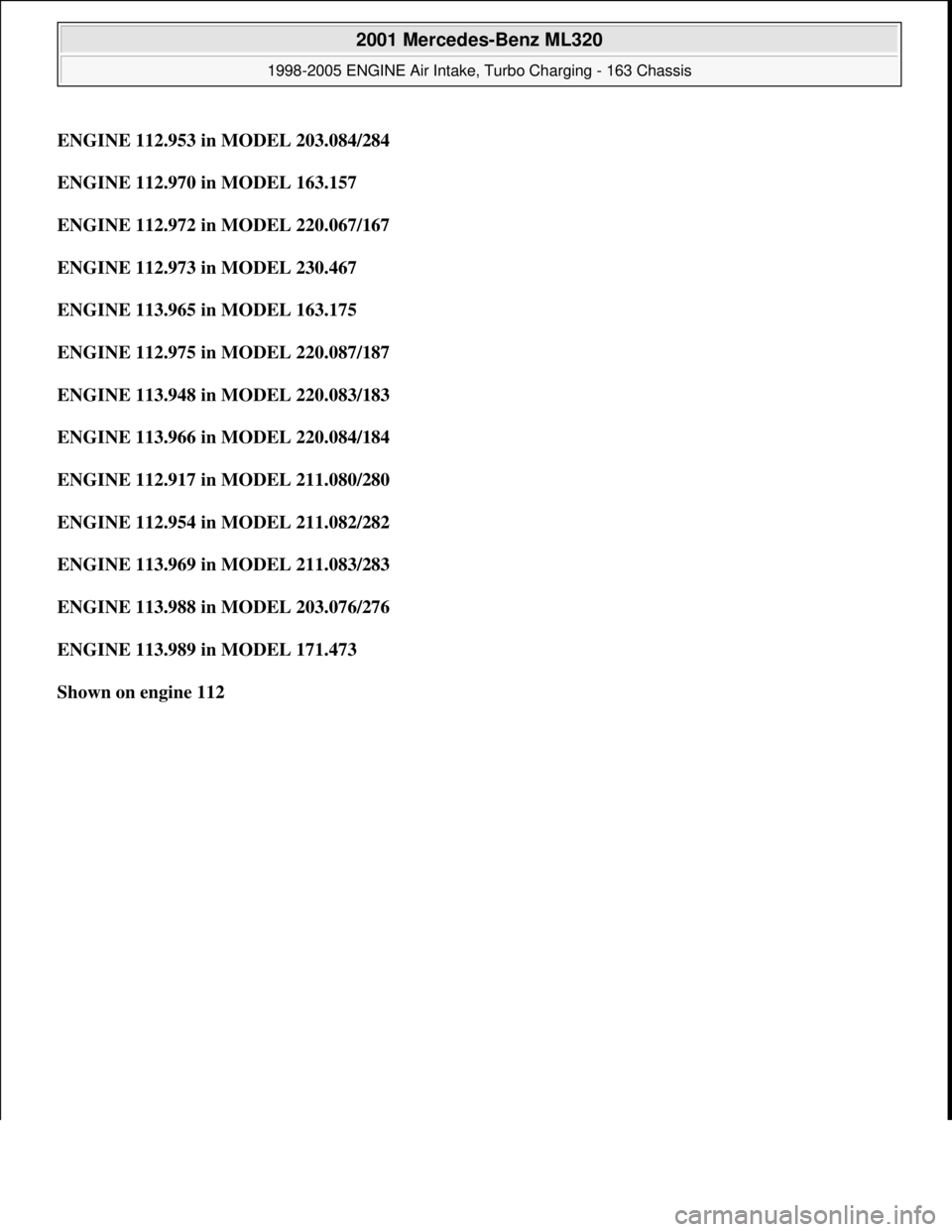

MERCEDES-BENZ ML320 1997 Complete Repair Manual ENGINE 112.953 in MODEL 203.084/284 ENGINE 112.970 in MODEL 163.157 ENGINE 112.972 in MODEL 220.067/167 ENGINE 112.973 in MODEL 230.467 ENGINE 113.965 in MODEL 163.175 ENGINE 112.975 in MODEL
