Page 2297 of 4133

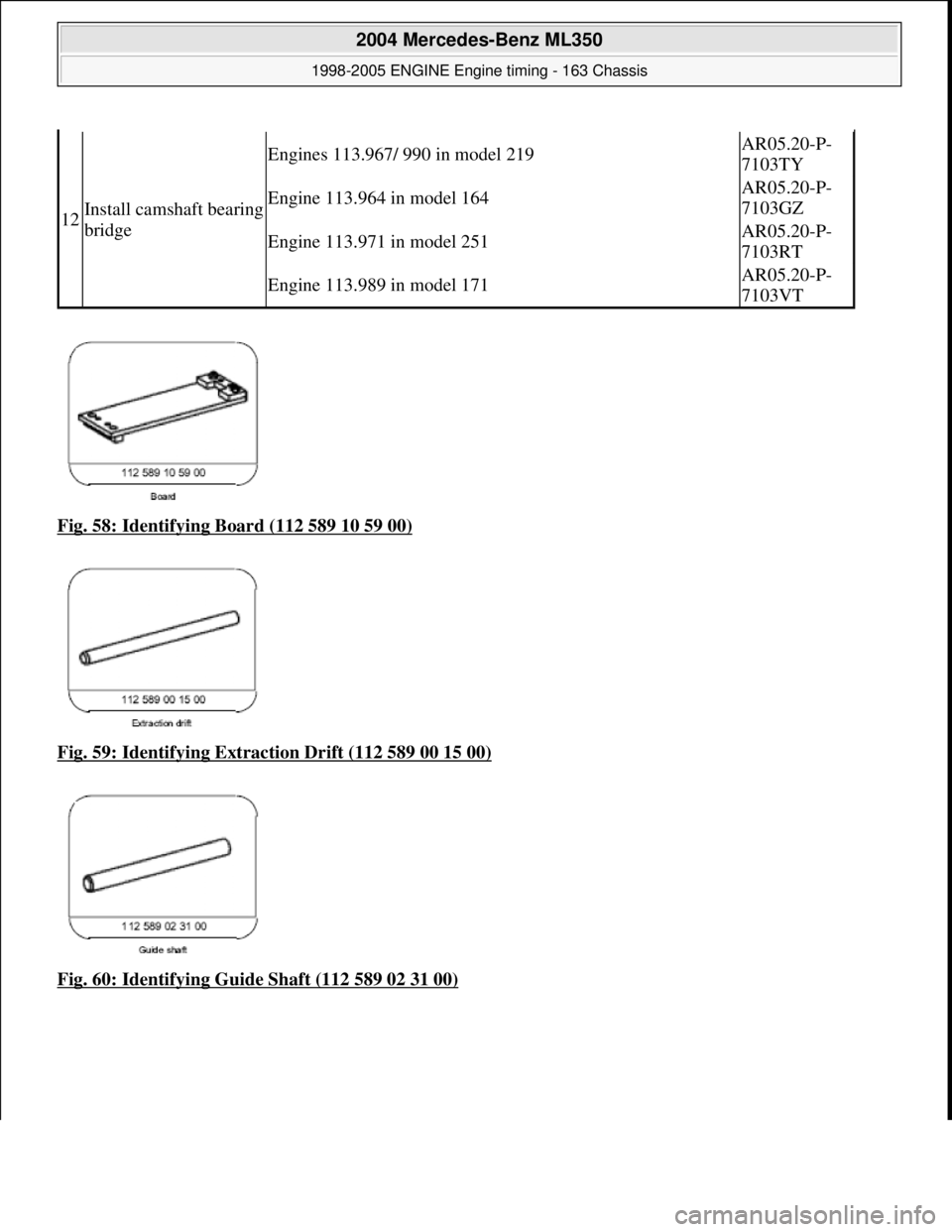

MERCEDES-BENZ ML320 1997 Complete Repair Manual Fig. 58: Identifying Board (112 589 10 59 00) Fig. 59: Identifying Extraction Drift (112 589 00 15 00) Fig. 60: Identifying Guide Shaft (112 589 02 31 00) 12Install camshaft bearing bridge Engi

Page 2298 of 4133

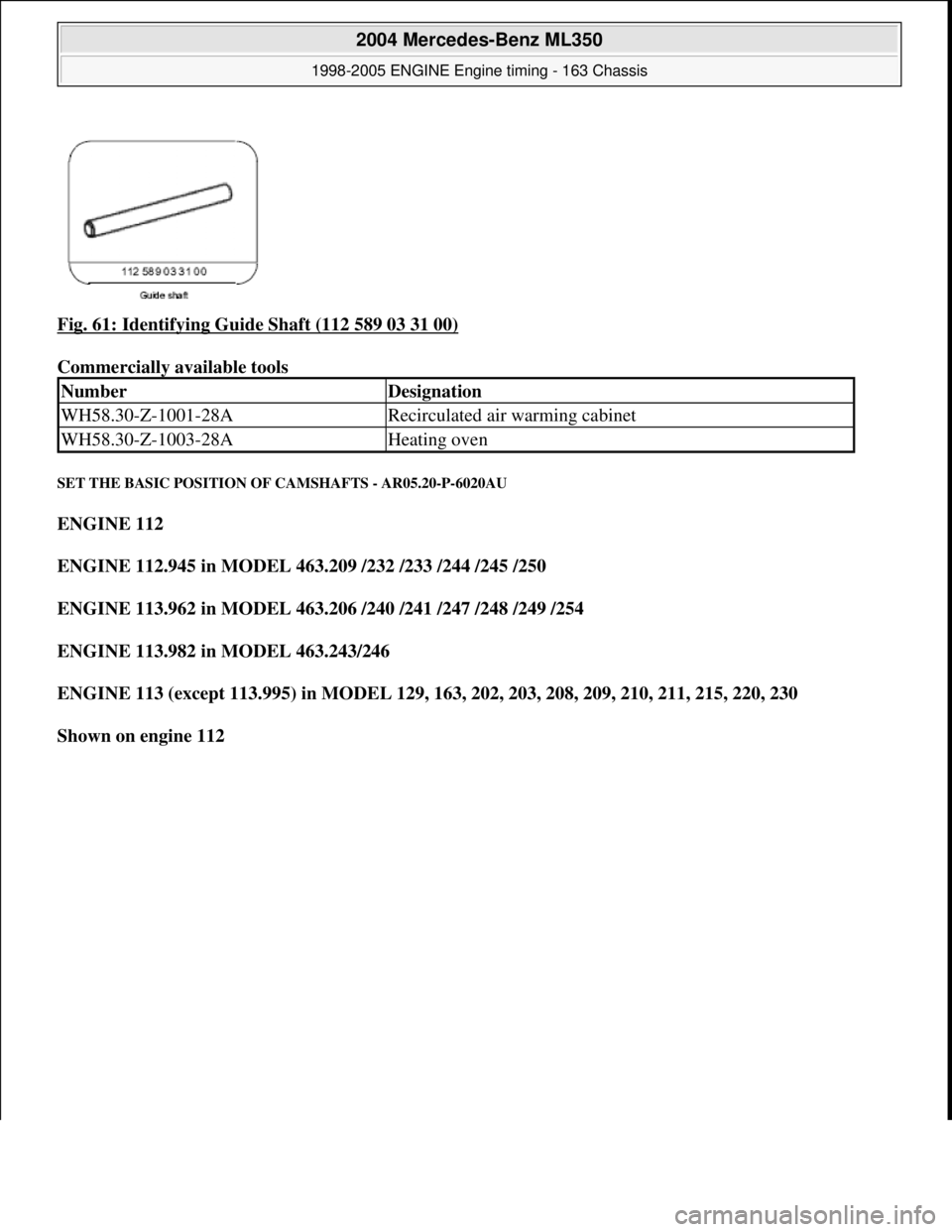

MERCEDES-BENZ ML320 1997 Complete Repair Manual Fig. 61: Identifying Guide Shaft (112 589 03 31 00) Commercially available tools SET THE BASIC POSITION OF CAMSHAFTS - AR05.20-P-6020AU ENGINE 112 ENGINE 112.945 in MODEL 463.209 /232 /233 /2

Page 2299 of 4133

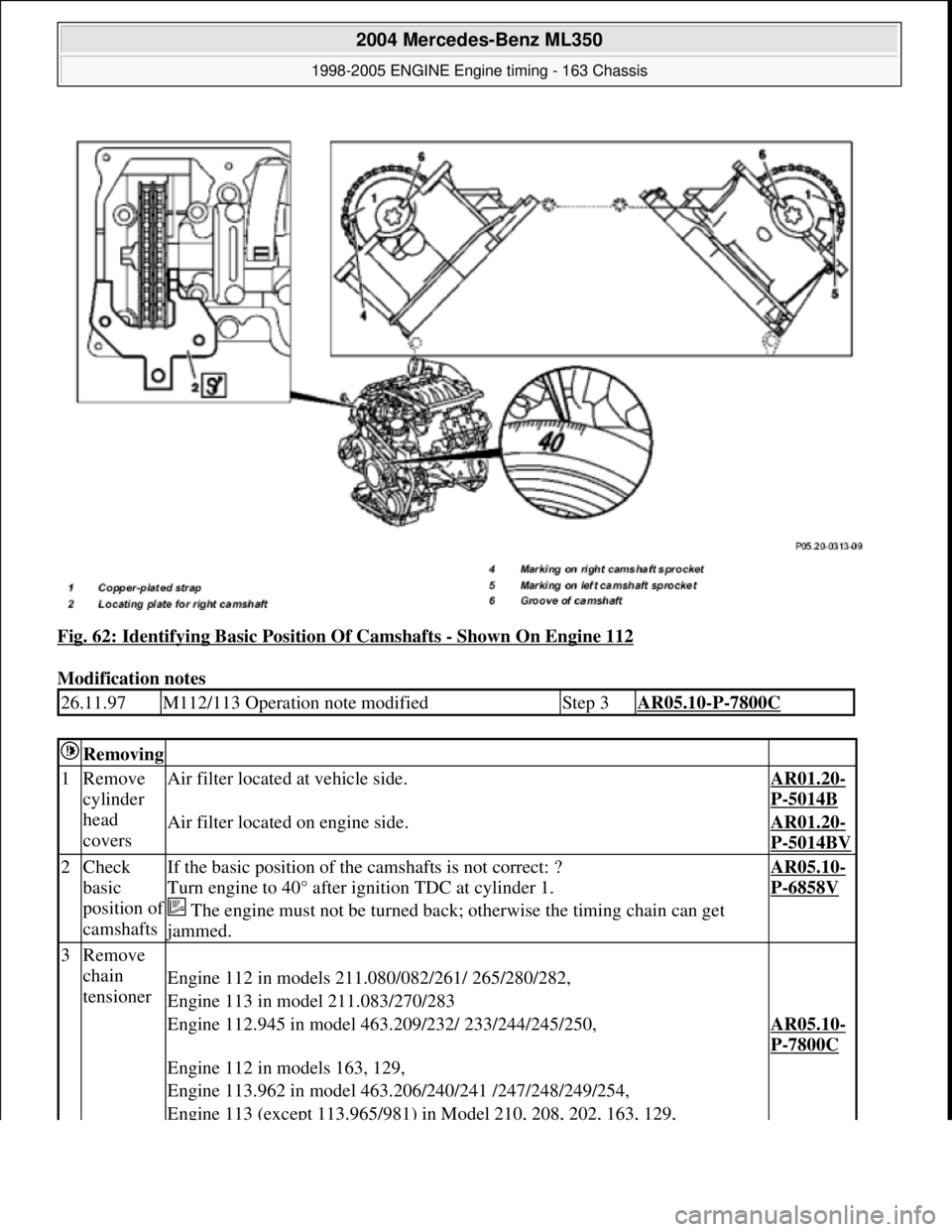

MERCEDES-BENZ ML320 1997 Complete Repair Manual Fig. 62: Identifying Basic Position Of Camshafts - Shown On Engine 112 Modification notes 26.11.97M112/113 Operation note modifiedStep 3AR05.10-P-7800C Removing 1Remove cylinder head co

Page 2300 of 4133

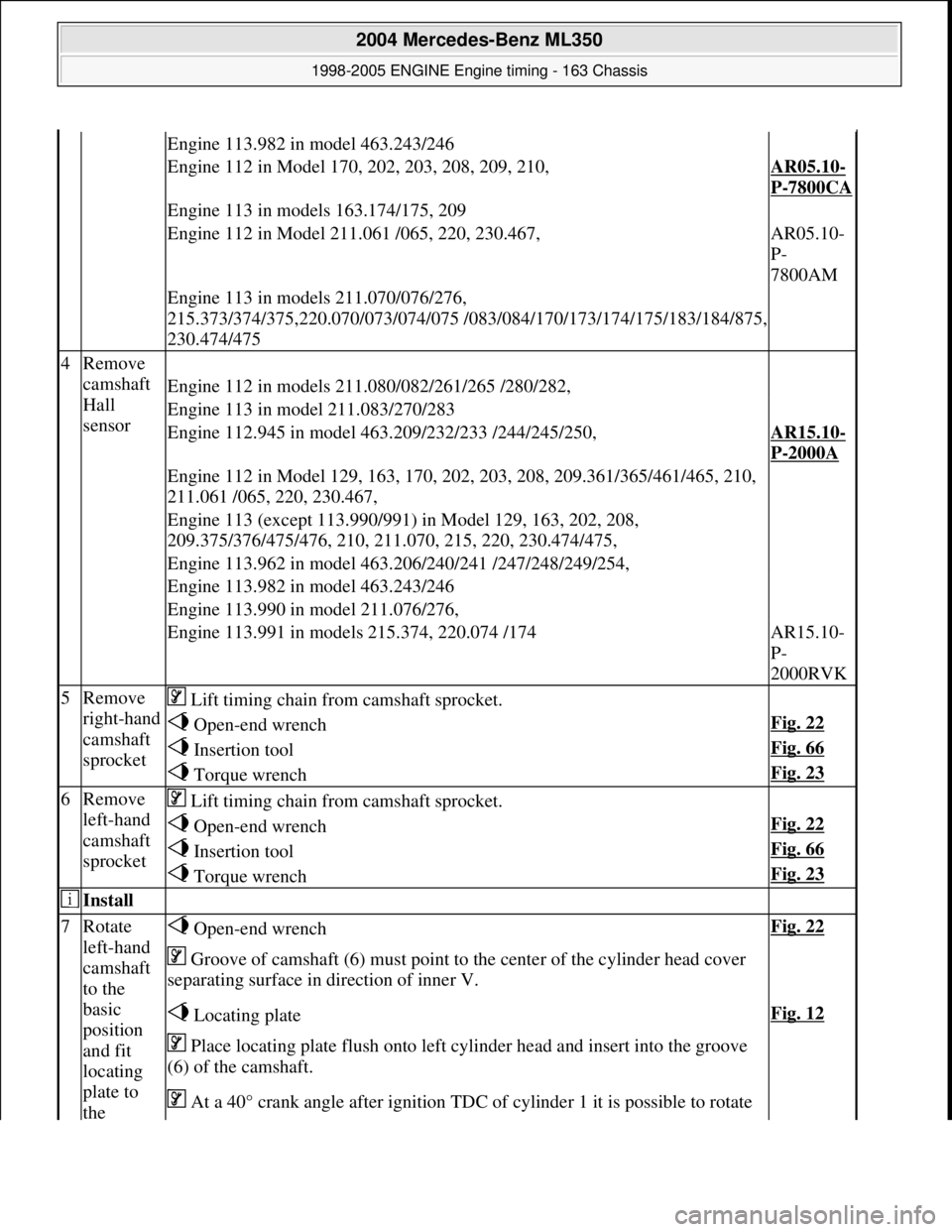

MERCEDES-BENZ ML320 1997 Complete Repair Manual Engine 113.982 in model 463.243/246 Engine 112 in Model 170, 202, 203, 208, 209, 210,AR05.10- P-7800CA Engine 113 in models 163.174/175, 209 Engine 112 in Model 211.061 /065, 220, 230.467,AR05.10-

Page 2301 of 4133

MERCEDES-BENZ ML320 1997 Complete Repair Manual camshaftthe camshaft without th e valves coming into contact with the pistons. 8Rotate right camshaft in basic position and insert locating plate for right camshaft (2) in the ca

Page 2302 of 4133

MERCEDES-BENZ ML320 1997 Complete Repair Manual Camshaft Camshaft tensionerEngine 112.945 in model 463.209/232/233 /244/245/250,AR05.10- P-7800C Engine 112 in models 163, 129 Engine 113.962 in model 463.206/240/241 /247/248/249/254, Engin

Page 2303 of 4133

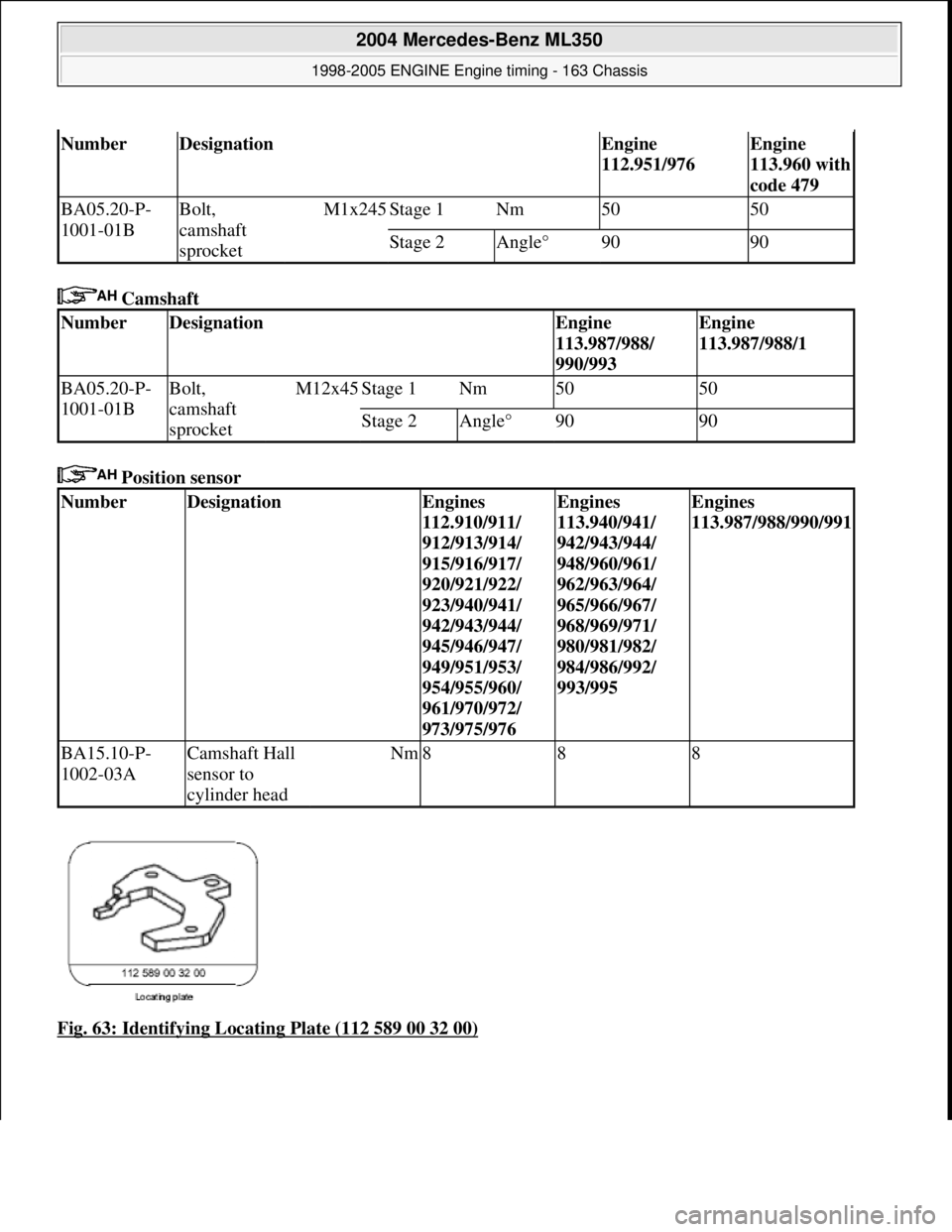

MERCEDES-BENZ ML320 1997 Complete Repair Manual Camshaft Position sensor Fig. 63: Identifying Locating Plate (112 589 00 32 00) NumberDesignationEngine 112.951/976Engine 113.960 with code 479 BA05.20-P- 1001-01BBolt, camshaft sproc

Page 2304 of 4133

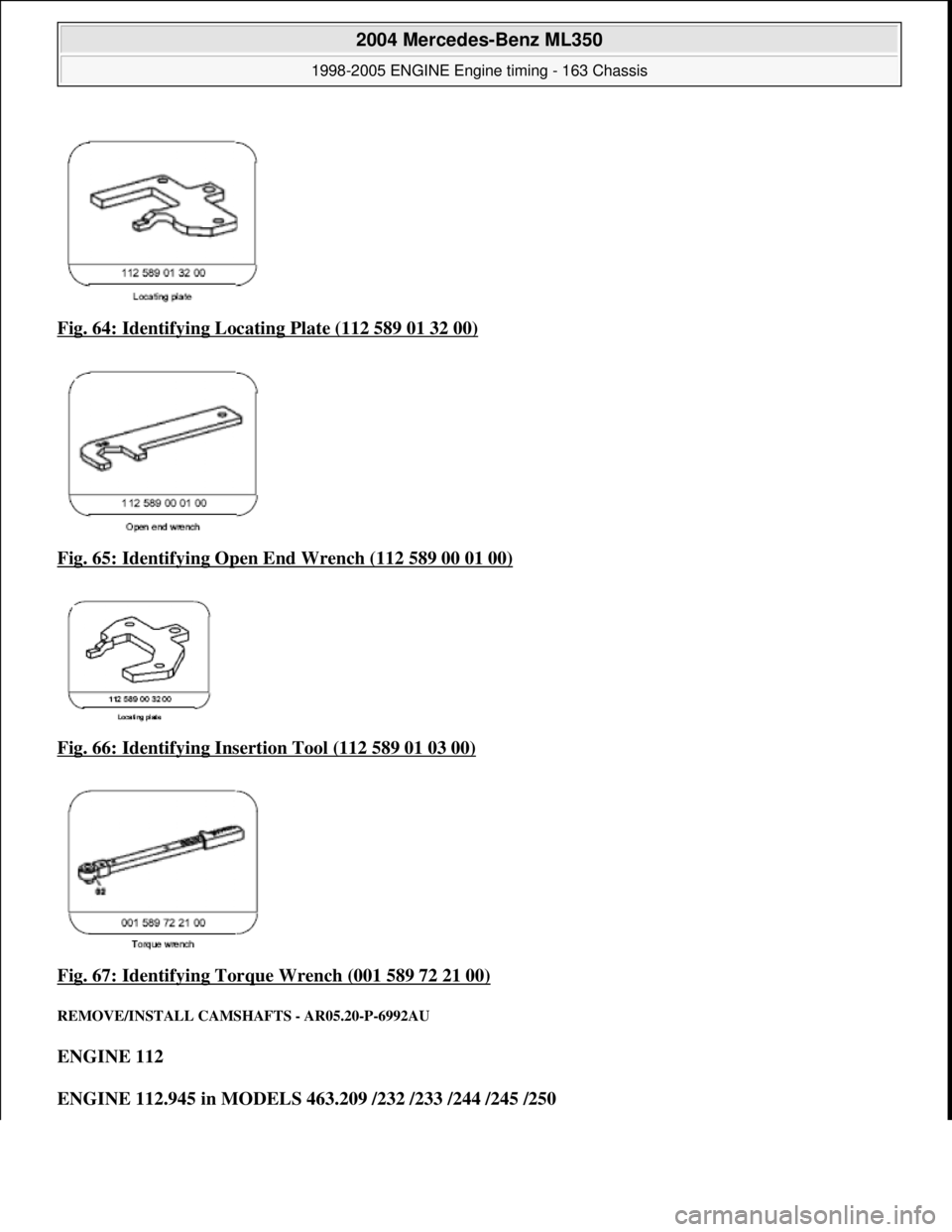

MERCEDES-BENZ ML320 1997 Complete Repair Manual Fig. 64: Identifying Locating Plate (112 589 01 32 00) Fig. 65: Identifying Open End Wrench (112 589 00 01 00) Fig. 66: Identifying Insertion Tool (112 589 01 03 00) Fig. 67: Identifying Torqu
