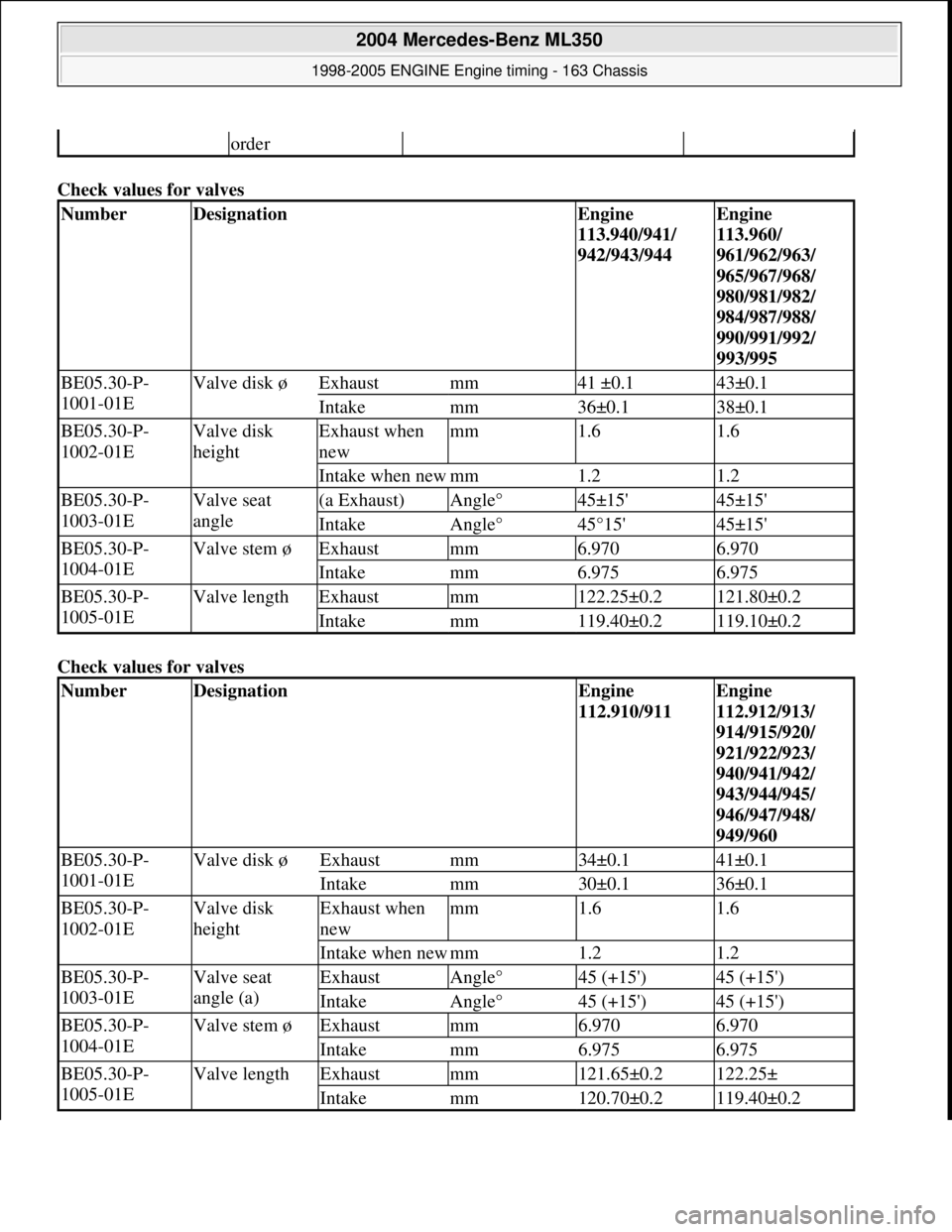

MERCEDES-BENZ ML320 1997 Complete Repair Manual Check values for valves Check values for valves order NumberDesignationEngine 113.940/941/ 942/943/944Engine 113.960/ 961/962/963/ 965/967/968/ 980/981/982/ 984/987/988/ 990/991/9

Page 2330 of 4133

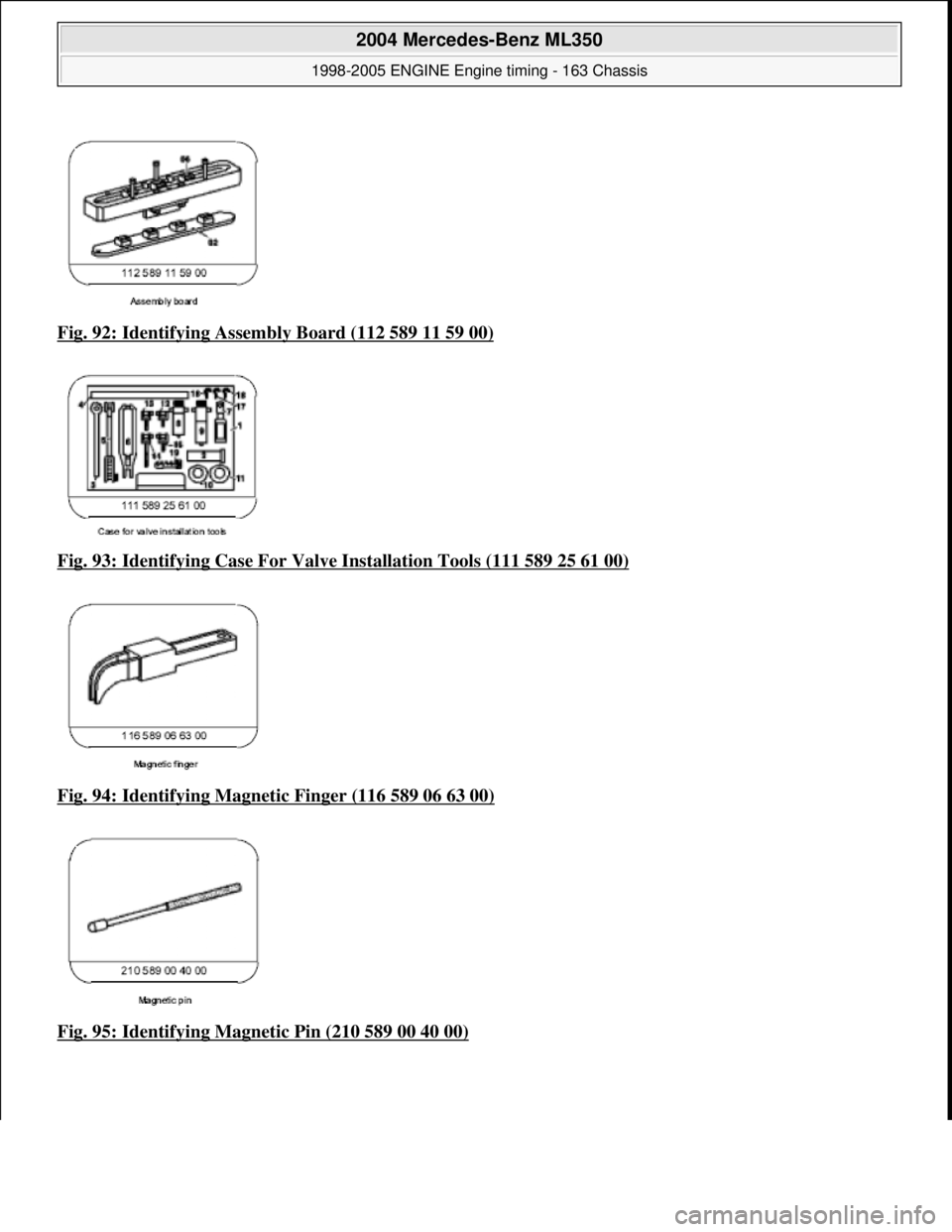

MERCEDES-BENZ ML320 1997 Complete Repair Manual Fig. 92: Identifying Assembly Board (112 589 11 59 00) Fig. 93: Identifying Case For Valv e Installation Tools (111 589 25 61 00) Fig. 94: Identifying Magnetic Finger (116 589 06 63 00) Fig.

Page 2331 of 4133

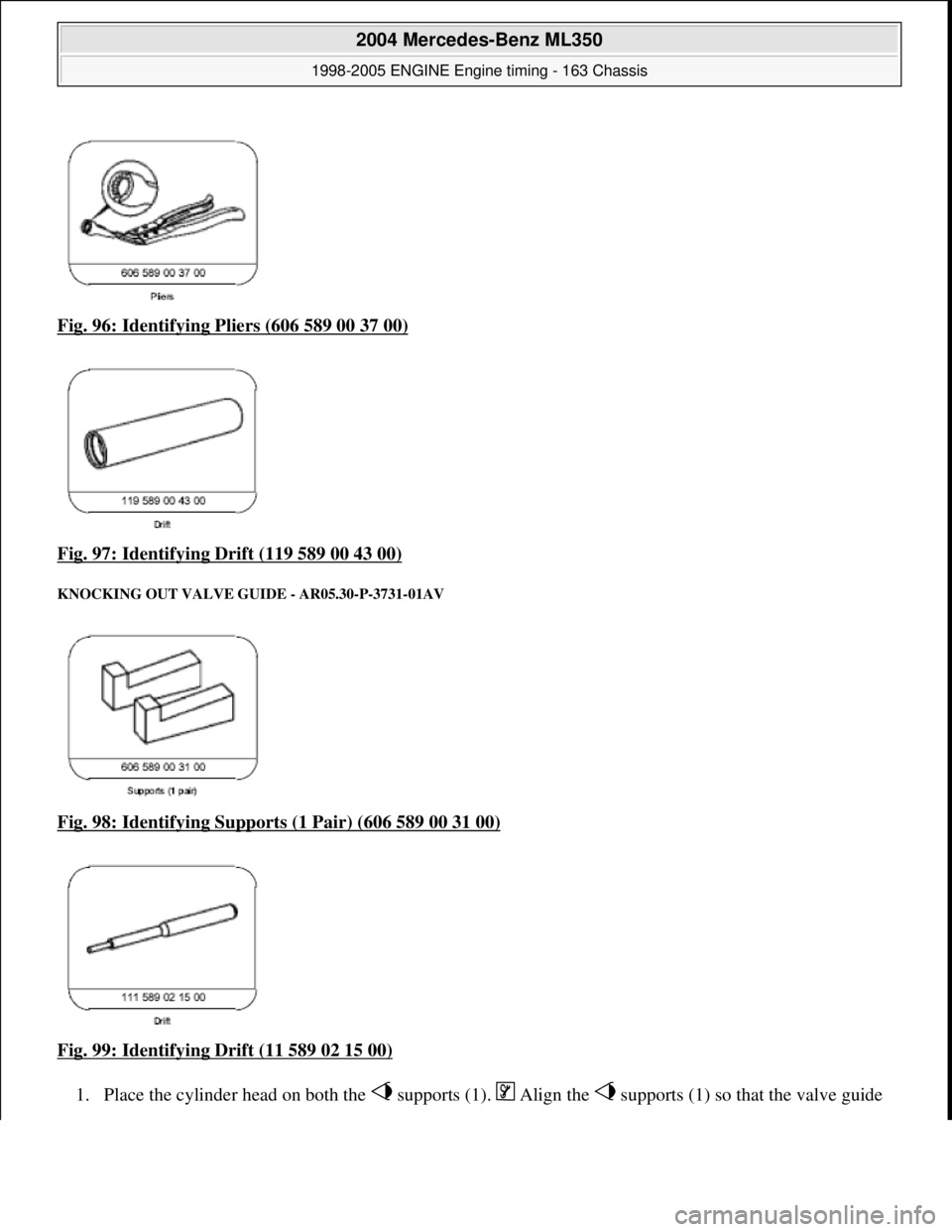

MERCEDES-BENZ ML320 1997 Complete Repair Manual Fig. 96: Identifying Pl iers (606 589 00 37 00) Fig. 97: Identifying Drift (119 589 00 43 00) KNOCKING OUT VALVE GUIDE - AR05.30-P-3731-01AV Fig. 98: Identifying Supports (1 Pair) (606 589 00

Page 2332 of 4133

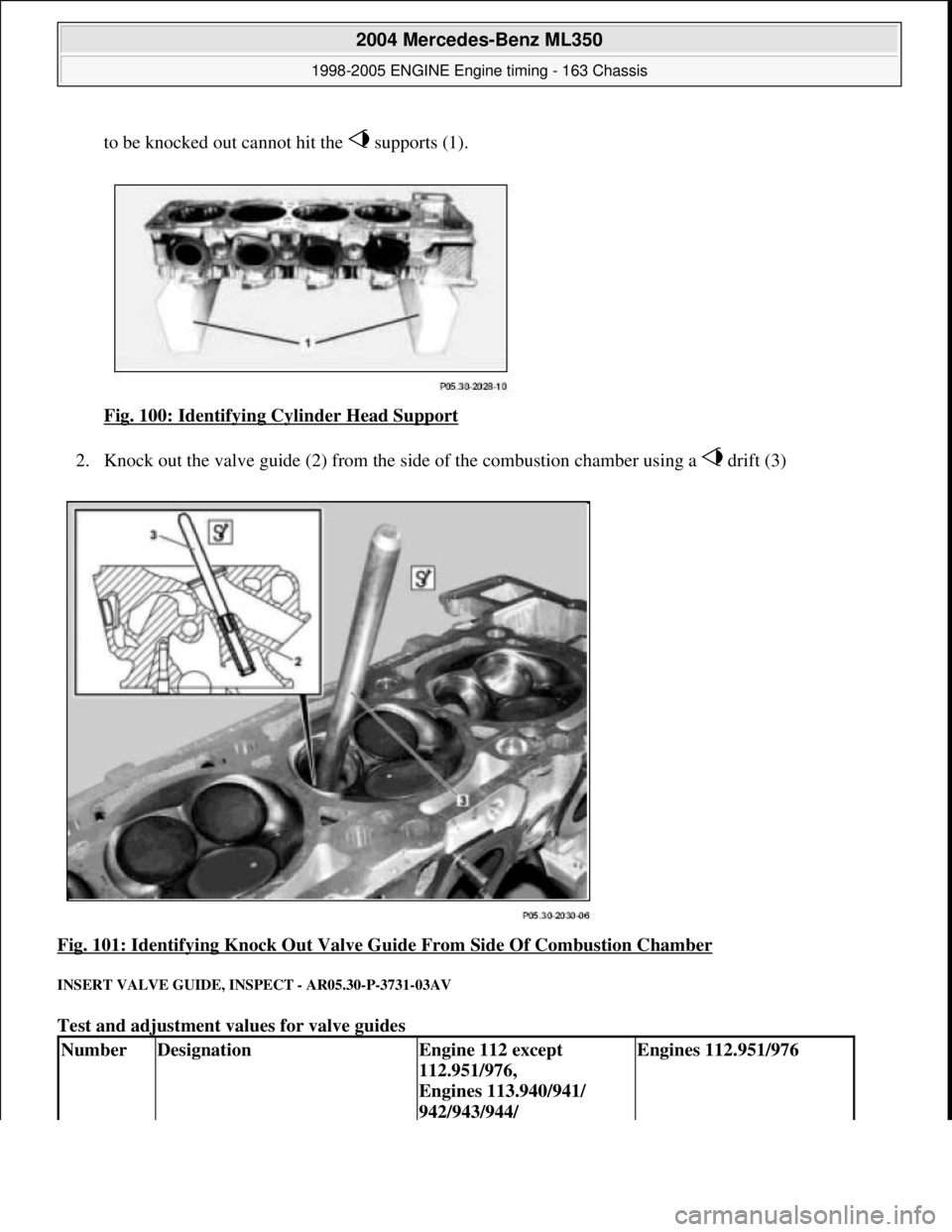

MERCEDES-BENZ ML320 1997 Complete Repair Manual to be knocked out cannot hit the supports (1). Fig. 100: Identifying Cylinder Head Support 2. Knock out the valve guide (2) from the side of the combustion chamber using a drift (3) Fig.

Page 2333 of 4133

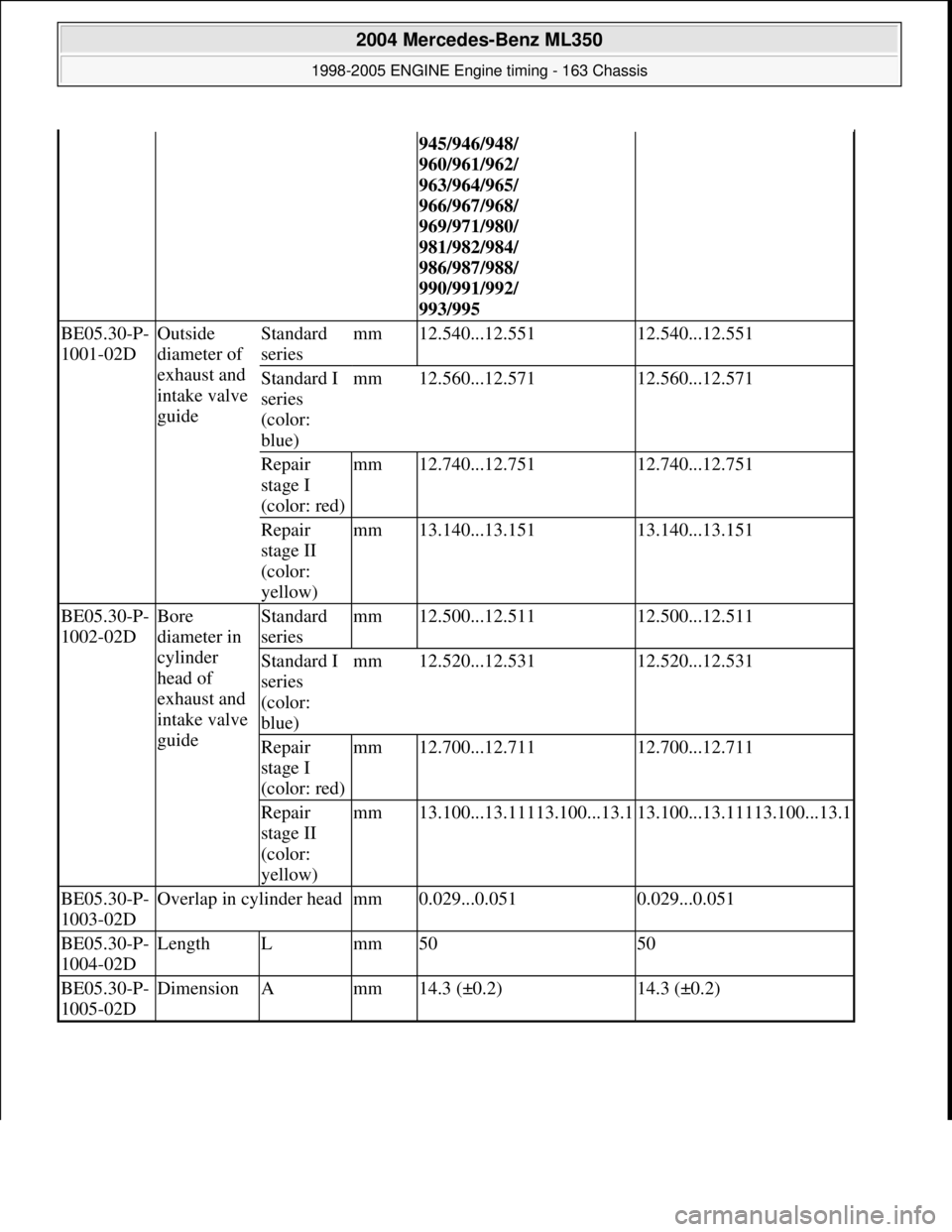

MERCEDES-BENZ ML320 1997 Complete Repair Manual 945/946/948/ 960/961/962/ 963/964/965/ 966/967/968/ 969/971/980/ 981/982/984/ 986/987/988/ 990/991/992/ 993/995 BE05.30-P- 1001-02DOutside diameter of exhaust and intake valve g

Page 2334 of 4133

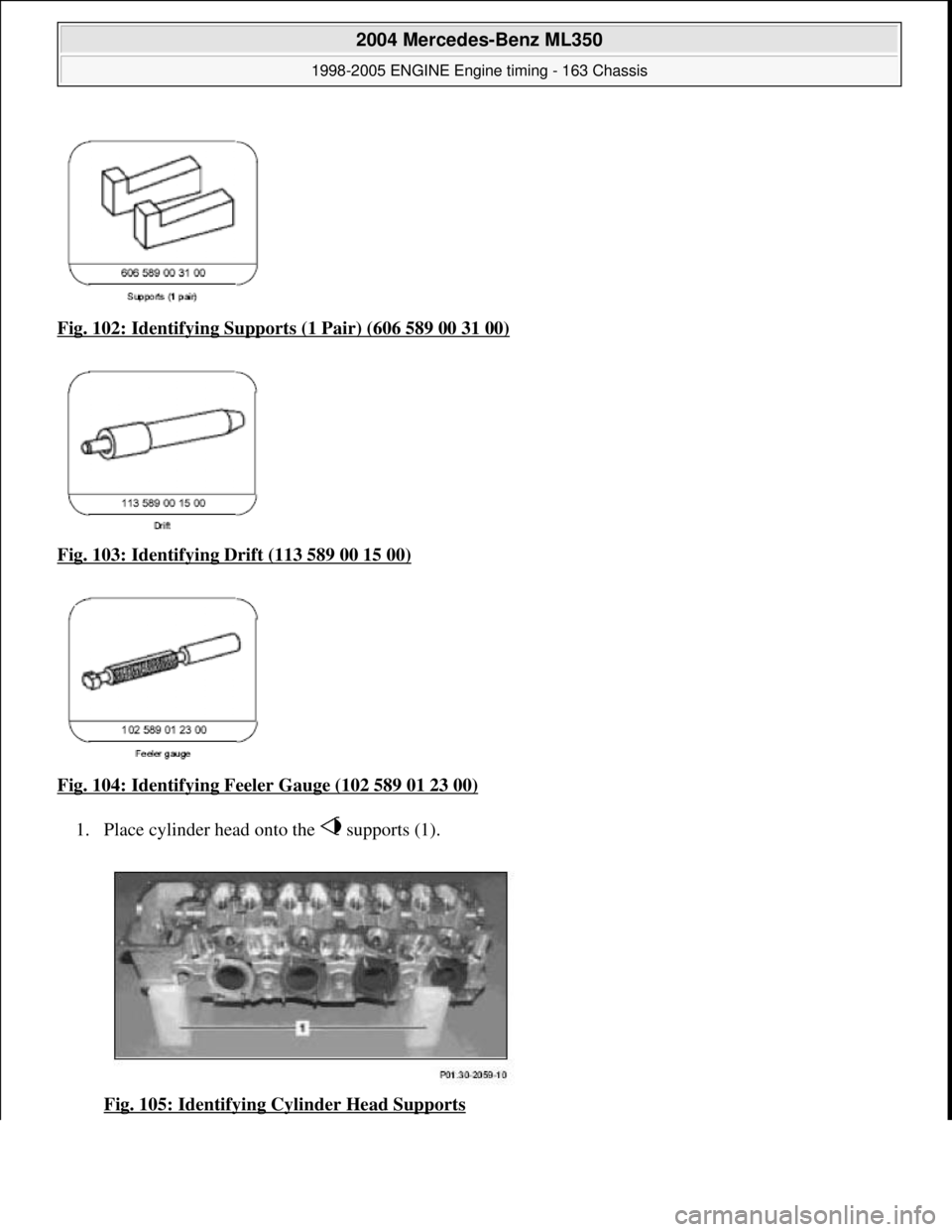

MERCEDES-BENZ ML320 1997 Complete Repair Manual Fig. 102: Identifying Supports (1 Pair) (606 589 00 31 00) Fig. 103: Identifying Drift (113 589 00 15 00) Fig. 104: Identifying Feeler Gauge (102 589 01 23 00) 1. Place cylinder head onto the

Page 2335 of 4133

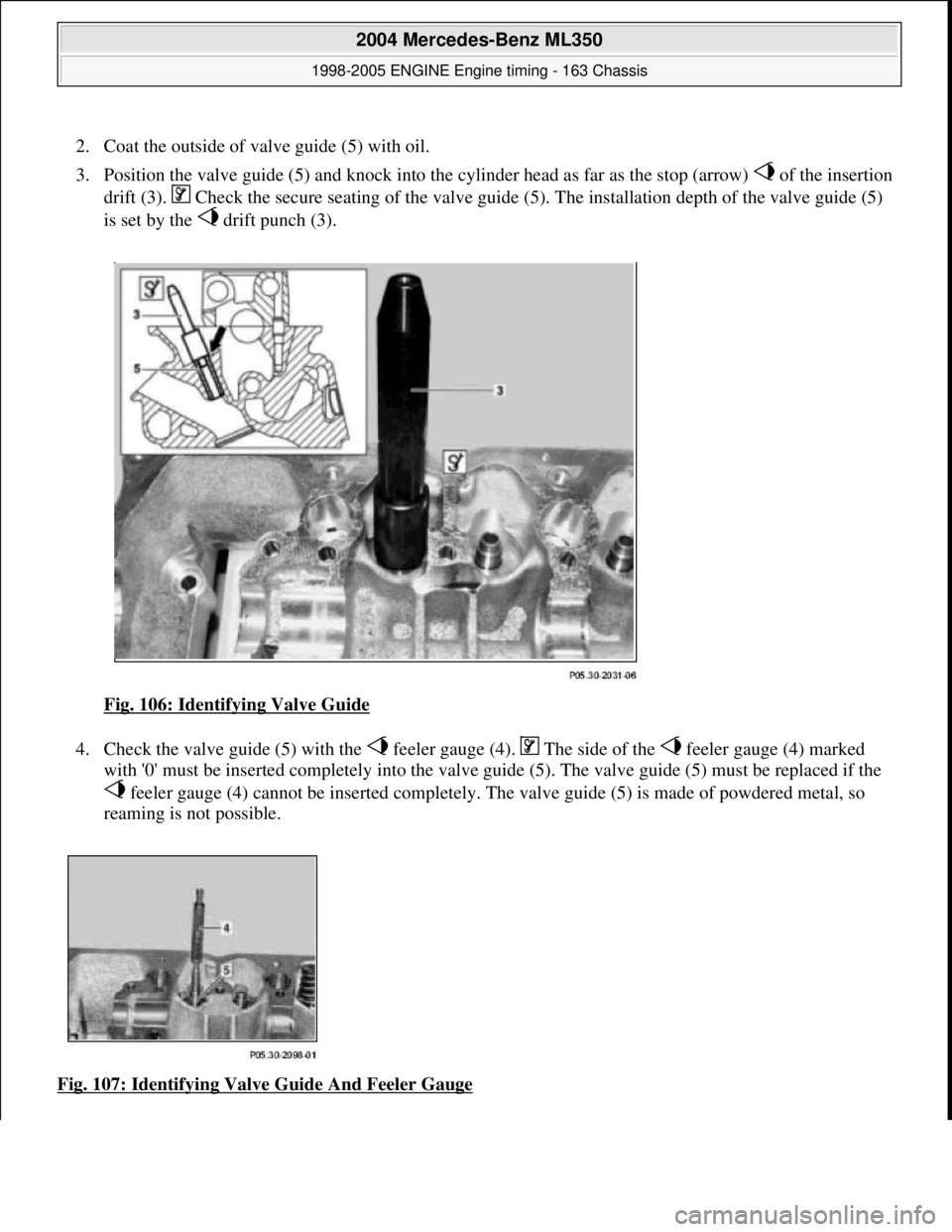

MERCEDES-BENZ ML320 1997 Complete Repair Manual 2. Coat the outside of valve guide (5) with oil. 3. Position the valve guide (5) and knock into the cylinder head as far as the stop (arrow) of the insertion drift (3). Check the secure sea

Page 2336 of 4133

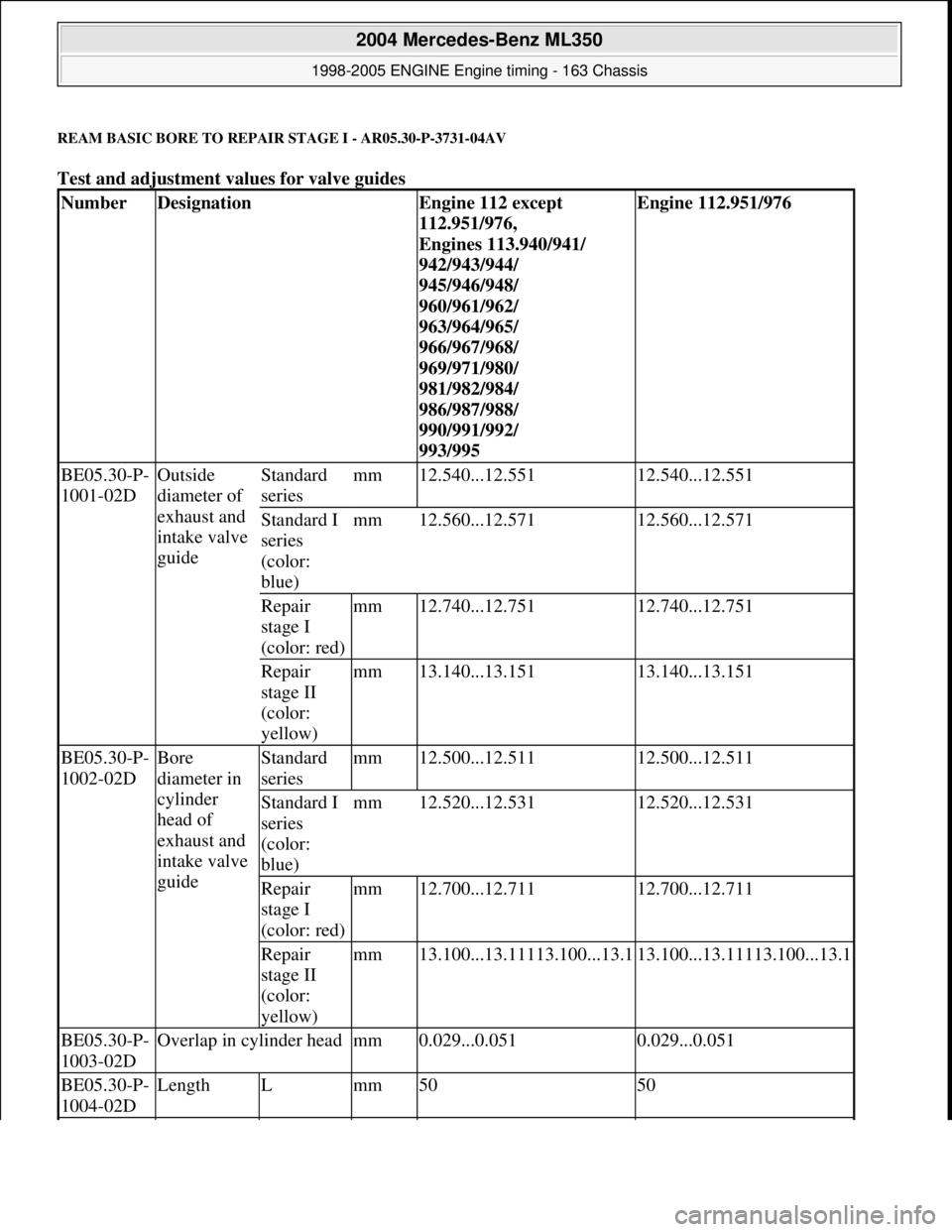

MERCEDES-BENZ ML320 1997 Complete Repair Manual REAM BASIC BORE TO REPAIR STAGE I - AR05.30-P-3731-04AV Test and adjustment values for valve guides NumberDesignationEngine 112 except 112.951/976, Engines 113.940/941/ 942/943/944/ 945/946
