Page 1265 of 4133

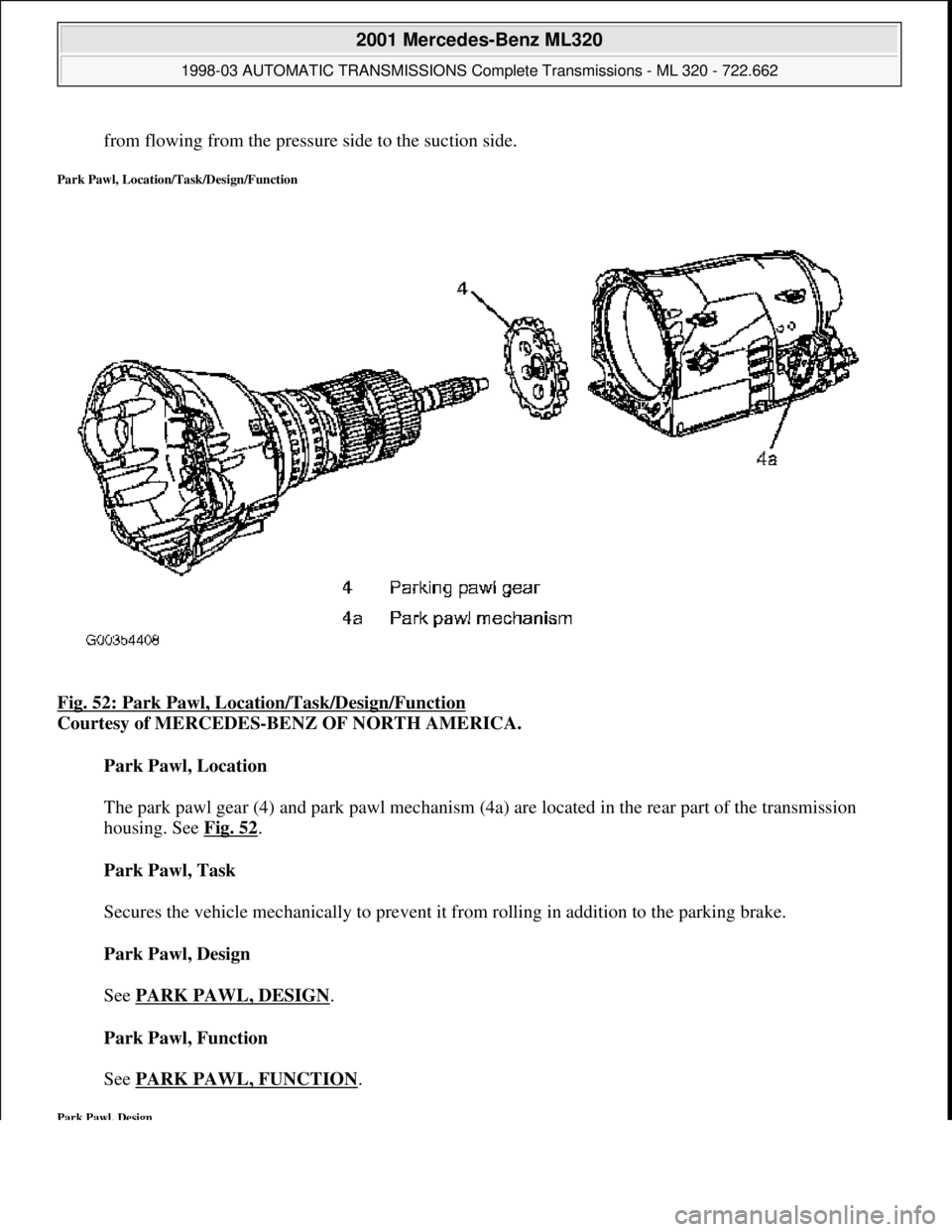

MERCEDES-BENZ ML320 1997 Complete Repair Manual from flowing from the pressure side to the suction side. Park Pawl, Location/Task/Design/Function Fig. 52: Park Pawl, Location/Task/Design/Function Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Page 1266 of 4133

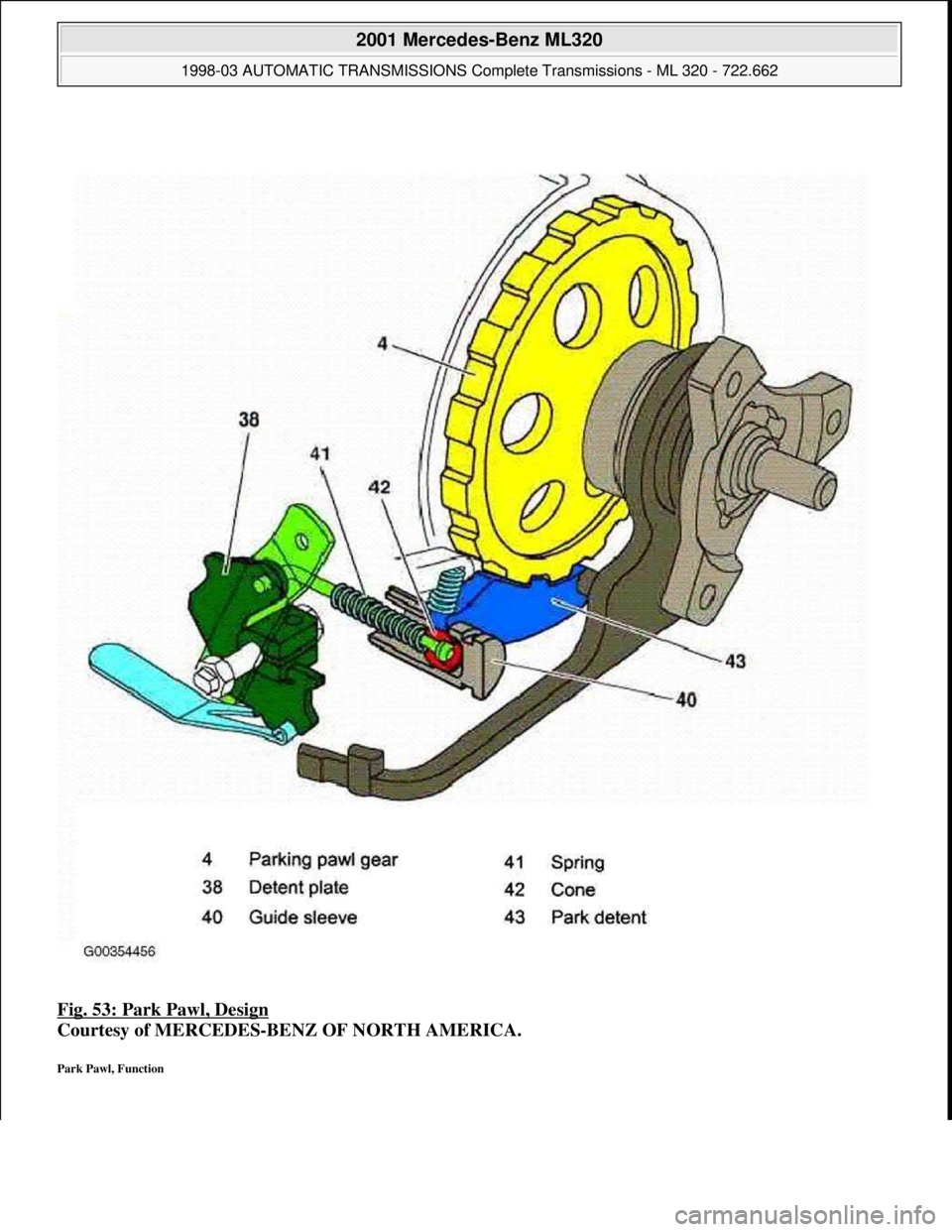

MERCEDES-BENZ ML320 1997 Complete Repair Manual Fig. 53: Park Pawl, Design Courtesy of MERCEDES-BENZ OF NORTH AMERICA. Park Pawl, Function 2001 Mercedes-Benz ML320 1998-03 AUTOMATIC TRANSMISSIONS Complete Transmissions - ML 320 - 722.662 me

Page 1267 of 4133

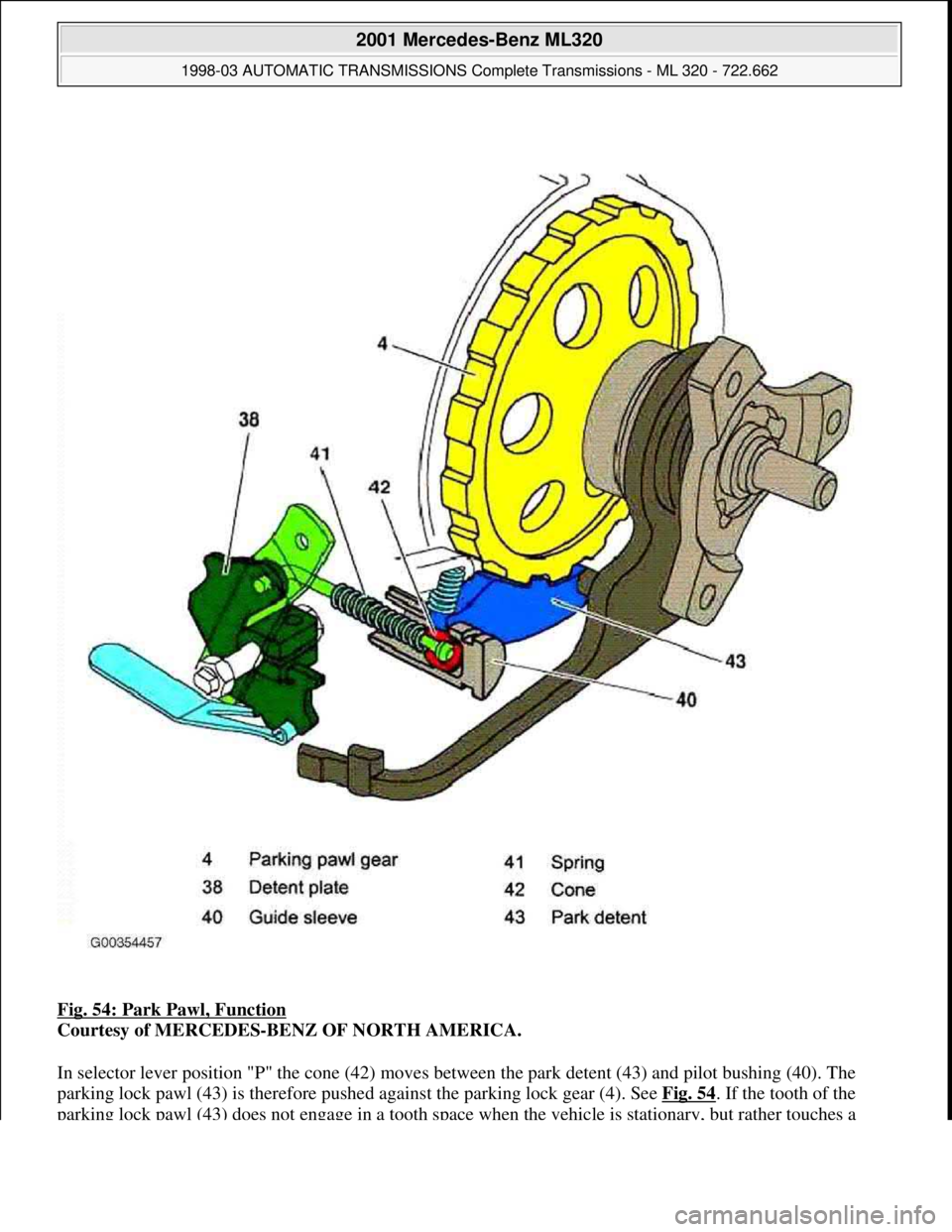

MERCEDES-BENZ ML320 1997 Complete Repair Manual Fig. 54: Park Pawl, Function Courtesy of MERCEDES-BENZ OF NORTH AMERICA. In selector lever position "P" the cone (42) moves between the park detent (43) and pilot bushing (40). The parking lock paw

Page 1268 of 4133

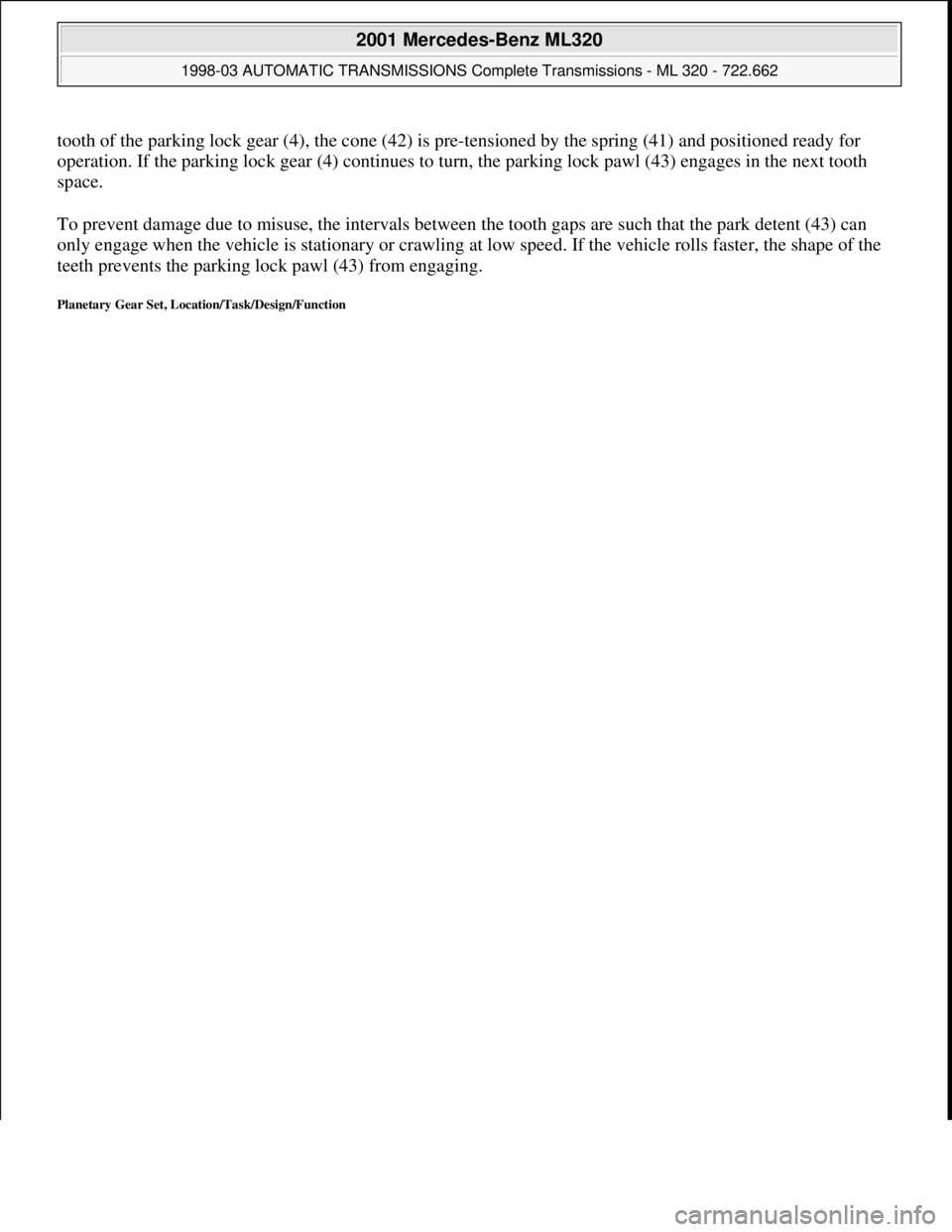

MERCEDES-BENZ ML320 1997 Complete Repair Manual tooth of the parking lock gear (4), the cone (42) is pre-tensioned by the spring (41) and positioned ready for operation. If the parking lock gear (4) continues to turn, the parking lock pawl (43) en

Page 1269 of 4133

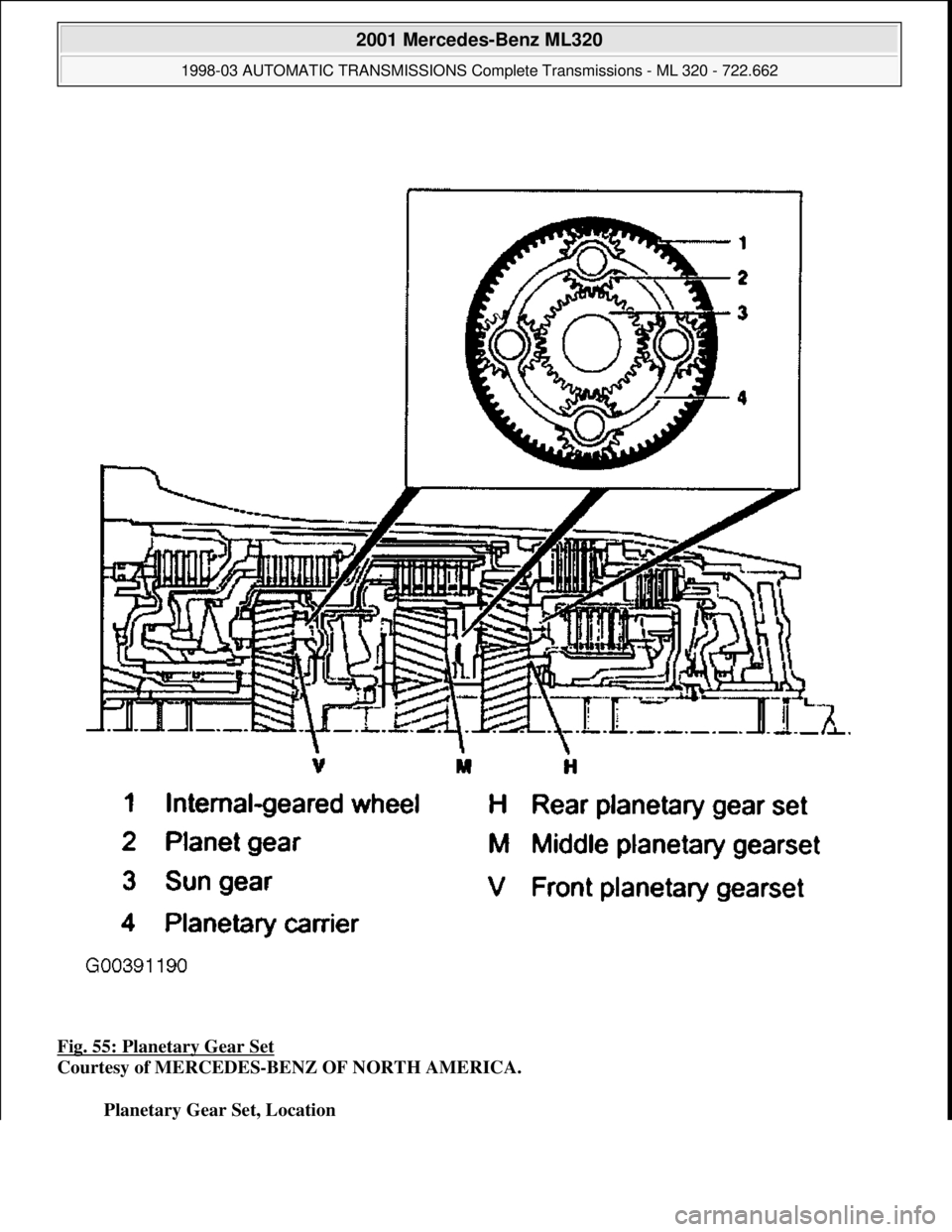

MERCEDES-BENZ ML320 1997 Complete Repair Manual Fig. 55: Planetary Gear Set Courtesy of MERCEDES-BENZ OF NORTH AMERICA. Planetary Gear Set, Location 2001 Mercedes-Benz ML320 1998-03 AUTOMATIC TRANSMI SSIONS Complete Transmissions - ML 32

Page 1270 of 4133

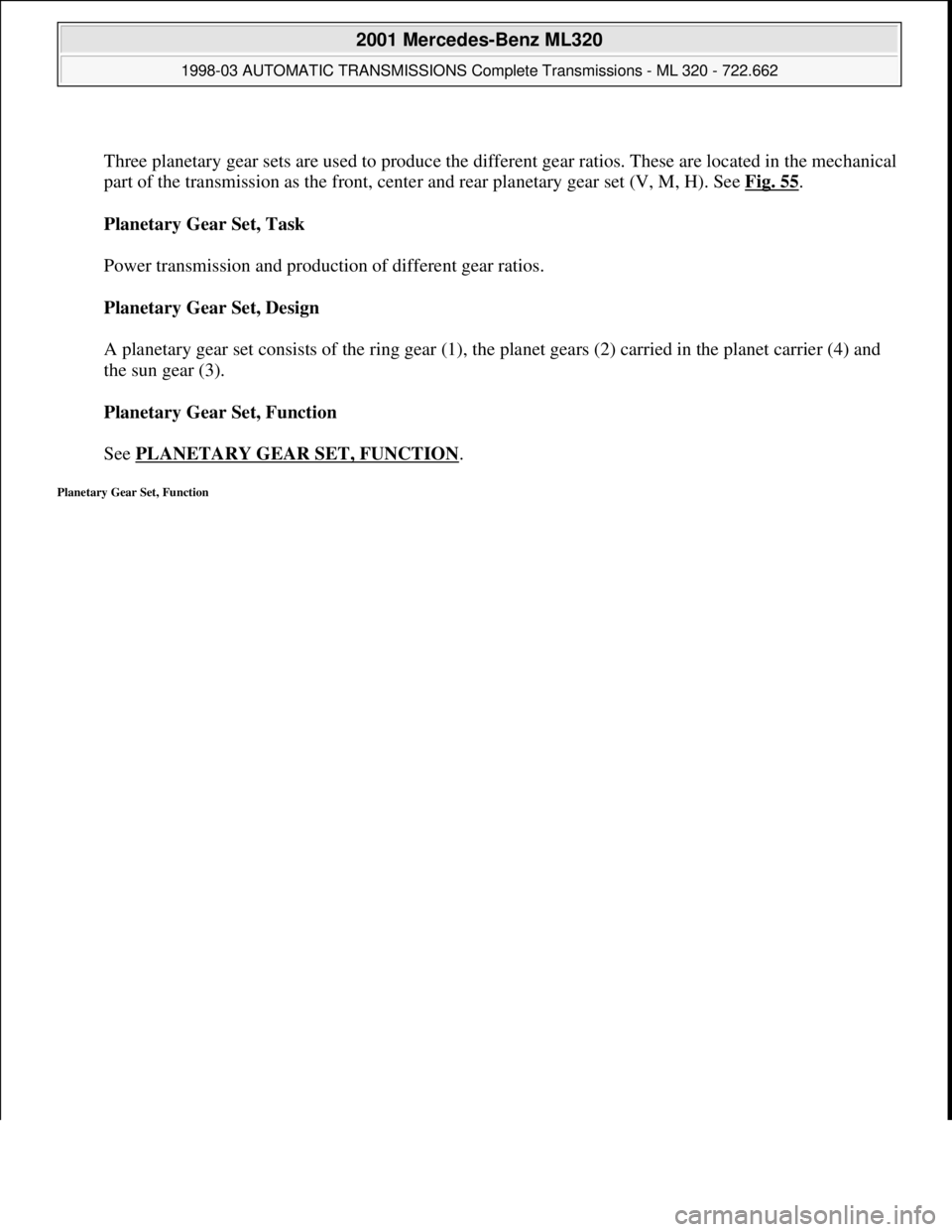

MERCEDES-BENZ ML320 1997 Complete Repair Manual Three planetary gear sets are used to produce the different gear ratios. These are located in the mechanical part of the transmission as the front, center and rear planetary gear set (V, M, H). See

Page 1271 of 4133

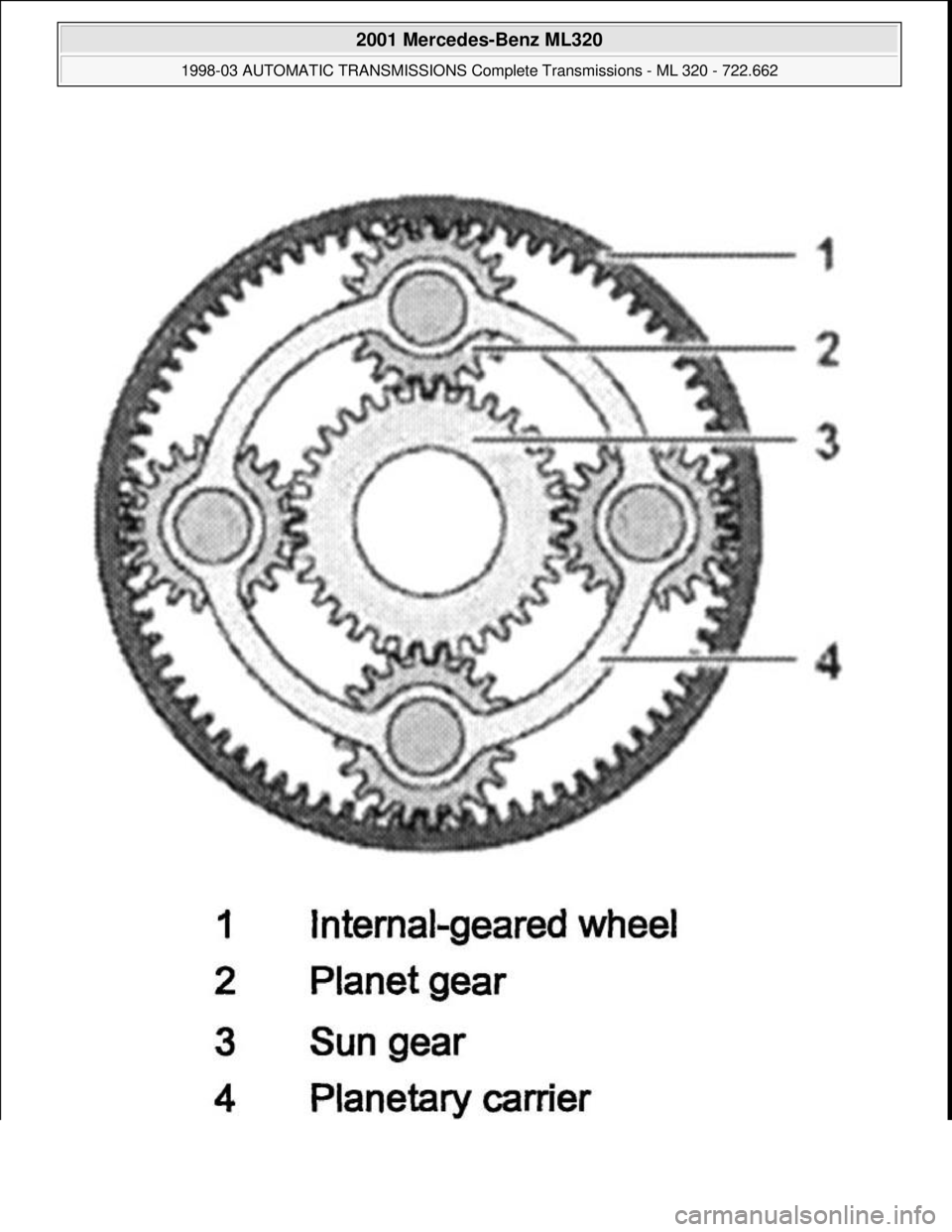

MERCEDES-BENZ ML320 1997 Complete Repair Manual 2001 Mercedes-Benz ML320 1998-03 AUTOMATIC TRANSMISSIONS Complete Transmissions - ML 320 - 722.662 me Saturday, October 02, 2010 3:15:26 PMPage 102 © 2006 Mitchell Repair Information Company,

Page 1272 of 4133

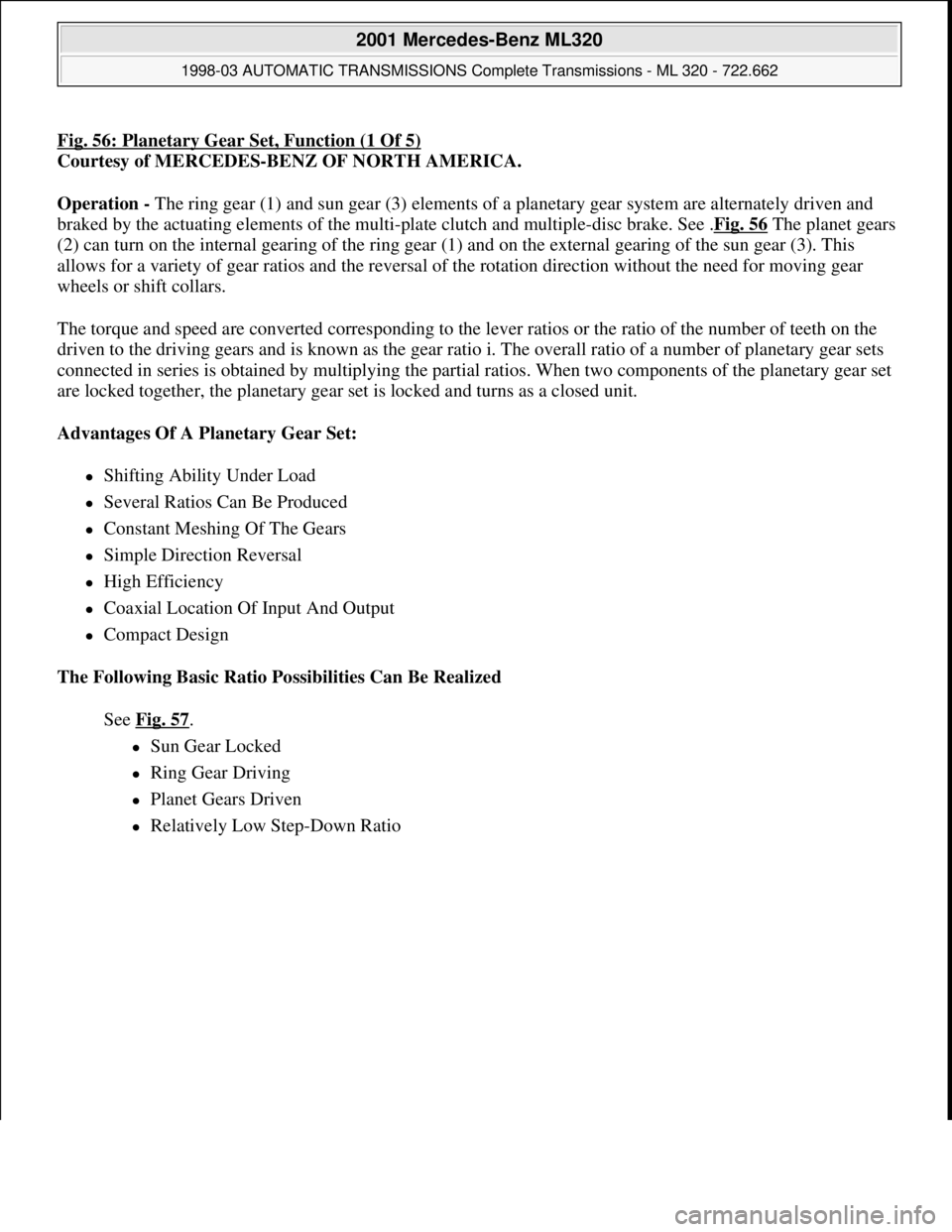

MERCEDES-BENZ ML320 1997 Complete Repair Manual Fig. 56: Planetary Gear Set, Function (1 Of 5) Courtesy of MERCEDES-BENZ OF NORTH AMERICA. Operation - The ring gear (1) and sun gear (3) elements of a planetary gear system are alternately driven an
