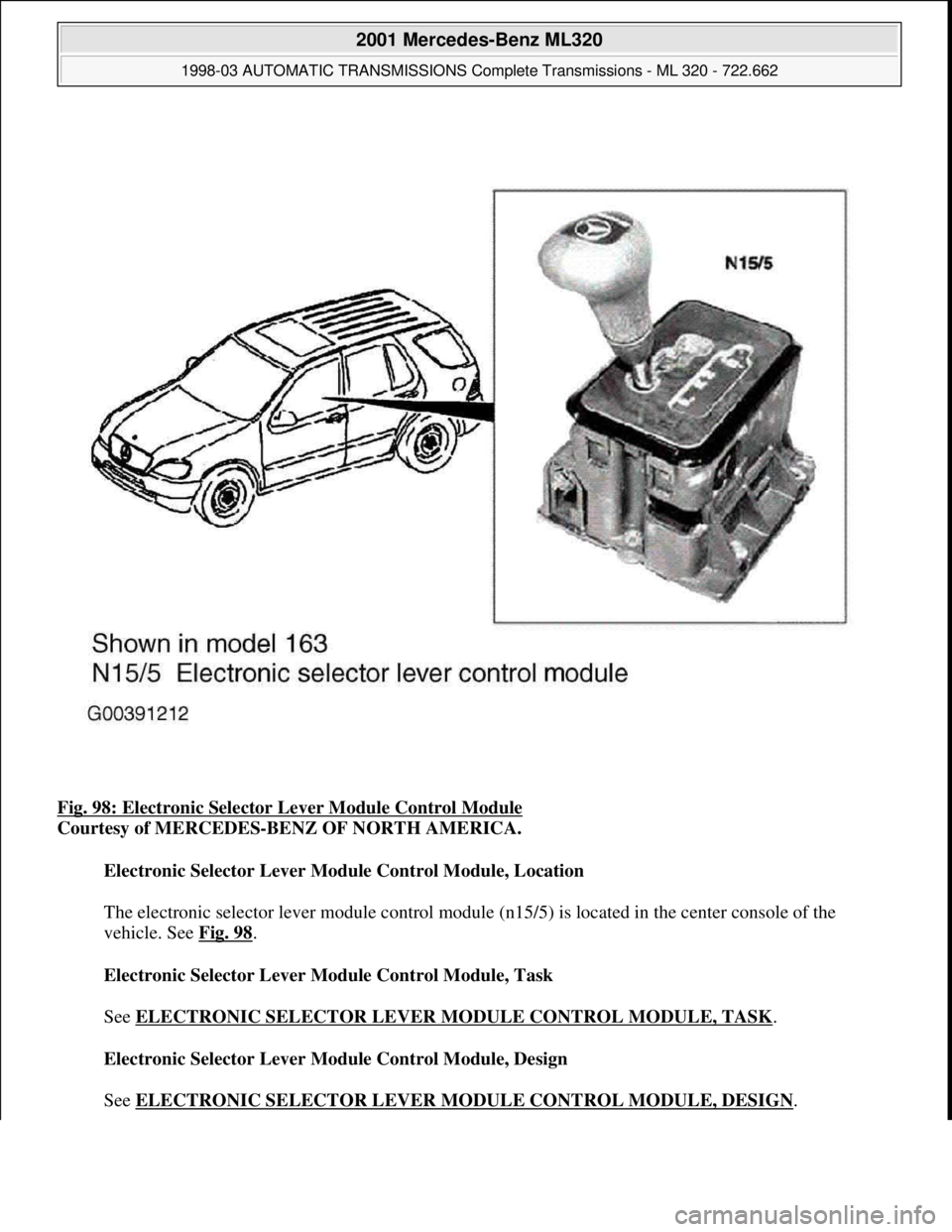

MERCEDES-BENZ ML320 1997 Complete Repair Manual Fig. 98: Electronic Selector Lever Module Control Module Courtesy of MERCEDES-BENZ OF NORTH AMERICA. Electronic Selector Lever Module Control Module, Location The electronic selector lever module

Page 1338 of 4133

MERCEDES-BENZ ML320 1997 Complete Repair Manual Electronic Selector Lever Module ESM Control Module, Task 2001 Mercedes-Benz ML320 1998-03 AUTOMATIC TRANSMISSIONS Complete Transmissions - ML 320 - 722.662 me Saturday, October 02, 2010 3:15:

Page 1339 of 4133

MERCEDES-BENZ ML320 1997 Complete Repair Manual 2001 Mercedes-Benz ML320 1998-03 AUTOMATIC TRANSMI SSIONS Complete Transmissions - ML 320 - 722.662 me Saturday, October 02, 2010 3:15:27 PMPage 170 © 2006 Mitchell Repair Information Company,

Page 1340 of 4133

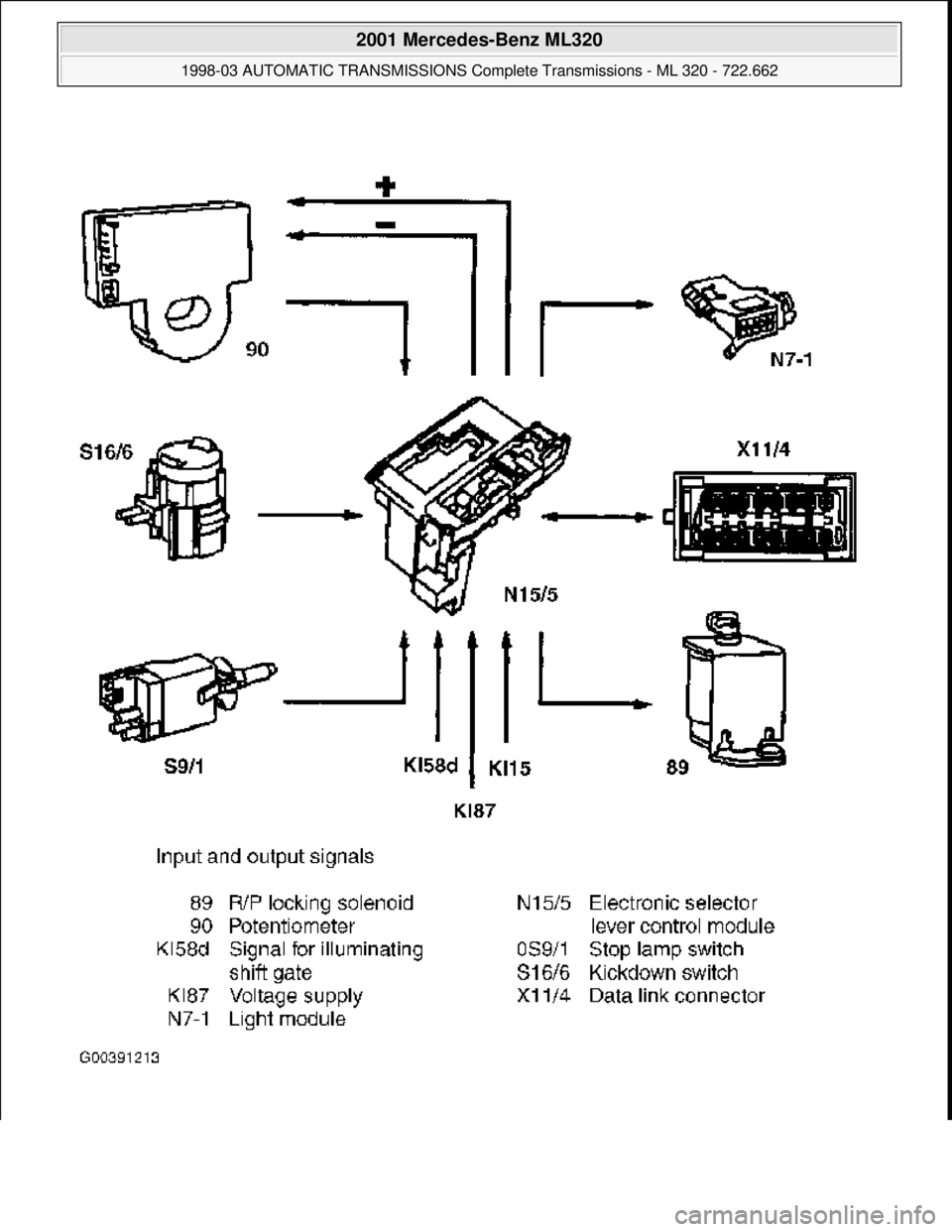

MERCEDES-BENZ ML320 1997 Complete Repair Manual Fig. 99: Input & Output Signals Courtesy of MERCEDES-BENZ OF NORTH AMERICA. 2001 Mercedes-Benz ML320 1998-03 AUTOMATIC TRANSMISSIONS Complete Transmissions - ML 320 - 722.662 me Saturday, Octo

Page 1341 of 4133

MERCEDES-BENZ ML320 1997 Complete Repair Manual 2001 Mercedes-Benz ML320 1998-03 AUTOMATIC TRANSMISSIONS Complete Transmissions - ML 320 - 722.662 me Saturday, October 02, 2010 3:15:27 PMPage 172 © 2006 Mitchell Repair Information Company,

Page 1342 of 4133

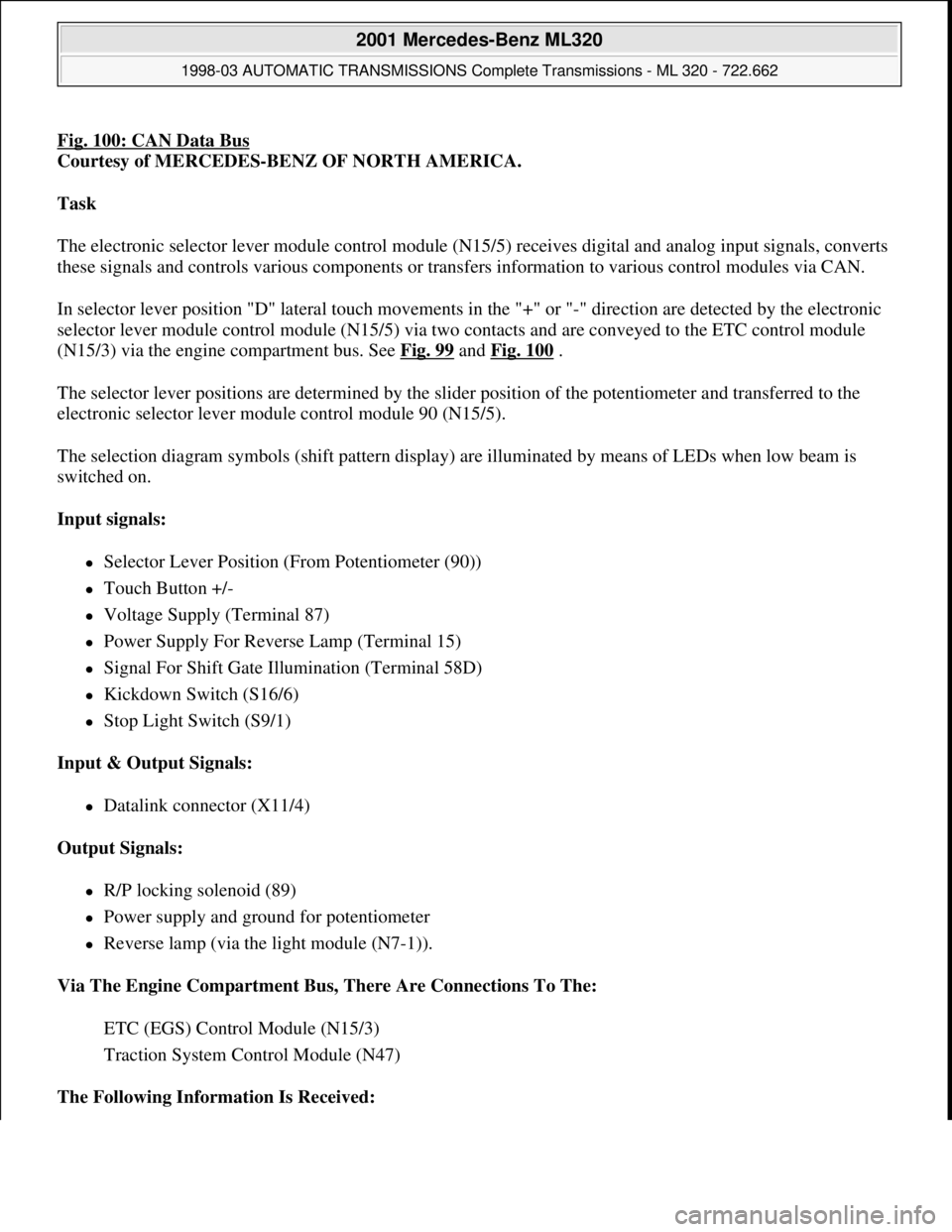

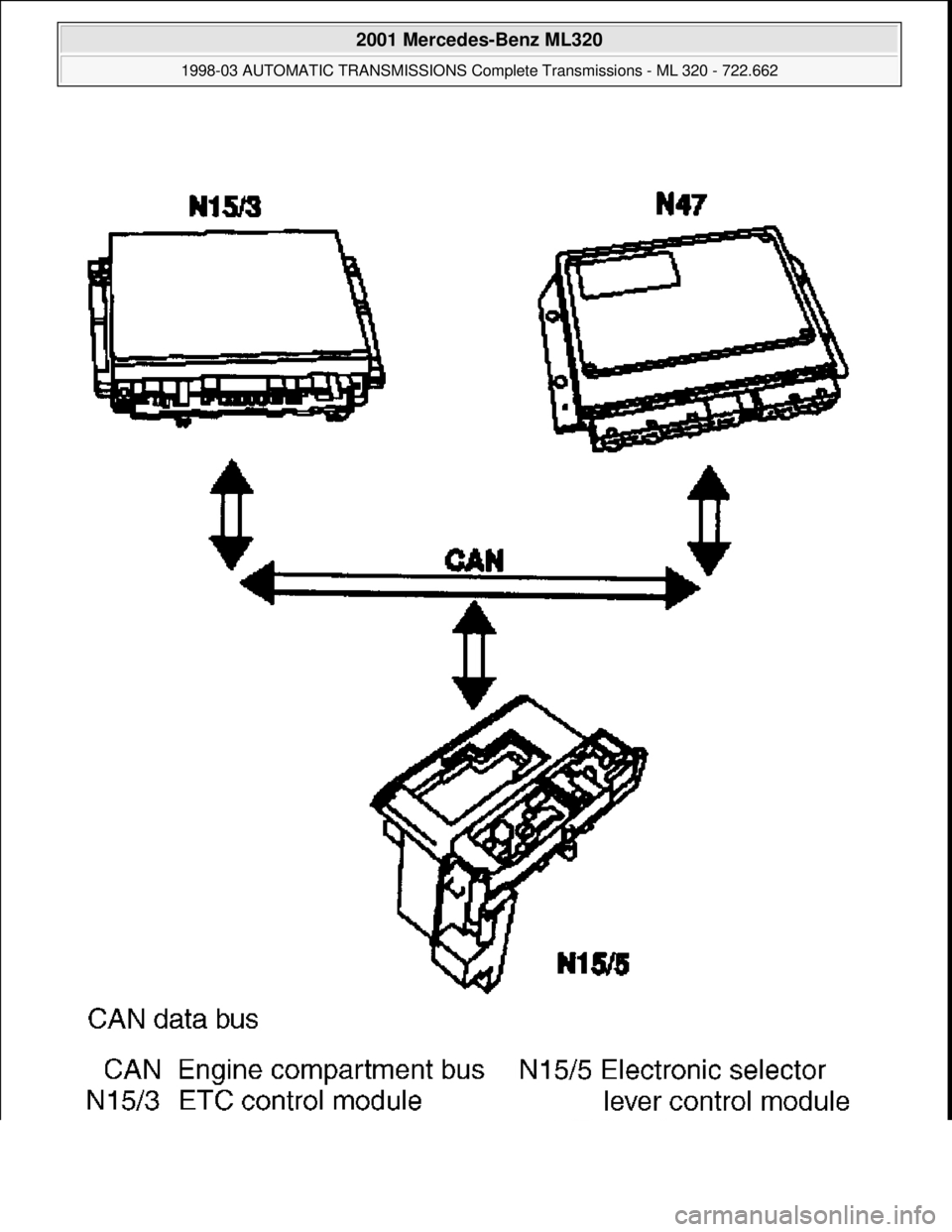

MERCEDES-BENZ ML320 1997 Complete Repair Manual Fig. 100: CAN Data Bus Courtesy of MERCEDES-BENZ OF NORTH AMERICA. Task The electronic selector lever module control module (N15/5) receives digital and analog input signals, converts these signa

Page 1343 of 4133

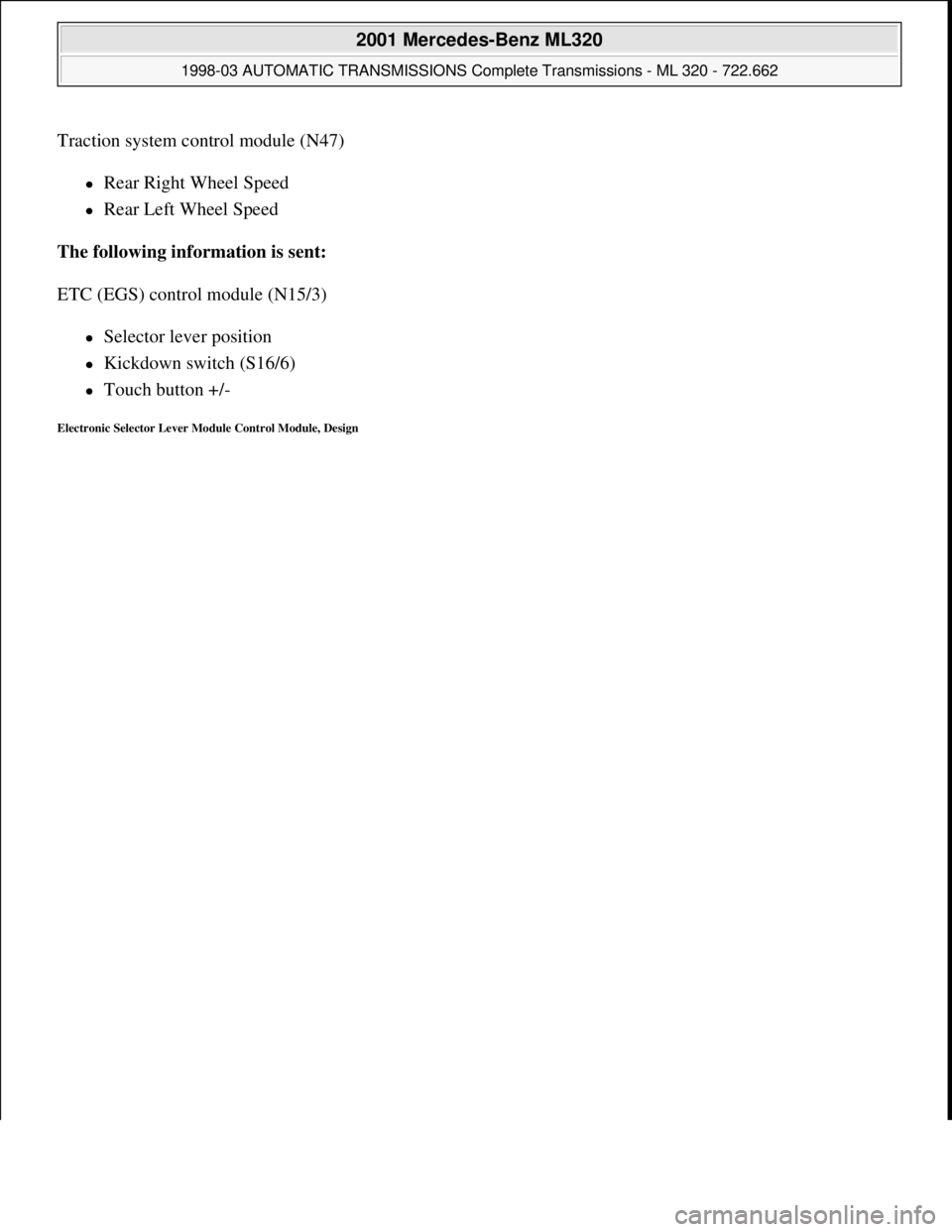

MERCEDES-BENZ ML320 1997 Complete Repair Manual Traction system control module (N47) Rear Right Wheel Speed Rear Left Wheel Speed The following information is sent: ETC (EGS) control module (N15/3) Selector lever position Kick

Page 1344 of 4133

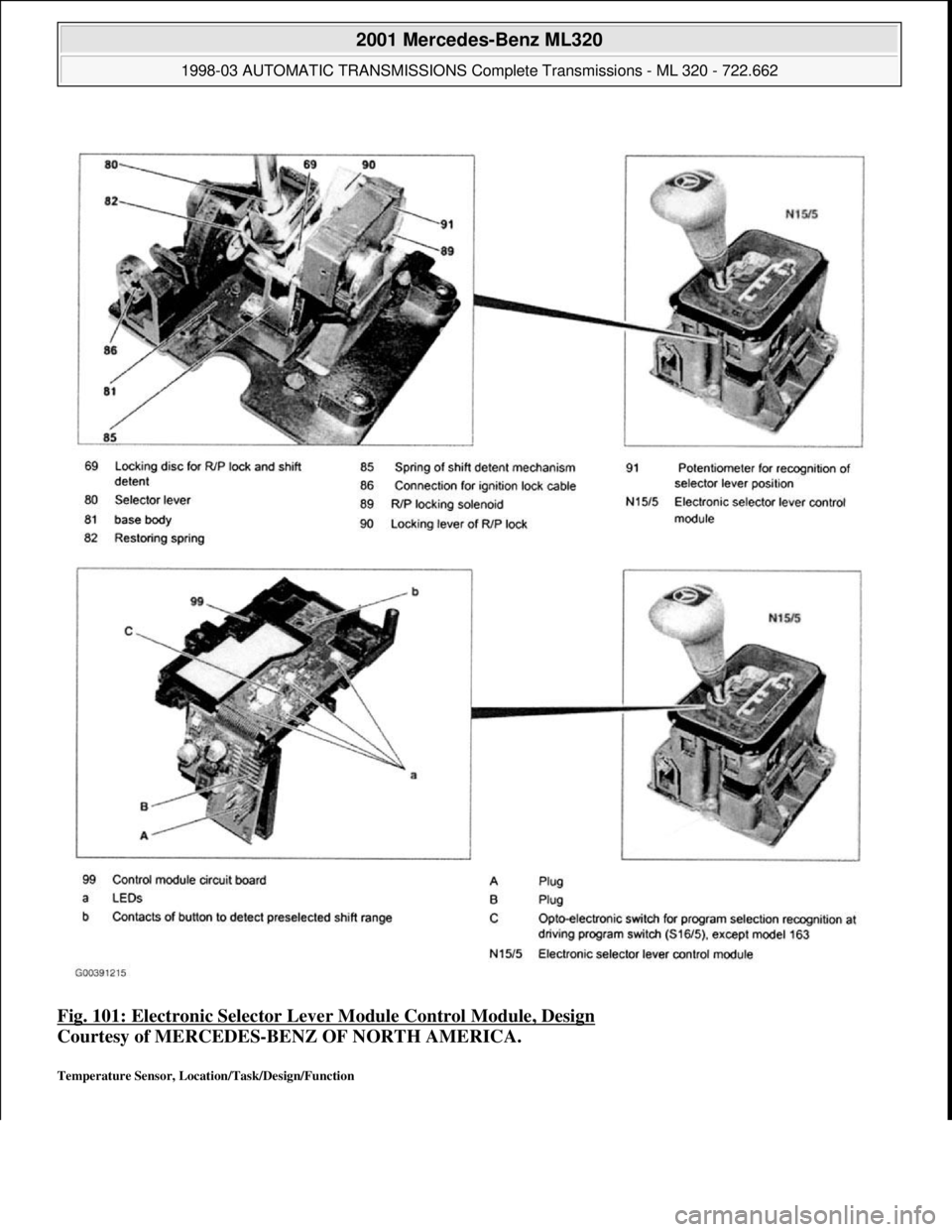

MERCEDES-BENZ ML320 1997 Complete Repair Manual Fig. 101: Electronic Selector Lever Module Control Module, Design Courtesy of MERCEDES-BENZ OF NORTH AMERICA. Temperature Sensor, Location/Task/Design/Function 2001 Mercedes-Benz ML320 1998-03 A
