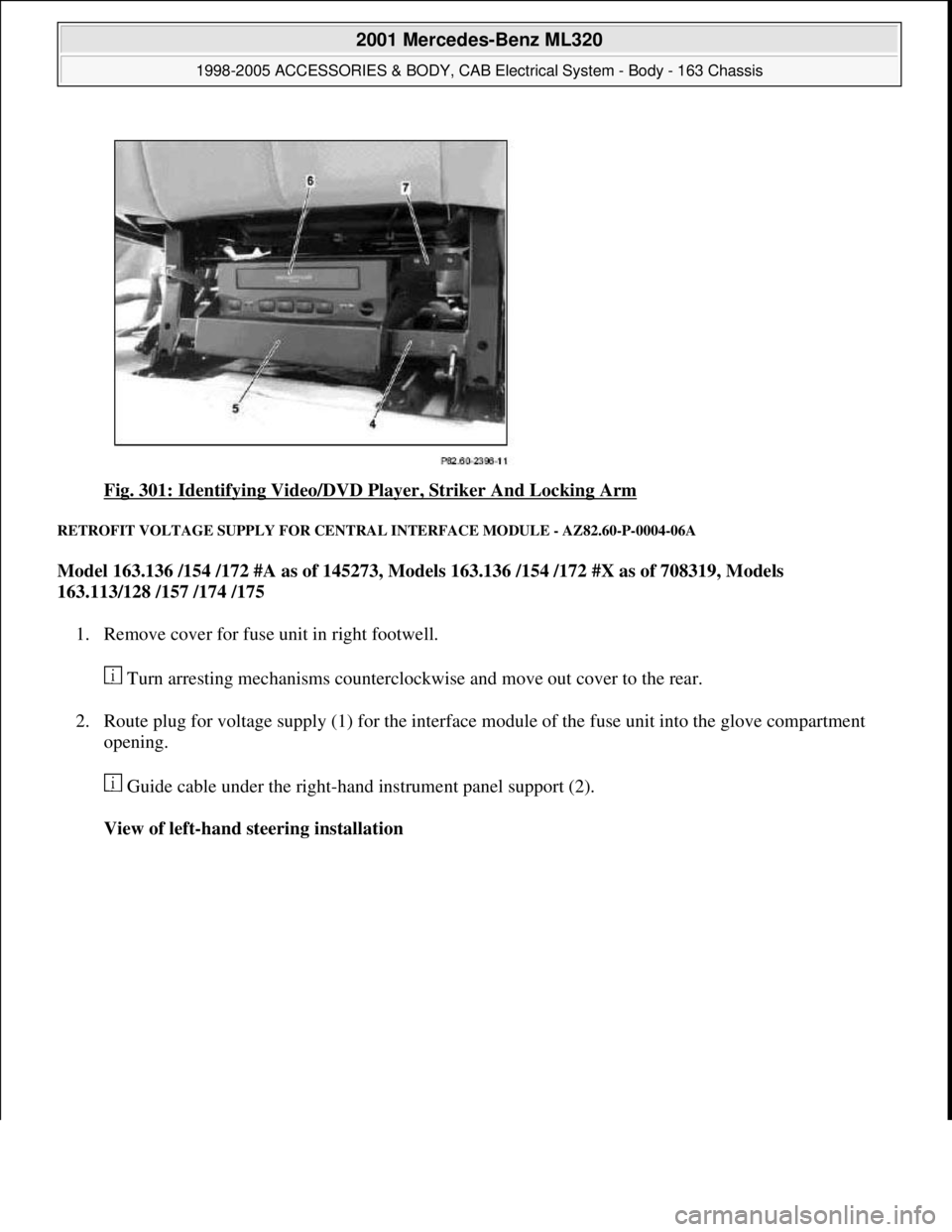

Page 1881 of 4133
Fig. 301: Identifying Video/DVD Player, Striker And Locking Arm
RETROFIT VOLTAGE SUPPLY FOR CENTRAL INTERFACE MODULE - AZ82.60-P-0004-06A
Model 163.136 /154 /172 #A as of 145273, Models 163.136 /154 /172 #X as of 708319, Models
163.113/128 /157 /174 /175
1. Remove cover for fuse unit in right footwell.
 Turn arresting mechanisms counterclockwise and move out cover to the rear.
2. Route plug for voltage supply (1) for the interface module of the fuse unit into the glove compartment
opening.
 Guide cable under the right-hand instrument panel support (2).
View of left-hand steering installation

2001 Mercedes-Benz ML320
1998-2005 ACCESSORIES & BODY, CAB Electrical System - Body - 163 Chassis
me
Saturday, October 02, 2010 3:30:12 PMPage 386 © 2006 Mitchell Repair Information Company, LLC.


        Page 1882 of 4133

Fig. 302: Identifying Voltage Supply And Instrument Panel Support
3. Insert plug into interface module.
 Input on interface module marked.
4. Secure all wiring harnesses (3) of the video system to the interior wiring harness (4) with tie straps.
 Fastening points are marked with white adhesive tape on the wiring harnesses.
5. Disconnect connector in the voltage supply cable (11) from the relay module.
6. Insert noise filter (12) into the voltage supply cable (11).
7. Secure noise filter (12) under the right-hand instrument panel support with tie straps.
Fig. 303: Identifying Noise Filter And Voltage Supply Cable

8. Install fuse holder (6) of the voltage supply cable in position f9 of the fuse unit (7).
9. Insert 7.5 A fuse supplied into fuse holder.
Only on vehicles on which running boards are not installed

2001 Mercedes-Benz ML320
1998-2005 ACCESSORIES & BODY, CAB Electrical System - Body - 163 Chassis
me
Saturday, October 02, 2010 3:30:12 PMPage 387 © 2006 Mitchell Repair Information Company, LLC.

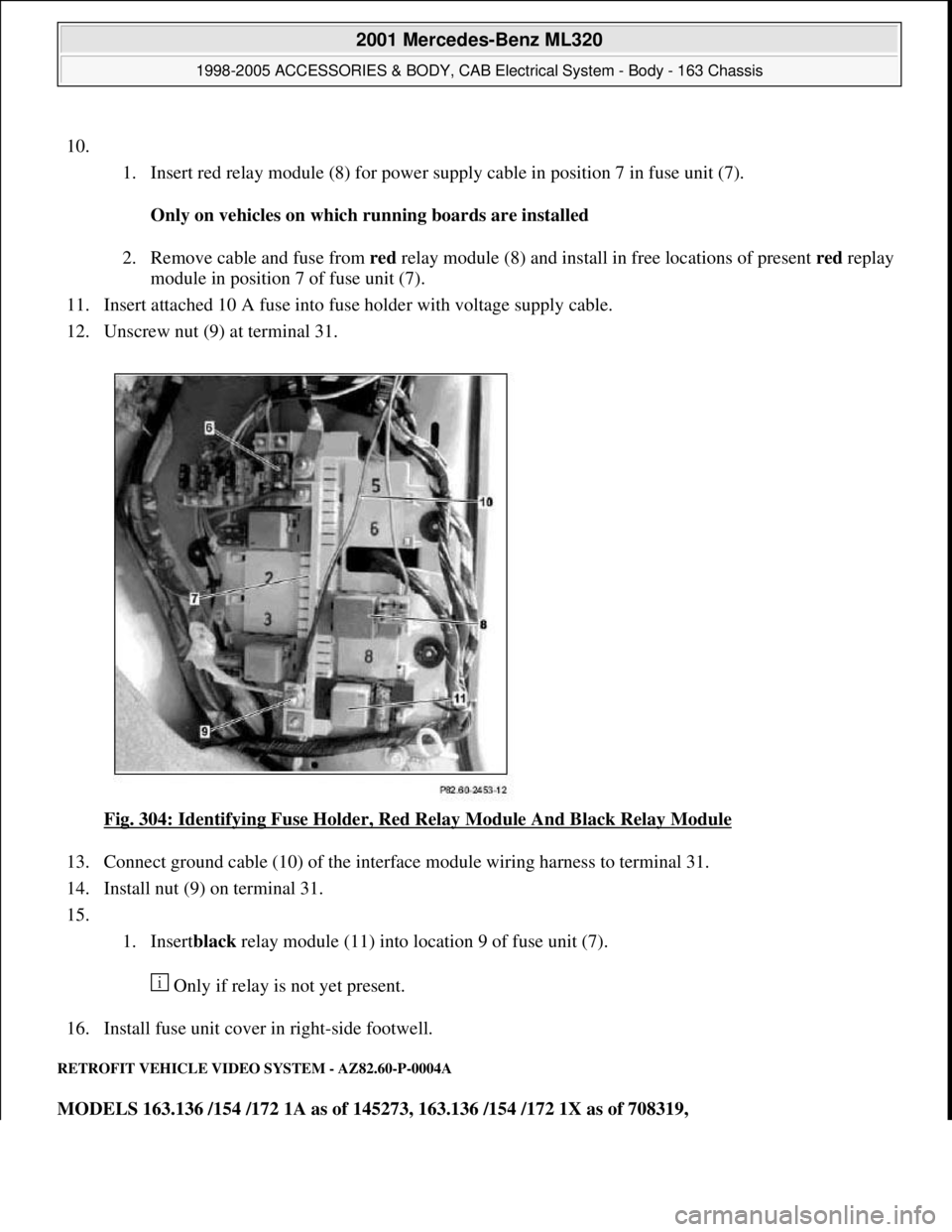

        Page 1883 of 4133

10.
1. Insert red relay module (8) for power supply cable in position 7 in fuse unit (7).
Only on vehicles on which running boards are installed
2. Remove cable and fuse from red relay module (8) and install in free locations of present redreplay
module in position 7 of fuse unit (7).
11. Insert attached 10 A fuse into fuse holder with voltage supply cable.
12. Unscrew nut (9) at terminal 31.
Fig. 304: Identifying Fuse Holder, Red Relay Module And Black Relay Module

13. Connect ground cable (10) of the interface module wiring harness to terminal 31.
14. Install nut (9) on terminal 31.
15.
1. Insertblack relay module (11) into location 9 of fuse unit (7).
 Only if relay is not yet present.
16. Install fuse unit cover in right-side footwell.
RETROFIT VEHICLE VIDEO SYSTEM - AZ82.60-P-0004A
MODELS 163.136 /154 /172 1A as of 145273, 163.136 /154 /172 1X as of 708319,

2001 Mercedes-Benz ML320
1998-2005 ACCESSORIES & BODY, CAB Electrical System - Body - 163 Chassis
me
Saturday, October 02, 2010 3:30:12 PMPage 388 © 2006 Mitchell Repair Information Company, LLC.

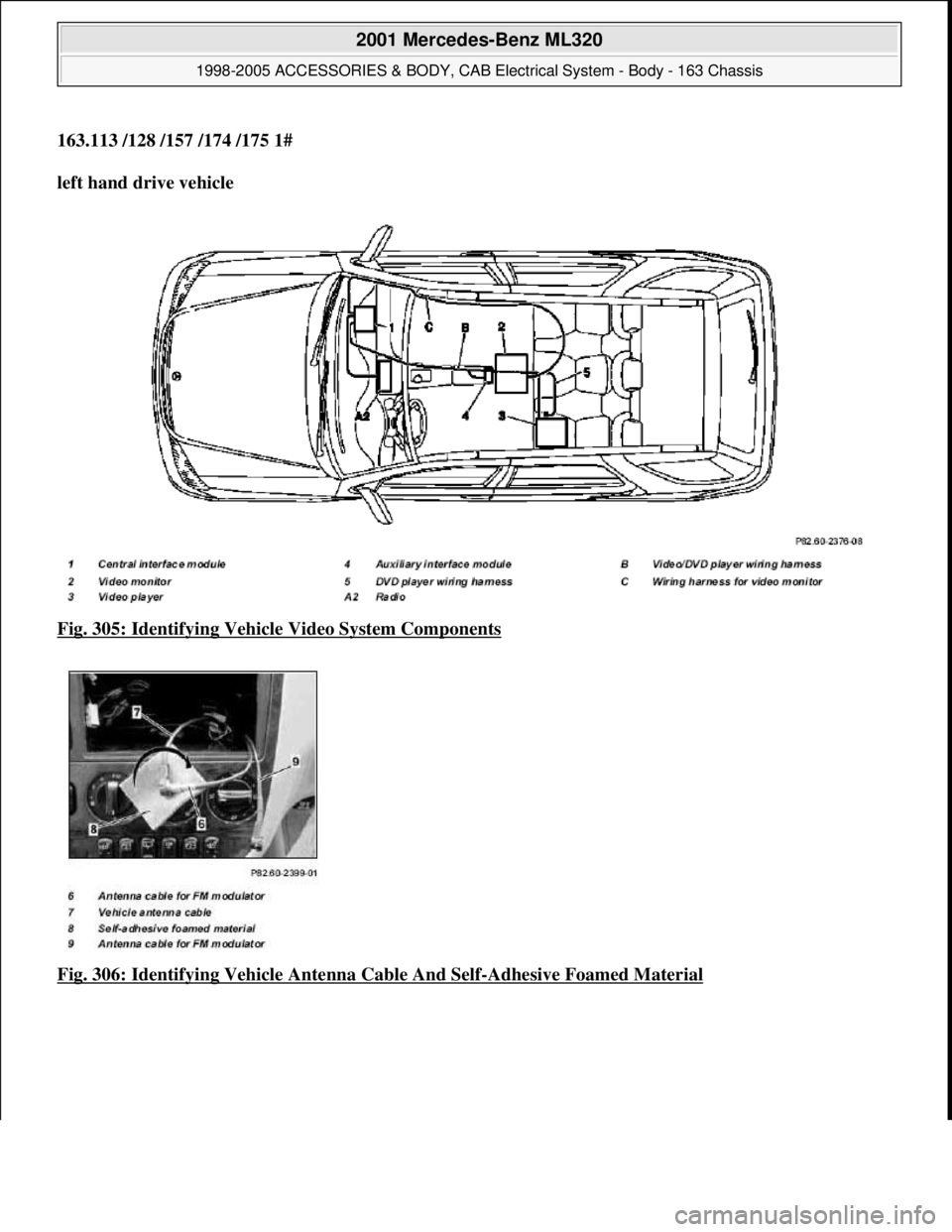

        Page 1884 of 4133
163.113 /128 /157 /174 /175 1#
left hand drive vehicle
Fig. 305: Identifying Vehicl  e Video System Components

Fig. 306: Identifying Vehicl  e Antenna Cable And Self
-Adhesive Foamed Material

2001 Mercedes-Benz ML320
1998-2005 ACCESSORIES & BODY, CAB Electr ical System - Body - 163 Chassis
me
Saturday, October 02, 2010 3:30:12 PMPage 389 © 2006 Mitchell Repair Information Company, LLC.

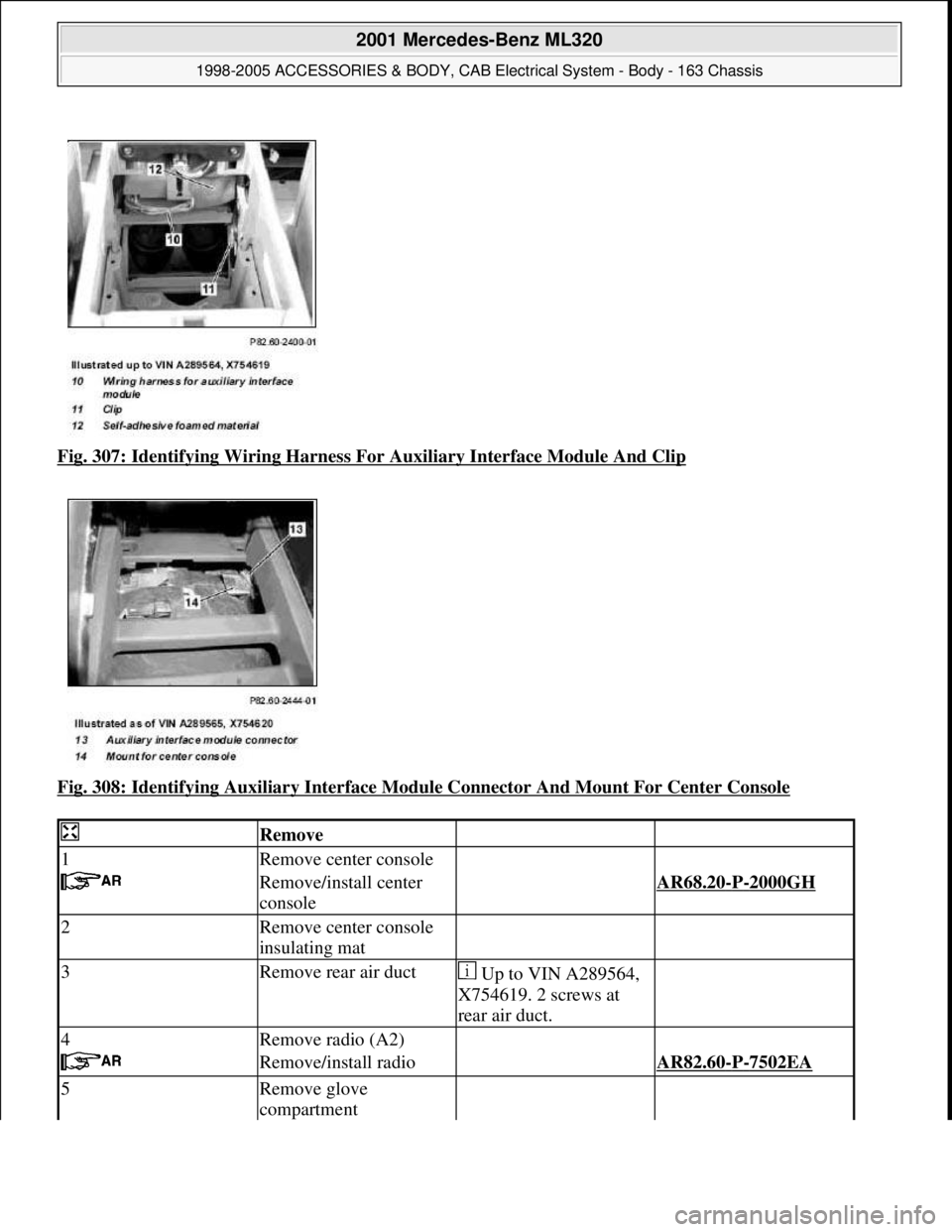

        Page 1885 of 4133
Fig. 307: Identifying Wiring Harness Fo r Auxiliary Interface Module And Clip
Fig. 308: Identifying Auxiliary   Interface Module Connector And Mount For Center Console

 Remove
1Remove center console
 Remove/install center
console AR68.20-P-2000GH
2Remove center console
insulating mat
3Remove rear air duct Up to VIN A289564,
X754619. 2 screws at
rear air duct.
4Remove radio (A2)
 Remove/install radio AR82.60-P-7502EA
5Remove glove
compartment

2001 Mercedes-Benz ML320
1998-2005 ACCESSORIES & BODY, CAB Electr  ical System - Body - 163 Chassis
me
Saturday, October 02, 2010 3:30:12 PMPage 390 © 2006 Mitchell Repair Information Company, LLC.

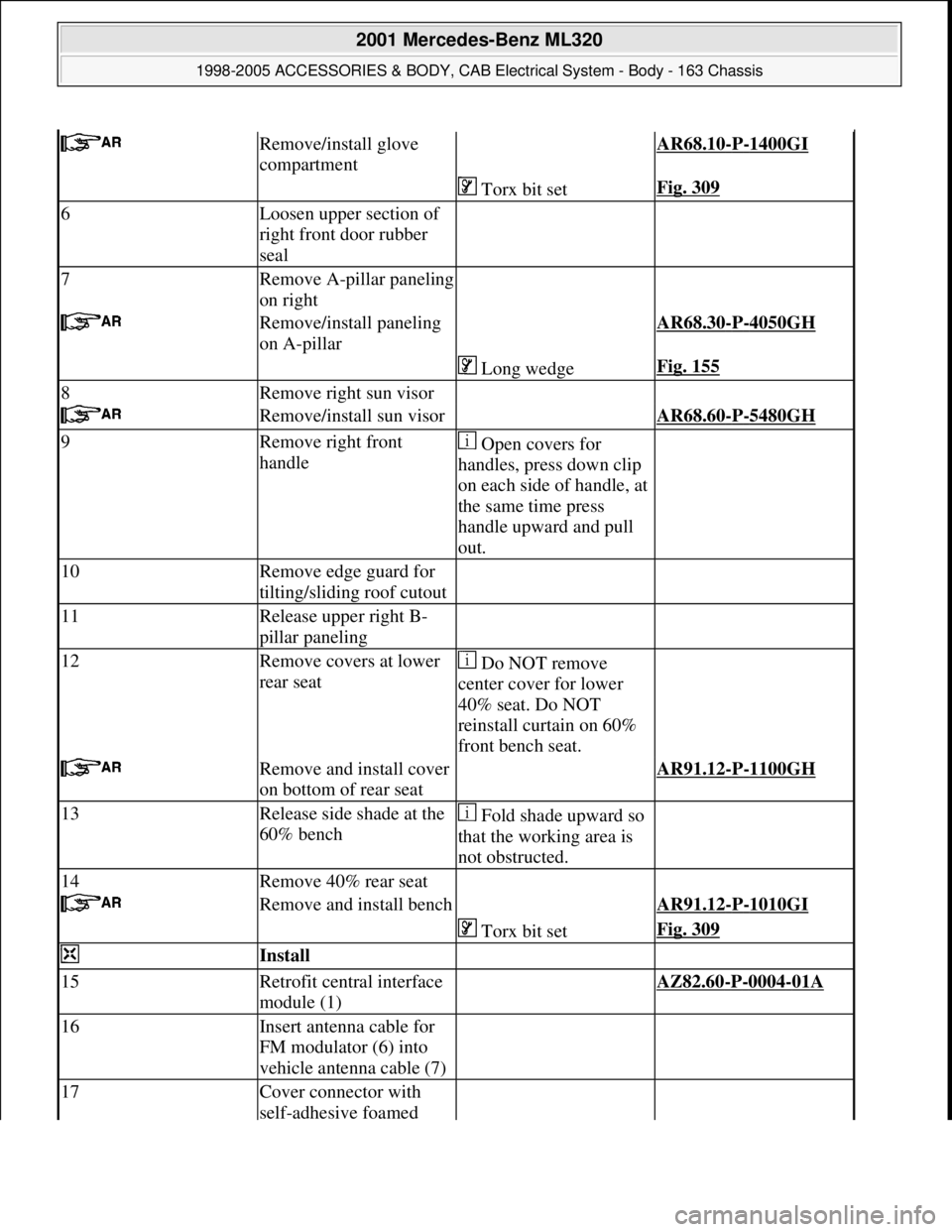

        Page 1886 of 4133

 Remove/install glove
compartment AR68.10-P-1400GI
   Torx bit setFig. 309
6Loosen upper section of
right front door rubber
seal
7Remove A-pillar paneling
on right
 Remove/install paneling
on A-pillar AR68.30-P-4050GH
   Long wedgeFig. 155
8Remove right sun visor
 Remove/install sun visor AR68.60-P-5480GH
9Remove right front
handle Open covers for
handles, press down clip
on each side of handle, at
the same time press
handle upward and pull
out.
10Remove edge guard for
tilting/sliding roof cutout
11Release upper right B-
pillar paneling
12Remove covers at lower
rear seat Do NOT remove
center cover for lower
40% seat. Do NOT
reinstall curtain on 60%
front bench seat.
 Remove and install cover
on bottom of rear seat AR91.12-P-1100GH
13Release side shade at the
60% bench Fold shade upward so
that the working area is
not obstructed.
14Remove 40% rear seat
 Remove and install bench AR91.12-P-1010GI
   Torx bit setFig. 309
 Install
15Retrofit central interface
module (1) AZ82.60-P-0004-01A
16Insert antenna cable for
FM modulator (6) into
vehicle antenna cable (7)
17Cover connector with
self-adhesive foamed

2001 Mercedes-Benz ML320
1998-2005 ACCESSORIES & BODY, CAB Electrical System - Body - 163 Chassis
me
Saturday, October 02, 2010 3:30:12 PMPage 391 © 2006 Mitchell Repair Information Company, LLC.

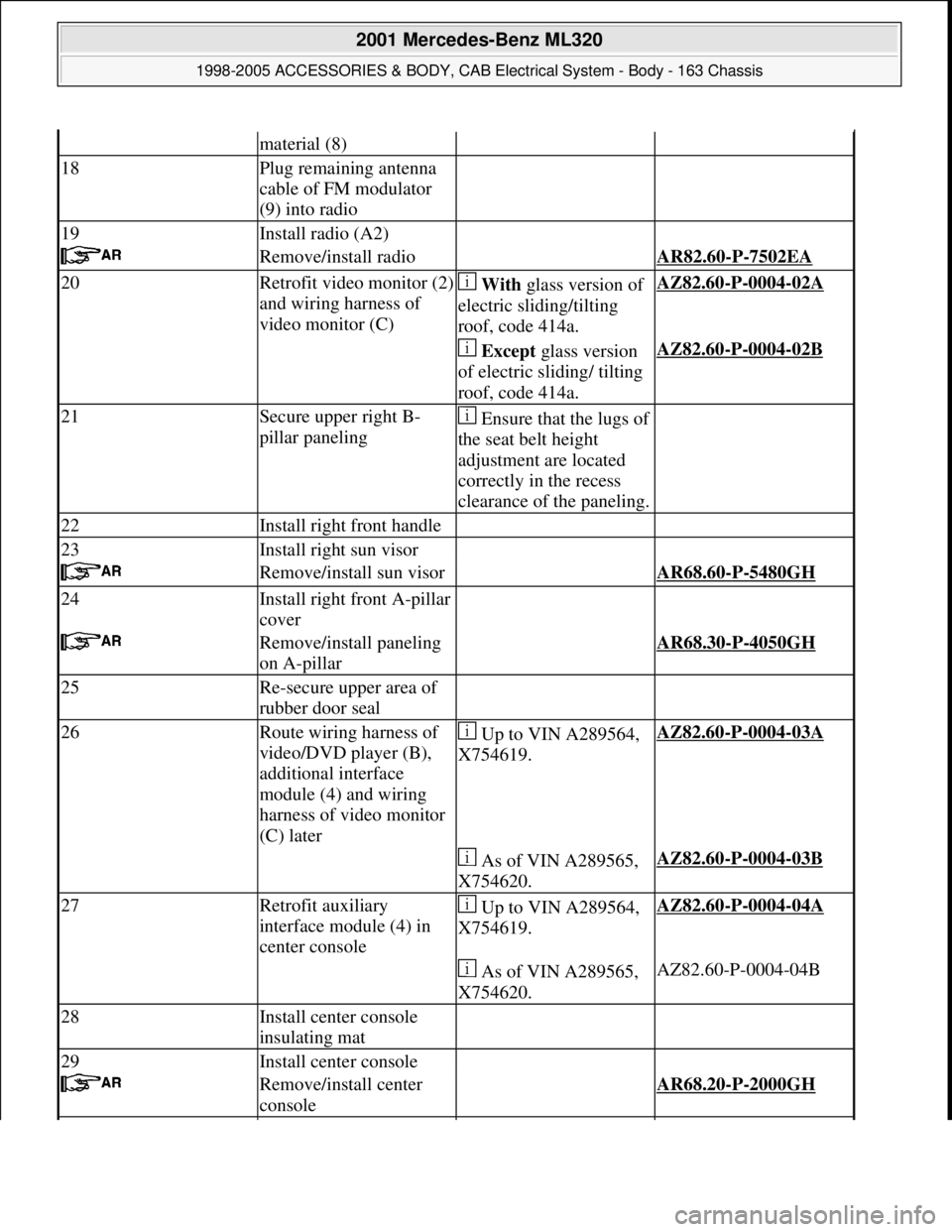

        Page 1887 of 4133

material (8)
18Plug remaining antenna
cable of FM modulator
(9) into radio
19Install radio (A2)
 Remove/install radio AR82.60-P-7502EA
20Retrofit video monitor (2)
and wiring harness of
video monitor (C) With glass version of
electric sliding/tilting
roof, code 414a.AZ82.60-P-0004-02A
   Except glass version
of electric sliding/ tilting
roof, code 414a.AZ82.60-P-0004-02B
21Secure upper right B-
pillar paneling Ensure that the lugs of
the seat belt height
adjustment are located
correctly in the recess
clearance of the paneling.
22Install right front handle
23Install right sun visor
 Remove/install sun visor AR68.60-P-5480GH
24Install right front A-pillar
cover
 Remove/install paneling
on A-pillar AR68.30-P-4050GH
25Re-secure upper area of
rubber door seal
26Route wiring harness of
video/DVD player (B),
additional interface
module (4) and wiring
harness of video monitor
(C) later Up to VIN A289564,
X754619.AZ82.60-P-0004-03A
   As of VIN A289565,
X754620.AZ82.60-P-0004-03B
27Retrofit auxiliary
interface module (4) in
center console Up to VIN A289564,
X754619.AZ82.60-P-0004-04A
   As of VIN A289565,
X754620.AZ82.60-P-0004-04B
28Install center console
insulating mat
29Install center console
 Remove/install center
console AR68.20-P-2000GH

2001 Mercedes-Benz ML320
1998-2005 ACCESSORIES & BODY, CAB Electrical System - Body - 163 Chassis
me
Saturday, October 02, 2010 3:30:12 PMPage 392 © 2006 Mitchell Repair Information Company, LLC.

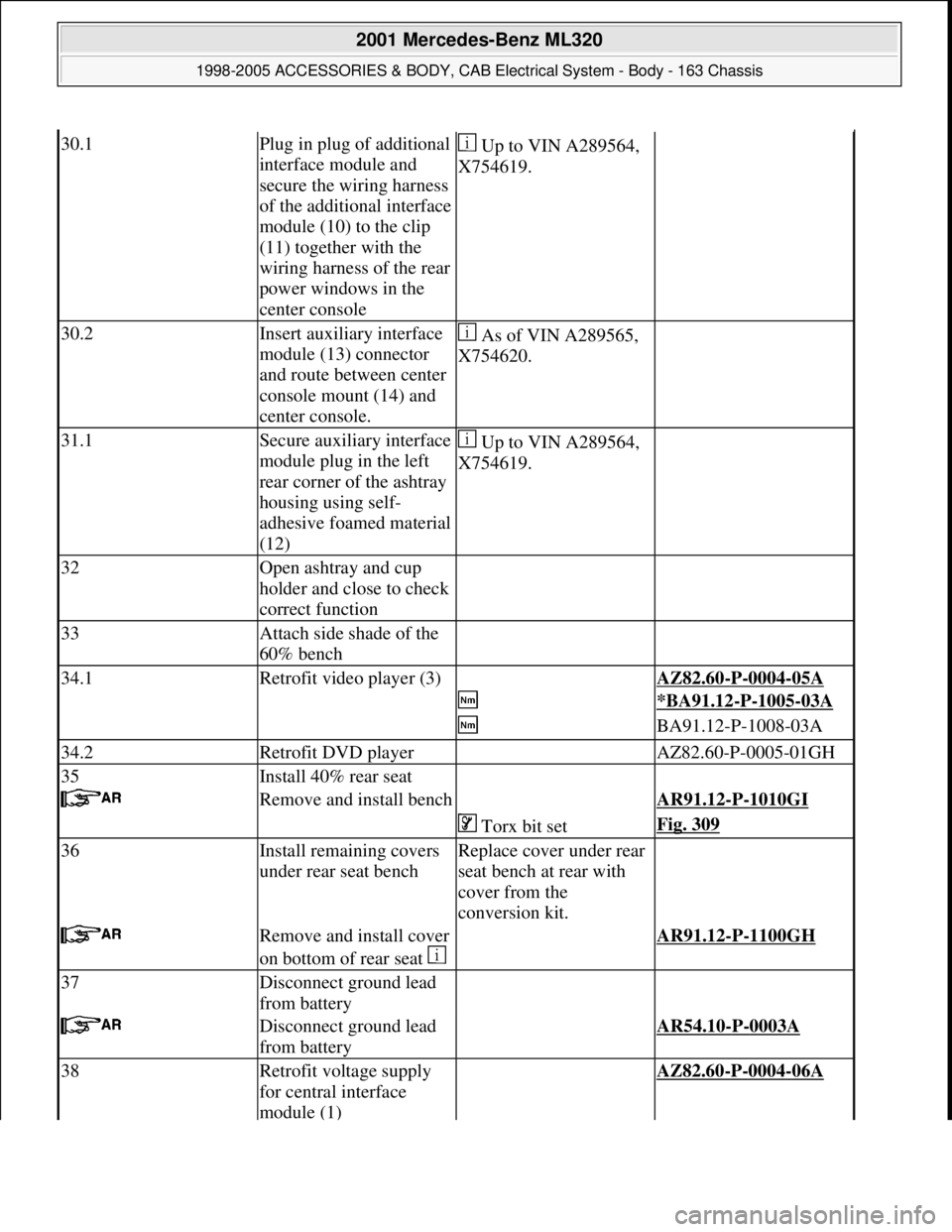

        Page 1888 of 4133

30.1Plug in plug of additional
interface module and
secure the wiring harness
of the additional interface
module (10) to the clip
(11) together with the
wiring harness of the rear
power windows in the
center console Up to VIN A289564,
X754619.
30.2Insert auxiliary interface
module (13) connector
and route between center
console mount (14) and
center console. As of VIN A289565,
X754620.
31.1Secure auxiliary interface
module plug in the left
rear corner of the ashtray
housing using self-
adhesive foamed material
(12) Up to VIN A289564,
X754619.
32Open ashtray and cup
holder and close to check
correct function
33Attach side shade of the
60% bench
34.1Retrofit video player (3) AZ82.60-P-0004-05A
   *BA91.12-P-1005-03A
   BA91.12-P-1008-03A
34.2Retrofit DVD player AZ82.60-P-0005-01GH
35Install 40% rear seat
 Remove and install bench AR91.12-P-1010GI
   Torx bit setFig. 309
36Install remaining covers
under rear seat benchReplace cover under rear
seat bench at rear with
cover from the
conversion kit.
 Remove and install cover
on bottom of rear seat    AR91.12-P-1100GH
37Disconnect ground lead
from battery
 Disconnect ground lead
from battery AR54.10-P-0003A
38Retrofit voltage supply
for central interface
module (1) AZ82.60-P-0004-06A
