Page 3017 of 4133

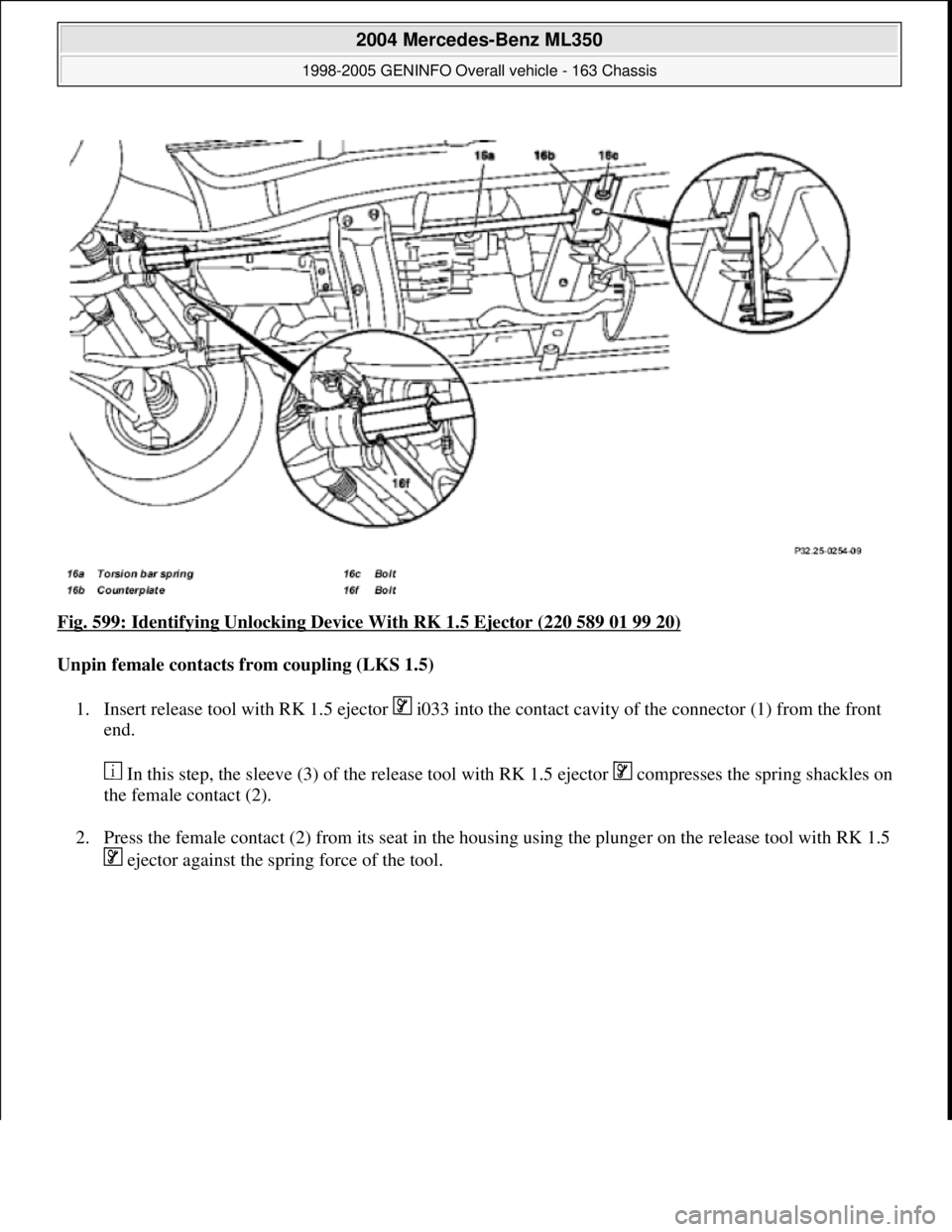

MERCEDES-BENZ ML320 1997 Complete Repair Manual Fig. 599: Identifying Unlocking Device With RK 1.5 Ejector (220 589 01 99 20) Unpin female contacts from coupling (LKS 1.5) 1. Insert release tool with RK 1.5 ejector i033 into the contact cavity

Page 3018 of 4133

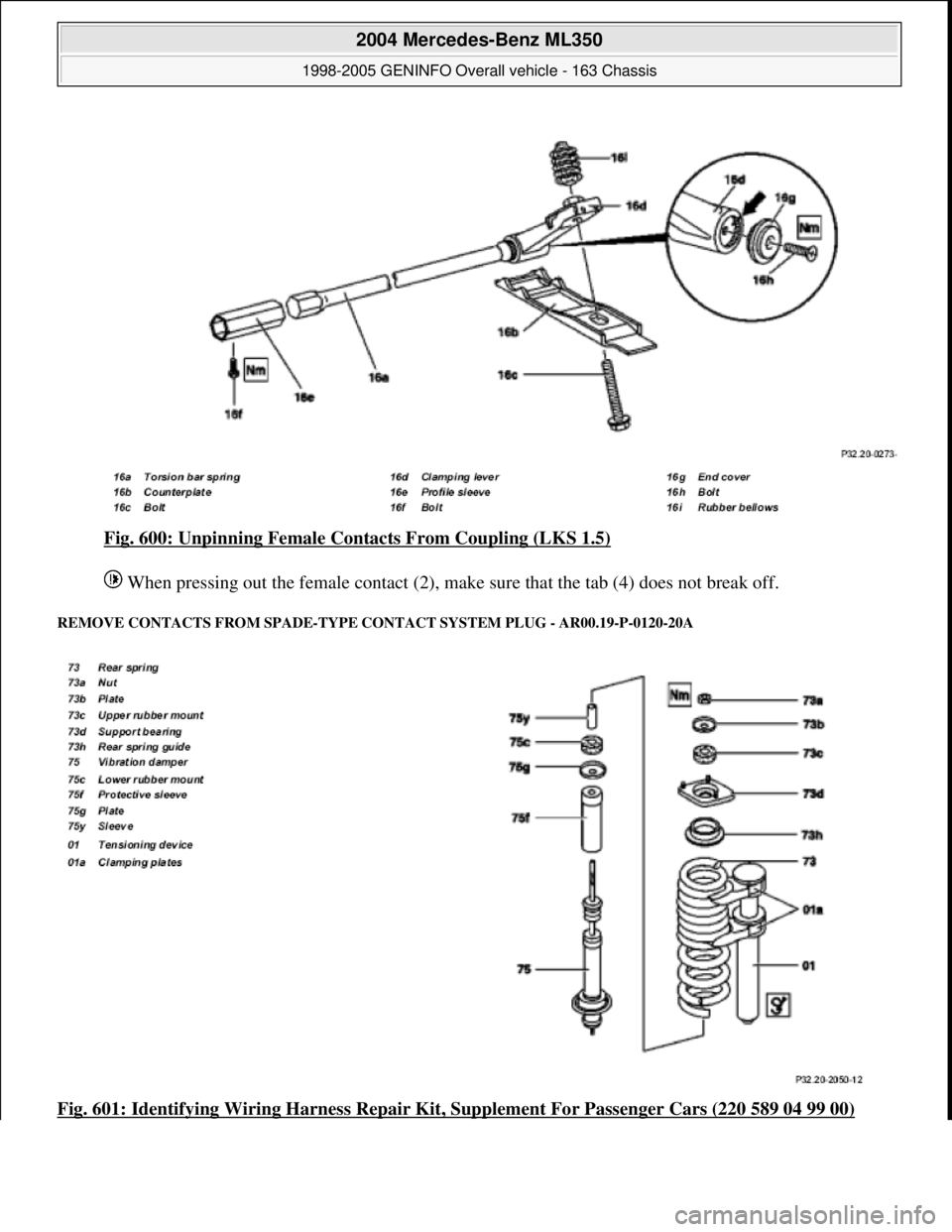

MERCEDES-BENZ ML320 1997 Complete Repair Manual Fig. 600: Unpinning Female Contacts From Coupling (LKS 1.5) When pressing out the female contact (2), make sure that the tab (4) does not break off. REMOVE CONTACTS FROM SPADE-TYPE CONTACT SYSTEM P

Page 3019 of 4133

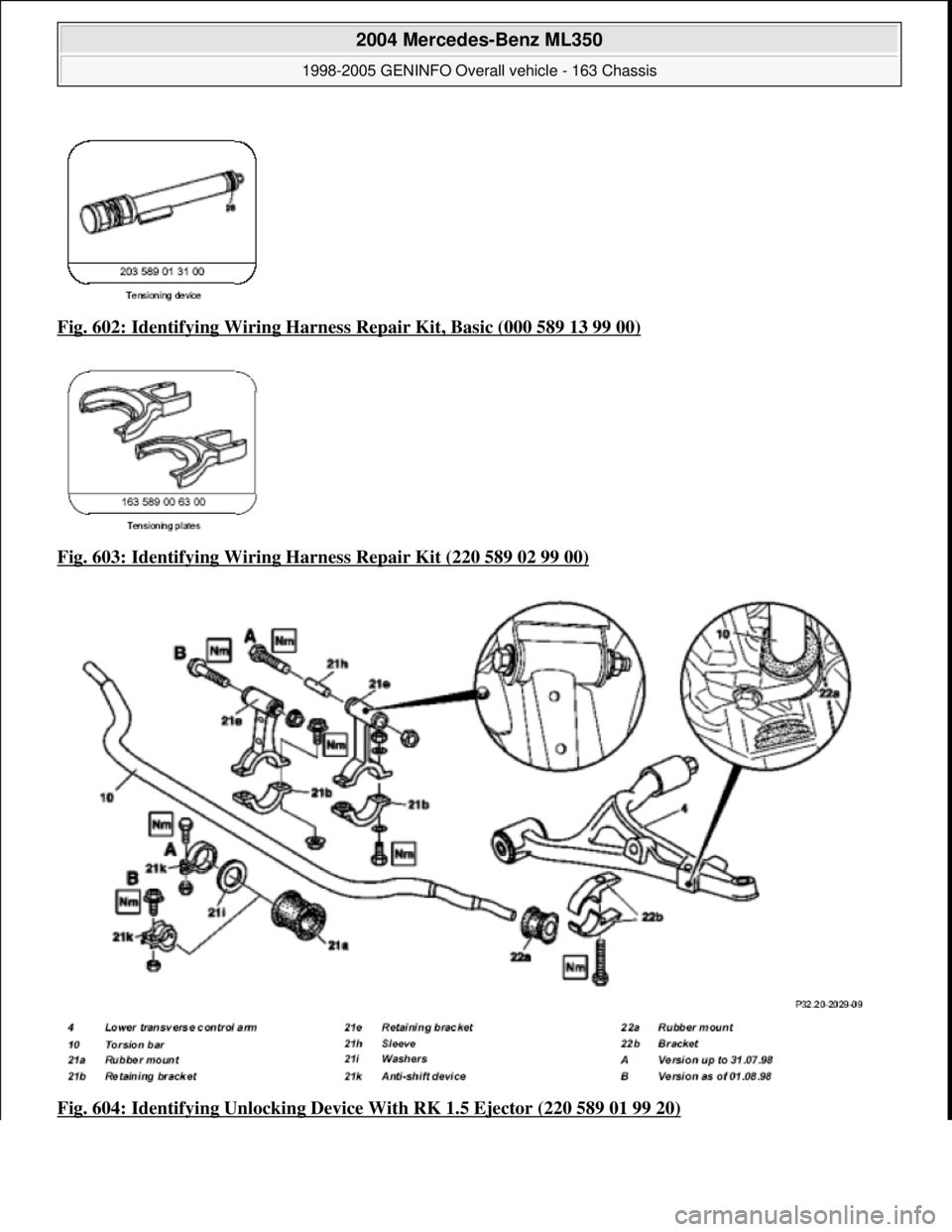

MERCEDES-BENZ ML320 1997 Complete Repair Manual Fig. 602: Identifying Wiring Harness Repair Kit, Basic (000 589 13 99 00) Fig. 603: Identifying Wiring Ha rness Repair Kit (220 589 02 99 00) Fig. 604: Identifying Unlocking Device With RK 1.

Page 3020 of 4133

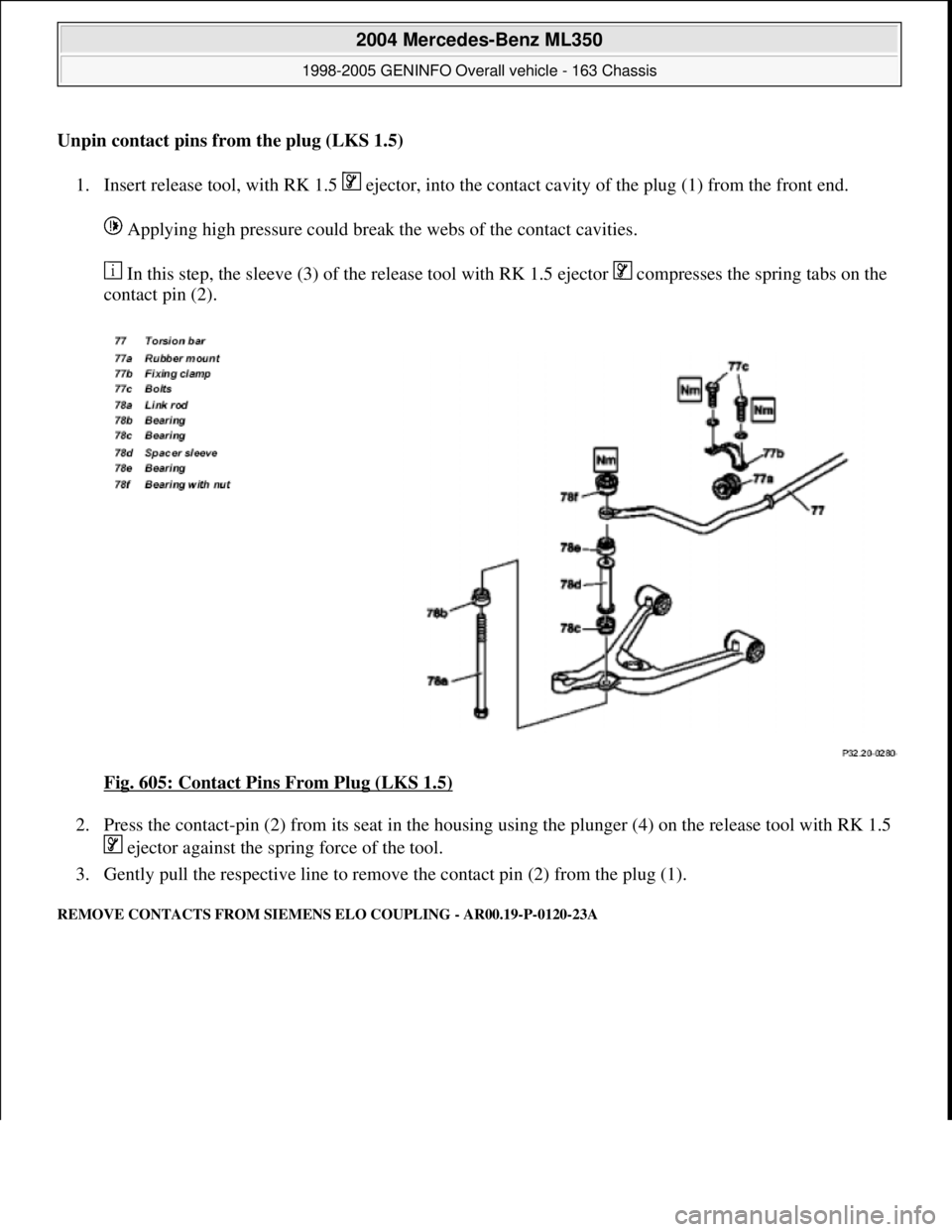

MERCEDES-BENZ ML320 1997 Complete Repair Manual Unpin contact pins from the plug (LKS 1.5) 1. Insert release tool, with RK 1.5 ejector, into the contact cavity of the plug (1) from the front end. Applying high pressure could break the webs of th

Page 3021 of 4133

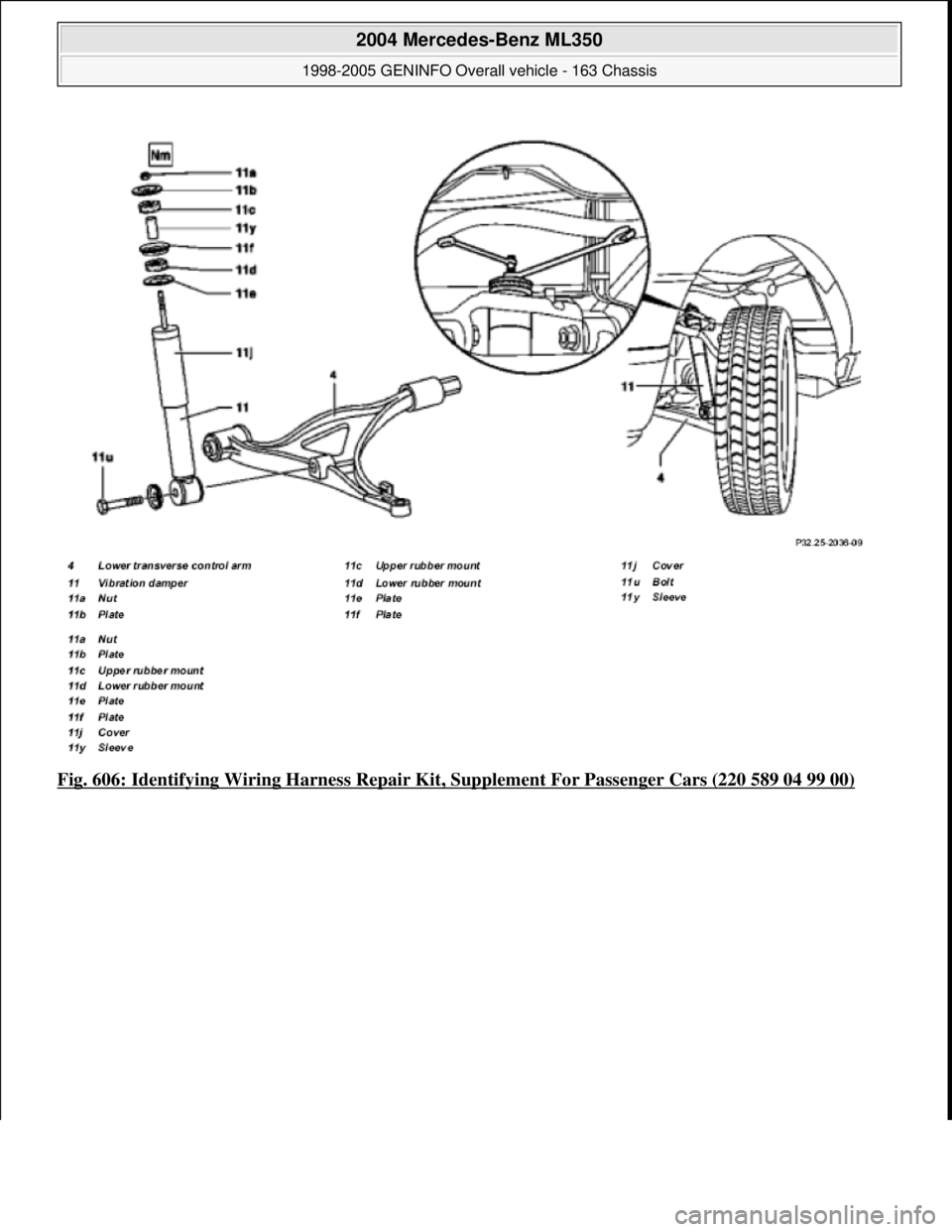

MERCEDES-BENZ ML320 1997 Complete Repair Manual Fig. 606: Identifying Wiring Harness Repair Kit, Supplement For Passenger Cars (220 589 04 99 00) 2004 Mercedes-Benz ML350 1998-2005 GENINFO Overall vehicle - 163 Chassis me Saturday, October 0

Page 3022 of 4133

MERCEDES-BENZ ML320 1997 Complete Repair Manual Fig. 607: Identifying Wiring Harness Repair Kit, Basic (000 589 13 99 00) Fig. 608: Identifying Wiring Ha rness Repair Kit (220 589 02 99 00) 2004 Mercedes-Benz ML350 1998-2005 GENINFO Overall

Page 3023 of 4133

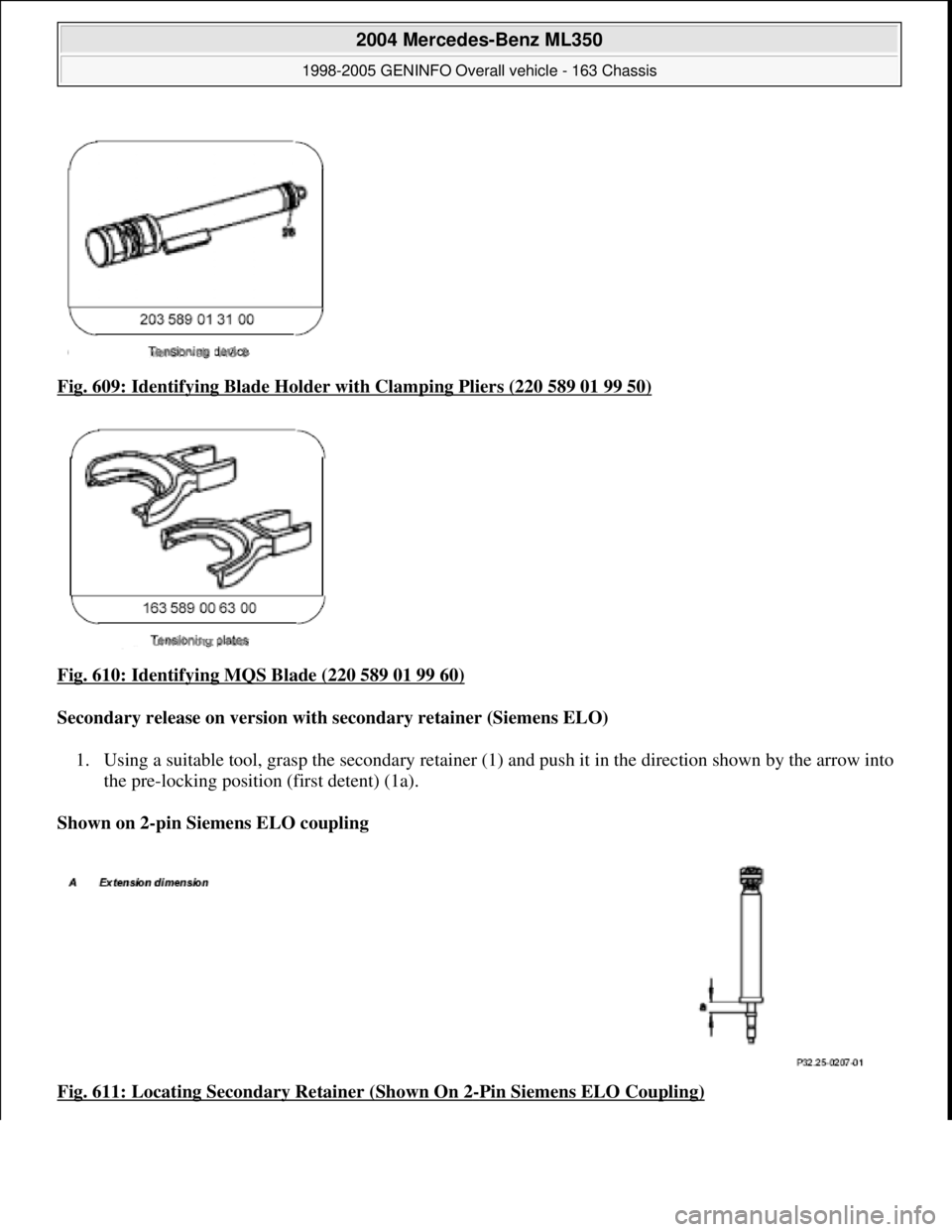

MERCEDES-BENZ ML320 1997 Complete Repair Manual Fig. 609: Identifying Blad e Holder with Clamping Pliers (220 589 01 99 50) Fig. 610: Identifying MQS Blade (220 589 01 99 60) Secondary release on version with secondary retainer (Siemens ELO)

Page 3024 of 4133

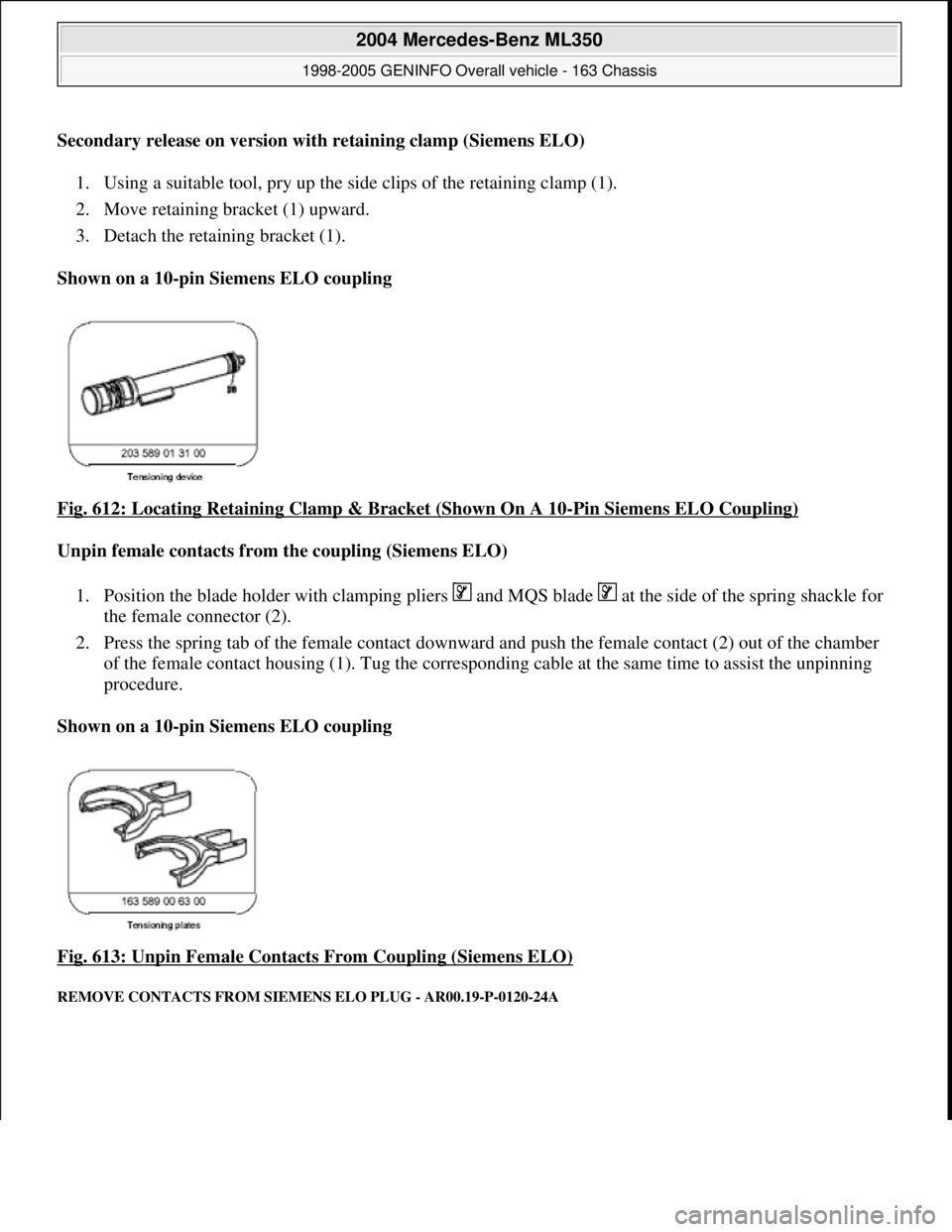

MERCEDES-BENZ ML320 1997 Complete Repair Manual Secondary release on version with retaining clamp (Siemens ELO) 1. Using a suitable tool, pry up the side clips of the retaining clamp (1). 2. Move retaining bracket (1) upward. 3. Detach the reta
