MERCEDES-BENZ ML320 1997 Complete Repair Manual WIPER MOTOR, FUNCTION - GF82.30-P-4104-01GH
The wiper arm can be driven by the motor with two speeds. The motor runs at high or low speed depending on
brush voltage present.
The cam switch switches

Page 1546 of 4133

MERCEDES-BENZ ML320 1997 Complete Repair Manual REAR WIPER/WASHER SWITCH - FUNCTION - GF82.30-P-4105-01GH
The rear intermittent wipe function is started by placing the rear wiper/washer switch (S78) in the up position.
The switching contact conne

Page 1547 of 4133

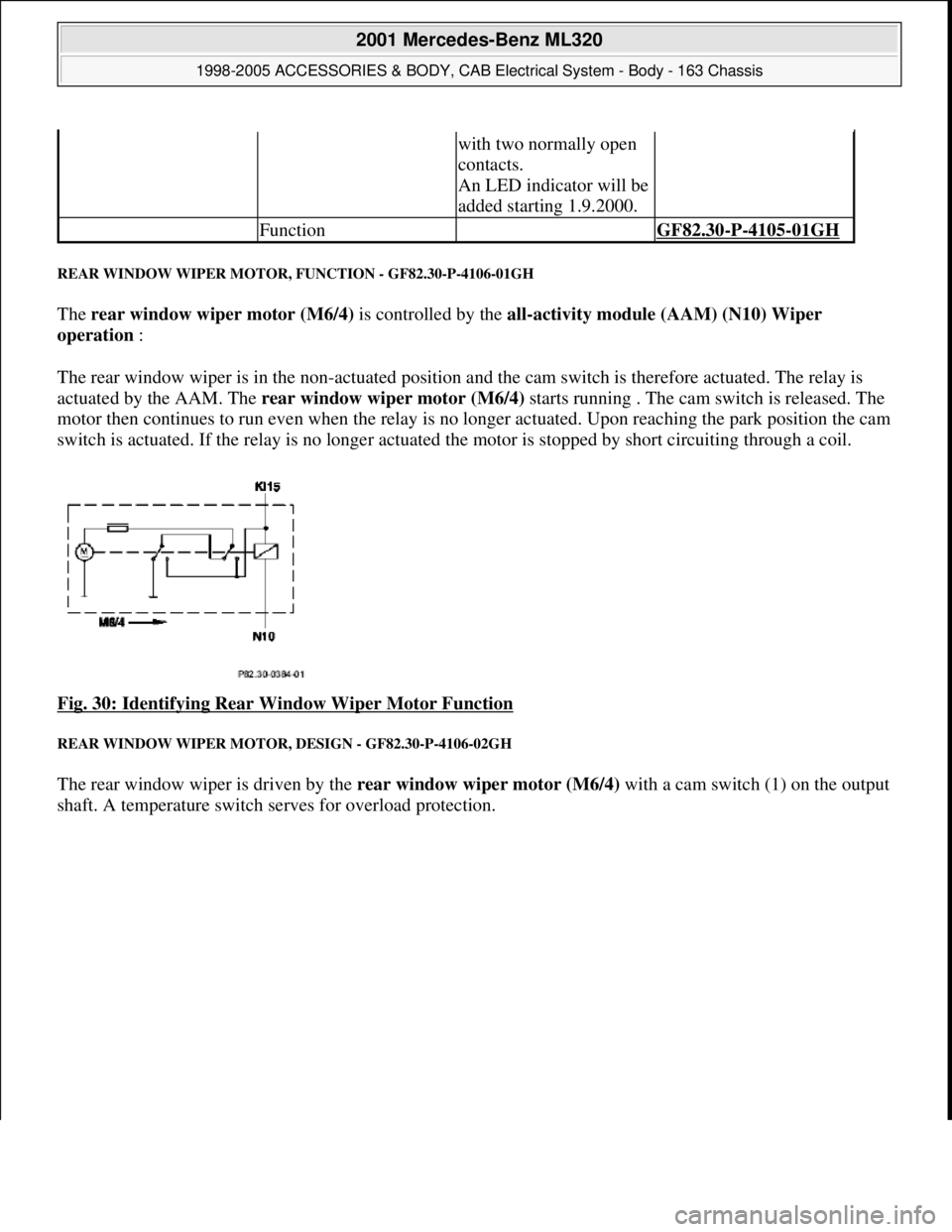

MERCEDES-BENZ ML320 1997 Complete Repair Manual REAR WINDOW WIPER MOTOR, FUNCTION - GF82.30-P-4106-01GH
The rear window wiper motor (M6/4) is controlled by the all-activity module (AAM) (N10) Wiper
operation :
The rear window wiper is in the non

Page 1548 of 4133

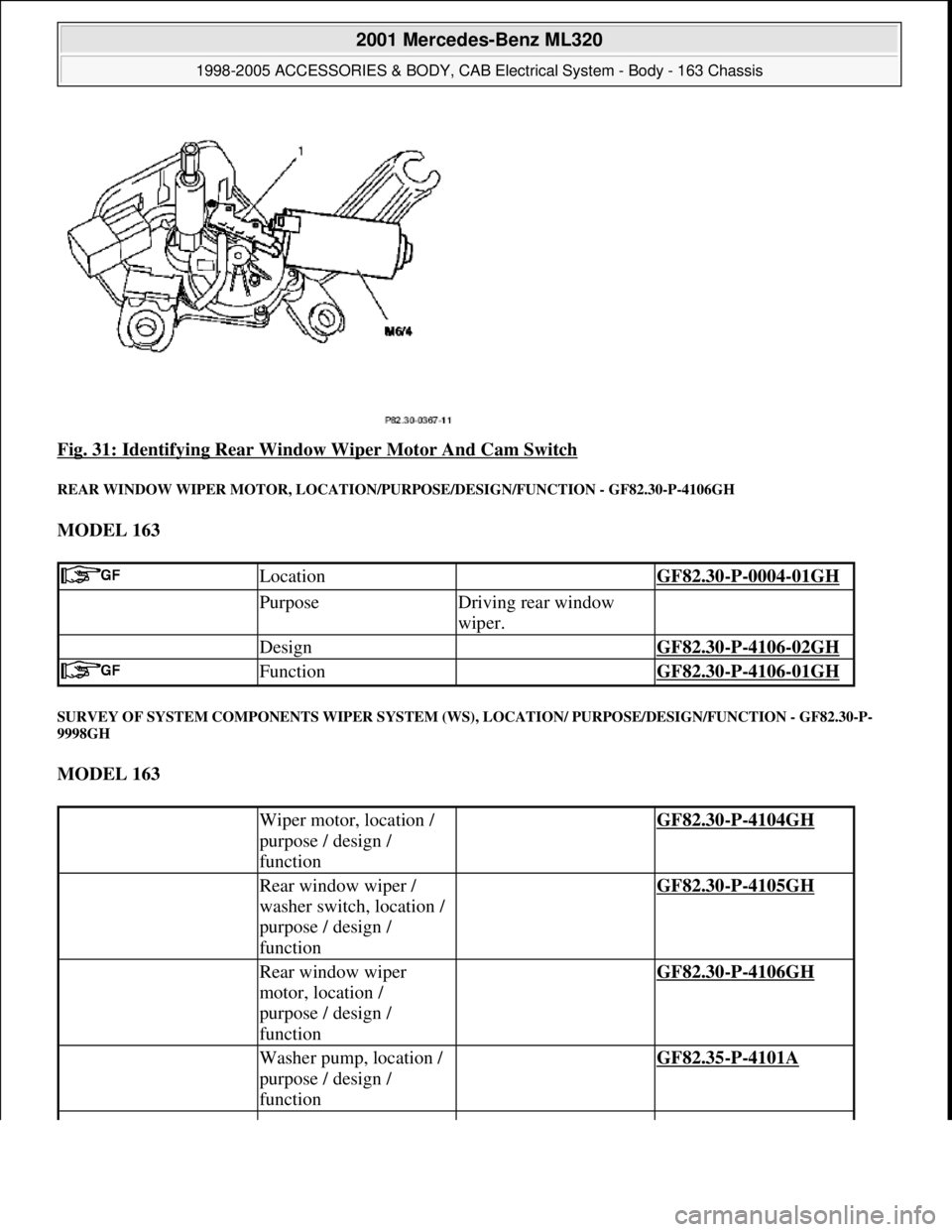

MERCEDES-BENZ ML320 1997 Complete Repair Manual Fig. 31: Identifying Rear Window Wiper Motor And Cam Switch
REAR WINDOW WIPER MOTOR, LOCATION/PURPOSE/DESIGN/FUNCTION - GF82.30-P-4106GH
MODEL 163
SURVEY OF SYSTEM COMPONENTS WIPER SYSTEM (WS), LO

Page 1549 of 4133

MERCEDES-BENZ ML320 1997 Complete Repair Manual REAR WASH - FUNCTION - GF82.35-P-3001GH
MODEL 163
The rear wash function is activated by placing the rear wiper/ washer switch (S78) in the down position. The
switch contact connects the tailgate

REAR WASH - FUNCTION - GF82.35-P-3001GH
MODEL 163
The rear wash function is activated by placing the rear wiper/ washer switch (S78) in the down position. The
switch contact connects the tailgate washer pump (M5/3) to terminal 15. The All Activity Module (AAM)
(N10) detects the activation of the switch via the second switch contact and actuates the tailgate washer motor
(M6/4) and the tailgate washer fluid pump (M5/3) for as long as the switch is on.
The activation time for the tailgate washer fluid pump (M5/3)is limited to 15 sec. To reactivate the pump, the
button must be pressed again.
To wipe window dry, the tailgate wiper motor (M6/4) remains activated for five seconds after the switch is
released.

As described for the rear wiper function, a relay circuit in the wiper motor stops the wiper in the park position .
WINDSHIELD WASH - FUNCTION - GF82.35-P-3002GH
MODEL 163
The windshield wash function is activated by pulling the combination switch, washer switch (S4s4) towards
the steering column. The switch contact connects the washer pump (M5/1) to terminal 15R. The All Activity
Module (AAM) (N10) detects switch activation via an input that measures power supply to the washer pump
(M5/1).
If the combination switch (S4) is in the Wiper Off or Intermittent position, the AAM activates the wiper
motor (M6/1) via rela
y F1k17 . To wipe windshield dry, the motor continues to operate after the switch has
Rear window washer
pump, location /
purpose / design /
function GF82.35-P-4103GH
Table of contents,
function description,
wiper system (WS) GF82.30-P-0998GH
Rear Wipe GF82.30-P-3004GH
Rear Wiper/Washer
Switch GF82.30-P-4105GH
Tailgate Wiper Motor GF82.30-P-4106GH
Tailgate Washer Pump GF82.35-P-4103GH
All Activity ModuleTo 30.11.99GF54.21-P-4100GH
As of 1.12.99GF54.21-P-4100GK

2001 Mercedes-Benz ML320
1998-2005 ACCESSORIES & BODY, CAB Electrical System - Body - 163 Chassis
me
Saturday, October 02, 2010 3:30:05 PMPage 54 © 2006 Mitchell Repair Information Company, LLC.

Page 1550 of 4133

MERCEDES-BENZ ML320 1997 Complete Repair Manual been released until the AAM detects three operations of the cam-operated switch.

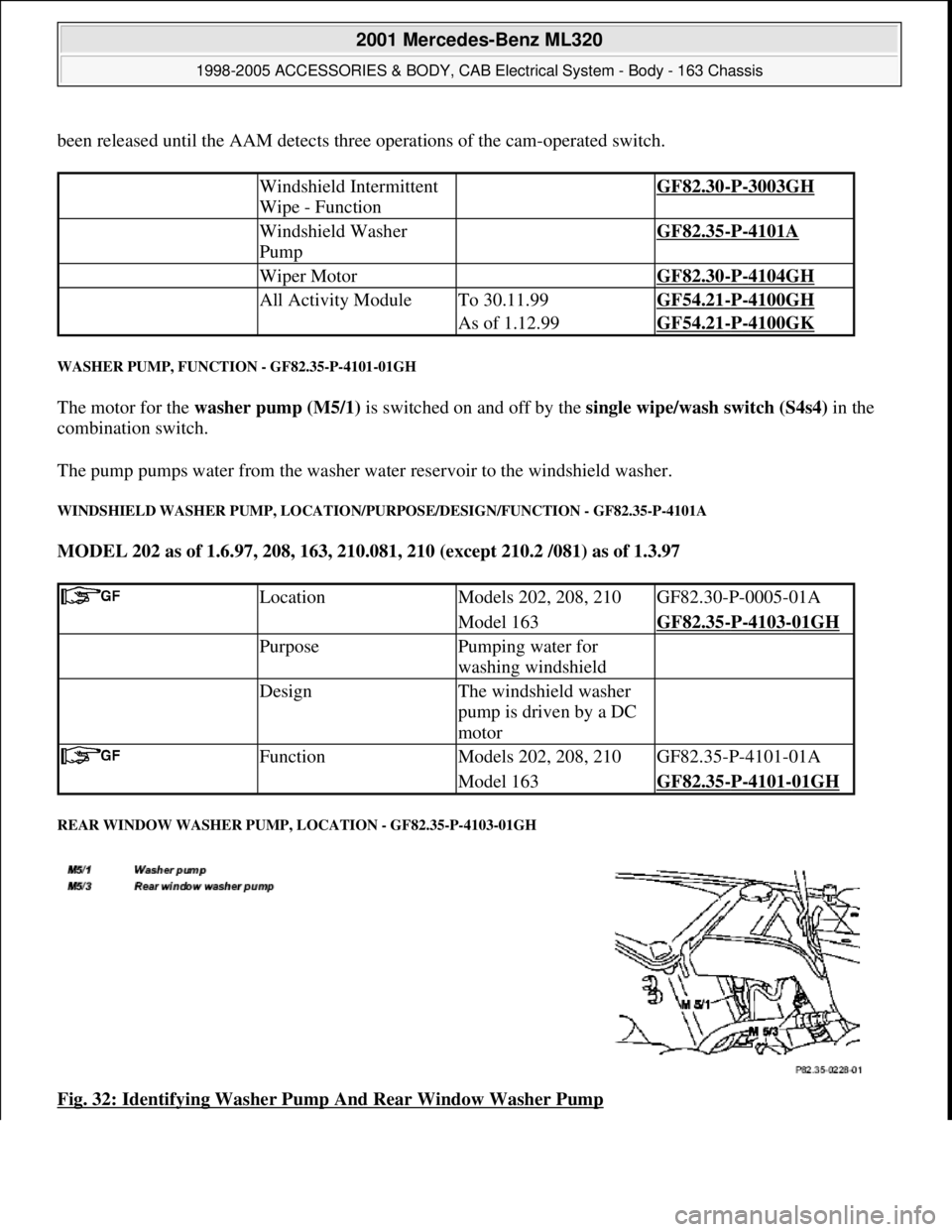

WASHER PUMP, FUNCTION - GF82.35-P-4101-01GH
The motor for the washer pump (M5/1) is switched on and off by the single

Page 1551 of 4133

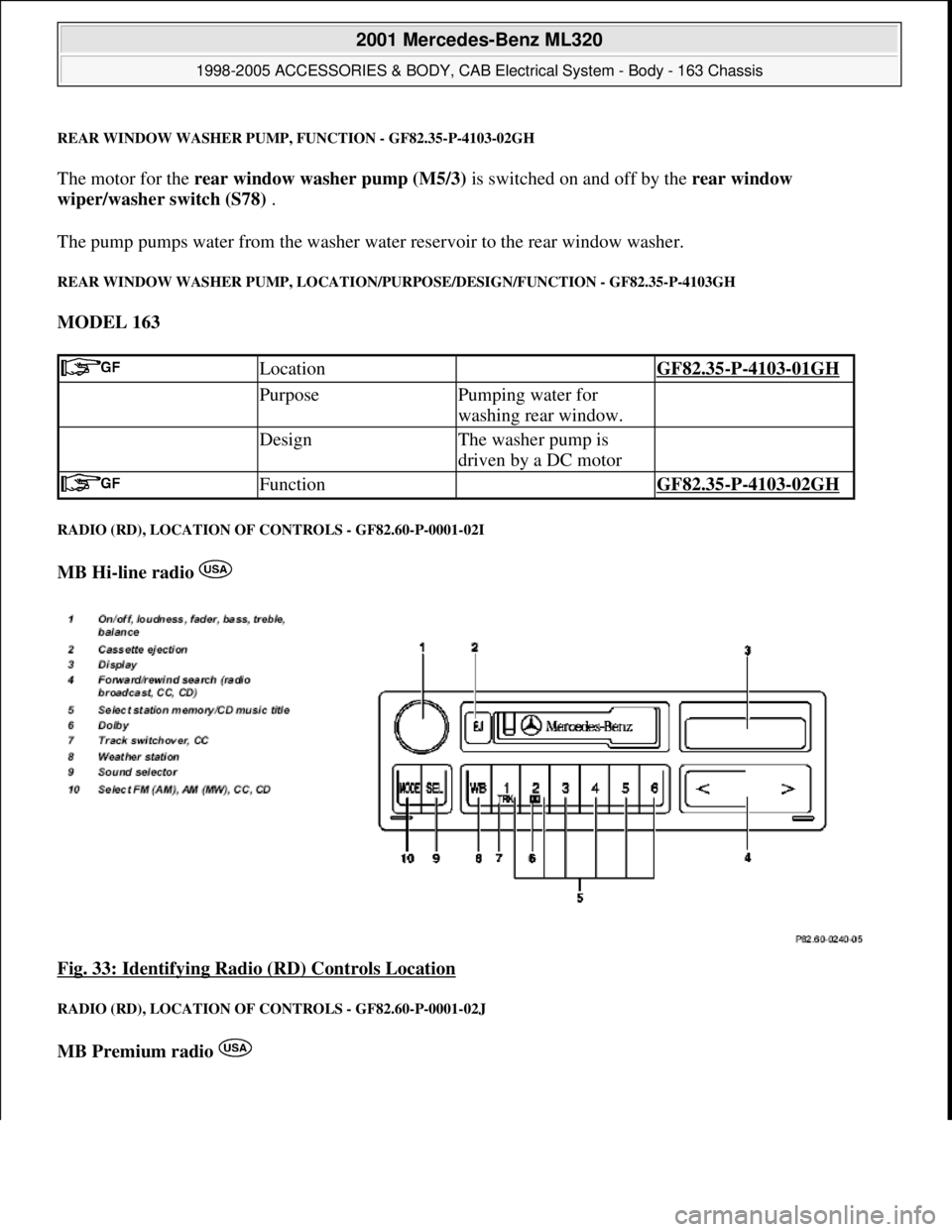

MERCEDES-BENZ ML320 1997 Complete Repair Manual REAR WINDOW WASHER PUMP, FUNCTION - GF82.35-P-4103-02GH
The motor for the rear window washer pump (M5/3) is switched on and off by the rear window
wiper/washer switch (S78) .
The pump pumps water fr

Page 1552 of 4133

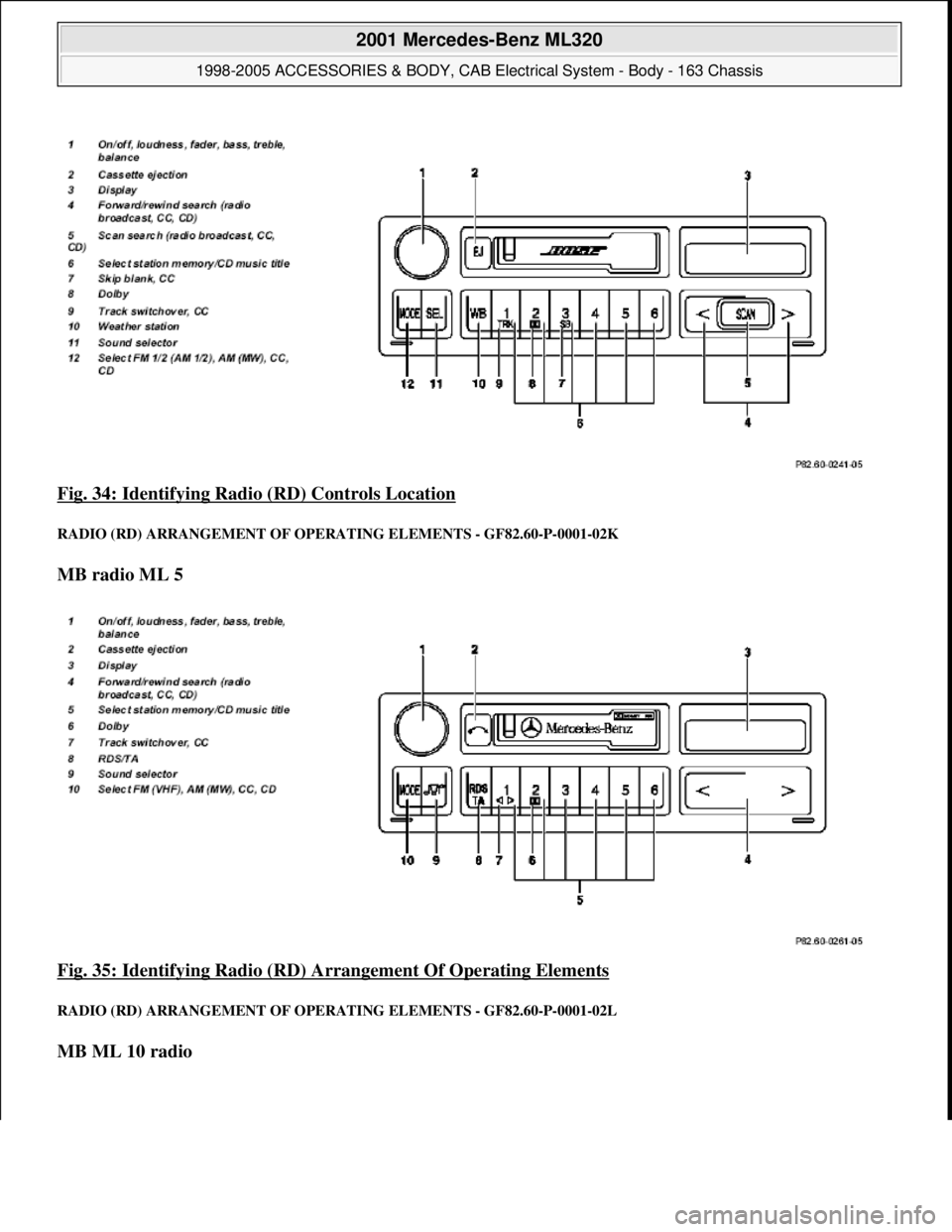

MERCEDES-BENZ ML320 1997 Complete Repair Manual Fig. 34: Identifying Radio (RD) Controls Location
