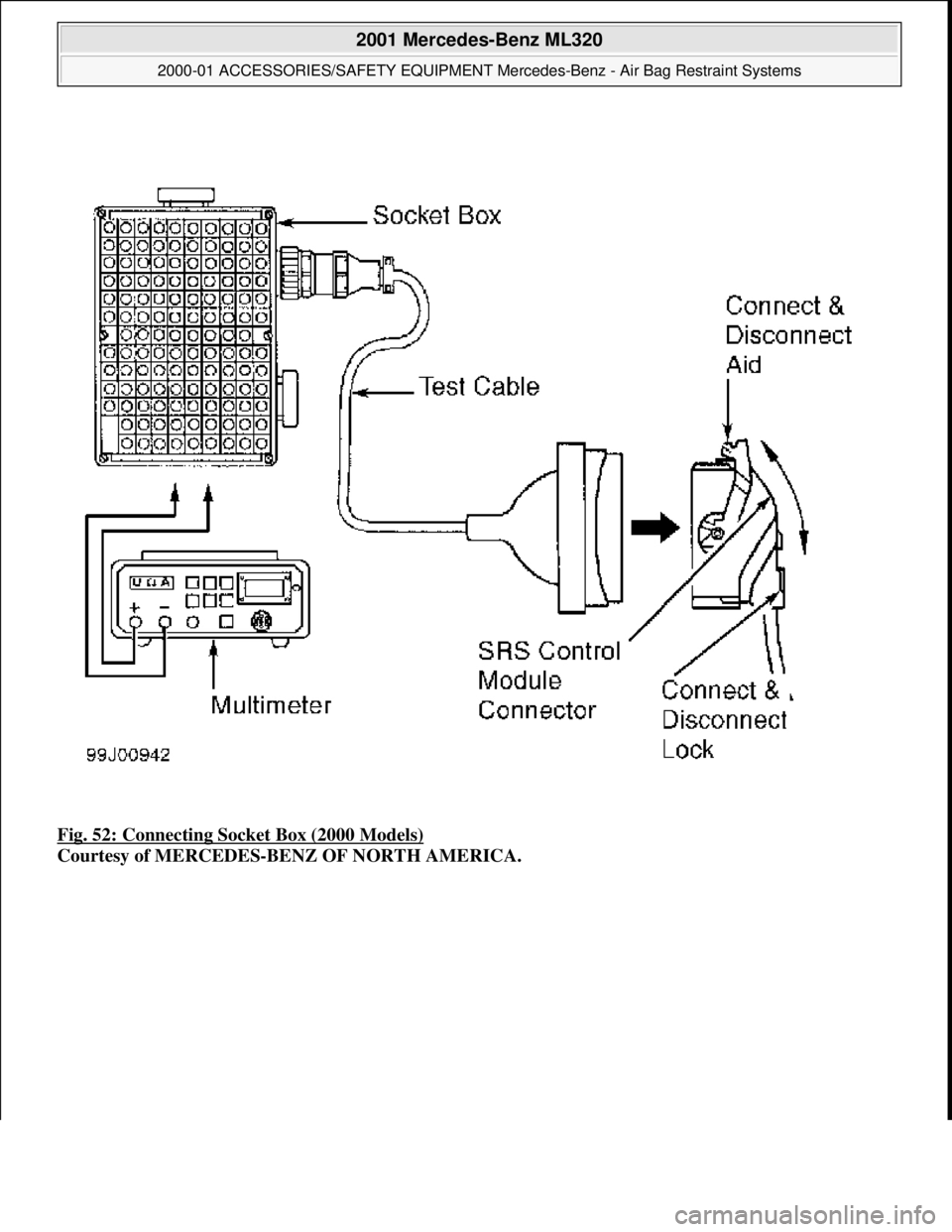

MERCEDES-BENZ ML320 1997 Complete Repair Manual Fig. 52: Connecting Socket Box (2000 Models) Courtesy of MERCEDES-BENZ OF NORTH AMERICA. 2001 Mercedes-Benz ML320 2000-01 ACCESSORIES/SAFETY EQUIPMENT Merc edes-Benz - Air Bag Restraint Systems

Page 426 of 4133

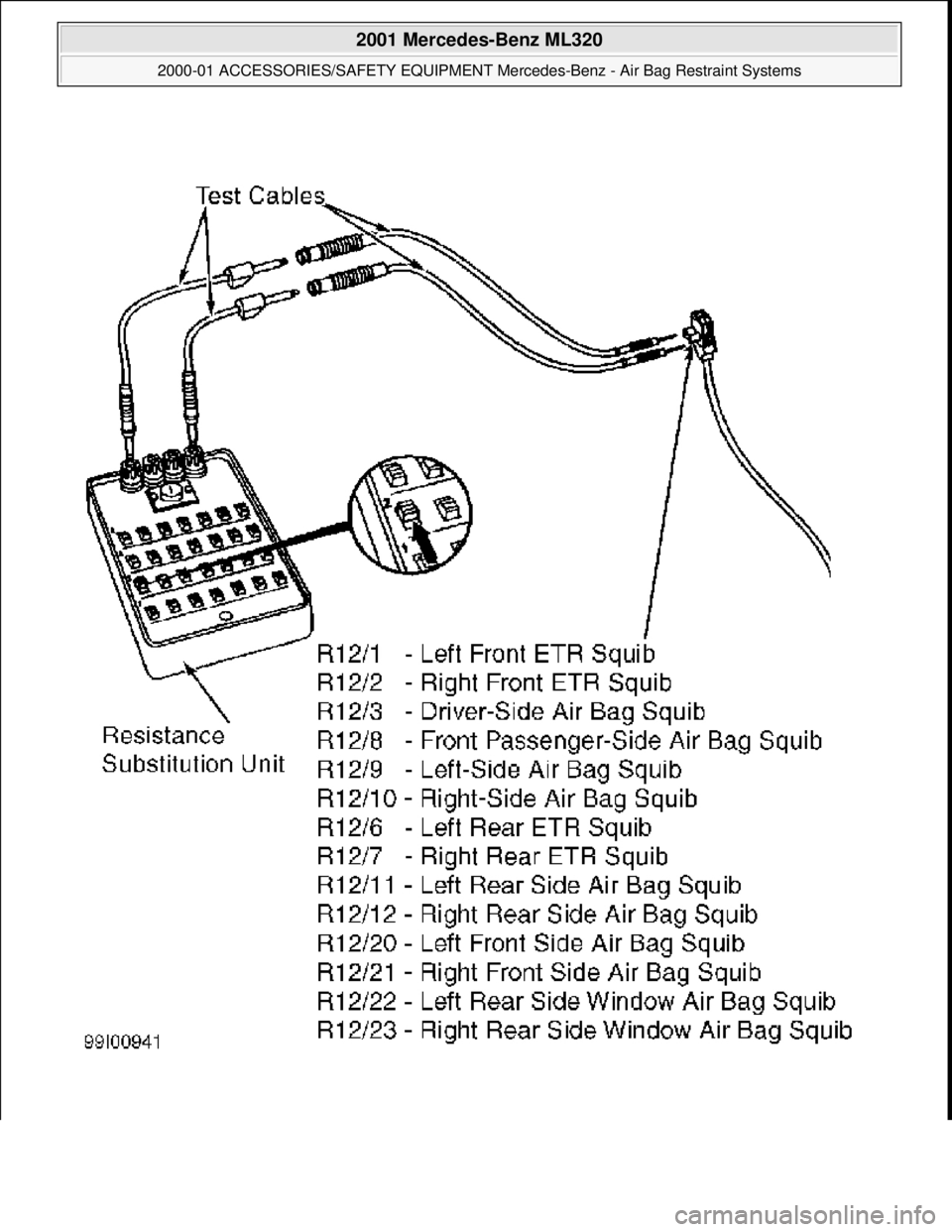

MERCEDES-BENZ ML320 1997 Complete Repair Manual Fig. 53: Connecting Resistance S ubstitution Unit (2000 Models) Courtesy of MERCEDES-BENZ OF NORTH AMERICA. 2001 Mercedes-Benz ML320 2000-01 ACCESSORIES/SAFETY EQUIPMENT Merc edes-Benz - Air Bag

Page 427 of 4133

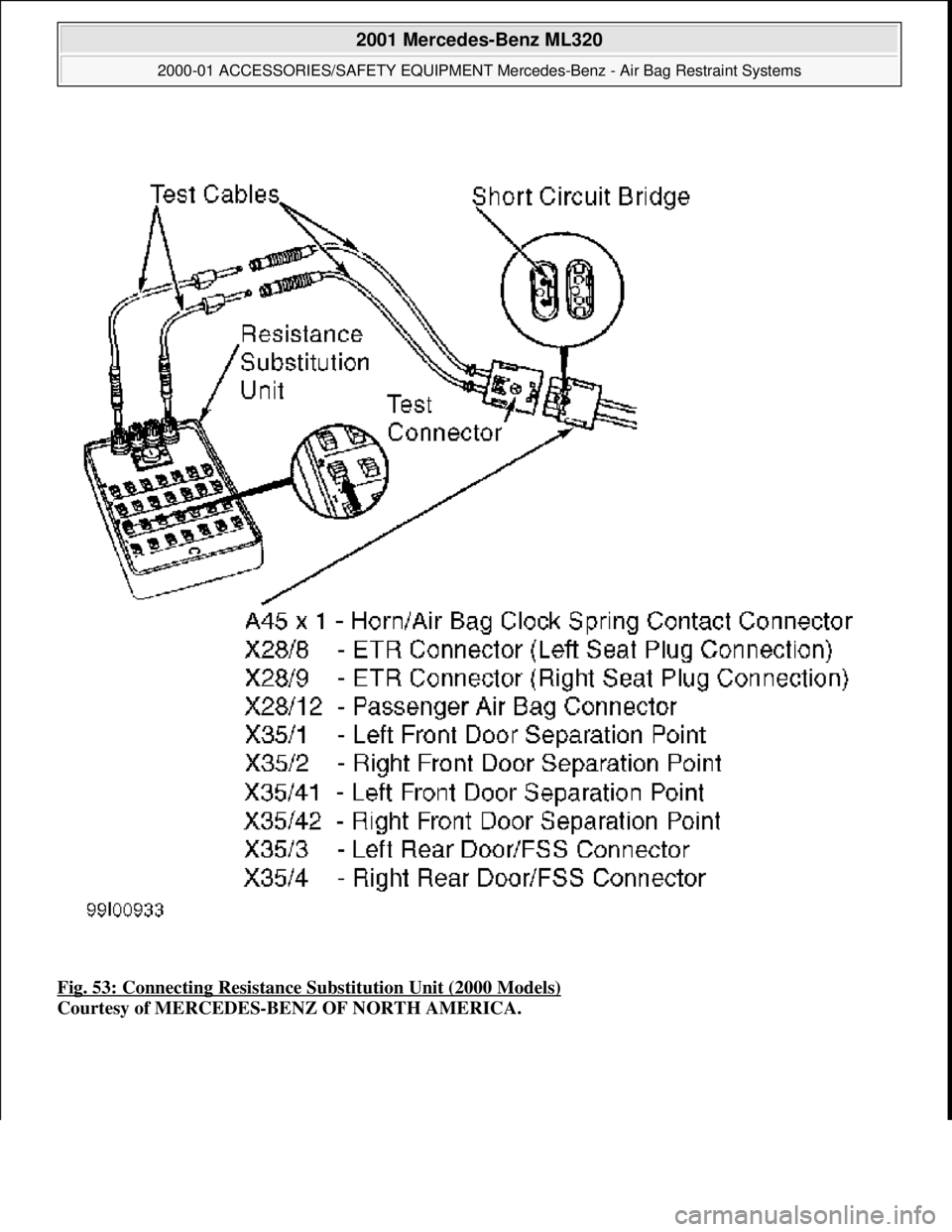

MERCEDES-BENZ ML320 1997 Complete Repair Manual Fig. 54: Connecting Resistance S ubstitution Unit (2000 Models) Courtesy of MERCEDES-BENZ OF NORTH AMERICA. 2001 Mercedes-Benz ML320 2000-01 ACCESSORIES/SAFETY EQUIPMENT Merc edes-Benz - Air Bag

Page 428 of 4133

MERCEDES-BENZ ML320 1997 Complete Repair Manual 2001 Mercedes-Benz ML320 2000-01 ACCESSORIES/SAFETY EQUIPMENT Merc edes-Benz - Air Bag Restraint Systems me Saturday, October 02, 2010 3:44:46 PMPage 64 © 2006 Mitchell Repair Information Comp

Page 429 of 4133

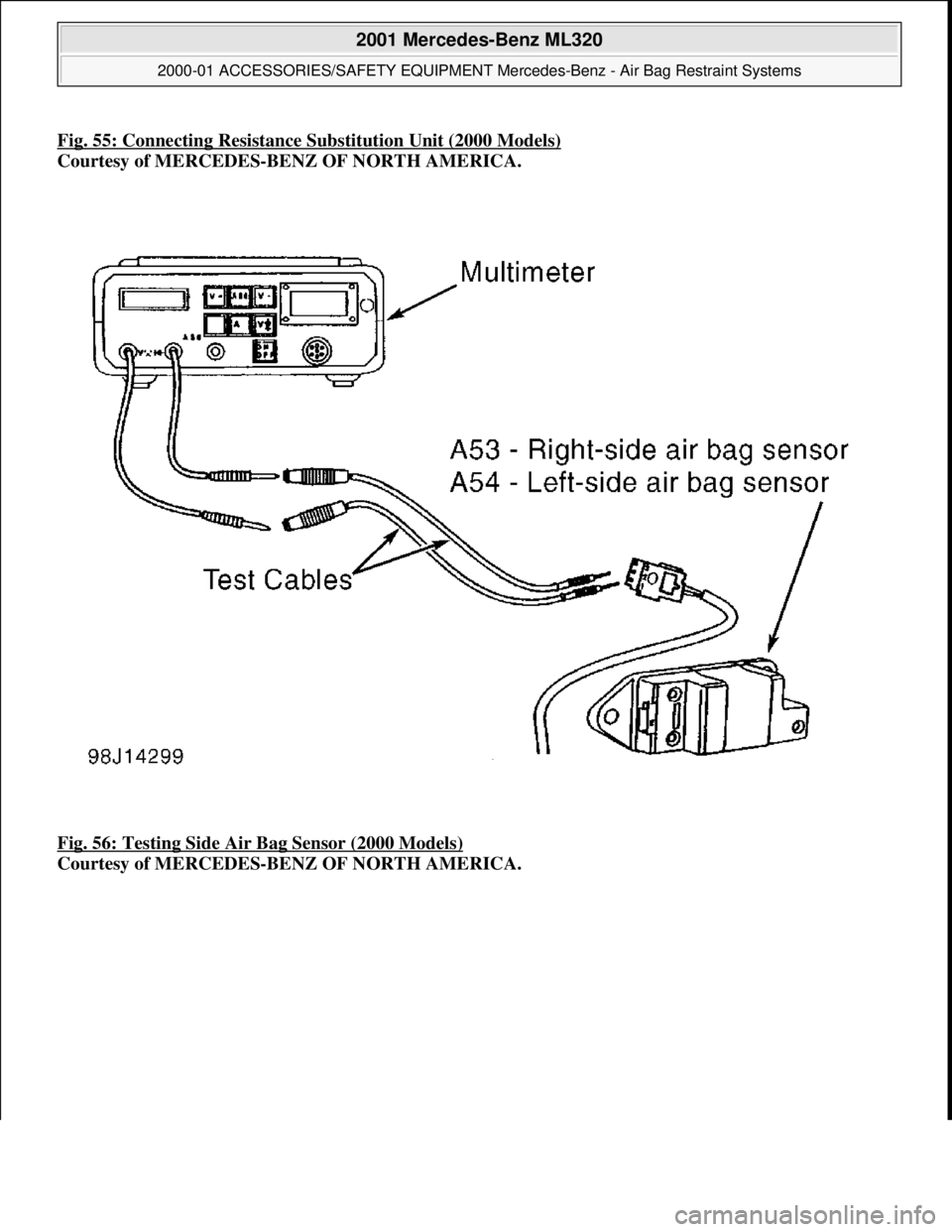

MERCEDES-BENZ ML320 1997 Complete Repair Manual Fig. 55: Connecting Resistance Substituti on Unit (2000 Models) Courtesy of MERCEDES-BENZ OF NORTH AMERICA. Fig. 56: Testing Side Air Bag Sensor (2000 Models) Courtesy of MERCEDES-BENZ OF NORT

Page 430 of 4133

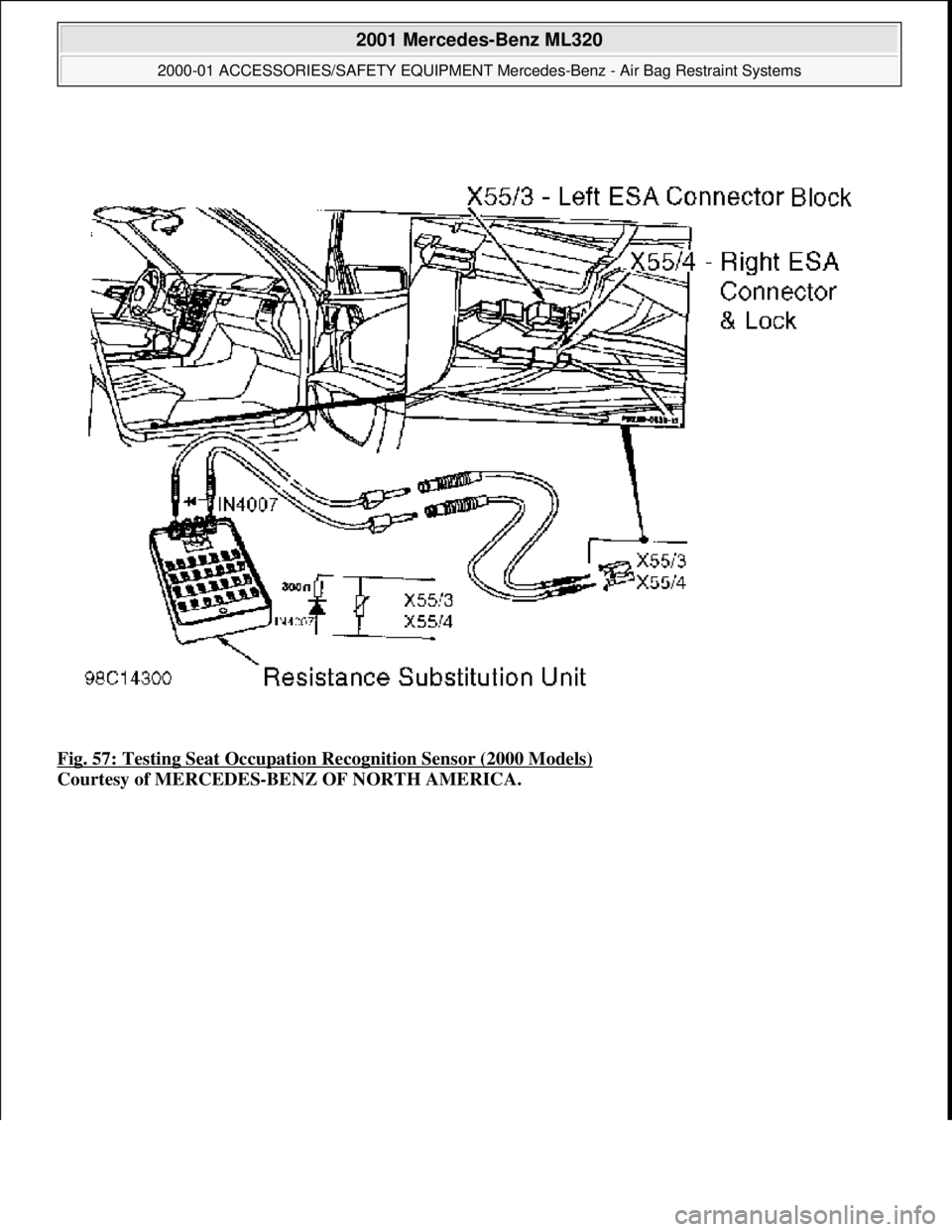

MERCEDES-BENZ ML320 1997 Complete Repair Manual Fig. 57: Testing Seat Occupation Recognition Sensor (2000 Models) Courtesy of MERCEDES-BENZ OF NORTH AMERICA. 2001 Mercedes-Benz ML320 2000-01 ACCESSORIES/SAFETY EQUIPMENT Merc edes-Benz - Air

Page 431 of 4133

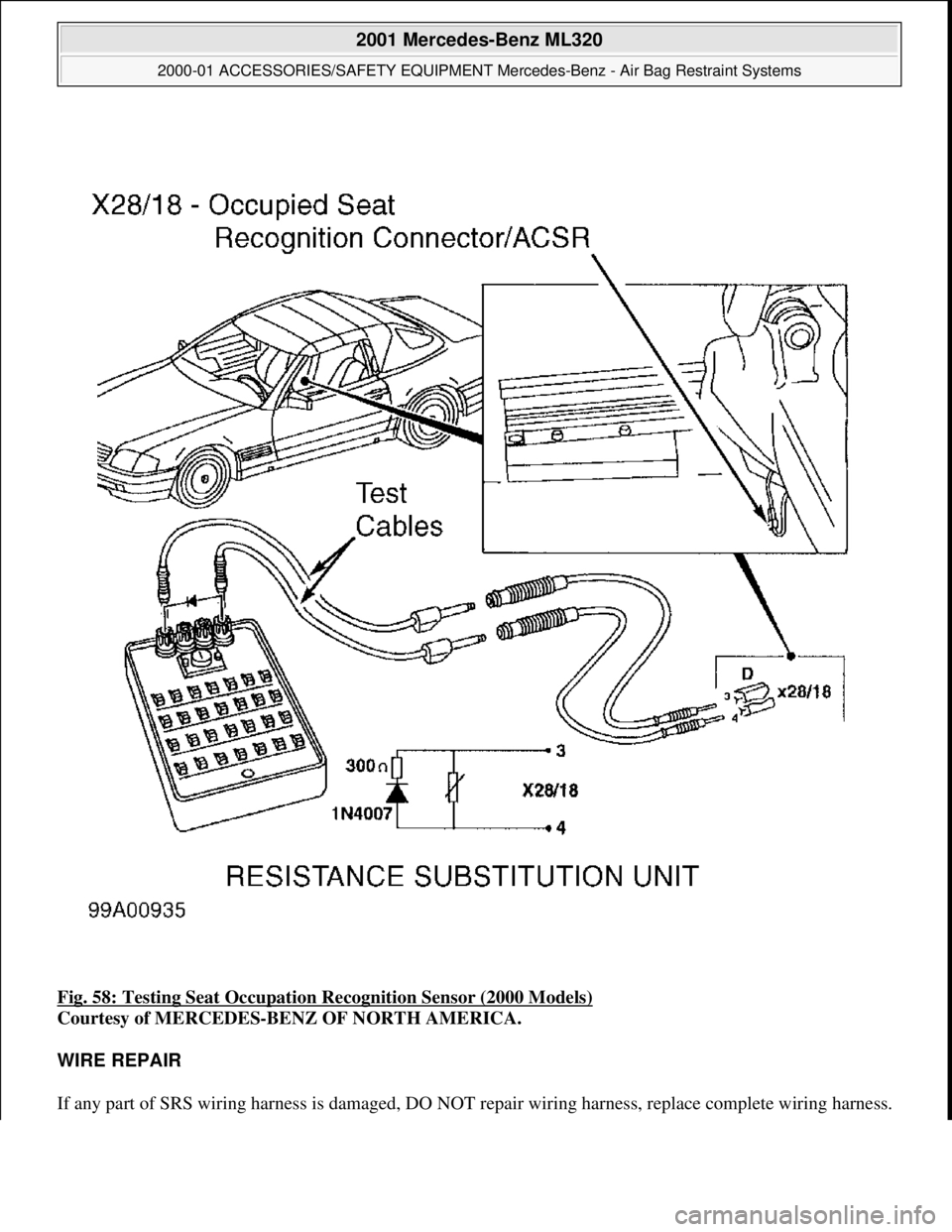

MERCEDES-BENZ ML320 1997 Complete Repair Manual Fig. 58: Testing Seat Occupation Recognition Sensor (2000 Models) Courtesy of MERCEDES-BENZ OF NORTH AMERICA. WIRE REPAIR If any part of SRS wiring harness is damaged, DO NOT repair wiring

Page 432 of 4133

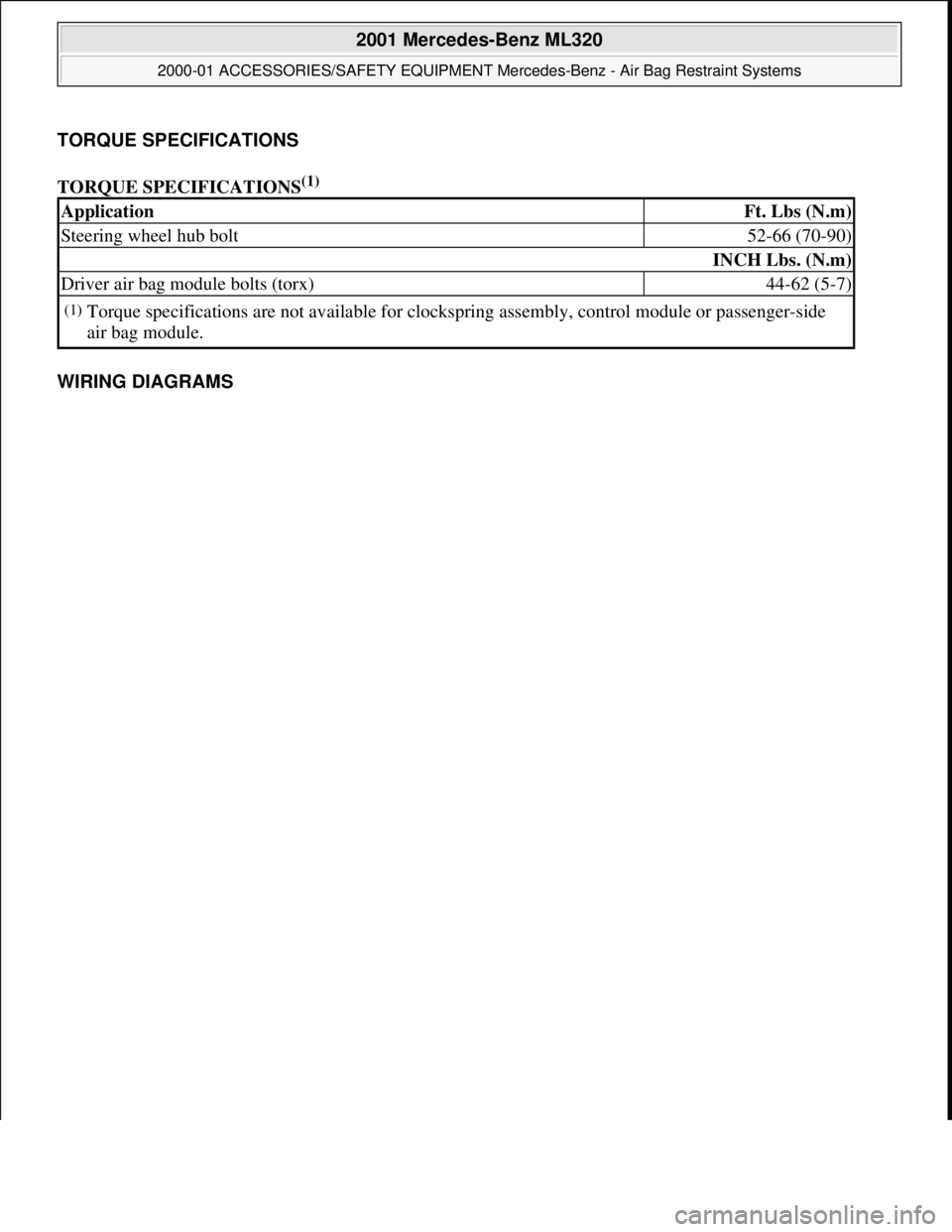

MERCEDES-BENZ ML320 1997 Complete Repair Manual TORQUE SPECIFICATIONS TORQUE SPECIFICATIONS (1) WIRING DIAGRAMS ApplicationFt. Lbs (N.m) Steering wheel hub bolt52-66 (70-90) INCH Lbs. (N.m) Driver air bag module bolts (torx)44-62 (5-7) (1)T
