MERCEDES-BENZ ML320 1997 Complete Repair Manual 2001 Mercedes-Benz ML320 1998-03 AUTOMATIC TRANSMISSIONS Complete Transmissions - ML 320 - 722.662 me Saturday, October 02, 2010 3:15:29 PMPage 264 © 2006 Mitchell Repair Information Company,

Page 1434 of 4133

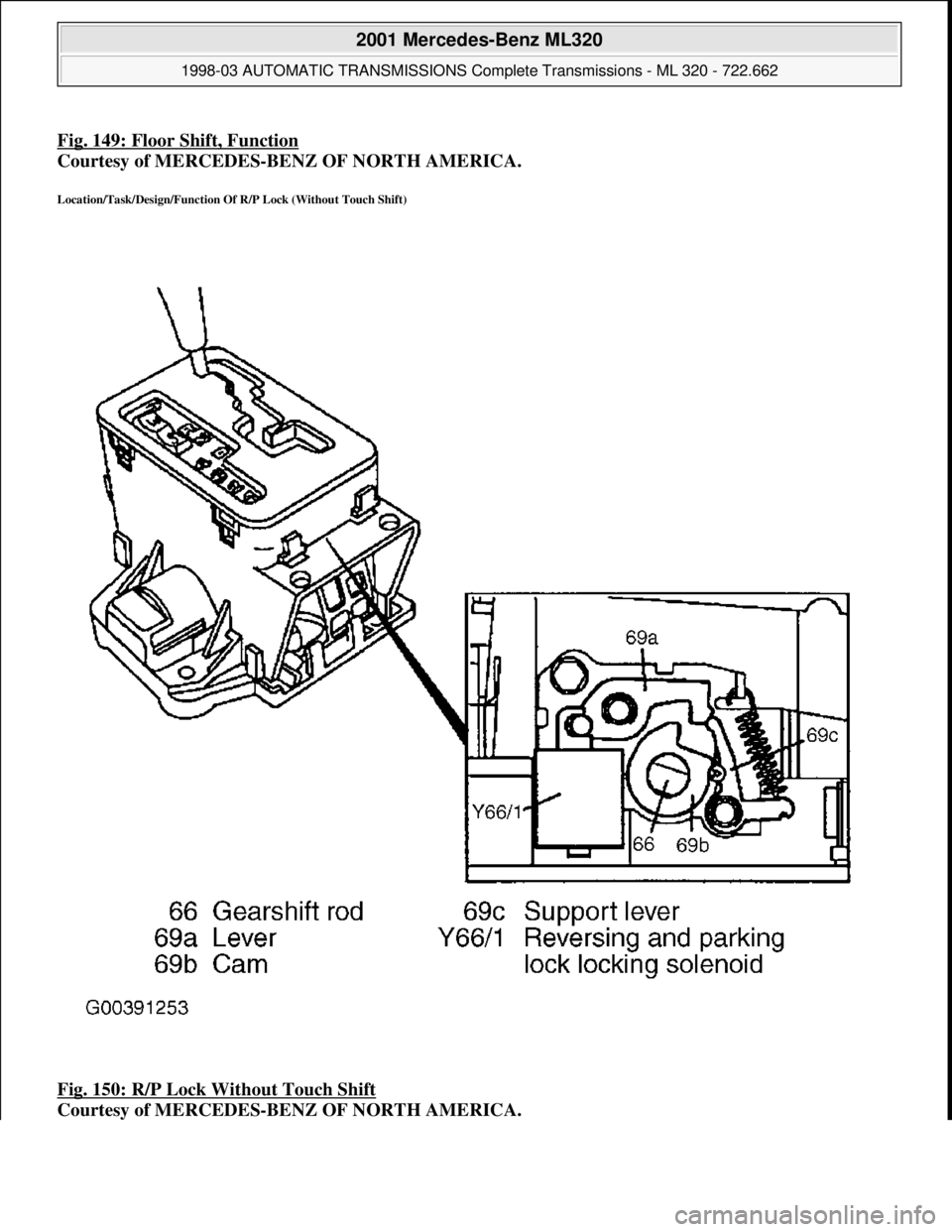

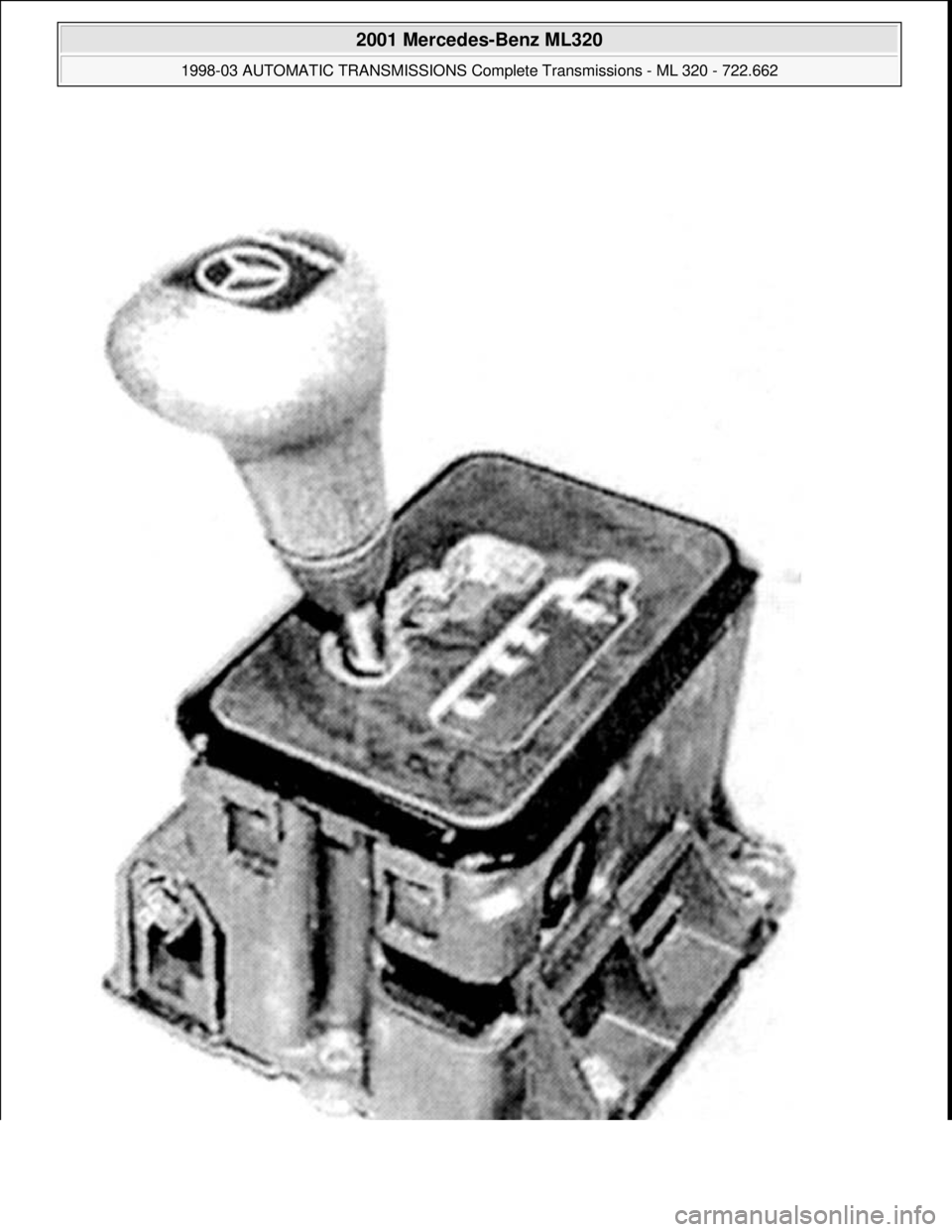

MERCEDES-BENZ ML320 1997 Complete Repair Manual Fig. 149: Floor Shift, Function Courtesy of MERCEDES-BENZ OF NORTH AMERICA. Location/Task/Design/Function Of R/P Lock (Without Touch Shift) Fig. 150: R/P Lock Without Touch Shift Courtesy of M

Page 1435 of 4133

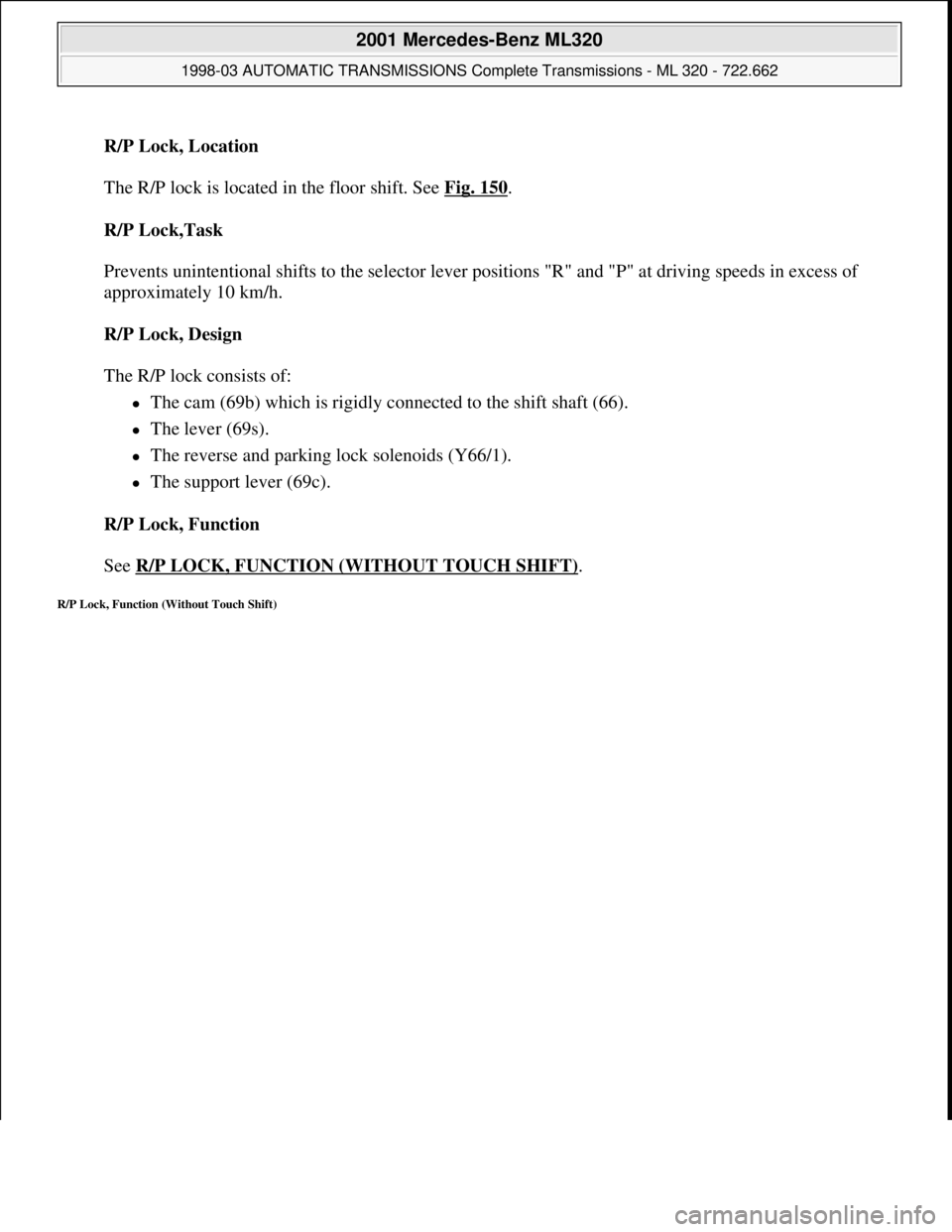

MERCEDES-BENZ ML320 1997 Complete Repair Manual R/P Lock, Location The R/P lock is located in the floor shift. See Fig. 150 . R/P Lock,Task Prevents unintentional shifts to the selector lever positions "R" and "P" at driving speeds in excess

Page 1436 of 4133

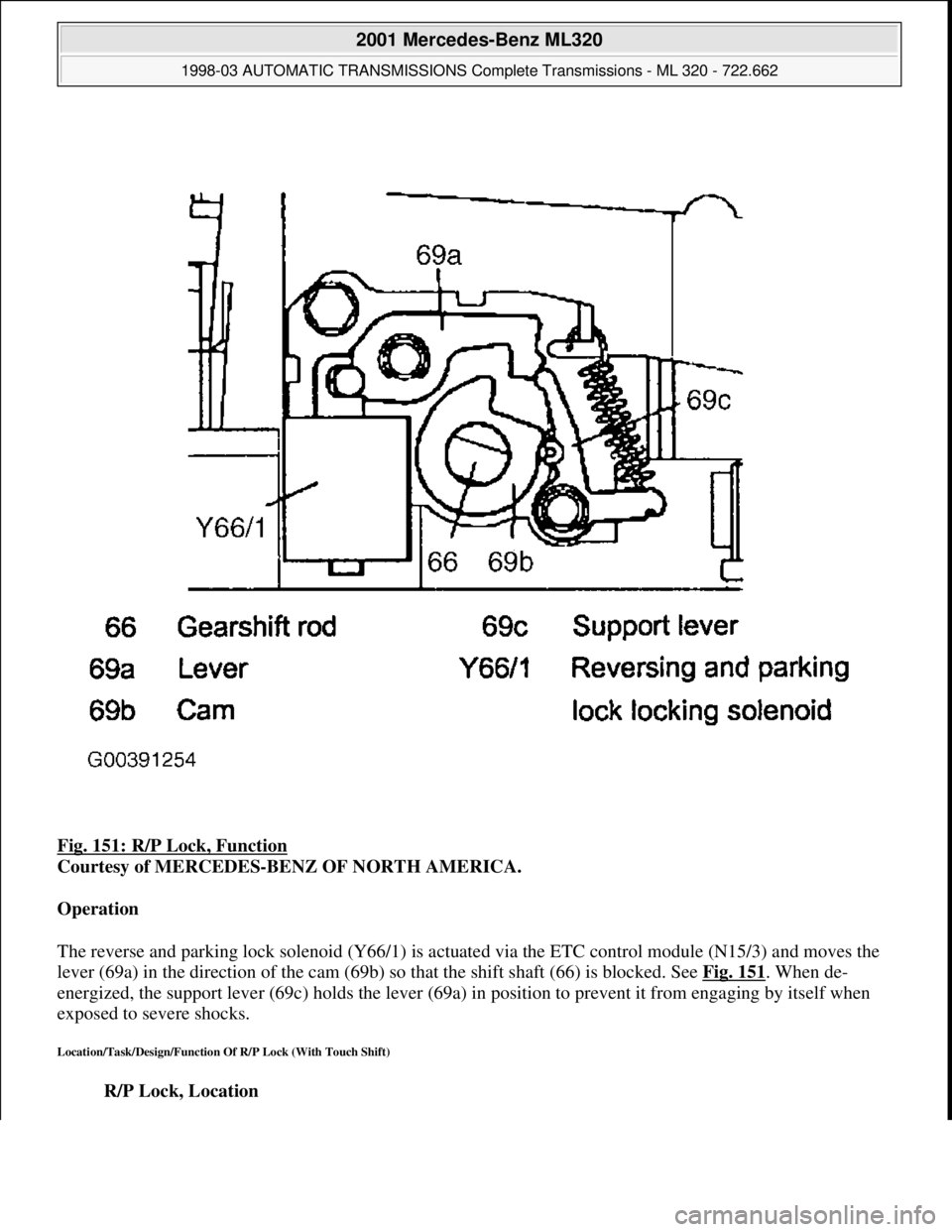

MERCEDES-BENZ ML320 1997 Complete Repair Manual Fig. 151: R/P Lock, Function Courtesy of MERCEDES-BENZ OF NORTH AMERICA. Operation The reverse and parking lock solenoid (Y66/1) is actuated via the ETC control module (N15/3) and moves the lever

Page 1437 of 4133

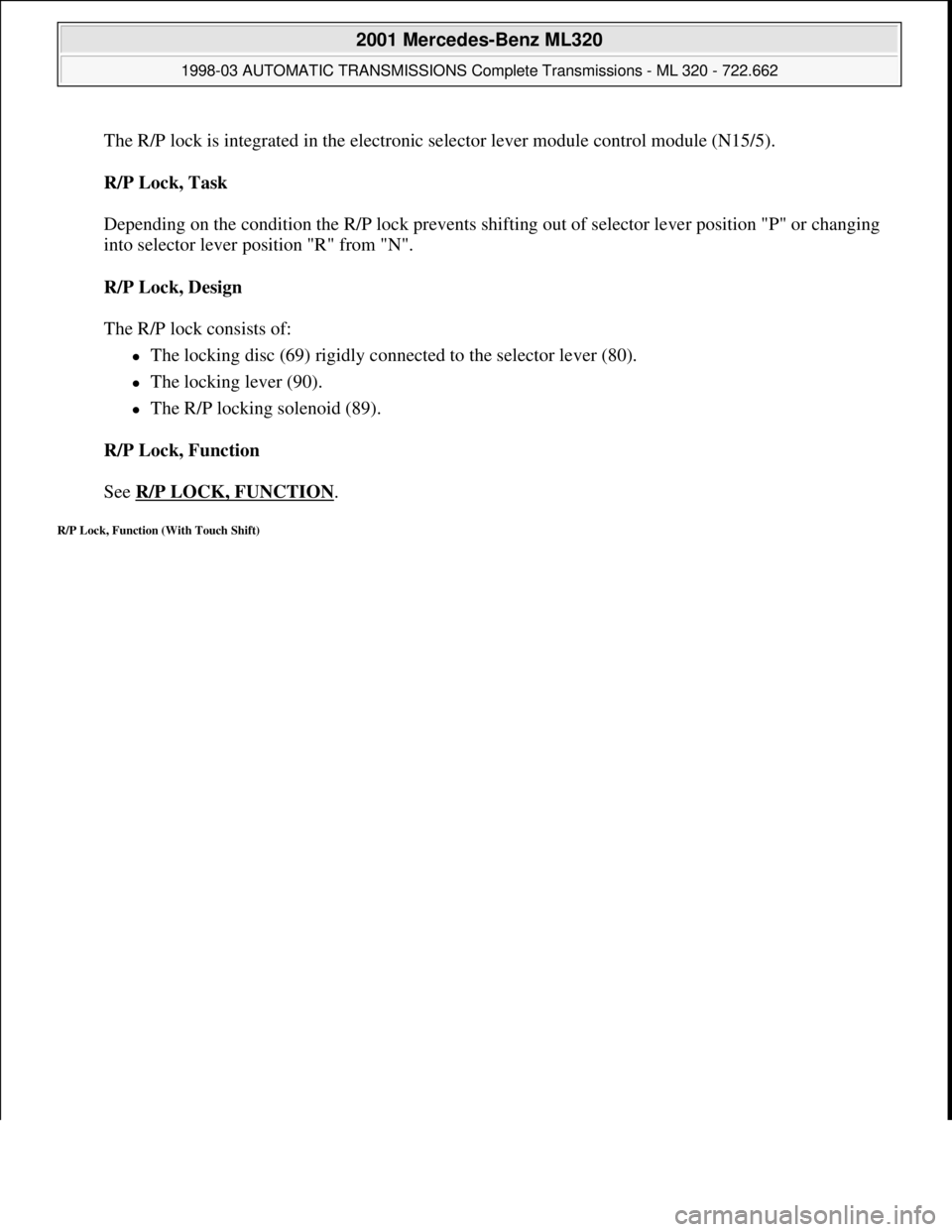

MERCEDES-BENZ ML320 1997 Complete Repair Manual The R/P lock is integrated in the electronic selector lever module control module (N15/5). R/P Lock, Task Depending on the condition the R/P lock prevents shifting out of selector lever position "

Page 1438 of 4133

MERCEDES-BENZ ML320 1997 Complete Repair Manual 2001 Mercedes-Benz ML320 1998-03 AUTOMATIC TRANSMISSIONS Complete Transmissions - ML 320 - 722.662 me Saturday, October 02, 2010 3:15:29 PMPage 269 © 2006 Mitchell Repair Information Company,

Page 1439 of 4133

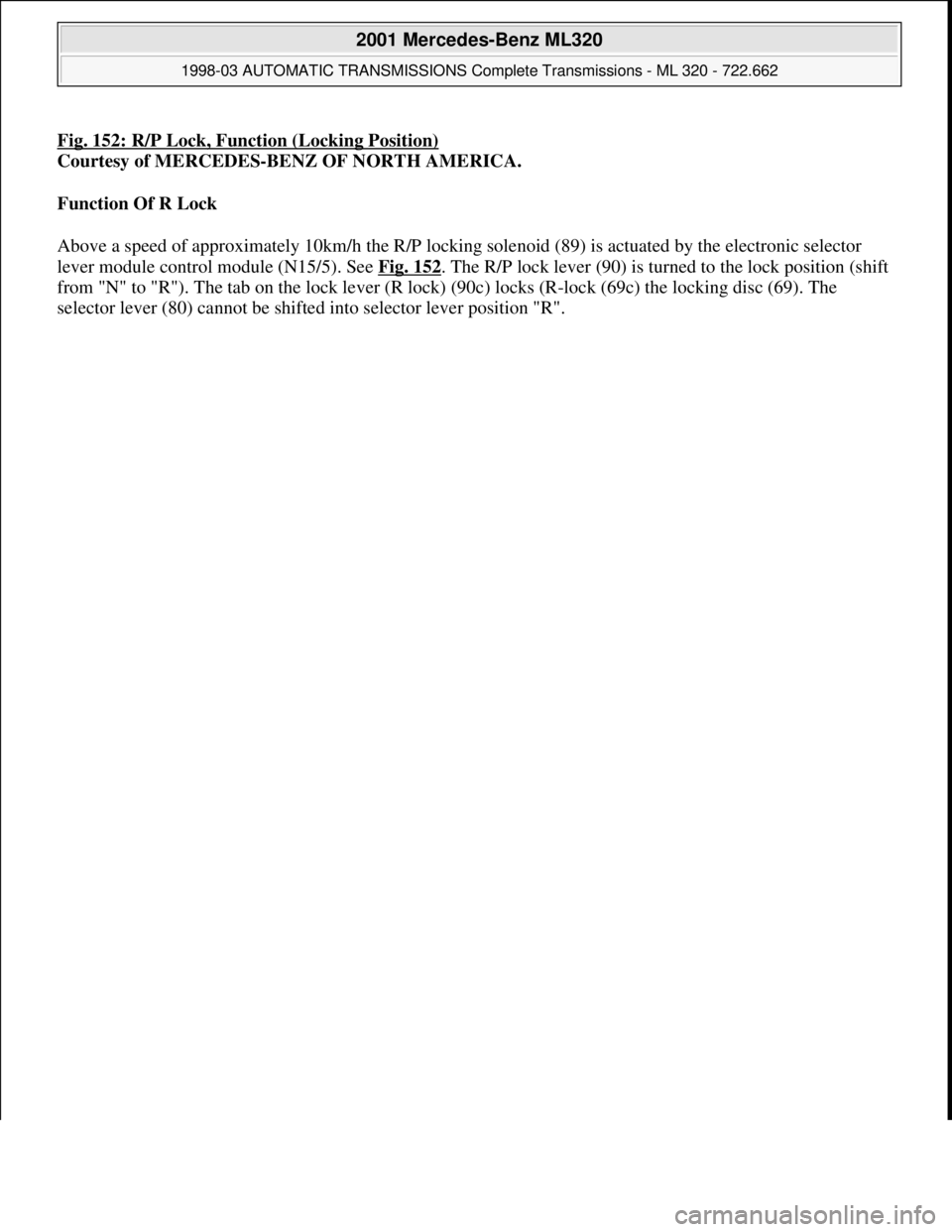

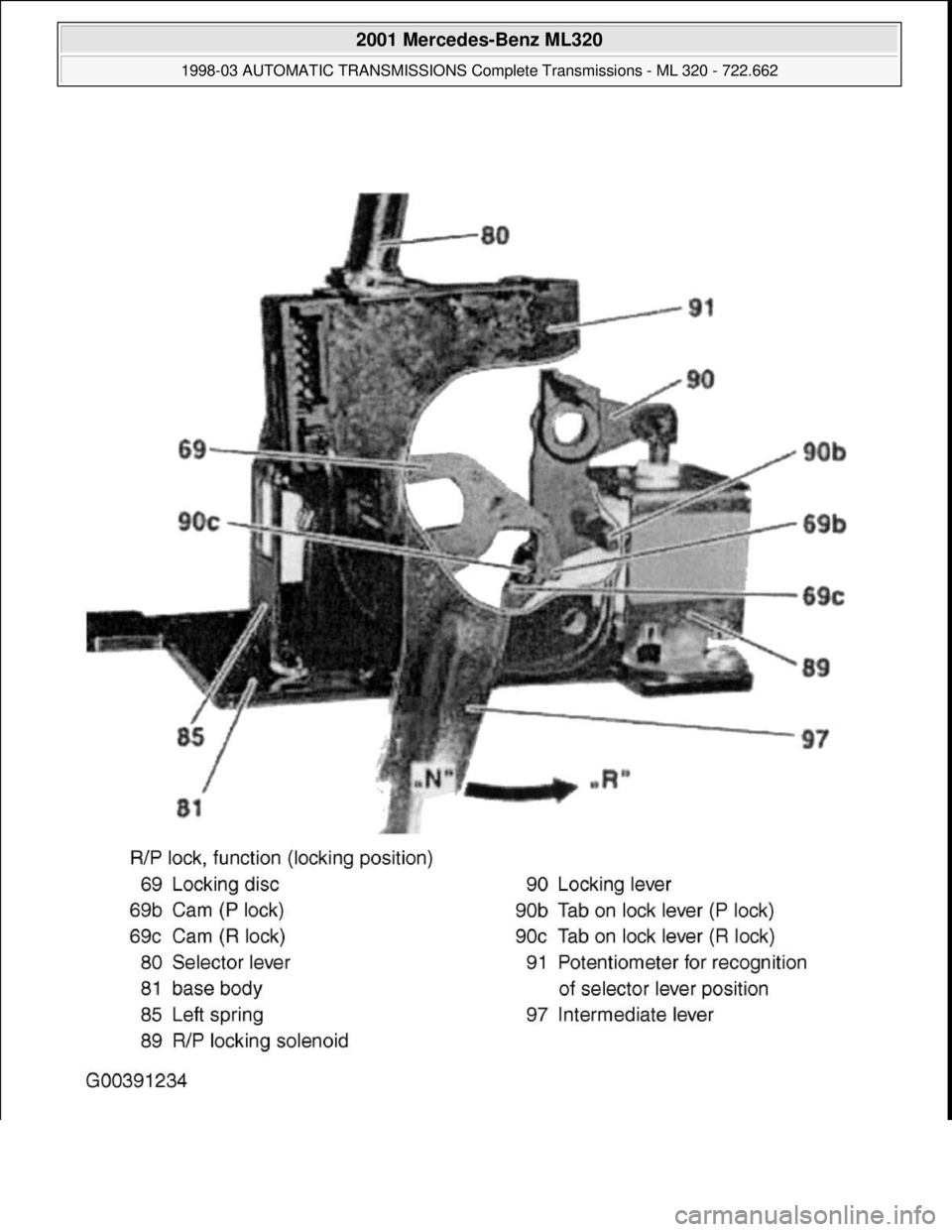

MERCEDES-BENZ ML320 1997 Complete Repair Manual Fig. 152: R/P Lock, Function (Locking Position) Courtesy of MERCEDES-BENZ OF NORTH AMERICA. Function Of R Lock Above a speed of approximately 10km/h the R/P locking solenoid (89) is actuated by the

Page 1440 of 4133

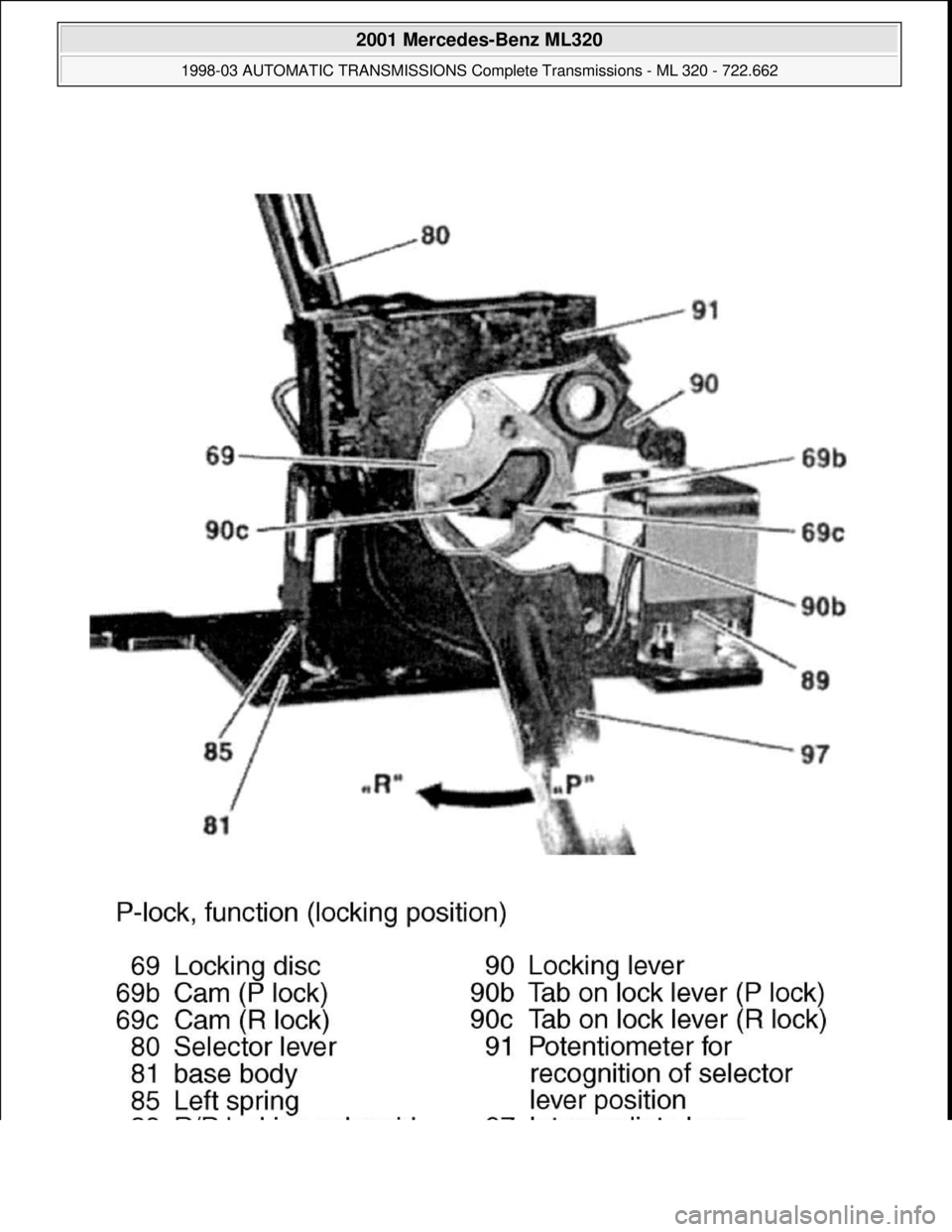

MERCEDES-BENZ ML320 1997 Complete Repair Manual 2001 Mercedes-Benz ML320 1998-03 AUTOMATIC TRANSMISSIONS Complete Transmissions - ML 320 - 722.662 me Saturday, October 02, 2010 3:15:29 PMPage 271 © 2006 Mitchell Repair Information Company,
