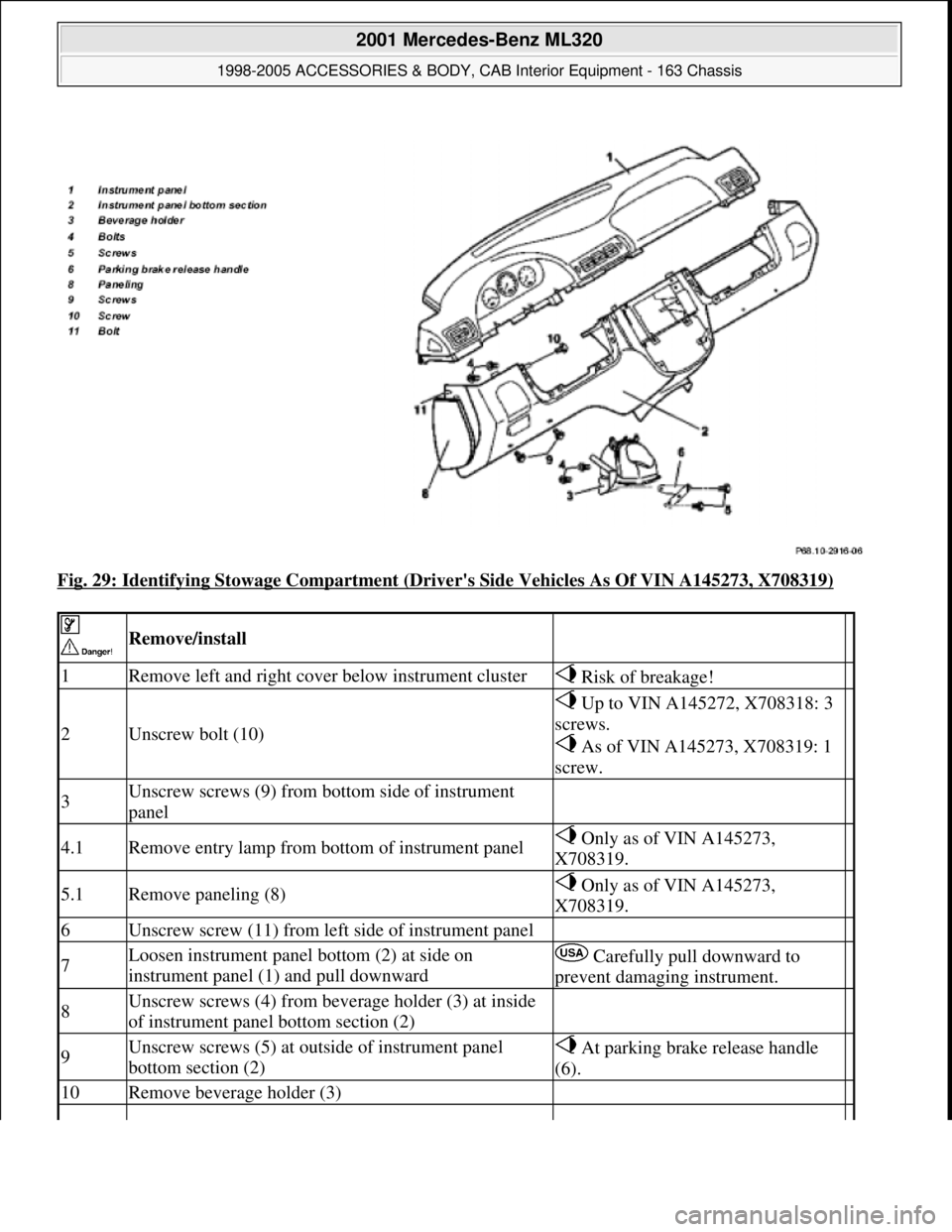

MERCEDES-BENZ ML320 1997 Complete Repair Manual Fig. 29: Identifying Stowage Compartment (Drivers Side Vehicles As Of VIN A145273, X708319) Remove/install 1Remove left and right cover below instrument cluster Risk of breakage! 2Unscrew bolt

Page 3554 of 4133

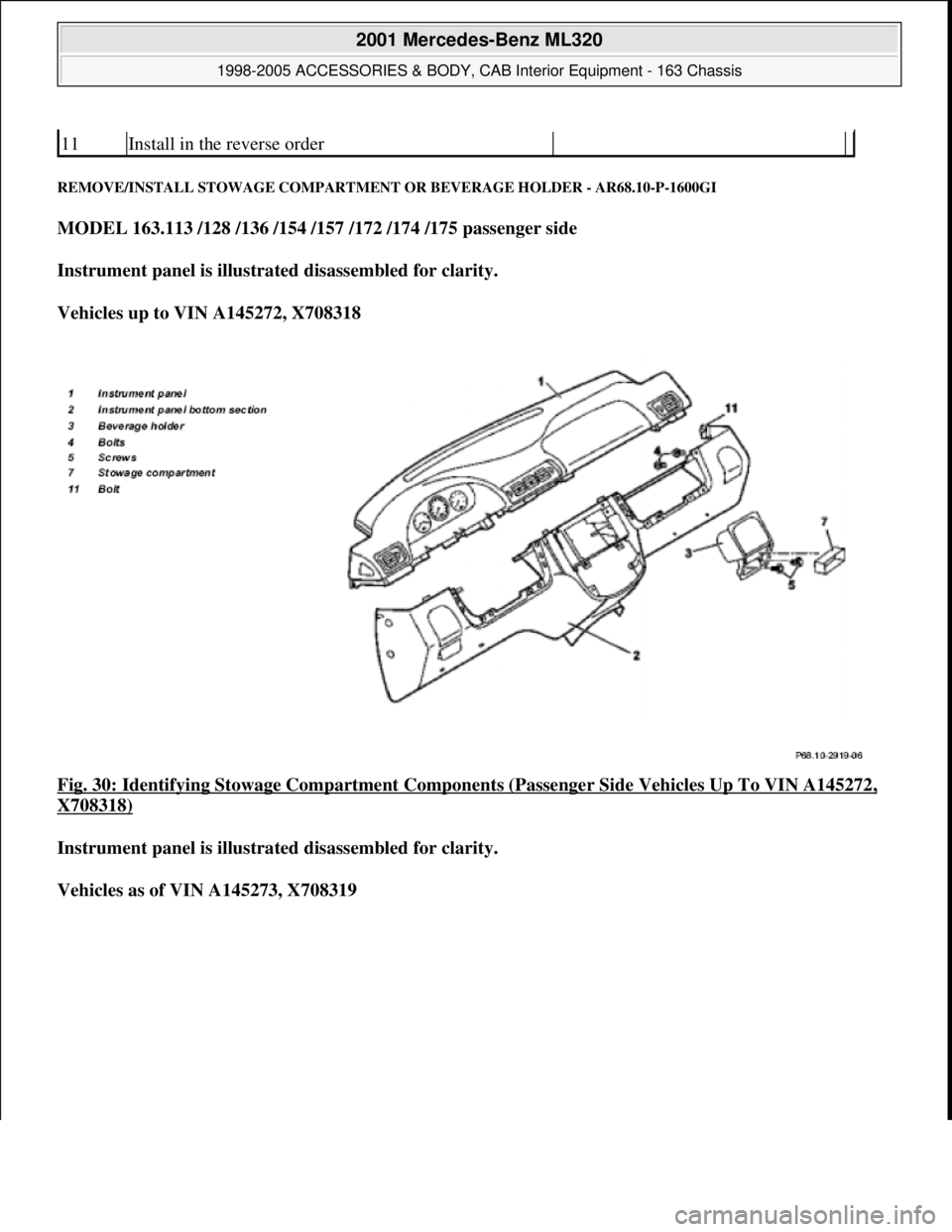

MERCEDES-BENZ ML320 1997 Complete Repair Manual REMOVE/INSTALL STOWAGE COMPARTMENT OR BEVERAGE HOLDER - AR68.10-P-1600GI MODEL 163.113 /128 /136 /154 /157 /172 /174 /175 passenger side Instrument panel is illustrated disassembled for clarity.

Page 3555 of 4133

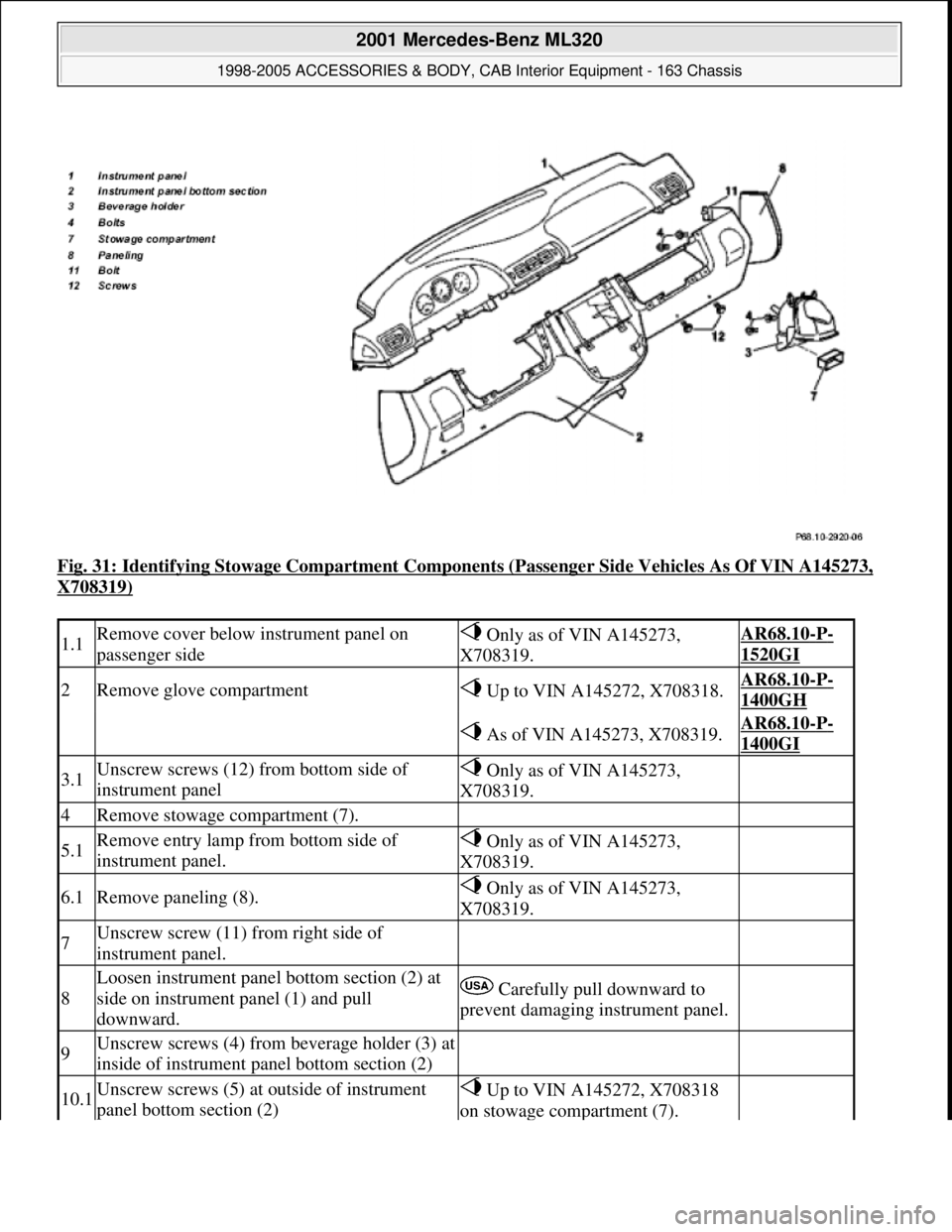

MERCEDES-BENZ ML320 1997 Complete Repair Manual Fig. 31: Identifying Stowage Compartment Components (Passenger Side Vehicles As Of VIN A145273, X708319) 1.1Remove cover below instrument panel on passenger side Only as of VIN A145273, X708319.AR

Page 3556 of 4133

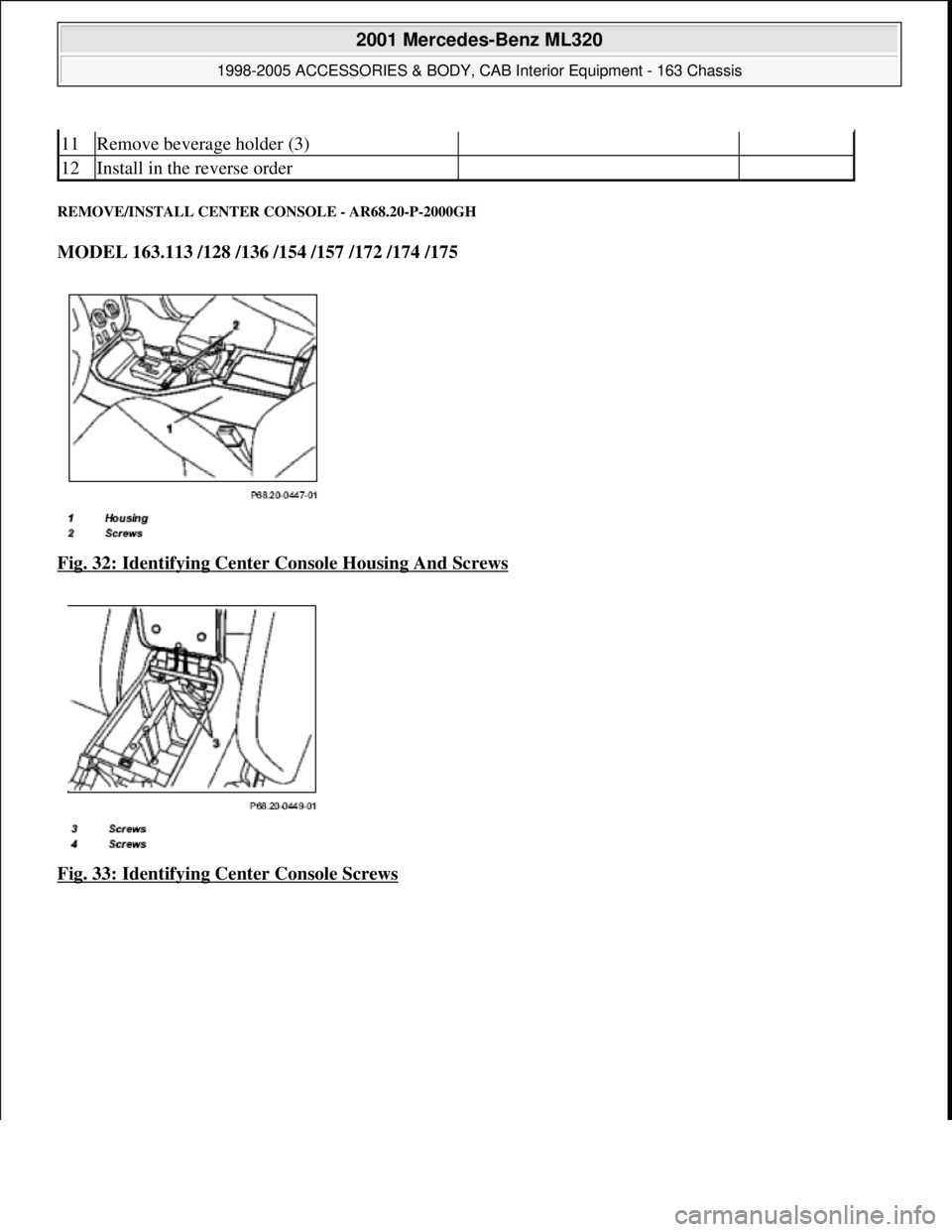

MERCEDES-BENZ ML320 1997 Complete Repair Manual REMOVE/INSTALL CENTER CONSOLE - AR68.20-P-2000GH MODEL 163.113 /128 /136 /154 /157 /172 /174 /175 Fig. 32: Identifying Center Console Housing And Screws Fig. 33: Identifying Center Console Scr

Page 3557 of 4133

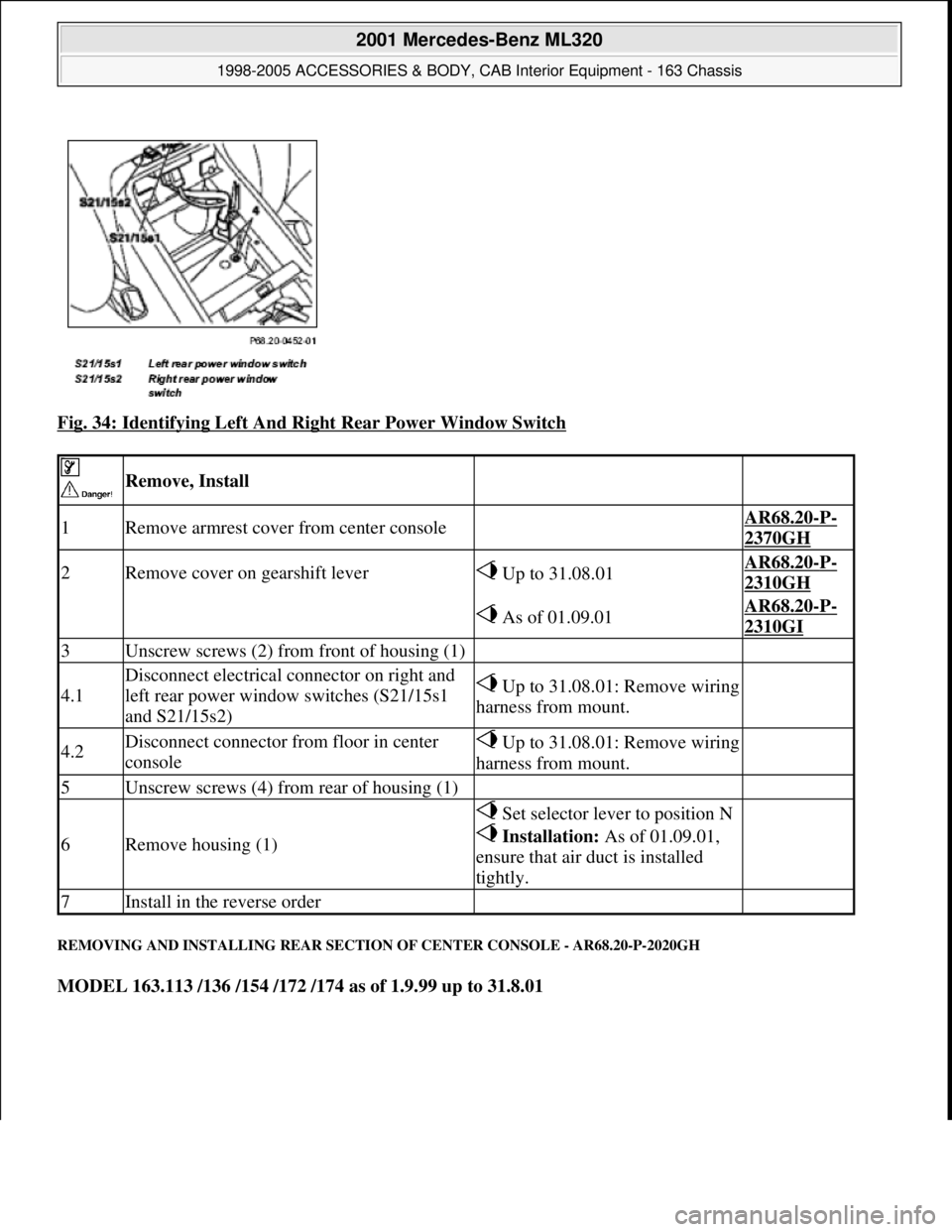

MERCEDES-BENZ ML320 1997 Complete Repair Manual Fig. 34: Identifying Left And Right Rear Power Window Switch REMOVING AND INSTALLING REAR SECTION OF CENTER CONSOLE - AR68.20-P-2020GH MODEL 163.113 /136 /154 /172 /174 as of 1.9.99 up to 31.8.01

Page 3558 of 4133

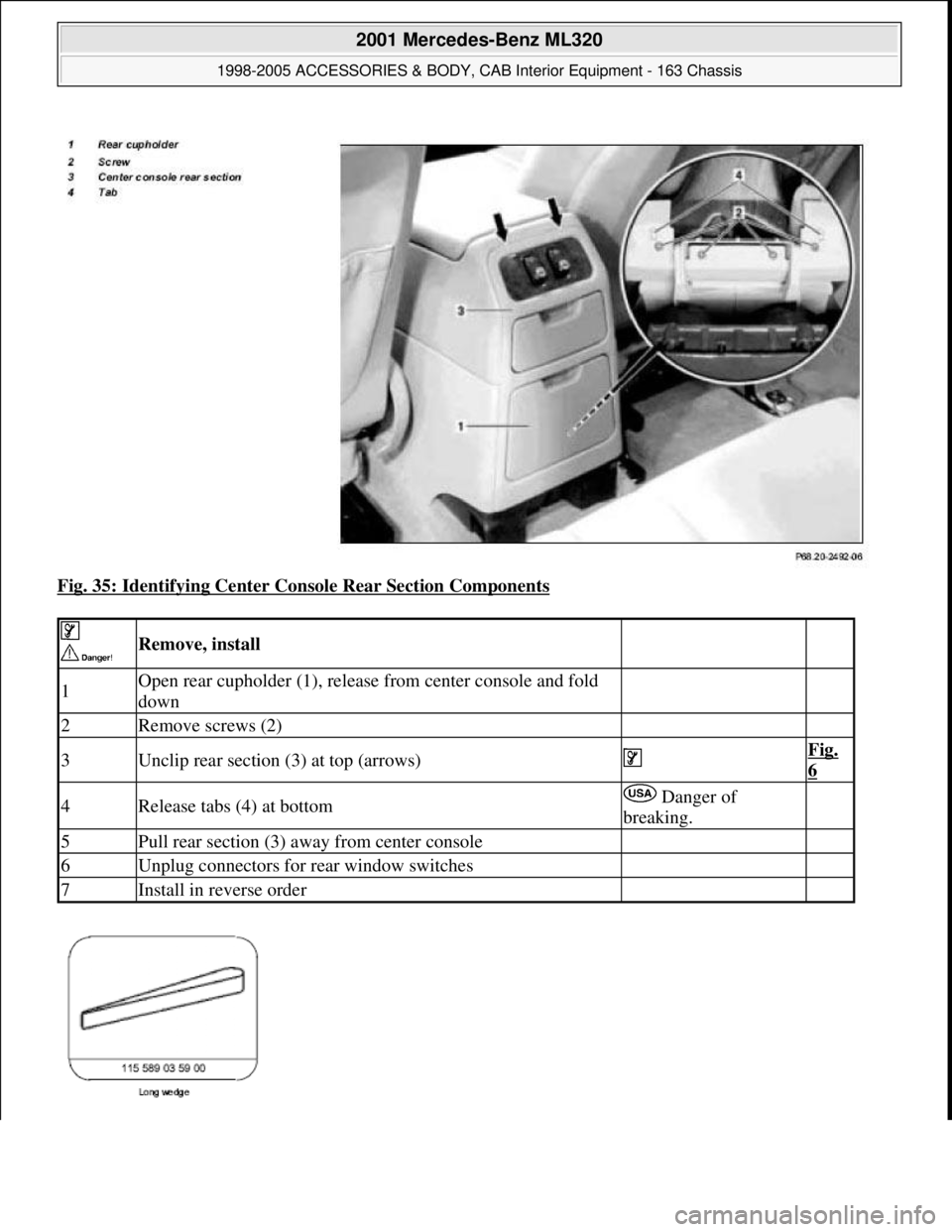

MERCEDES-BENZ ML320 1997 Complete Repair Manual Fig. 35: Identifying Center Console Rear Section Components Remove, install 1Open rear cupholder (1), release from center console and fold down 2Remove screws (2) 3Unclip rear section (3) a

Page 3559 of 4133

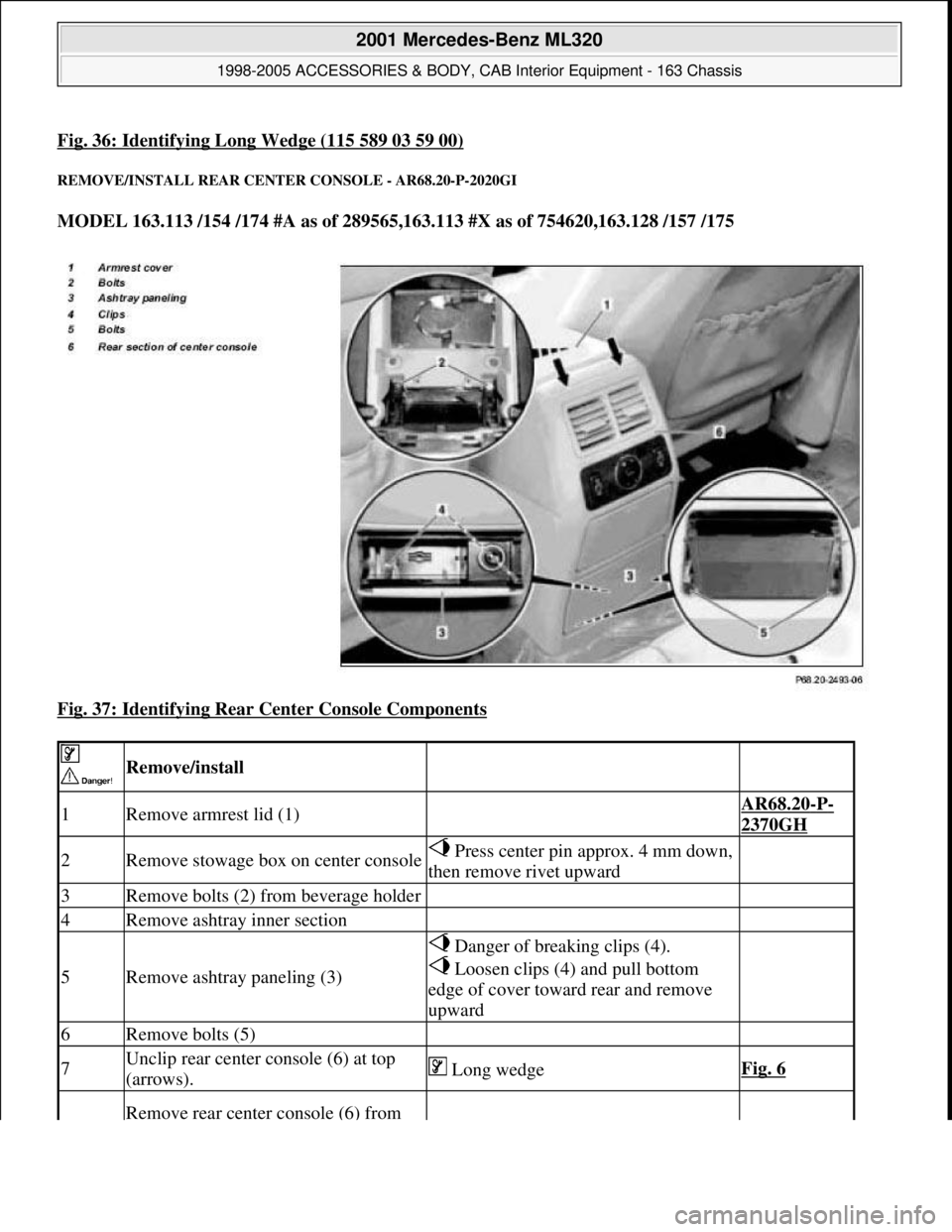

MERCEDES-BENZ ML320 1997 Complete Repair Manual Fig. 36: Identifying Long Wedge (115 589 03 59 00) REMOVE/INSTALL REAR CENTER CONSOLE - AR68.20-P-2020GI MODEL 163.113 /154 /174 #A as of 289565,163.113 #X as of 754620,163.128 /157 /175 Fig. 37: I

Page 3560 of 4133

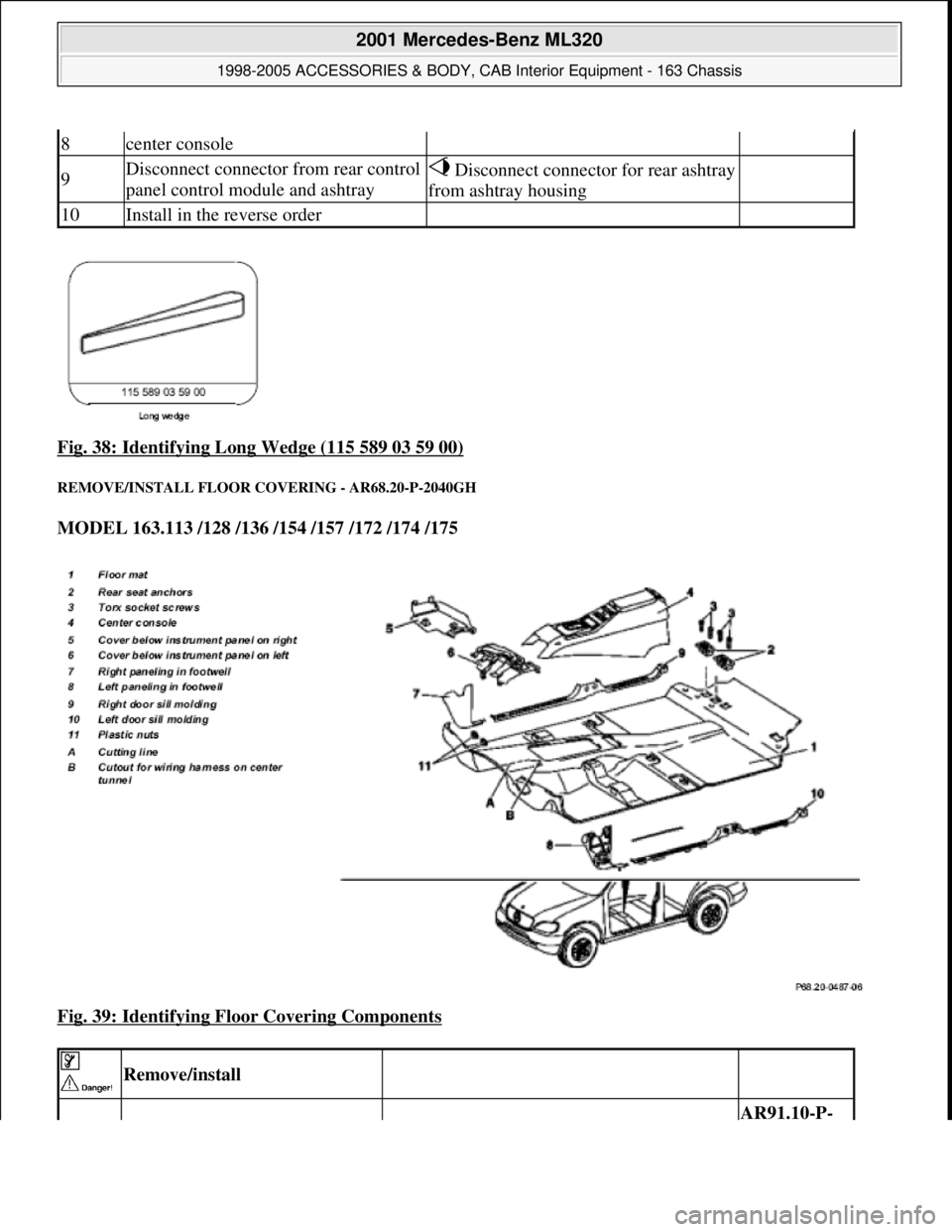

MERCEDES-BENZ ML320 1997 Complete Repair Manual Fig. 38: Identifying Long Wedge (115 589 03 59 00) REMOVE/INSTALL FLOOR COVE RING - AR68.20-P-2040GH MODEL 163.113 /128 /136 /154 /157 /172 /174 /175 Fig. 39: Identifying Floor Covering Componen
