Page 1481 of 4133
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Structure
The shift pressure regulating solenoid valve (Y3/6y2) has an interference fit and is sealed off to the valve body
of the shift plate (2a) by a seal (arrow). See Fig. 175
.
The contact springs (32) on the shift pressure solenoid valve (Y3/6y2) engage in a slot in the conductor tracks
(33). The force of the contact sp ring (32) ensures safe contacts.
Shift Pressure Regulating Valve, Location/T ask/Function, Also Float, Location/Function

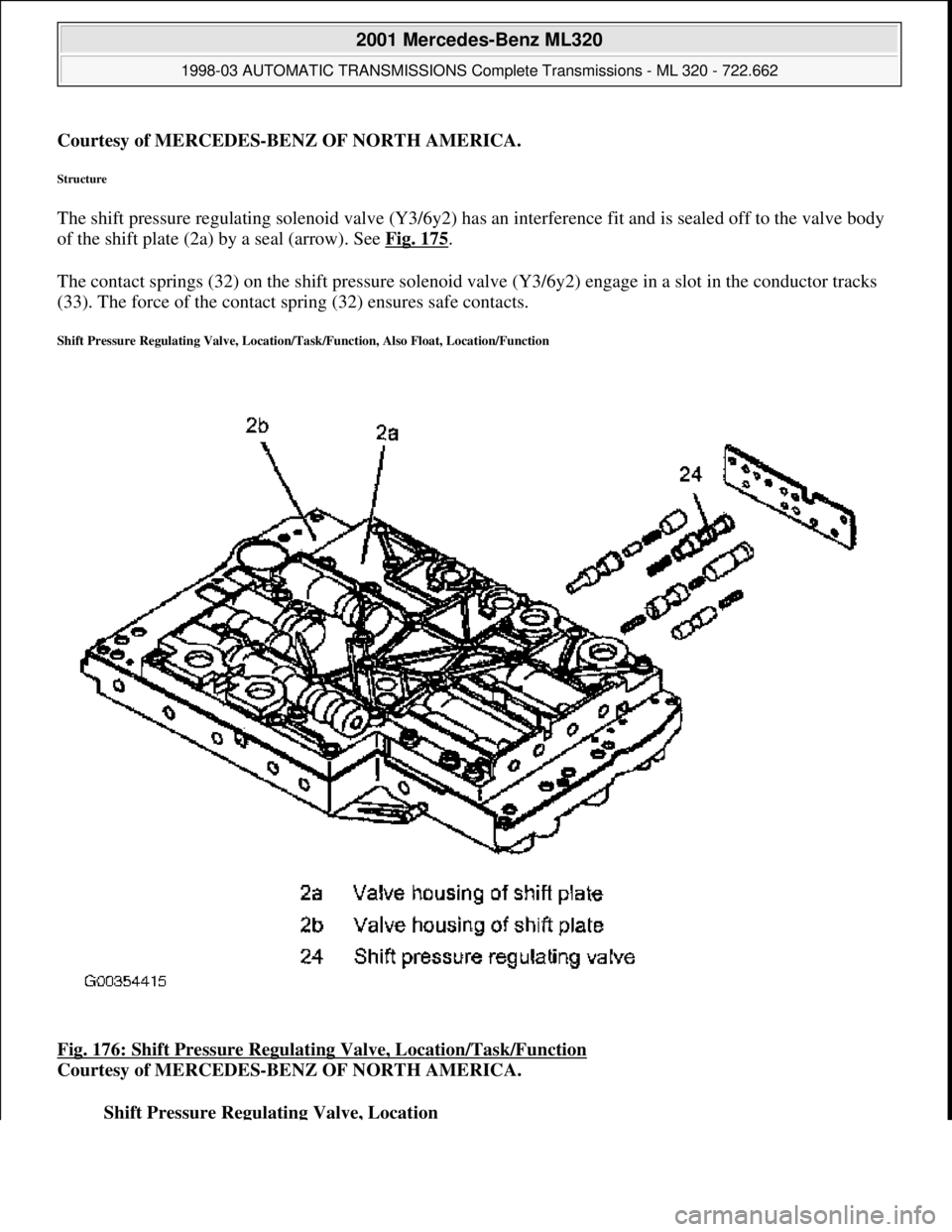

Fig. 176: Shift Pressure Regulating Valve, Location/Task/Function
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Shift Pressure Regulating Valve, Location
2001 Mercedes-Benz ML320
1998-03 AUTOMATIC TRANSMI SSIONS Complete Transmissions - ML 320 - 722.662
me
Saturday, October 02, 2010 3:15:30 PMPage 312 © 2006 Mitchell Repair Information Company, LLC.
Page 1482 of 4133

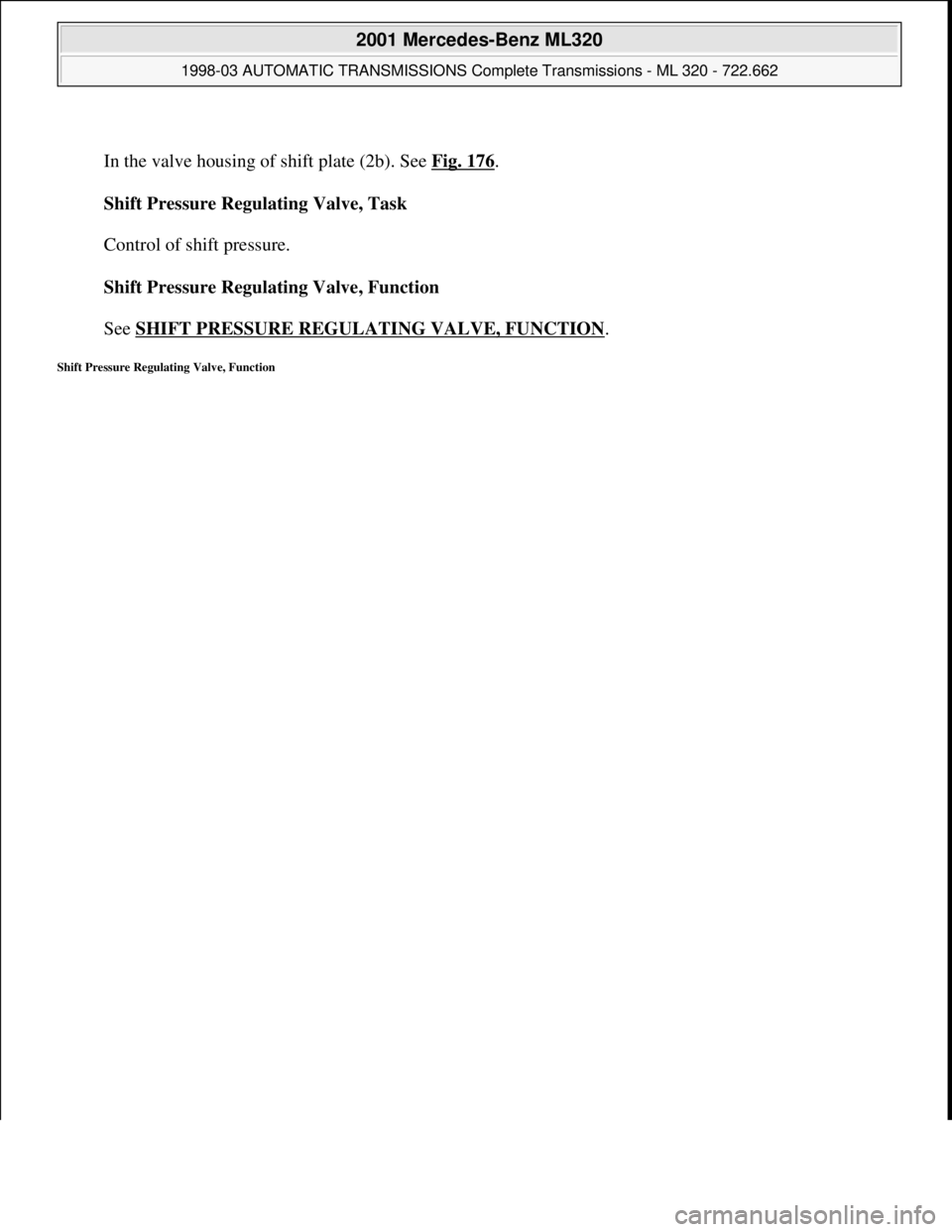

In the valve housing of shift plate (2b). See Fig. 176
.
Shift Pressure Regulating Valve, Task
Control of shift pressure.
Shift Pressure Regulating Valve, Function
See SHIFT PRESSURE REGULATING VALVE, FUNCTION
.
Shift Pressure Regulating Valve, Function
2001 Mercedes-Benz ML320
1998-03 AUTOMATIC TRANSMISSIONS Complete Transmissions - ML 320 - 722.662
me
Saturday, October 02, 2010 3:15:30 PMPage 313 © 2006 Mitchell Repair Information Company, LLC.
Page 1483 of 4133
2001 Mercedes-Benz ML320
1998-03 AUTOMATIC TRANSMISSIONS Complete Transmissions - ML 320 - 722.662
me
Saturday, October 02, 2010 3:15:30 PMPage 314 © 2006 Mitchell Repair Information Company, LLC.
Page 1484 of 4133

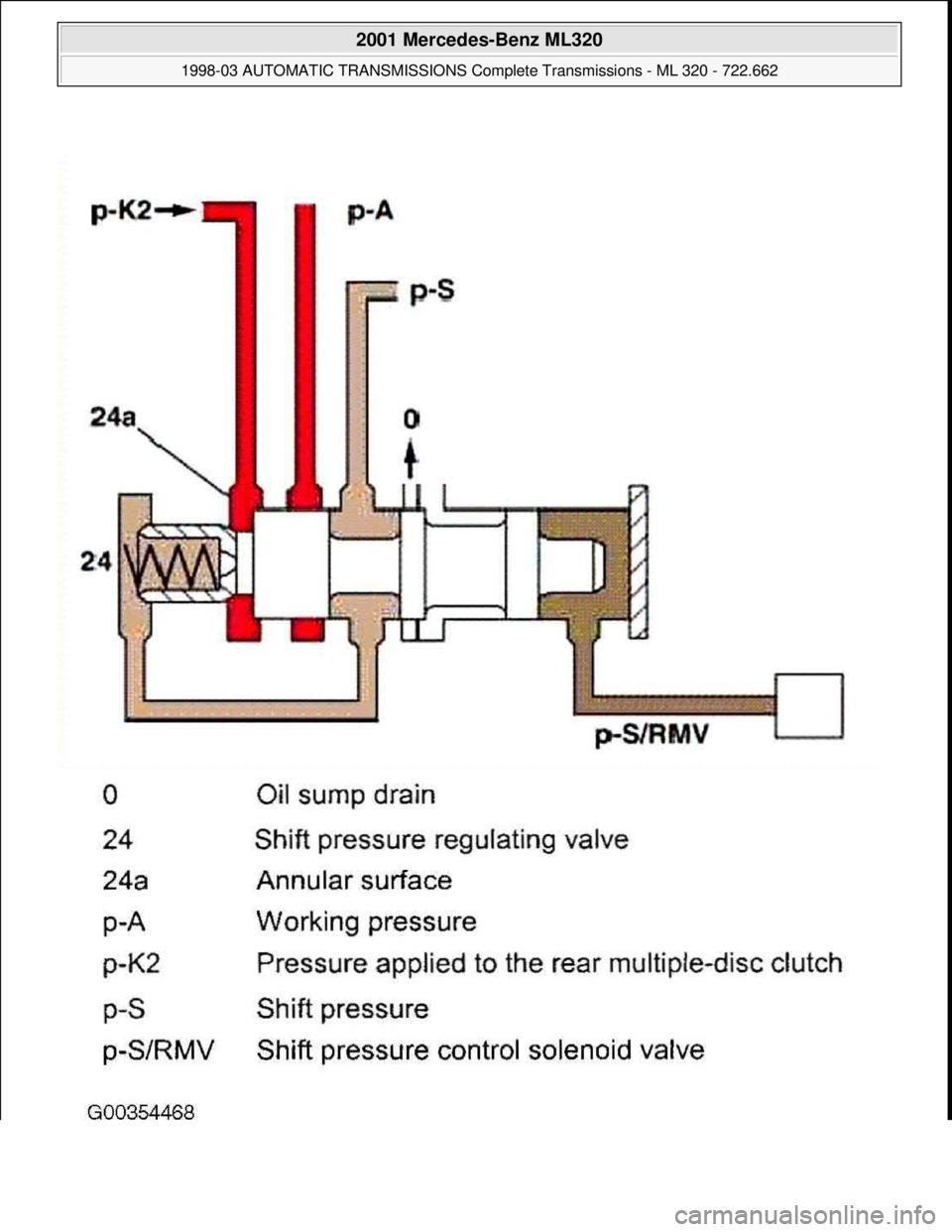

Fig. 177: Shift Pressure Regulating Valve, Function
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Operation
The shift pressure (p-S) is determines by the shift pressure regulating solenoid valve (Y3/6y2) and the shift
pressure regulating valve (24). See Fig. 177. In addition, pressure from the multiple-disc clutch K2 (p-K2) is
also present at the annular surface (24a) of the shift pressure regulating valve (24). This reduces the shift
pressure in 2nd gear.
Position Display, Location Task
2001 Mercedes-Benz ML320
1998-03 AUTOMATIC TRANSMISSIONS Complete Transmissions - ML 320 - 722.662
me
Saturday, October 02, 2010 3:15:30 PMPage 315 © 2006 Mitchell Repair Information Company, LLC.
Page 1485 of 4133

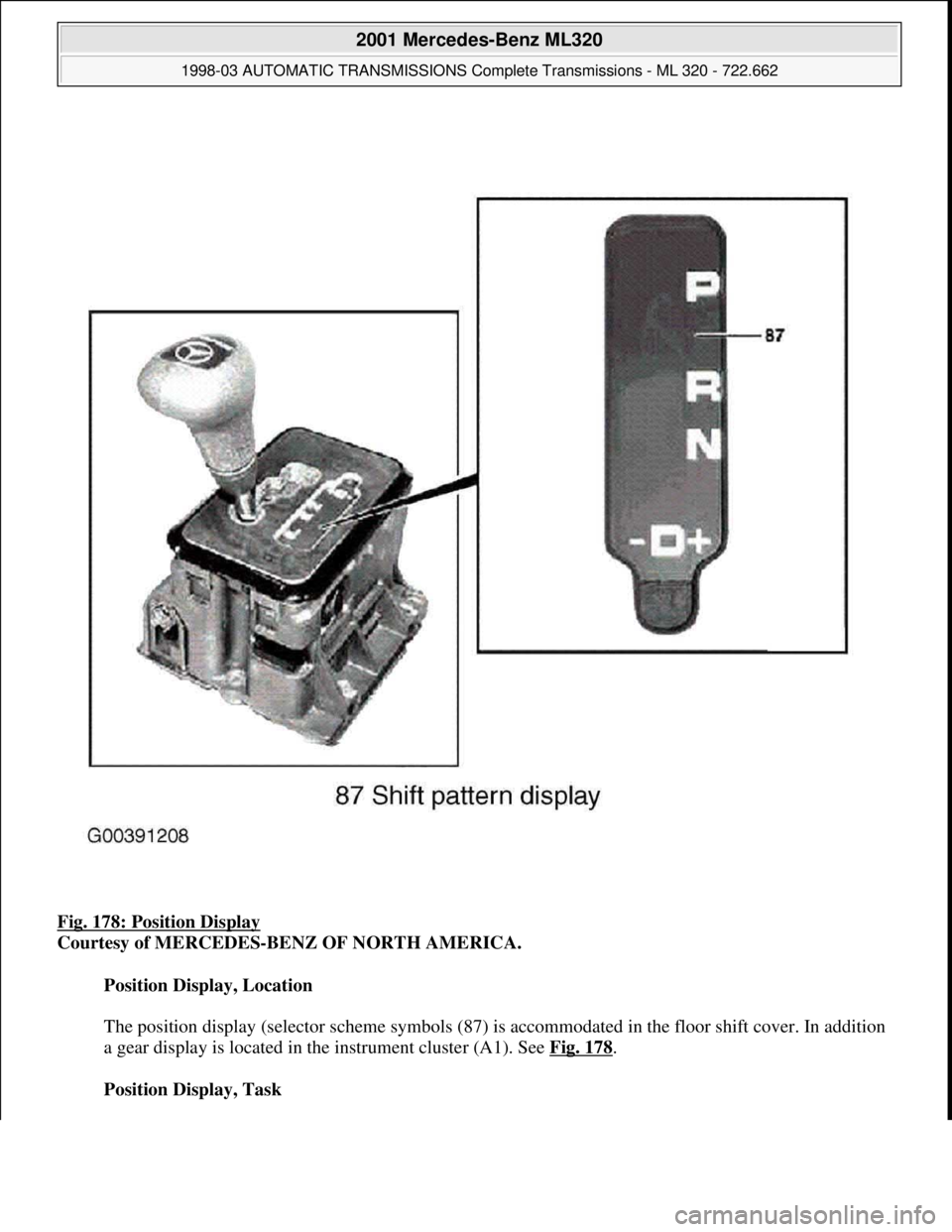

Fig. 178: Position Display
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Position Display, Location
The position display (selector scheme symbols (87) is accommodated in the floor shift cover. In addition
a gear display is located in the instrument cluster (A1). See Fig. 178
.
Position Display, Task
2001 Mercedes-Benz ML320
1998-03 AUTOMATIC TRANSMISSIONS Complete Transmissions - ML 320 - 722.662
me
Saturday, October 02, 2010 3:15:30 PMPage 316 © 2006 Mitchell Repair Information Company, LLC.
Page 1486 of 4133

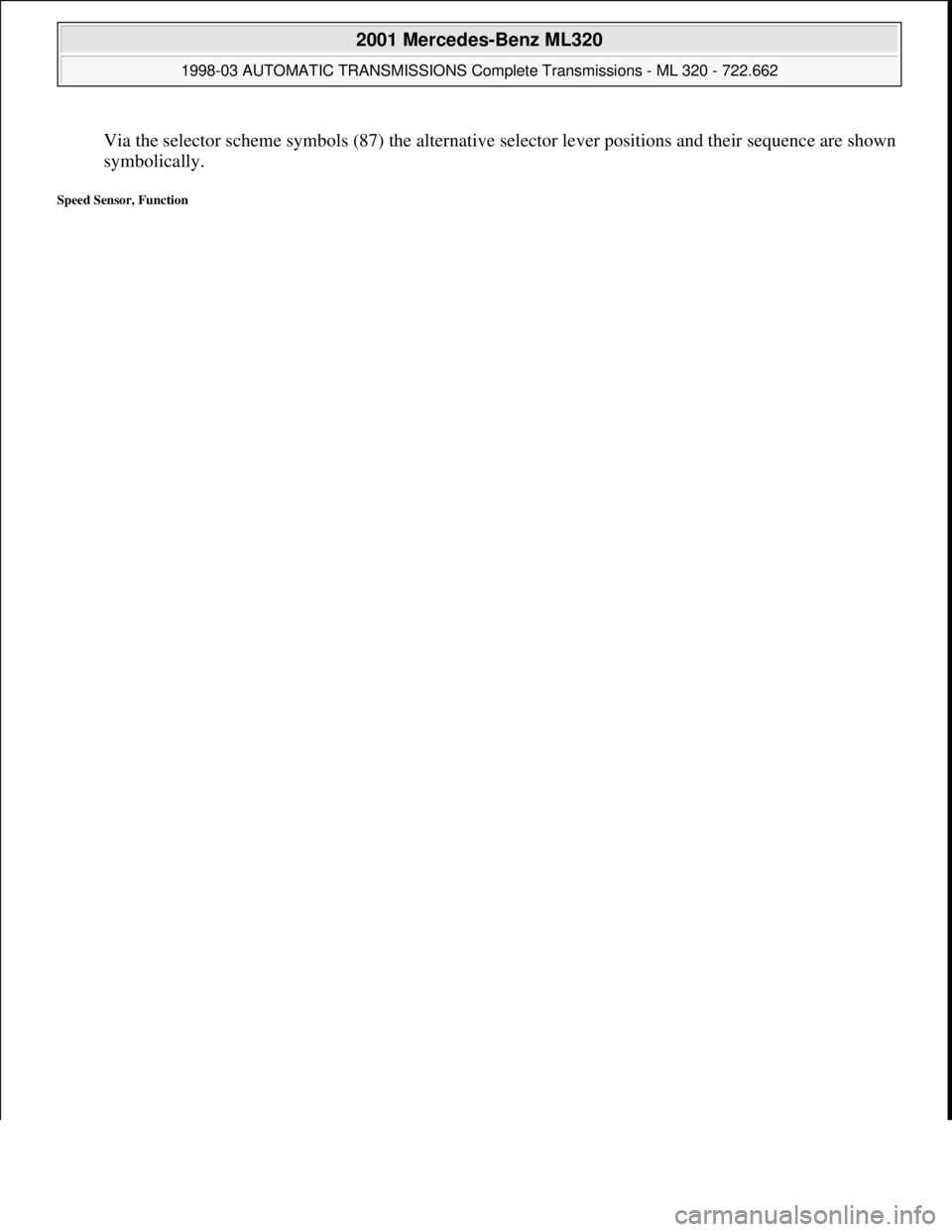

Via the selector scheme symbols (87) the alternative selector lever positions and their sequence are shown
symbolically.
Speed Sensor, Function
2001 Mercedes-Benz ML320
1998-03 AUTOMATIC TRANSMISSIONS Complete Transmissions - ML 320 - 722.662
me
Saturday, October 02, 2010 3:15:30 PMPage 317 © 2006 Mitchell Repair Information Company, LLC.
Page 1487 of 4133

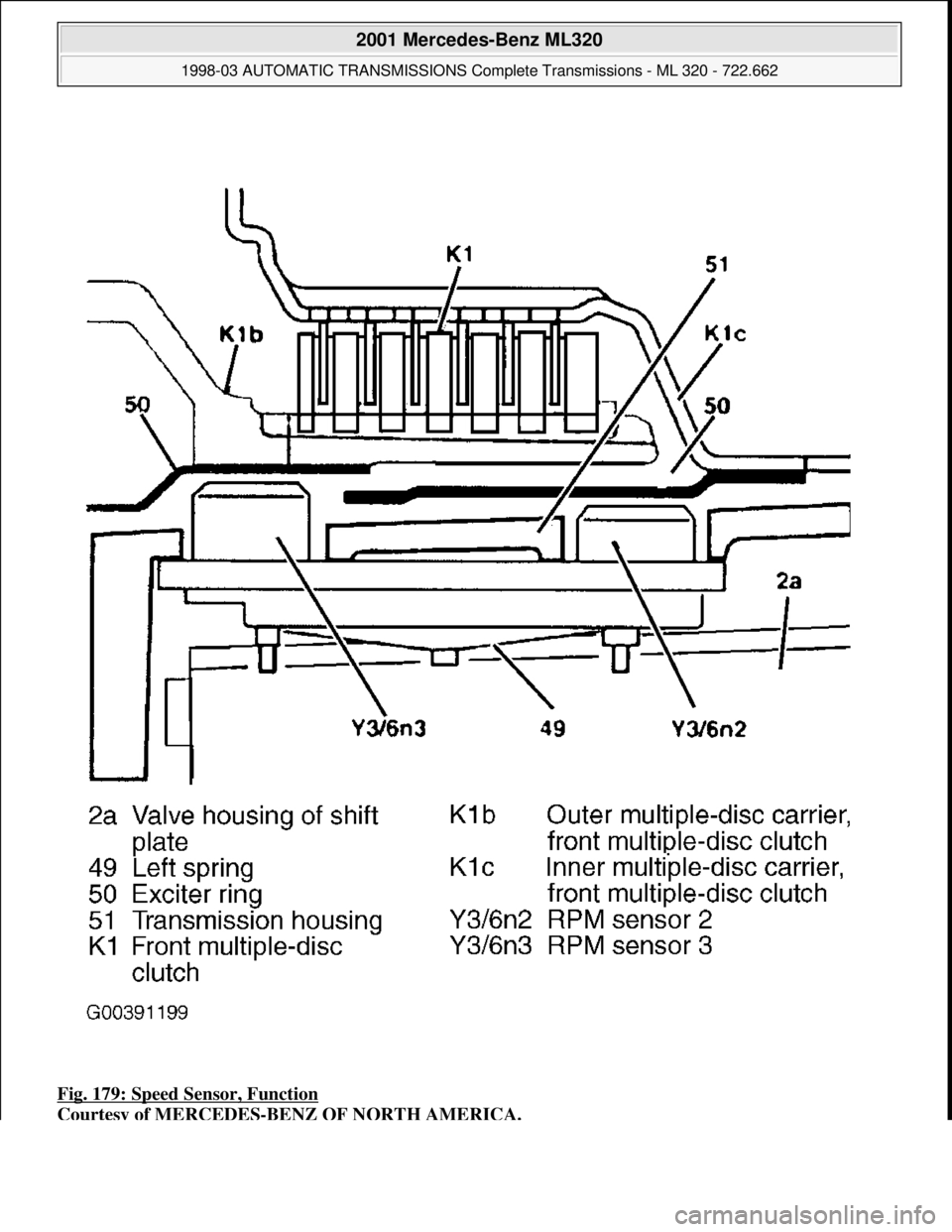

Fig. 179: Speed Sensor, Function
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
2001 Mercedes-Benz ML320
1998-03 AUTOMATIC TRANSMI SSIONS Complete Transmissions - ML 320 - 722.662
me
Saturday, October 02, 2010 3:15:30 PMPage 318 © 2006 Mitchell Repair Information Company, LLC.
Page 1488 of 4133

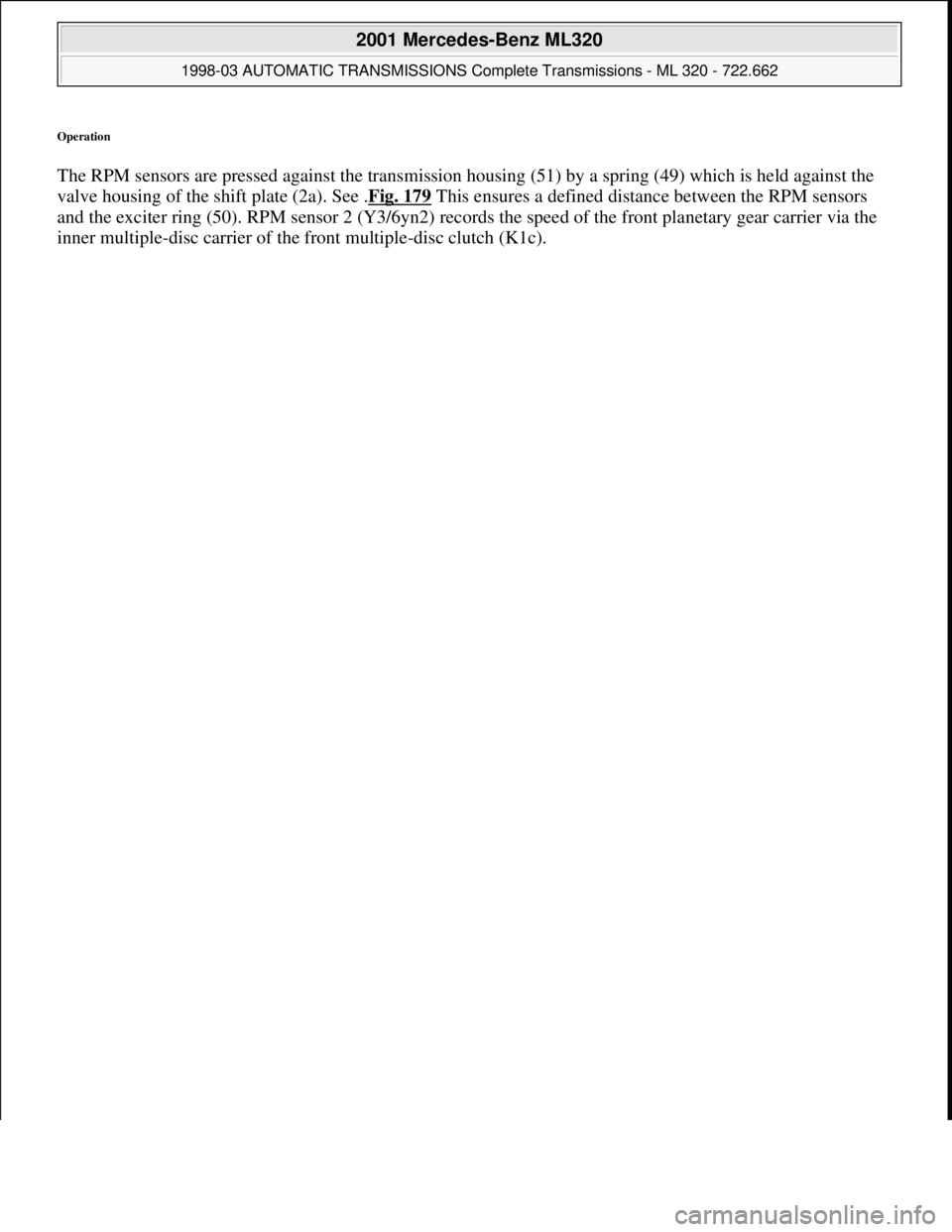

Operation
The RPM sensors are pressed against the transmission housing (51) by a spring (49) which is held against the
valve housing of the shift plate (2a). See .Fig. 179
This ensures a defined distance between the RPM sensors
and the exciter ring (50). RPM sensor 2 (Y3/6yn2) records the speed of the front planetary gear carrier via the
inner multiple-disc carrier of the front multiple-disc clutch (K1c).
