Page 3409 of 4133

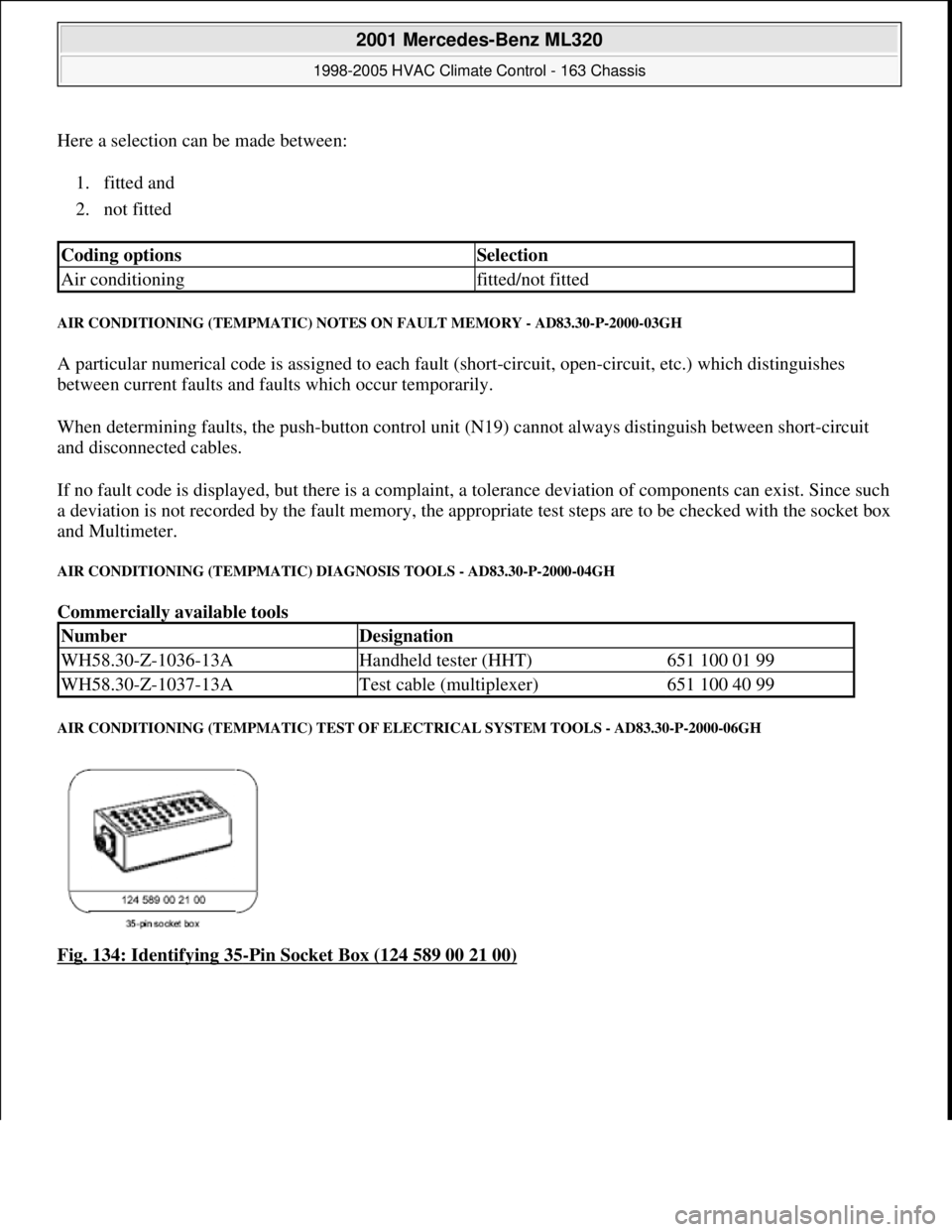

MERCEDES-BENZ ML320 1997 Complete Repair Manual Here a selection can be made between: 1. fitted and 2. not fitted AIR CONDITIONING (TEMPMATIC) NOTES ON FAULT MEMORY - AD83.30-P-2000-03GH A particular numerical code is assigned to each fault (

Page 3410 of 4133

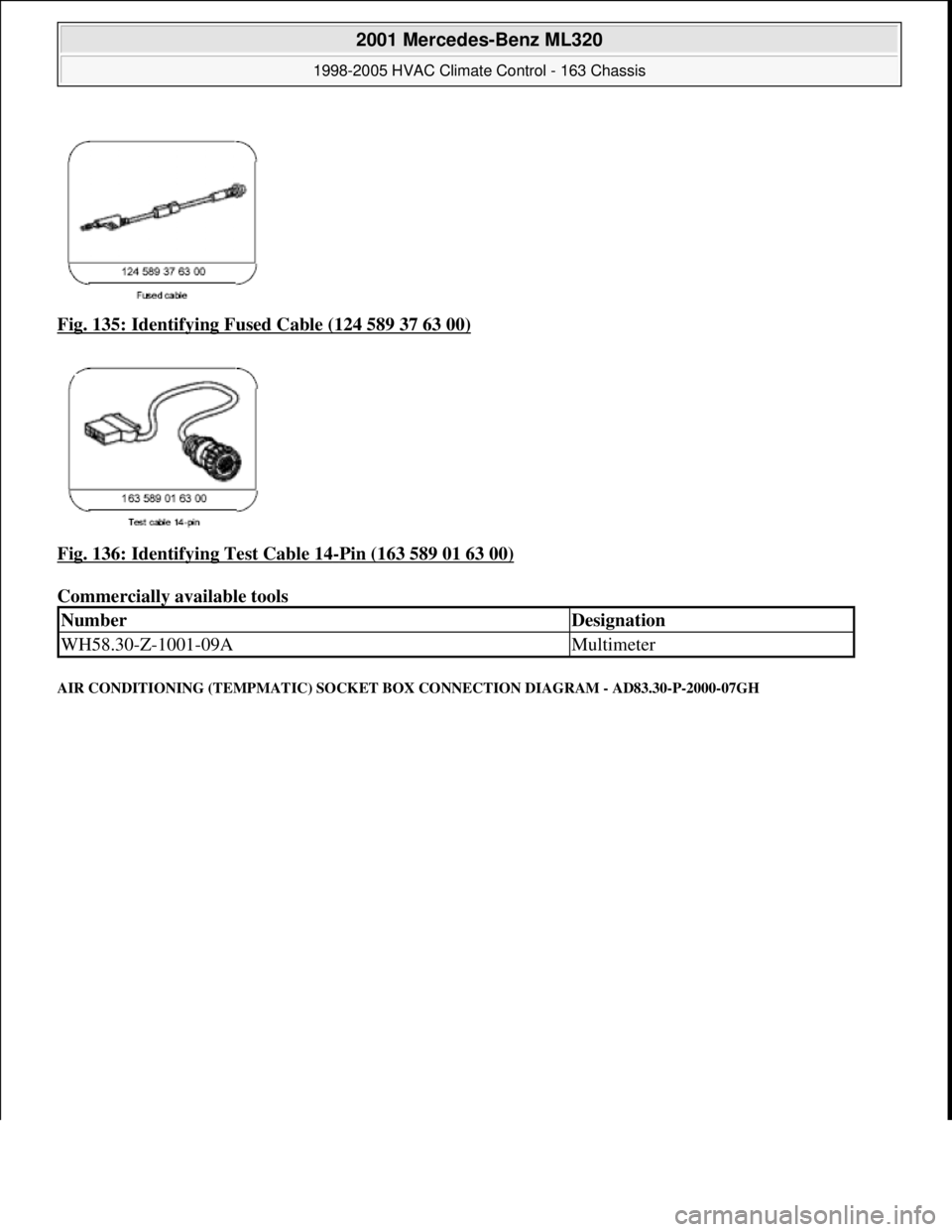

MERCEDES-BENZ ML320 1997 Complete Repair Manual Fig. 135: Identifying Fu sed Cable (124 589 37 63 00) Fig. 136: Identifying Test Cable 14 -Pin (163 589 01 63 00) Commercially available tools AIR CONDITIONING (TEMPMAT IC) SOCKET BOX CONNECTIO

Page 3411 of 4133

MERCEDES-BENZ ML320 1997 Complete Repair Manual Fig. 137: Identifying Air Conditioning (Tempmatic) Socket Box Connection Diagram AIR CONDITIONING (TEMPMATIC) DIAGNOSIS PREVIOUS KNOWLEDGE - AD83.30-P-2000GH MODEL 163 with CODE (580) air conditioni

Page 3412 of 4133

MERCEDES-BENZ ML320 1997 Complete Repair Manual AIR CONDITIONING (TEMPMATIC) DIAGNOSIS OPERATIONAL CHECK - AD83.30-P-3000GH MODEL 163 with CODE (580) air conditioning or for USA, Tempmatic Air conditioning (Tempmatic) (Tempmatic A/C) diagnosi

Page 3413 of 4133

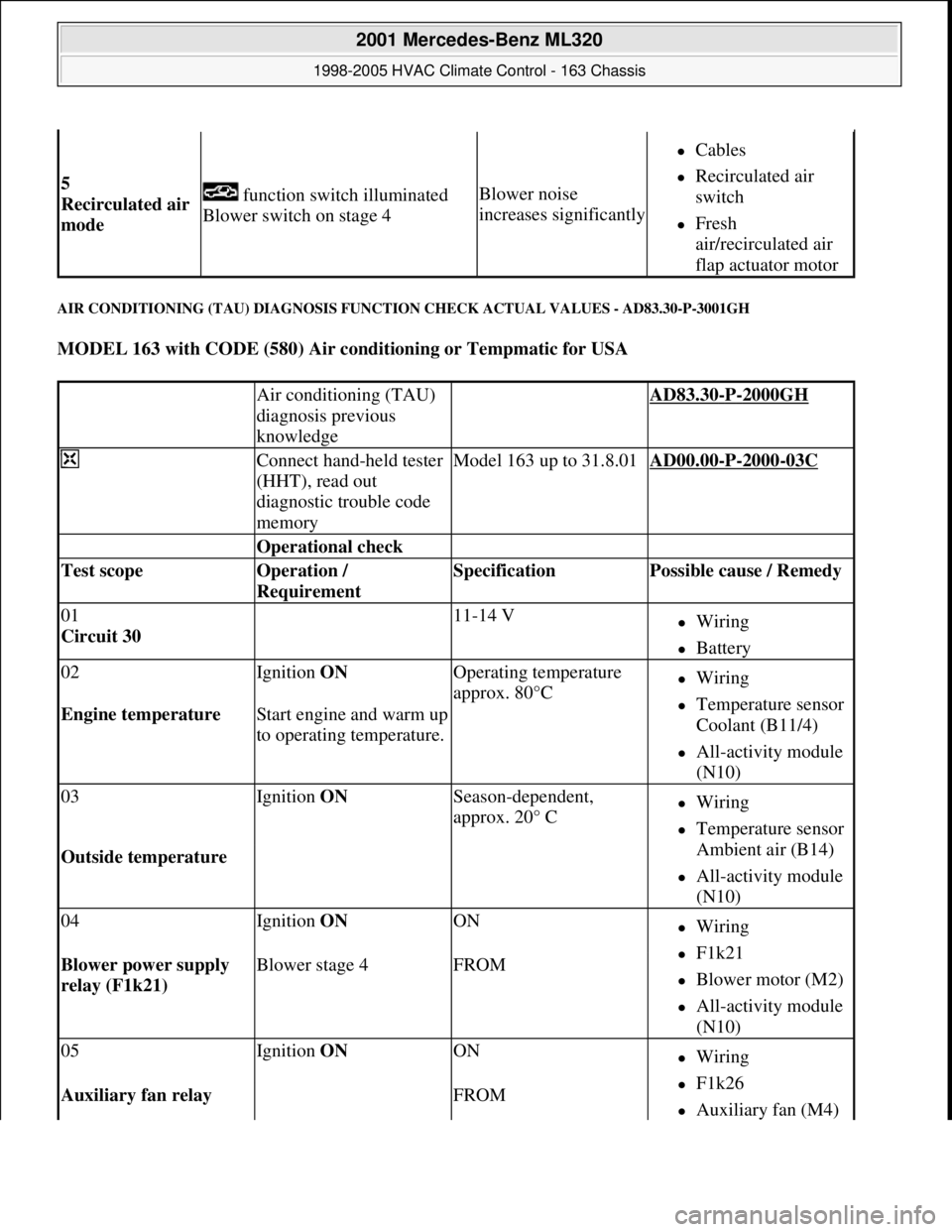

MERCEDES-BENZ ML320 1997 Complete Repair Manual AIR CONDITIONING (TAU) DIAGNOSIS FUNCTION CHECK ACTUAL VALUES - AD83.30-P-3001GH MODEL 163 with CODE (580) Air conditioning or Tempmatic for USA 5 Recirculated air mode function switch illumina

Page 3414 of 4133

MERCEDES-BENZ ML320 1997 Complete Repair Manual AIR CONDITIONING (TAU) DIAGNOSTIC FAULT MEMORY - AD83.30-P-4000GH MODEL 163 with CODE (580) Air conditioning or Tempmatic for USA (F1k26) All-activity module (N10) 08Ignition ON ONWiring

Page 3415 of 4133

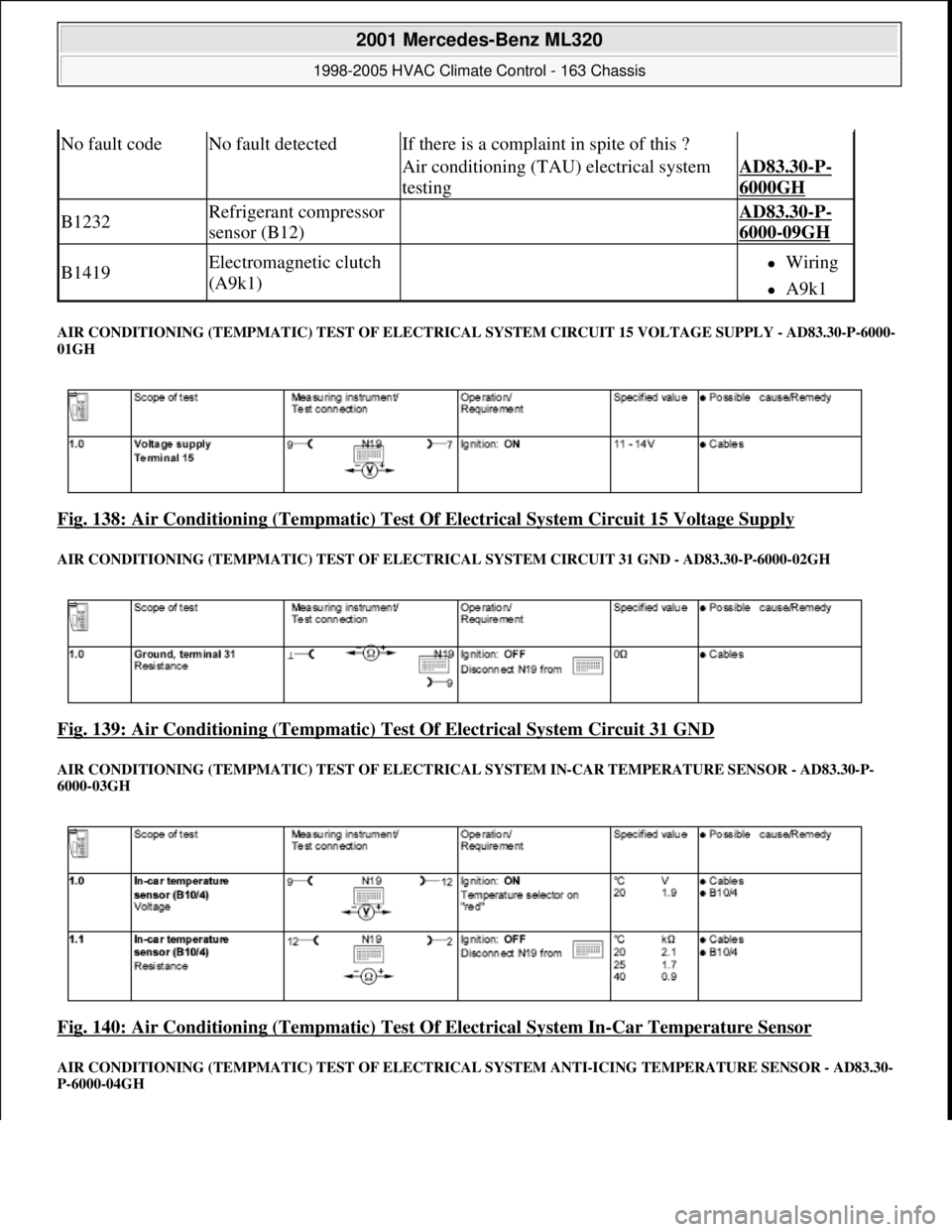

MERCEDES-BENZ ML320 1997 Complete Repair Manual AIR CONDITIONING (TEMPMAT IC) TEST OF ELECTRICAL SYSTEM CIRCUIT 15 VOLTAGE SUPPLY - AD83.30-P-6000- 01GH Fig. 138: Air Conditioning (Tem pmatic) Test Of Electrical System Circuit 15 Voltage Supply

Page 3416 of 4133

MERCEDES-BENZ ML320 1997 Complete Repair Manual Fig. 141: Air Conditioning (Tempmatic ) Test Of Electrical System Anti-Icing Temperature Sensor AIR CONDITIONING (TEMPMATIC) TEST OF ELECTRICAL SYSTEM TEMPERATURE SELECTOR CONTROL VOLTAGE - AD 83.
