Page 2393 of 4133

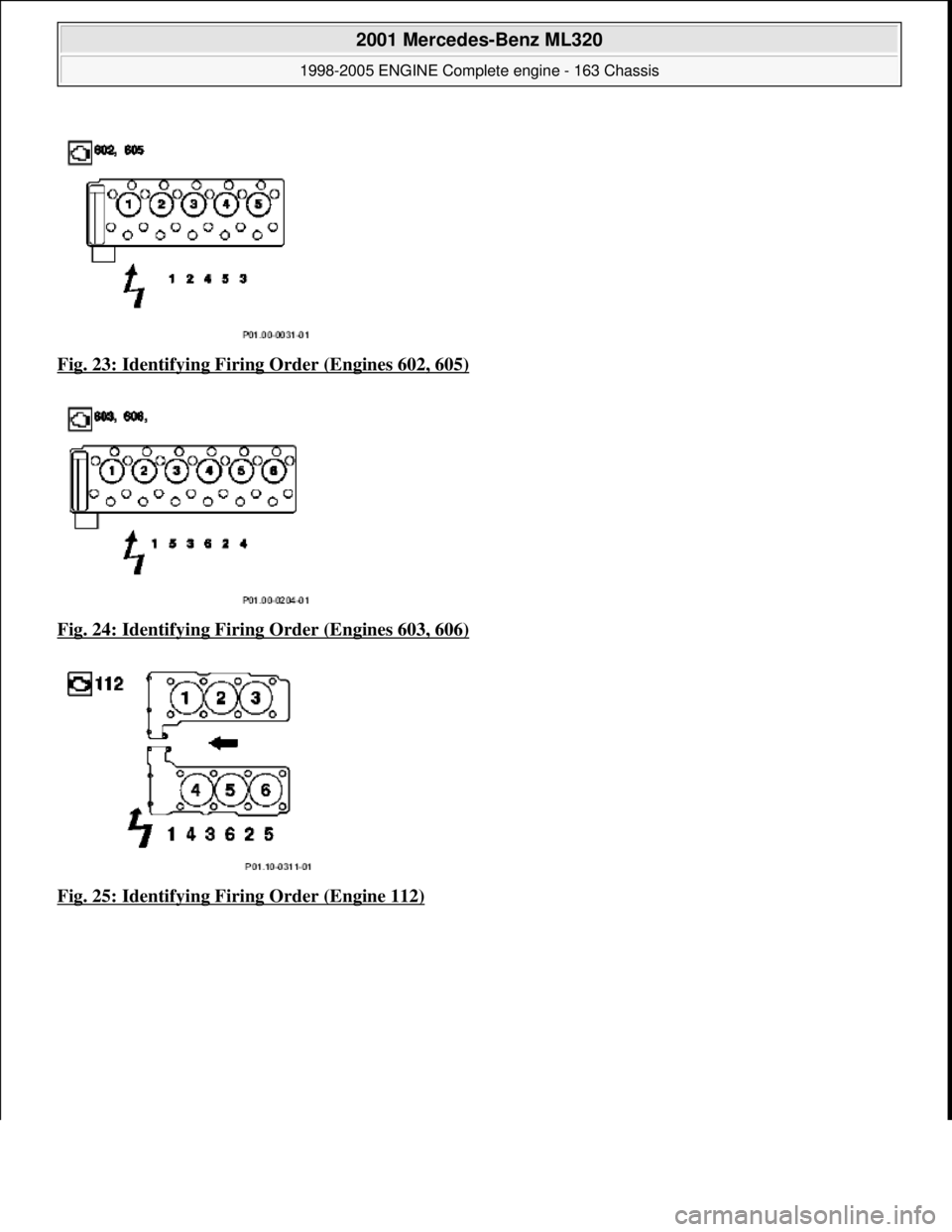

MERCEDES-BENZ ML320 1997 Complete Repair Manual Fig. 23: Identifying Firing Order (Engines 602, 605) Fig. 24: Identifying Firing Order (Engines 603, 606) Fig. 25: Identifying Firing Order (Engine 112) 2001 Mercedes-Benz ML320 1998-2005 ENGI

Page 2394 of 4133

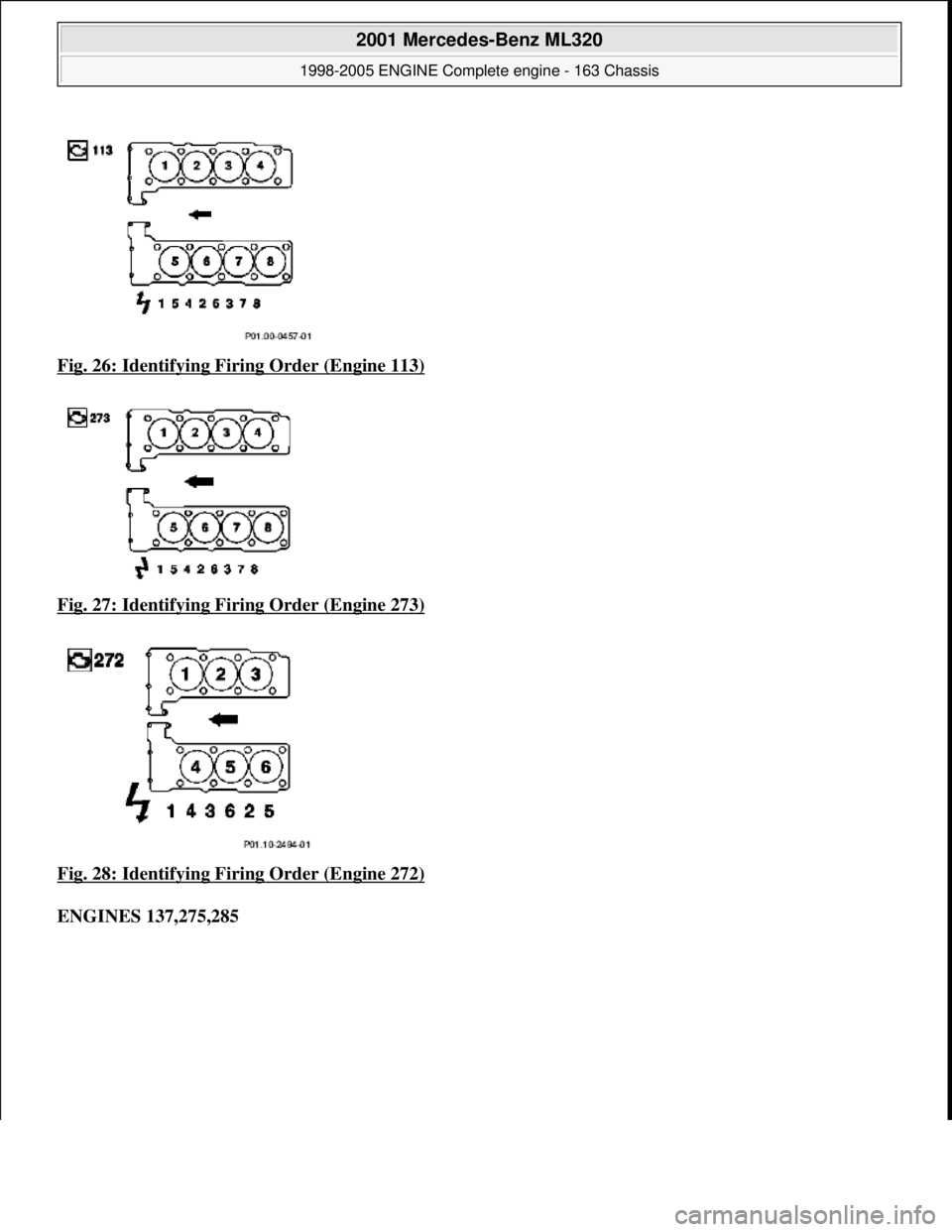

MERCEDES-BENZ ML320 1997 Complete Repair Manual Fig. 26: Identifying Firing Order (Engine 113) Fig. 27: Identifying Firing Order (Engine 273) Fig. 28: Identifying Firing Order (Engine 272) ENGINES 137,275,285 2001 Mercedes-Benz ML320

Page 2395 of 4133

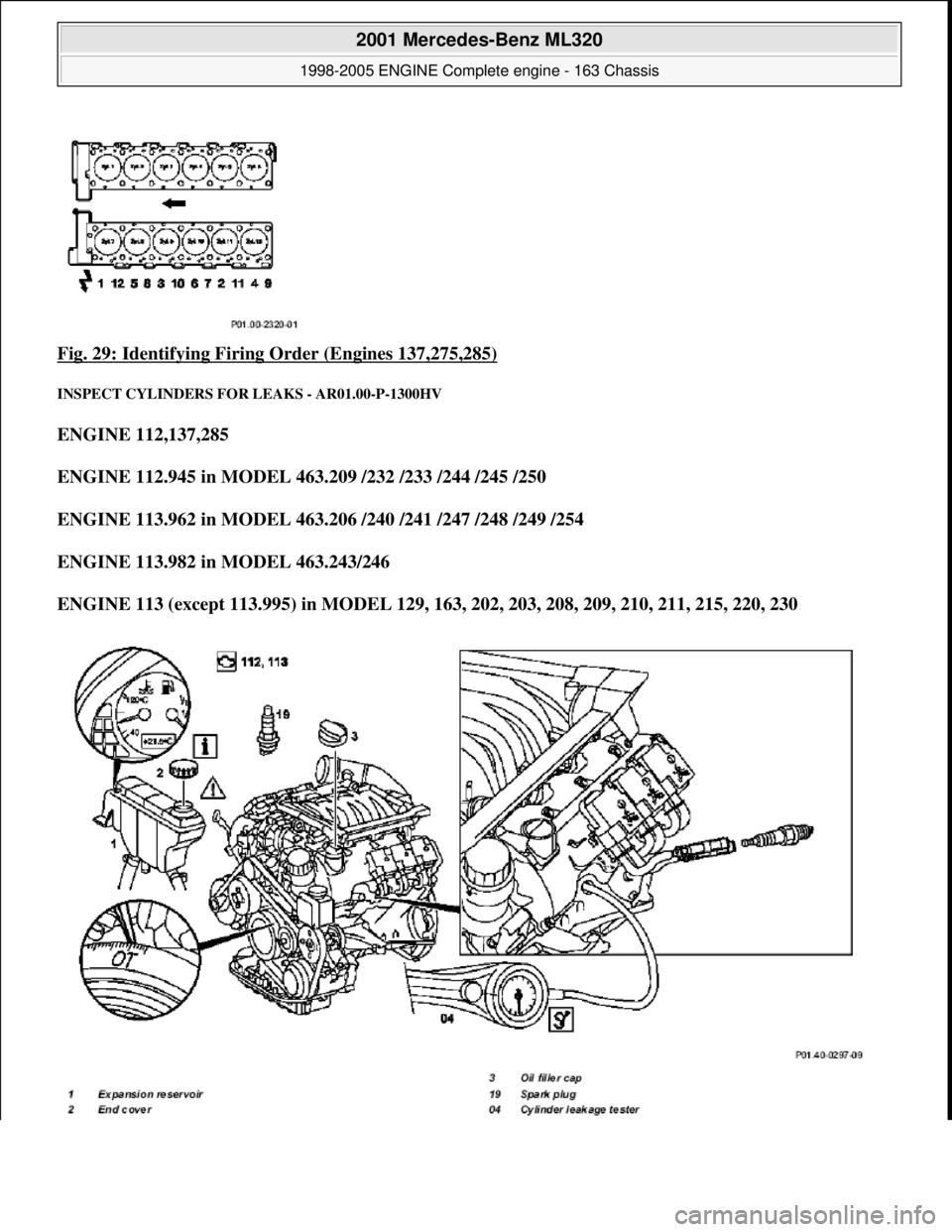

MERCEDES-BENZ ML320 1997 Complete Repair Manual Fig. 29: Identifying Firing Order (Engines 137,275,285) INSPECT CYLINDERS FO R LEAKS - AR01.00-P-1300HV ENGINE 112,137,285 ENGINE 112.945 in MODEL 463.209 /232 /233 /244 /245 /250 ENGINE 113

Page 2396 of 4133

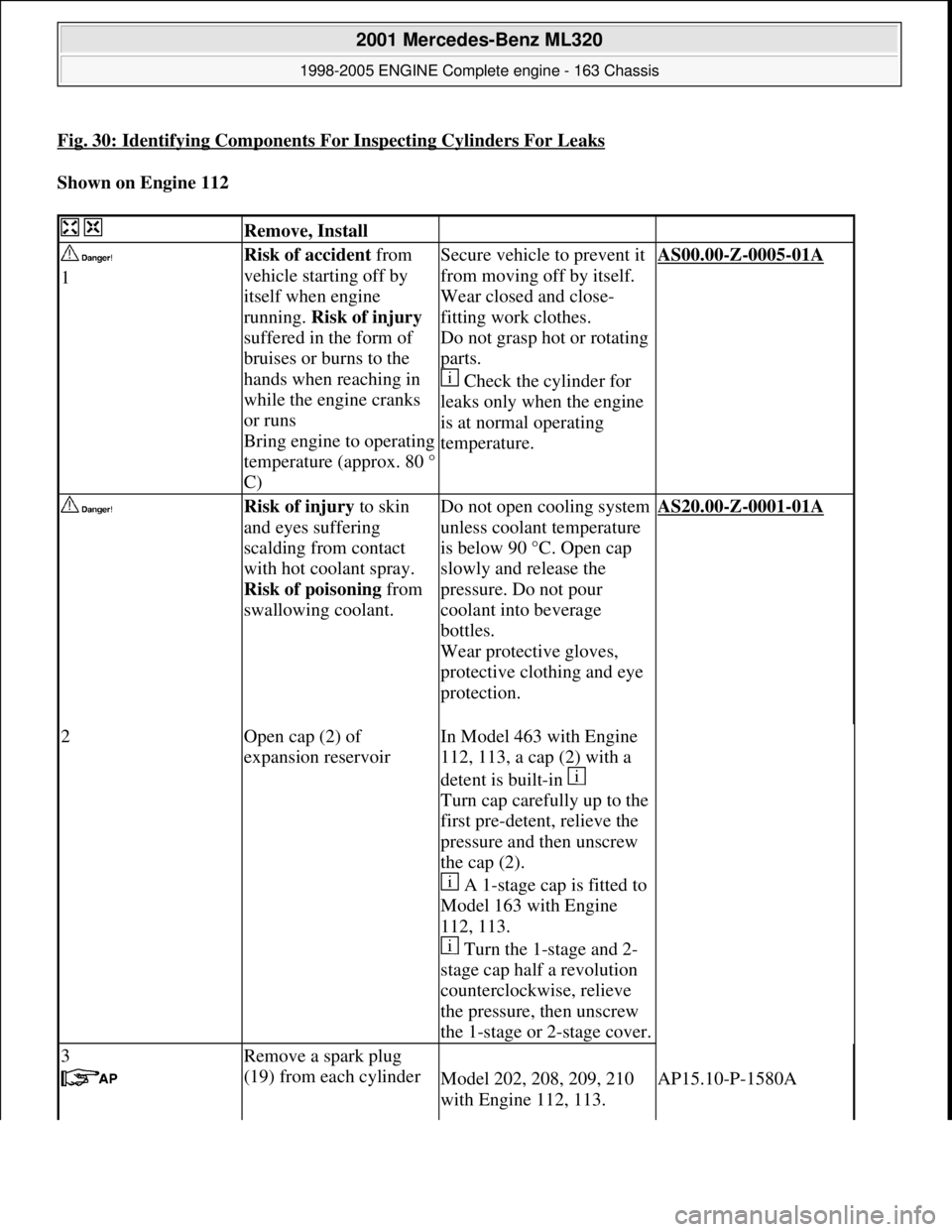

MERCEDES-BENZ ML320 1997 Complete Repair Manual Fig. 30: Identifying Components For Inspecting Cylinders For Leaks Shown on Engine 112 Remove, Install 1Risk of accident from vehicle starting off by itself when engine running. R

Page 2397 of 4133

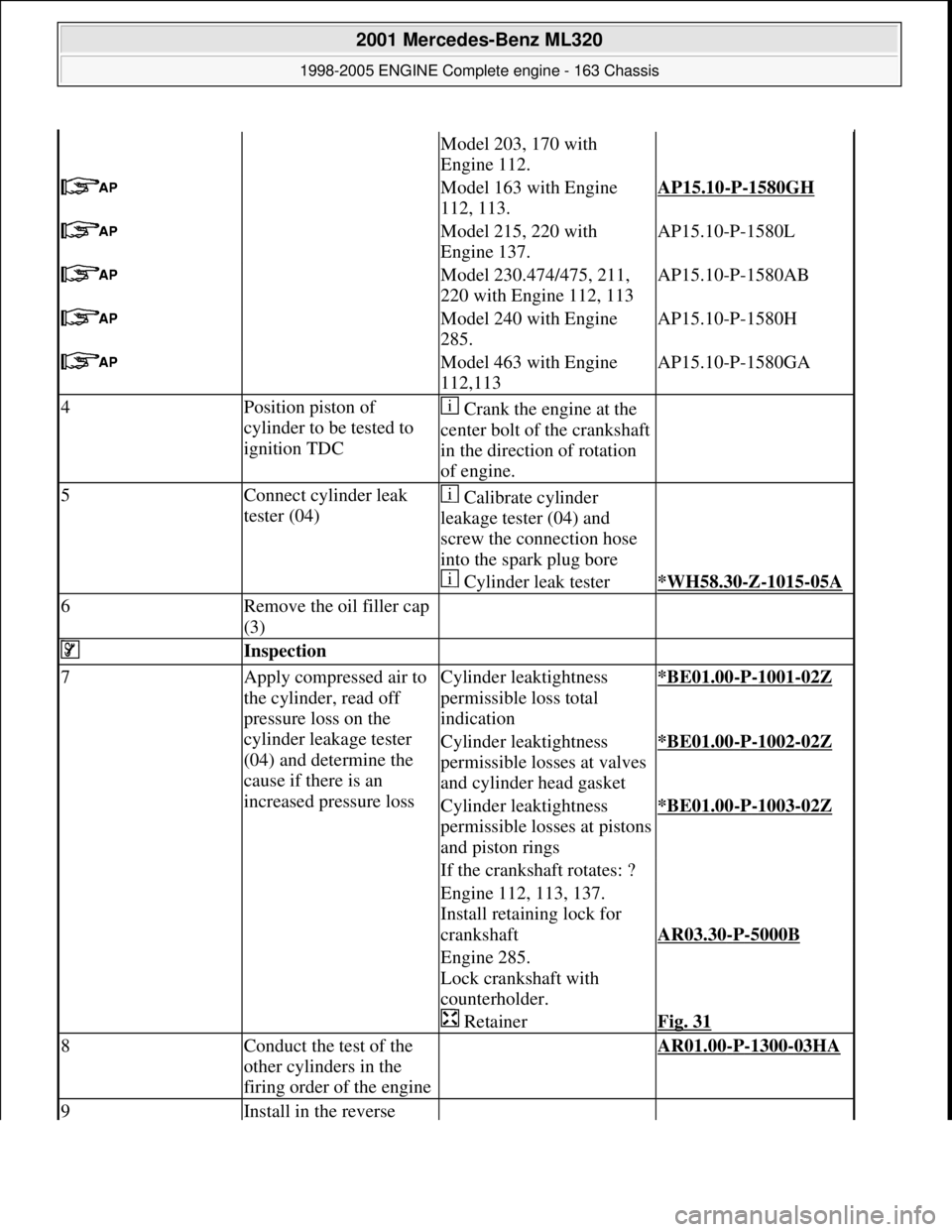

MERCEDES-BENZ ML320 1997 Complete Repair Manual Model 203, 170 with Engine 112. Model 163 with Engine 112, 113.AP15.10-P-1580GH Model 215, 220 with Engine 137.AP15.10-P-1580L Model 230.474/475, 211, 220 with Engine 112, 113AP15.10-P-158

Page 2398 of 4133

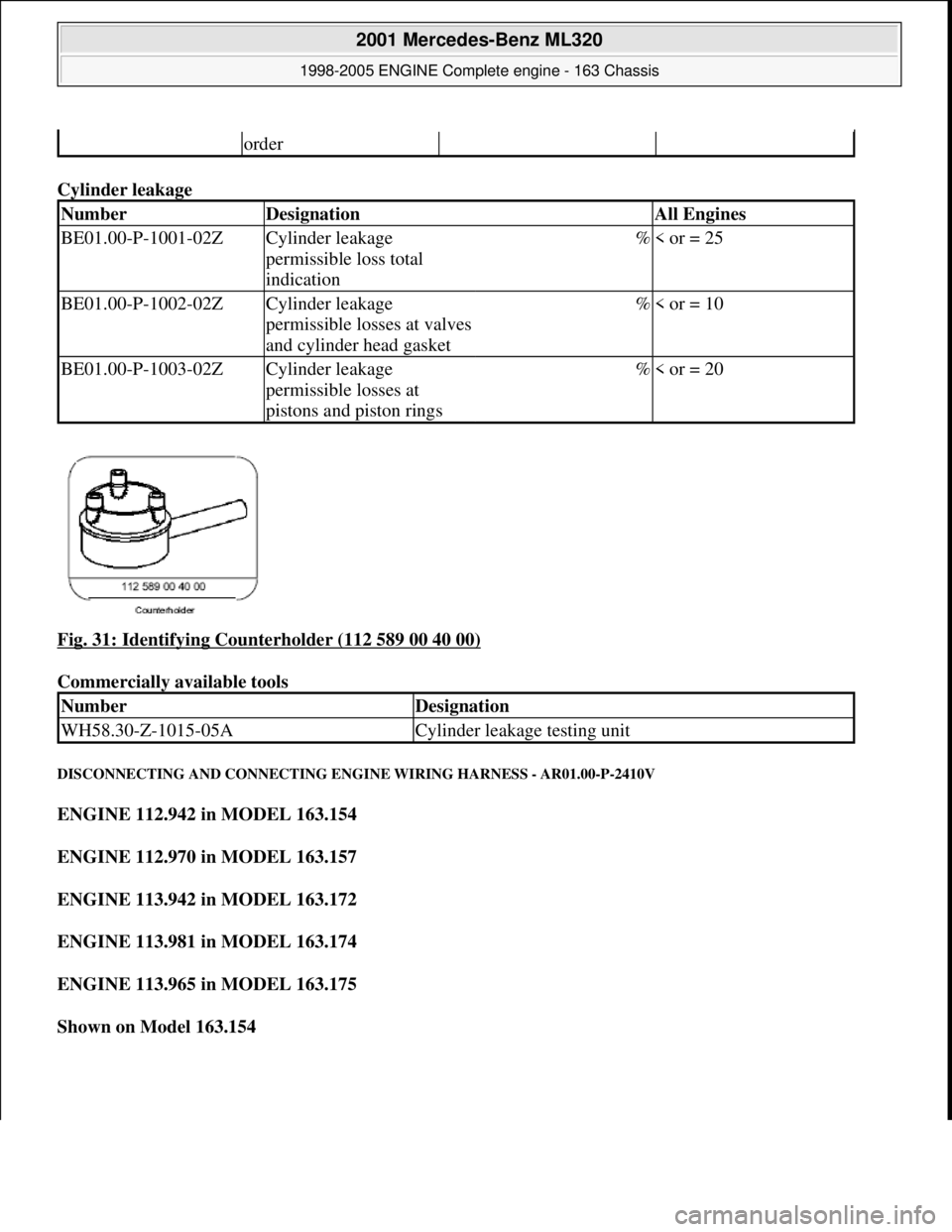

MERCEDES-BENZ ML320 1997 Complete Repair Manual Cylinder leakage Fig. 31: Identifying Counterholder (112 589 00 40 00) Commercially available tools DISCONNECTING AND CONN ECTING ENGINE WIRING HARNESS - AR01.00-P-2410V ENGINE 112.942 in MO

Page 2399 of 4133

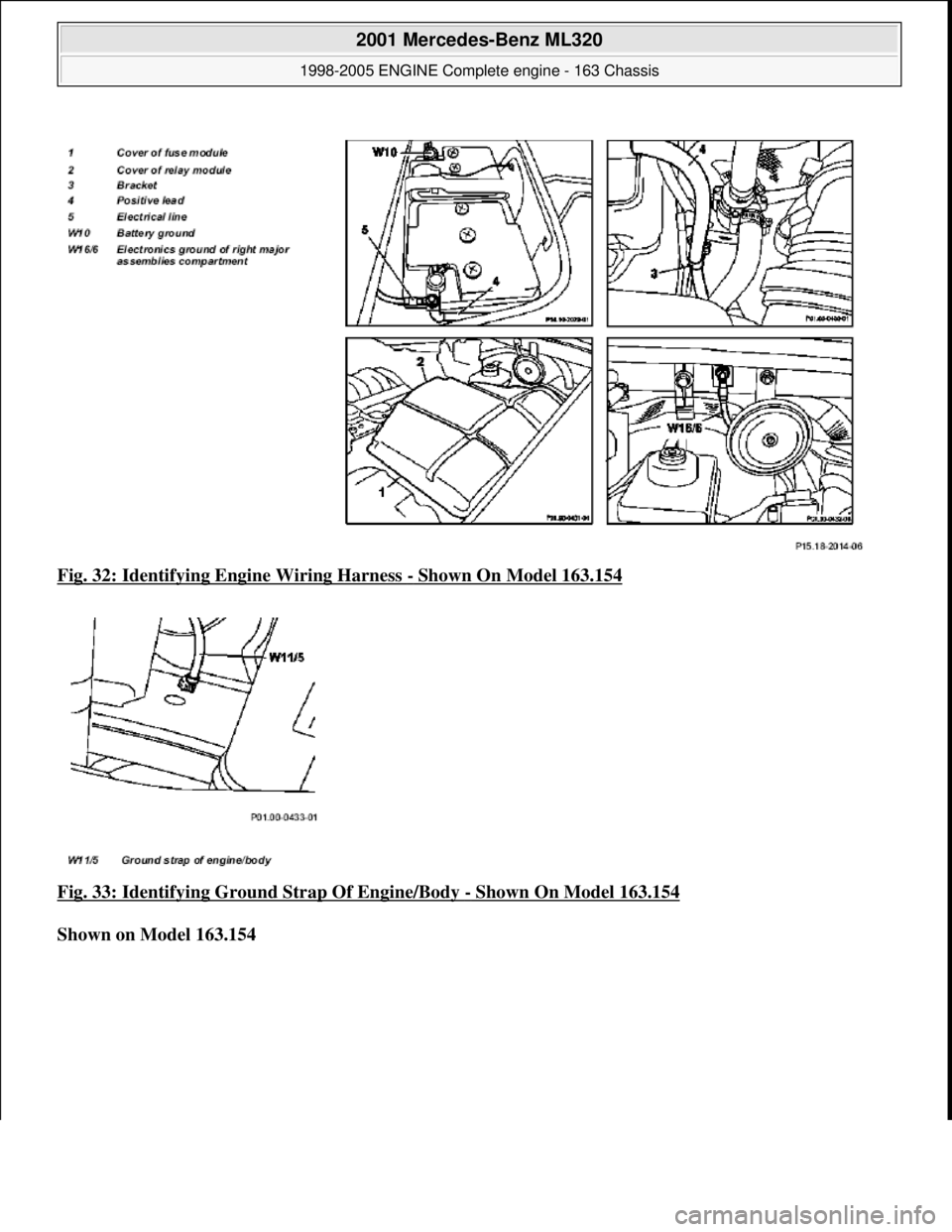

MERCEDES-BENZ ML320 1997 Complete Repair Manual Fig. 32: Identifying Engine Wiring Harness - Shown On Model 163.154 Fig. 33: Identifying Ground Strap Of Engine/Body - Shown On Model 163.154 Shown on Model 163.154 2001 Mercedes-Benz ML320

Page 2400 of 4133

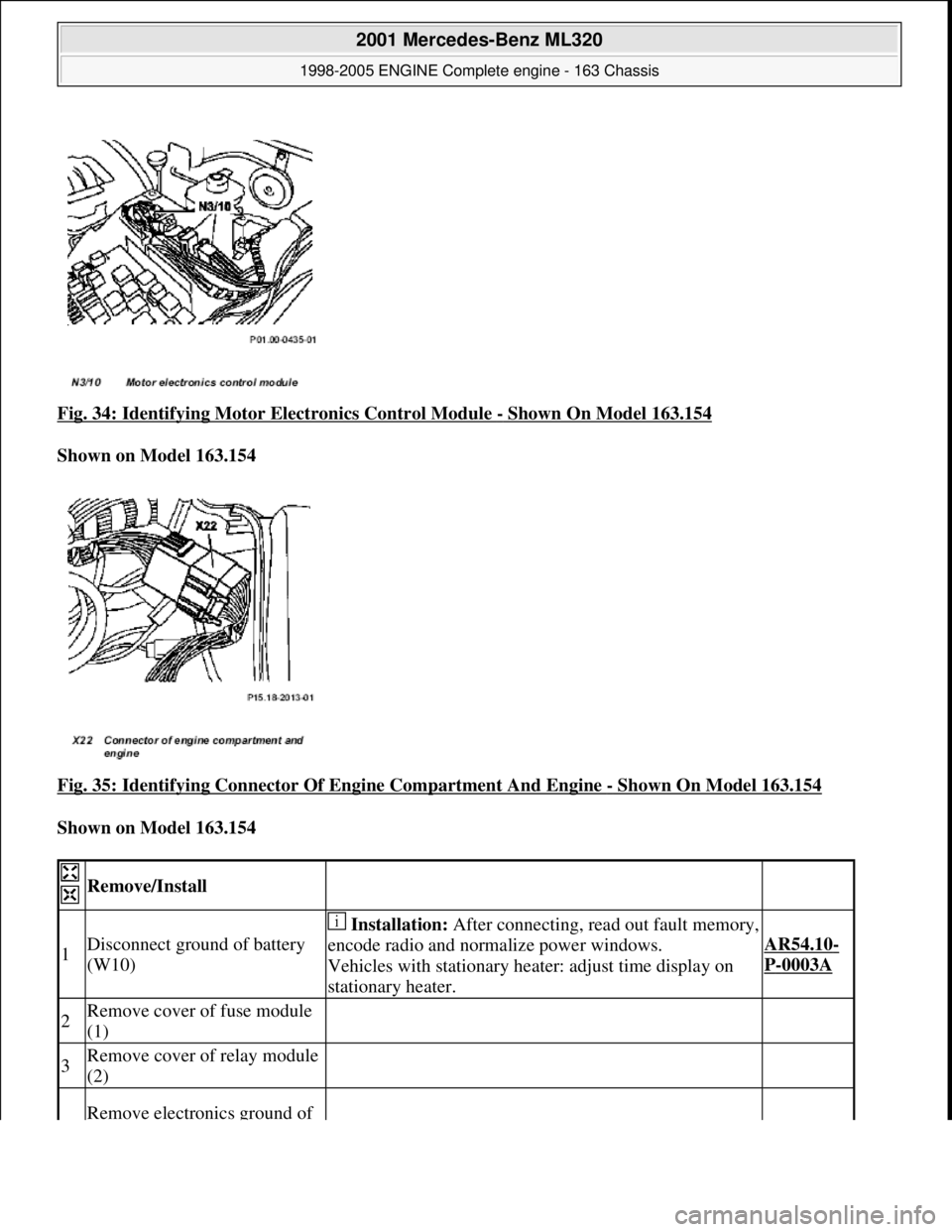

MERCEDES-BENZ ML320 1997 Complete Repair Manual Fig. 34: Identifying Motor Electronics Control Module - Shown On Model 163.154 Shown on Model 163.154 Fig. 35: Identifying Connector Of Engine Compartment And Engine - Shown On Model 163.154
