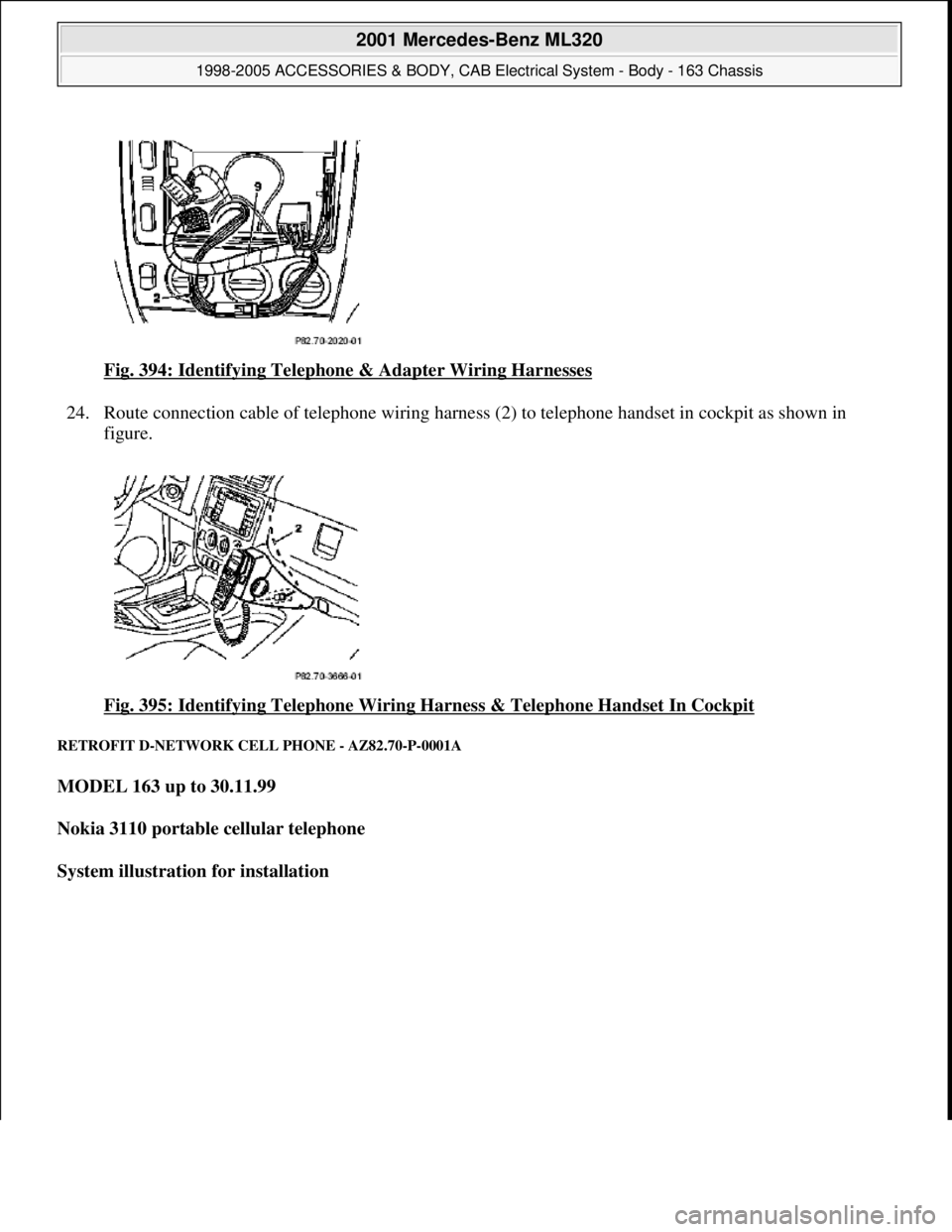

Page 1937 of 4133

MERCEDES-BENZ ML320 1997 Complete Repair Manual Fig. 394: Identifying Telephone & Adapter Wiring Harnesses 24. Route connection cable of telephone wiring harness (2) to telephone handset in cockpit as shown in figure. Fig. 395: Identifying

Page 1938 of 4133

MERCEDES-BENZ ML320 1997 Complete Repair Manual Fig. 396: Identifying D-Network Cell Phone Components Removal 1Disconnect ground cable of battery AR54.10-P-0003A 2Remove radio 3Remove stowage compartment below radio 4Remove stowage

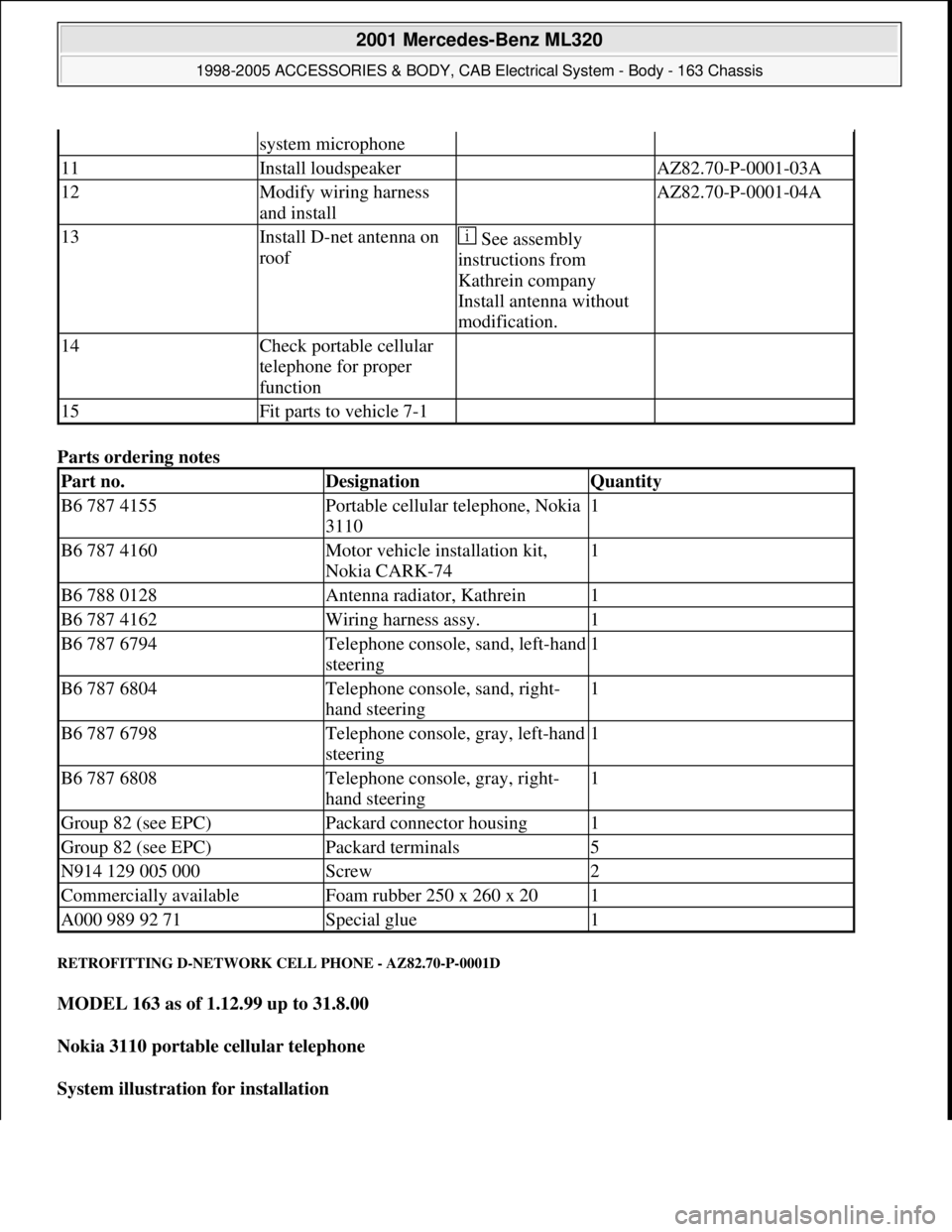

Page 1939 of 4133

MERCEDES-BENZ ML320 1997 Complete Repair Manual Parts ordering notes RETROFITTING D-NETWORK CELL PHONE - AZ82.70-P-0001D MODEL 163 as of 1.12.99 up to 31.8.00 Nokia 3110 portable cellular telephone System illustration for installation syste

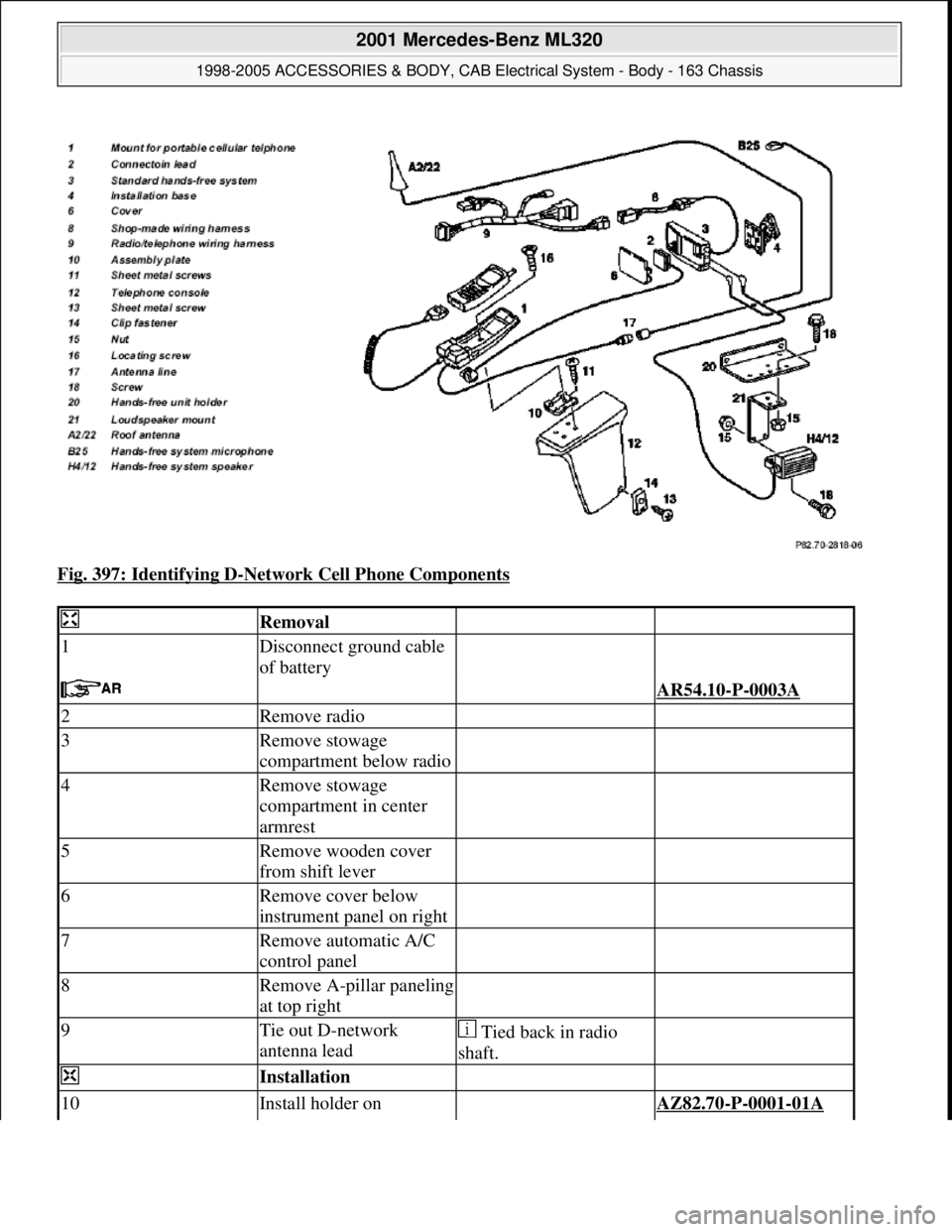

Page 1940 of 4133

MERCEDES-BENZ ML320 1997 Complete Repair Manual Fig. 397: Identifying D-Network Cell Phone Components Removal 1Disconnect ground cable of battery AR54.10-P-0003A 2Remove radio 3Remove stowage compartment below radio 4Remove stowage

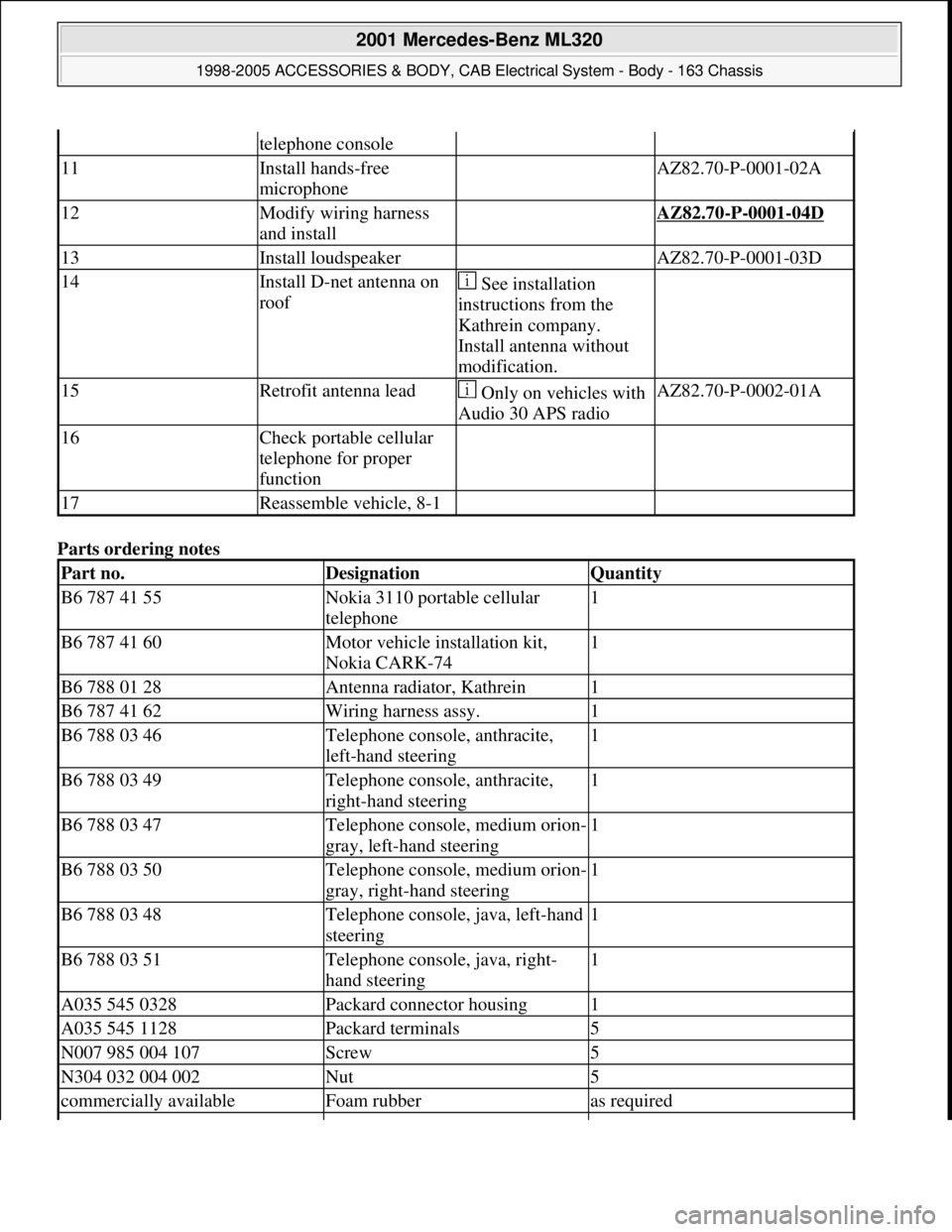

Page 1941 of 4133

MERCEDES-BENZ ML320 1997 Complete Repair Manual Parts ordering notes telephone console 11Install hands-free microphone AZ82.70-P-0001-02A 12Modify wiring harness and install AZ82.70-P-0001-04D 13Install loudspeaker AZ82.70-P-0001-03D 14Install D

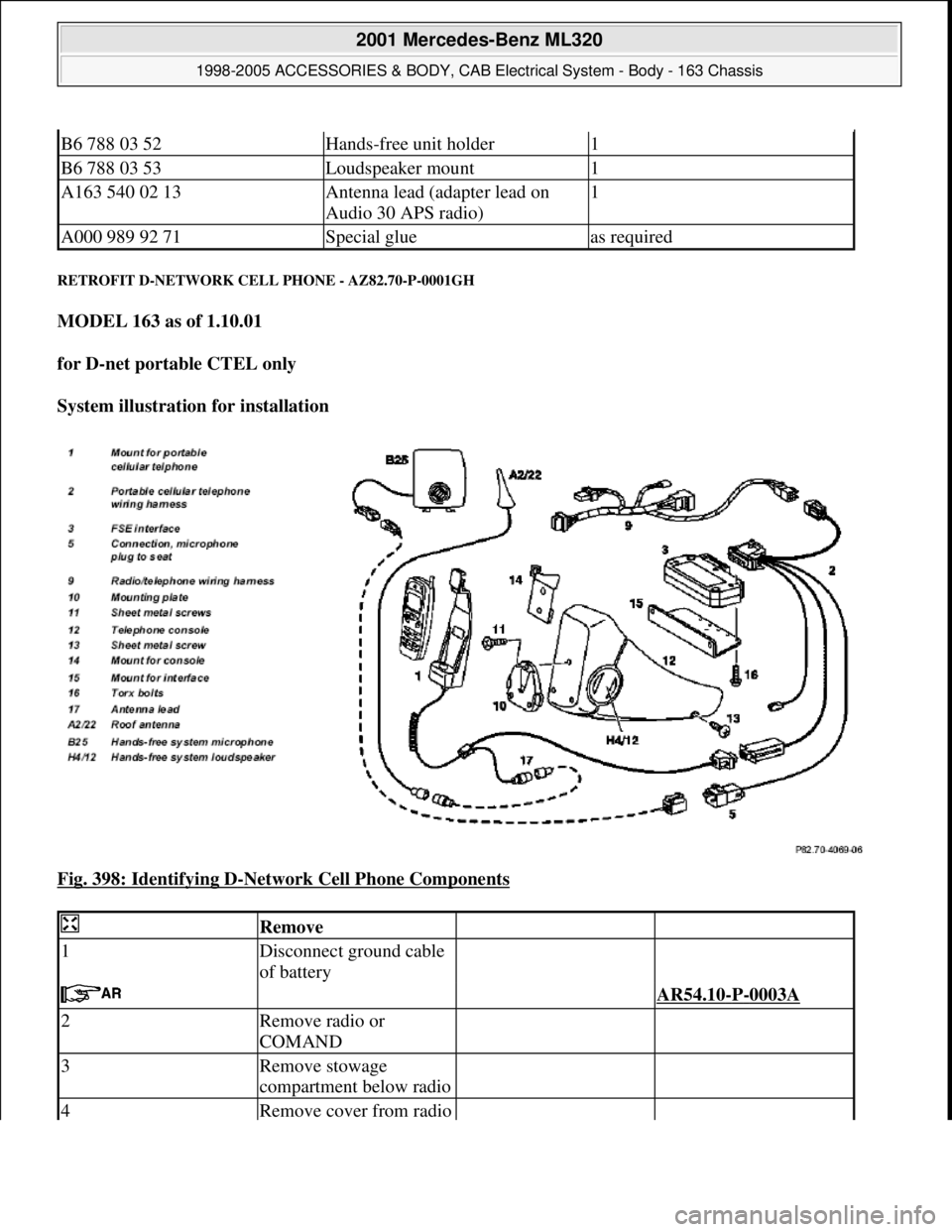

Page 1942 of 4133

MERCEDES-BENZ ML320 1997 Complete Repair Manual RETROFIT D-NETWORK CELL PHONE - AZ82.70-P-0001GH MODEL 163 as of 1.10.01 for D-net portable CTEL only System illustration for installation Fig. 398: Identifying D -Network Cell Phone Components

Page 1943 of 4133

MERCEDES-BENZ ML320 1997 Complete Repair Manual Parts ordering notes 5Remove air conditioning pushbutton control module 6Remove overhead control panel microphone flap 7Tie antenna lead Tied back in radio shaft Install 8Retrofit teleph

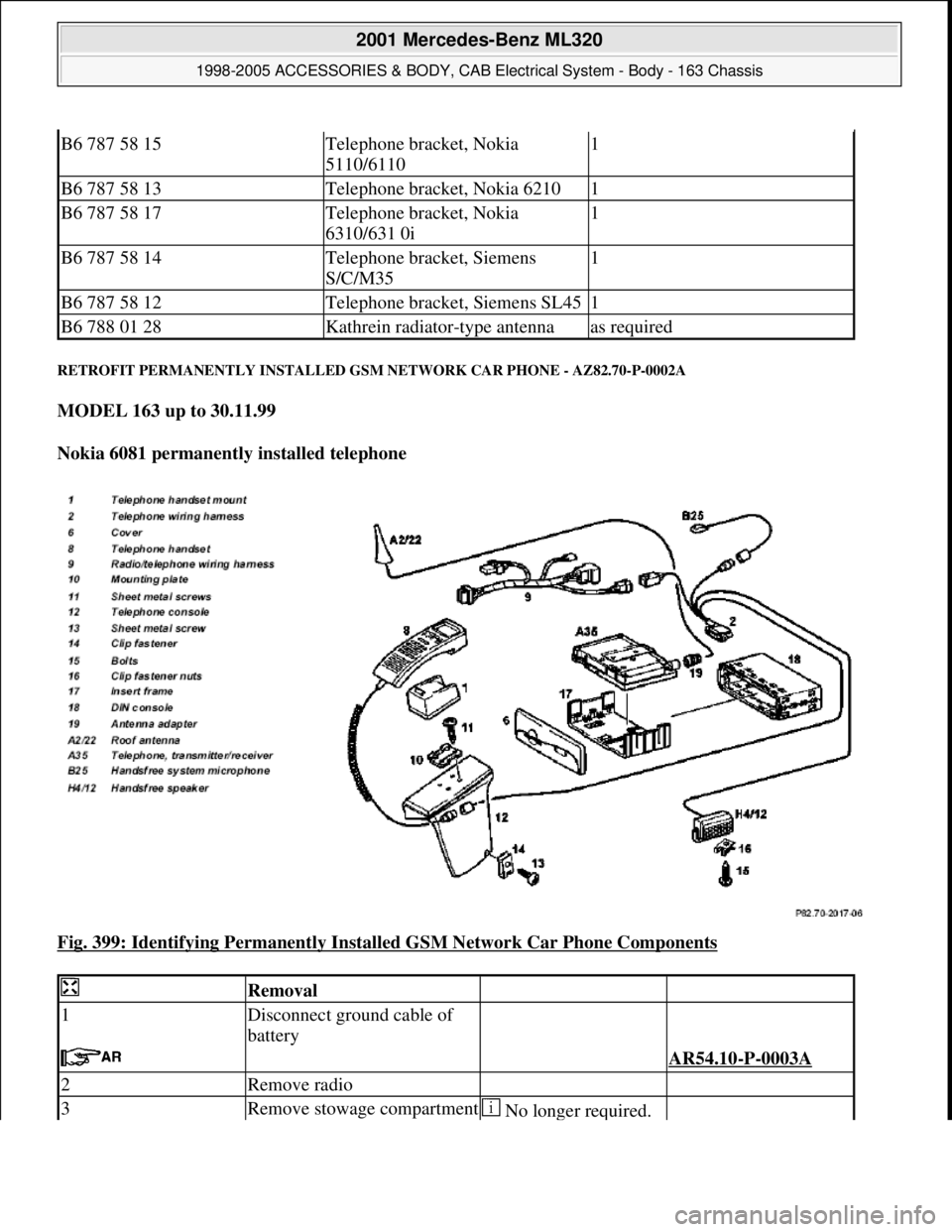

Page 1944 of 4133

MERCEDES-BENZ ML320 1997 Complete Repair Manual RETROFIT PERMANENTLY INSTALLED GSM NETWORK CAR PHONE - AZ82.70-P-0002A MODEL 163 up to 30.11.99 Nokia 6081 permanently installed telephone Fig. 399: Identifying Permanently Installed GSM Network
