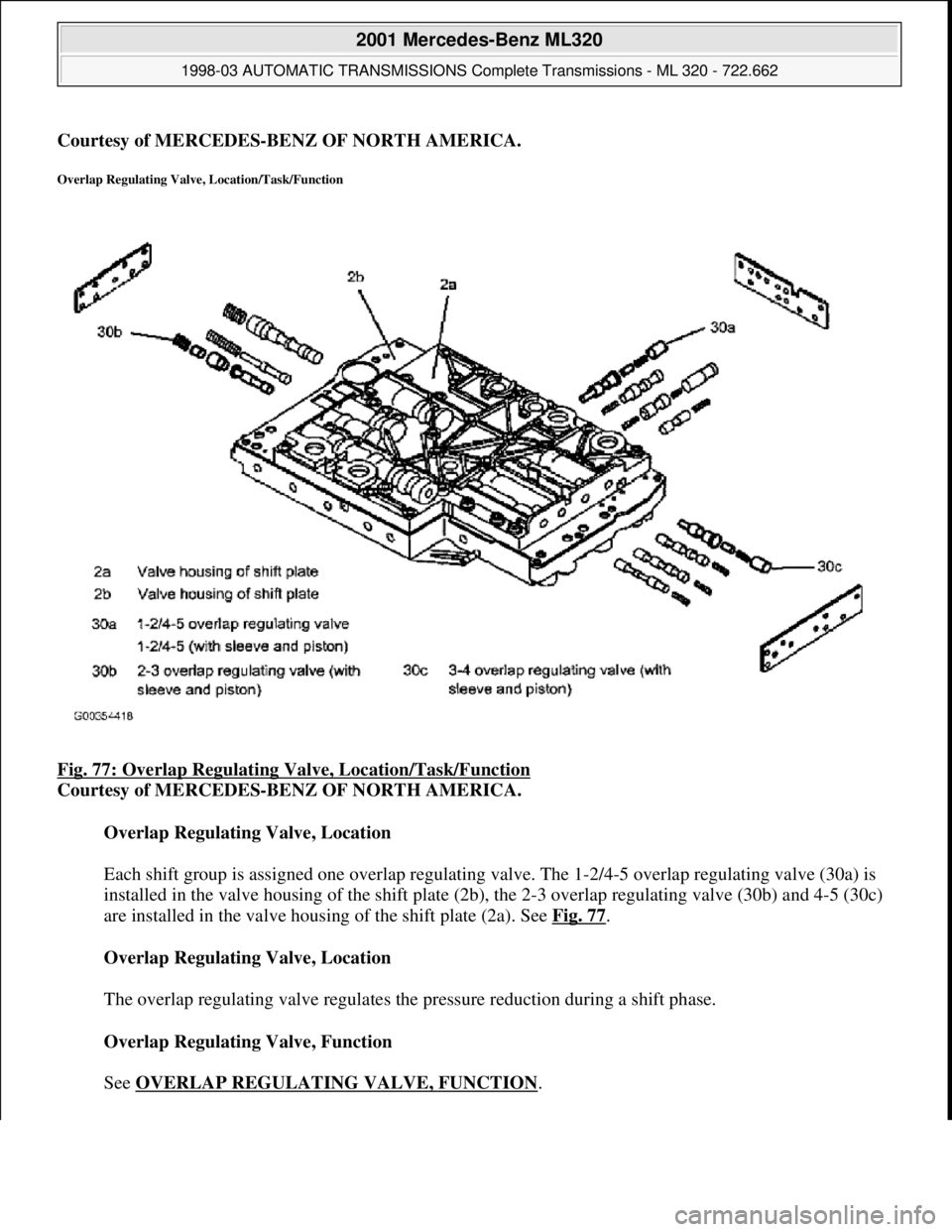

MERCEDES-BENZ ML320 1997 Complete Repair Manual Courtesy of MERCEDES-BENZ OF NORTH AMERICA. Overlap Regulating Valve, Location/Task/Function Fig. 77: Overlap Regulating Valve, Location/Task/Function Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Page 1306 of 4133

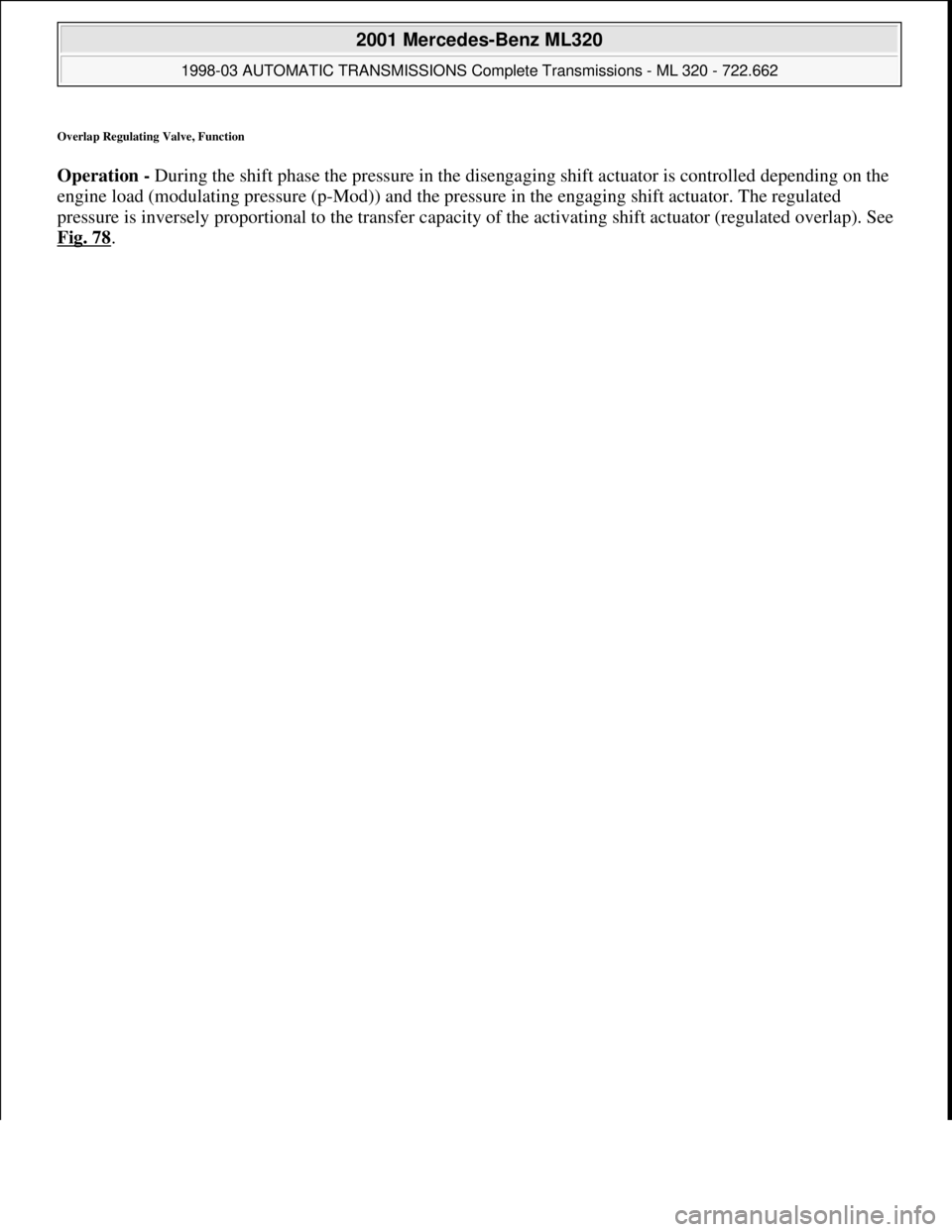

MERCEDES-BENZ ML320 1997 Complete Repair Manual Overlap Regulating Valve, Function Operation - During the shift phase the pressure in the disengaging shift actuator is controlled depending on the engine load (modulating pressure (p-Mod)) and the

Page 1307 of 4133

MERCEDES-BENZ ML320 1997 Complete Repair Manual 2001 Mercedes-Benz ML320 1998-03 AUTOMATIC TRANSMISSIONS Complete Transmissions - ML 320 - 722.662 me Saturday, October 02, 2010 3:15:27 PMPage 138 © 2006 Mitchell Repair Information Company,

Page 1308 of 4133

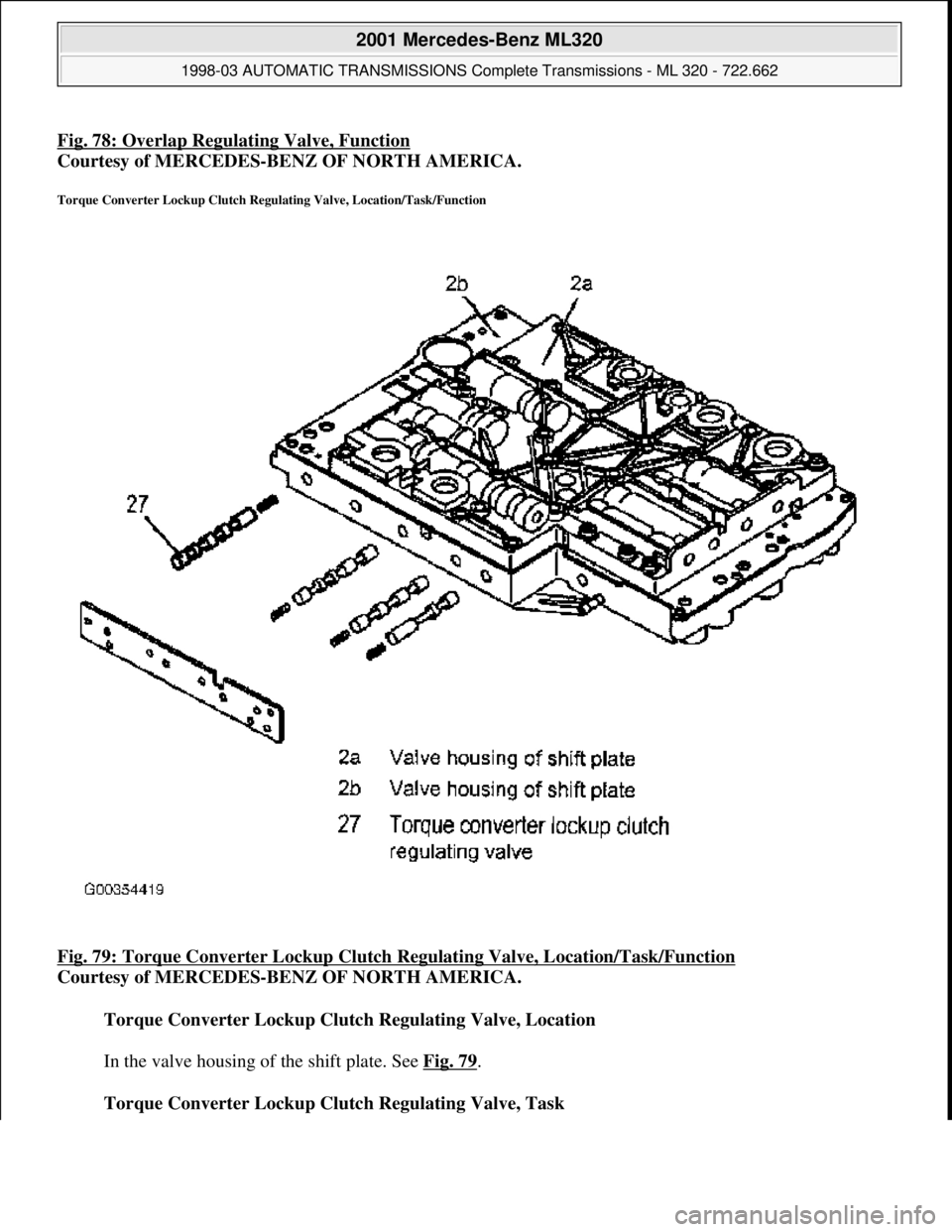

MERCEDES-BENZ ML320 1997 Complete Repair Manual Fig. 78: Overlap Regulating Valve, Function Courtesy of MERCEDES-BENZ OF NORTH AMERICA. Torque Converter Lockup Clutch Regulating Valve, Location/Task/Function Fig. 79: Torque Converter Lockup Clut

Page 1309 of 4133

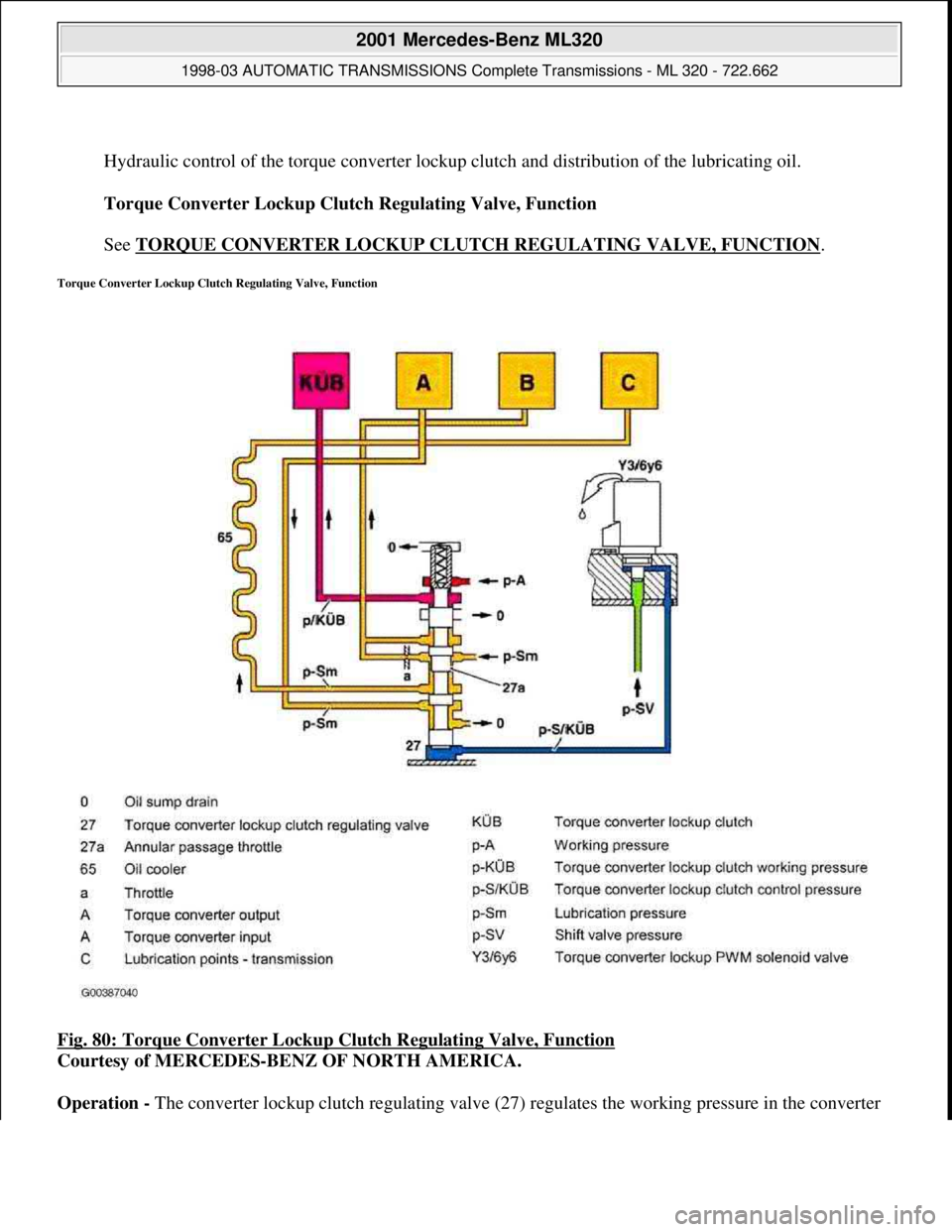

MERCEDES-BENZ ML320 1997 Complete Repair Manual Hydraulic control of the torque converter lockup clutch and distribution of the lubricating oil. Torque Converter Lockup Clutch Regulating Valve, Function See TORQUE CONVERTER LOCKUP CLUTCH REGU

Page 1310 of 4133

MERCEDES-BENZ ML320 1997 Complete Repair Manual lockup clutch (p-KUB) depending on the control pressure in converter lockup clutch (p-S/KUB). See Fig. 80. Depending on the working pressure in the converter lockup clutch (p-KUB) the converter lockup

Page 1311 of 4133

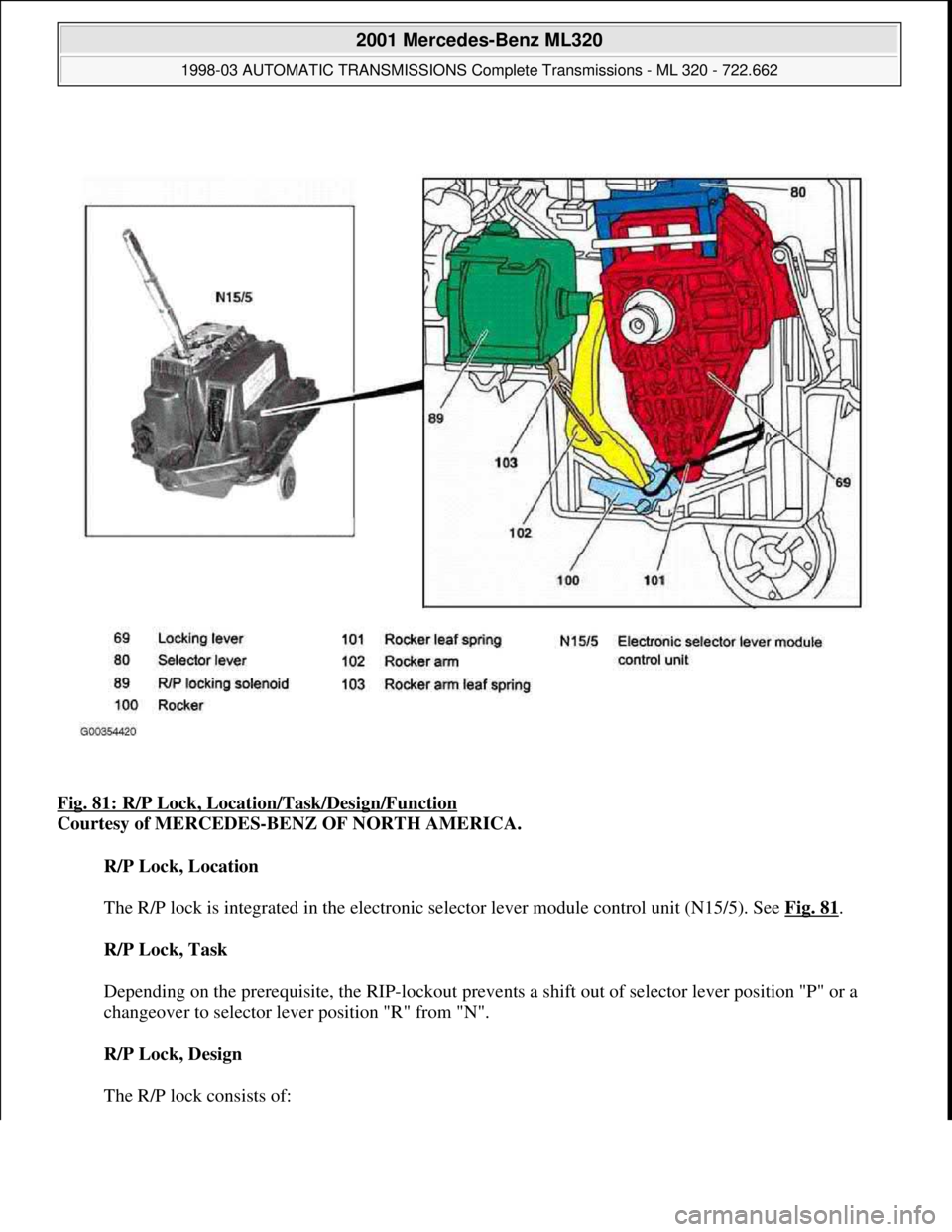

MERCEDES-BENZ ML320 1997 Complete Repair Manual Fig. 81: R/P Lock, Location/Task/Design/Function Courtesy of MERCEDES-BENZ OF NORTH AMERICA. R/P Lock, Location The R/P lock is integrated in the electronic selector lever module control unit (N1

Page 1312 of 4133

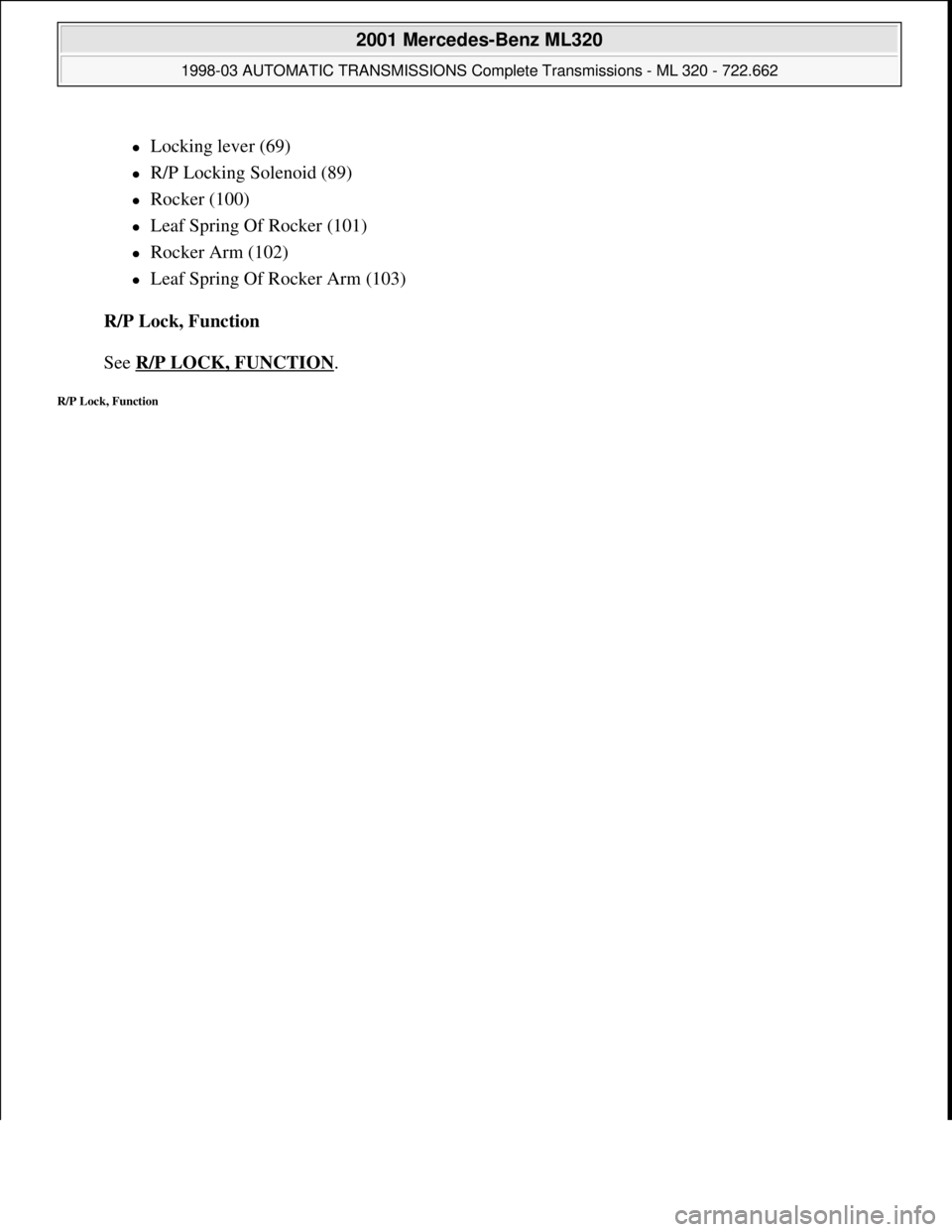

MERCEDES-BENZ ML320 1997 Complete Repair Manual Locking lever (69) R/P Locking Solenoid (89) Rocker (100) Leaf Spring Of Rocker (101) Rocker Arm (102) Leaf Spring Of Rocker Arm (103) R/P Lock, Function See R/P LOCK,
