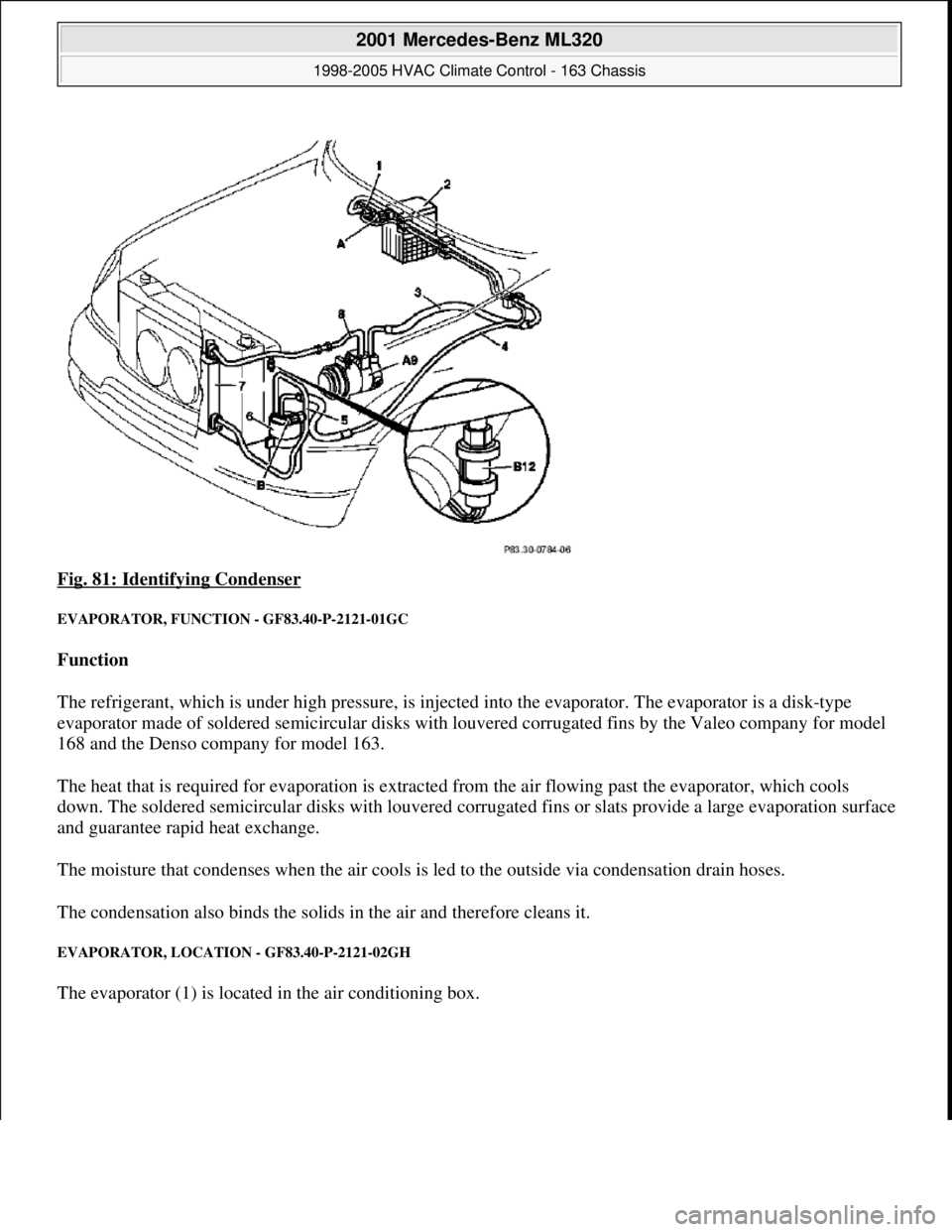

MERCEDES-BENZ ML320 1997 Complete Repair Manual Fig. 81: Identifying Condenser EVAPORATOR, FUNCTION - GF83.40-P-2121-01GC Function The refrigerant, which is under high pressure, is injected into the evaporator. The evaporator is a disk-type ev

Page 3346 of 4133

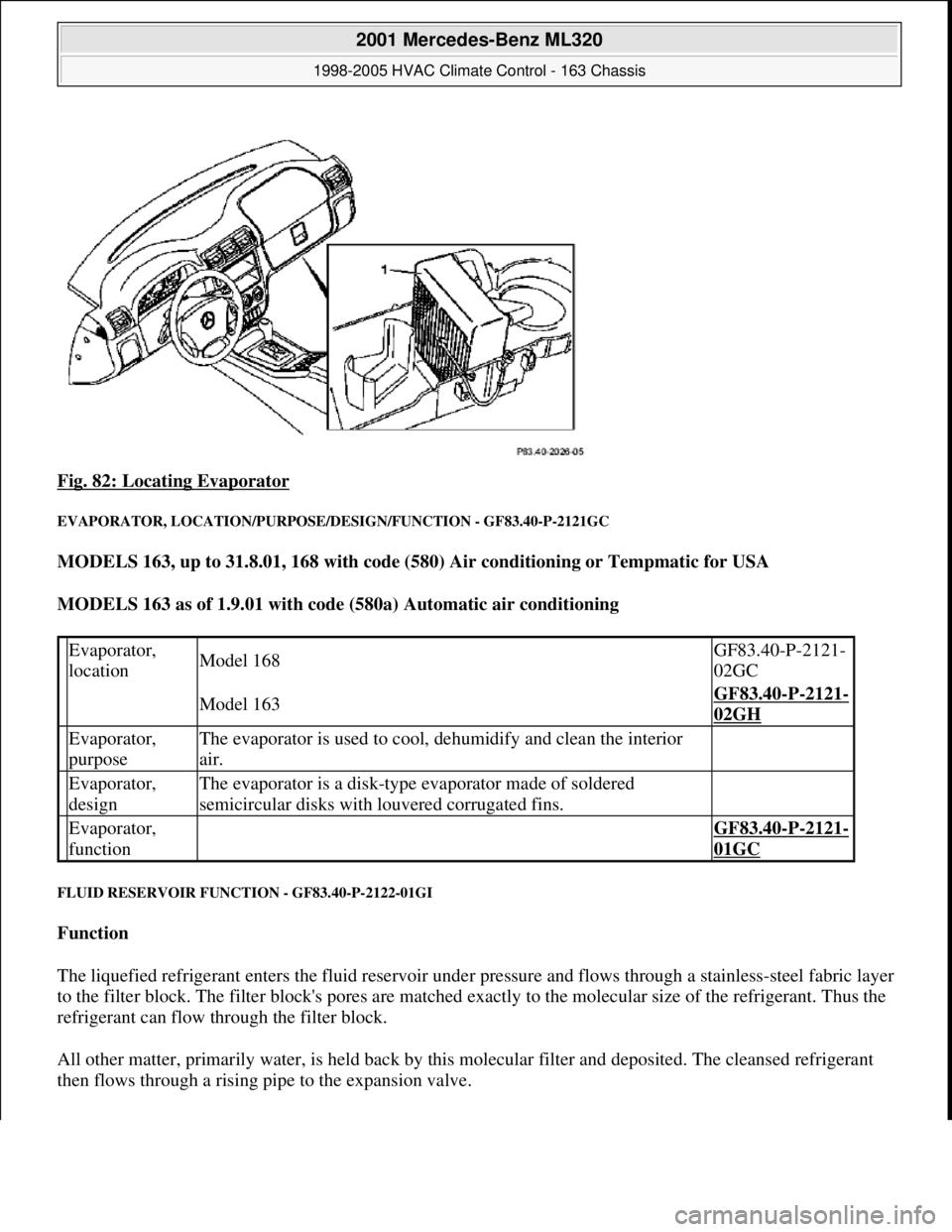

MERCEDES-BENZ ML320 1997 Complete Repair Manual Fig. 82: Locating Evaporator EVAPORATOR, LOCATION/PURPOSE/DESIGN/FUNCTION - GF83.40-P-2121GC MODELS 163, up to 31.8.01, 168 with code (580) Air conditioning or Tempmatic for USA MODELS 163 as of 1

Page 3347 of 4133

MERCEDES-BENZ ML320 1997 Complete Repair Manual Whenever the system is opened, the fluid reservoir should be replaced because of the water which has collected there in the meantime. EXPANSION VALVE, FUNCTION - GF83.40-P-2123-01GC Function Whe

Page 3348 of 4133

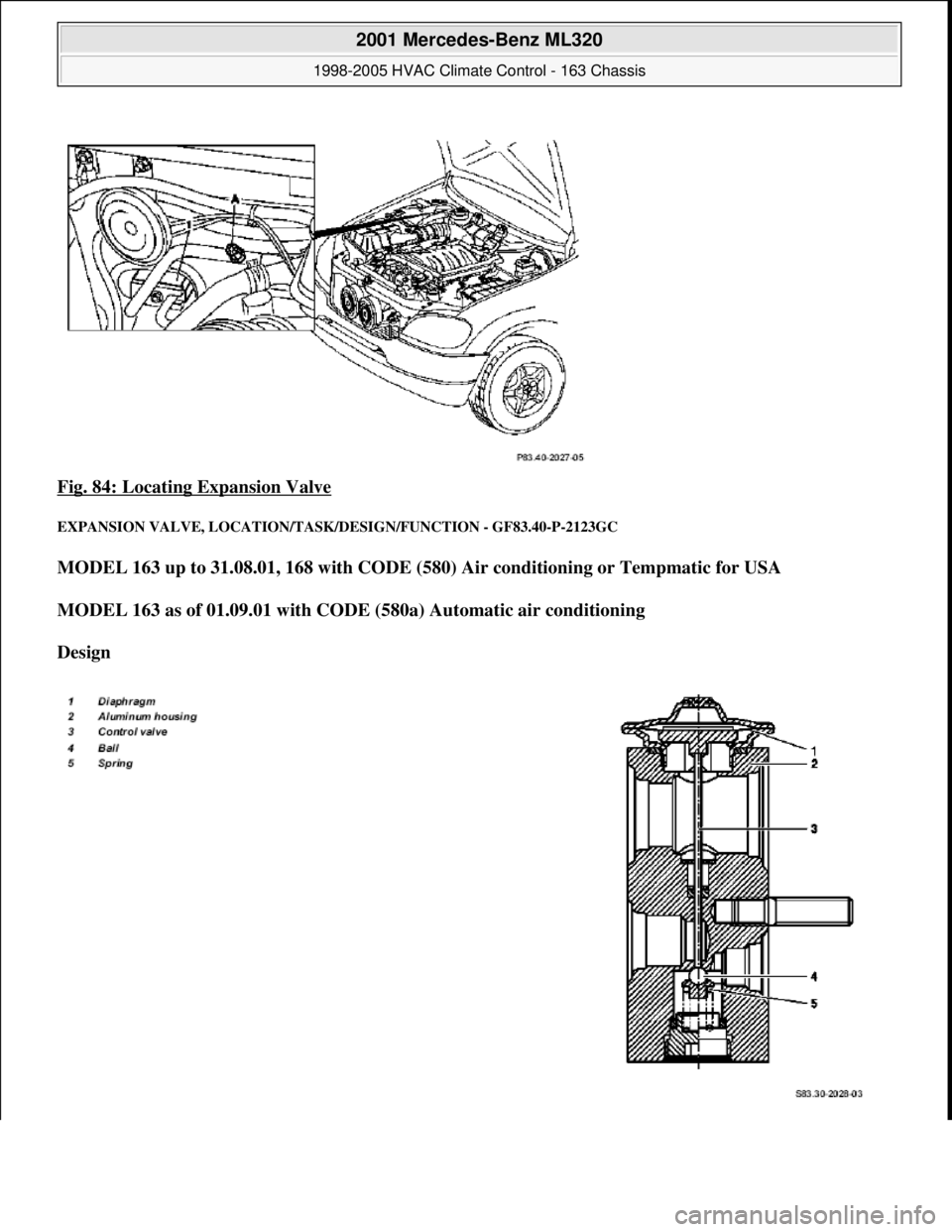

MERCEDES-BENZ ML320 1997 Complete Repair Manual Fig. 84: Locating Expansion Valve EXPANSION VALVE, LO CATION/TASK/DESIGN/FUNCTION - GF83.40-P-2123GC MODEL 163 up to 31.08.01, 168 with CODE (580) Ai r conditioning or Tempmatic for USA MODEL 163

Page 3349 of 4133

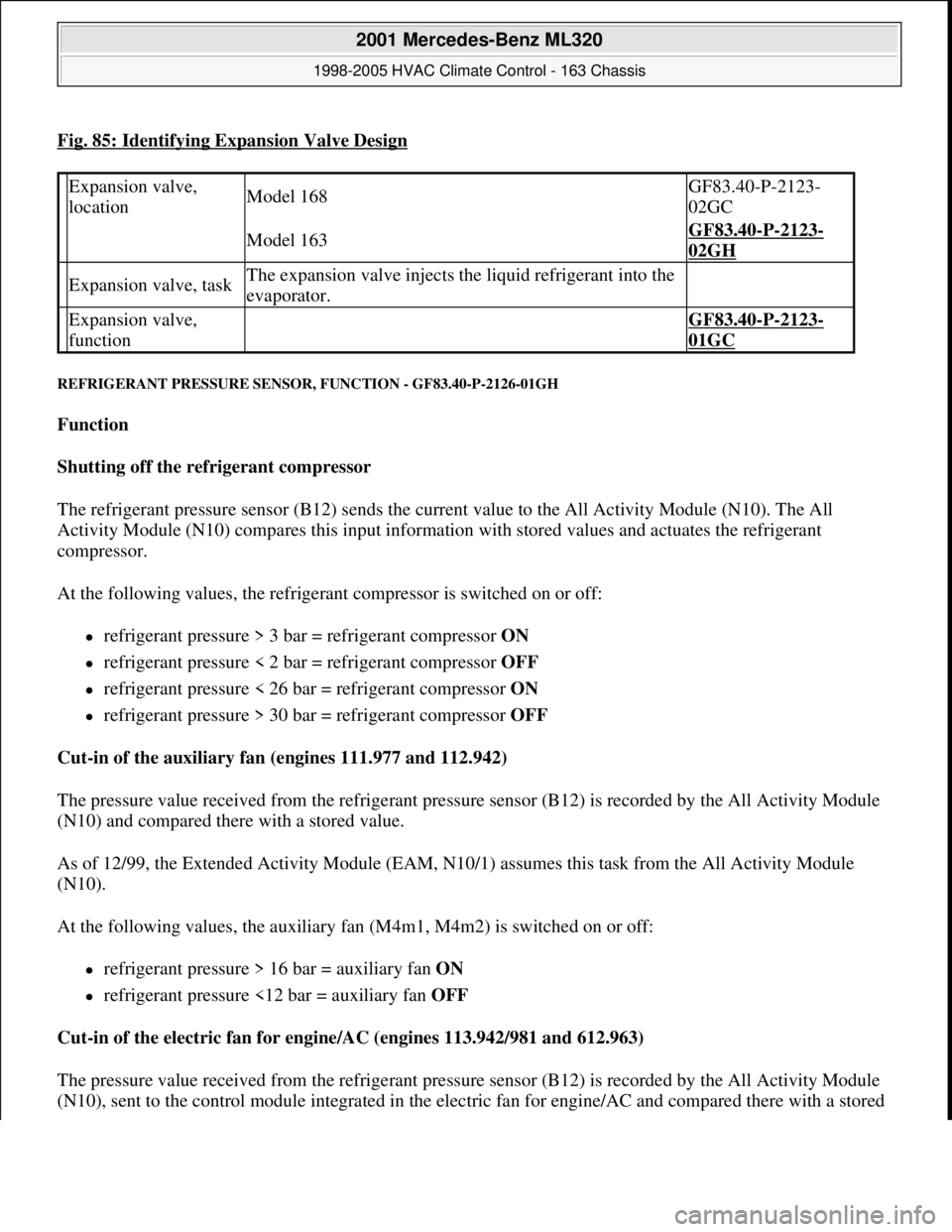

MERCEDES-BENZ ML320 1997 Complete Repair Manual Fig. 85: Identifying Expansion Valve Design REFRIGERANT PRESSURE SENSOR, FUNCTION - GF83.40-P-2126-01GH Function Shutting off the refrigerant compressor The refrigerant pressure sensor (B12) send

Page 3350 of 4133

MERCEDES-BENZ ML320 1997 Complete Repair Manual value. At the following values the electric fan for engine/AC (M4/7) is switched on or off: refrigerant pressure > 20 bar = electric fan for engine/AC ON refrigerant pressure <12 bar = elect

Page 3351 of 4133

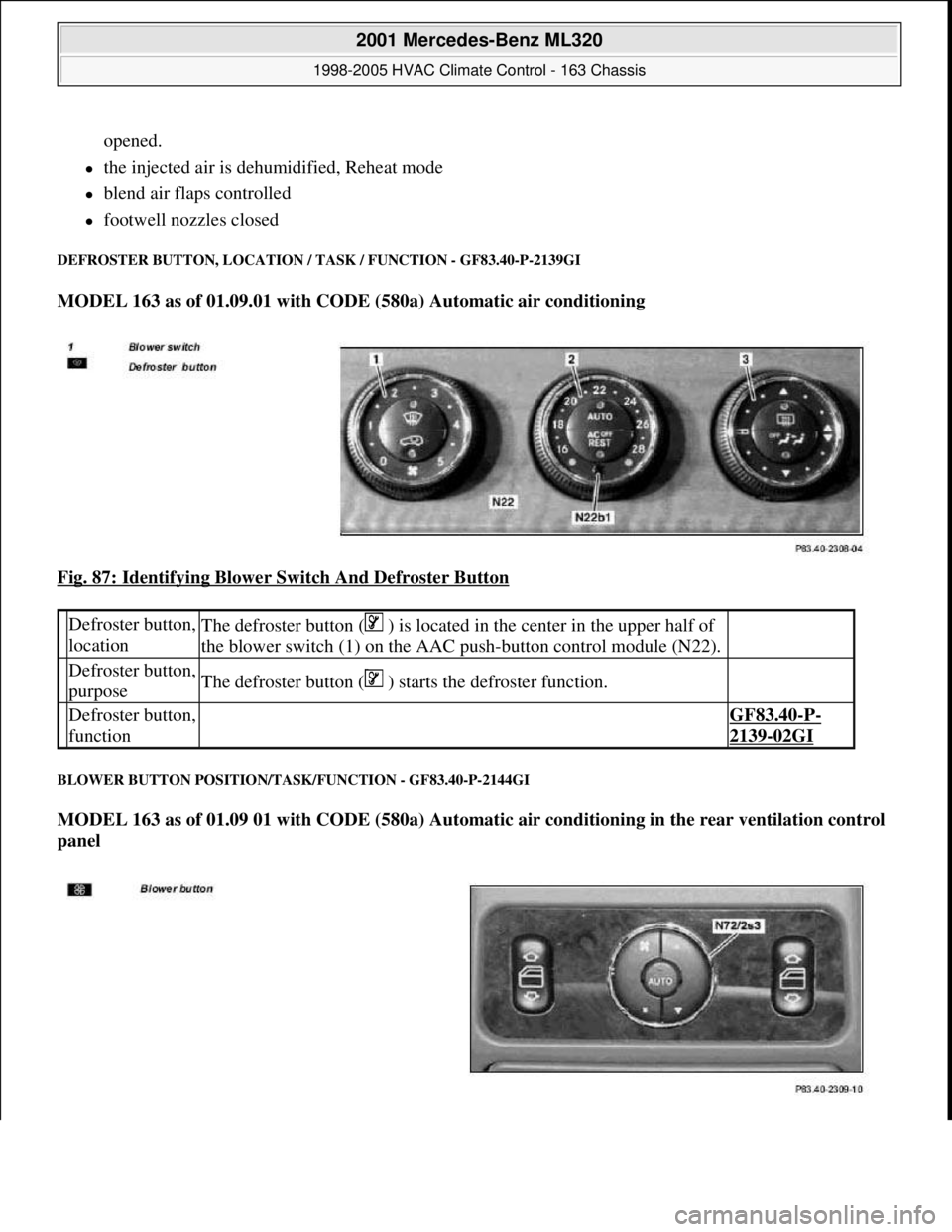

MERCEDES-BENZ ML320 1997 Complete Repair Manual opened. the injected air is dehumidified, Reheat mode blend air flaps controlled footwell nozzles closed DEFROSTER BUTTON, LOCATION / TASK / FUNCTION - GF83.40-P-2139GI MODEL 163 as

Page 3352 of 4133

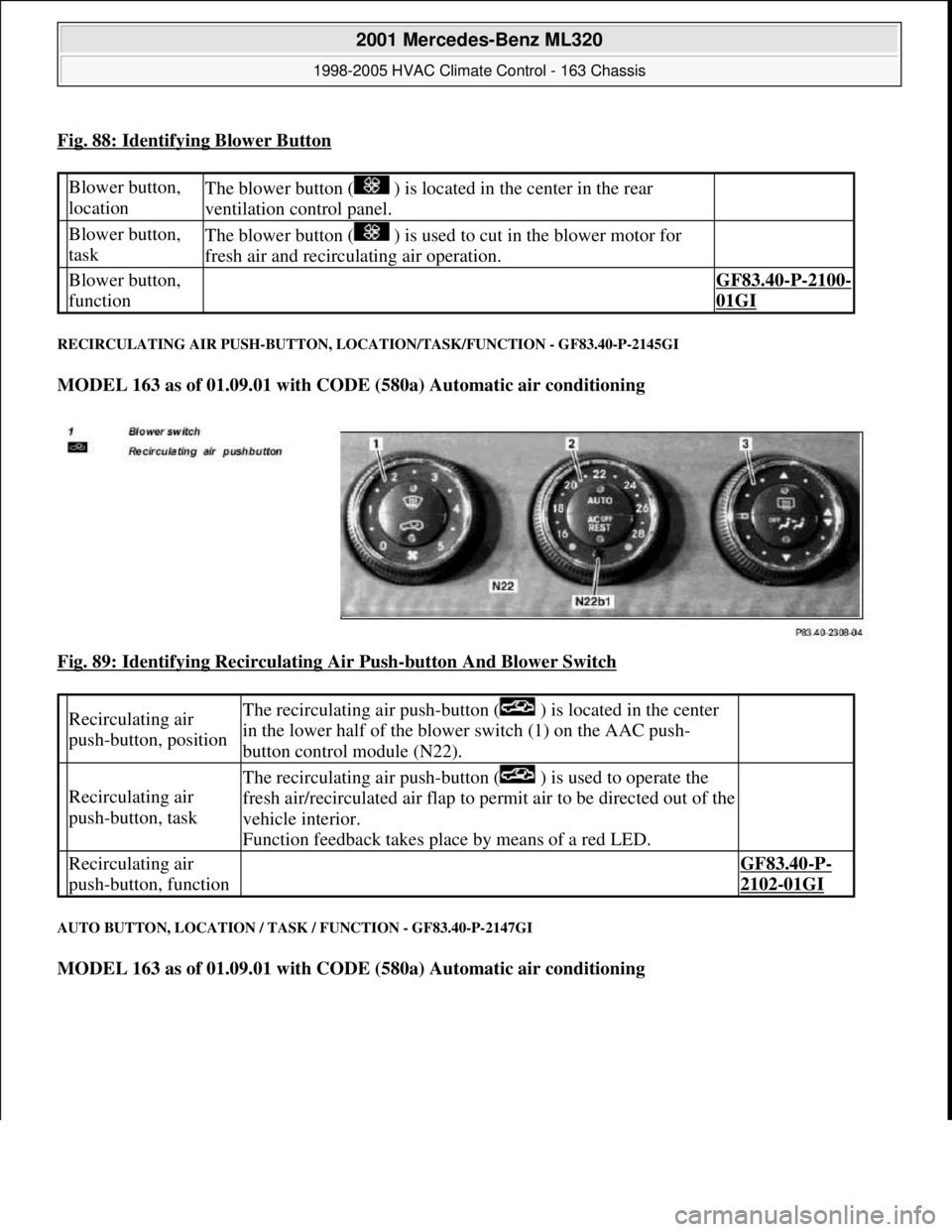

MERCEDES-BENZ ML320 1997 Complete Repair Manual Fig. 88: Identifying Blower Button RECIRCULATING AIR PUSH-BUTTON, LOCATION/TASK/FUNCTION - GF83.40-P-2145GI MODEL 163 as of 01.09.01 with CODE (580a) Automatic air conditioning Fig. 89: Identifyin
