MERCEDES-BENZ ML320 1997 Complete Repair Manual

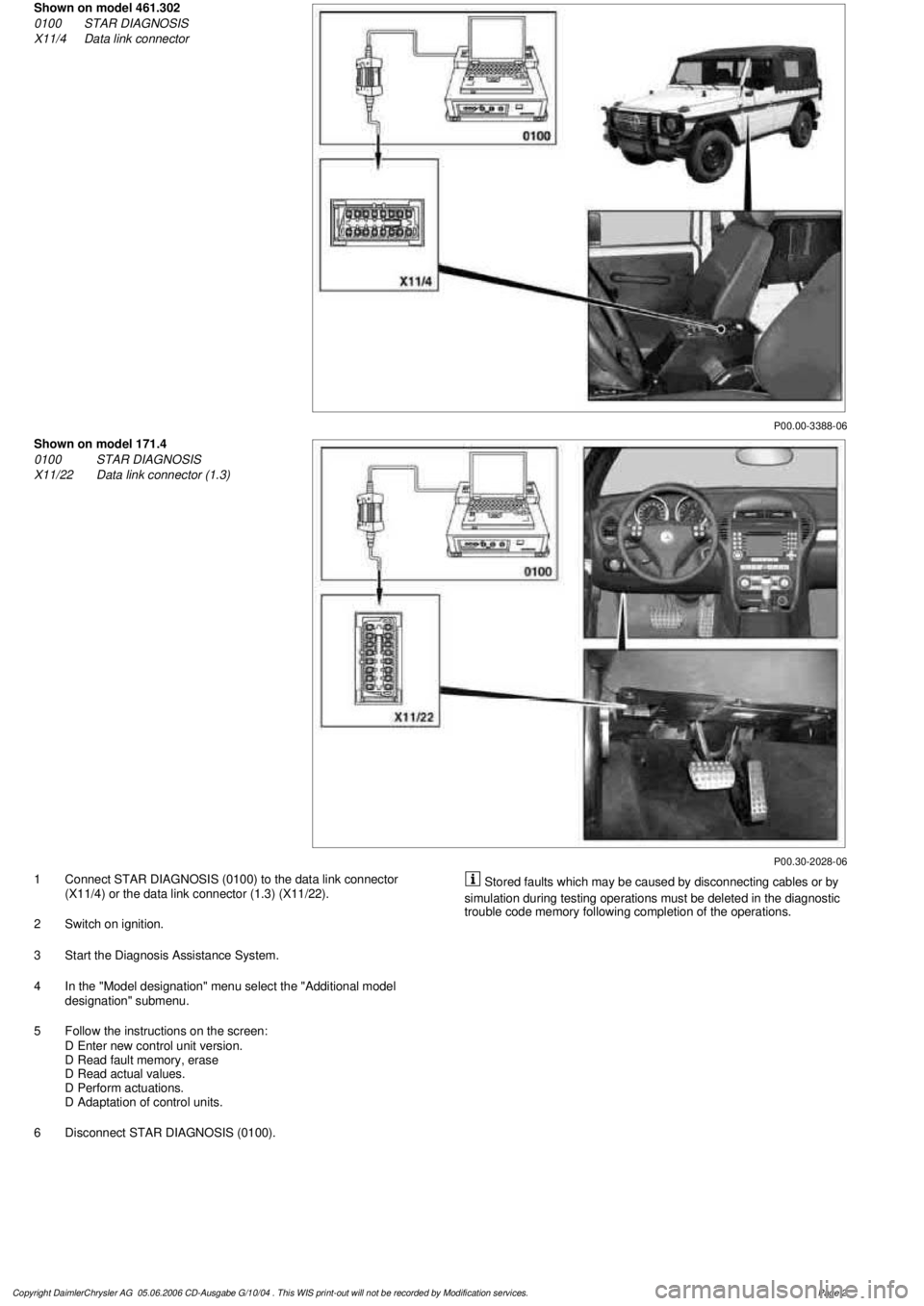

P00.00-3388-06

Shown on model 461.302
0100
STAR DIAGNOSIS

X11/4
Data link connector

P00.30-2028-06

Shown on model 171.4

0100
STAR DIAGNOSIS

X11/22
Data link connector (1.3)

1
Connect STA

Page 3882 of 4133

MERCEDES-BENZ ML320 1997 Complete Repair Manual
AD00.00-P-2004-02A
STAR DIAGNOSIS procedural schematic

Division selection

Control module group

Test steps

Measuring

technology

WIS
DAS innovations

Functions

Control module version

Fault co

Page 3883 of 4133

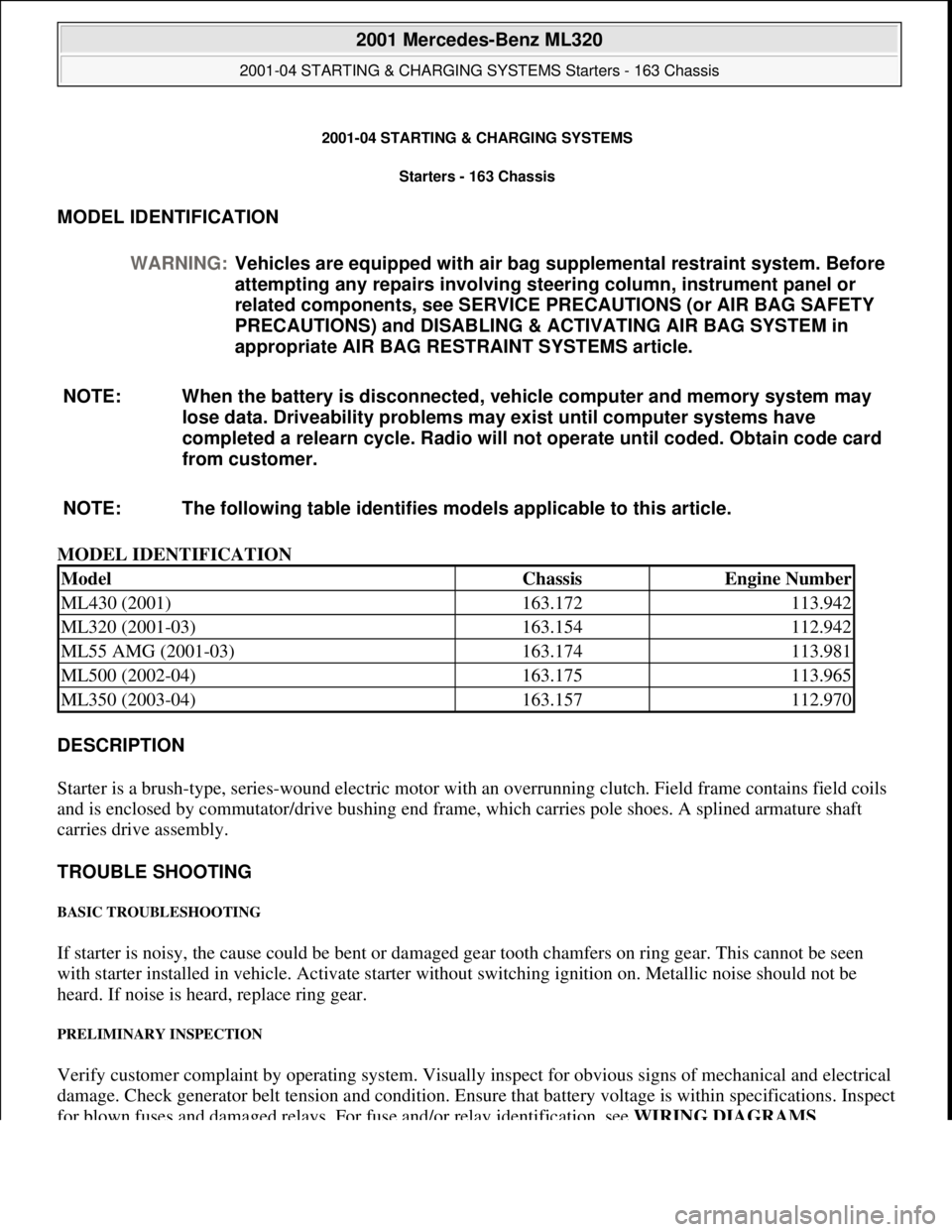

MERCEDES-BENZ ML320 1997 Complete Repair Manual 2001-04 STARTING & CHARGING SYSTEMS Starters - 163 Chassis
MODEL IDENTIFICATION
MODEL IDENTIFICATION
DESCRIPTION
Starter is a brush-type, series-wound el ectric motor with an overrunning clu

2001-04 STARTING & CHARGING SYSTEMS Starters - 163 Chassis
MODEL IDENTIFICATION
MODEL IDENTIFICATION
DESCRIPTION
Starter is a brush-type, series-wound el ectric motor with an overrunning clutch. Field frame contains field coils
and is enclosed by commutator/drive bushing end frame, which carries pole shoes. A splined armature shaft
carries drive assembly.
TROUBLE SHOOTING
BASIC TROUBLESHOOTING
If starter is noisy, the cause could be bent or damaged gear tooth chamfers on ring gear. This cannot be seen
with starter installed in ve hicle. Activate starter without switching ignition on. Me tallic noise should not be
heard. If noise is he ard, replace ring gear.
PRELIMINARY INSPECTION
Verify customer complaint by operating system. Visually inspect for obvious signs of mechanical and electrical
damage. Check generator belt tension and condition. Ensure that battery voltage is within specifications. Inspect
for blown fuses and damaged relays. For fuse and/or relay identification, see WIRING DIAGRAMS
.
WARNING:
Vehicles are equipped with air bag supplemental restraint system. Before
attempting any repairs involving steer ing column, instrument panel or
related components, see SERVICE PRECAUTIONS (or AIR BAG SAFETY
PRECAUTIONS) and DISABLING & ACTIVATING AIR BAG SYSTEM in
appropriate AIR BAG REST RAINT SYSTEMS article.
NOTE: When the battery is di sconnected, vehicle computer and memory system may
lose data. Driveability problems may exist until computer systems have
completed a relearn cycle. Radio will not operate until coded. Obtain code card
from customer.
NOTE: The following table identifies mo dels applicable to this article.
ModelChassisEngine Number
ML430 (2001)163.172113.942
ML320 (2001-03)163.154112.942
ML55 AMG (2001-03)163.174113.981
ML500 (2002-04)163.175113.965
ML350 (2003-04)163.157112.970

2001 Mercedes-Benz ML320
2001-04 STARTING & CHARGING SYSTEMS Starters - 163 Chassis

2001 Mercedes-Benz ML320
2001-04 STARTING & CHARGING SYSTEMS Starters - 163 Chassis
me
Saturday, October 02, 2010 3:19:47 PMPage 1 © 2006 Mitchell Repair Information Company, LLC.
me
Saturday, October 02, 2010 3:19:50 PMPage 1 © 2006 Mitchell Repair Information Company, LLC.

Page 3884 of 4133

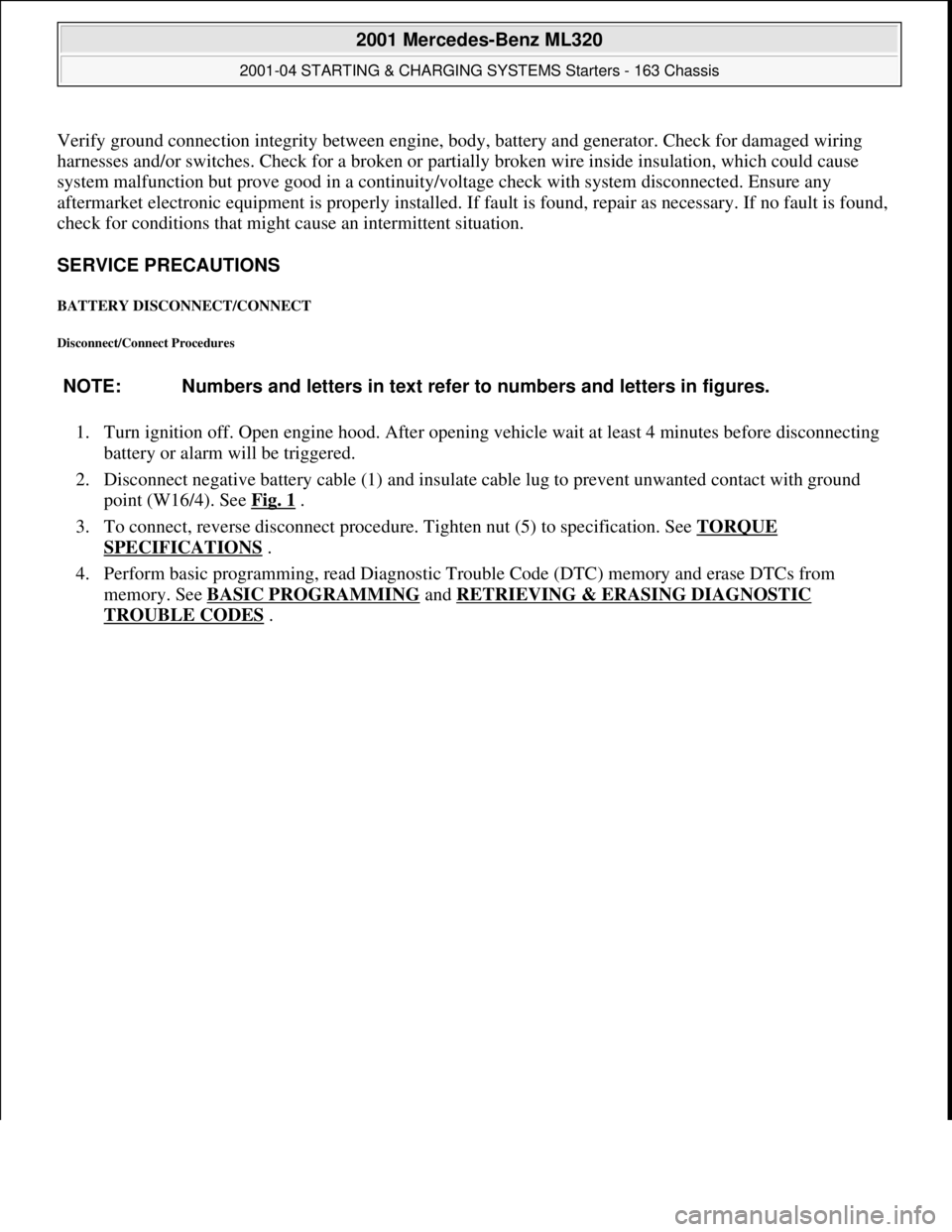

MERCEDES-BENZ ML320 1997 Complete Repair Manual Verify ground connection integrity between engine, body, battery and generator. Check for damaged wiring
harnesses and/or switches. Check fo r a broken or partially broken wire inside insulation,

Page 3885 of 4133

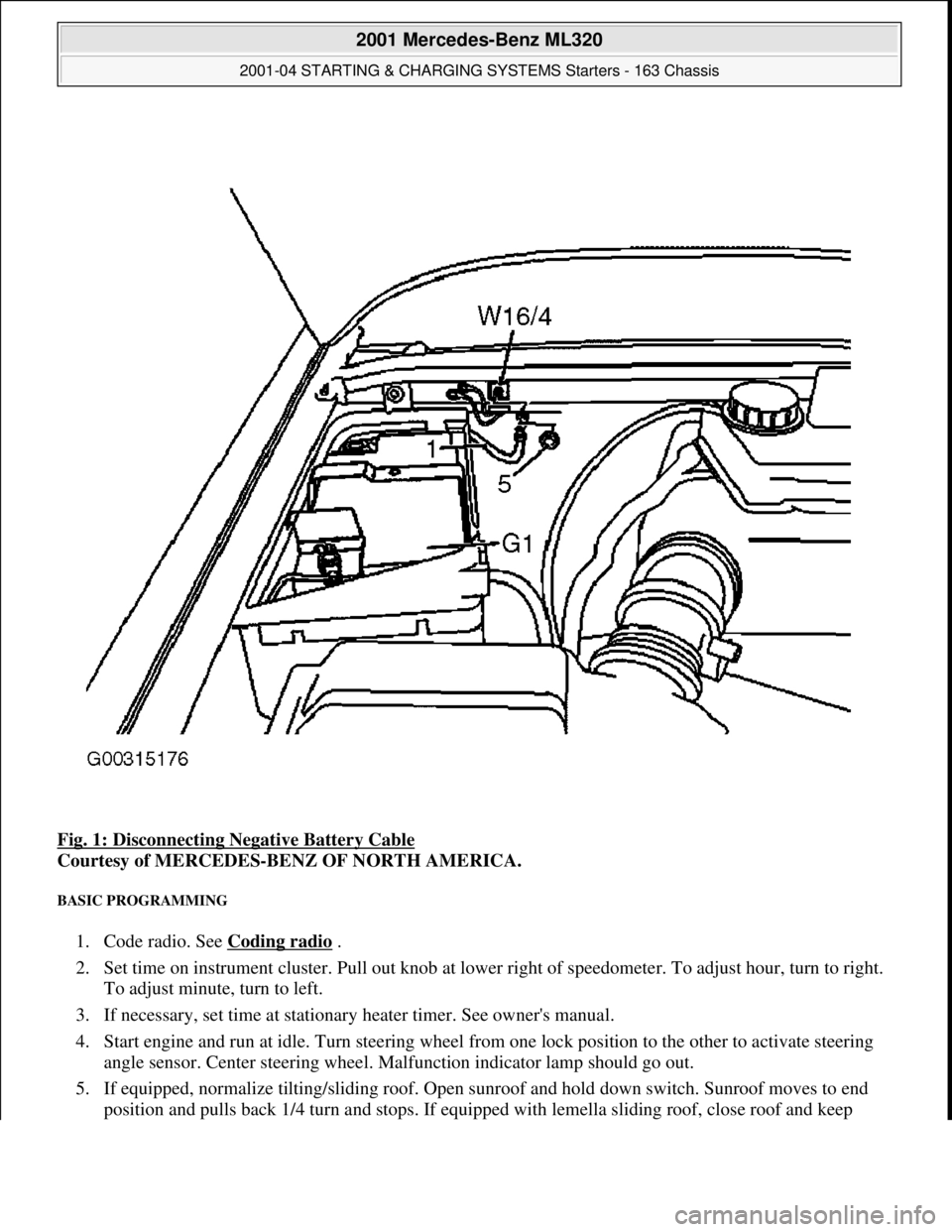

MERCEDES-BENZ ML320 1997 Complete Repair Manual Fig. 1: Disconnecting Negative Battery Cable
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
BASIC PROGRAMMING
1. Code radio. See Coding radio .
2. Set time on instrument cluster. Pull out knob a

Page 3886 of 4133

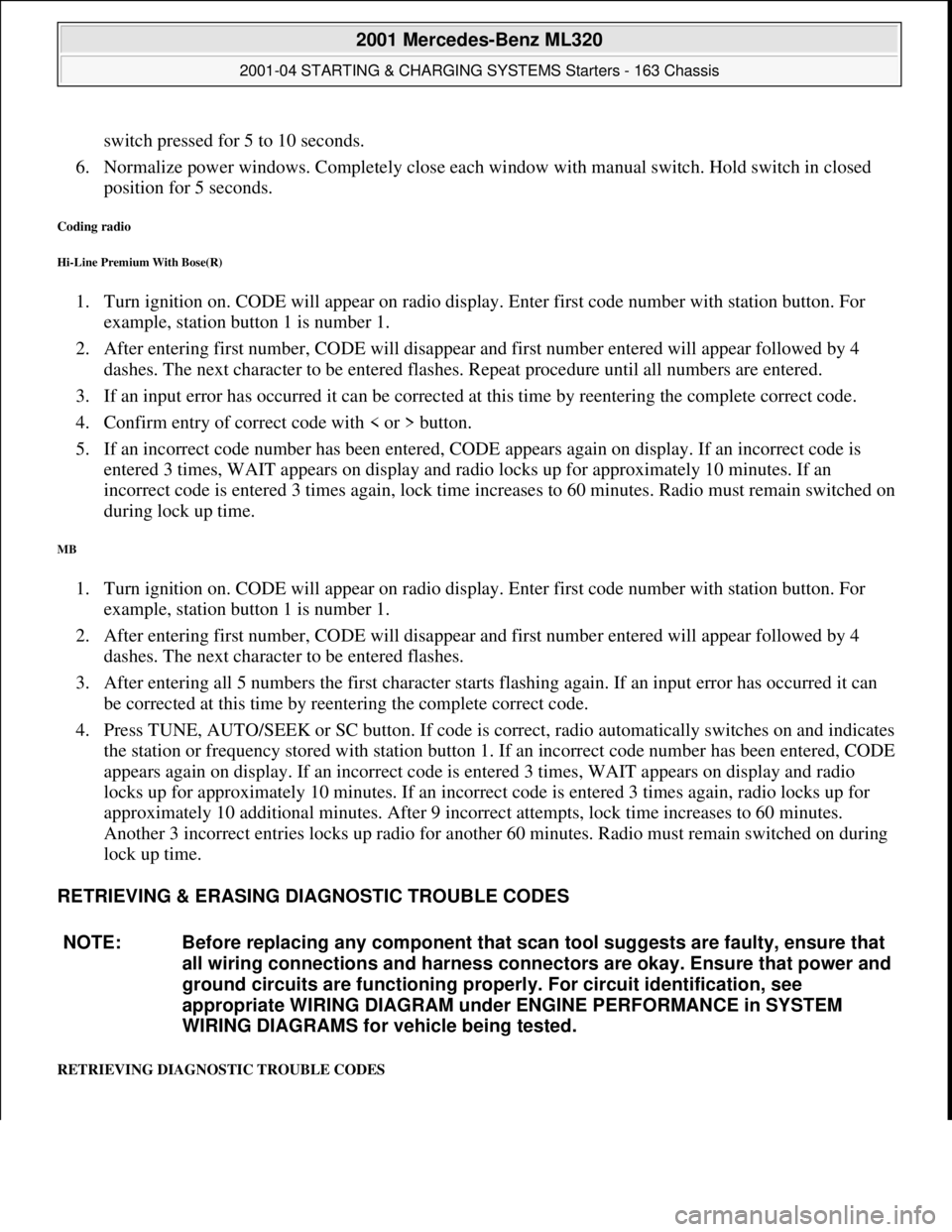

MERCEDES-BENZ ML320 1997 Complete Repair Manual switch pressed for 5 to 10 seconds.
6. Normalize power windows. Completely close each wi ndow with manual switch. Hold switch in closed
position for 5 seconds.
Coding radio
Hi-Line Premium Wi

switch pressed for 5 to 10 seconds.
6. Normalize power windows. Completely close each wi ndow with manual switch. Hold switch in closed
position for 5 seconds.
Coding radio
Hi-Line Premium With Bose(R)
1. Turn ignition on. CODE will appear on radio displa y. Enter first code number with station button. For
example, station button 1 is number 1.
2. After entering first number, CODE will disappear and first number entered will appear followed by 4
dashes. The next character to be entered flashes. Repeat procedure until all numbers are entered.
3. If an input error has occurred it can be corrected at this time by reentering the complete correct code.
4. Confirm entry of correct code with < or > button.
5. If an incorrect code number has been entered, CODE appears again on display. If an incorrect code is
entered 3 times, WAIT appears on display and ra dio locks up for approximately 10 minutes. If an
incorrect code is entered 3 times again, lock time increases to 60 mi nutes. Radio must remain switched on
during lock up time.
MB
1. Turn ignition on. CODE will appear on radio displa y. Enter first code number with station button. For
example, station button 1 is number 1.
2. After entering first number, CODE will disappear and first number entered will appear followed by 4
dashes. The next character to be entered flashes.
3. After entering all 5 numbers the first character starts flashing again. If an input error has occurred it can
be corrected at this time by reentering the complete correct code.
4. Press TUNE, AUTO/SEEK or SC butt on. If code is correct, radio automatically switches on and indicates
the station or frequency stored wi th station button 1. If an incorrect code number has been entered, CODE
appears again on display. If an inco rrect code is entered 3 times, WAIT appears on display and radio
locks up for approximately 10 minutes. If an incorrect code is entered 3 times again, radio locks up for
approximately 10 additional minutes. After 9 incorrec t attempts, lock time increases to 60 minutes.
Another 3 incorrect entries locks up radio for anothe r 60 minutes. Radio must remain switched on during
lock up time.
RETRIEVING & ER ASING DIAGNOSTIC TROUBLE CODES
RETRIEVING DIAGNOSTIC TROUBLE CODES
NOTE: Before replacing any component that scan tool suggests are faulty, ensure that
all wiring connections and harness connect ors are okay. Ensure that power and
ground circuits are functioning properl y. For circuit identification, see
appropriate WIRING DIAGRAM unde r ENGINE PERFORMANCE in SYSTEM
WIRING DIAGRAMS for vehicle being tested.

2001 Mercedes-Benz ML320
2001-04 STARTING & CHARGING SYSTEMS Starters - 163 Chassis
me
Saturday, October 02, 2010 3:19:47 PMPage 4 © 2006 Mitchell Repair Information Company, LLC.

Page 3887 of 4133

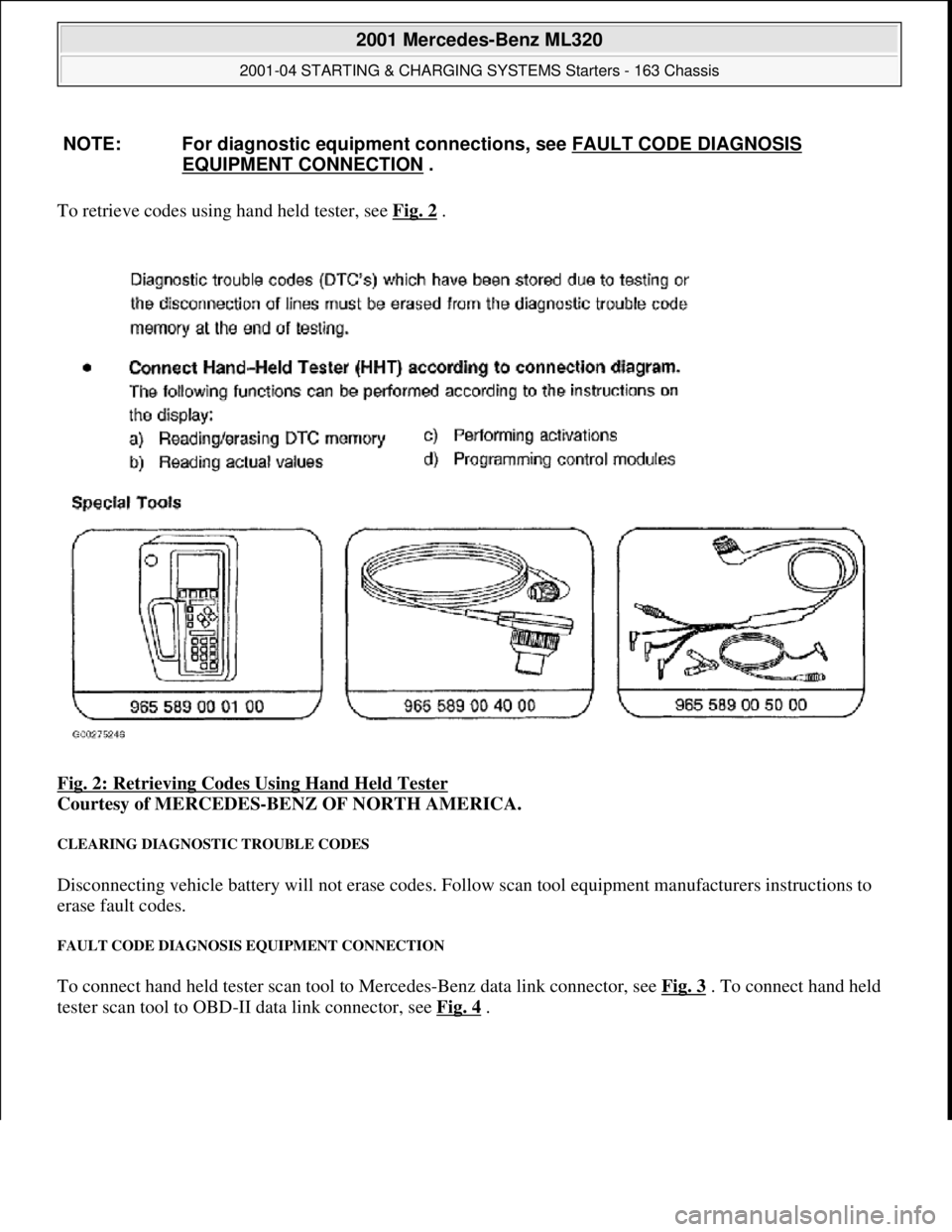

MERCEDES-BENZ ML320 1997 Complete Repair Manual To retrieve codes using hand held tester, see Fig. 2 .

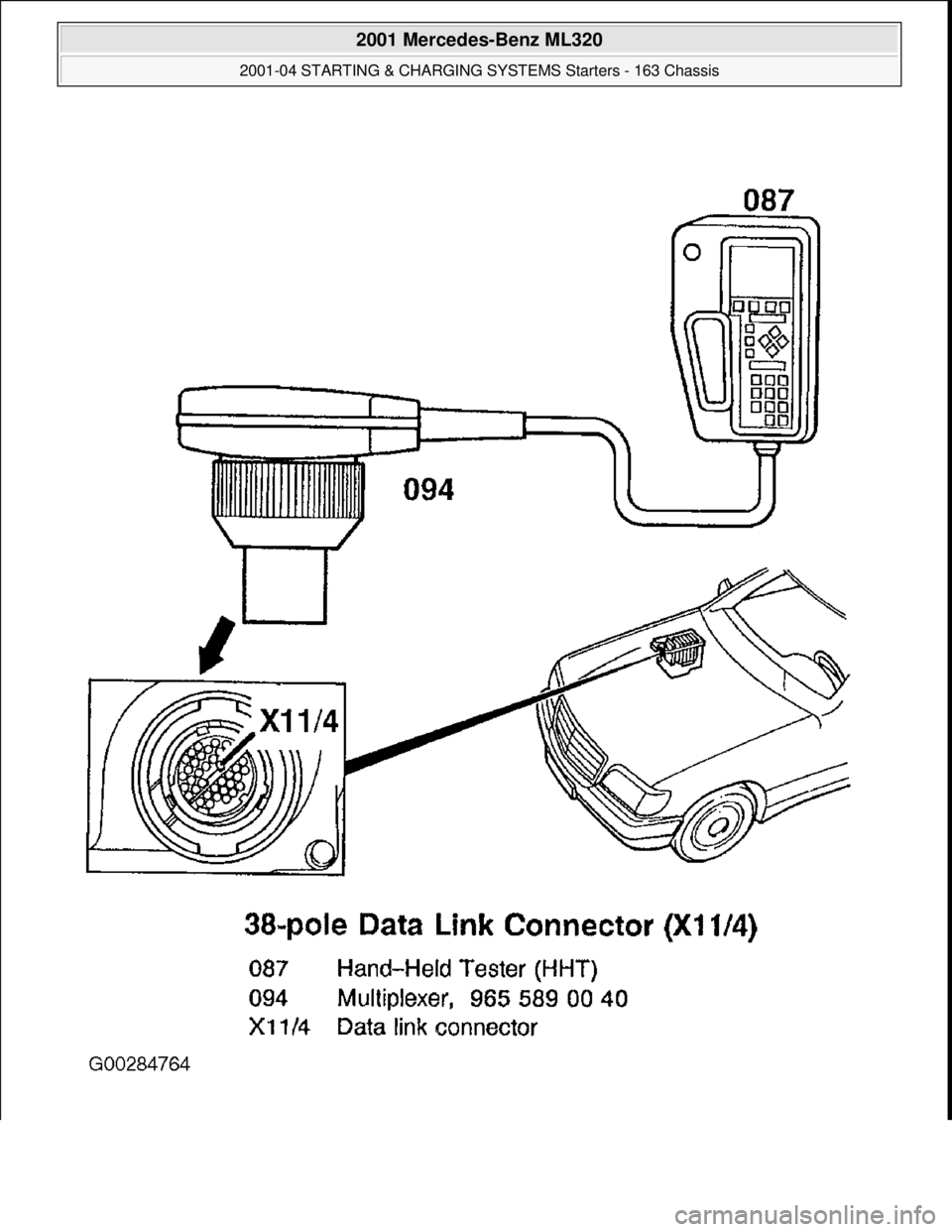

Fig. 2: Retrieving Codes Using Hand Held Tester

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
CLEARING DIAGNOSTIC TROUBLE CODES
Disconnec

Page 3888 of 4133

MERCEDES-BENZ ML320 1997 Complete Repair Manual
2001 Mercedes-Benz ML320
2001-04 STARTING & CHARGING SYSTEMS Starters - 163 Chassis
me
Saturday, October 02, 2010 3:19:47 PMPage 6 © 2006 Mitchell Repair Information Company, LLC.
