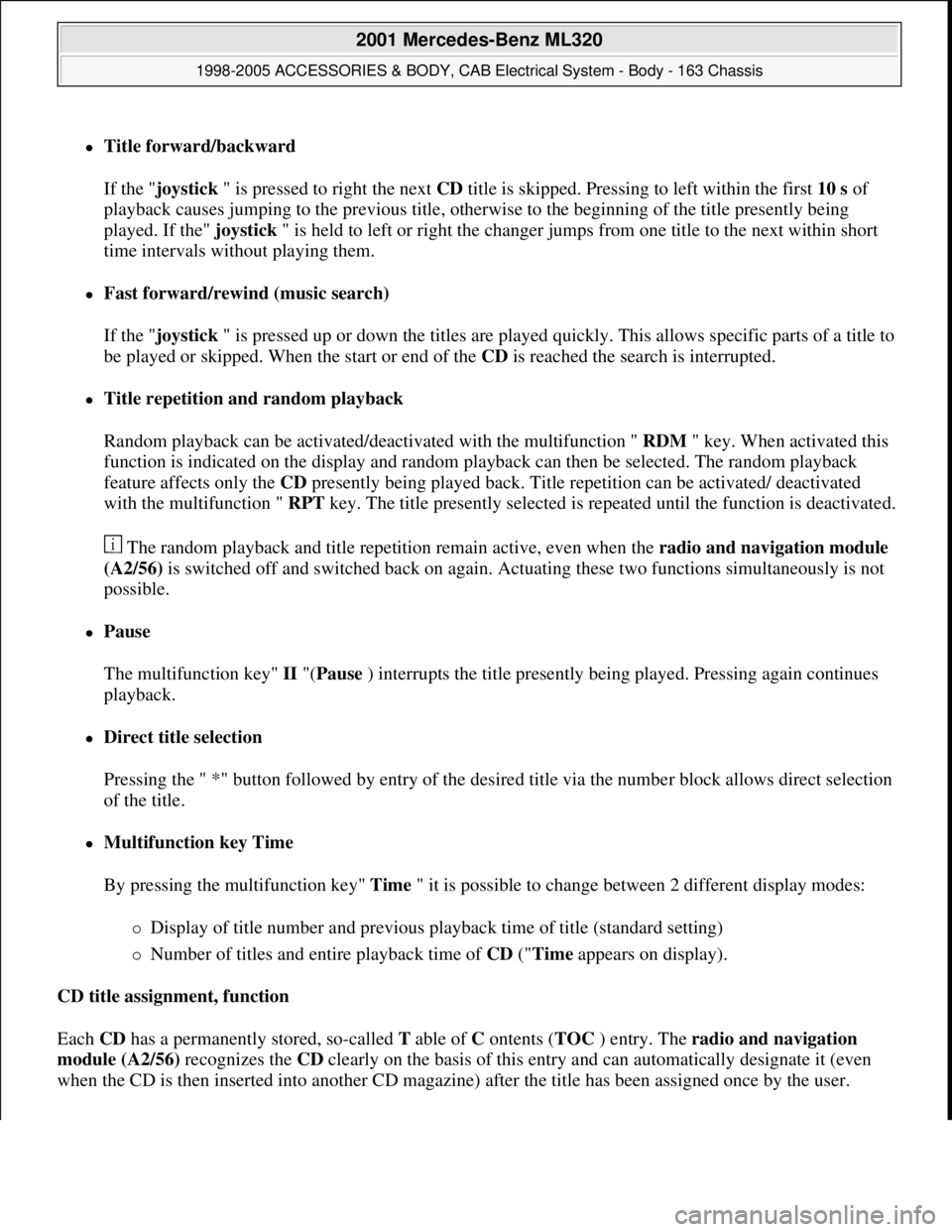

MERCEDES-BENZ ML320 1997 Complete Repair Manual Title forward/backward
If the "joystick " is pressed to right the next CD title is skipped. Pressing to left within the first 10 s of
playback causes jumping to the previous title, otherwise to t

Title forward/backward
If the "joystick " is pressed to right the next CD title is skipped. Pressing to left within the first 10 s of
playback causes jumping to the previous title, otherwise to the beginning of the title presently being
played. If the" joystick " is held to left or right the changer jumps from one title to the next within short
time intervals without playing them.
Fast forward/rewind (music search)
If the "joystick " is pressed up or down the titles are played quickly. This allows specific parts of a title to
be played or skipped. When the start or end of the CD is reached the search is interrupted.
Title repetition and random playback
Random playback can be activated/deactivated with the multifunction " RDM " key. When activated this
function is indicated on the display and random playback can then be selected. The random playback
feature affects only the CD presently being played back. Title repetition can be activated/ deactivated
with the multifunction " RPT key. The title presently selected is repeated until the function is deactivated.
The random playback and title repetition remain active, even when the radio and navigation module
(A2/56) is switched off and switched back on again. Actuating these two functions simultaneously is not
possible.
Pause
The multifunction key" II "(Pause ) interrupts the title presently being played. Pressing again continues
playback.
Direct title selection
Pressing the " *" button followed by entry of the desired title via the number block allows direct selection
of the title.
Multifunction key Time
By pressing the multifunction key" Time " it is possible to change between 2 different display modes:
Display of title number and previous playback time of title (standard setting)
Number of titles and entire playback time of CD ("Time appears on display).
CD title assignment, function
Each CD has a permanently stored, so-called T able of C ontents (TOC ) entry. The radio and navigation
module (A2/56) recognizes the CD clearly on the basis of this entry and can automatically designate it (even
when the CD is then inserted into another CD ma
gazine) after the title has been assigned once by the user.

2001 Mercedes-Benz ML320
1998-2005 ACCESSORIES & BODY, CAB Electrical System - Body - 163 Chassis
me
Saturday, October 02, 2010 3:30:05 PMPage 66 © 2006 Mitchell Repair Information Company, LLC.

Page 1562 of 4133

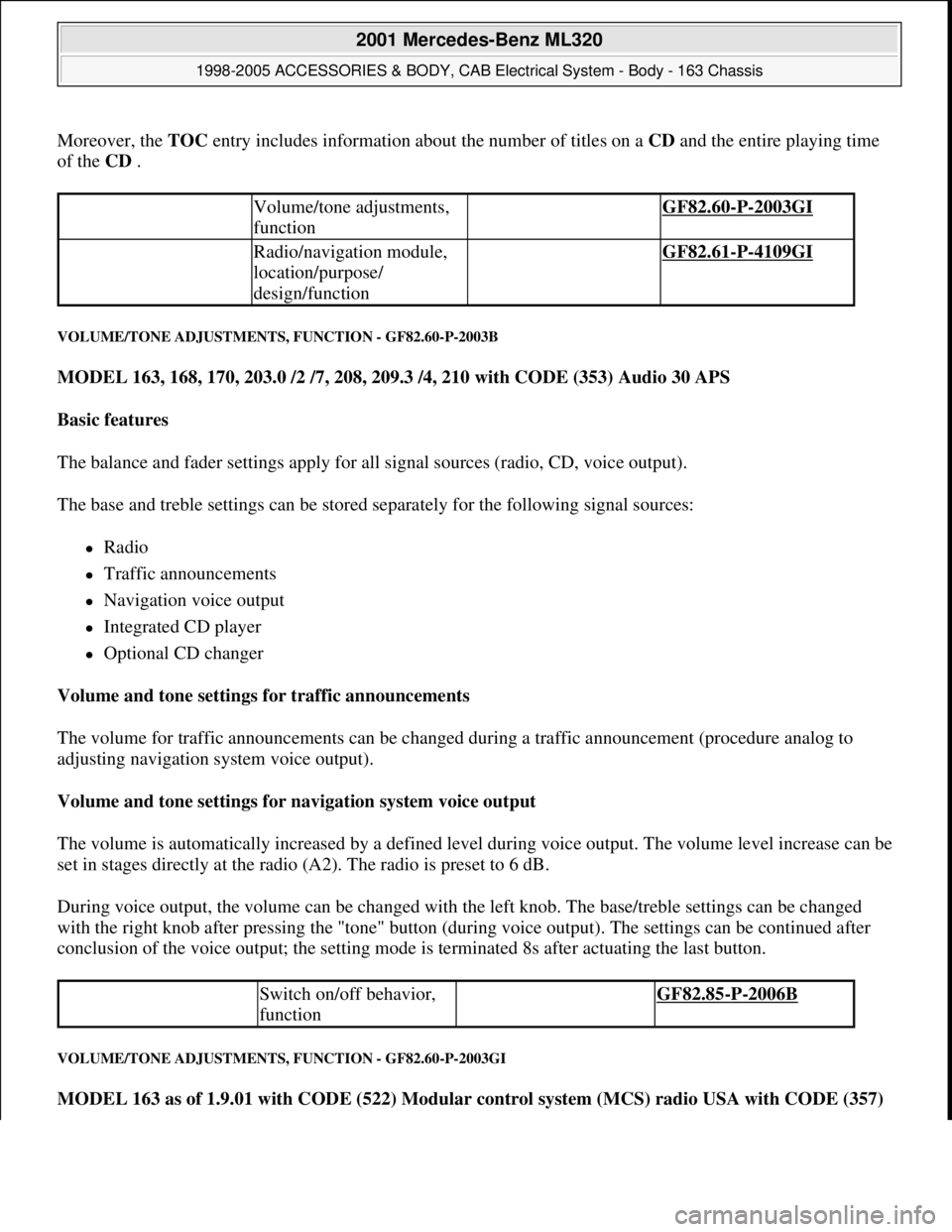

MERCEDES-BENZ ML320 1997 Complete Repair Manual Moreover, the TOC entry includes information about the number of titles on a CD and the entire playing time
of the CD .
VOLUME/TONE ADJUSTMENTS, FUNCTION - GF82.60-P-2003B
MODEL 163, 168, 170, 203.

Page 1563 of 4133

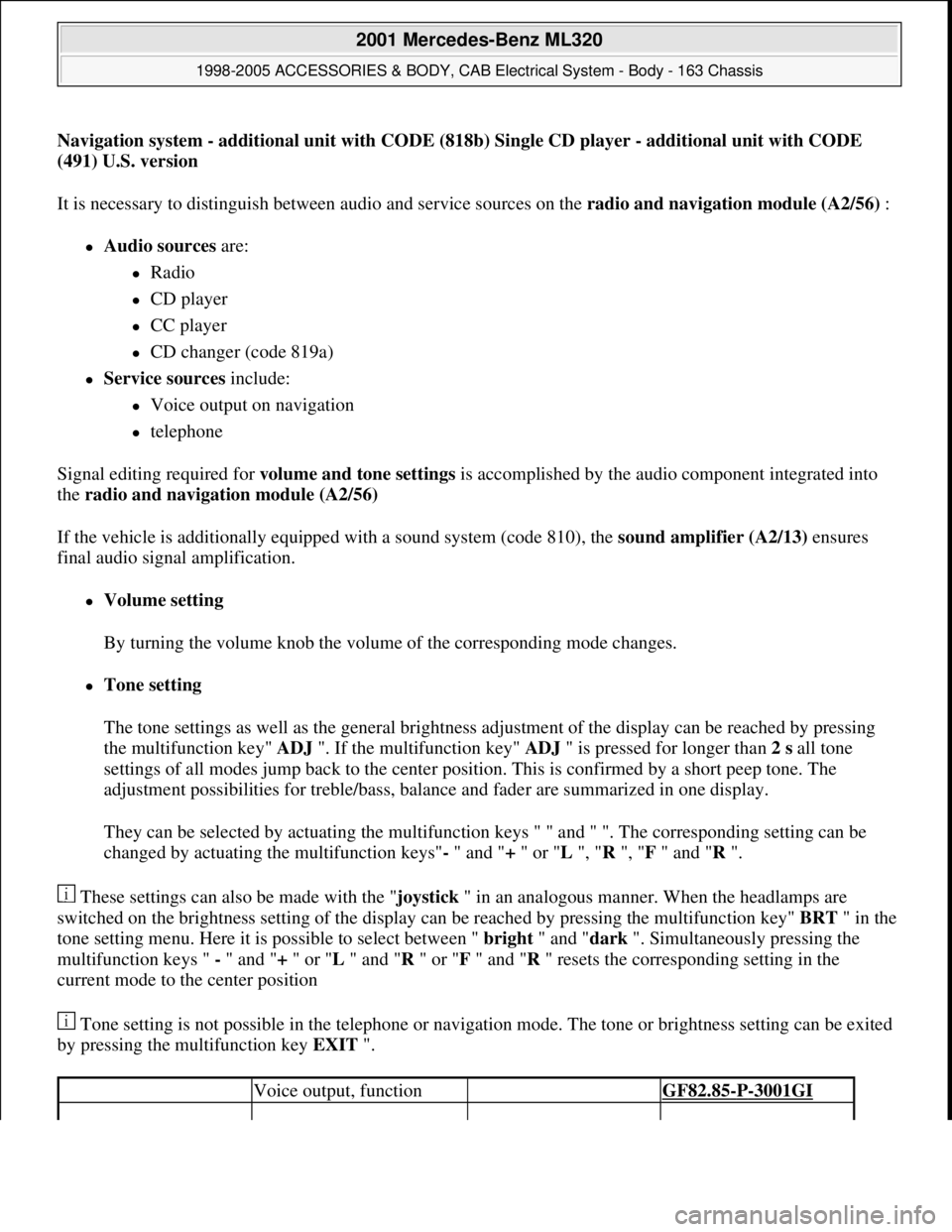

MERCEDES-BENZ ML320 1997 Complete Repair Manual Navigation system - additional unit with CODE (818b) Single CD player - additional unit with CODE
(491) U.S. version
It is necessary to distinguish between audio and service sources on the radio an

Navigation system - additional unit with CODE (818b) Single CD player - additional unit with CODE
(491) U.S. version
It is necessary to distinguish between audio and service sources on the radio and navigation module (A2/56) :
Audio sources are:
Radio
CD player
CC player
CD changer (code 819a)
Service sources include:
Voice output on navigation
telephone
Signal editing required for volume and tone settings is accomplished by the audio component integrated into
the radio and navigation module (A2/56)
If the vehicle is additionally equipped with a sound system (code 810), the sound amplifier (A2/13) ensures
final audio signal amplification.
Volume setting
By turning the volume knob the volume of the corresponding mode changes.
Tone setting
The tone settings as well as the general brightness adjustment of the display can be reached by pressing
the multifunction key" ADJ ". If the multifunction key" ADJ " is pressed for longer than 2 s all tone
settings of all modes jump back to the center position. This is confirmed by a short peep tone. The
adjustment possibilities for treble/bass, balance and fader are summarized in one display.
They can be selected by actuating the multifunction keys " " and " ". The corresponding setting can be
changed by actuating the multifunction keys"- " and "+ " or "L ", "R ", "F " and "R ".
These settings can also be made with the "joystick " in an analogous manner. When the headlamps are
switched on the brightness setting of the display can be reached by pressing the multifunction key" BRT" in the
tone setting menu. Here it is possible to select between " bright " and "dark ". Simultaneously pressing the
multifunction keys " - " and "+ " or "L " and "R " or "F " and "R " resets the corresponding setting in the
current mode to the center position
Tone setting is not possible in the telephone or navigation mode. The tone or brightness setting can be exited
by pressing the multifunction key EXIT ".
Voice output, function GF82.85-P-3001GI

2001 Mercedes-Benz ML320
1998-2005 ACCESSORIES & BODY, CAB Electrical System - Body - 163 Chassis
me
Saturday, October 02, 2010 3:30:05 PMPage 68 © 2006 Mitchell Repair Information Company, LLC.

Page 1564 of 4133

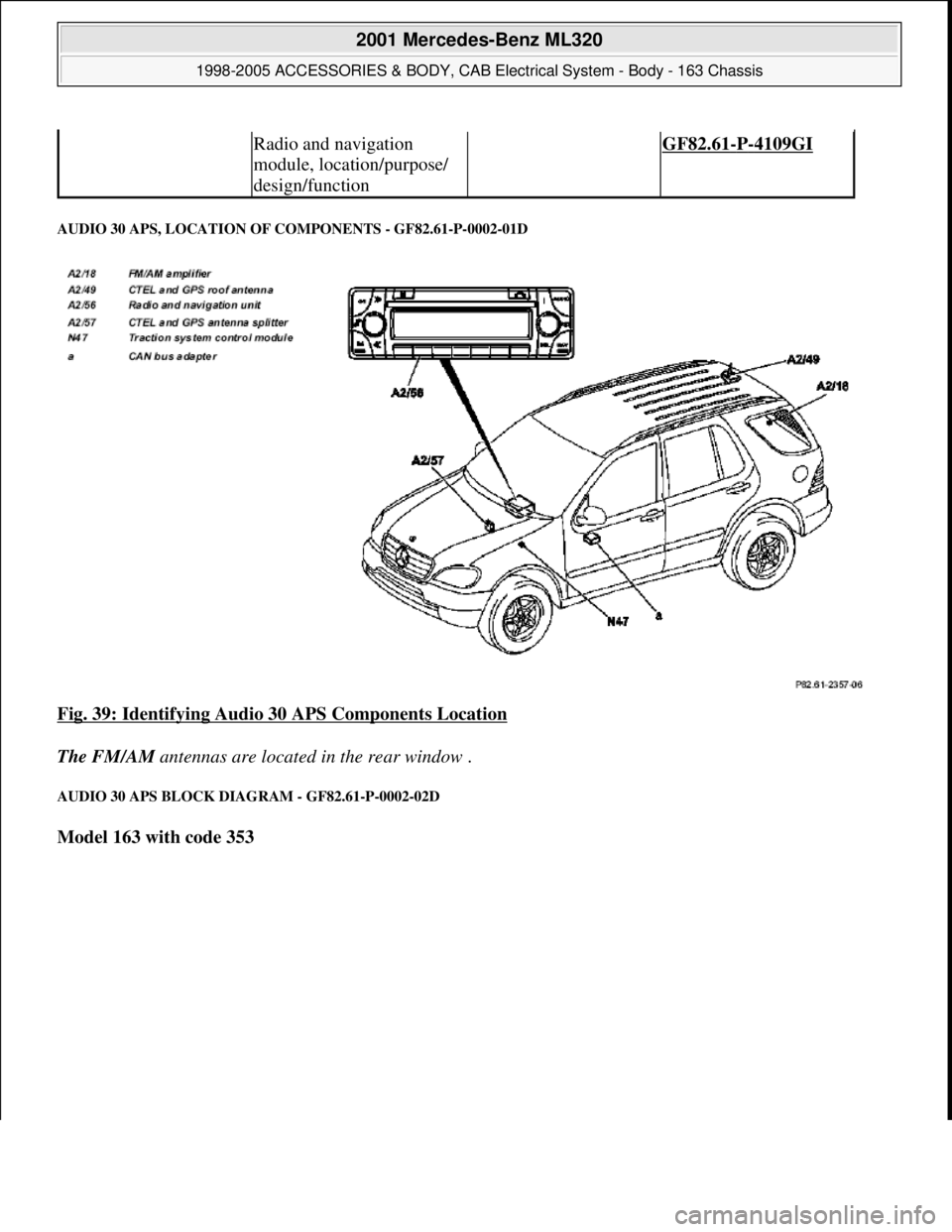

MERCEDES-BENZ ML320 1997 Complete Repair Manual AUDIO 30 APS, LOCATION OF COMPONENTS - GF82.61-P-0002-01D
Fig. 39: Identifying Audio 30 APS Components Location
The FM/AM antennas are located in the rear window .
AUDIO 30 APS BLOCK DIAGRAM - GF82

Page 1565 of 4133

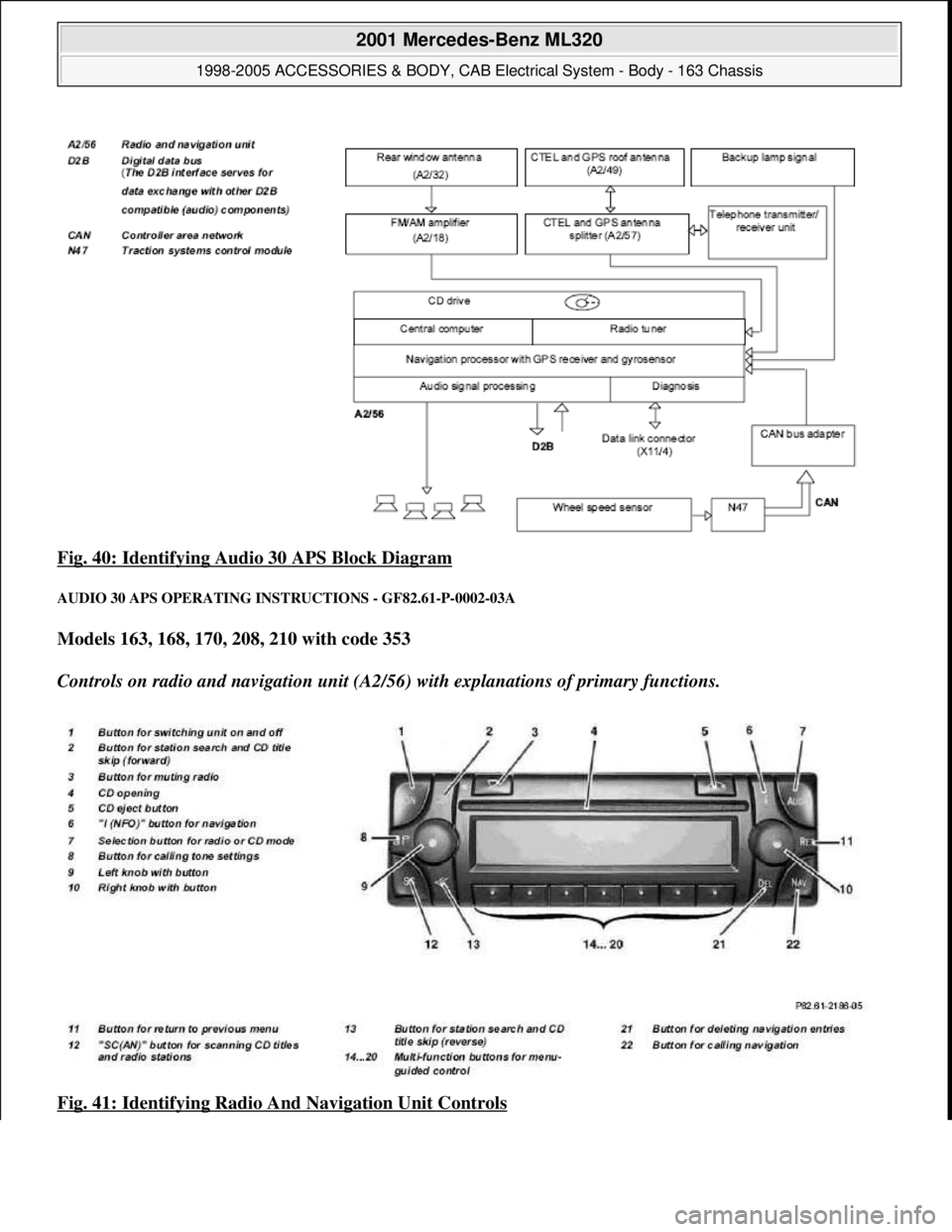

MERCEDES-BENZ ML320 1997 Complete Repair Manual Fig. 40: Identifying Audio 30 APS Block Diagram
AUDIO 30 APS OPERATING INST RUCTIONS - GF82.61-P-0002-03A
Models 163, 168, 170, 208, 210 with code 353
Controls on radio and navigation unit (A2/5

Page 1566 of 4133

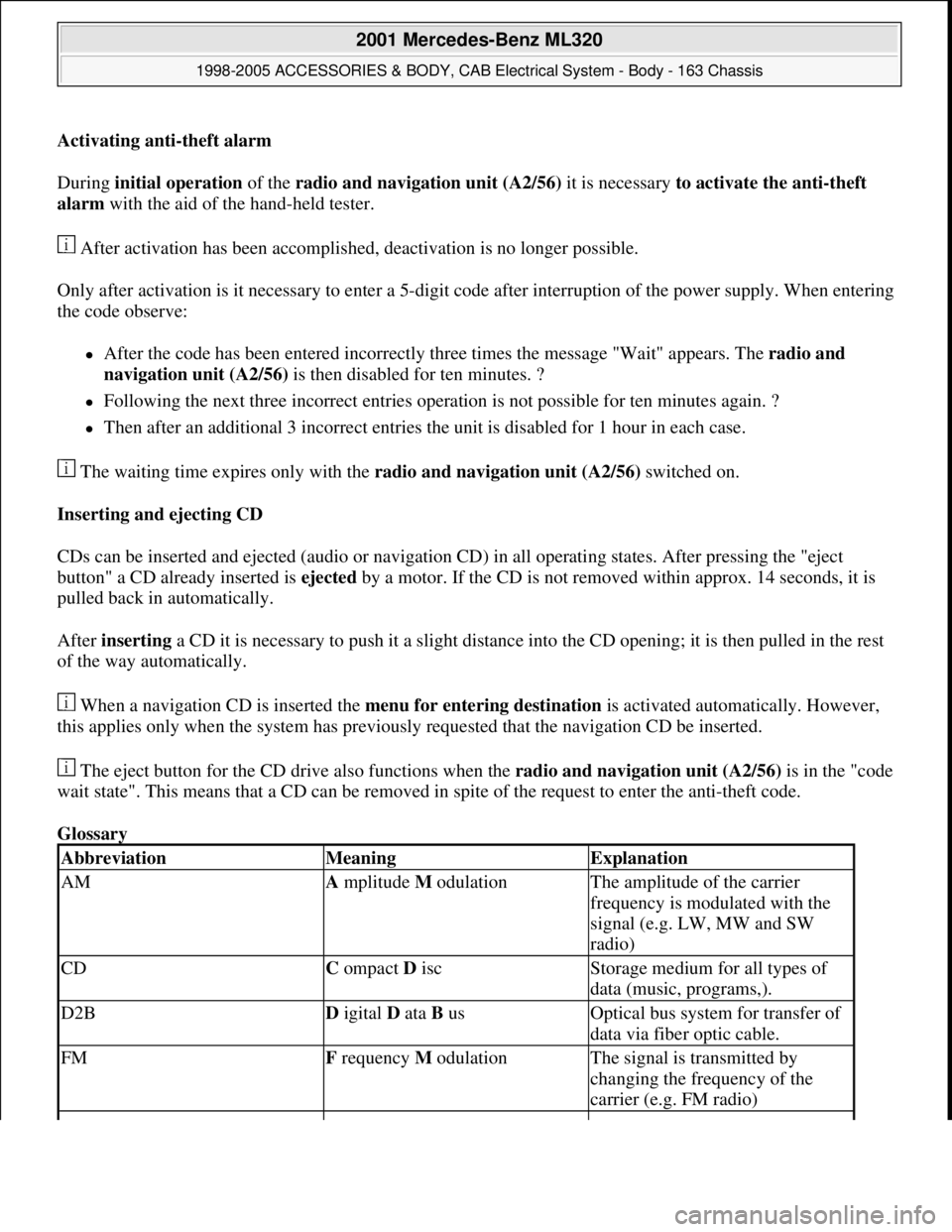

MERCEDES-BENZ ML320 1997 Complete Repair Manual Activating anti-theft alarm
During initial operation of the radio and navigation unit (A2/56) it is necessary to activate the anti-theft
alarm with the aid of the hand-held tester.
After activati

Activating anti-theft alarm
During initial operation of the radio and navigation unit (A2/56) it is necessary to activate the anti-theft
alarm with the aid of the hand-held tester.
After activation has been accomplished, deactivation is no longer possible.
Only after activation is it necessary to enter a 5-digit code after interruption of the power supply. When entering
the code observe:
After the code has been entered incorrectly three times the message "Wait" appears. The radio and
navigation unit (A2/56) is then disabled for ten minutes. ?
Following the next three incorrect entries operation is not possible for ten minutes again. ?
Then after an additional 3 incorrect entries the unit is disabled for 1 hour in each case.
The waiting time expires only with the radio and navigation unit (A2/56) switched on.
Inserting and ejecting CD
CDs can be inserted and ejected (audio or navigation CD) in all operating states. After pressing the "eject
button" a CD already inserted is ejected by a motor. If the CD is not removed within approx. 14 seconds, it is
pulled back in automatically.
After inserting a CD it is necessary to push it a slight distance into the CD opening; it is then pulled in the rest
of the way automatically.
When a navigation CD is inserted the menu for entering destination is activated automatically. However,
this applies only when the system has previously requested that the navigation CD be inserted.
The eject button for the CD drive also functions when the radio and navigation unit (A2/56)is in the "code
wait state". This means that a CD can be removed in spite of the request to enter the anti-theft code.
Glossary
AbbreviationMeaningExplanation
AMA mplitude M odulationThe amplitude of the carrier
frequency is modulated with the
signal (e.g. LW, MW and SW
radio)
CDC ompact D iscStorage medium for all types of
data (music, programs,).
D2BD igital D ata B usOptical bus system for transfer of
data via fiber optic cable.
FMF requency M odulationThe signal is transmitted by
changing the frequency of the
carrier (e.g. FM radio)

2001 Mercedes-Benz ML320
1998-2005 ACCESSORIES & BODY, CAB Electrical System - Body - 163 Chassis
me
Saturday, October 02, 2010 3:30:05 PMPage 71 © 2006 Mitchell Repair Information Company, LLC.

Page 1567 of 4133

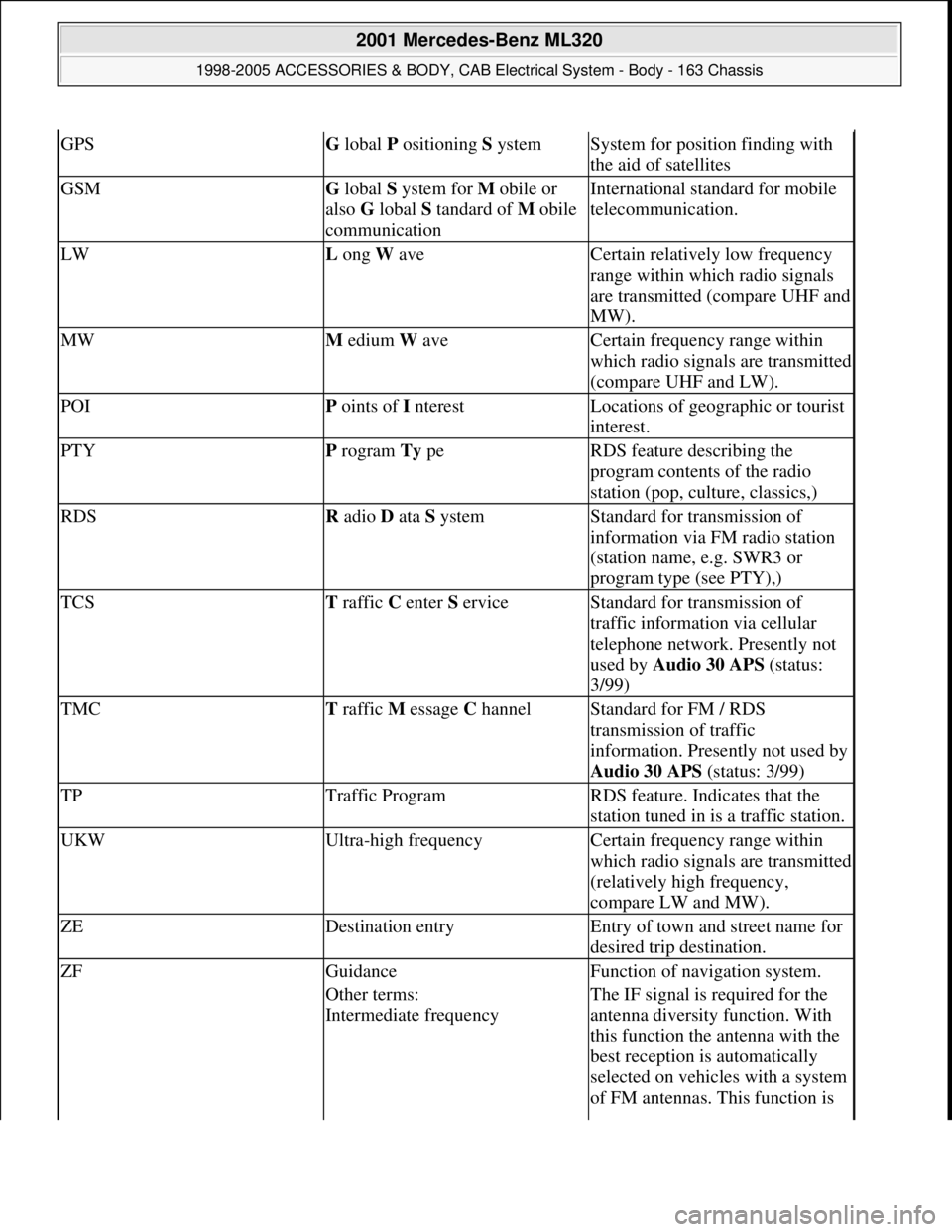

MERCEDES-BENZ ML320 1997 Complete Repair Manual GPSG lobal P ositioning S ystemSystem for position finding with
the aid of satellites
GSMG lobal S ystem for M obile or
also G lobal S tandard of M obile
communicationInternational standard for mob

Page 1568 of 4133

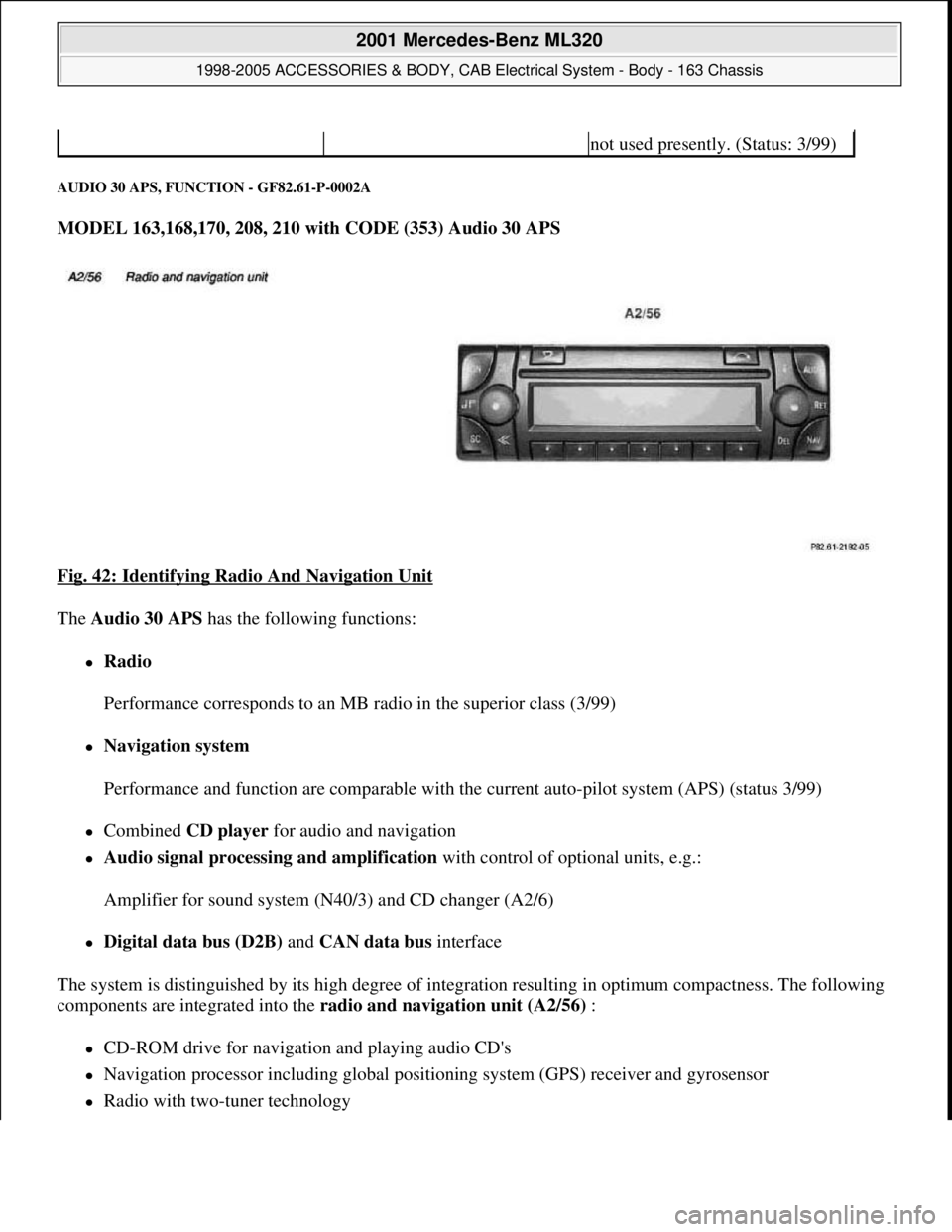

MERCEDES-BENZ ML320 1997 Complete Repair Manual AUDIO 30 APS, FUNCTION - GF82.61-P-0002A
MODEL 163,168,170, 208, 210 with CODE (353) Audio 30 APS
Fig. 42: Identifying Radio And Navigation Unit

The Audio 30 APS has the following functions:

